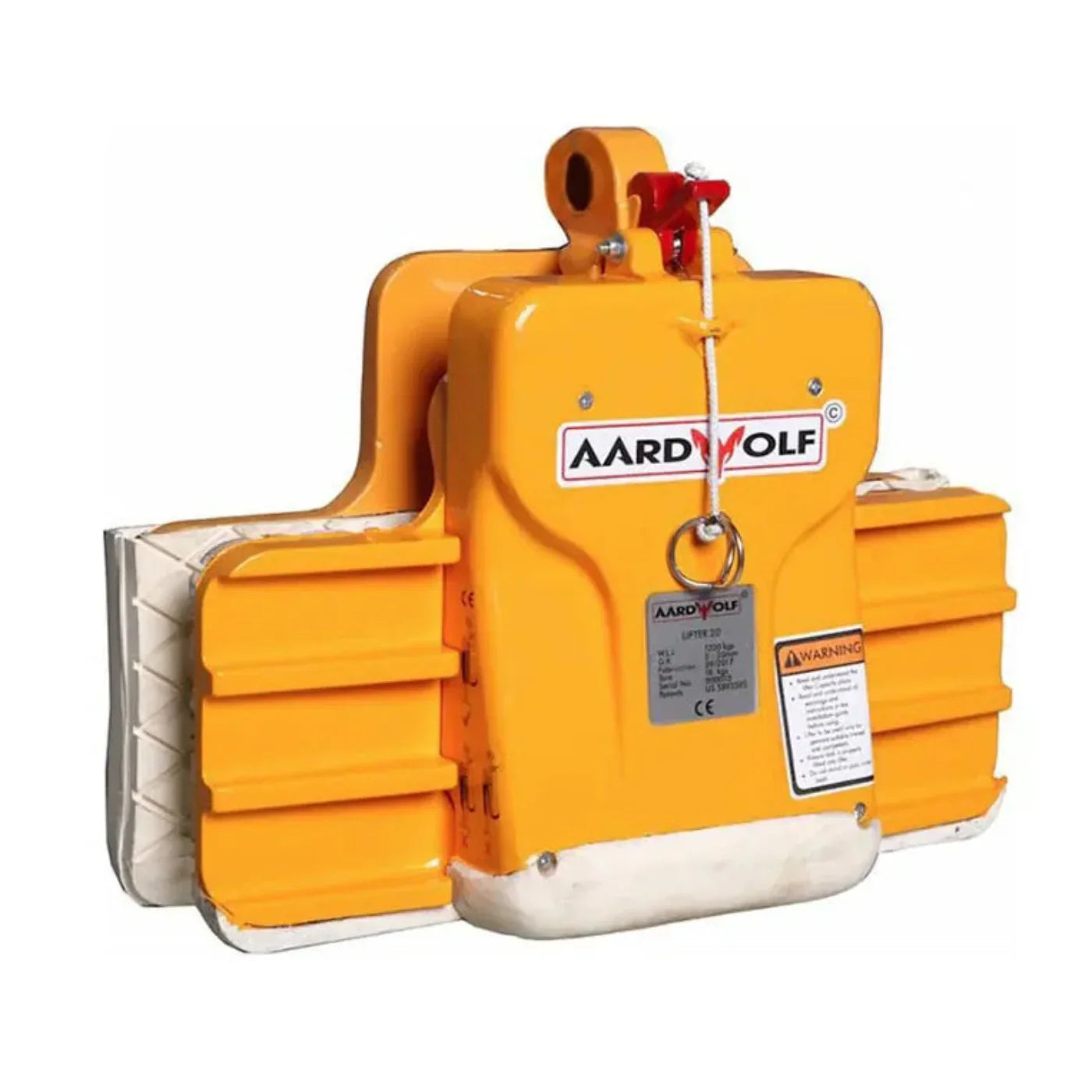

AL20R Aardwolf Lifter - AL20R
A new slab lifting clamp with extra-wide jaws and a compact design has been specifically designed to meet the needs of businesses handling thin sheets of engineered porcelain, glass, and other thin ceramic sheets.
Features
-
Size: The Aardwolf Slab Lifter 20’s compact construction allows for lifting close-packed slabs out of racks and containers.
- Safety: Only a small movement of the slab is required to engage and grip the slab, which is generally well below the overbalance angle, thus eliminating the danger to the operator.
-
Secure: The Aardwolf clamps grip slabs firmly. The Aardwolf Lifter 20 has a force multiplying factor of approximately 3 to 1.
Specifications
| Grip range |
3 – 20 |
0.12” – 0.79” |
| Working load limit |
800 |
1,763 |
| Net weight |
20.4 |
45 |
| Packaging dimension |
440 x 150 x 350 |
17.3″ x 6.3” x 14.2” |
What Our Experts Think
-
porcelain, glass, and ceramics.
-
Extra-Wide Jaws: Accommodates slabs ranging from 0 to 20 mm thick, providing a secure grip without damaging delicate surfaces.
-
High Load Capacity: Supports up to 1,200 kg (2,646 lbs), ideal for handling substantial materials.
-
Safety Features: Equipped with a secure locking mechanism and edge protection rollers to prevent slab edge chipping.
-
Durable Construction: Made from high-quality cast aluminum, offering strength while maintaining a lightweight design.
-
Versatile Compatibility: Compatible with cranes and forklifts for flexible handling and movement.
Q&A
Q: What is the Aardwolf AL20R Slab Lifter?
A: The Aardwolf AL20R is a compact slab lifting clamp designed for handling thin sheets of engineered porcelain, glass, and other delicate ceramic materials. It features extra-wide jaws, a secure locking system, and edge protection rollers to ensure safe and efficient lifting.
Q: What is the grip range and weight capacity of the AL20R?
A: The AL20R has a grip range of 0–20 mm (0"–0.8") and a working load limit of 1,200 kg (2,646 lbs), making it suitable for lifting thin and delicate slabs.
Q: How does the AL20R protect slab surfaces?
A: The lifter is equipped with rubber-coated clamp plates and edge protection rollers to prevent scratches and surface damage, preserving the slab’s pristine finish.
Q: What is the weight and packaging size of the AL20R?
A: The net weight of the AL20R is 20.6 kg (45.4 lbs), with packaging dimensions of 440 x 150 x 360 mm (17 3/8" x 5 7/8" x 14 1/8").
Q: Is the AL20R compatible with cranes and forklifts?
A: Yes, the AL20R is designed for seamless compatibility with cranes and forklifts, enhancing both safety and productivity in slab handling operations.
Maintenance Tips
-
Regular Cleaning: Wipe the lifter with a damp cloth to remove dust and debris. For stubborn residues, use mild soap and water. Avoid abrasive cleaners to preserve the finish.
-
Inspect Rubber Pads: Check the rubber-coated clamp plates for wear or damage. Replace them if they show signs of deterioration to prevent scratching and damage to slabs.
-
Examine Locking Mechanism: Ensure the locking latch functions properly. It should engage and disengage smoothly to securely hold slabs during lifting.
-
Check Edge Protection Rollers: Inspect the edge protection rollers for wear. Replace them if they are damaged to prevent slab edge chipping.
-
Monitor Load Capacity: Adhere to the specified working load limit of 1,200 kg (2,646 lbs) to avoid overloading and potential damage.
-
Proper Storage: Store the lifter in a dry, sheltered area to prevent exposure to corrosion or damage from environmental elements.
