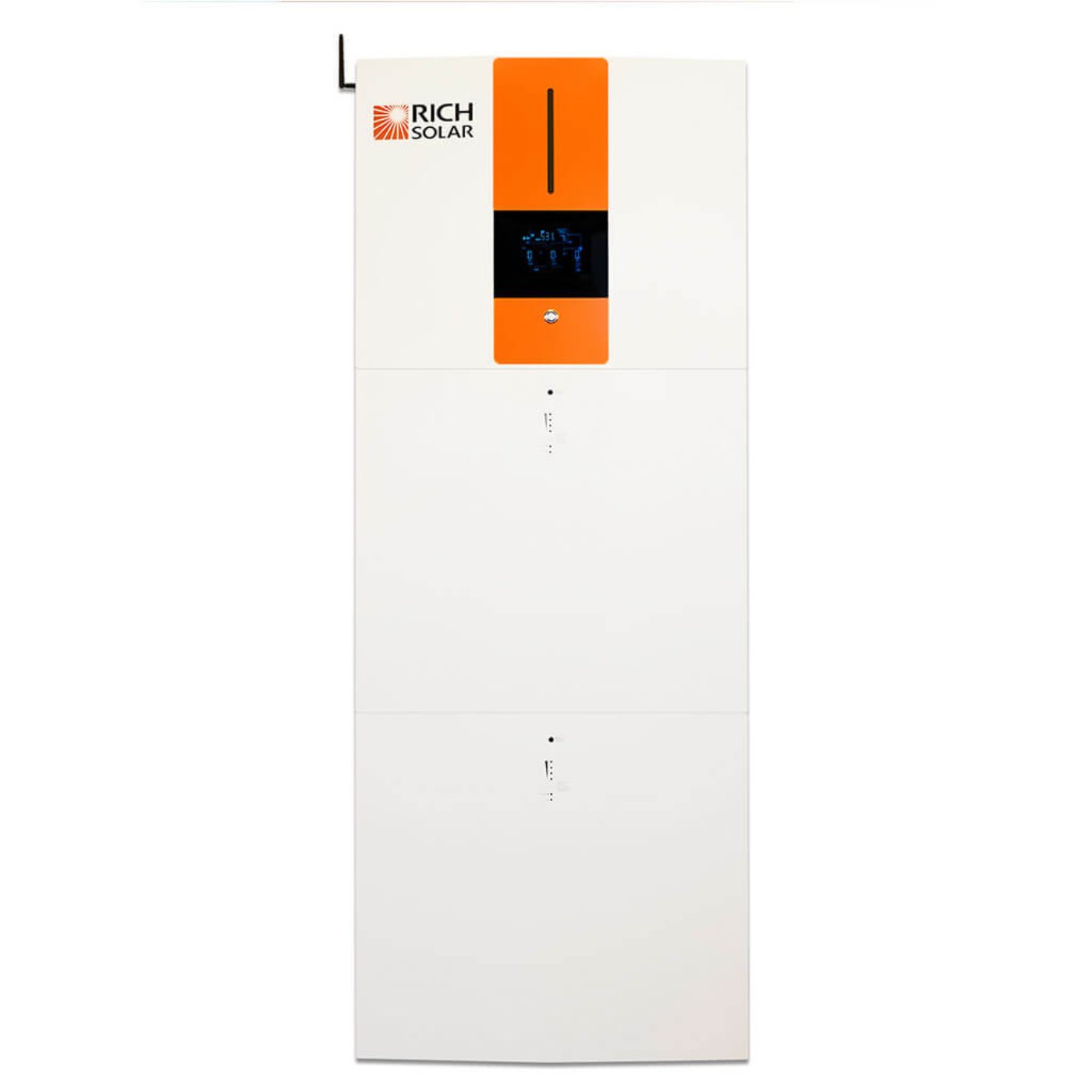

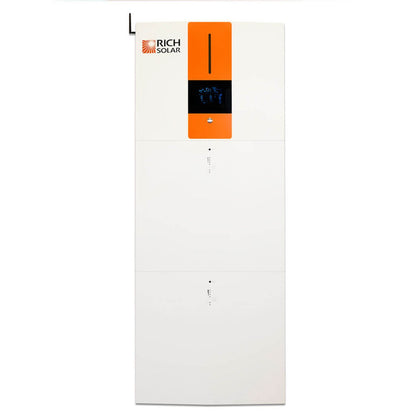

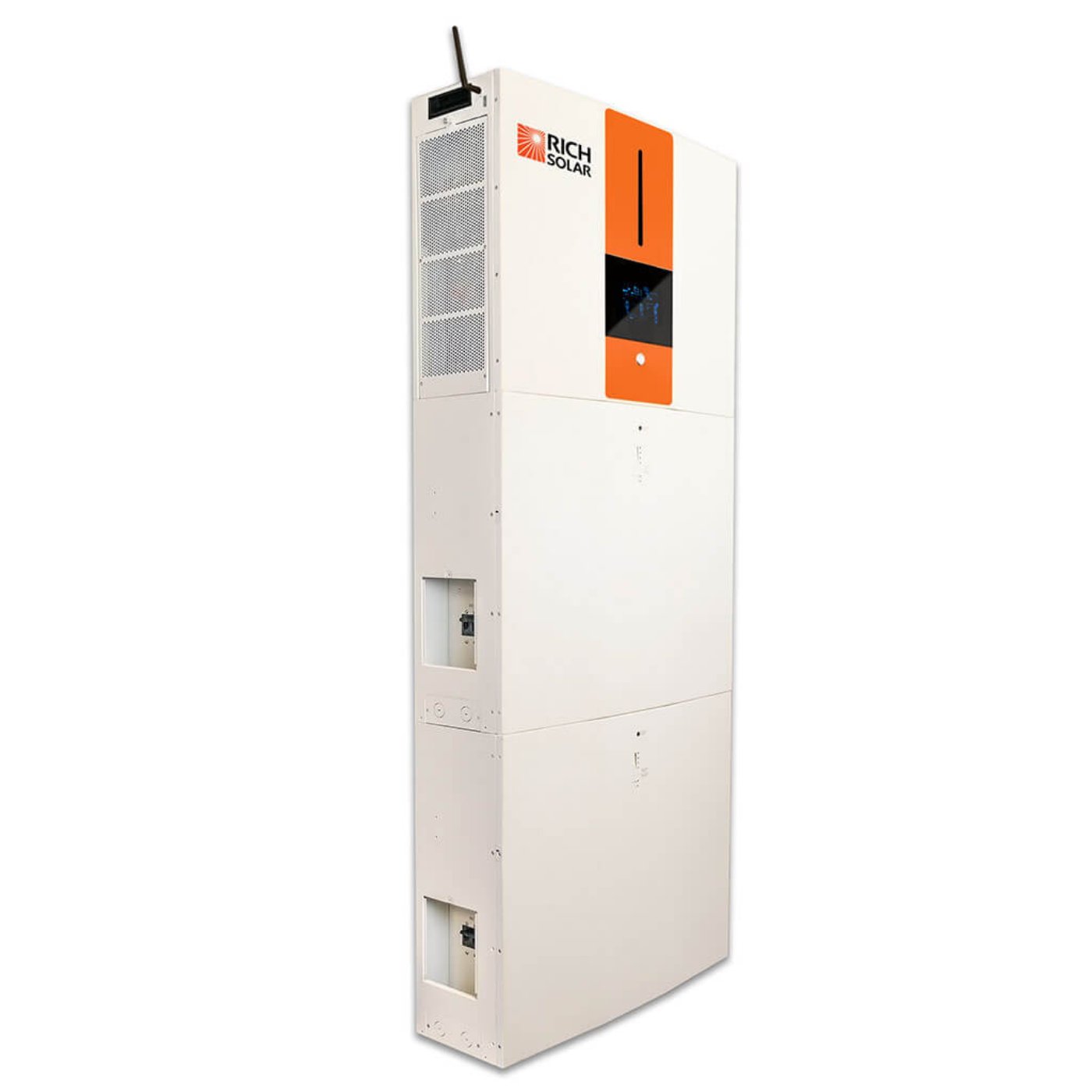

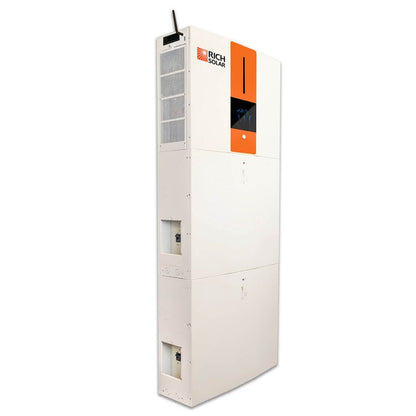

Introducing the RICH SOLAR All-in-One Energy Storage System
The RICH SOLAR All-in-One Energy Storage System is a powerful and efficient solar energy system designed to provide clean and reliable electricity. This innovative system integrates all the components required for solar power generation into a single, compact unit, including an inverter, batteries, and a charge controller.
- Pure sine wave output
- Off-Grid application
- Programmable supply priority for PV, Battery, or Grid
- User-adjustable battery charging current
- Battery independent design
- Multiple communication for USB, RS232, SNMP, Modbus, GPRS and Wi-Fi
- Monitoring APP (Android and iOS) for real-time status display and parameter control
- Built-in 2 MPPT trackers and AC/Solar charger up to 120A
- Compatible with utility and generator
- Scalable Li-Ion battery expansion
The compact design of an All-in-One Energy Storage System makes it an attractive option for those with limited space, or for those who want a more discreet installation. It can also be easier to install and maintain compared to larger energy storage systems, which may require more extensive wiring and infrastructure.
Specs
SPECIFICATIONS
| Model: |
RS-A10 |
| Maximum PV Input Power: |
8000W |
| Rated Output Power: |
6500W |
| Maximum Charging Power: |
6500W |
PV INPUT (DC)
| MPPT Range @ Operating Voltage: |
90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage: |
250 VDC |
| Maximum Solar Charge Current: |
120A |
| Number of MPP Trackers / Maximum Input Current: |
2 / 2 x 18 A |
AC INPUT
| Acceptable Input Voltage Range: |
90-140 VAC (For Computers) |
|
80-140 VAC (For Home Appliances) |
| Maximum AC Input Current: |
60A |
BATTERY MODE OUTPUT
| Nominal Output Voltage: |
120 VAC |
| Maximum Conversion Efficiency (DC/AC): |
93% |
BATTERY
| Nominal DC Voltage: |
48 VDC |
| Maximum Charging Current: |
120 A |
| Dimension: |
(D x W x H): 8.4″ x 24.4″ x 19.7″ |
| Net Weight: |
99 lb |
| Capacity: |
5120Wh |
| Nominal Voltage: |
51.2VDC |
| Full Charge Voltage(FC): |
56V |
| Full Discharge Voltage(FD): |
42V |
| Typical Capacity: |
100 Ah |
| Max Continuous Discharging Current: |
120A |
| Max Discharging Current: |
192A at 1 min |
| Protection: |
BMS, Breaker |
| Float Charge Voltage: |
52.5V |
| Charge Current: |
20A (0.2C) |
| Maximum Charge current: |
50A (0.5C) |
| Standard Charge method: |
0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C |
| Inner Resistance: |
≤20m ohm |
ALL IN ONE SYSTEM PHYSICAL
| System Dimension (D X W X H): |
19.7″ x 26″ x 49.2″ |
| Net Weight: |
287 lb |
STANDARD
| Compliance Safety: |
IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B |
Manual
ALL IN ONE ENERGY STORAGE SYSTEM
What Our Experts Think
Q: What is an All-in-One Energy Storage System?
A: It’s a complete solution that stores energy from renewable sources, like solar panels, in a single unit for later use in your home or RV.
Q: What does the system include?
A: Typically, it includes a battery storage unit, inverter, charge controller, and often a monitoring system, all integrated into one package.
Q: How does the system work?
A: The system stores excess energy generated by solar panels or other renewable sources and supplies it when needed, providing backup power.
Q: What are the key features of an All-in-One Energy Storage System?
A: Compact design, high capacity storage, integrated inverter/charger, easy installation, and smart monitoring.
Q: Can the system be used off-grid?
A: Yes, it’s perfect for off-grid homes or RVs, providing a reliable energy source without relying on the electric grid.
Q: Is the system compatible with solar panels?
A: Yes, it integrates seamlessly with solar panel systems, enabling efficient energy storage and usage.
Q: How long does the battery last?
A: The battery lifespan typically ranges from 10 to 15 years, depending on usage and maintenance.
Q: Is it easy to install?
A: Yes, most systems are designed for easy installation, with clear instructions and minimal setup required.
Q: Is the system scalable?
A: Yes, you can expand capacity by adding more units if your energy needs increase.
Q&A
-
Comprehensive Energy Solution: The All-in-One Energy Storage System is designed to offer a complete power solution, integrating energy storage, management, and backup capabilities into one compact unit.
-
Seamless Integration: This system simplifies energy storage for residential or off-grid use, allowing for easy integration with solar panels, generators, or other renewable energy sources.
-
Efficient Power Management: Equipped with smart energy management, it efficiently stores excess energy and distributes it when needed, optimizing energy use and reducing reliance on the grid.
-
Reliable Backup: Provides reliable backup power during outages, ensuring that essential devices and systems remain operational, offering peace of mind during emergencies.
-
Space-Saving Design: Its all-in-one setup consolidates several components into one unit, saving space while still delivering powerful energy storage and performance.
-
Scalable Capacity: Many systems offer scalable solutions, allowing users to add more units as energy needs grow, making them suitable for both small and large applications.
-
User-Friendly Interface: With intuitive controls and monitoring features, users can easily manage their energy usage and storage, enhancing convenience and control.
Maintenance Tips
-
Battery Health: Check battery status regularly via the management system and ensure proper charging cycles.
-
Cleaning: Dust off vents and exterior components to prevent overheating.
-
System Monitoring: Regularly review performance data to detect any irregularities or faults early.
-
Temperature Control: Ensure the system is stored in a cool, dry environment to optimize lifespan.
-
Inspection: Annually inspect wiring and connections for signs of wear or corrosion.
