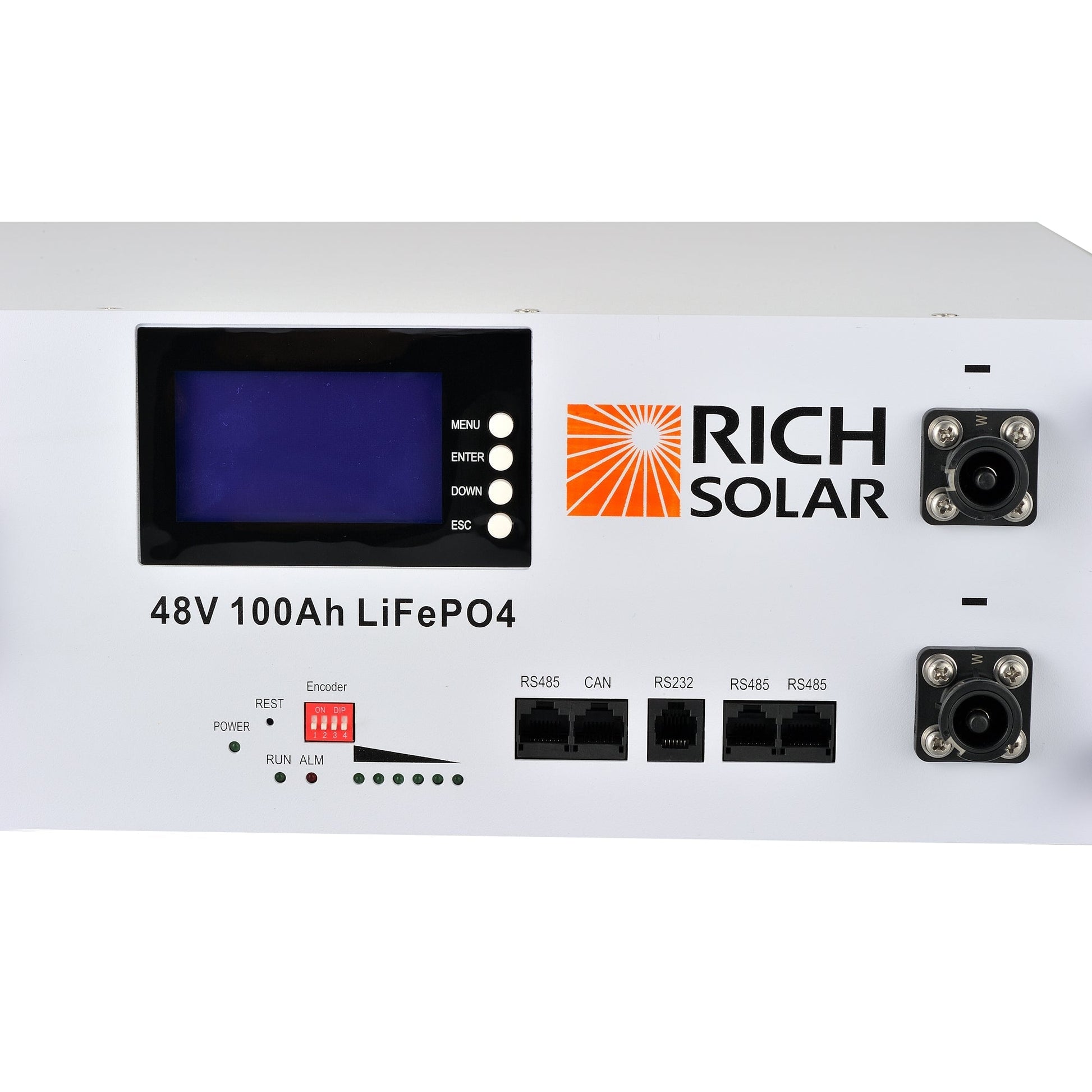

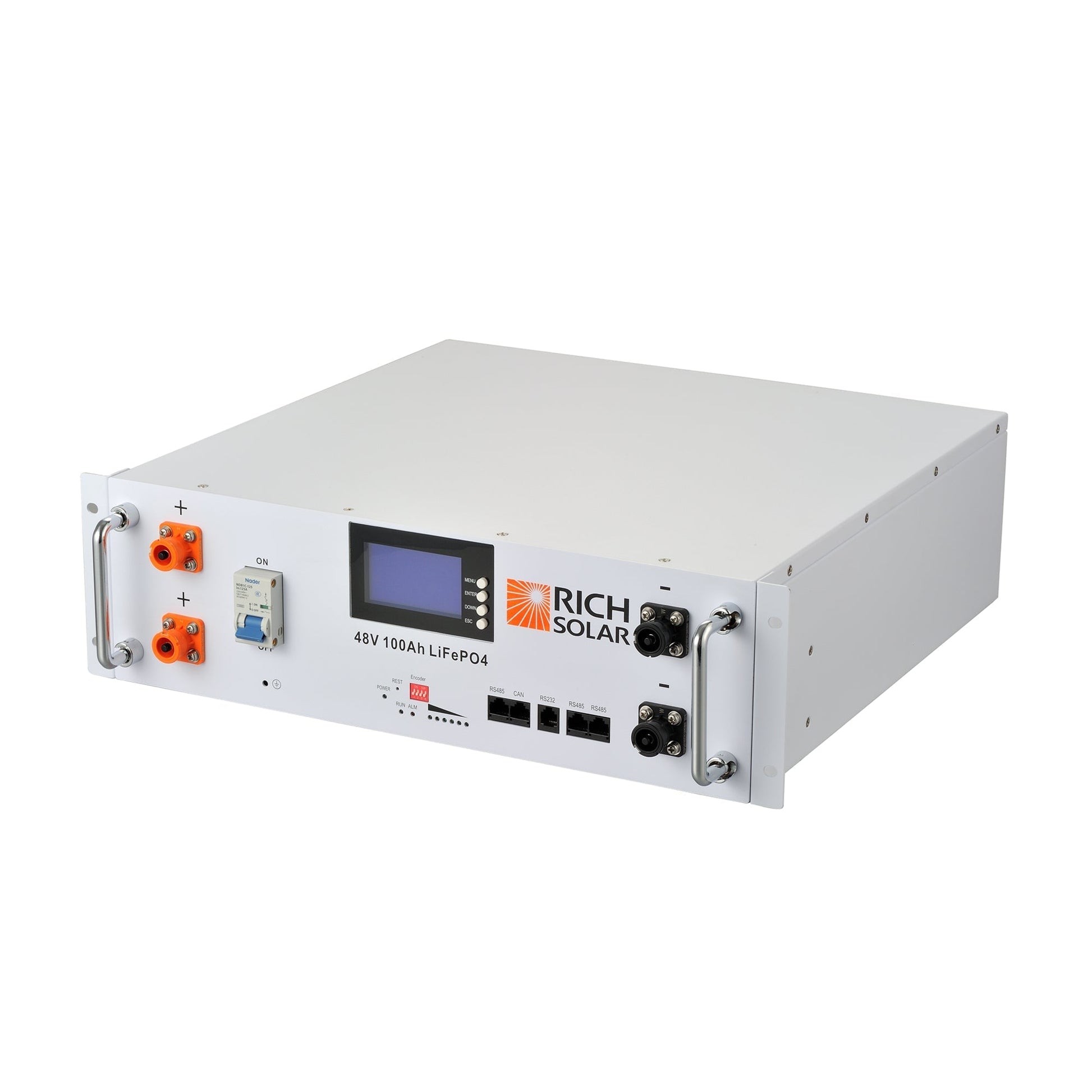

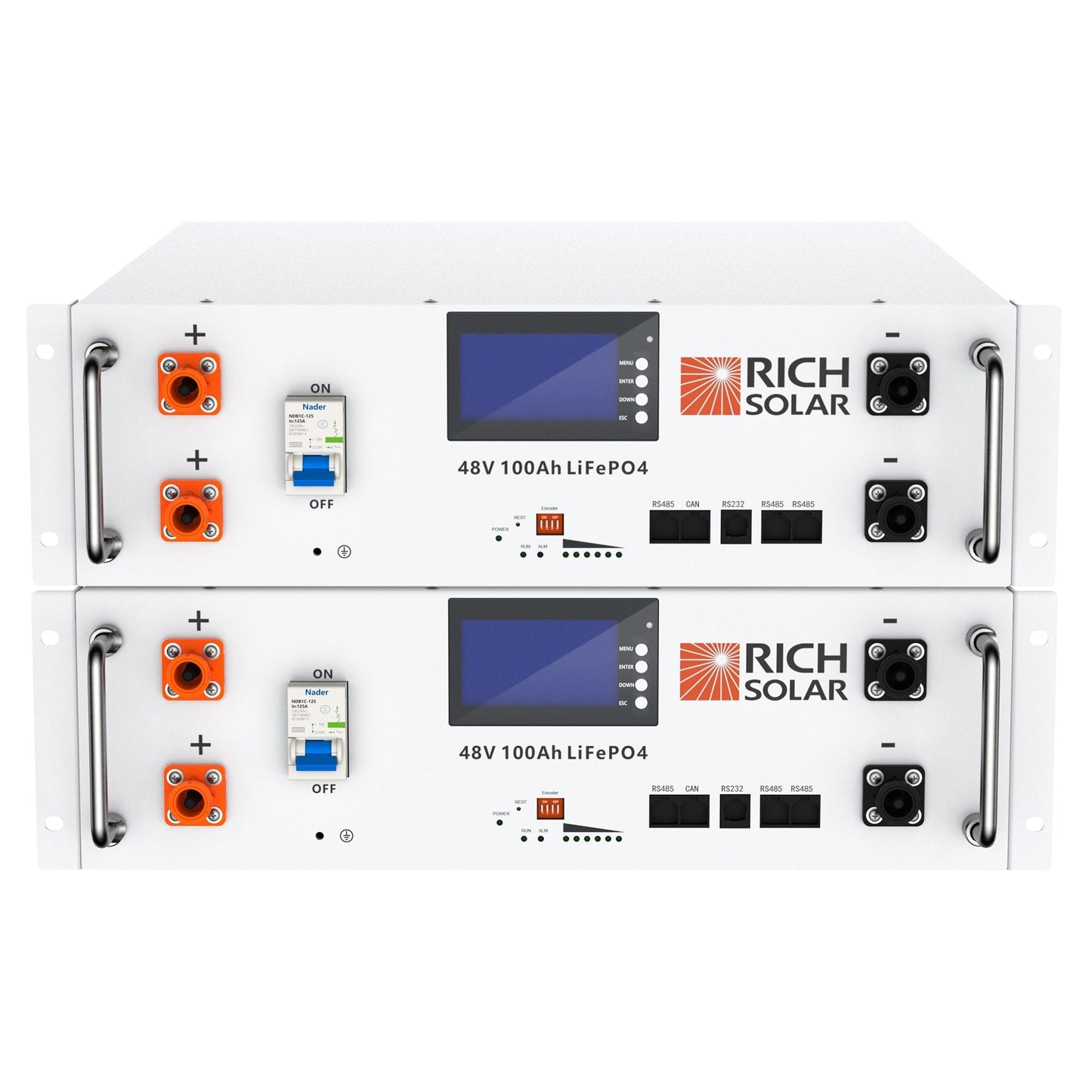

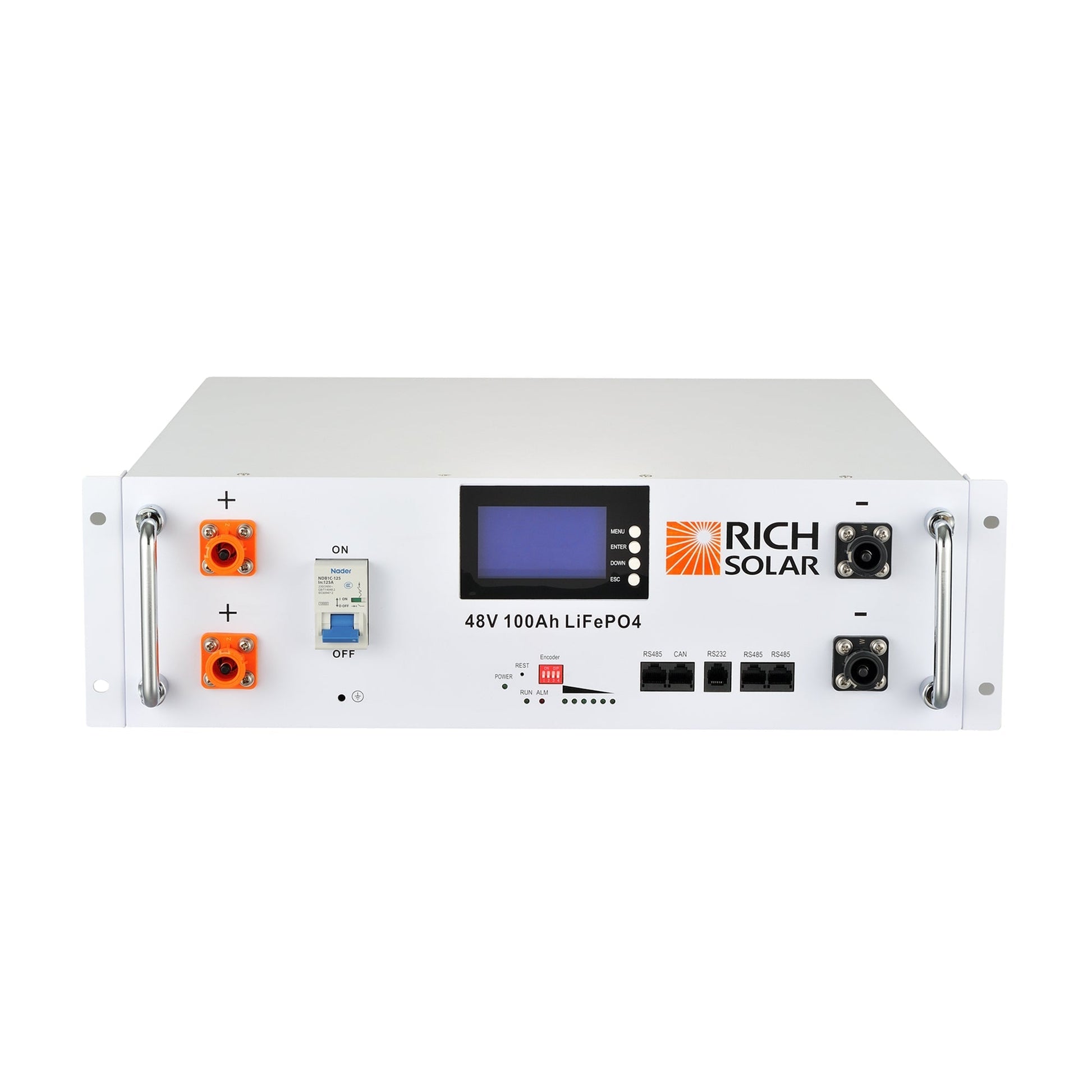

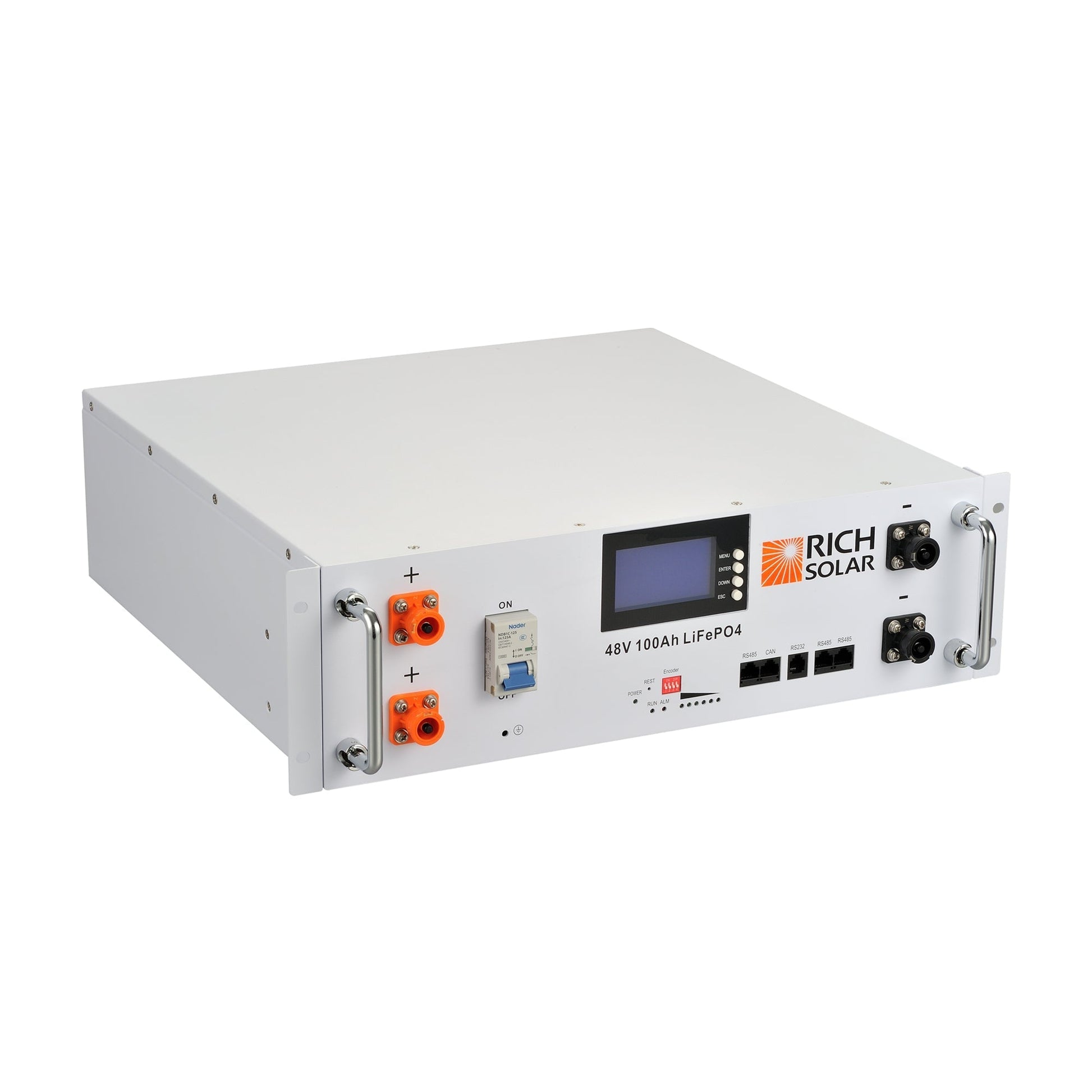

Alpha 5 Server Lithium Iron Phosphate Battery

Name: Alpha 5 Server Lithium Iron Phosphate Battery
Availability: InStock

by RICH SOLAR

SKU RS-B48100SR

Save up to 6%

$1,599.99

$699.99 - $9,599.99

$1,599.99

$1,503.99

$657.99 - $9,023.99

$1,503.99

CLEARANCE SALE.
ITEMS LEFT.
PEOPLE are also watching that product.

Quantity

Description
Specs
Manual

Description

7,000 Cycles. LiFePO4 Lithium Battery. 20 Year Lifespan.

RICH SOLAR 48V 100Ah lithium iron phosphate battery (Alpha 5 Server) has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies. The LiFePO4 technology has better thermal and chemical stability, which improves battery safety and packed with power in a small and lightweight footprint.

Features:

Extremely high number of charge/discharge cycles
20 Year lifespan with proper maintenance
Built-in smart battery management system
Wide operating temperature range
Unsurpassed high temperature performance
Green energy without metal contaminant
Low maintenance
High amp capacity
Stable output voltage
Little self-discharge
Lifetime customer support
Over charging or discharging protection.
Over current & short circuit protection.
High & low temperature disconnects
Charge Voltage: 52.5V
Max Charge Current: 100 A
Max Discharge Current: 100 A
Battery Dimensions: 19″L x 18 3/4″W x 5 1/4″H
Weight: 130 lb

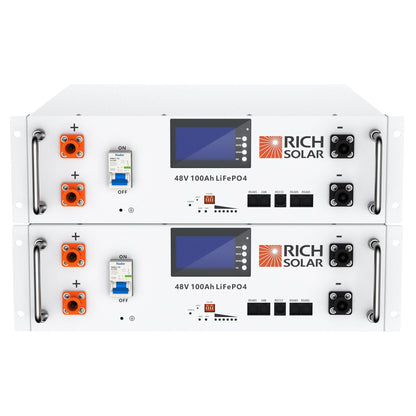

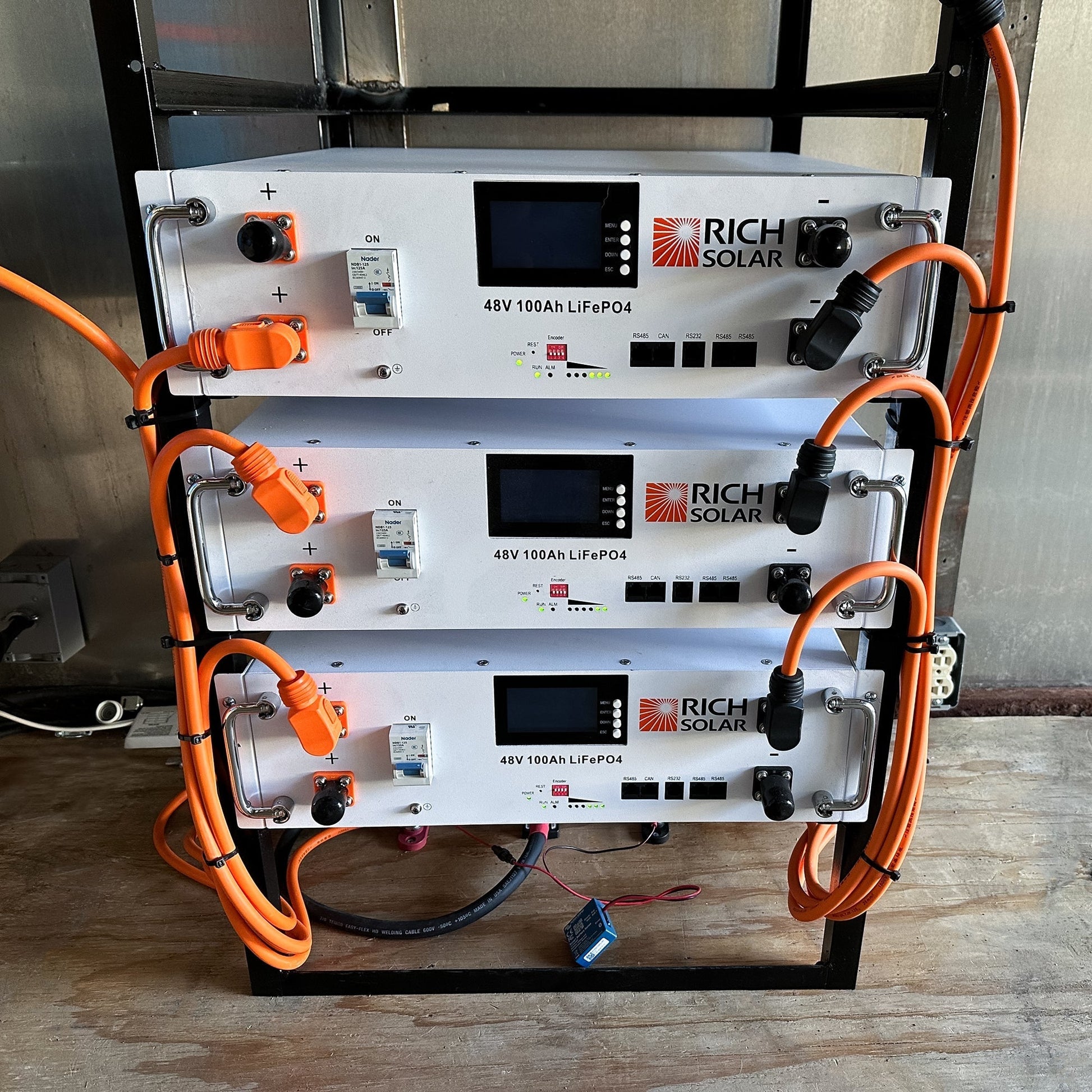

Connect in Parallel for Larger Capacity

BMS Safety Protection

Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
Convenient removable carry handle
Lightweight
Short circuit protected
Physical damage to battery case will not cause fire
Excessive thermal exposure will not cause a fire
Able to withstand over-charge/over-discharge without damage to the battery
Sophisticated Battery Management System (BMS)

Included:

1 foot RS485 communication cable
Set of parallel cables per battery
4.8kWh (48V 100Ah) lithium iron phosphate battery

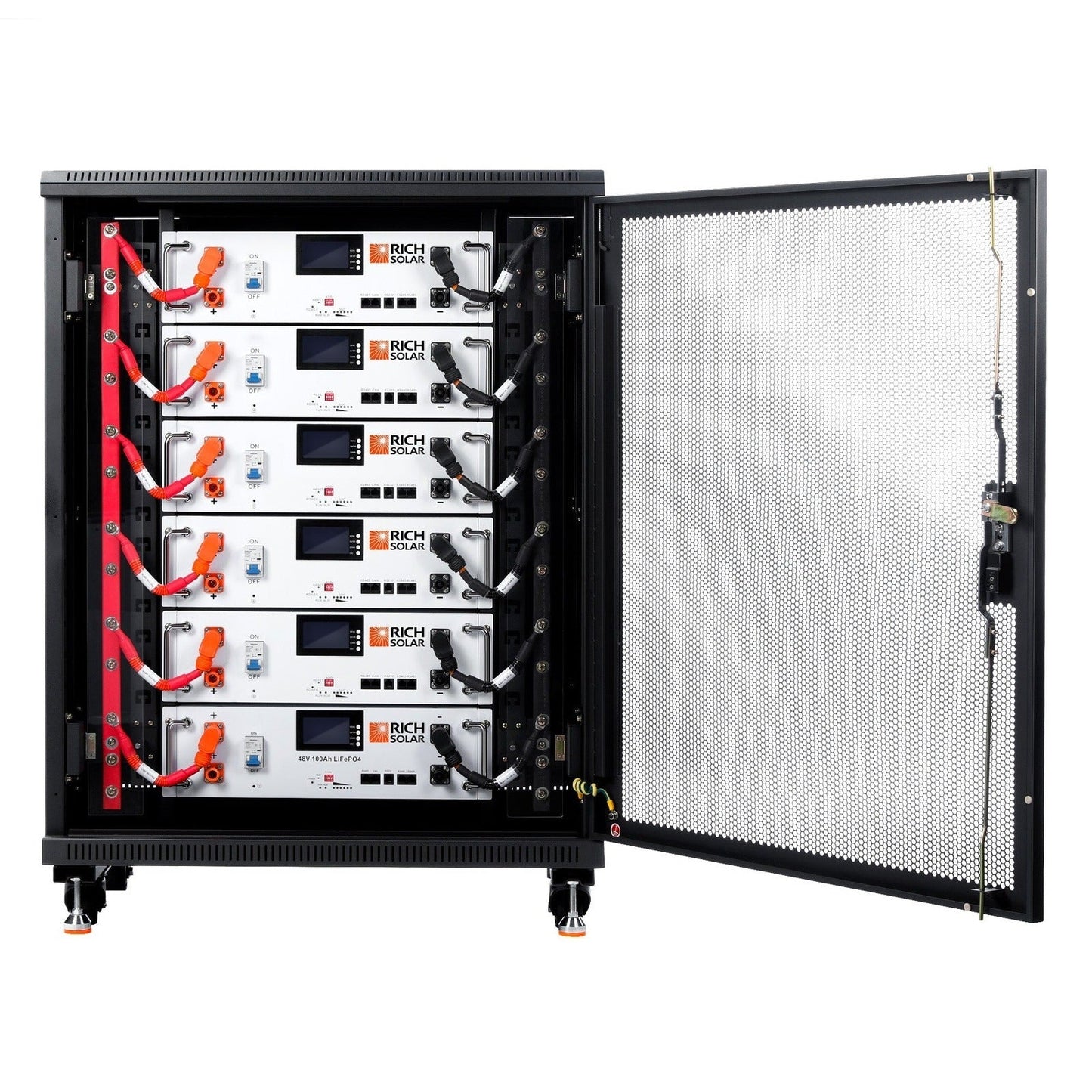

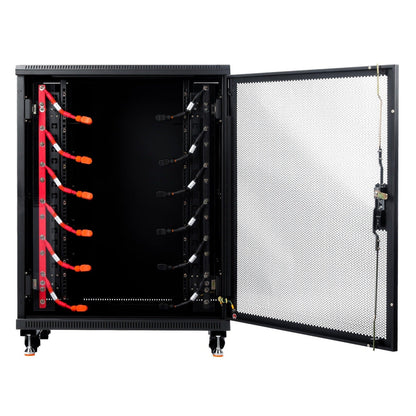

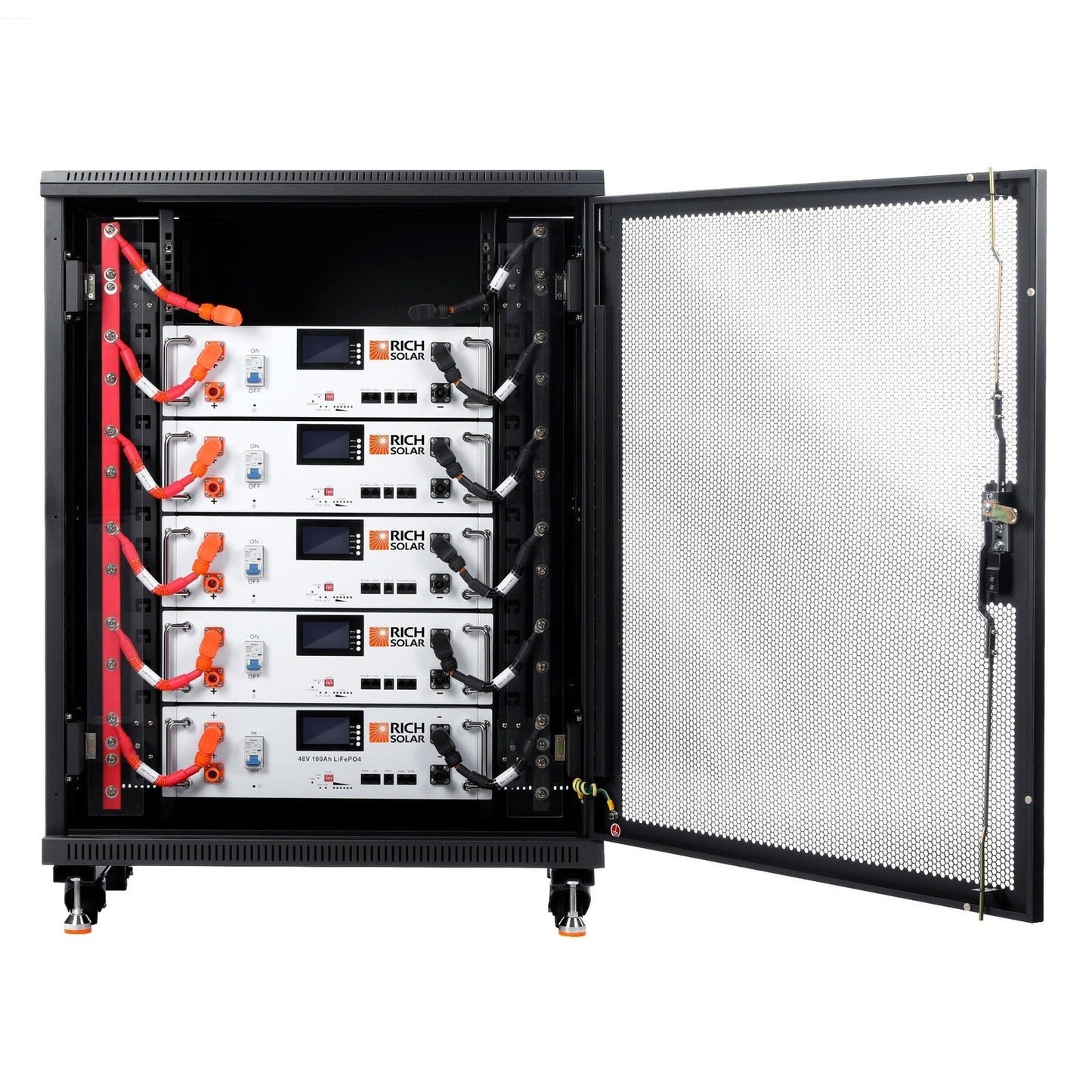

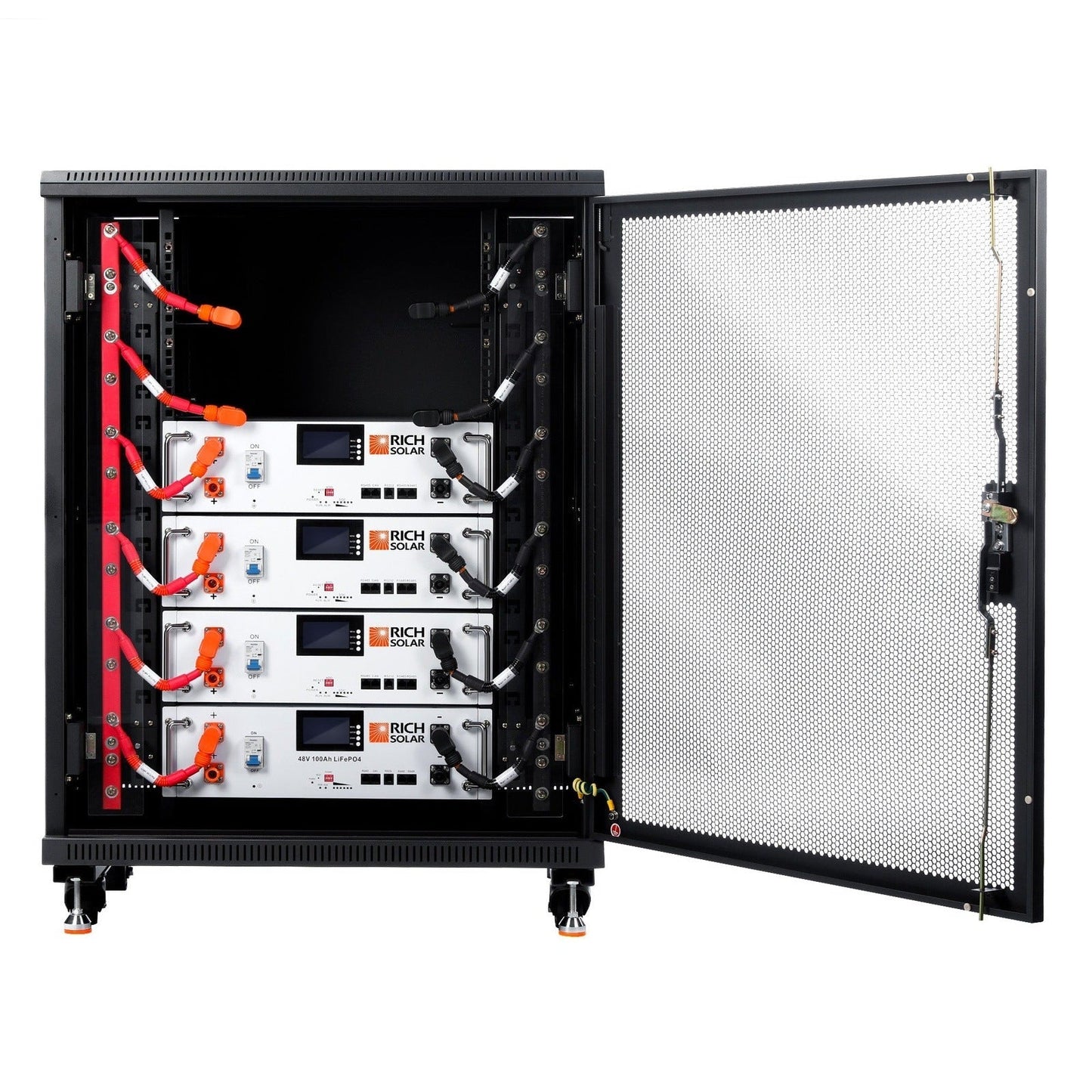

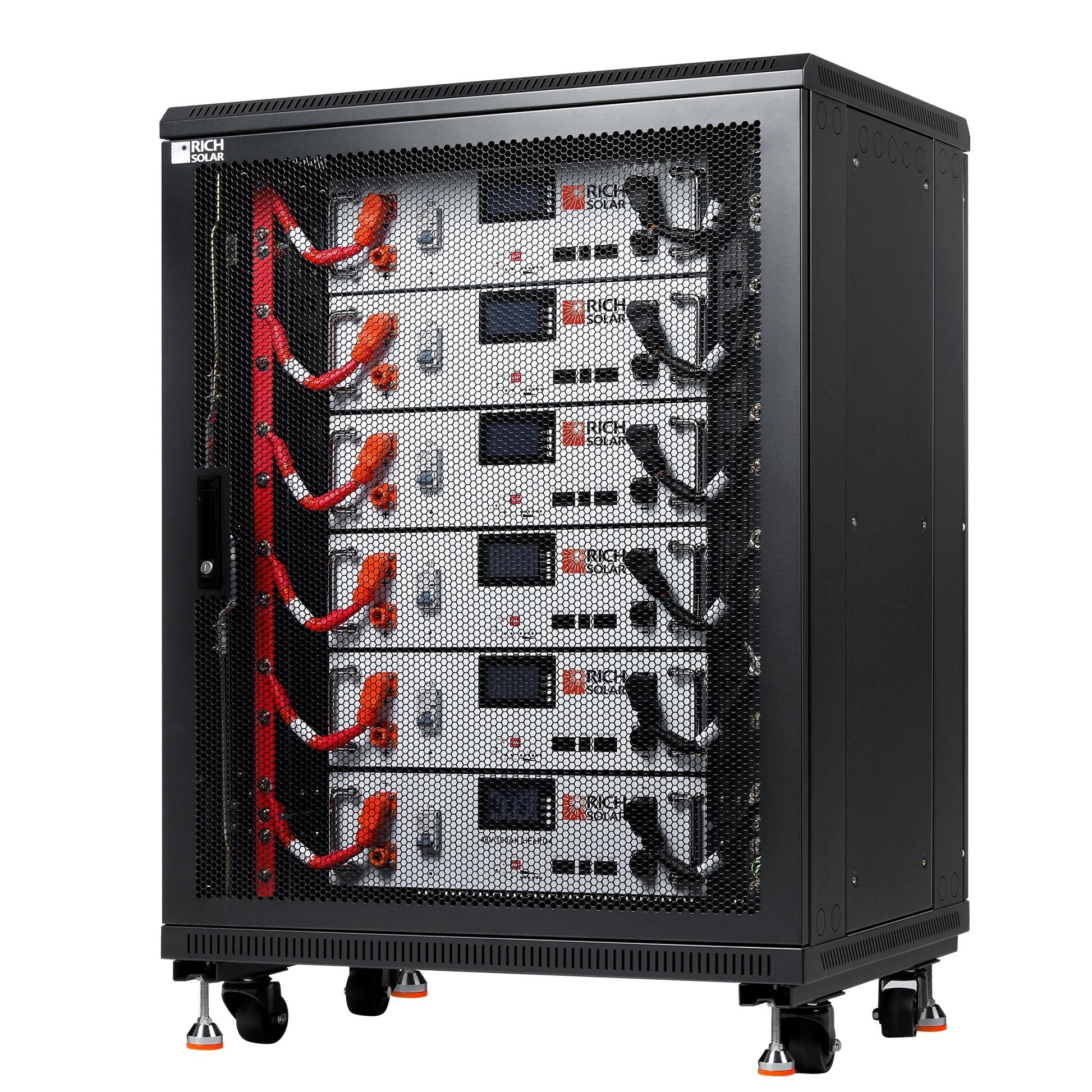

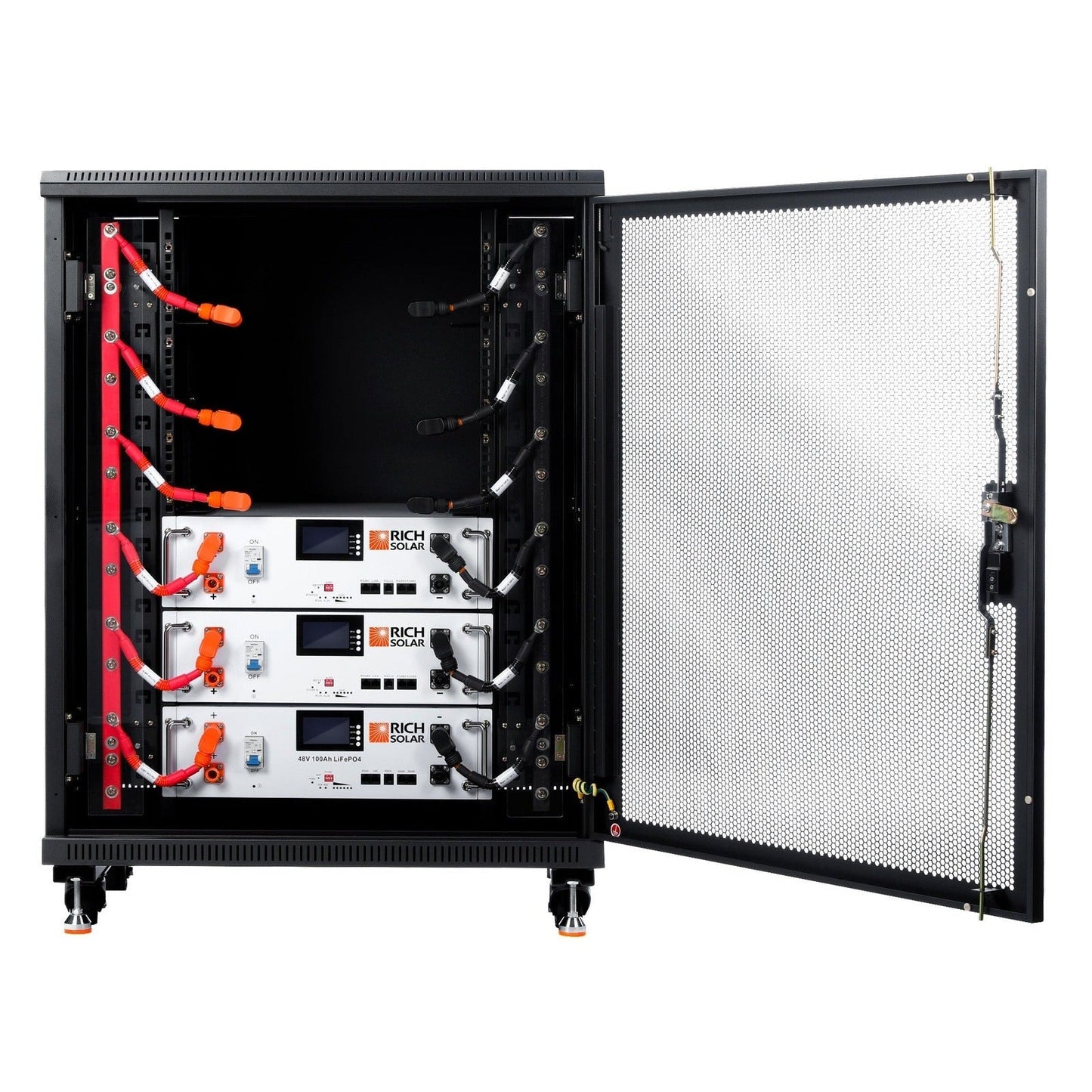

Battery Server Rack

Battery Server Rack Dimensions: 39″L x 32″W x 24″H
Weight: 159 lb
Material: High-quality cold-rolled steel plate
Protection level: IP20
Packaging:Carton + wooden pallet

Specs

Specifications

Electrical Specifications
Nominal Voltage:	48V
Nominal Capacity (at .5C, 77°F):	100Ah
Minimum Capacity (at .5C, 77°F):	95Ah
Expected Cycle Life:	>7000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD

Operating Specifications
Charge Method:	Smart charger, constant current, constant voltage
Operating Voltage:	48 V
Capacity:	100 Ah
Energy:	4800 Watt Hours
Charge Voltage Range (Max 52.5V):	52.0 -52.5V
Continuous Charge Current:	100A
Continuous Discharge Current:	100A
Over Voltage Shutdown:	52.5 +/-0.2V
Discharge Cut-off Voltage:	42V =/- 0.5V
Self Discharge (stored at 50% SOC):	<3%/month
Waterproof:	IP65

Temperature Performance
Charge Temperature:	32° F to 113° F
Discharge Temperature:	-4° F to 122° F
Storage Temperature:	-4° F to 122° F
BMS High Temperature Cut-off:	149°F
BMS Low Temperature Cut-off:	32°F

Physical Specifications
Battery Dimensions:	19″L x 17.7″W x 5.2″H
Weight:	42kg/92.6 lb
Group Size:	15

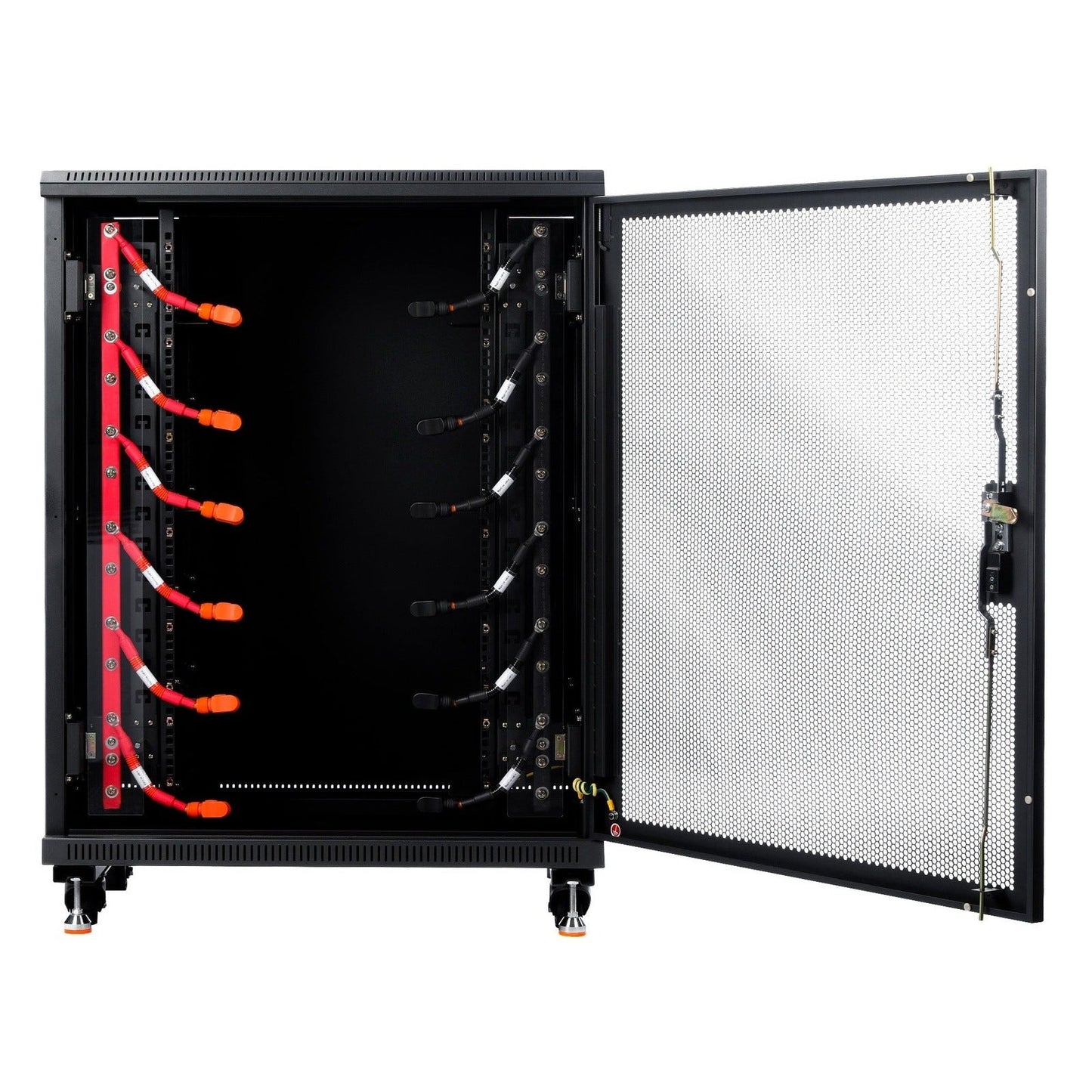

Battery Server Rack Specifications
Battery Server Rack Dimensions:	39″L x 32″W x 24″H
Weight:	159 lb
Thickness:	Frame 1.5mm, top/bottom plate 1.2mm, column 2.0mm, mesh door plate 1.2mm, side plate (screw fixed) 1.0mm, L-shaped bracket 2.0mm;
Material:	High-quality cold-rolled steel plate
Protection level:	IP20

BMS Operation

Over Charge Protection
Over charge detection voltage:	3.9 +/- 0.05V
Over charge detection delay time:	0.96 – 1.4s
Over charge release voltage:	3.80 +/-0.05V
Maximum charge voltage:	3.65 +/-0.05V

Over Discharge Protection
Over discharge detection voltage:	2.0V +/- 0.05V
Over discharge detection delay time:	115-173ms
Over discharge release voltage:	2.3V +/- 0.10V
Over Current Protection Over current detection delay time:	9 +/- 2ms
Over current release condition:	Cut load

Polarity Reverse Protection: Yes
Short Circuit Protection: Yes

Manual

Alpha 5 Server Lithium Iron Phosphate Battery

7,000 Cycles. LiFePO4 Lithium Battery. 20 Year Lifespan.

Features:

Extremely high number of charge/discharge cycles

20 Year lifespan with proper maintenance

Built-in smart battery management system

Wide operating temperature range

Unsurpassed high temperature performance

Green energy without metal contaminant

Low maintenance

High amp capacity

Stable output voltage

Little self-discharge

Lifetime customer support

Over charging or discharging protection.

Over current & short circuit protection.

High & low temperature disconnects

Charge Voltage: 52.5V

Max Charge Current: 100 A

Max Discharge Current: 100 A

Battery Dimensions: 19″L x 18 3/4″W x 5 1/4″H

Weight: 130 lb

Connect in Parallel for Larger Capacity

BMS Safety Protection

Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely

Convenient removable carry handle

Lightweight

Short circuit protected

Physical damage to battery case will not cause fire

Excessive thermal exposure will not cause a fire

Able to withstand over-charge/over-discharge without damage to the battery

Sophisticated Battery Management System (BMS)

Included:

1 foot RS485 communication cable

Set of parallel cables per battery

4.8kWh (48V 100Ah) lithium iron phosphate battery

Battery Server Rack

Battery Server Rack Dimensions: 39″L x 32″W x 24″H

Weight: 159 lb

Material: High-quality cold-rolled steel plate

Protection level: IP20

Packaging:Carton + wooden pallet

Electrical Specifications

Nominal Voltage:

48V

Nominal Capacity (at .5C, 77°F):

100Ah

Minimum Capacity (at .5C, 77°F):

95Ah

Expected Cycle Life:

>7000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD

Operating Specifications

Charge Method:

Smart charger, constant current, constant voltage

Operating Voltage:

48 V

Capacity:

100 Ah

Energy:

4800 Watt Hours

Charge Voltage Range (Max 52.5V):

52.0 -52.5V

Continuous Charge Current:

100A

Continuous Discharge Current:

100A

Over Voltage Shutdown:

52.5 +/-0.2V

Discharge Cut-off Voltage:

42V =/- 0.5V

Self Discharge (stored at 50% SOC):

<3%/month

Waterproof:

IP65

Temperature Performance

Charge Temperature:

32° F to 113° F

Discharge Temperature:

-4° F to 122° F

Storage Temperature:

-4° F to 122° F

BMS High Temperature Cut-off:

149°F

BMS Low Temperature Cut-off:

32°F

Physical Specifications

Battery Dimensions:

19″L x 17.7″W x 5.2″H

Weight:

42kg/92.6 lb

Group Size:

Battery Server Rack Specifications

Battery Server Rack Dimensions:

39″L x 32″W x 24″H

Weight:

159 lb

Thickness:

Frame 1.5mm, top/bottom plate 1.2mm, column 2.0mm, mesh door plate 1.2mm, side plate (screw fixed) 1.0mm, L-shaped bracket 2.0mm;

Material:

High-quality cold-rolled steel plate

Protection level:

IP20

Over Charge Protection

Over charge detection voltage:

3.9 +/- 0.05V

Over charge detection delay time:

0.96 – 1.4s

Over charge release voltage:

3.80 +/-0.05V

Maximum charge voltage:

3.65 +/-0.05V

Over Discharge Protection

Over discharge detection voltage:

2.0V +/- 0.05V

Over discharge detection delay time:

115-173ms

Over discharge release voltage:

2.3V +/- 0.10V

Over Current Protection Over current detection delay time:

9 +/- 2ms

Over current release condition:

Cut load
