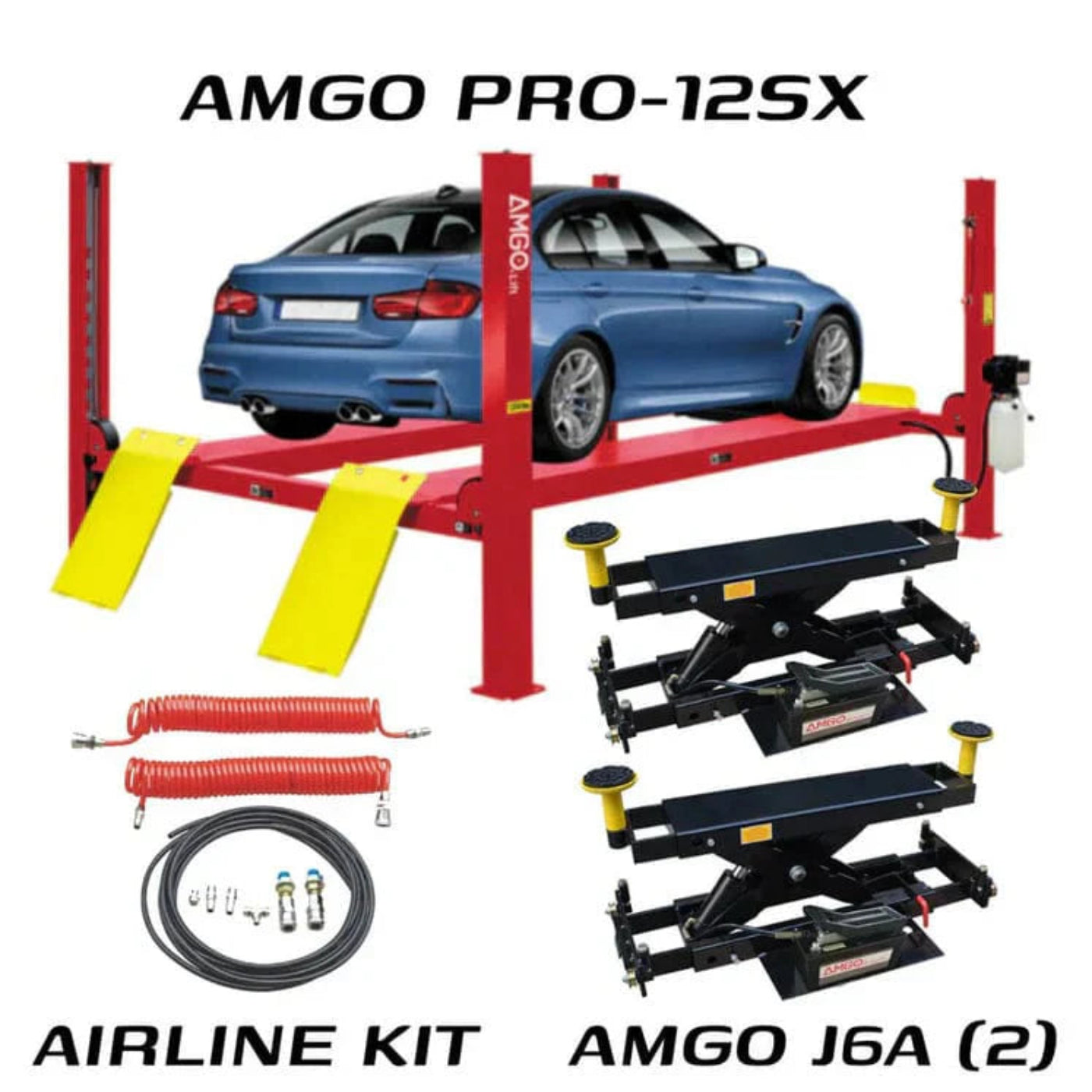

The AMGO PRO-12SX + J6A 4 Post Lift

The Pro-12SX improves driving comfort on its non-skid platforms, offering an impressive drive-through width of over 100". Surpassing most comparable options on the market, the PRO-12SX boasts a robust 12,000 lb capacity, making it the perfect choice for accommodating a variety of vehicles. It's an essential asset for both garage and shop owners

 Features

• 12,000 lbs lifting capacity.
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• 3/8" Aircraft quality cable.
• Optional adjustable turnplate pockets to fit different wheel bases.
• Skid proof diamond platform
• Hydraulic cylinders are designed and made to high quality standards
• Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 43 1/4(1100mm) and maximum distance is 53 3/4(1365mm).
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two years on Electrical Components
• CE Approved and Certified
• Meets or exceeds the standards prescribed by European Standard EN-1493

Specifications

Specifications of the PRO-12SX

Specifications of the J6A

Downloads

AMGO PRO-12SX+J6A 12,000 lbs 4 Post Lift Manual

What our Experts Think

• Portable Design: Easily movable by a single person, ideal for shops or garages with limited space.

• High Capacity: Supports up to 7,000 lbs, suitable for a variety of vehicles. Compact Footprint: Overall width of 90 3/8″ and height of 108 7/8″, fitting into tight spaces.

• Dual-Lock Safety Mechanism: Includes auto-engaged arm lock and AMGO’s patented single-handle arm lock release device.

• Adjustable Lifting Arms: Two-stage stretching arms with combined rubber pads and 3” extension adapters.

• Self-Lubricating Components: Features UHMW polyethylene sliders and bronze bushings for smooth operation

Maintenance Tips

1. Inspect Moving Parts: Look for wear, interference, or damage.

2. Adjust Cable Equalizer Tension: Ensure level lifting.

3. Check Column Plumbness: Verify vertical alignment

4. Assess Rubber Pads: Replace if worn.

5. Verify Safety Devices: Ensure all safety mechanisms are in good condition.

Operational Tips

• Hydraulic Fluid: Maintain proper levels; use the recommended hydraulic oil.

• Weight Capacity: Do not exceed the 7,000 lbs limit.

• Daily Operation: Raise the lift to its maximum height at least once daily to extend the service life of cylinders and seals.
