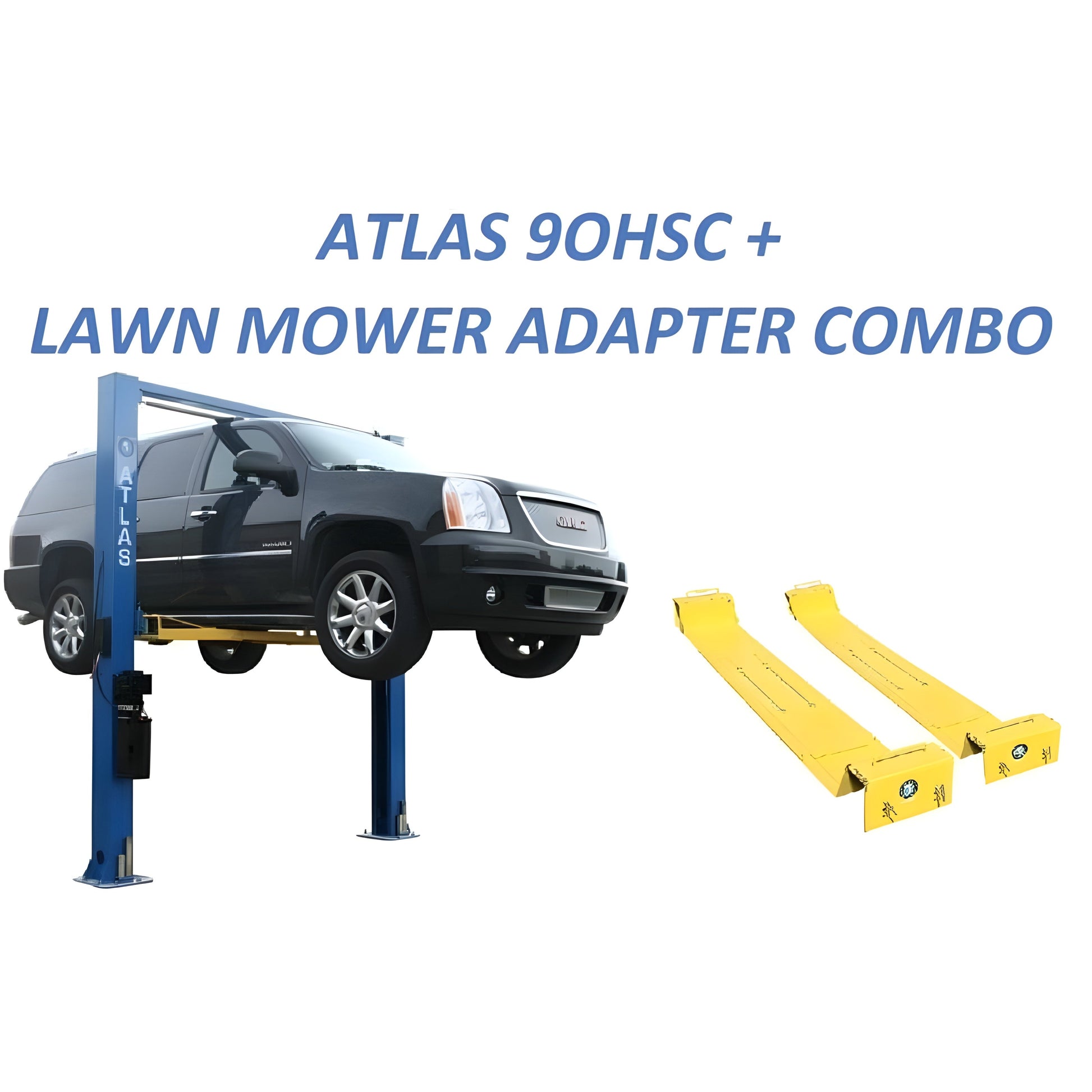

Atlas 9OHSC 2-Post Lift + Lawn Mower Adapter Combo - ATEATTD-9OHSC-COMBO-FPD

Atlas 9OHSC 2-Post Lift + Lawn Mower Adapter Combo - ATEATTD-9OHSC-COMBO-FPD

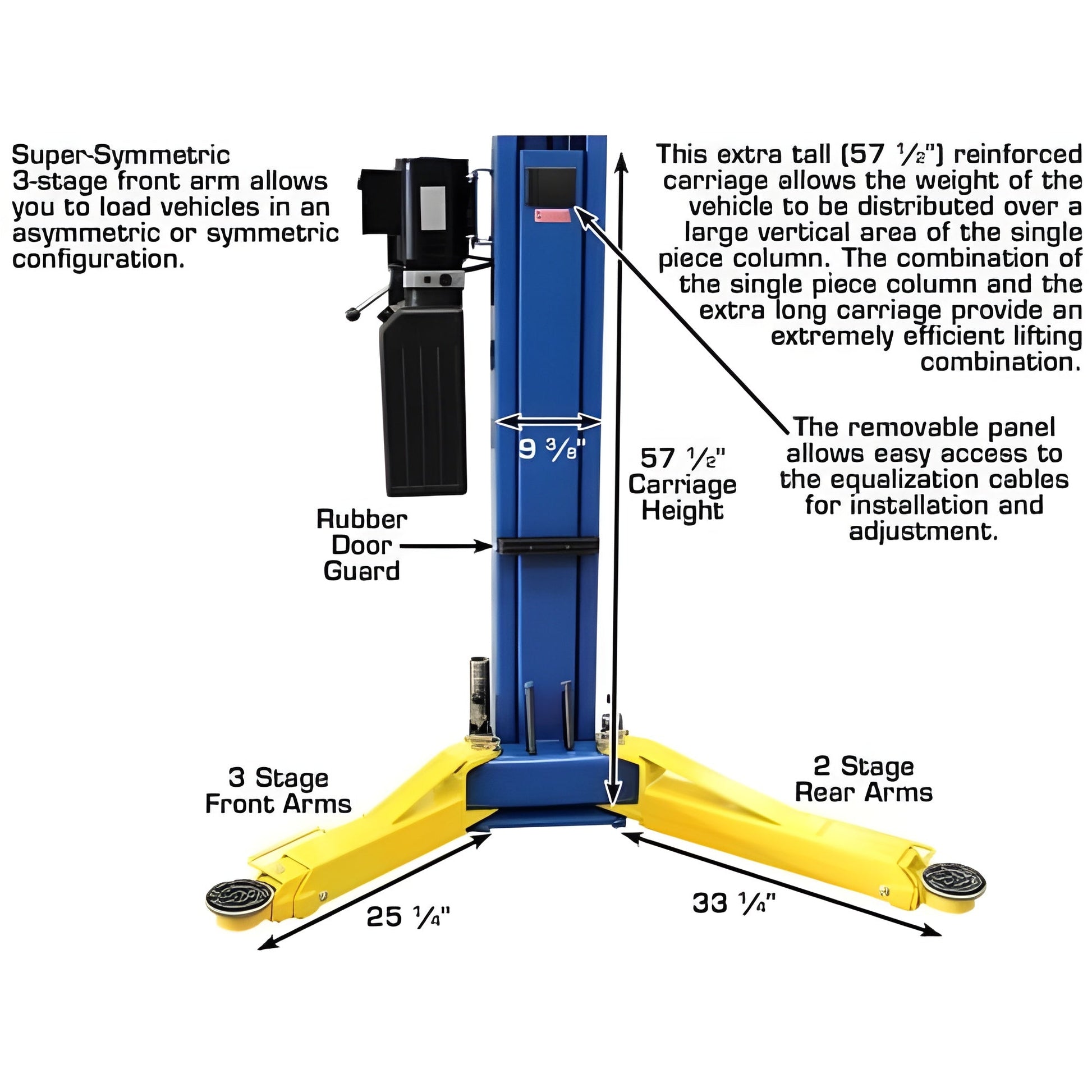

The Atlas 9OHSC two post above ground lift is the perfect choice for those smaller commercial repair facilities or “Mr. Homeowners” who demand the highest quality at the absolute best price. The 9OHSC is a TRUE 9,000 lb. capacity two post lift that offers a great value to the customer.The Atlas 9OHSC is engineered and manufactured to lift vehicles ranging from Smart Cars  to a Suburban. The 9OHSC incorporates a single piece 11’ 10” formed column and an extra-long carriage that provides maximum column and arm strength to lift and support a 9,000 lb. vehicle.The Atlas  9OHSC has single piece columns and extra-long carriages to ensure years of trouble free service. The single piece columns require the customer to have a ceiling of at least 12 feet to stand up the column.This combo includes the Atlas Lawn Mower Adapter or LMA.  The LMA allows the 2-Post lift to better raise ATV’s, UTV’s, and lawn mowers.  The LMA is adjustable along the length of the lifts arms to handle different wheelbase vehicles.  The weight capacity of the LMA is dependent on the positioning of the adapter (higher when the plates are closer to the columns) and the balance of the weight of the vehicle being lifted.

9OHSC

• 9,000 lb. Capacity

• Overhead, Open-Floor Lift

• Single-Piece Column Design

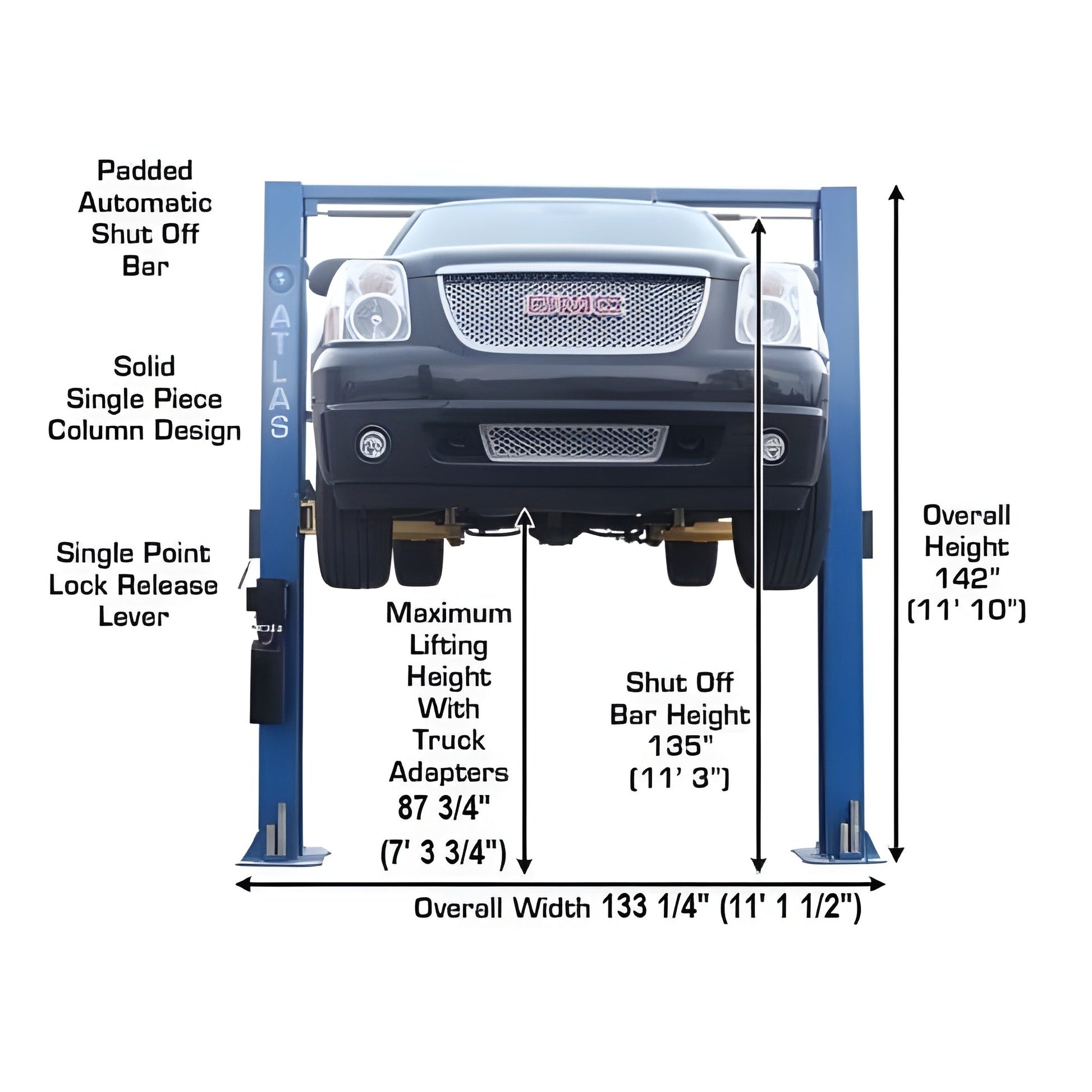

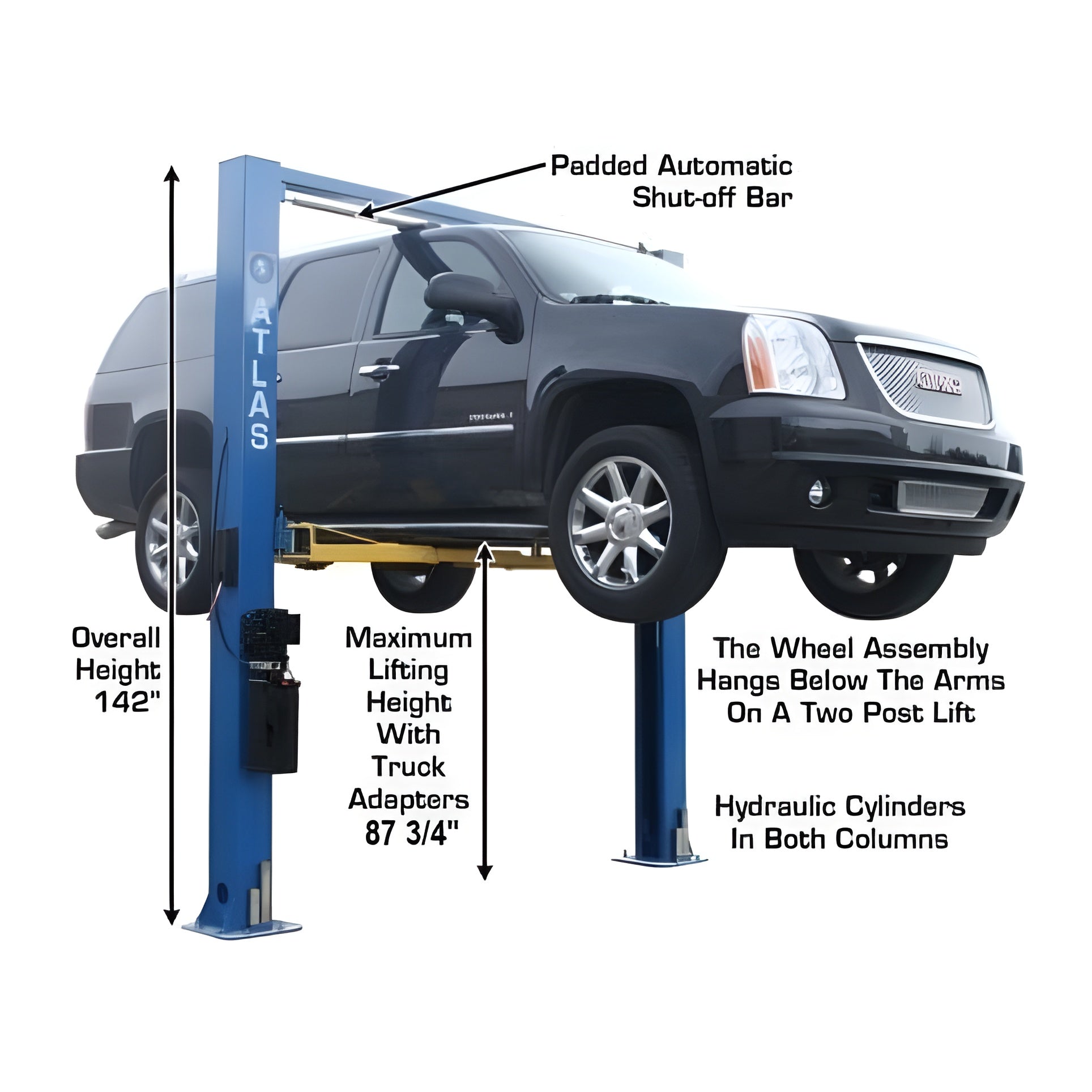

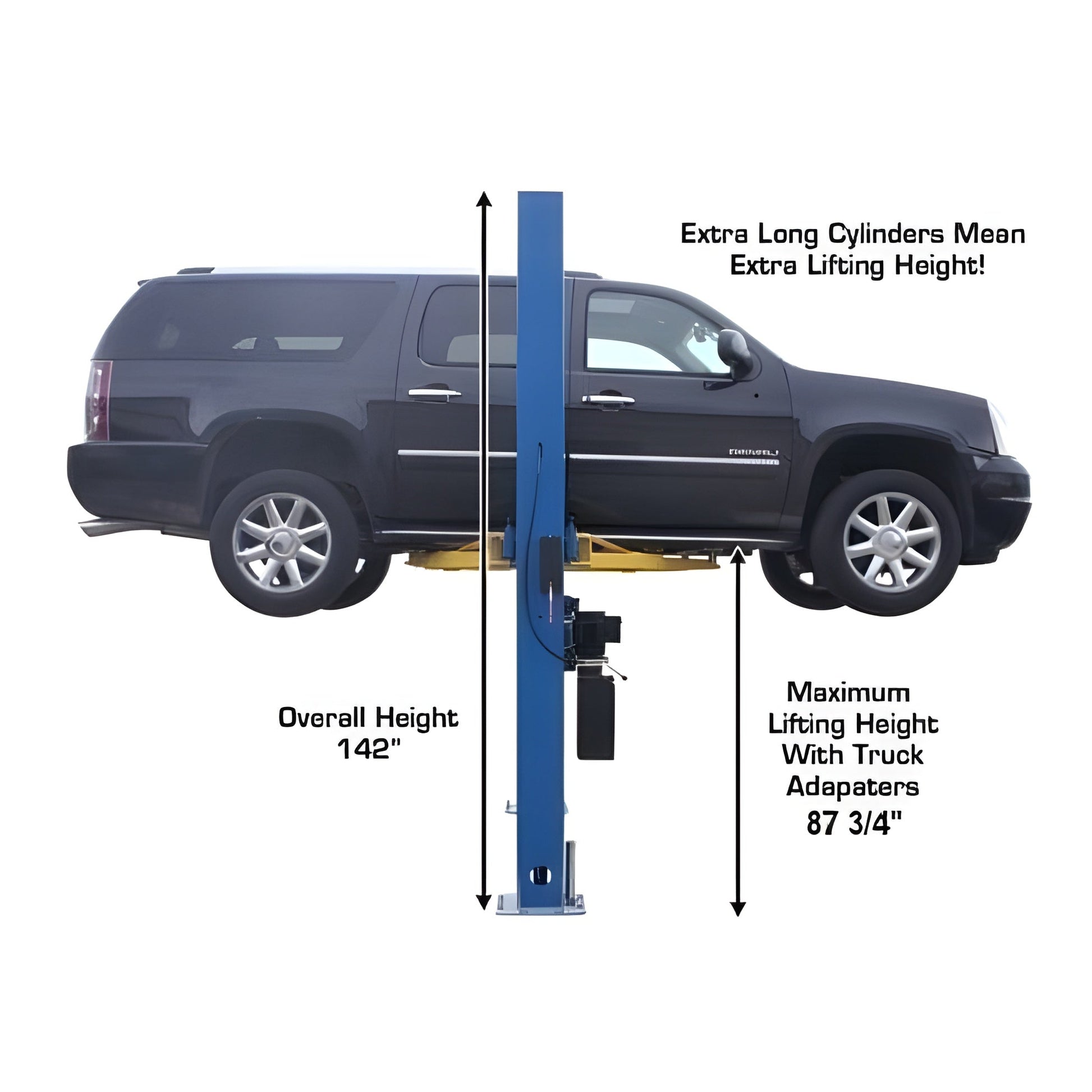

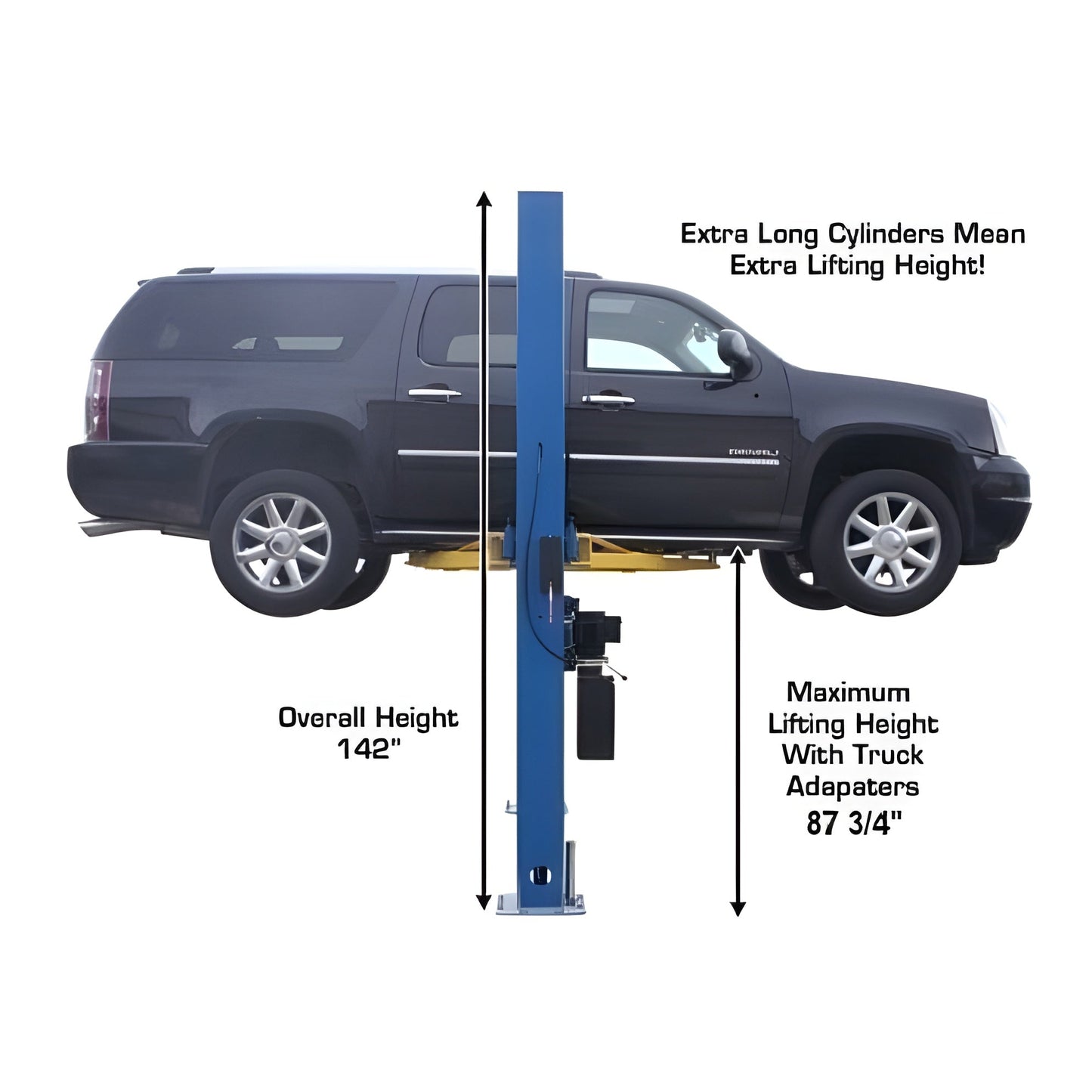

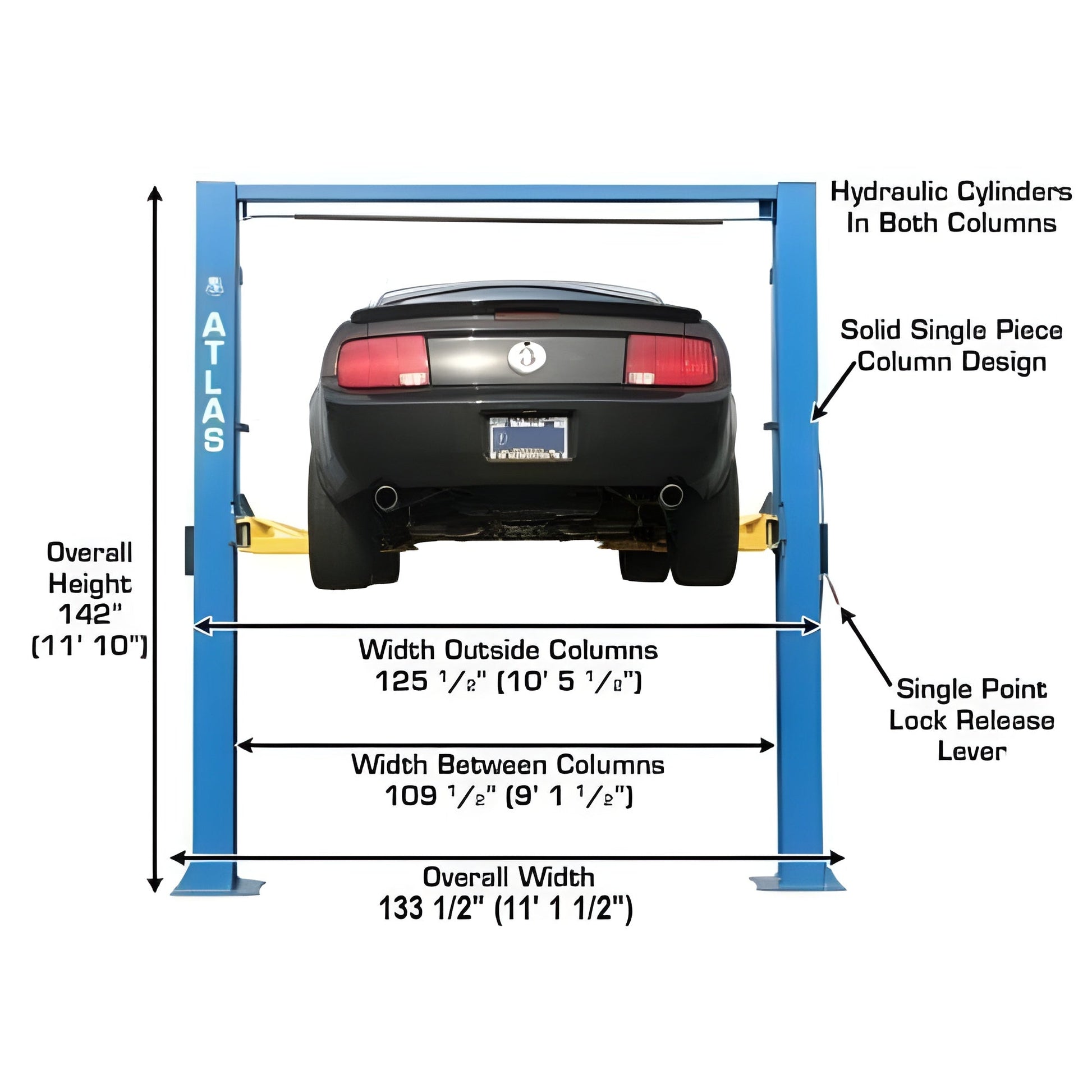

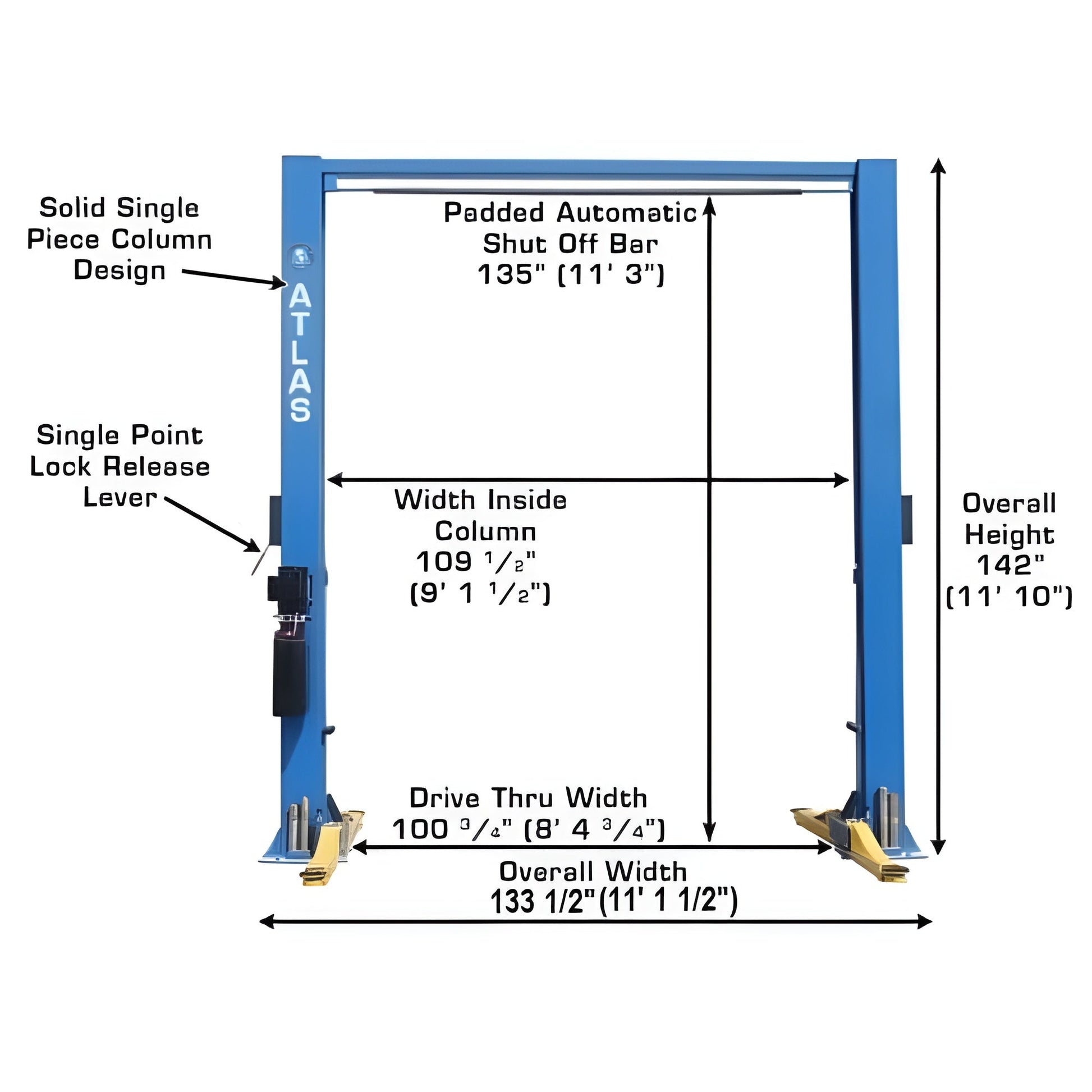

• Overall Height: 142″ (11′ 10″)

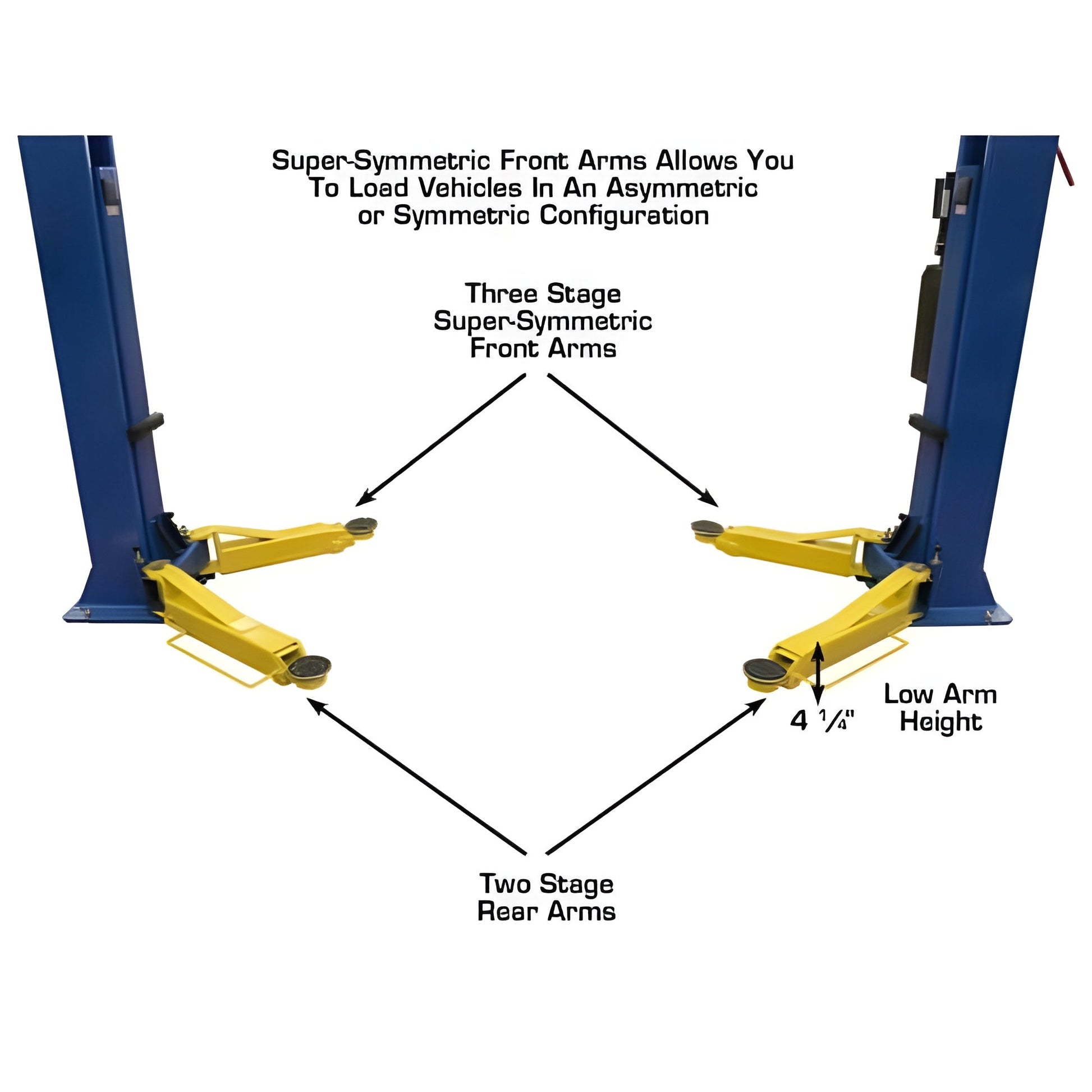

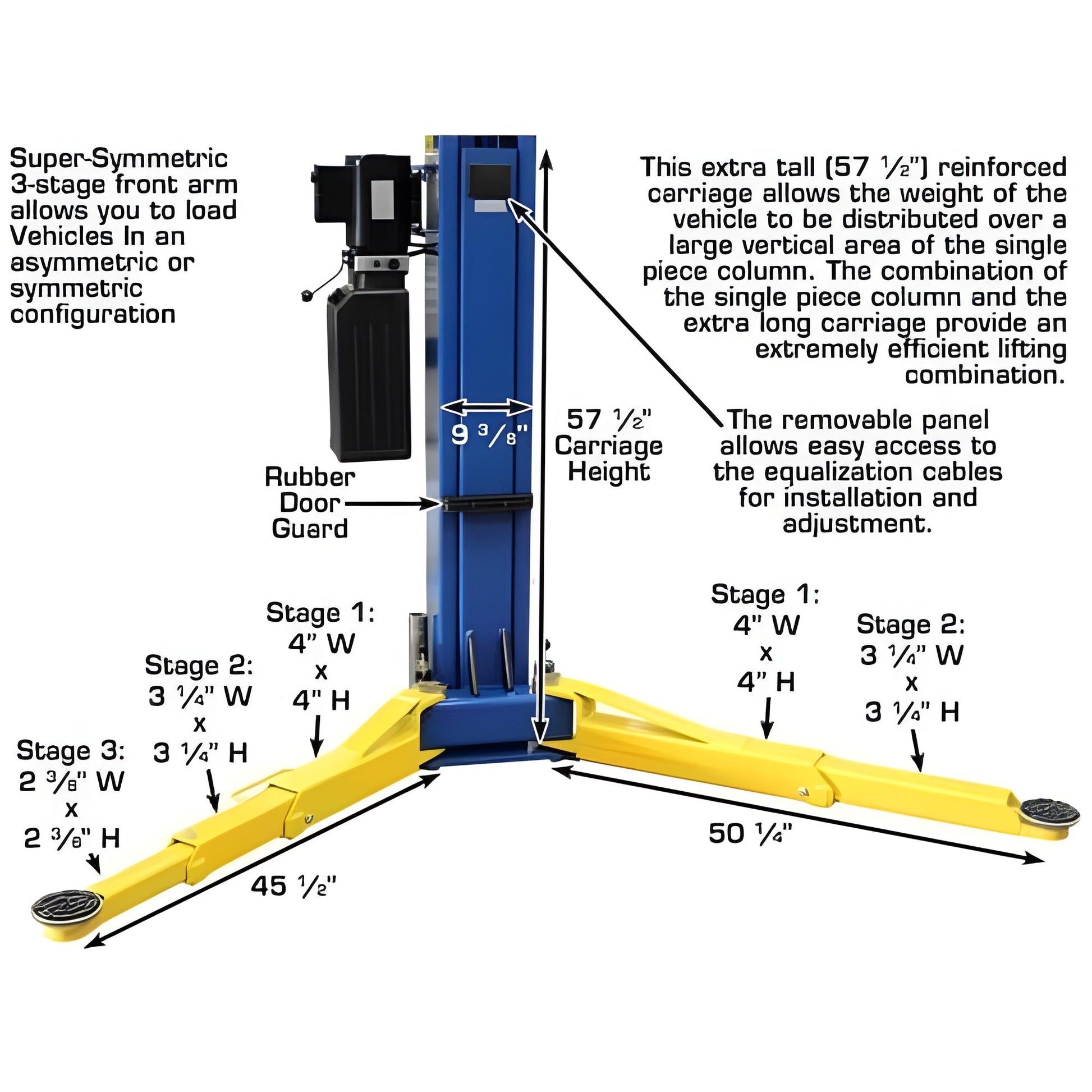

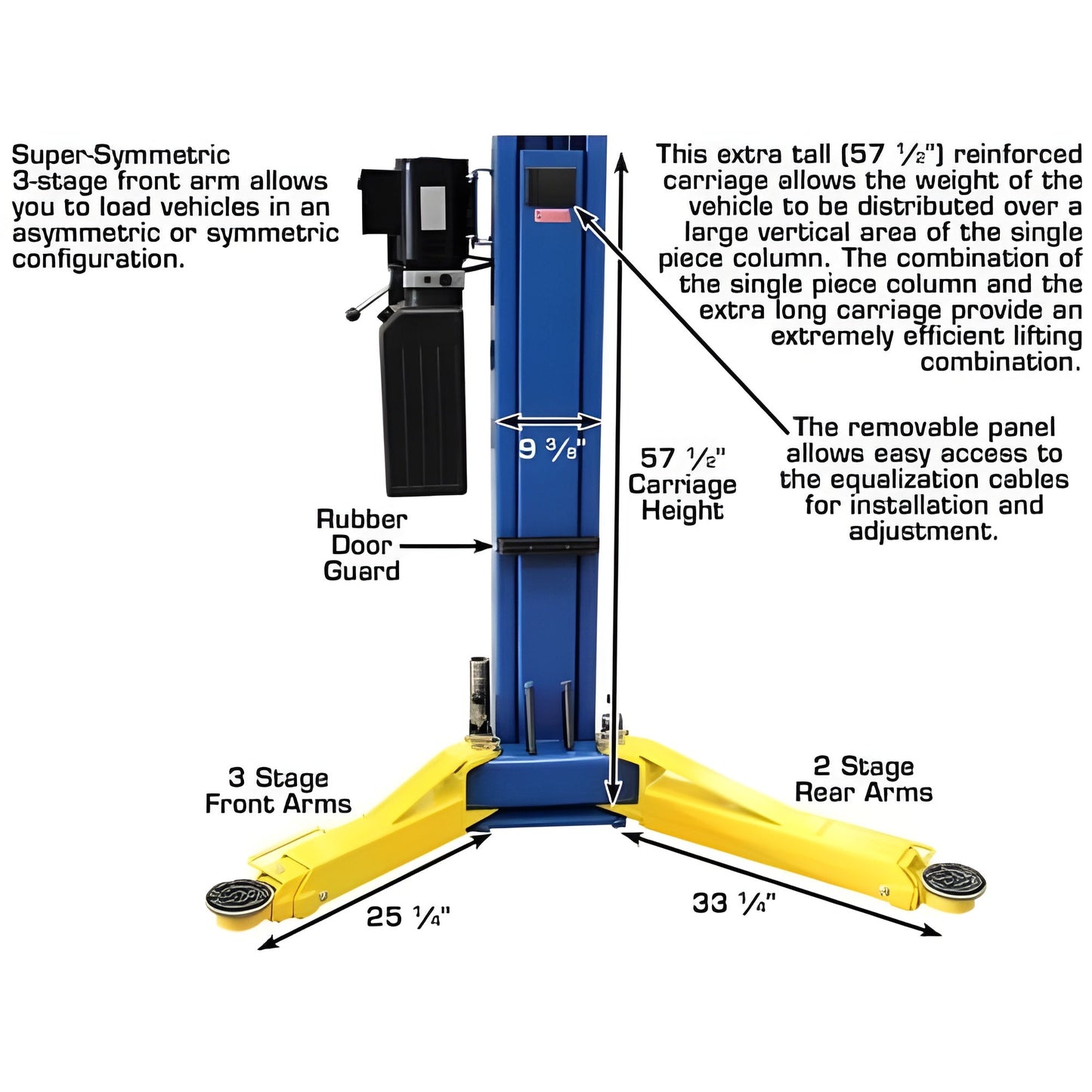

• 3-Stage Front Arms/2-Stage Rear Arms

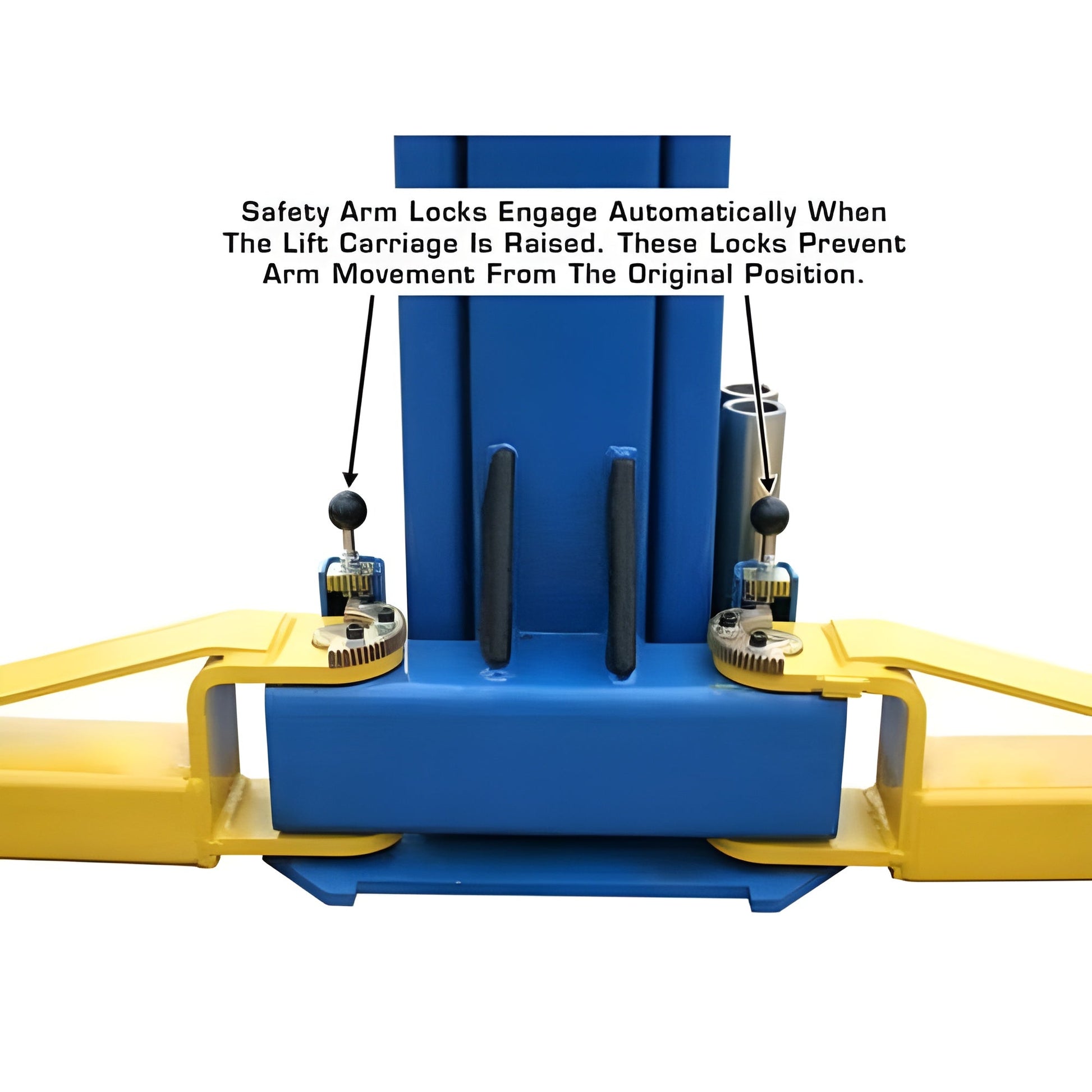

• Automatic Arm Restraints

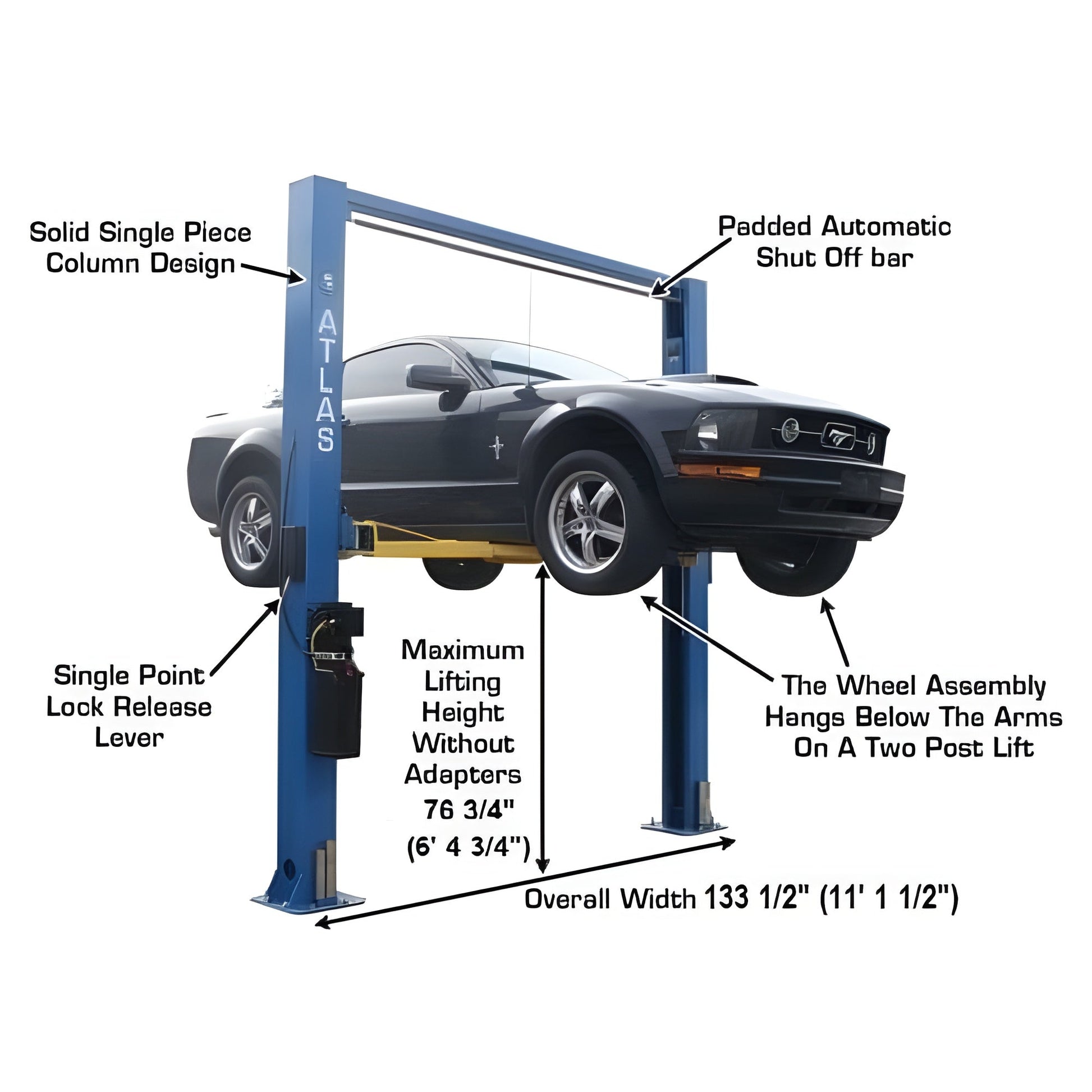

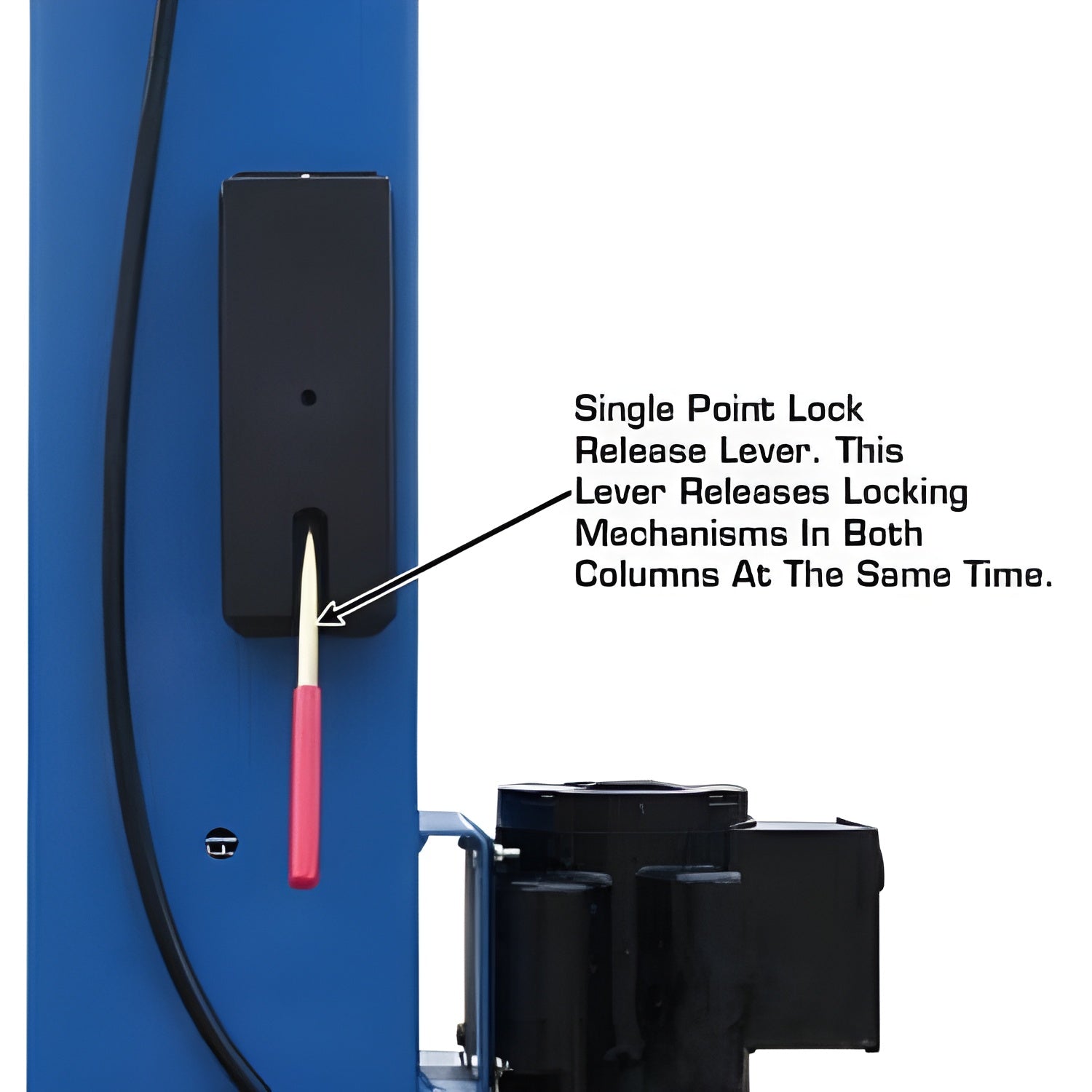

• Single-Point Lock Release

• Rubber Guards on Carriages

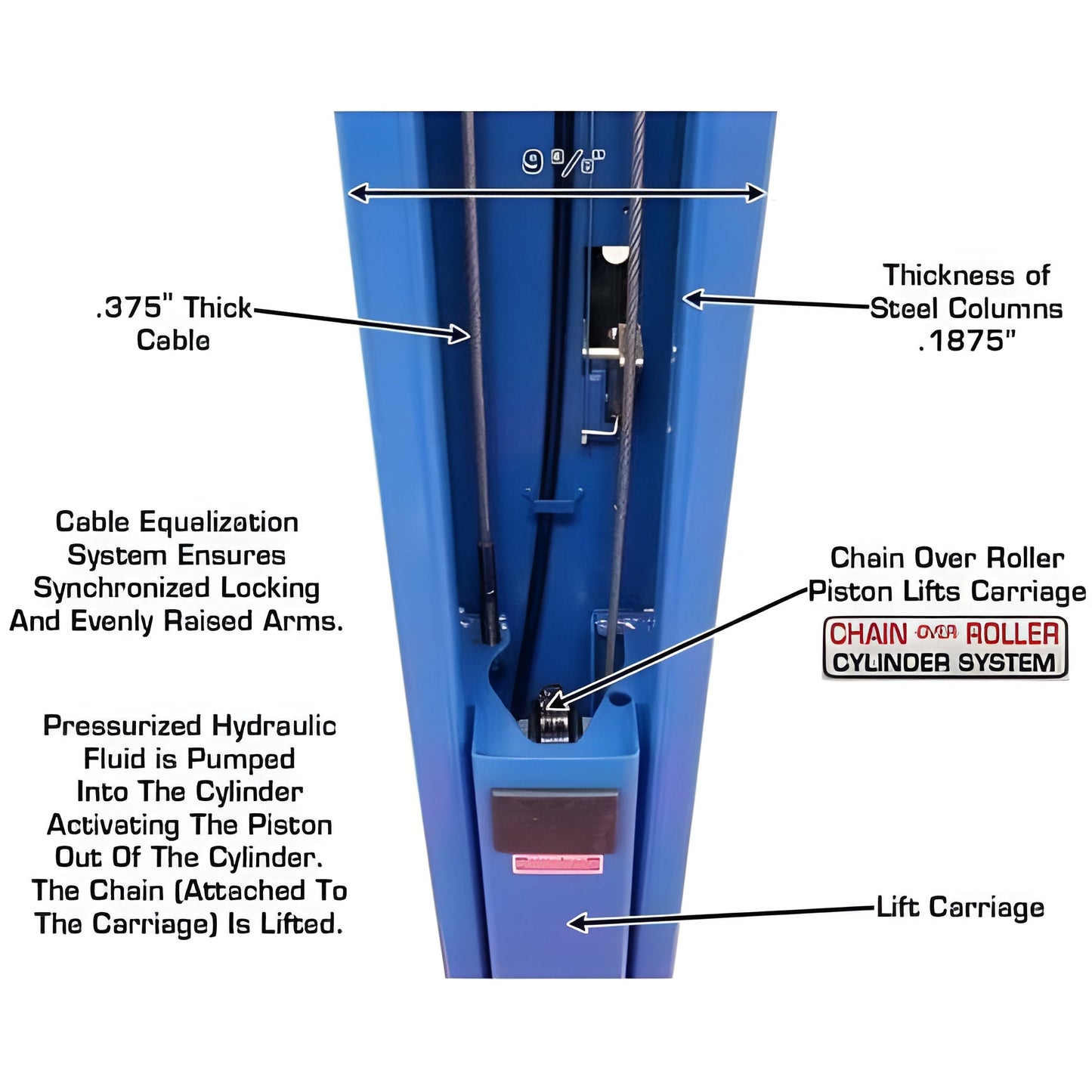

• Dual Hydraulic Chain-Drive Cylinders

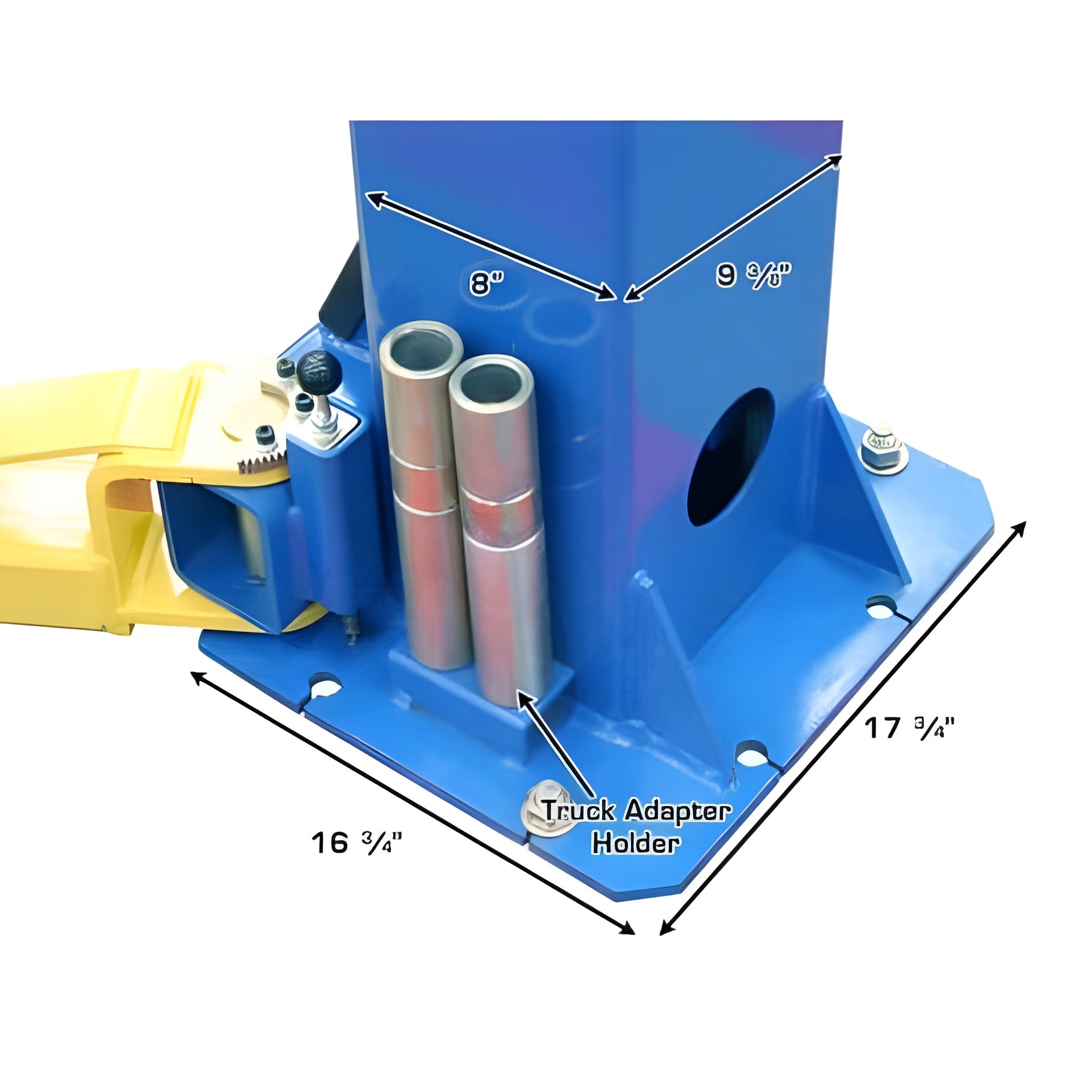

• Free 12 Piece Truck Adapter Set

• Mounting Hardware Included

• Shipping Weight: 1,430 lbs.

• 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

LMA

• “Lawnmower” Adapter for 2-Post Lifts

• Includes 4 plates and all hardware

• Adjustable to fit a variety of sizes and brands (MAY NOT WORK WITH ALL LIFTS)

• Up to 5,000 lb. capacity (WILL VARY BY LIFT AND WHEEL BASE)

• Can be positioned along the length of the lift arms (LEVELING BLOCKS MAY BE REQUIRED)

Atlas  ATTD-9OHSC-SS Manual

Atlas  9OHSC-SS Cylinder Bleeding Procedure
(Do this immediately after installation)

• 9,000 lb Capacity: Suitable for cars, SUVs, light trucks, and lawn mowers.
• Overhead 2-Post Design: Maximizes floor space for easy maneuverability.
• Lawn Mower Adapter (LMA) Combo: Expands lifting capability for specialized equipment.
• Symmetric & Asymmetric Arms: Provides flexible positioning for various vehicle types.
• Heavy-Duty Steel Frame: Built for durability and professional use.
• Automatic Safety Locks: Ensures secure lifting at all times.

Q: What is the weight capacity of the Atlas 9OHSC lift?
A: It has a 9,000 lb capacity, making it ideal for cars, trucks, SUVs, and lawn maintenance equipment.

Q: What does the Lawn Mower Adapter (LMA) Combo include?
A: The Lawn Mower Adapter allows safe and stable lifting of lawn mowers, garden tractors, and other small utility vehicles.

Q: What type of lift is this?
A: It is an overhead (clear floor) 2-post lift, providing an unobstructed workspace beneath the vehicle.

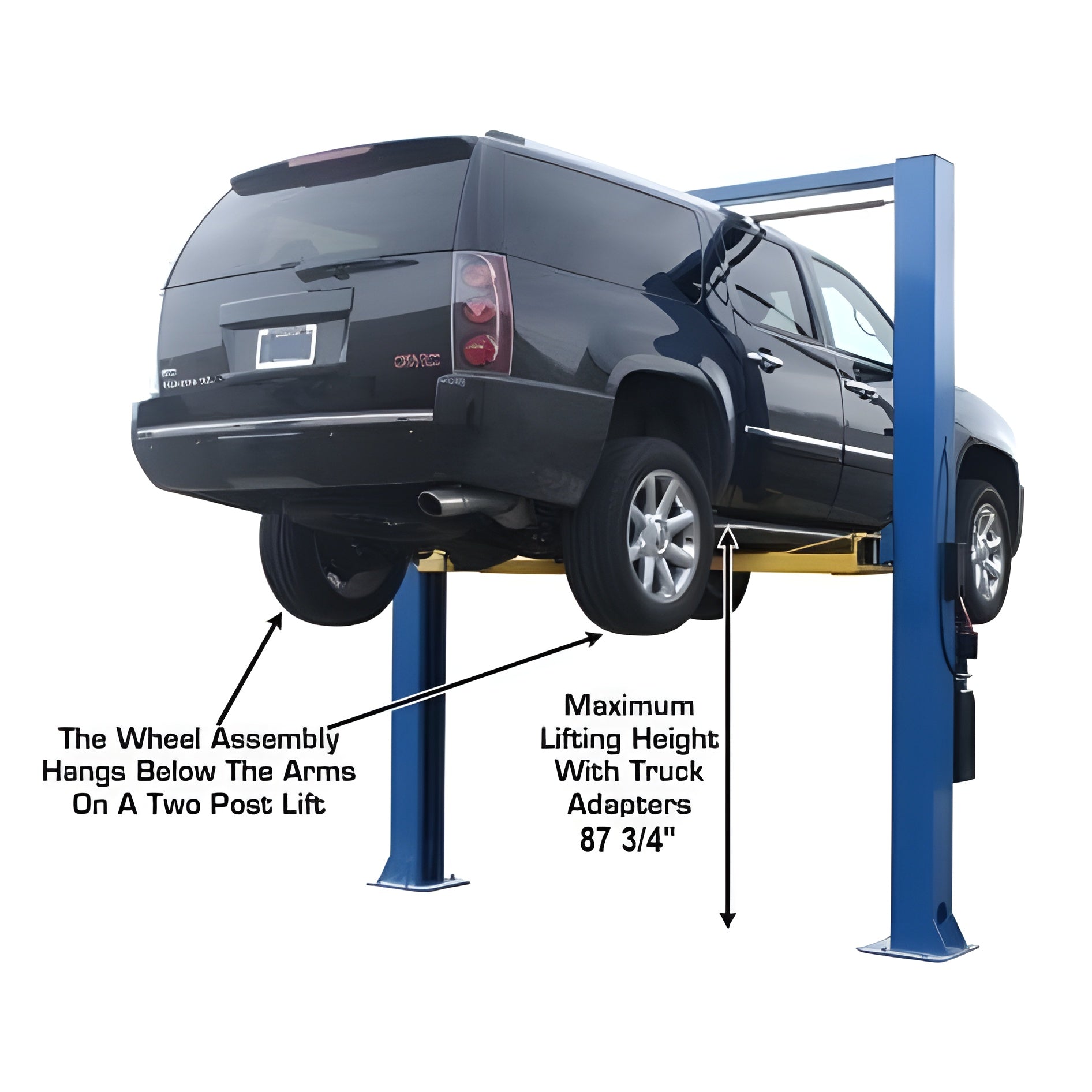

Q: What is the maximum lifting height?
A: It lifts vehicles up to 78 inches, ensuring ample working space for maintenance and repairs..

Q: What power supply is required?
A: It operates on a 220V single-phase power supply.

• Daily Inspection – Check for hydraulic leaks, loose bolts, and worn cables or chains.
• Lubrication – Grease pulleys, chains, and moving parts monthly.
• Hydraulic System – Monitor fluid levels and inspect hoses for cracks or leaks.
• Safety Locks – Ensure lock mechanisms engage properly and stay debris-free.
• Cable & Chain Tension – Regularly inspect and adjust for even wear.
• Lawn Mower Adapter Care – Keep adapters clean, properly secured, and free of obstructions.
• Annual Check-Up – Perform a full inspection and replace any worn components.
