Awoco RH-IT06-M 14-1/2"D Super Quiet Split Insert Stainless Steel Range Hood, 4 Speeds with a 6" Blower Unit, 800CFM, LED Lights - RH-IT06-M30-COLD

Awoco RH-IT06-M 14-1/2"D Super Quiet Split Insert Stainless Steel Range Hood, 4 Speeds with a 6" Blower Unit, 800CFM, LED Lights - RH-IT06-M30-COLD

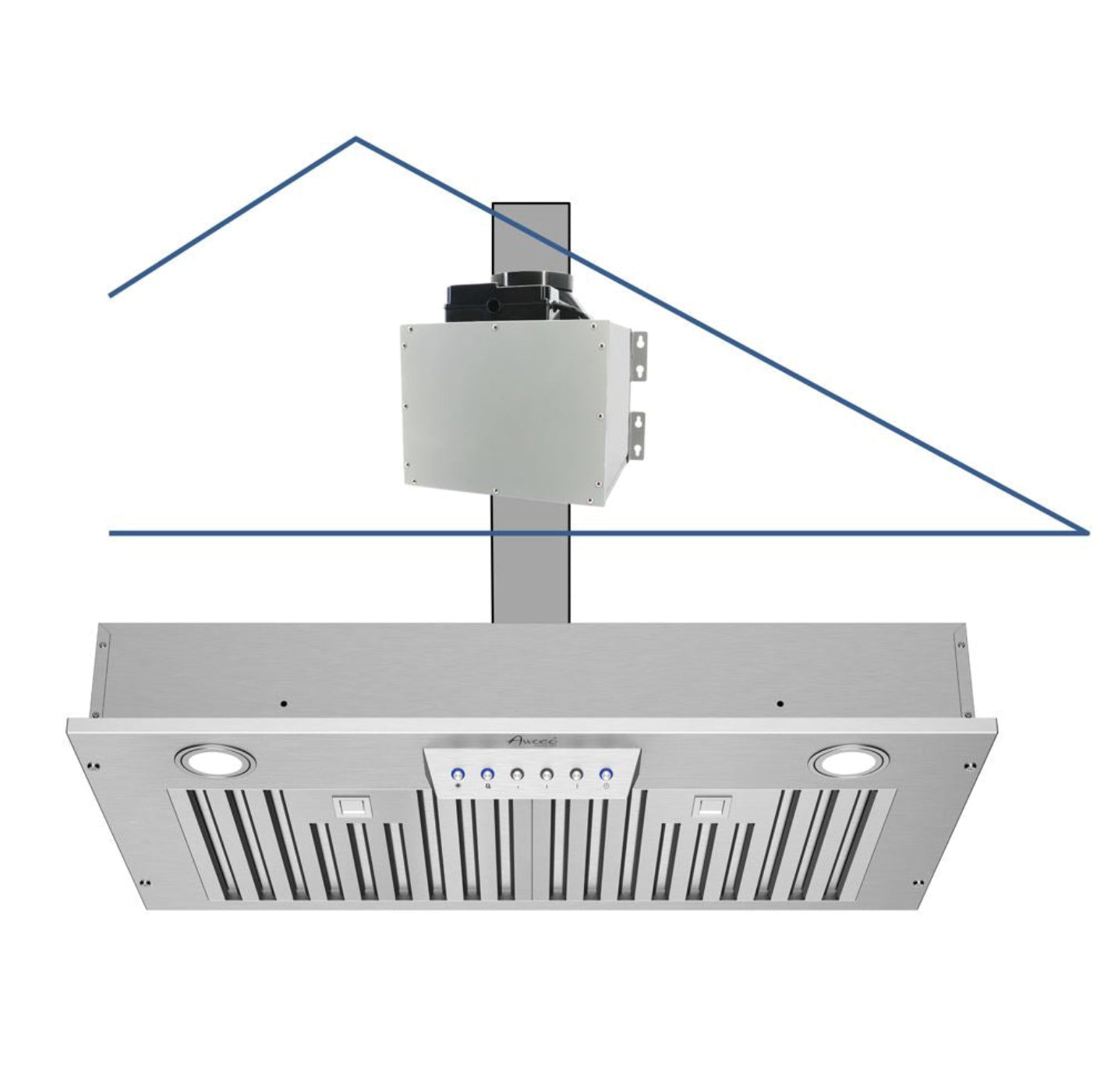

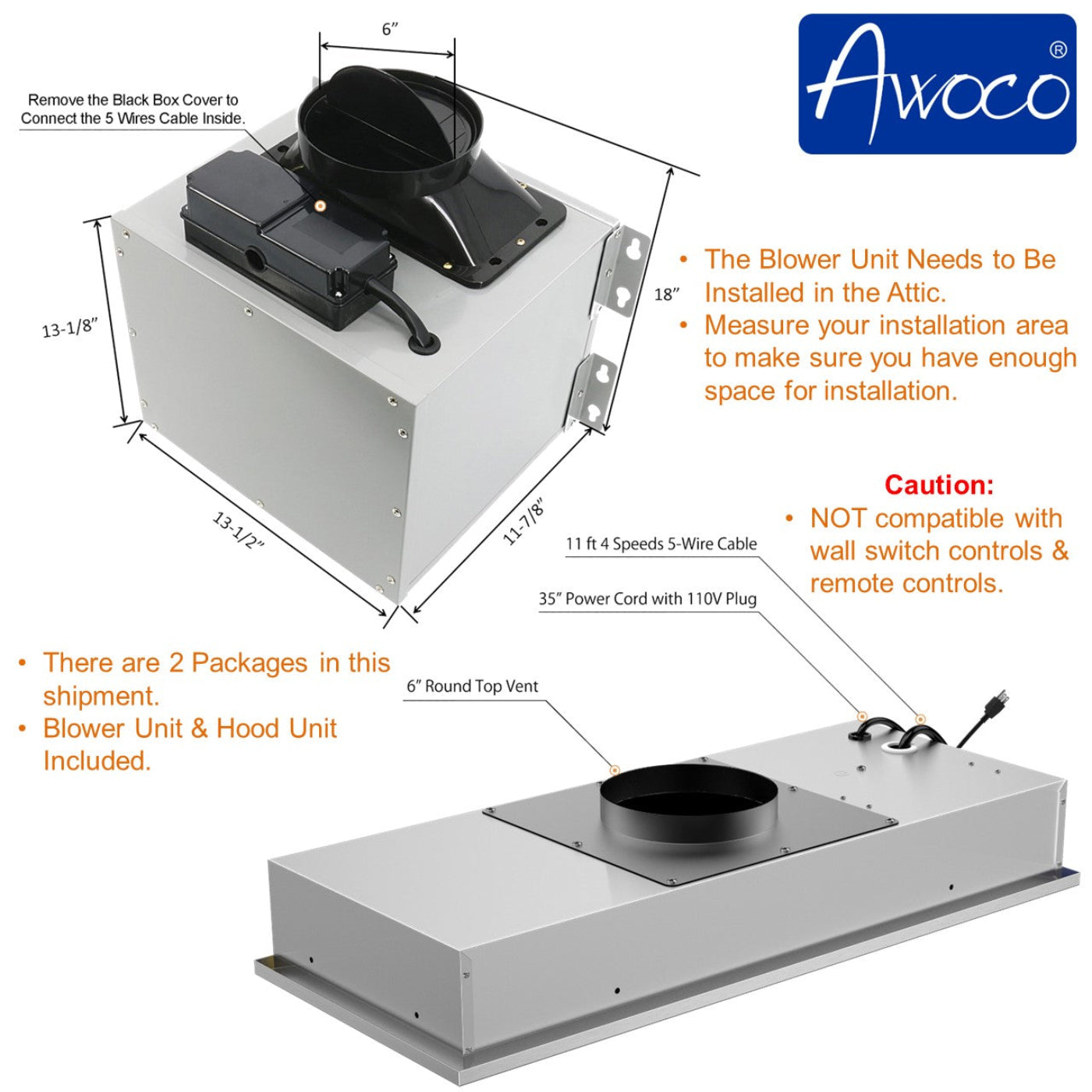

• SUPER QUIET INNOVATIVE SPLIT INSERT: The insert hood unit and the blower unit are shipped in two packages. The blower unit should be installed above the ceiling in the attic. Hood insert improves ventilation and lighting over your stove. Built with high quality 1mm thick stainless steel with brush finishing. No remote control.

• DUCTED VENT OUTSIDE, 6” ROUND TOP VENT: 6” round top exhaust vent (NO rear vent). CAUTION: please check your existing venting duct before purchasing, there are rectangle or round ducts at different sizes. Ducts are not included.

• 4 SPEEDS POWERFUL OPERATION WITH LED LIGHTS: 4 speeds approximately (200, 400, 600, up to 800 CFM), sloped view blue highlighted electronic buttons with 2 3W energy saving cold bright LED lights. 1 motor in the blower unit. The blower unit needs to be installed in the attic to reduce the noise in the kitchen. Power rating: 120V/60Hz, 110W Min /160W Max. 12 ft split control cord and power cord with plug is included. Noise level at low: 40 dB, 2.5 sones. Noise level at high: 52 dB, 5.5 sones. NOT compatible with wall switch controls. NOT compatible with wall switch controls & remote controls.

• DISHWASHER SAFE BAFFLE FILTERS: Dishwasher safe commercial style stainless steel baffle air filters. The oil is contained in the baffle filters, no oil holders needed.

• 1 YEAR LIMITED WARRANTY: ETL Certified. Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee.

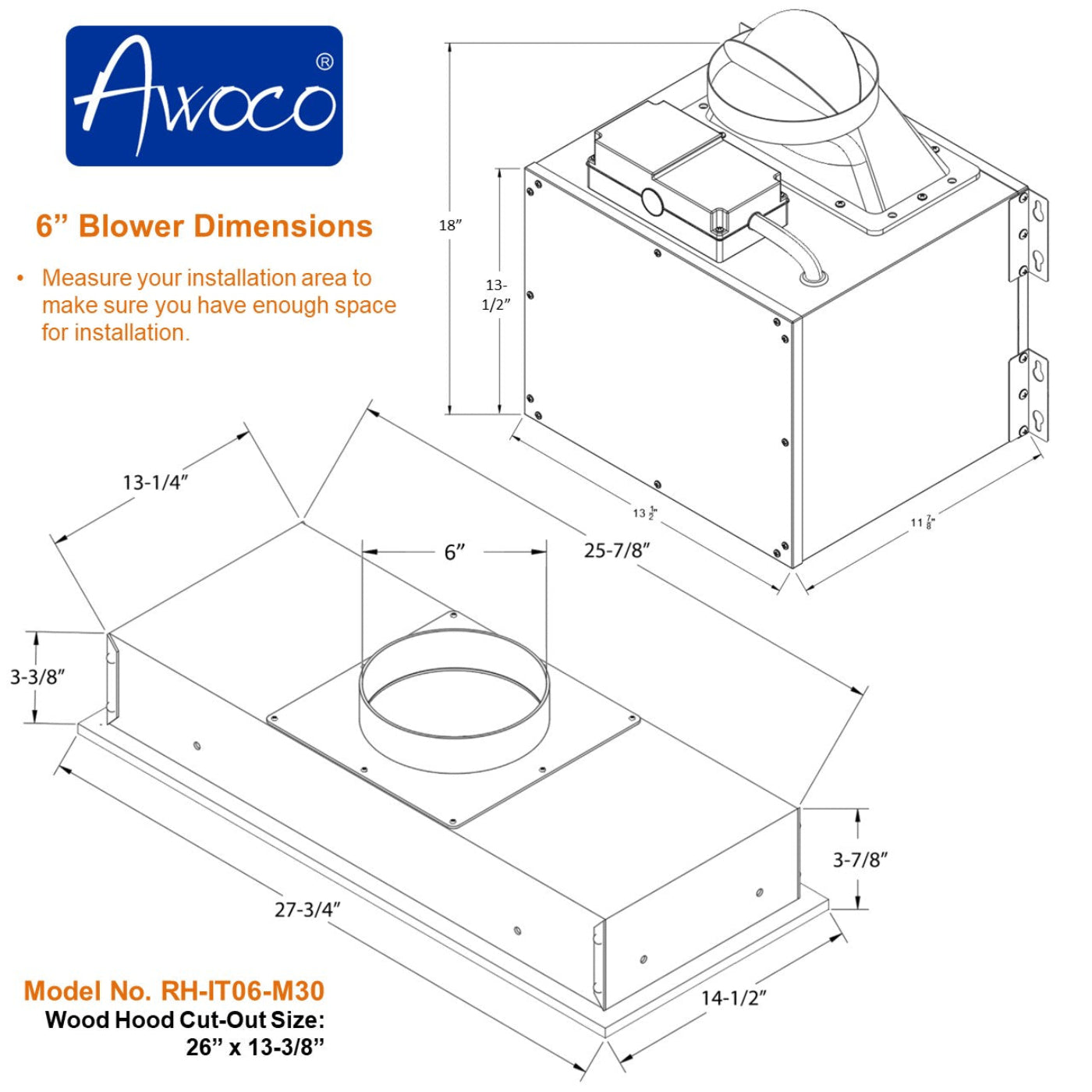

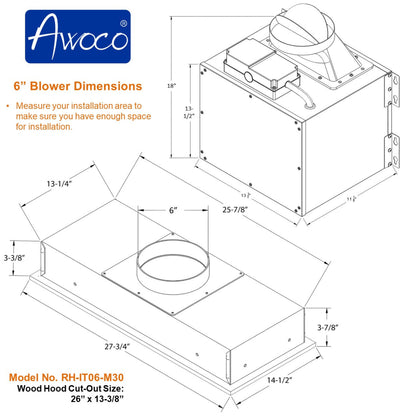

• 30" Hood Dimensions: 27-3/4"W x 14-1/2"D x 3-7/8"H. Hood weight: 14 lbs.

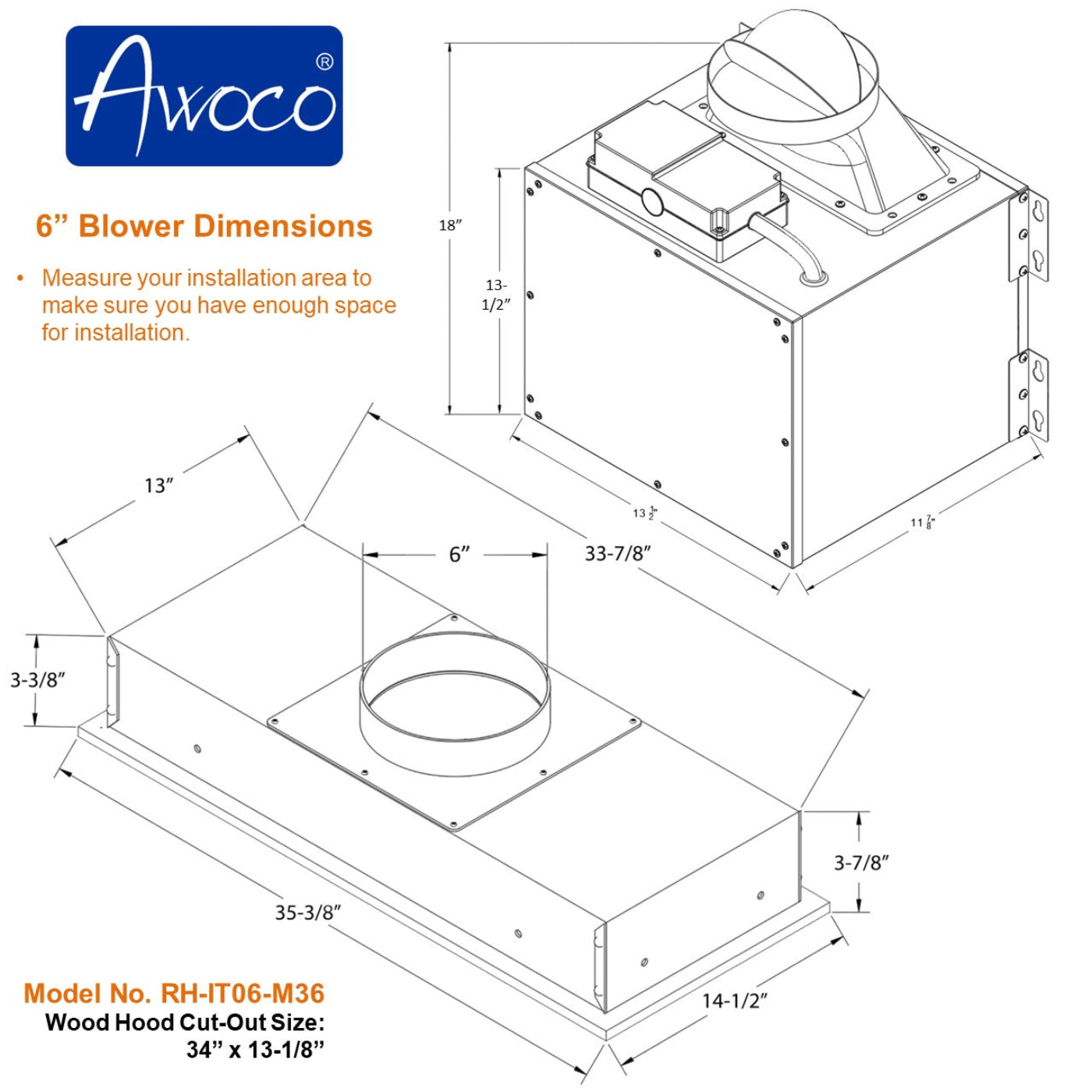

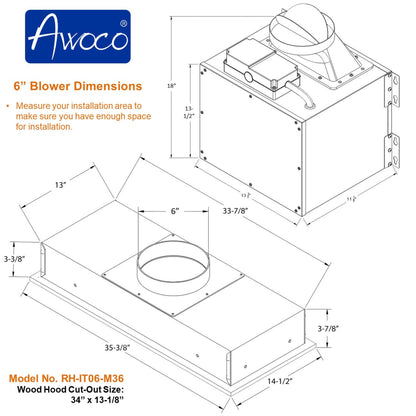

• 36" Hood Dimensions: 35-3/8"W x 14-1/2"D x 3-7/8"H. Hood weight: 17.5 lbs.
• Blower Dimensions: 13-1/2"W x 11-7/8"D x 17-3/4"H. Blower weight: 20.4 lbs.

1mm Thick High Quality Brushed Finish Stainless Steel.

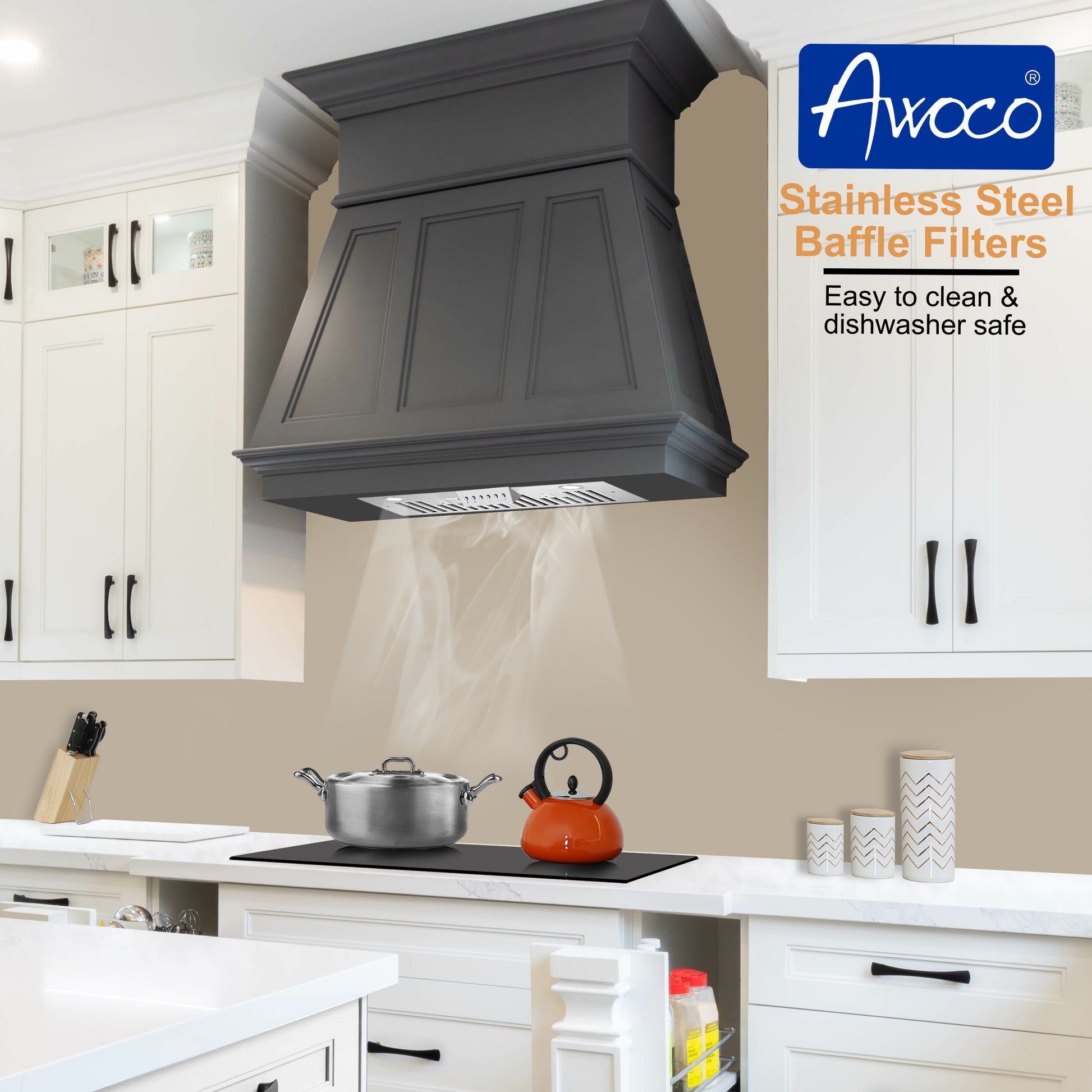

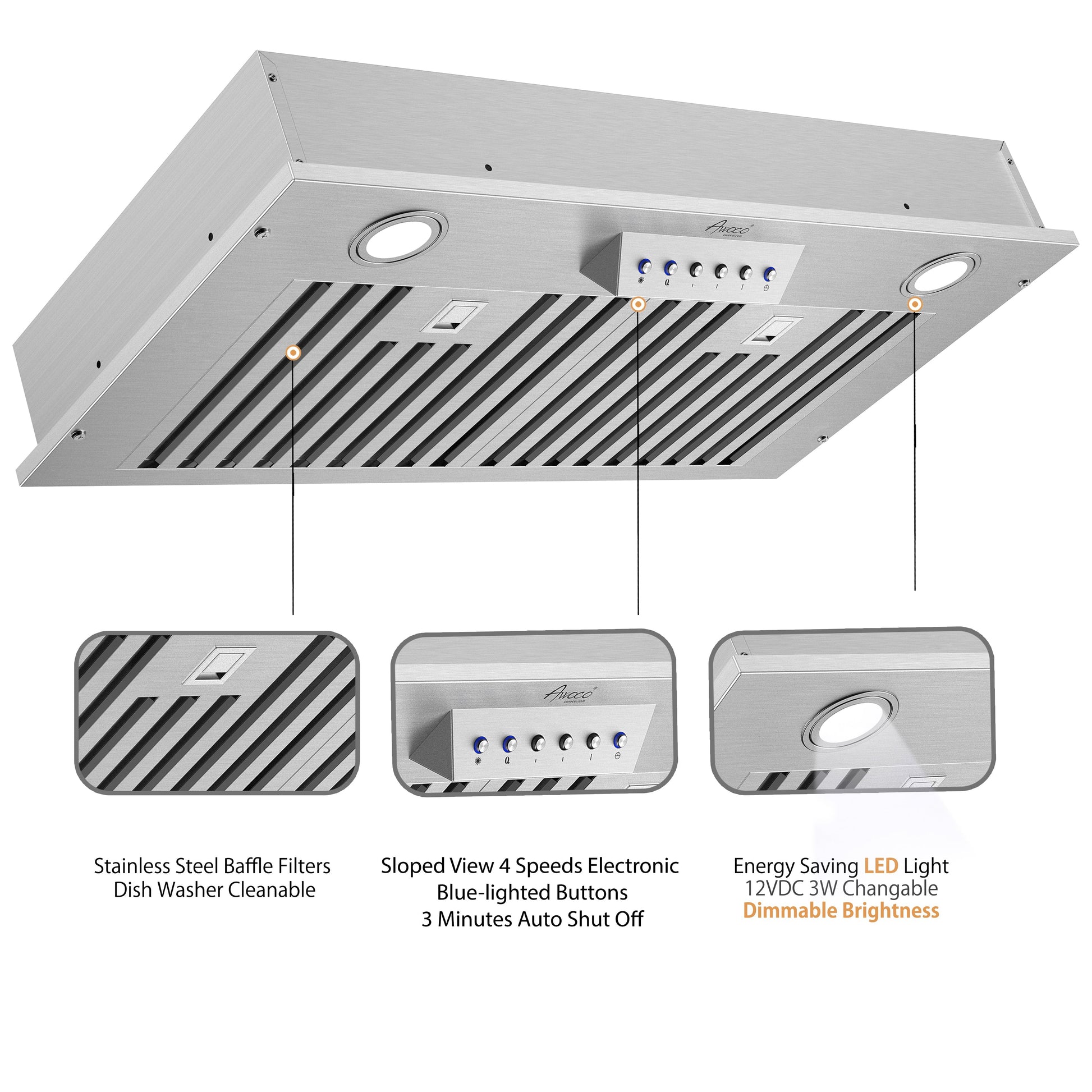

High-Quality Stainless-Steel, Dishwasher Safe Baffle Filters

Stainless steel baffle filters have adapted the concept from commercial baffle air filters, the grease is contained inside the filter trays, no oil cup needed.

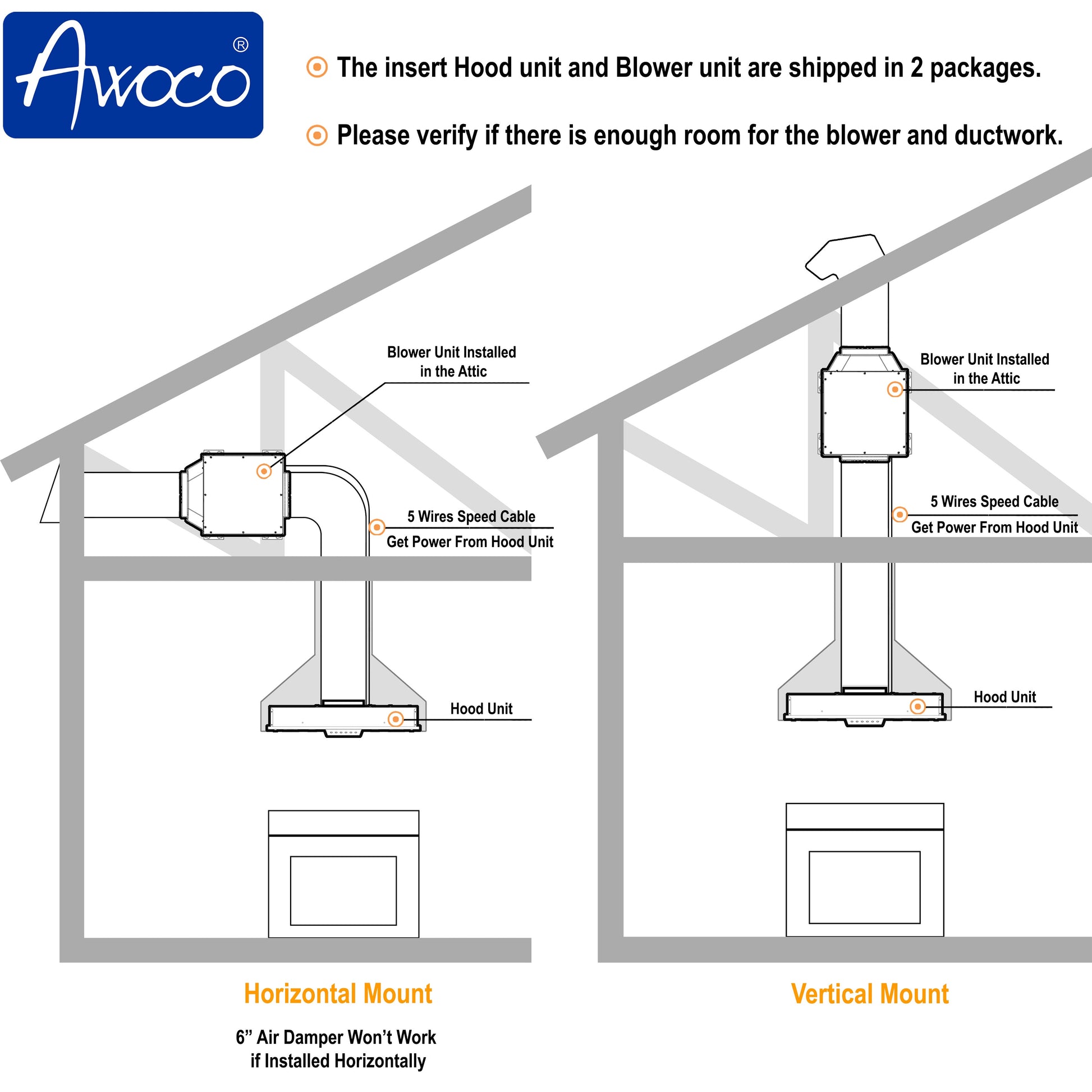

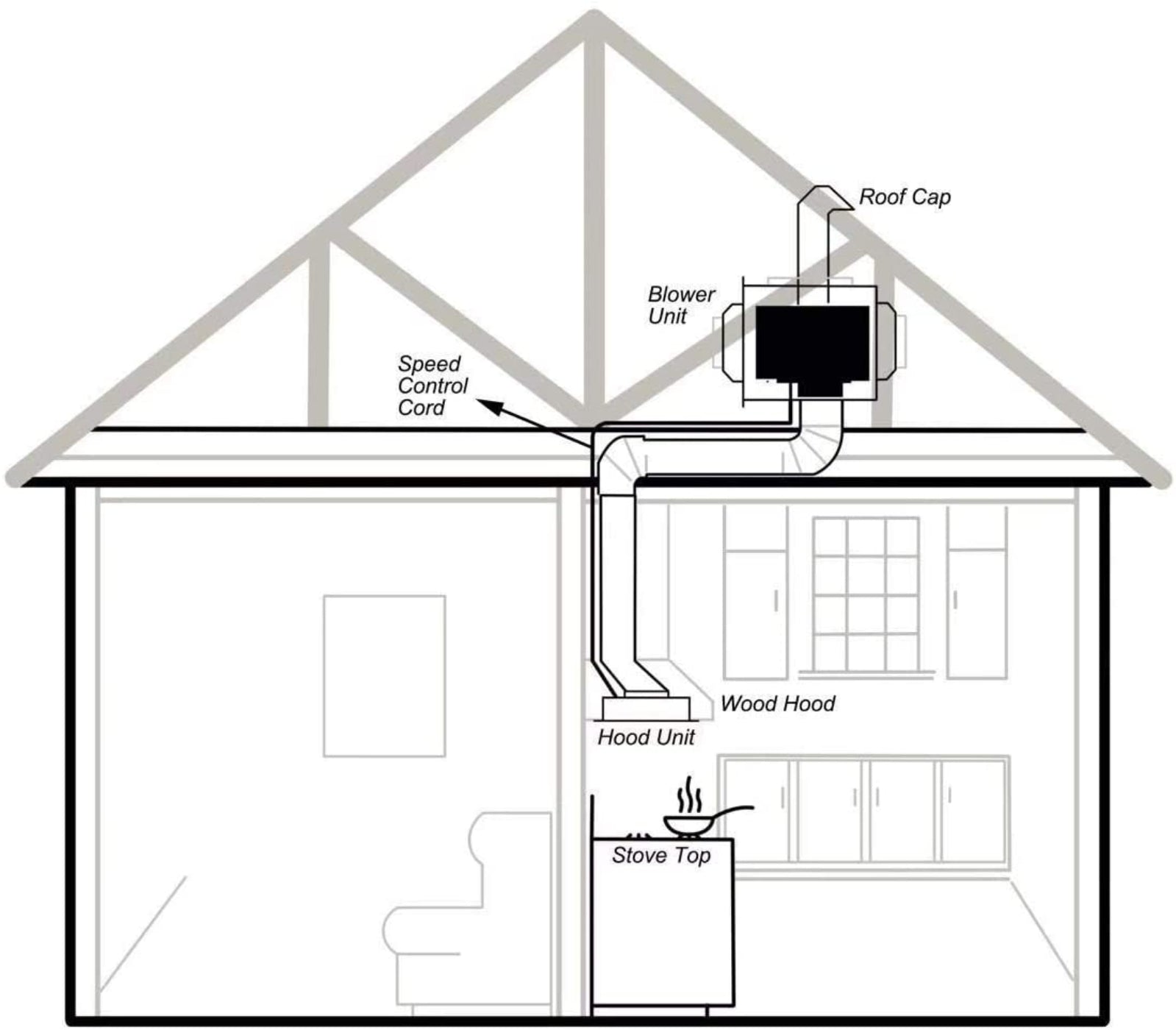

• Mounting Type: Insert unit; Attic lumber mounted for Blower unit.
• Venting Type: 6" round TOP vent for Hood unit; 6" round vent in and out for Blower unit.
• Hood Unit: 2 of 3W energy efficient cold bright LED Lights are bright enough to cover the whole cooktop.
• Blower Unit: 1 Motor and 7” Centrifugal Squirrel Cage Fan Wheel.
• Power rating: 120V/60Hz, 110W Min /160W Max.
• Noise level at low: 40 dB, 2.5 sones. Noise level at high: 52 dB, 5.5 sones.

• Ultra-Quiet Performance – Designed for super quiet operation, making it ideal for open kitchens.
• Powerful Ventilation – 800 CFM blower unit efficiently removes smoke, grease, and odors.
• 4-Speed Fan Control – Adjust airflow to match your cooking intensity.
• Sleek Stainless Steel Design – Durable, modern look that blends seamlessly with cabinetry.
• LED Lighting – Bright, energy-efficient illumination enhances visibility.
• Compact 14-1/2" Depth – Ideal for limited space while maintaining strong performance.

Q: What is the airflow capacity of the Awoco RH-IT06-M range hood?
A: The Awoco RH-IT06-M has an airflow capacity of 800 CFM, effectively removing smoke, grease, and odors from your kitchen.

Q: Is the Awoco RH-IT06-M range hood noisy?
A: No, the RH-IT06-M is designed for super quiet operation, ensuring a peaceful cooking environment.

Q: What type of vent does this range hood use?
A: The Awoco RH-IT06-M uses a 6" blower unit with a top vent, providing efficient air circulation.

Q: Does this range hood have adjustable speeds?
A: Yes, the RH-IT06-M offers 4 speed settings to suit different cooking needs and ventilation preferences.

Q: Does the range hood come with lighting?
A: Yes, the Awoco RH-IT06-M includes LED lights, offering ample illumination while cooking.

Q: Is this range hood suitable for larger kitchens?
A: Yes, with its 800 CFM power, it is suitable for larger kitchens or spaces with heavy cooking activity.

• Clean Filters Regularly – Wash stainless steel baffle filters every 3–4 weeks with warm soapy water or in the dishwasher.
• Wipe Down Exterior – Use a microfiber cloth and stainless steel cleaner to prevent stains and fingerprints.
• Check & Clean Blower Unit – Inspect and wipe the blower every 2–3 months to maintain airflow efficiency.
• LED Light Maintenance – If lights dim or flicker, check connections and replace with compatible LED bulbs if needed.
• Inspect Venting System – Ensure the ductwork is clear of grease buildup and obstructions for optimal airflow.
• Operate at Proper Speeds – Use lower speeds for light cooking and higher speeds for heavy smoke or grease to extend motor life.
• Avoid Excess Moisture – Run the hood for a few minutes after cooking to remove lingering moisture and odors.
• Regularly Test Controls – Ensure speed settings and buttons are responsive; clean if sticky.
