Awoco RH-IT06-M 14-1/2"D Super Quiet Split Insert Stainless Steel Range Hood, 4 Speeds With A 6" Blower Unit, 800CFM, Mesh Filters, LED Lights - RH-IT06-M30-COLD-MESH

Awoco RH-IT06-M 14-1/2"D Super Quiet Split Insert Stainless Steel Range Hood, 4 Speeds With A 6" Blower Unit, 800CFM, Mesh Filters, LED Lights - RH-IT06-M30-COLD-MESH

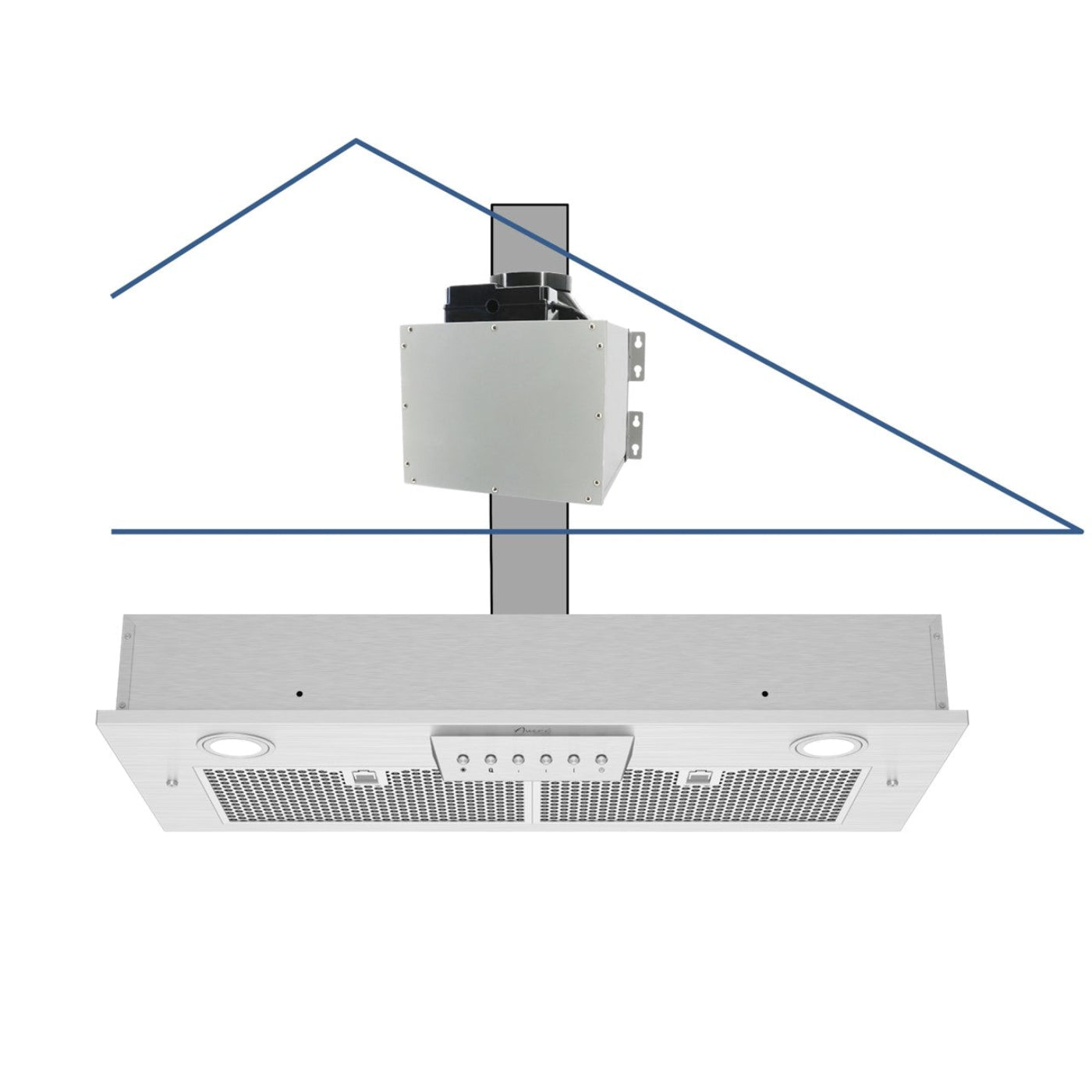

• SUPER QUIET INNOVATIVE SPLIT INSERT: The insert hood unit and the blower unit are shipped in two packages. The blower unit should be installed above the ceiling in the attic. Hood insert improves ventilation and lighting over your stove. Built with high quality 1mm thick stainless steel with brush finishing. No remote control.
• DUCTED VENT OUTSIDE, 6” ROUND TOP VENT: 6” round top exhaust vent (NO rear vent). CAUTION: please check your existing venting duct before purchasing, there are rectangle or round ducts at different sizes. Ducts are not included.
• 4 SPEEDS POWERFUL OPERATION WITH LED LIGHTS: 4 speeds approximately (200, 400, 600, up to 800 CFM), sloped view blue highlighted electronic buttons with 2 3W energy saving cold bright LED lights. 1 motor in the blower unit. The blower unit needs to be installed in the attic to reduce the noise in the kitchen. Power rating: 120V/60Hz, 110W Min /160W Max. 12 ft split control cord and power cord with plug is included. Noise level at low: 40 dB, 2.5 sones. Noise level at high: 52 dB, 5.5 sones. NOT compatible with wall switch controls. NOT compatible with wall switch controls & remote controls.

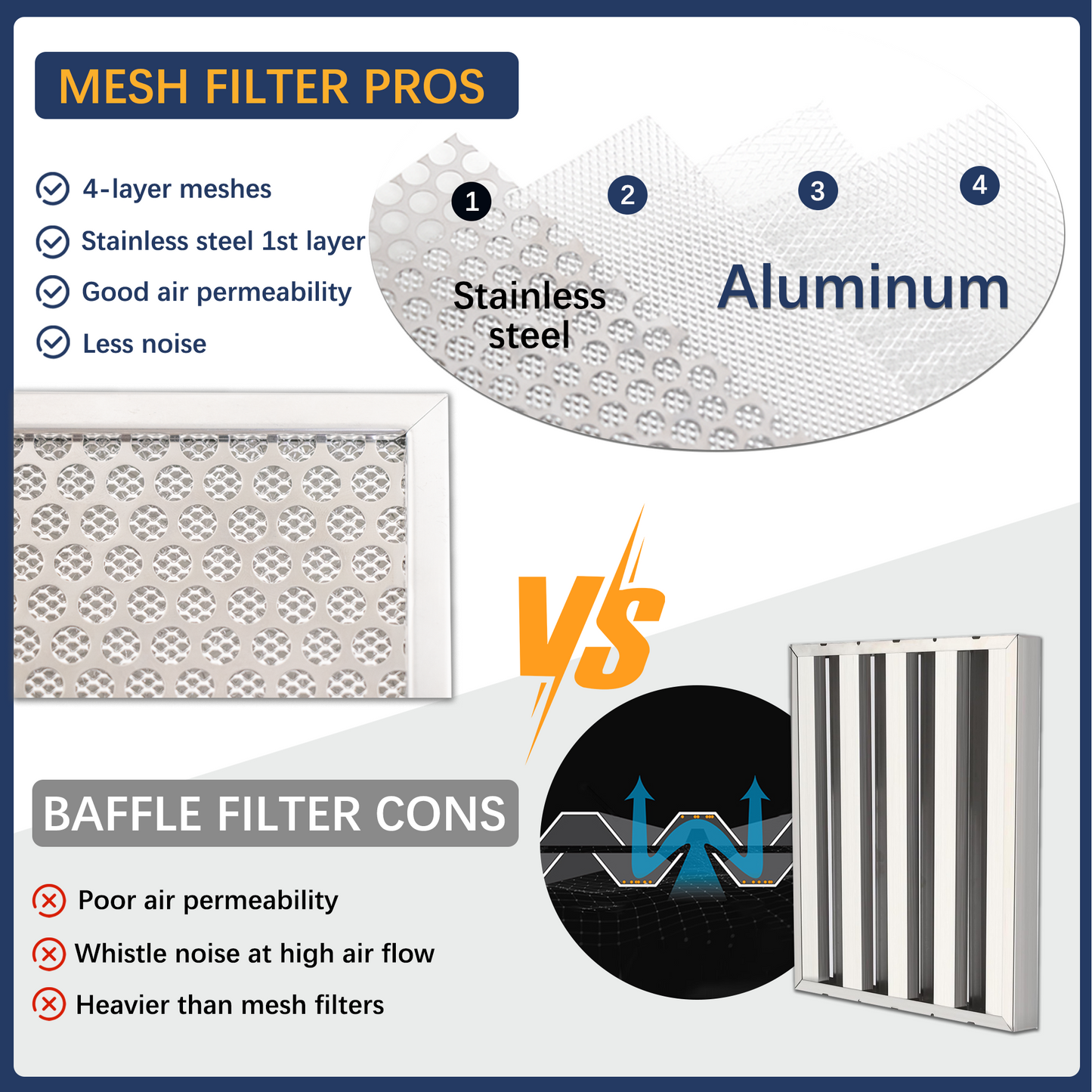

• DISHWASHER SAFE MESH FILTERS: 4 layers dishwasher safe commercial style stainless steel/aluminum mesh filters with built-in latch. Stainless steel for the 1st layer and aluminum for the remaining 3 layers, which provide good air permeability, better suction, and less noise compared to baffle filters. The oil is contained in the mesh filters; no oil holders are needed.

• 1 YEAR LIMITED WARRANTY: ETL Certified. Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee.

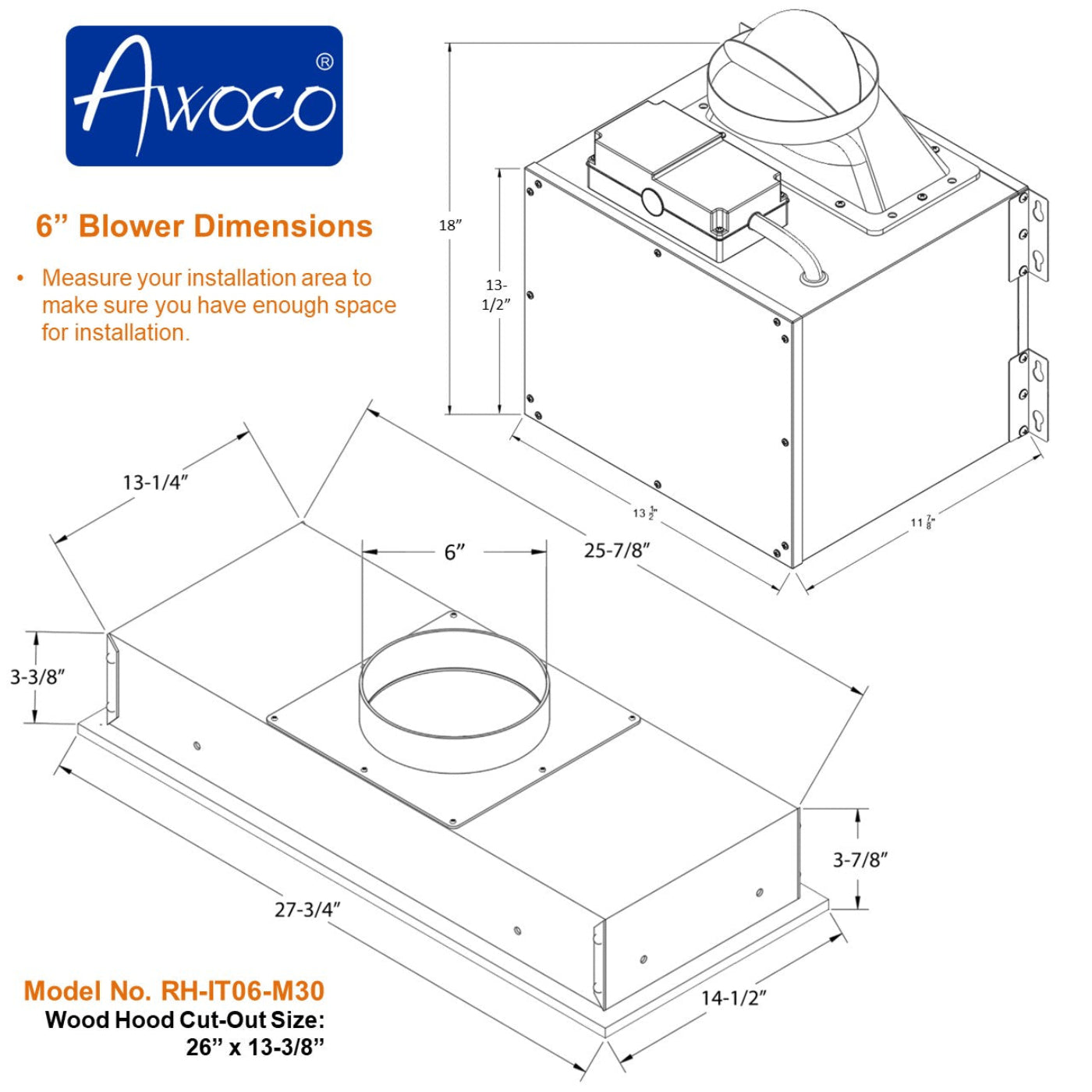

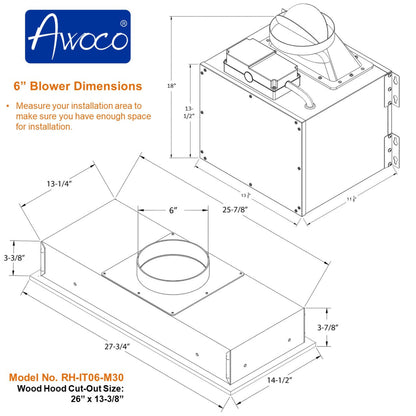

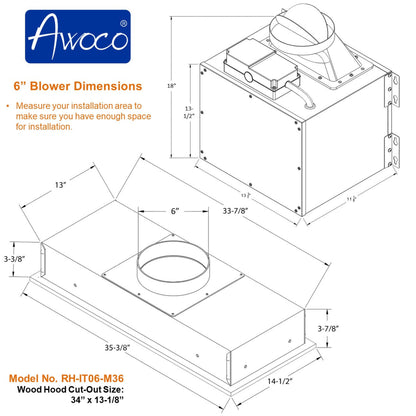

• 30" Hood Dimensions: 27-3/4"W x 14-1/2"D x 3-7/8"H. Hood weight: 14 lbs.

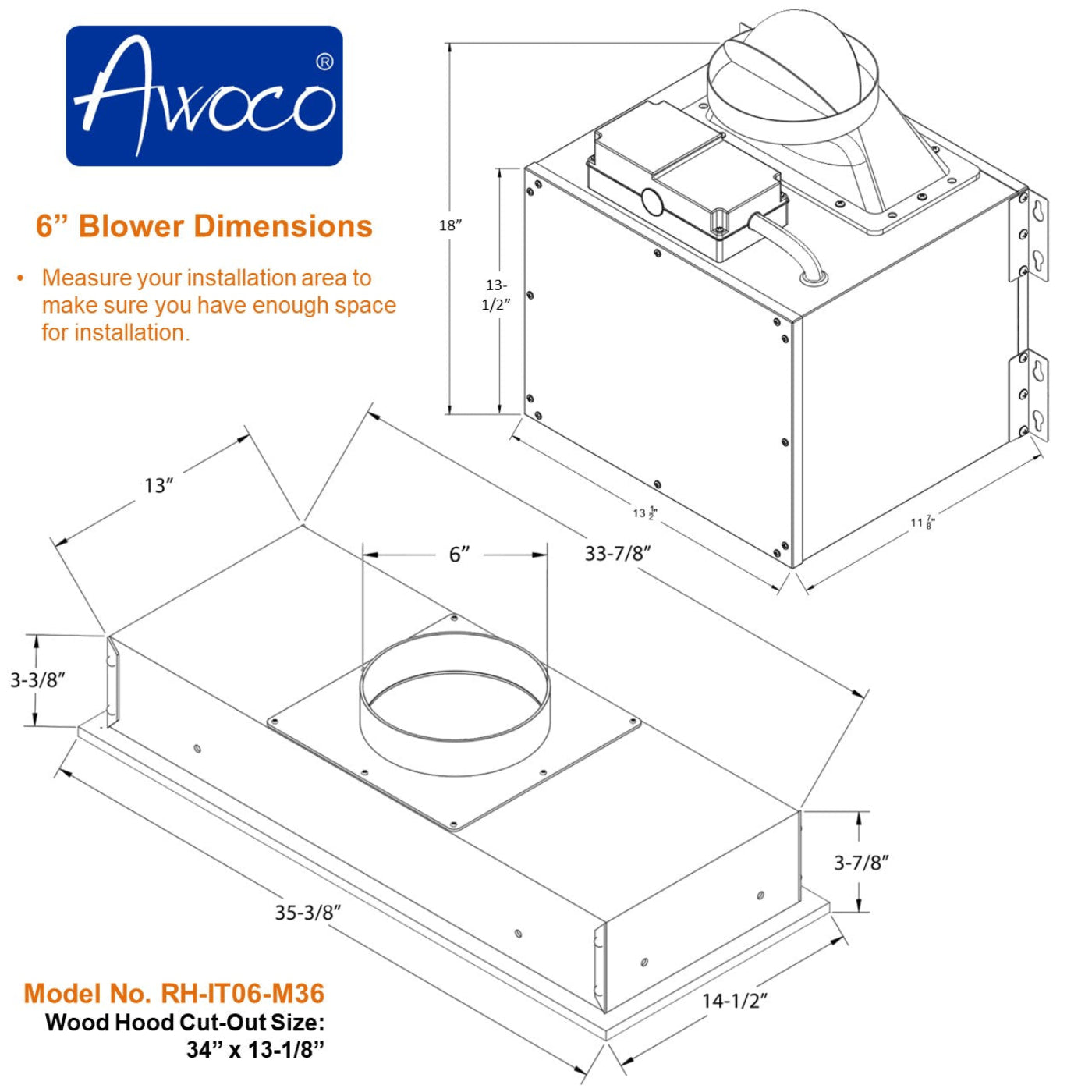

• 36" Hood Dimensions: 35-3/8"W x 14-1/2"D x 3-7/8"H. Hood weight: 17.5 lbs.

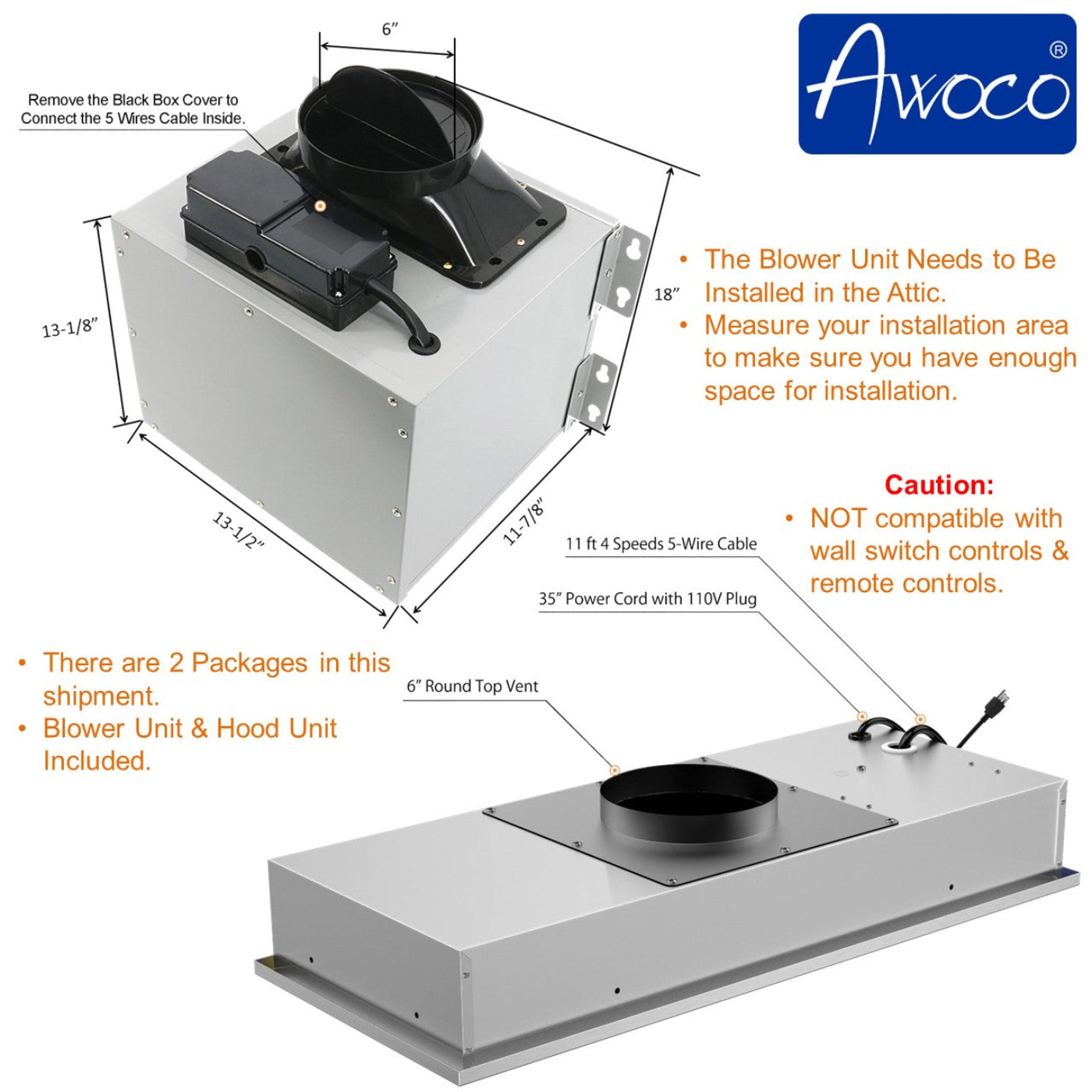

• Blower Dimensions: 13-1/2"W x 11-7/8"D x 17-3/4"H. Blower weight: 20.4 lbs.

• RH-IT06-M30-COLD - Package includes: RH-IT06-M30 with 6000K COLD LED Lights.
• RH-IT06-M30-WARM - Package includes: RH-IT06-M30 with 3000K WARM YELLOW LED Lights.
• RH-IT06-M36-COLD - Package includes: RH-IT06-M36 with 6000K COLD LED Lights.
• RH-IT06-M36-WARM - Package includes: RH-IT06-M36 with 3000K WARM YELLOW LED Lights.

Why Is It Quiet?

The range hood noise is the sound of air suctioning the steam away. The blower exhausts the air out, sucking the nearby air to one direction. For example, the house fan has a louder noise at higher speed which is from the air collision, not the motor. High speed air collision is the cause of the powerful range hood's noise generation.

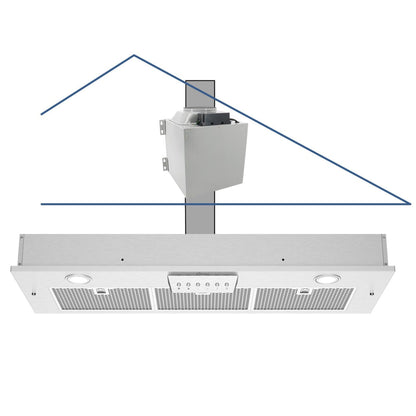

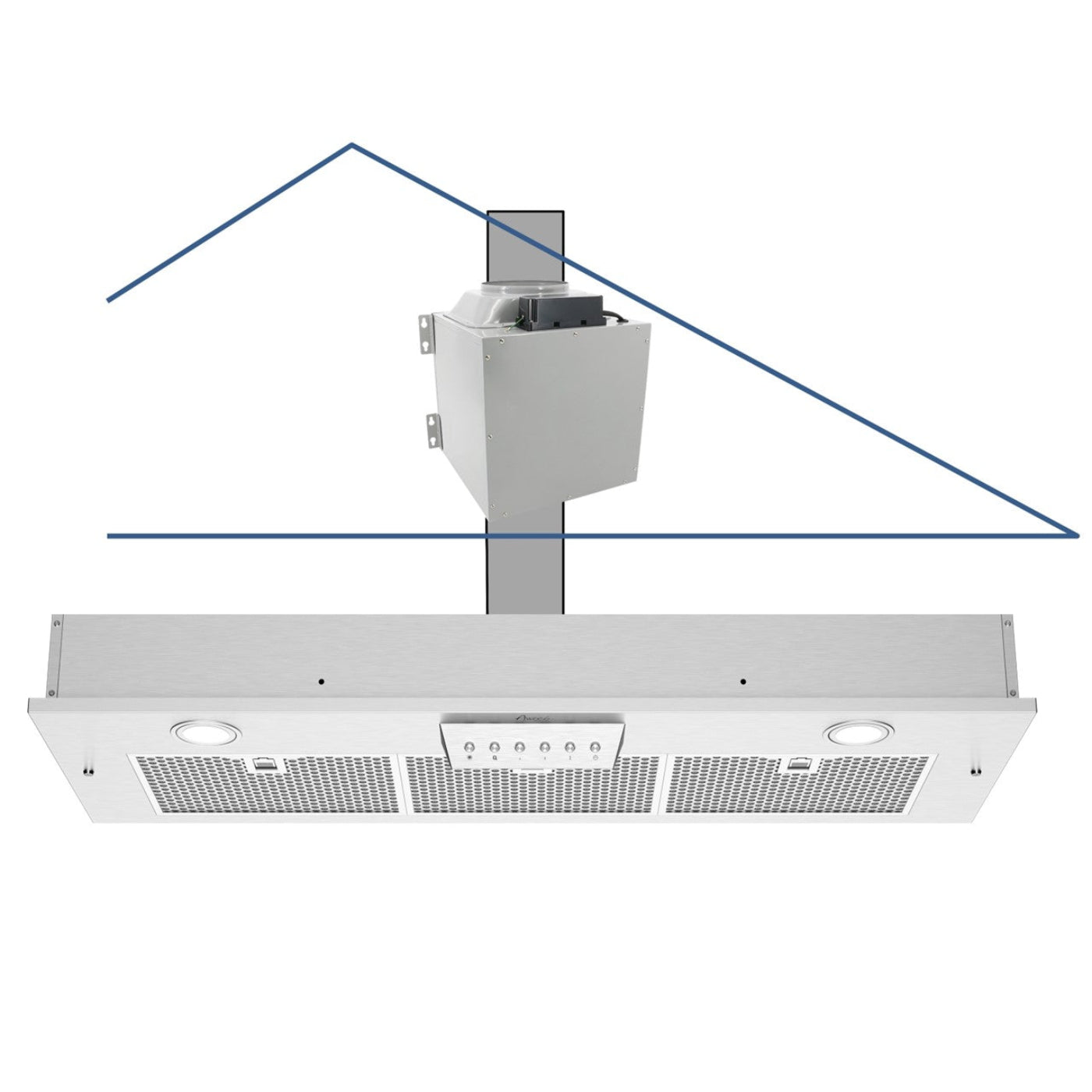

The restaurant exhaust fans are on the roof; therefore, moving the blower to the attic is the solution for residential applications to eliminate the range hood noise. Same as the industrial inline blower, this Blower unit is in between the house exhaust vent and the range hood unit.

1mm Thick High Quality Brushed Finish Stainless Steel.

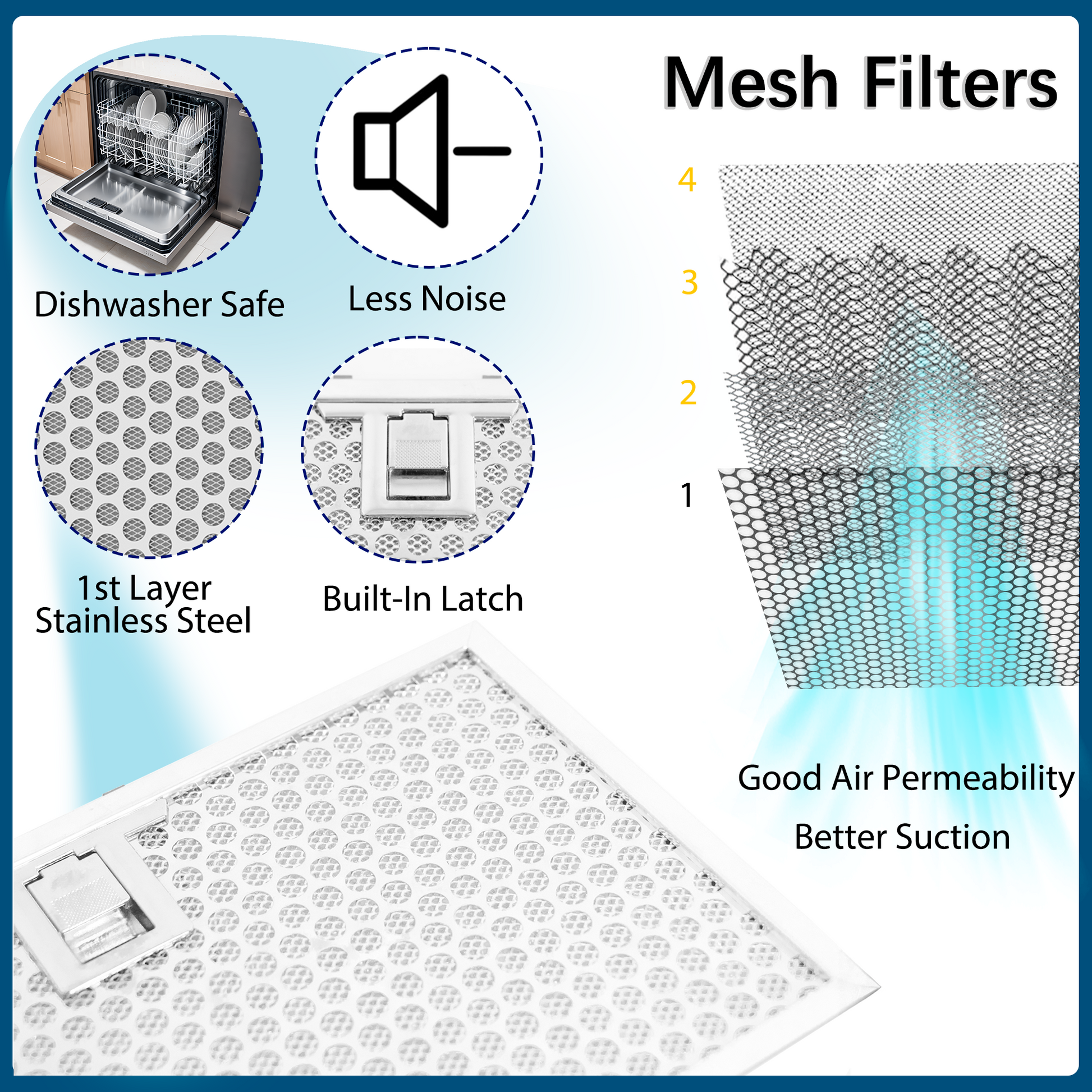

High-Quality Stainless-Steel, Dishwasher Safe Mesh Filters

• Mounting Type: Insert unit; Attic lumber mounted for Blower unit.
• Venting Type: 6" round TOP vent for Hood unit; 6" round vent in and out for Blower unit.

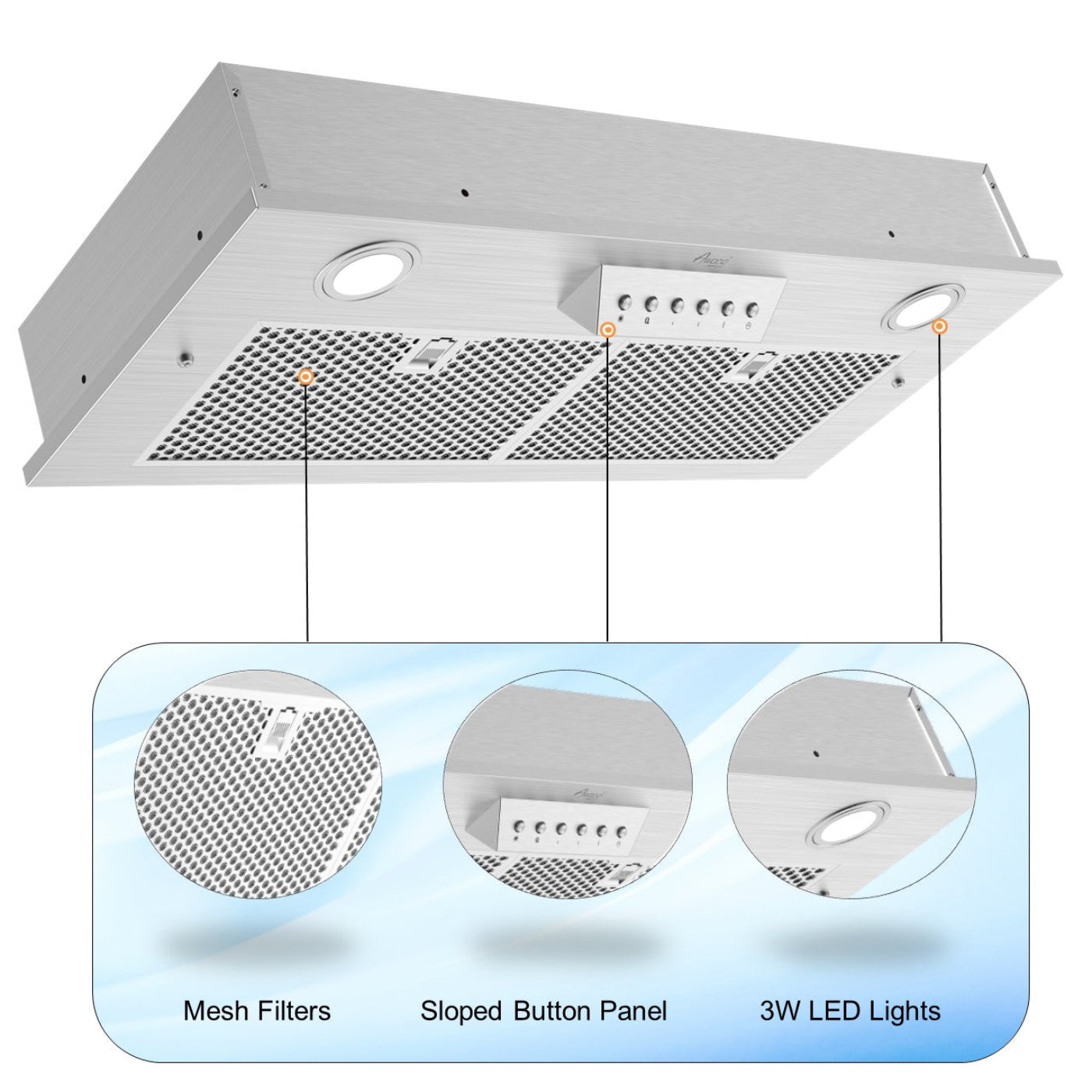

• Hood Unit: 2 of 3W energy efficient cold bright LED Lights are bright enough to cover the whole cooktop.
• Blower Unit: 1 Motor and 7” Centrifugal Squirrel Cage Fan Wheel.
• Power rating: 120V/60Hz, 110W Min /160W Max.
• Noise level at low: 40 dB, 2.5 sones. Noise level at high: 52 dB, 5.5 sones.

VIEW / DOWNLOAD.

AWOCO 101 VIDEOS

• 800 CFM Power: Effectively removes smoke, grease, and odors, maintaining a fresh kitchen environment.
• Super Quiet Operation: Designed for minimal noise, even at high speeds, making it ideal for peaceful cooking.
• 4-Speed Settings: Versatile ventilation control for light cooking or heavy-duty frying.
• Mesh Filters: Easy-to-clean filters that capture grease and particles while maintaining strong airflow.
• Energy-Efficient LED Lights: Bright, efficient lighting to enhance visibility while cooking.
• 6" Blower Unit: Standard installation for optimal performance and easy setup.

Q: What is the Awoco RH-IT06-M Super Quiet Split Insert Stainless Steel Range Hood?
A: A compact, powerful range hood designed for insert installation with 4 fan speeds, 800 CFM airflow, mesh filters, LED lights, and a 6" blower unit for efficient kitchen ventilation.

Q: What makes it special?
A: The split motor design provides quiet performance, while the 800 CFM airflow, LED lights, and mesh filters offer effective cooking ventilation and easy maintenance.

Q: What is the blower size?
A: It uses a 6" blower unit for optimal ventilation.

Q: How many fan speeds does it have?
A: It offers 4 adjustable fan speeds to suit different cooking scenarios.

Q: Is it easy to clean?
A: Yes, the mesh filters are washable, and the stainless steel construction is easy to maintain.

Q: Where can it be installed?
A: Ideal for insert installations in residential kitchens, providing powerful and quiet ventilation.

• Clean stainless steel with a soft cloth and mild detergent to avoid scratching.
• Wash mesh filters every 1–3 months with warm, soapy water.
• Inspect and clean the 6" blower unit regularly to maintain performance.
• Replace filters as needed for optimal air circulation.
• Wipe down LED lights with a dry cloth to maintain brightness.
