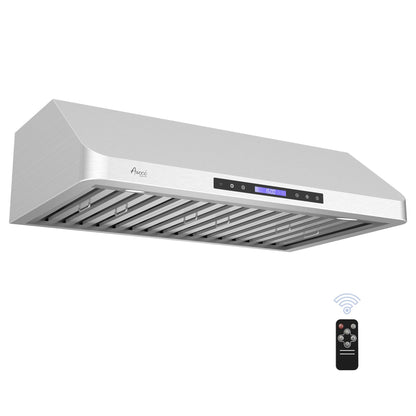

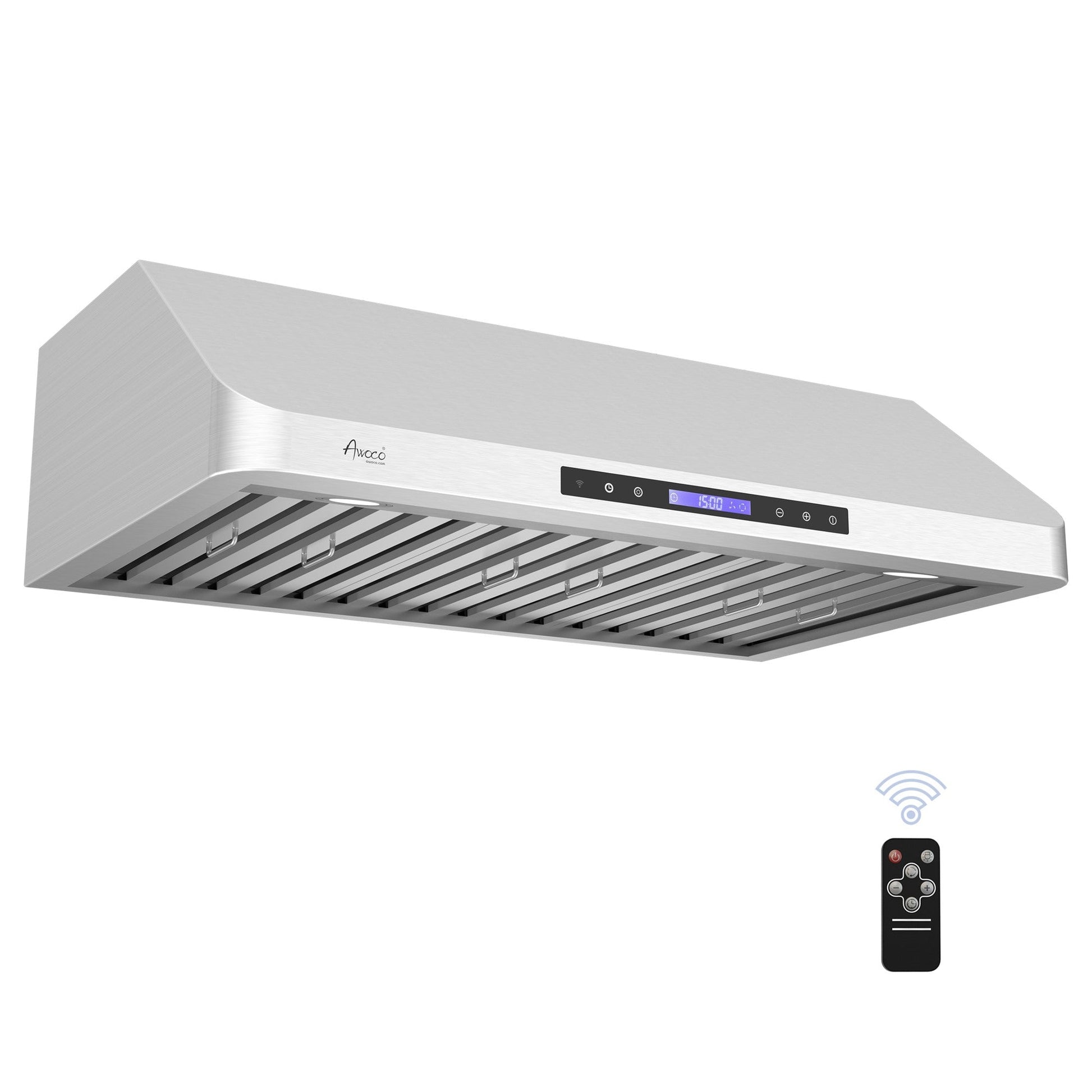

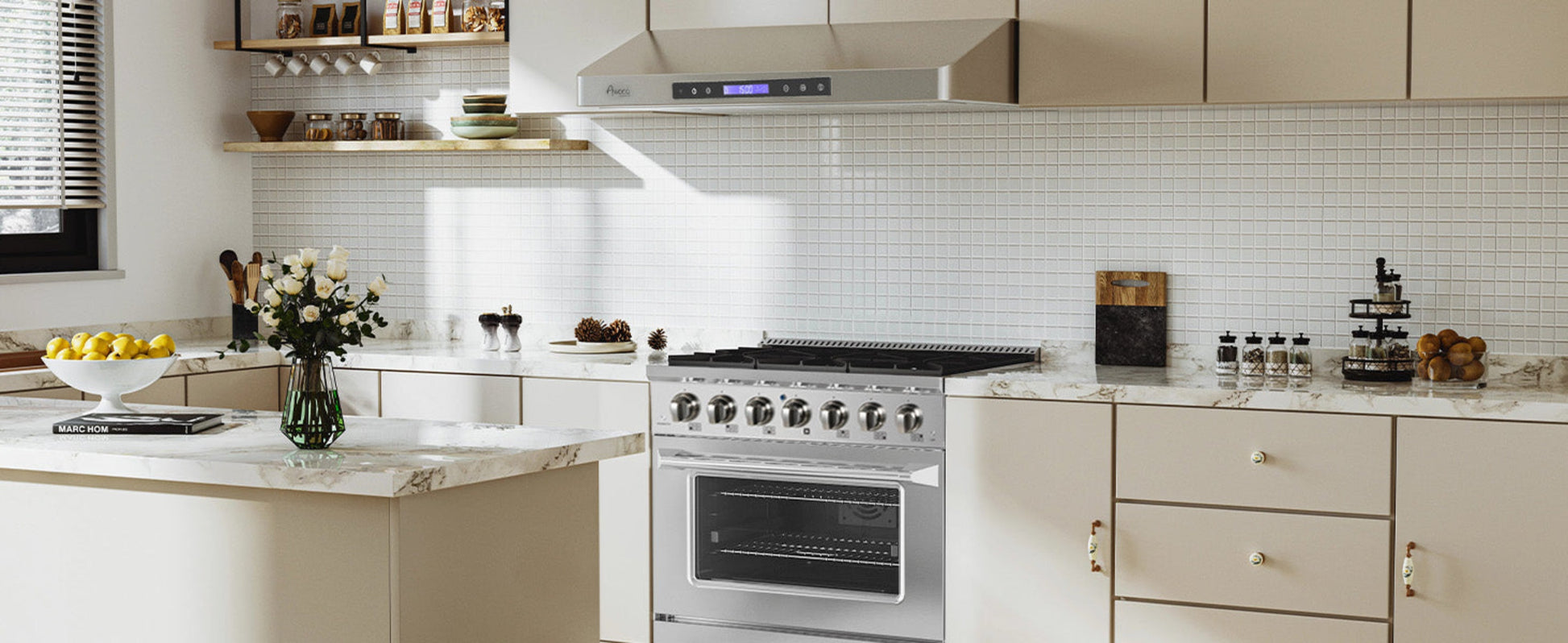

Awoco RH-S10 Under Cabinet Supreme 10” High Stainless Steel Range Hood, 4 Speeds, 8” Round Top Vent, 1000CFM, with Remote Control - RH-S10-30

Awoco RH-S10 Under Cabinet Supreme 10” High Stainless Steel Range Hood, 4 Speeds, 8” Round Top Vent, 1000CFM, with Remote Control - RH-S10-30

• SUPREME SERIES 10” HIGH, DUCTED VENT OUTSIDE, 8” ROUND TOP VENT, 1mm THICK: under cabinet, high quality 1 mm thick stainless steel with brush finishing. Recommended installation height of the range hood is 27”, minimum should be 24” and the maximum should be no more than 30”.

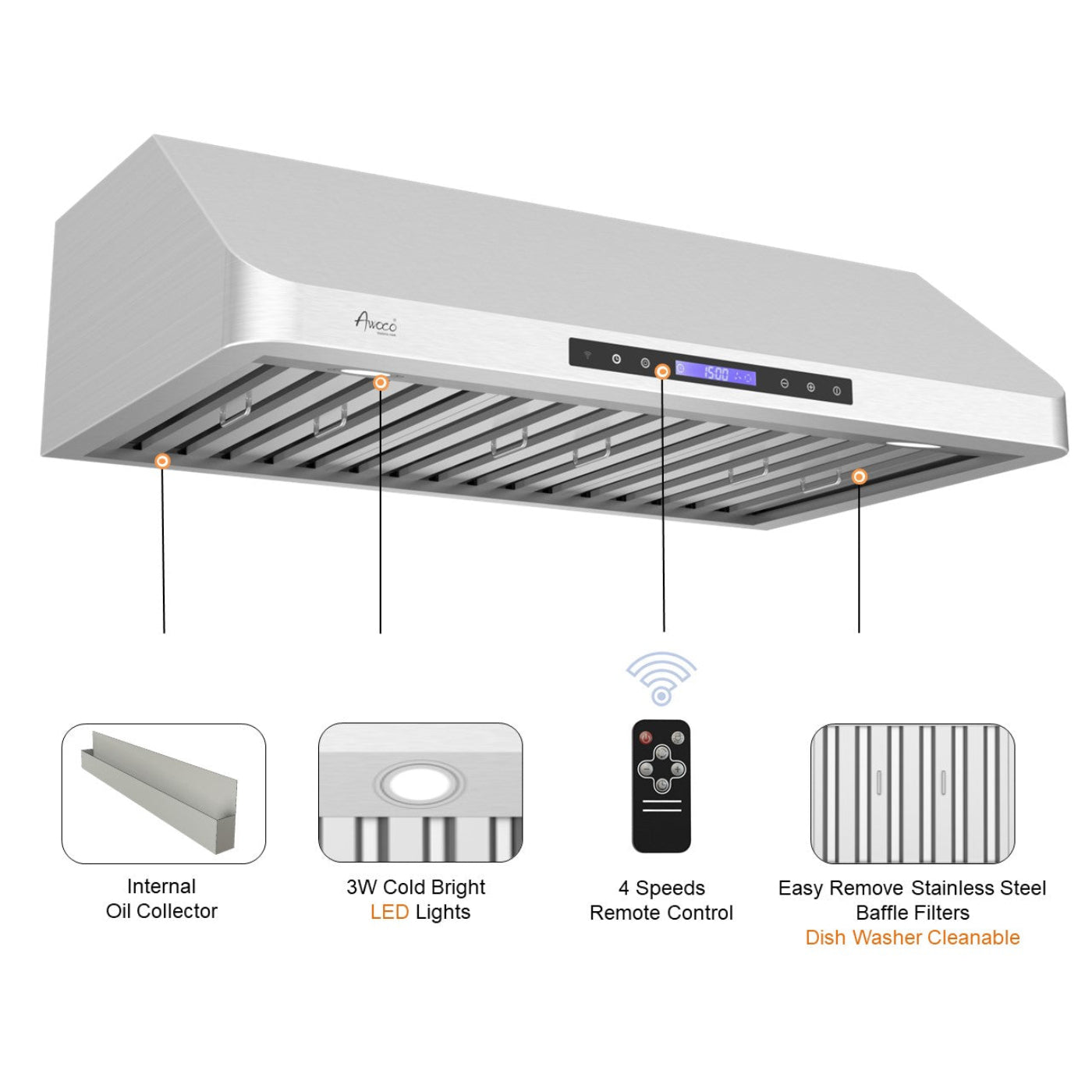

• INTERNAL OIL COLLECTOR & TWIST LOCK LED LIGHTS: Comes with an internal oil collector. 1 air damper is included on the top. 2 3W twist lock removable energy saving cold bright LED lights. Light button operates independently from the power button. It works even when the range hood is not turned on. The LED light indicator will illuminate in the LCD display once the lamps are turned on.

• 4 SPEEDS POWERFUL OPERATION WITH REMOTE CONTROL: 4 speeds (385/590/815/1000 CFM), touch sensor panel with remote control sensor receives infrared signal from the remote. 2 Motors, Centrifugal Squirrel Cage Blowers. Quieter and more powerful than a traditional blower. Power rating: 120V/60Hz, 200W Min. 246W Max. Power cord with plug is included. Noise level at low: 46 dB, 4.0 sones. Noise level at high: 64 dB, 12.0 sones.

• 3 DISHWASHER SAFE BAFFLE FILTERS, 1-15 MINUTES AUTO SHUT OFF: Dishwasher safe; easily removable commercial style stainless steel baffle air filters. The oil is contained in the baffle filters and the internal oil collector. Up to 15 minute timer delayed with an auto shut off feature to vent the leftover smoke after cooking. After 3 hours the range hood will auto shut off, in case you forget to shut off the hood.

• 1 YEAR LIMITED WARRANTY: ETL Certified. Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee.

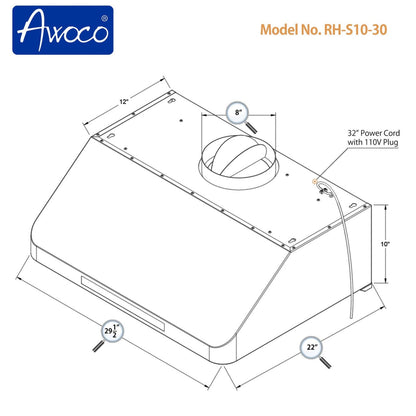

• 30" Hood Dimensions: 29-1/2"W x 22"D x 10"H. Hood weight: 57.9 lbs.

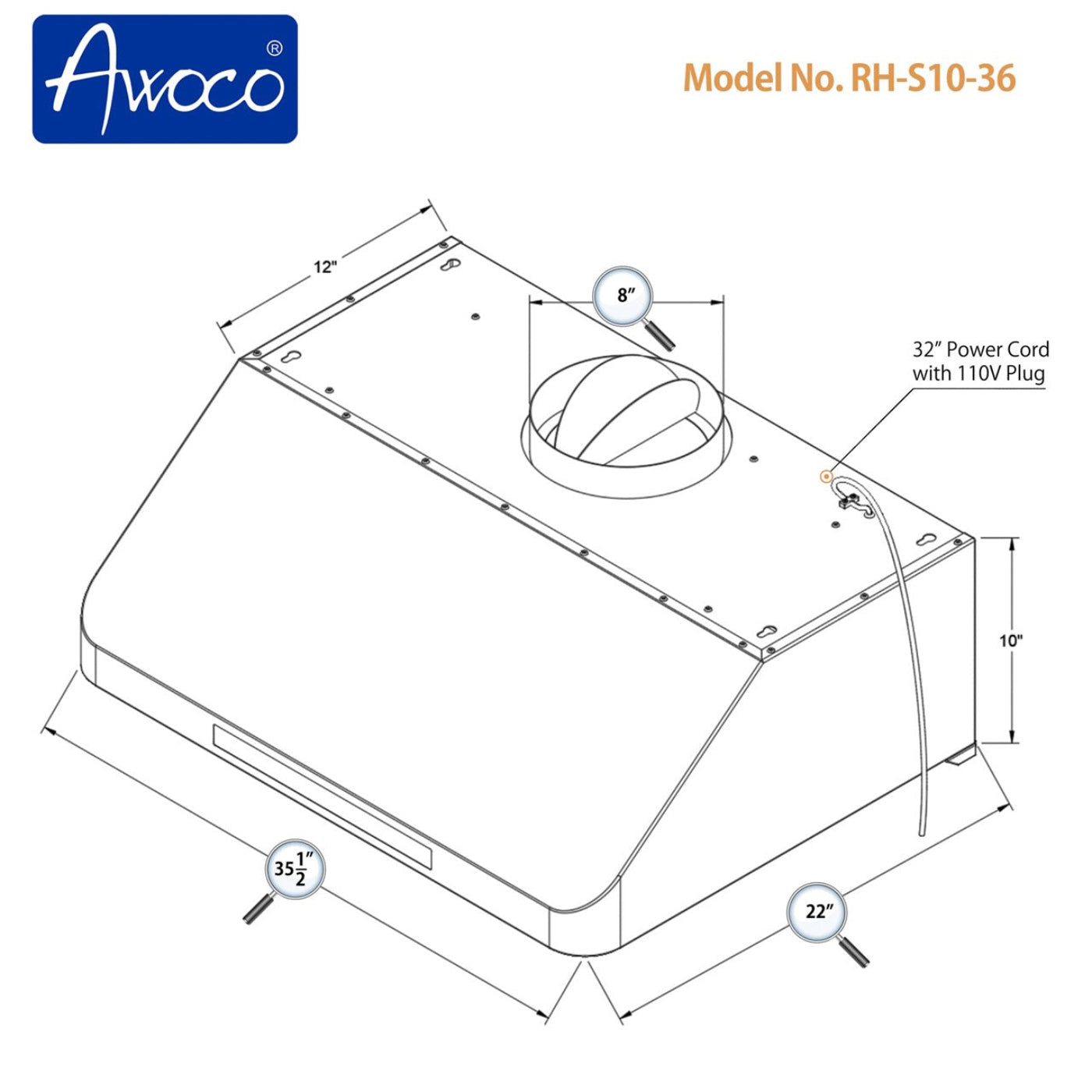

• 36" Hood Dimensions: 35-1/2"W x 22"D x 10"H. Hood weight: 62.9 lbs.

• Mounting Version: Under Cabinet.
• 1mm Thick, High-Quality Stainless Steel Construction.

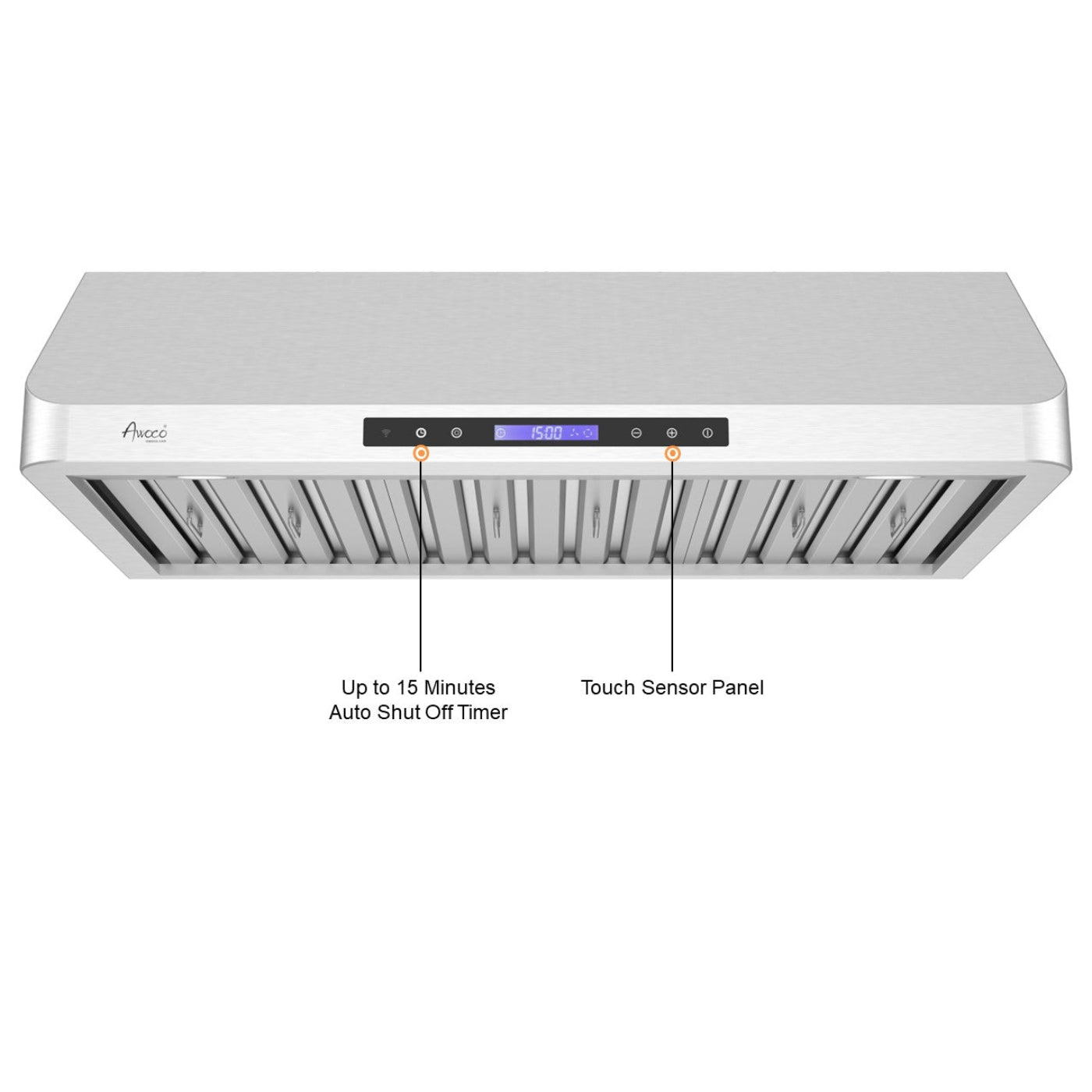

• Touch sensor panel with automatic shutoff timer (timer will shut off the fans only).
• 4 speeds remote control sensor receives infrared signal from the remote.

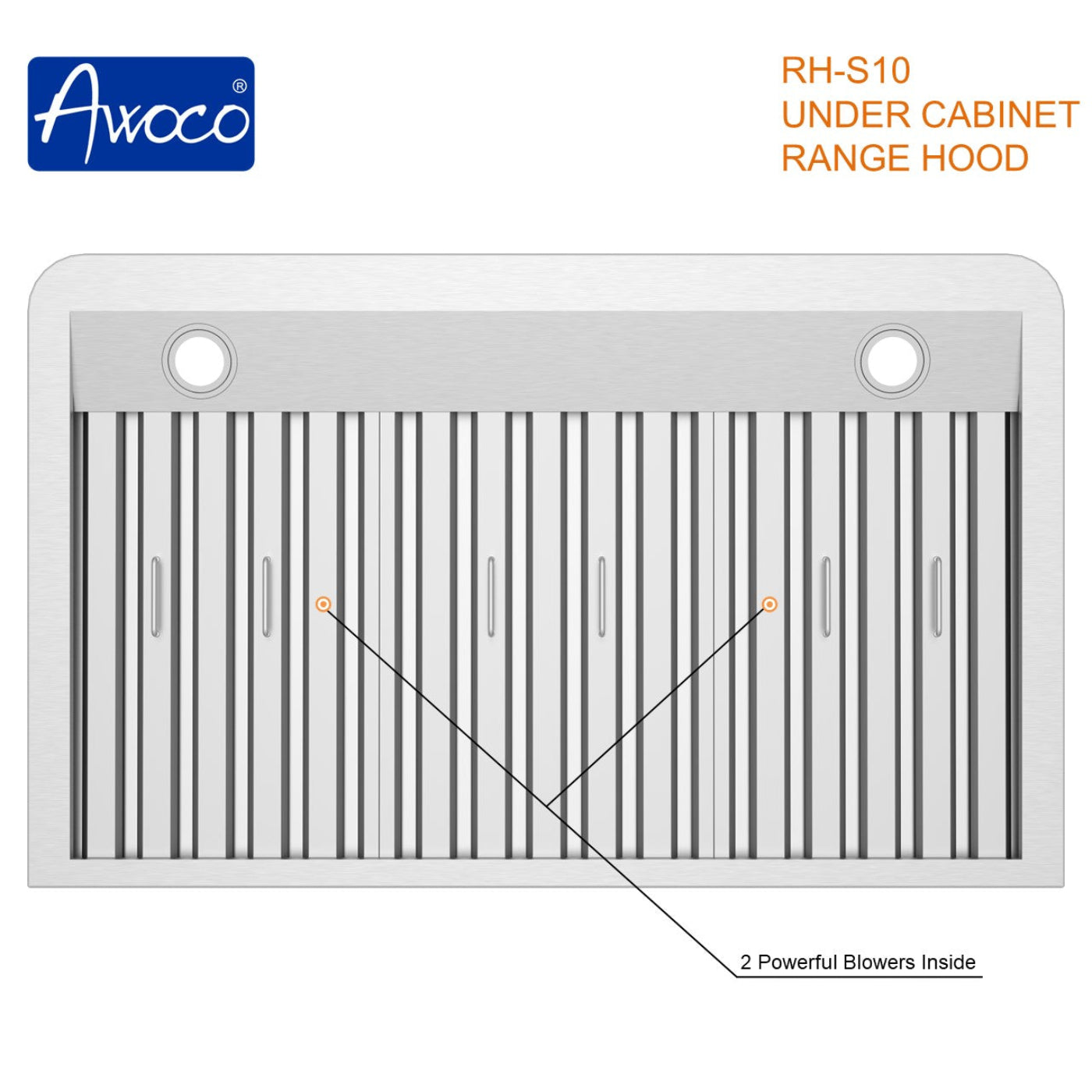

• 2 Powerful Centrifugal Squirrel Cage Fans. More powerful and quieter than traditional blower.
• 2 of 3W removable energy saving cold bright LED Lights
• Remote Control complies to ADA requirement.
• Stainless steel baffle filter (dishwasher safe), new commercial style air filter.
• Internal oil collector.
• Clock shows 2:00 (Standard time) instead of 14:00 (Military time).
• Power Rating: 120/60Hz 200W Min. - 246W Max. Duct work is not included.
• Noise level at low: 46 dB, 4.0 sones. Noise level at high: 64 dB, 12.0 sones.

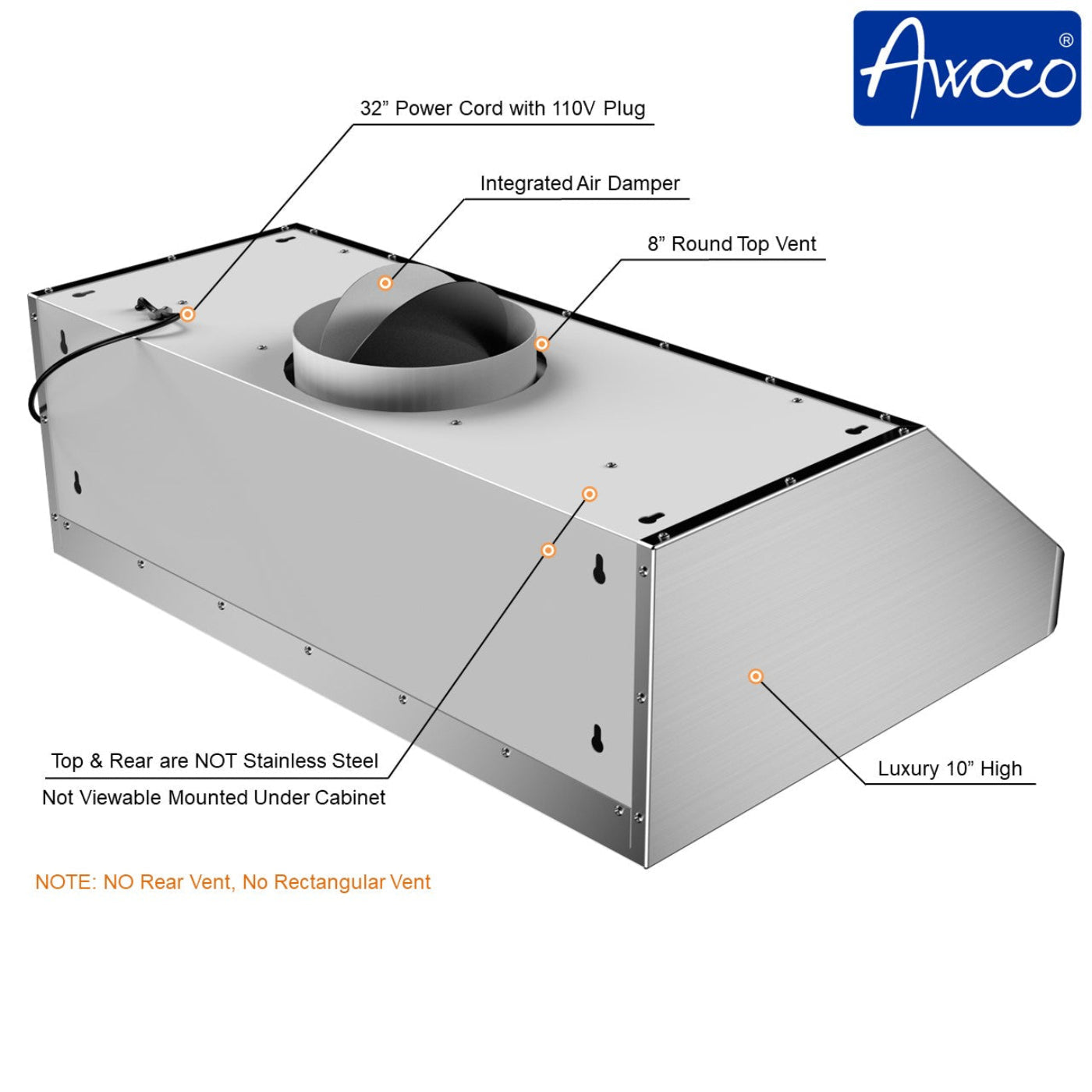

• 8” round duct vent exhaust.
• 1 air damper is included on the top.
• 1 year warranty.

VIEW / DOWNLOAD

AWOCO 101 VIDEOS

• Ultra-Powerful Ventilation – 1000 CFM, 4-speed fan efficiently removes smoke, grease, and odors.
• Slim 10” High Design – Fits seamlessly under cabinets while delivering commercial-grade performance.
• Remote Control Convenience – Easily adjust fan speeds and lighting from a distance.
• 8” Round Top Vent – Ensures optimal airflow and compatibility with most ducted setups.
• Bright LED Lighting – Enhances cooktop visibility with energy-efficient illumination.
• Durable Stainless Steel Build – Sleek, corrosion-resistant, and easy to clean.
• Dishwasher-Safe Baffle Filters – Traps grease effectively and simplifies maintenance.

Q: What is the Awoco RH-S10-30 Range Hood?
A: A 30-inch under-cabinet stainless steel range hood with 4-speed operation, 1000 CFM airflow, and a remote control for easy use.

Q: How powerful is the airflow?
A: It features a high-performance 1000 CFM motor, ideal for heavy-duty cooking and efficient smoke and odor removal.

Q: What size is the vent connection?
A: It uses an 8-inch round top vent for optimal airflow.

Q: Does it include filters?
A: Yes, it comes with stainless steel baffle filters that are dishwasher-safe for easy maintenance.

Q: What are the fan speed options?
A: It has 4-speed settings to adjust ventilation based on cooking intensity.

Q: Does it include lighting?
A: Yes, it features LED lights for enhanced cooking visibility

• Clean Baffle Filters Regularly – Wash every 3–4 weeks with warm soapy water or place in the dishwasher to maintain airflow and efficiency.
• Wipe Down Stainless Steel Exterior – Use a microfiber cloth and stainless steel cleaner to prevent grease stains and fingerprints.
• Inspect & Clean Blower Fan – Check for grease buildup every 2–3 months to ensure optimal suction power.
• Check & Replace LED Lights – Ensure lights function properly; replace with compatible LEDs if dim or flickering.
• Keep Venting System Clear – Ensure the 8” round top vent remains unobstructed for efficient smoke and odor removal.
• Use Correct Speed Settings – Lower speeds for light cooking, higher speeds for heavy smoke and grease.
• Test Remote Control & Buttons – Ensure all functions are responsive; clean buttons if they become sticky.
• Run Hood After Cooking – Let it run for 5–10 minutes post-cooking to clear lingering smoke and moisture.
