Awoco RH-SP06-RT Super Quiet Split Stainless Steel Range Hood, 4 Speeds, 800CFM, Rectangular Top Vent with LED Lights - RH-SP06-RT30

Awoco RH-SP06-RT Super Quiet Split Stainless Steel Range Hood, 4 Speeds, 800CFM, Rectangular Top Vent with LED Lights - RH-SP06-RT30

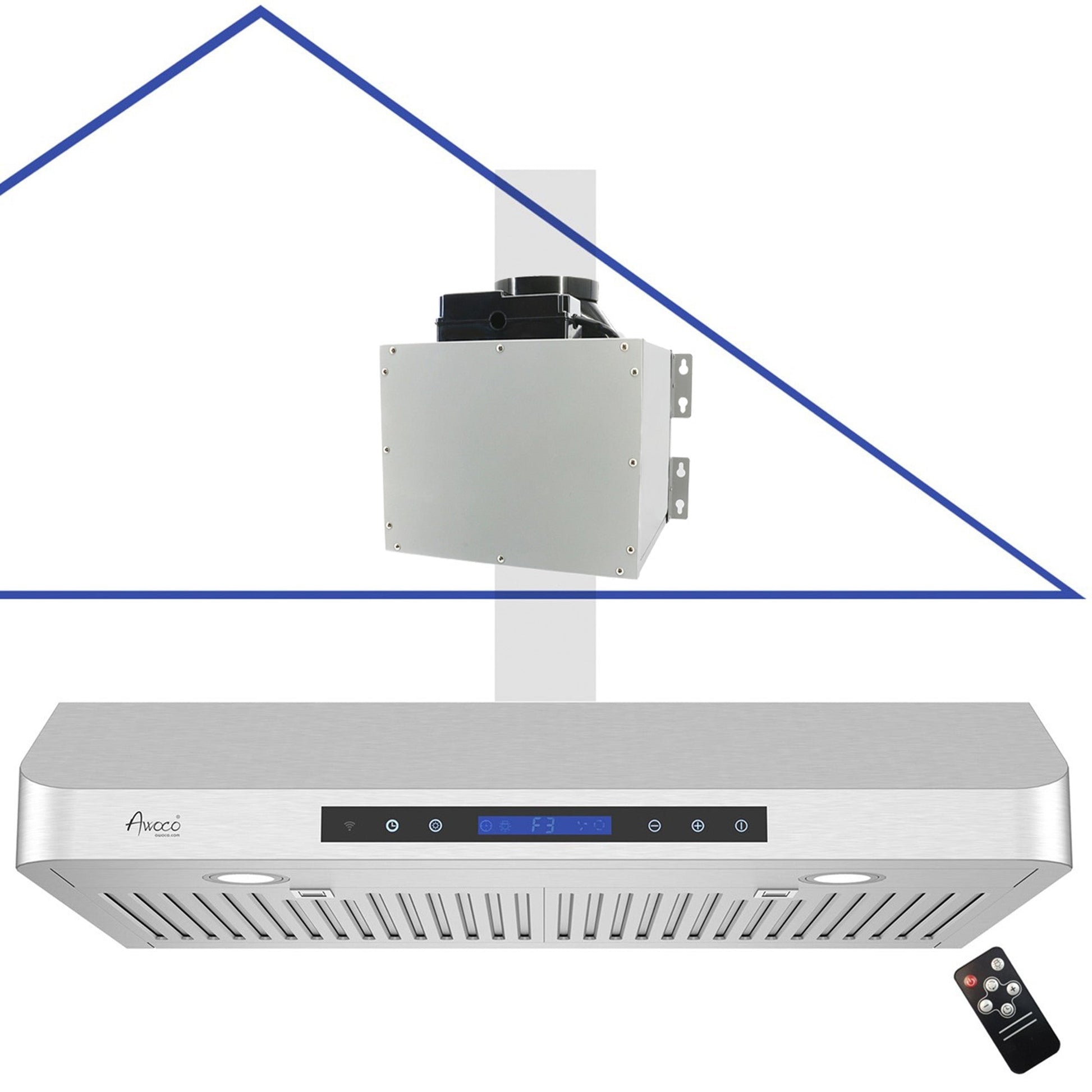

• SUPER QUIET INNOVATIVE SPLIT COMPLETE SET: includes Hood unit and Blower unit. This builds a super quiet split range hood system; the Blower unit is mounted in the attic. Dishwasher safe stainless steel baffle filters, the oil is contained in the baffle filters, no oil holders needed. Up to 15 minutes auto shut off to vent the leftover smoke after you are done cooking.

• UNDER CABINET OR WALL MOUNTED: high quality stainless steel with brush finishing. 6" high, round front corners. Perfectly fit under the 12” deep standard cabinet; provide slick style and powerful performance.

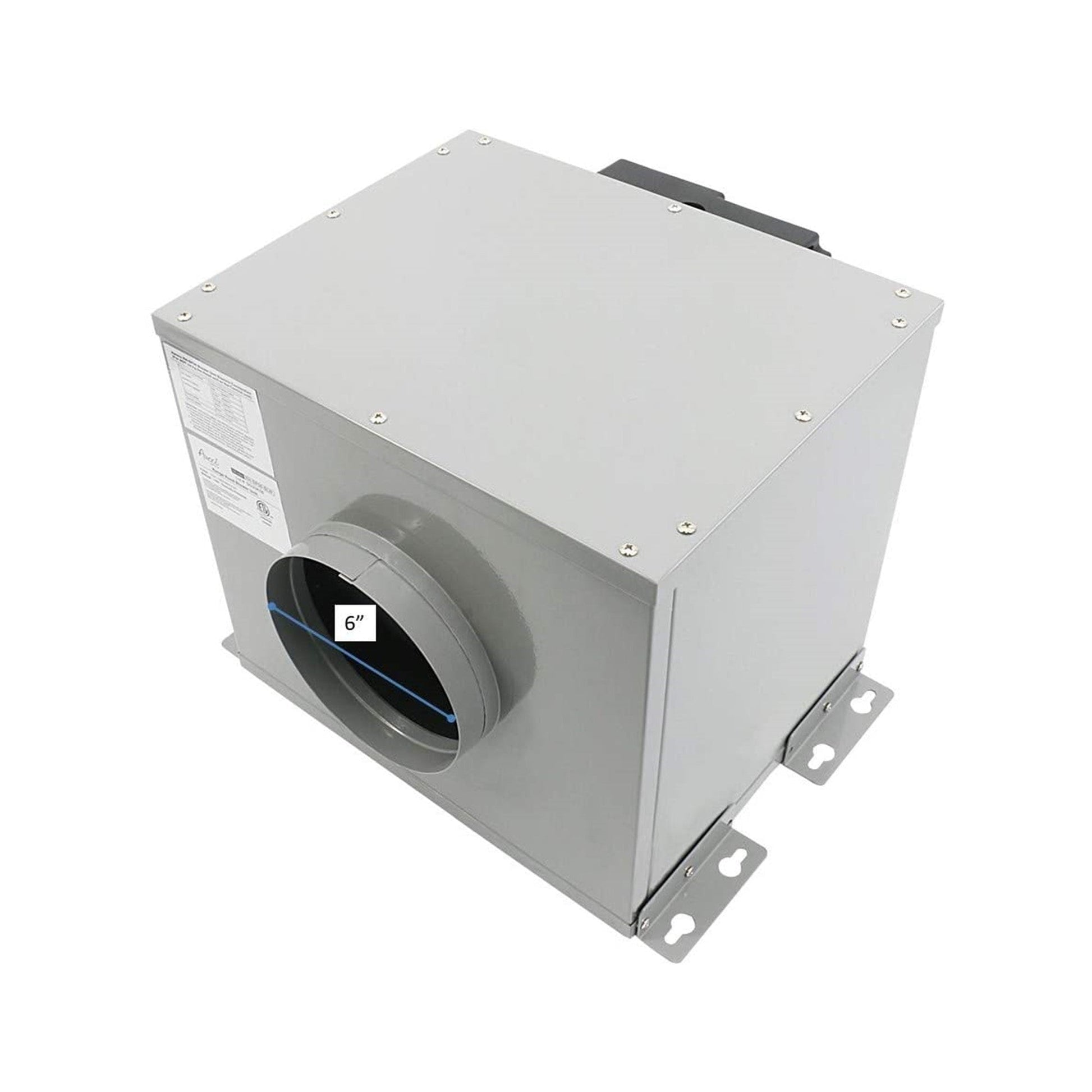

• DUCTED VENT OUTSIDE, 3-1/4” x 10" Rectangular Top Vent: 3-1/4” x 10" rectangular top exhaust vent on Hood Unit and 6” round vent for Blower Unit. 12 ft connection wire from hood to blower unit.

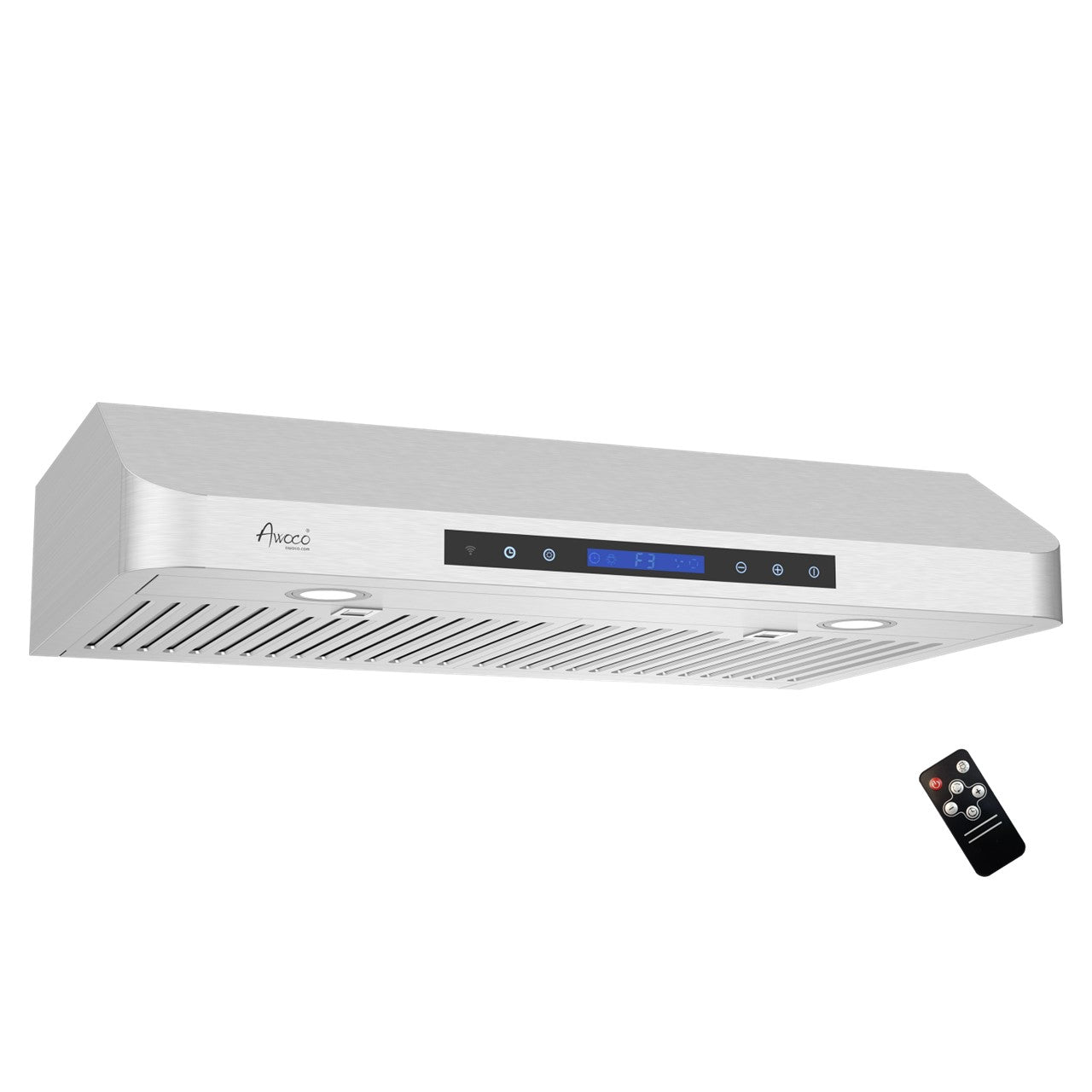

• 4 SPEEDS POWERFUL OPERATION WITH LED LIGHTS: 4 speeds (Quiet, I, II, III up to 800 CFM), touch panel with remote control. 12 Hr clock displayed at idle. 2 of 3W energy saving cold bright LED lights. 1 motor and 7” wide Centrifugal Squirrel Cage Fan Wheel.

• Power Rating: 120V/60Hz, 180W Min /275W Max. Power cord with plug is included. Noise level at low: 38 dB, 2.0 sones. Noise level at high: 50 dB, 5.0 sones.

• 1 YEARS LIMITED WARRANTY: Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee.

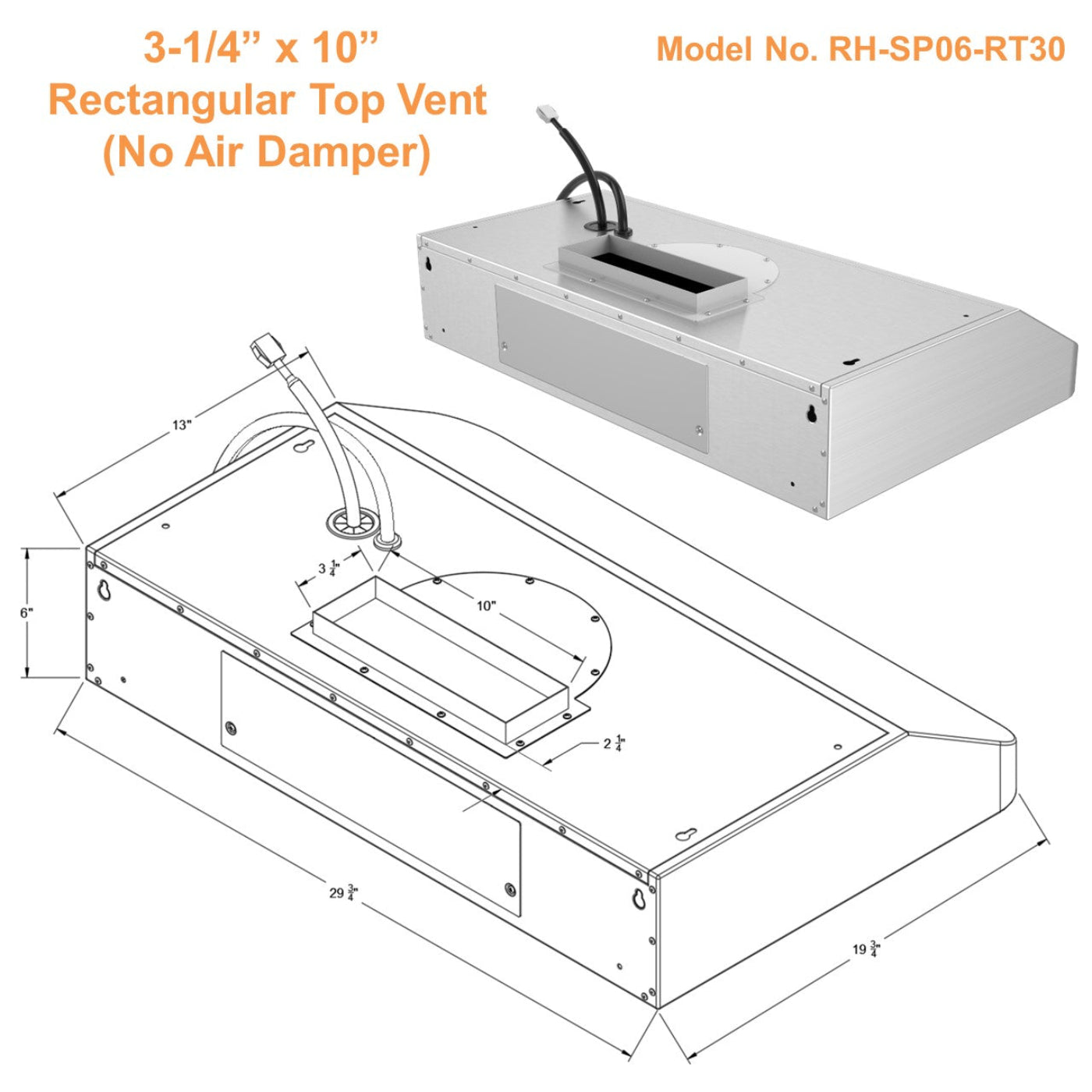

• 30" Hood Dimensions: 29-3/4"W x 19-3/4"D x 6"H. Hood weight: 20 lbs.

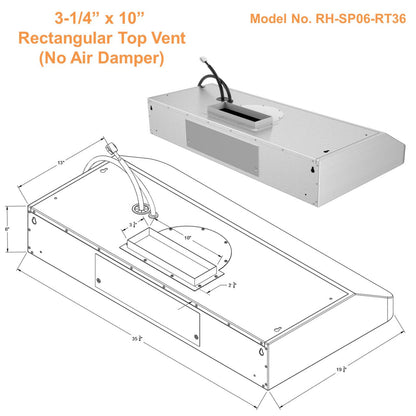

• 36" Hood Dimensions: 35-3/4"W x 19-3/4"D x 6"H. Hood weight: 23 lbs.

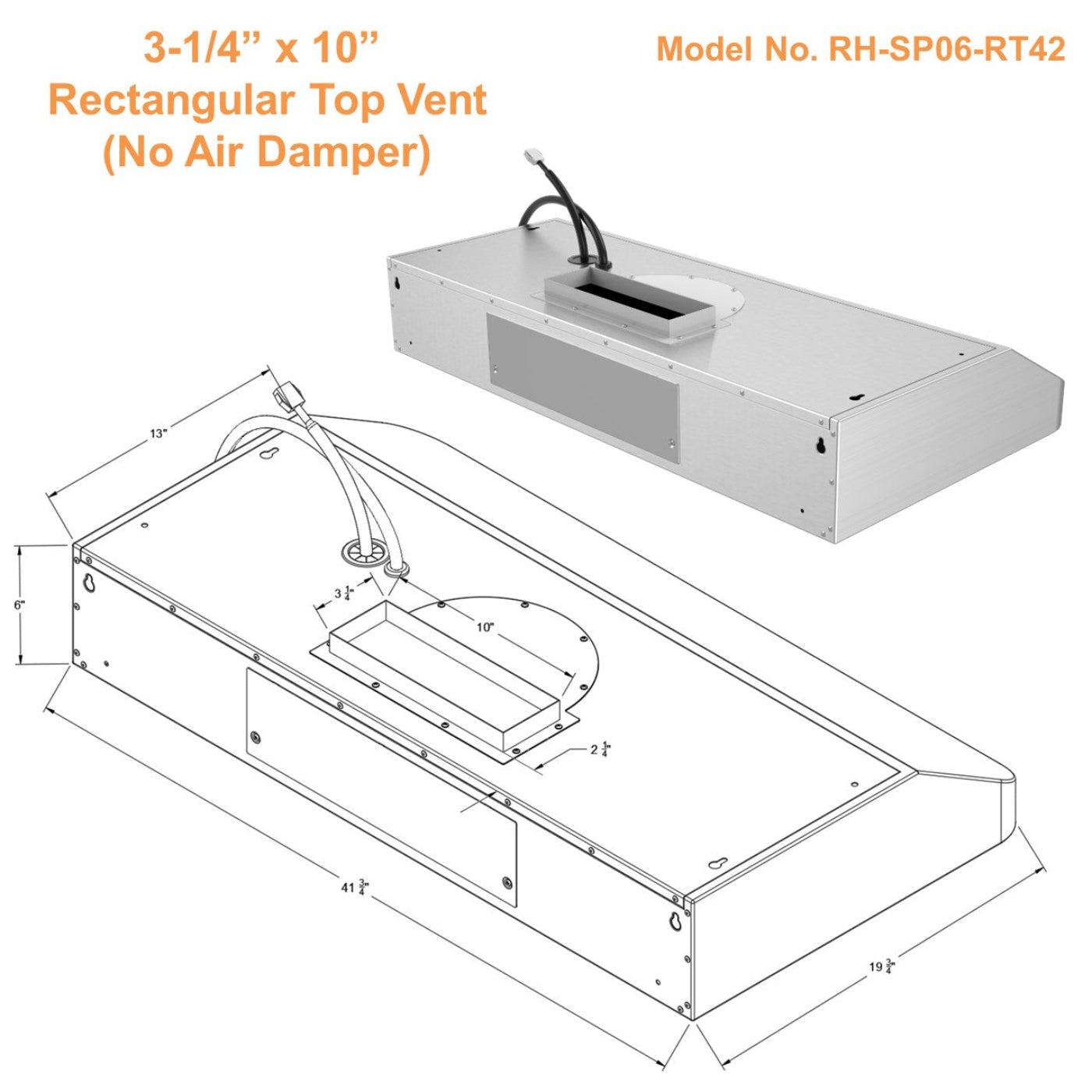

• 42" Hood Dimensions: 41-3/4"W x 19-3/4"D x 6"H. Hood weight: 30 lbs.

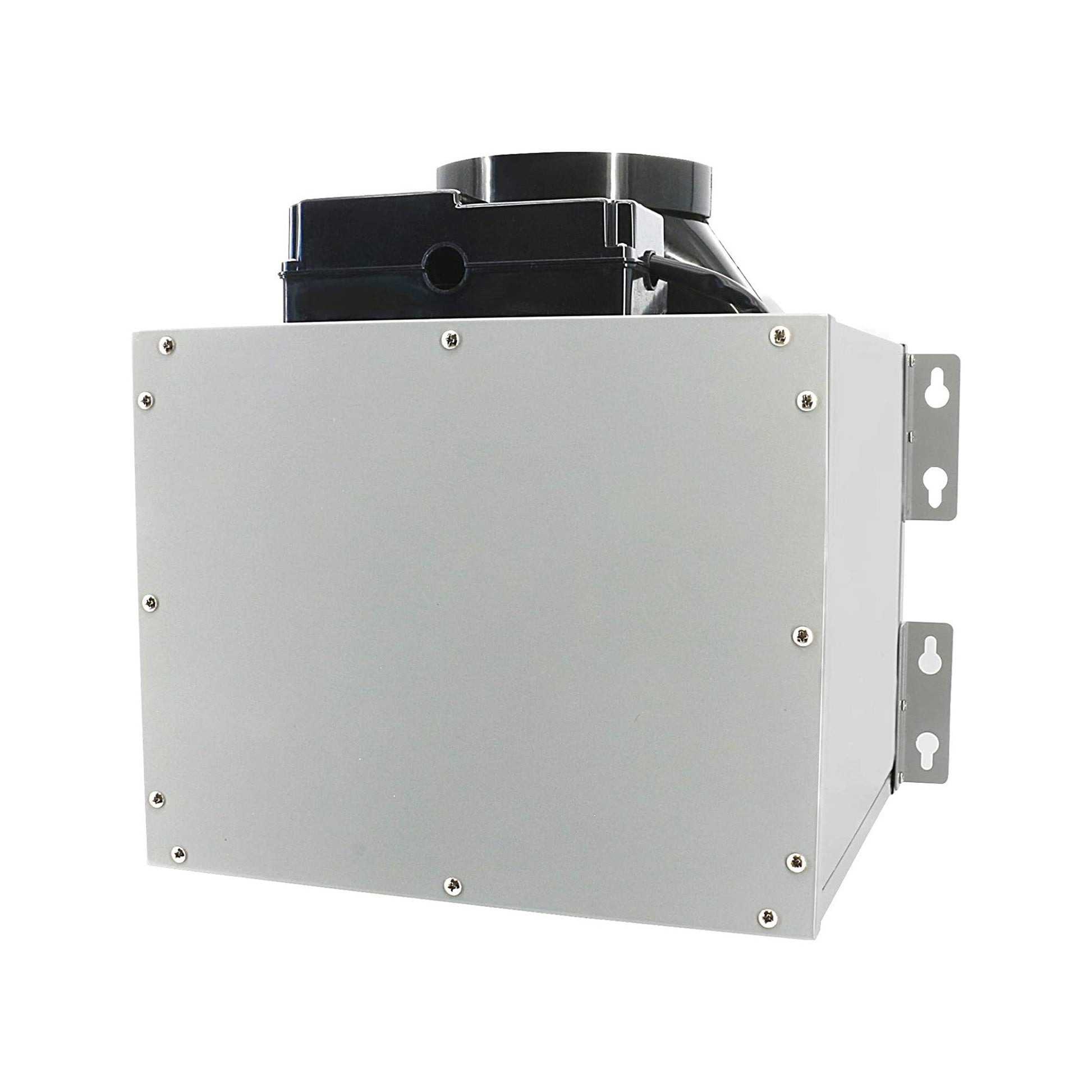

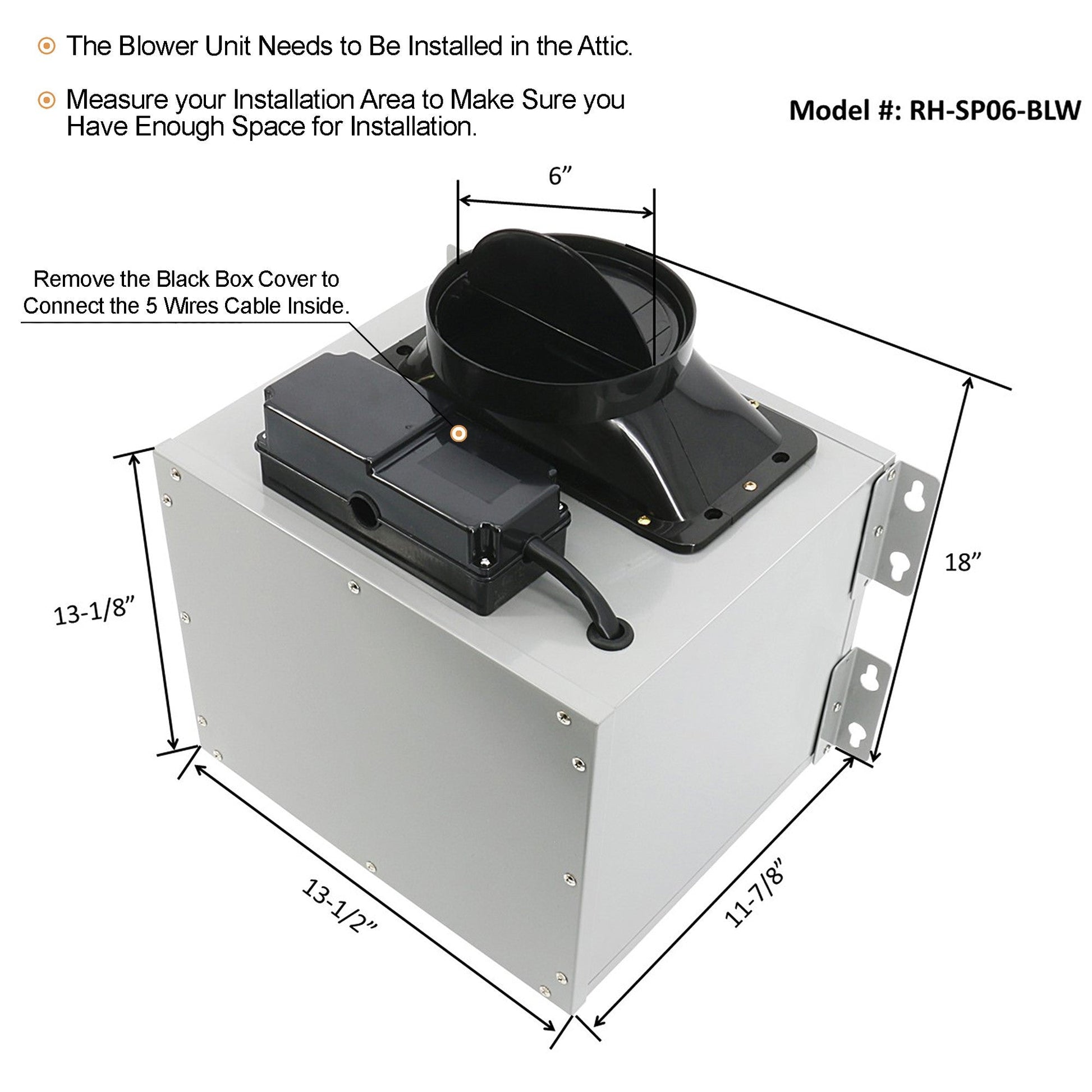

• Blower Dimensions: 13-1/2"W x 11-7/8"D x 18"H. Blower weight: 20.4 lbs.

Why Is It Quiet?

Mostly the range hood noise is the sound of air whooshing the steam away. The blower exhausts the air out, sucking the nearby air to one direction. For example, the house fan has bigger noise at higher speed, the sound is from the air collision, not the motor. High speed air collision is the cause of the powerful range hood.

The restaurant exhaust fans are on the roof; therefore, moving the blower to the attic is the solution for residential installments to eliminate the range hood noise. Same as the industrial inline blower, this Blower unit is in between the house exhaust vent and the range hood unit.

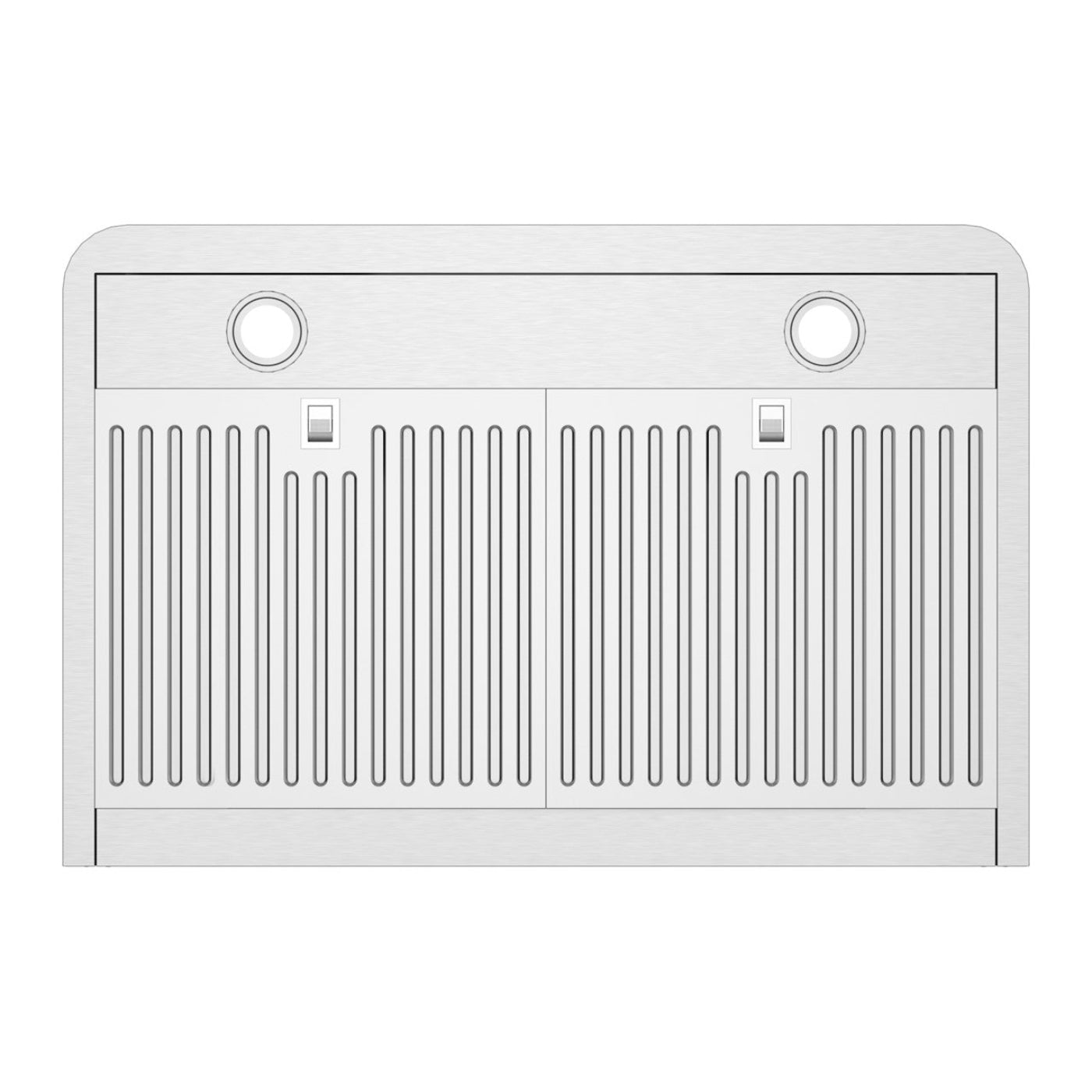

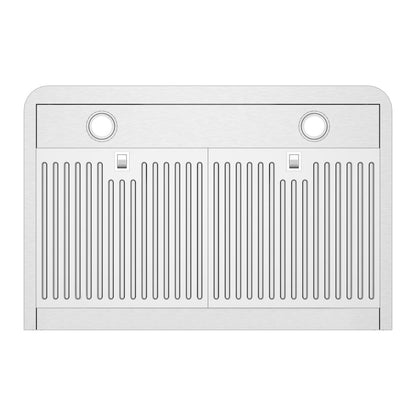

• High-Quality Stainless-Steel Baffle Filters: Stainless steel baffle filters are adapted the concept from commercial baffle air filters, the grease is contained inside the filter trays, no oil cup needed.

• Mounting Type: Under Cabinet or Wall Mount for Hood unit; Attic lumber mounted for Blower unit
• Venting Type: 3-1/4” x 10" Rectangular Top Vent
• Hood Unit: 2 of 3W energy efficient cold bright LED Lights are bright enough to cover the whole cooktop.
• Blower Unit: 1 Motor and 7” Centrifugal Squirrel Cage Fan Wheel
• Power rating: 120V/60Hz, 180W Min /275W Max
• Noise level at low: 38 dB, 2.0 sones. Noise level at high: 50 dB, 5.0 sones.

VIEW / DOWNLOAD

VIEW / DOWNLOAD

• 800 CFM Power: Efficiently removes smoke, steam, and odors to maintain a clean and comfortable kitchen environment.
• 4-Speed Settings: Offers flexibility to adjust the fan speed based on your cooking intensity, ensuring optimal ventilation.
• Super Quiet Design: Operates quietly while delivering high performance, providing a peaceful cooking experience.
• Rectangular Top Vent: Ideal for top vent installations, offering easy integration into your kitchen setup.
• LED Lights: Bright and energy-efficient, these lights enhance visibility in your cooking area while saving energy.

Q: What is the Awoco RH-SP06-RT Super Quiet Range Hood?
A: A premium 4-speed, 800 CFM split stainless steel range hood with a rectangular top vent and LED lights, offering efficient ventilation with minimal noise.

Q: What makes it special?
A: It provides powerful 800 CFM airflow, operates quietly, and features energy-efficient LED lights, perfect for modern kitchens that require both performance and style.

Q: What type of vent does it have?
A: The range hood has a rectangular top vent for effective air exhaust.

Q: How many fan speeds does it have?
A: The unit comes with 4 fan speeds, allowing you to adjust airflow to your cooking needs.

Q: Does it include lighting?
A: Yes, the range hood is equipped with LED lights to illuminate your cooking area.

Q: Is it easy to install?
A: Yes, designed for straightforward installation, especially with its top vent configuration.

• Clean the stainless steel surface regularly with a soft cloth and mild detergent to prevent smudges and scratches.
• Wash the grease filters every 1–3 months with warm, soapy water for optimal performance.
• Check the rectangular top vent for blockages and clean to maintain proper airflow.
• Wipe down the LED lights to ensure bright, clear illumination.
• Inspect the fan motor and blades periodically to remove any debris or buildup.
