B&G Zeus3 7" MFD Display w/Insight Charts - 000-13241-001

B&G Zeus3 7" MFD Display w/Insight Charts - 000-13241-001

by B&G Zeus
SKU CW64537
Save 6% Save 6%
$1,399.00
$1,399.00 - $1,399.00
$1,399.00
$1,315.99
$1,315.99 - $1,315.99
$1,315.99

  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.

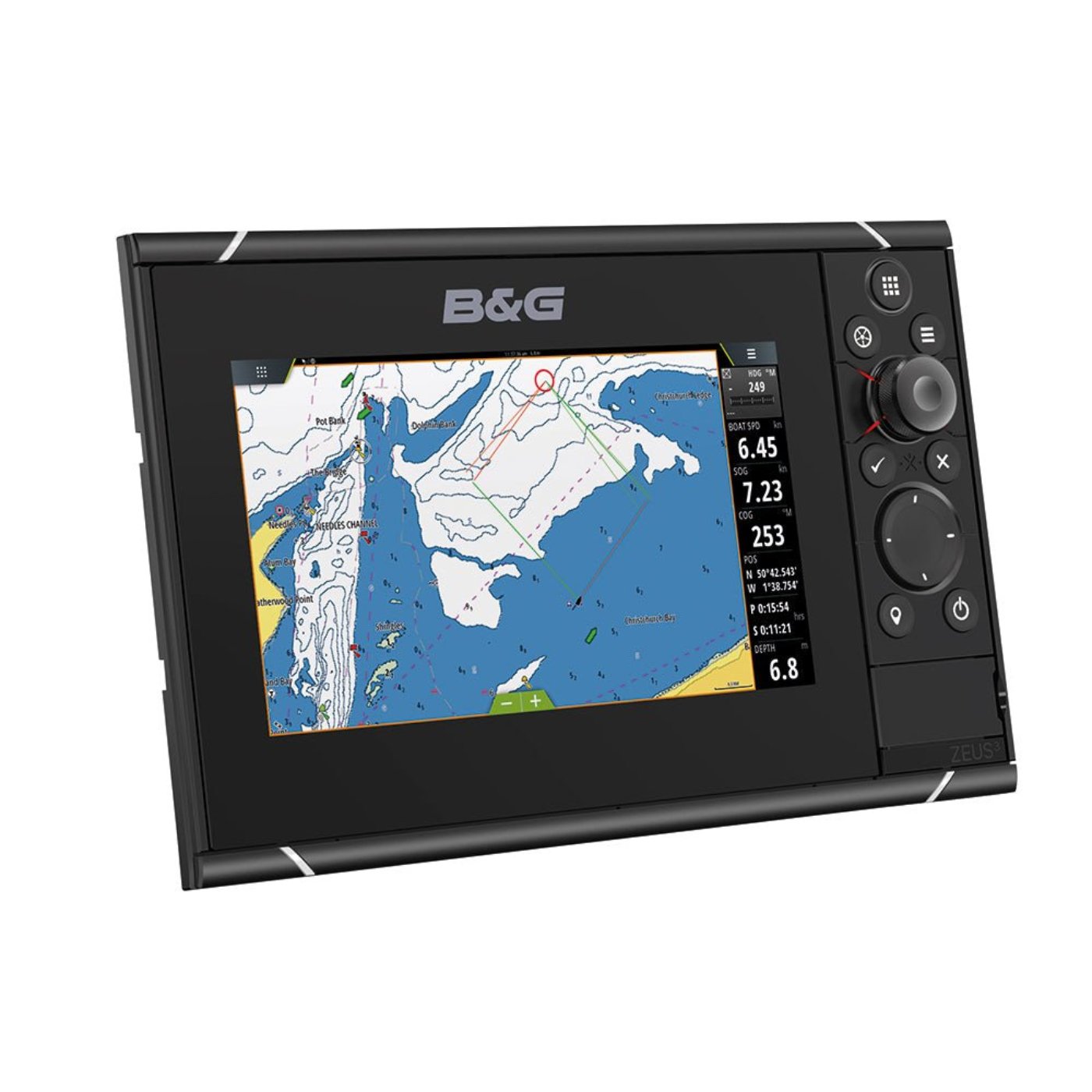

Zeus3 7" Multifunction Display with Insight Charts. The Ultimate Navigation Companion for Sailors - CW64537

The B&G Zeus3 7" Multifunction Display with Insight Charts is a top-tier navigation system tailored for blue water cruisers and regatta racers. Combining high-performance capabilities with advanced sailing features, the Zeus3 ensures you have all the information and control you need at your fingertips. This state-of-the-art chartplotter features a brilliant 7-inch widescreen display with SolarMAX™ HD technology, delivering unmatched visibility in any condition.

  • Advanced WindPlot: Clear view of wind trends and comparison of True Wind Speed (TWS) to True Wind Direction (TWD)

  • C-MAP® Easy Routing & Navionics® Autorouting: Automatic route planning based on boat specifications

  • C-MAP Navigation Palette: Enhanced chart readability near shore

  • SolarMAX™ HD Display: Brilliant visibility and wide viewing angles

  • SailSteer Technology: All key sailing data on one screen, laylines, and tacking angles

  • GoFree® Wi-Fi: Mirror and control display from smartphone or tablet

  • ForwardScan® Sonar: View what lies ahead beneath the water

  • Broadband Radar® and AIS: Enhanced situational awareness

  • Full Autopilot Integration: Immediate control from any B&G Zeus3 display

Dimensions 9.4"W x 5.9"H x 3.5"D
Display 7" IPS optically bonded TFT
Resolution 600 x 1024
Mounting Type Bracket (supplied) or Panel Mount
External Storage 2 MicroSD slots, max. 32GB each
Internal Storage 16GB
Supply Voltage 10-31.2 VDC
Wi-Fi Yes
Bluetooth Yes
Video Inputs 2 x composite (RCA connectors)
Ethernet Yes
NMEA 2000 Yes
NMEA 0183 Yes
Waypoints, Routes, Tracks 6000 Waypoints, 500 Routes with 100 Max Route Points, 50 Tracks with up to 12,000 track points
Preloaded Insight Chart
Cartography Supported Insight, Navionics (Gold, Nav+, Platinum+), C-MAP (MAX N, MAX N+), NV Digital (Raster US Charts)
Internal GPS Antenna
Autopilot Suppor Full Autopilot Control and commissioning

  1. Zeus³ 7 Sun Cover

  2. Power Cable

  3. Mounting Bracket

  4. Dash Mount Kit

  5. Preloaded with Insight Charts

 






Zeus3 7" Multifunction Display with Insight Charts. The Ultimate Navigation Companion for Sailors - CW64537

The B&G Zeus3 7" Multifunction Display with Insight Charts is a top-tier navigation system tailored for blue water cruisers and regatta racers. Combining high-performance capabilities with advanced sailing features, the Zeus3 ensures you have all the information and control you need at your fingertips. This state-of-the-art chartplotter features a brilliant 7-inch widescreen display with SolarMAX™ HD technology, delivering unmatched visibility in any condition.

  • Advanced WindPlot: Clear view of wind trends and comparison of True Wind Speed (TWS) to True Wind Direction (TWD)

  • C-MAP® Easy Routing & Navionics® Autorouting: Automatic route planning based on boat specifications

  • C-MAP Navigation Palette: Enhanced chart readability near shore

  • SolarMAX™ HD Display: Brilliant visibility and wide viewing angles

  • SailSteer Technology: All key sailing data on one screen, laylines, and tacking angles

  • GoFree® Wi-Fi: Mirror and control display from smartphone or tablet

  • ForwardScan® Sonar: View what lies ahead beneath the water

  • Broadband Radar® and AIS: Enhanced situational awareness

  • Full Autopilot Integration: Immediate control from any B&G Zeus3 display

Dimensions 9.4"W x 5.9"H x 3.5"D
Display 7" IPS optically bonded TFT
Resolution 600 x 1024
Mounting Type Bracket (supplied) or Panel Mount
External Storage 2 MicroSD slots, max. 32GB each
Internal Storage 16GB
Supply Voltage 10-31.2 VDC
Wi-Fi Yes
Bluetooth Yes
Video Inputs 2 x composite (RCA connectors)
Ethernet Yes
NMEA 2000 Yes
NMEA 0183 Yes
Waypoints, Routes, Tracks 6000 Waypoints, 500 Routes with 100 Max Route Points, 50 Tracks with up to 12,000 track points
Preloaded Insight Chart
Cartography Supported Insight, Navionics (Gold, Nav+, Platinum+), C-MAP (MAX N, MAX N+), NV Digital (Raster US Charts)
Internal GPS Antenna
Autopilot Suppor Full Autopilot Control and commissioning

  1. Zeus³ 7 Sun Cover

  2. Power Cable

  3. Mounting Bracket

  4. Dash Mount Kit

  5. Preloaded with Insight Charts
