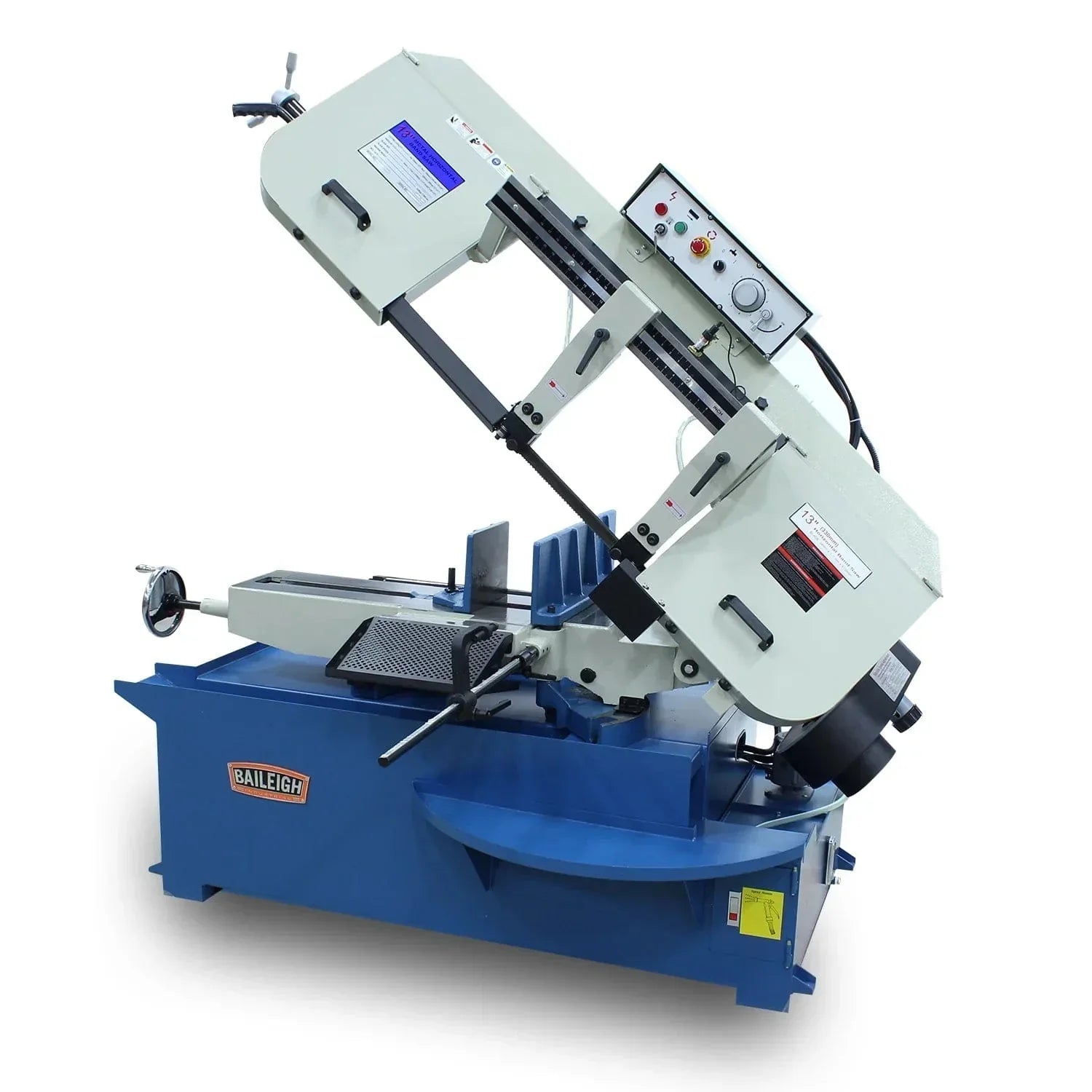

In 2005, we introduced the BS-330M manual mitering band saw. With steel frames and smooth hydraulic descent, these saws have given shops trouble-free productivity for 10+ years.
- Maximum capacity of 13” OD round at 90°.
- Accepts a large 1.25” blade.

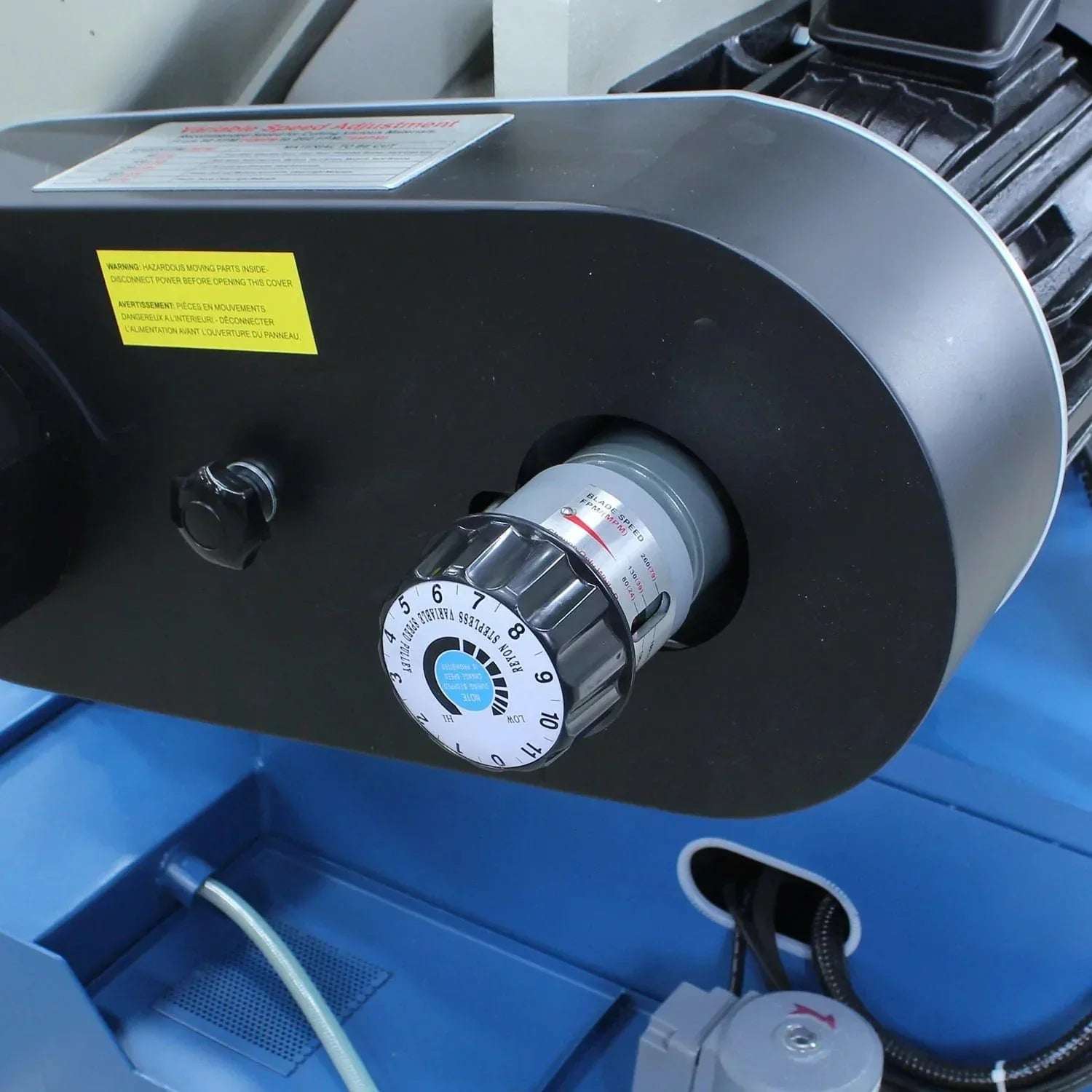

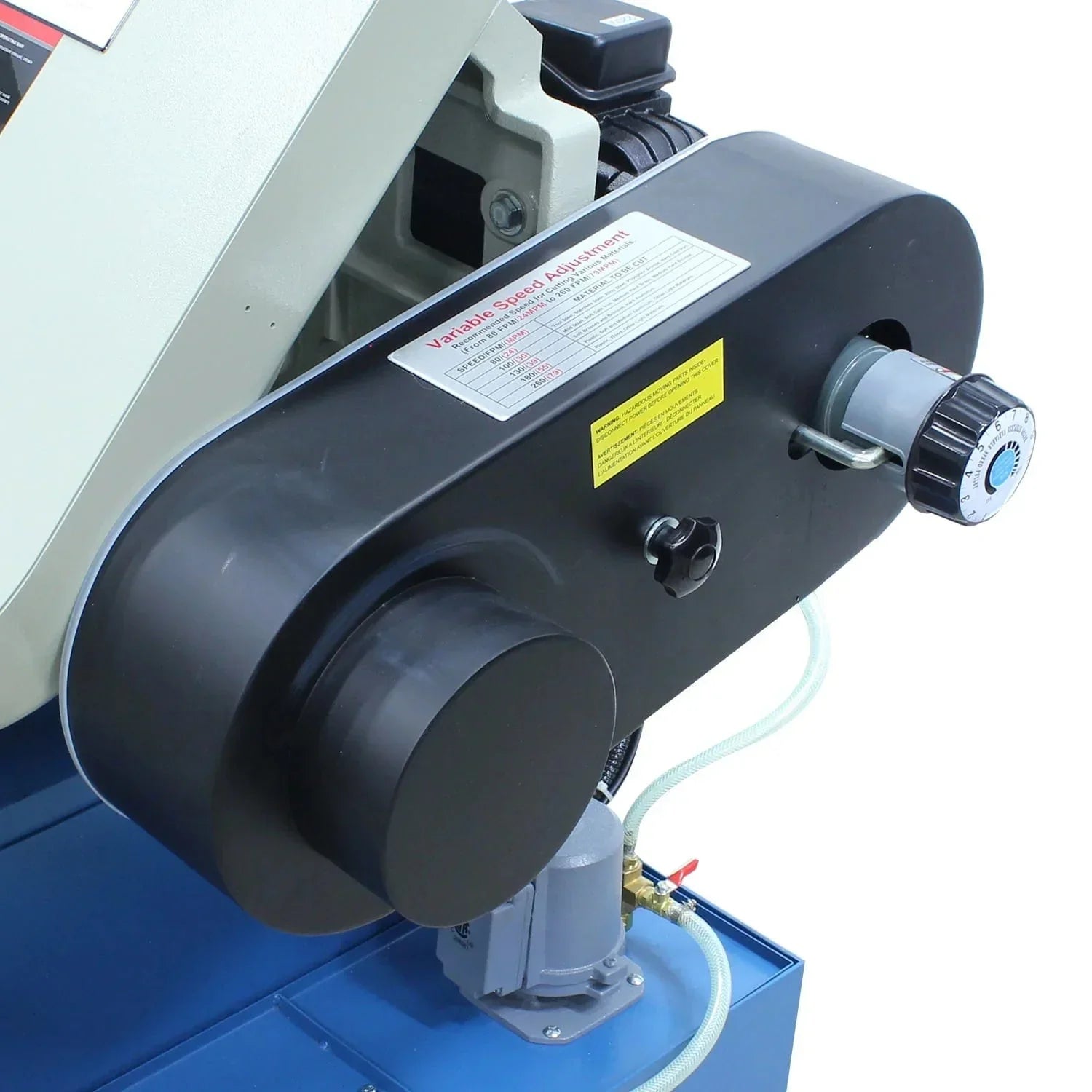

- Variable blade speed from 82 to 270 fpm lets you choose the right speed for metal, plastic, and wood.
-
3 hp motor runs on 220-volt triple-phase power, more reliable and efficient than single-phase.

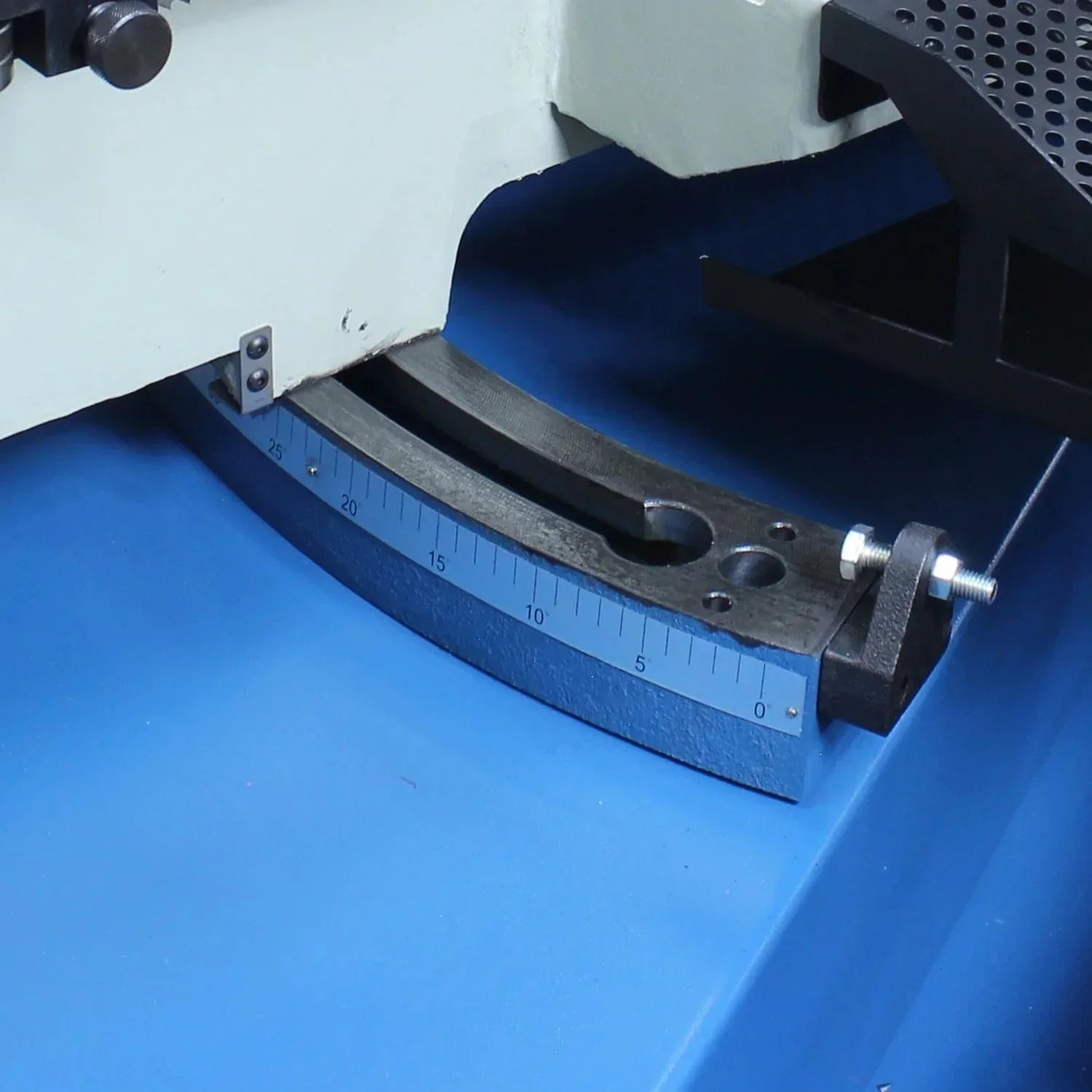

- Saw head miters up to 45°.
- Heavy cast iron head and bow reduce vibrations while cutting.
-

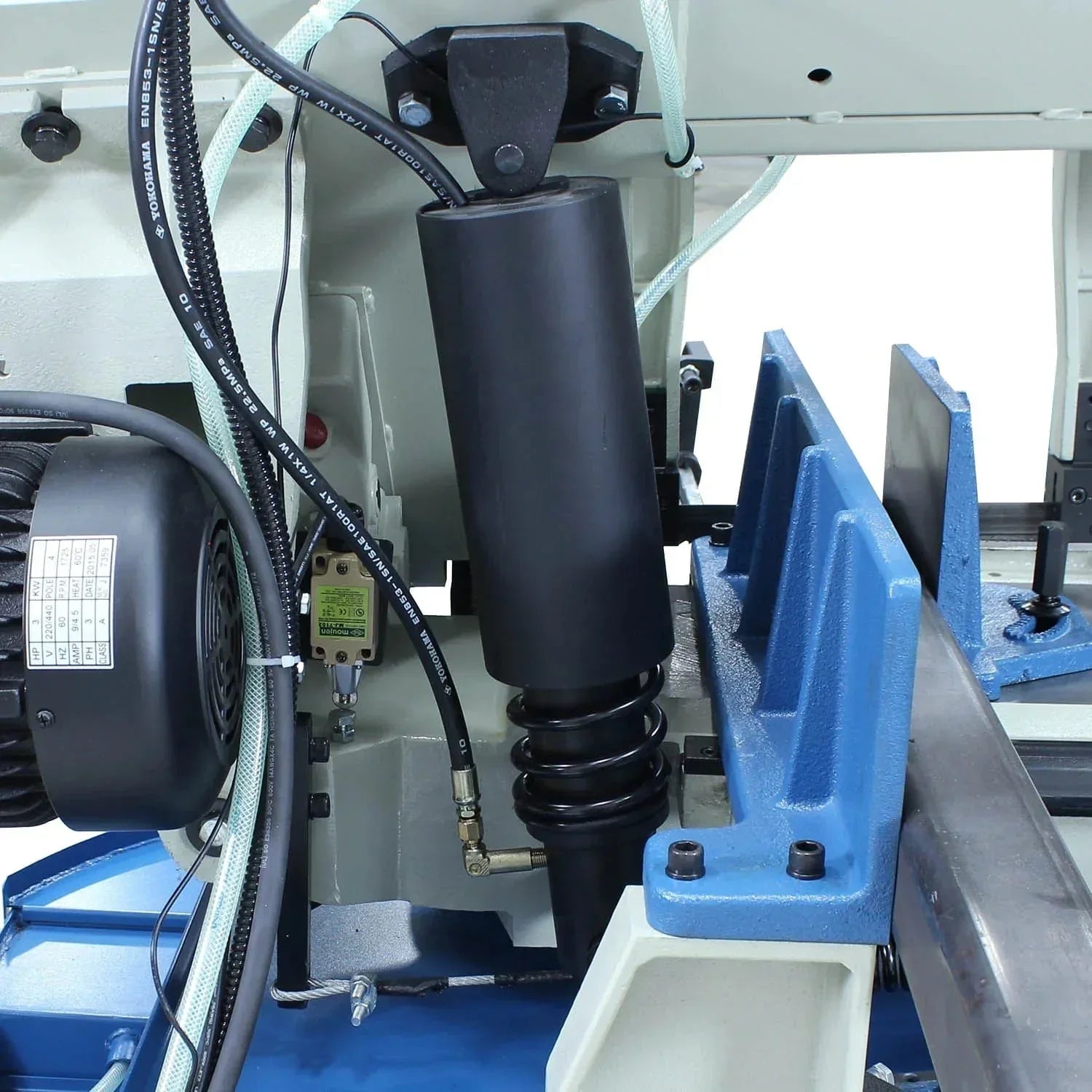

Hydraulic descent makes production runs more efficient, increases blade life, and reduces operator fatigue.
-

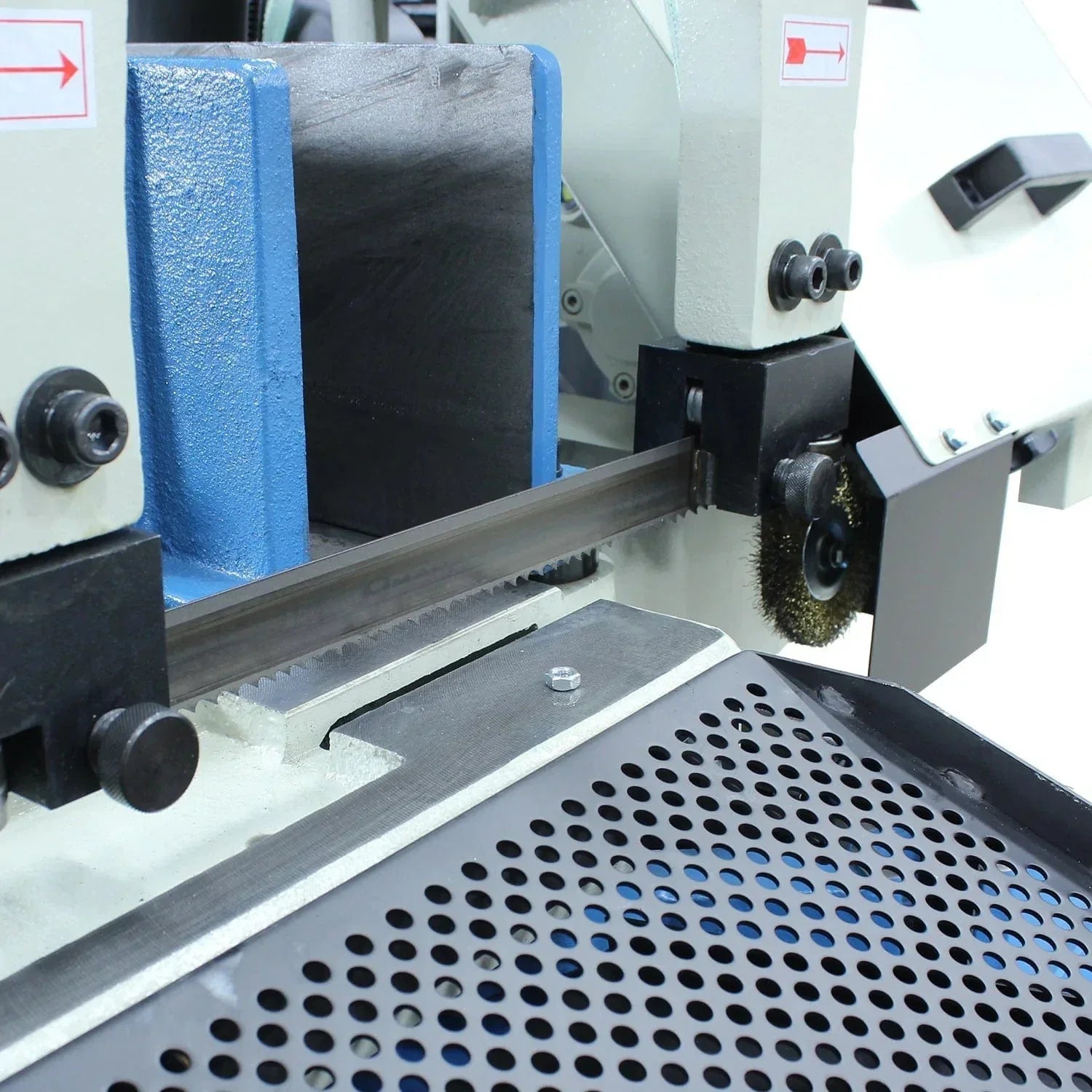

Tungsten carbide blade guides get as close as possible to the material to allow for more precise cuts.
-
Laser guide helps you see where your cut will be and line it up.
- Durable steel flywheels drive the blade.
-

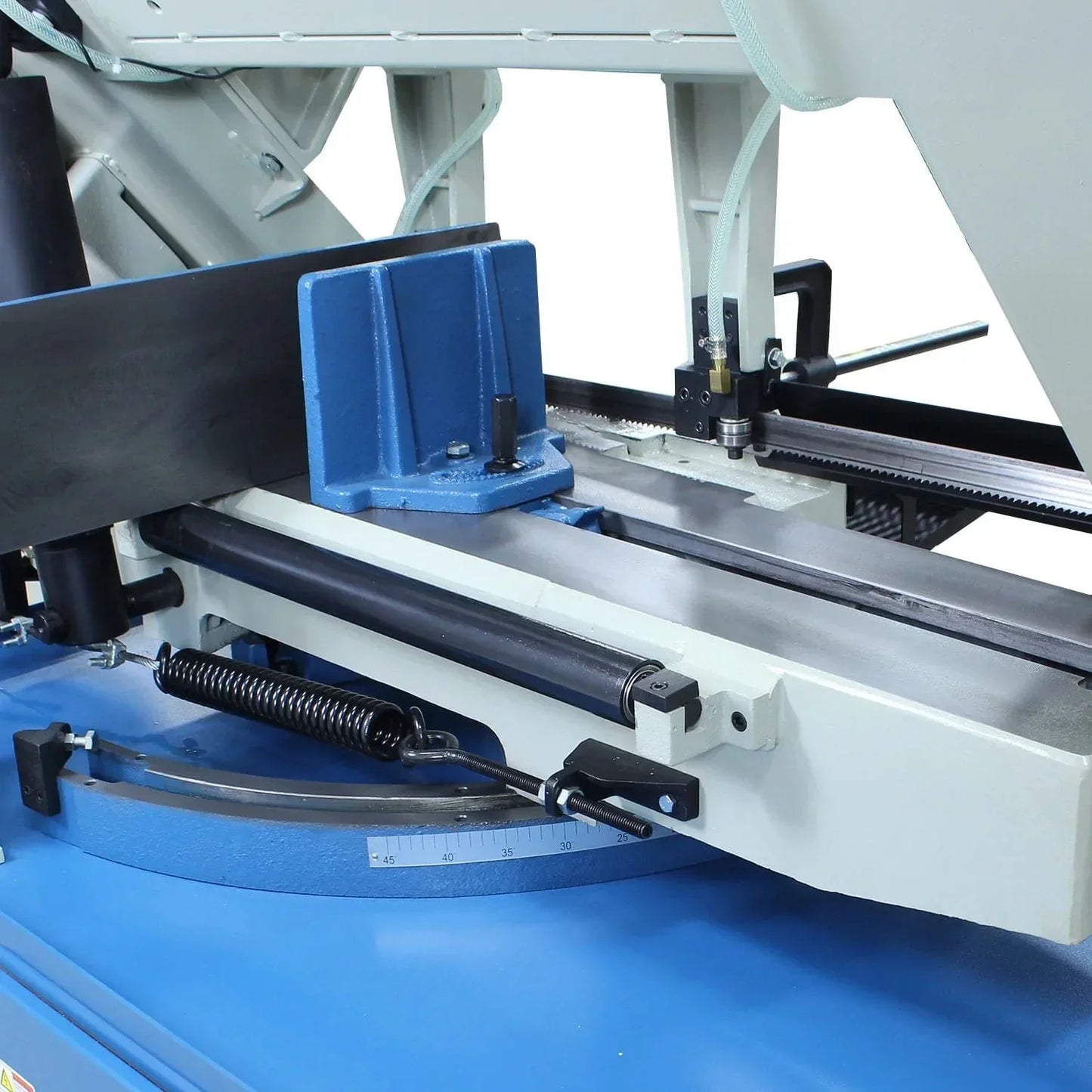

Adjustable vise can move back and forth. A quick cam lock system holds it in place.
-

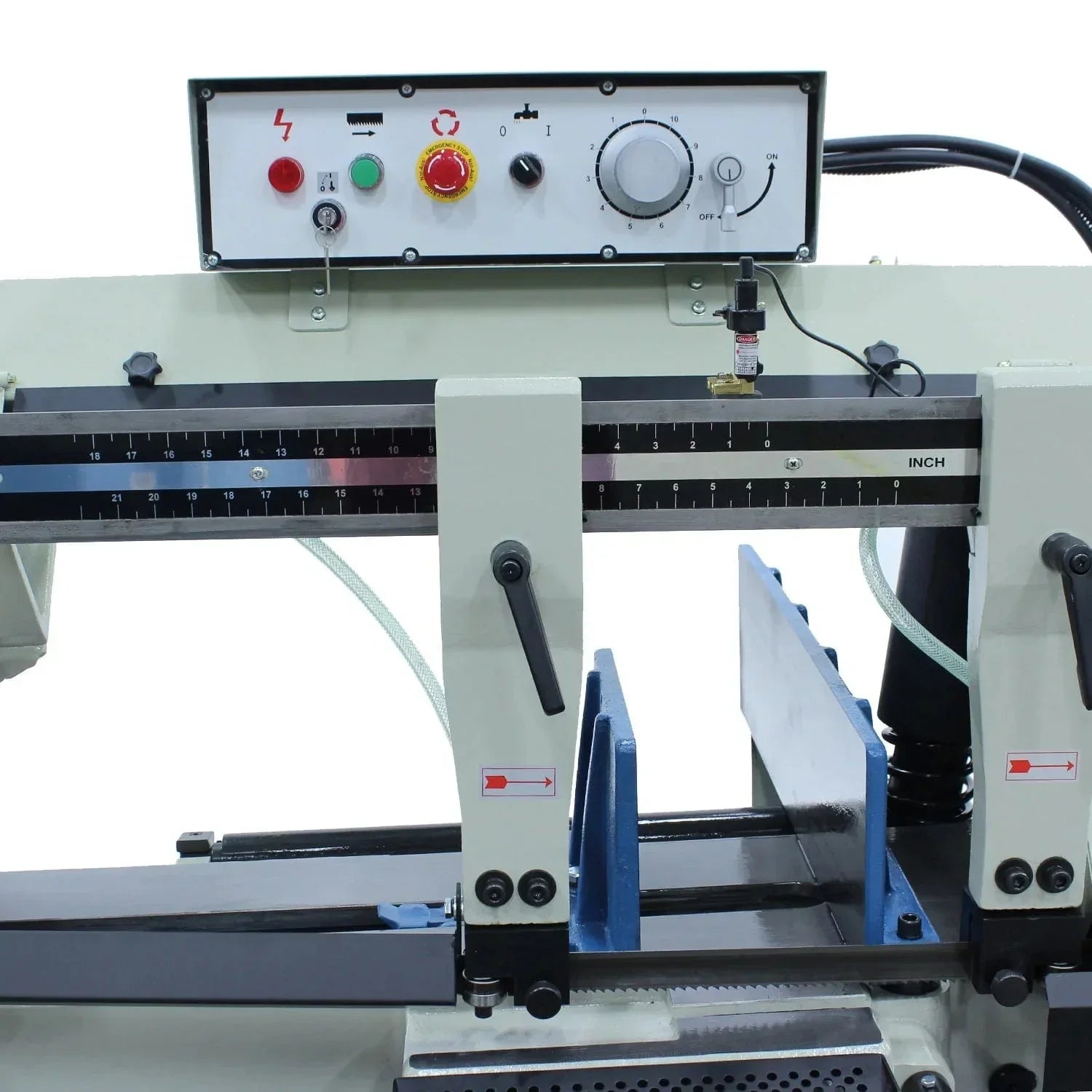

Control panel has large start and emergency stop buttons and a dial for adjusting the speed.
- Swing-away material stop enables you to easily make repeatable cuts.

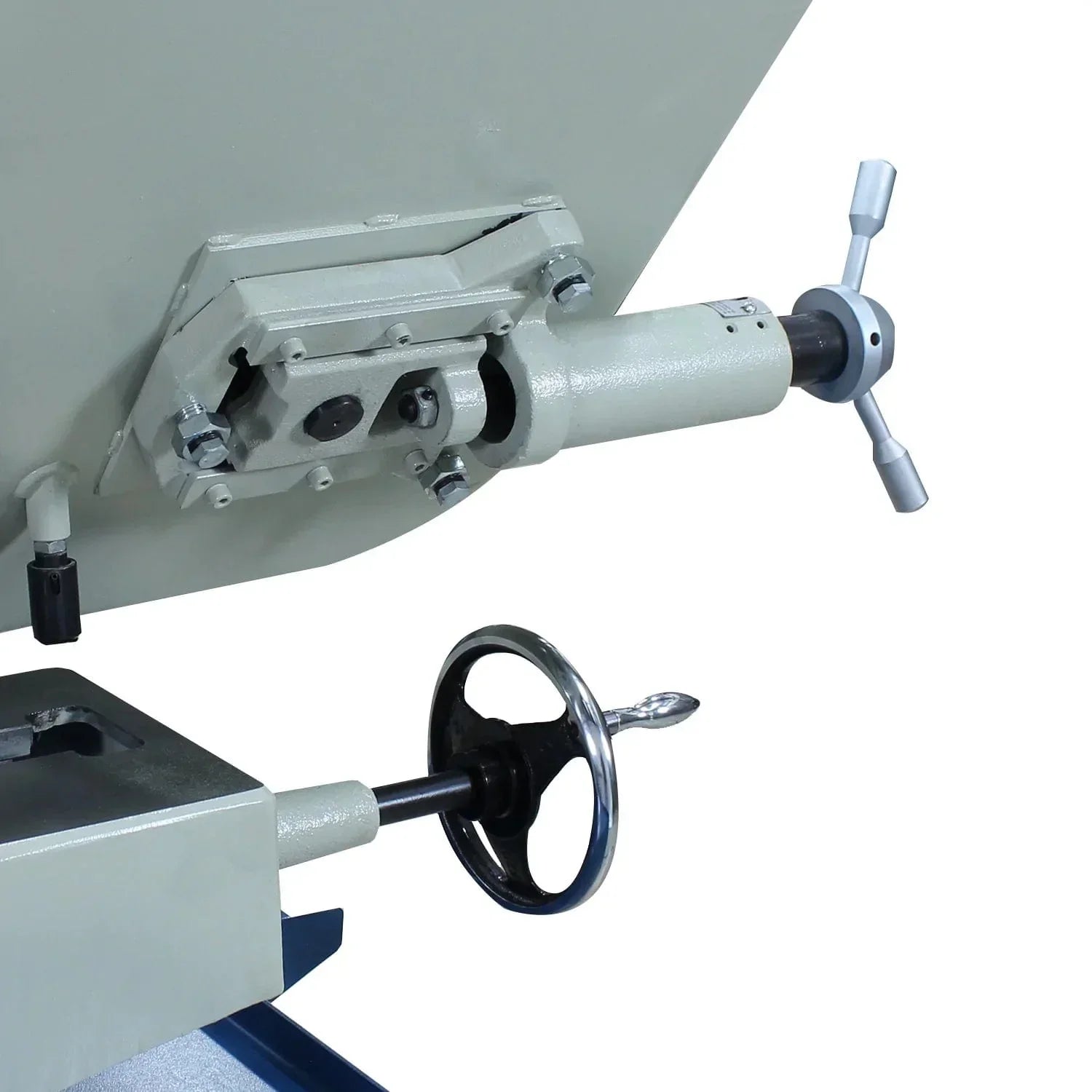

- Baileigh’s patented blade tension gauge takes the effort out of getting the tension right. Just line the arrow pointer up with the green zone and you’re good to go.

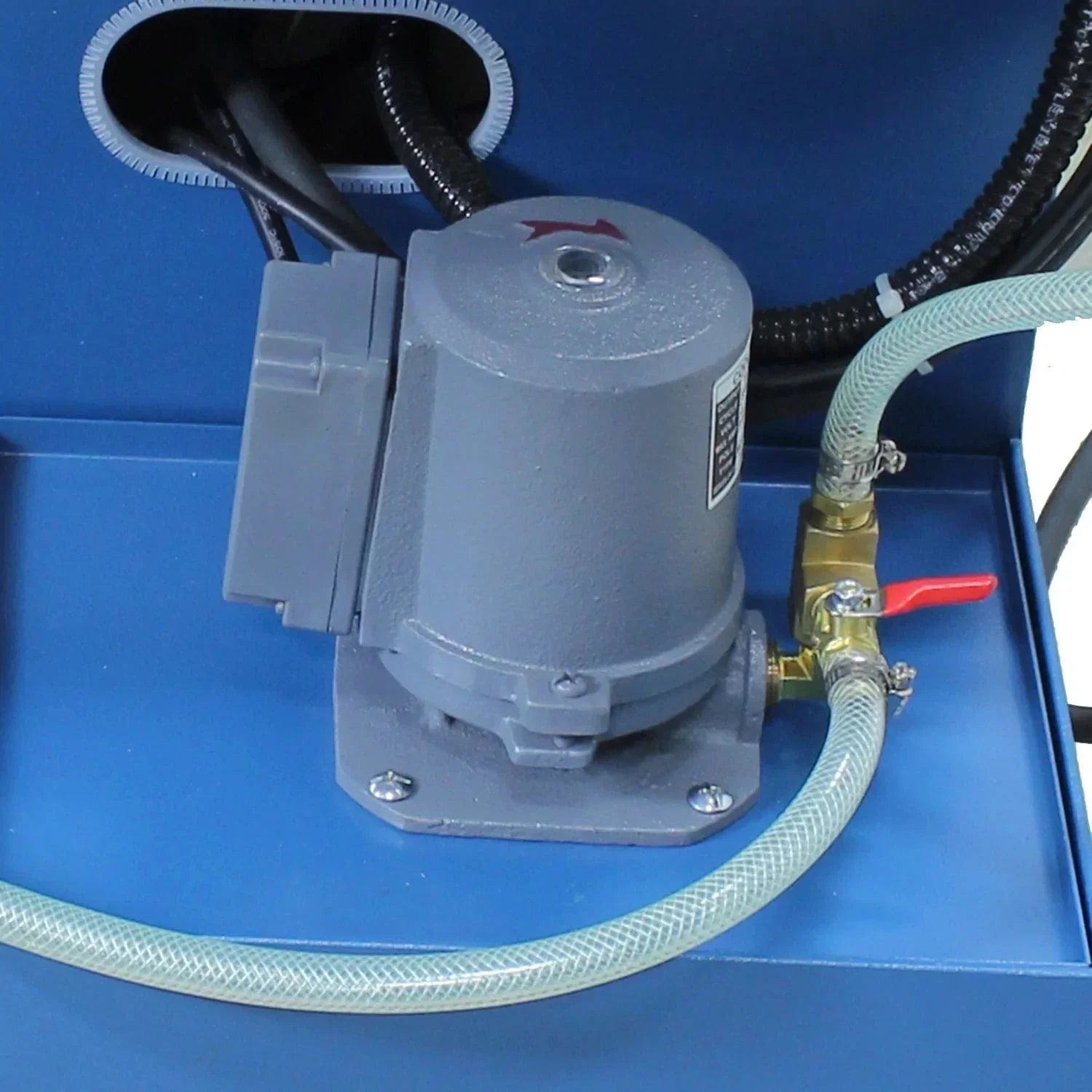

- Comes standard with a flood coolant system that will wash away metal shavings and prolong blade life.
-
Heavy electro-welded steel construction minimizes vibrations to keep cuts accurate.
- Weighs over 1,800 lbs.
-
Automatic shut-off safety feature stops the blade from running when the saw gets to the bottom of the cut.
- This metal band saw and its replacement parts are almost always in stock for quick deliveries.
- Covered by a 1-year parts warranty.
- You can count on lifetime technical support by phone from our team of reps, all with hands-on machine experience.
Specifications
Item Number BS-330M
Return Manual
Miter Adjustment Swivel Head and Vise
Miter Angle 0 – 45°
Motor 3 hp
Included Accesories Included Accesories
Capacity Rectangular 90° x 45° 13' x 18.9' / 11' x 10.04'
Capacity Round 90° x 45° 13' x 8.86'
Capacity Square 90° x 45° 13' x 8.86'
Table Height 30.5'
Blade Guide Carbide x Roller
Blade Size 1.3' x .043' x 161.4'
Blade Speed (fpm) 82–270
Descent Control Hydraulic
Drive Belt x Pulley
Power 220V / 3-phase
Shipping Weight 1830lbs
Shipping Dimensions (Inches) 90x37x63
