Baileigh SH-6010; 220V 3Phase Hydraulic Powered Shear 60" Length 10 Gauge Mild Steel Capacity

SKU BI-1007167
Save 18% Save 18%
Original price $25,413.79
Original price $25,413.79 - Original price $25,413.79
Original price $25,413.79
Current price $20,929.00
$20,929.00 - $20,929.00
Current price $20,929.00


  • PEOPLE are also watching that product.

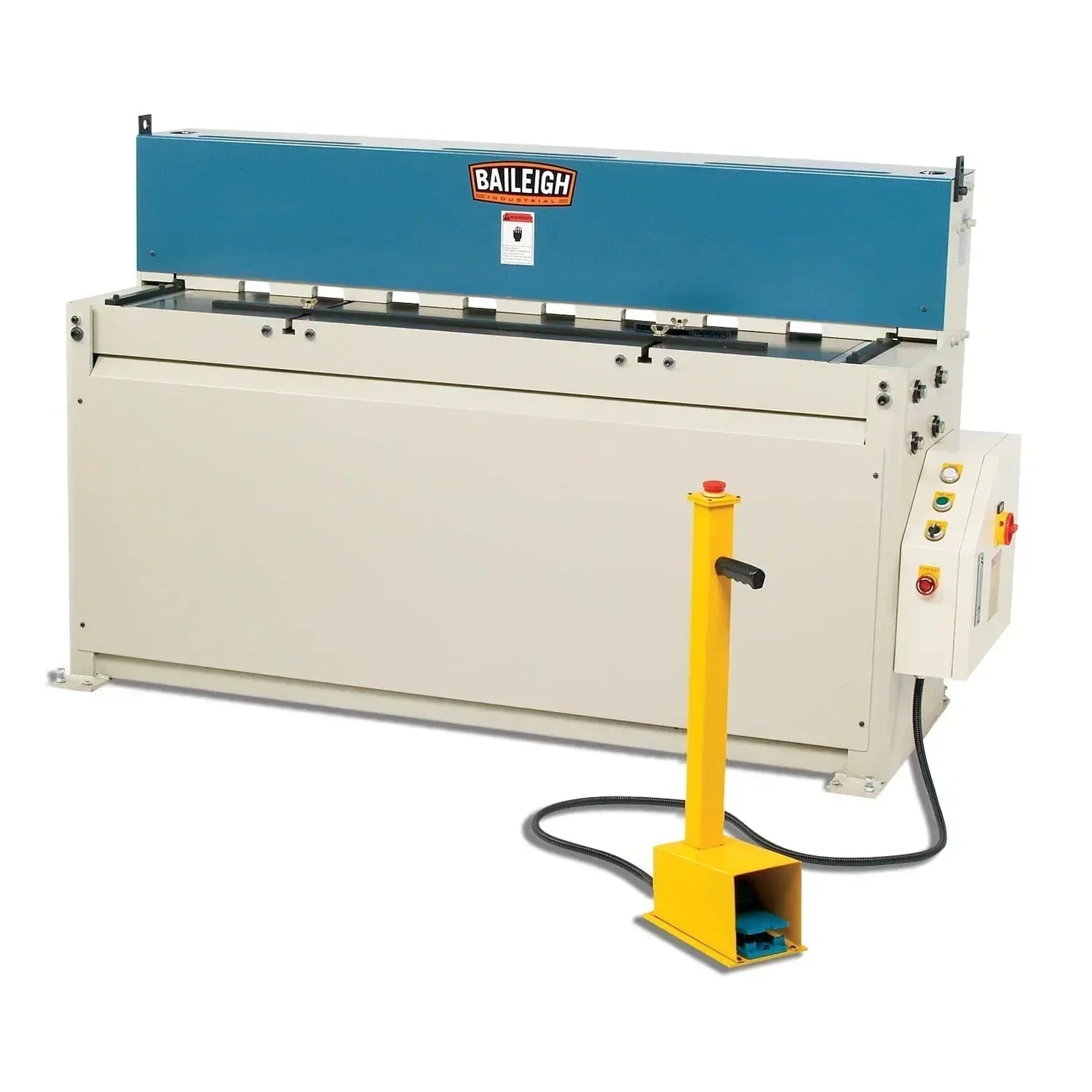

Baileigh SH-6010 220V 3Phase Hydraulic Powered Shear 60" Length 10 Gauge Mild Steel Capacity

We build this 10 gauge metal shear with a fully welded metal plate frame to reduce flex and ensure accuracy. Industrial-grade hydraulics produce smooth movements that prolong blade life.

  • <60” length sheet metal shear..
  • 10 gauge mild steel maximum capacity.
  • Minimum capacity of 24 gauge mild steel.
  • 3 hp motor runs on 220-volt 3-phase power.
  • Up to 26 strokes per minute.

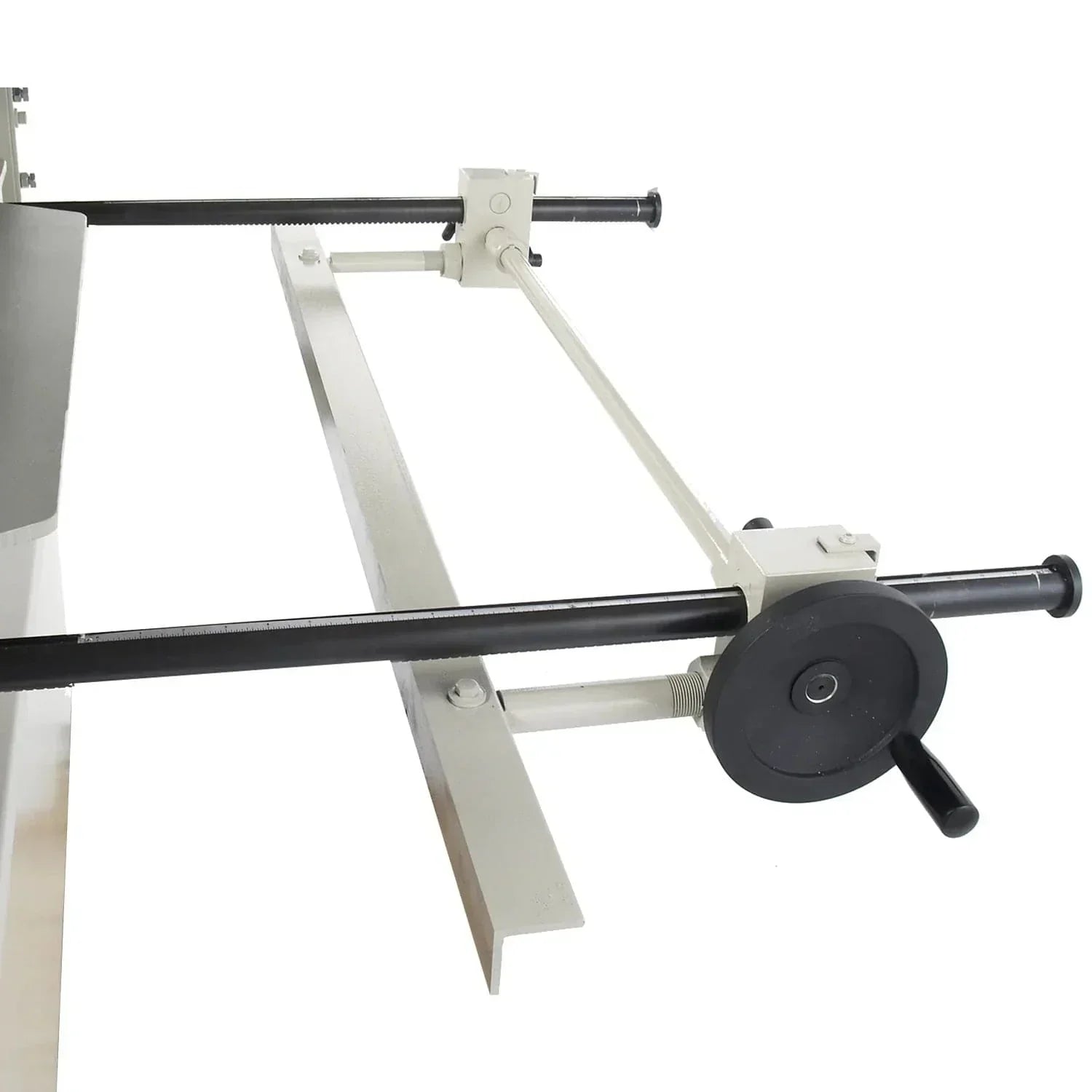

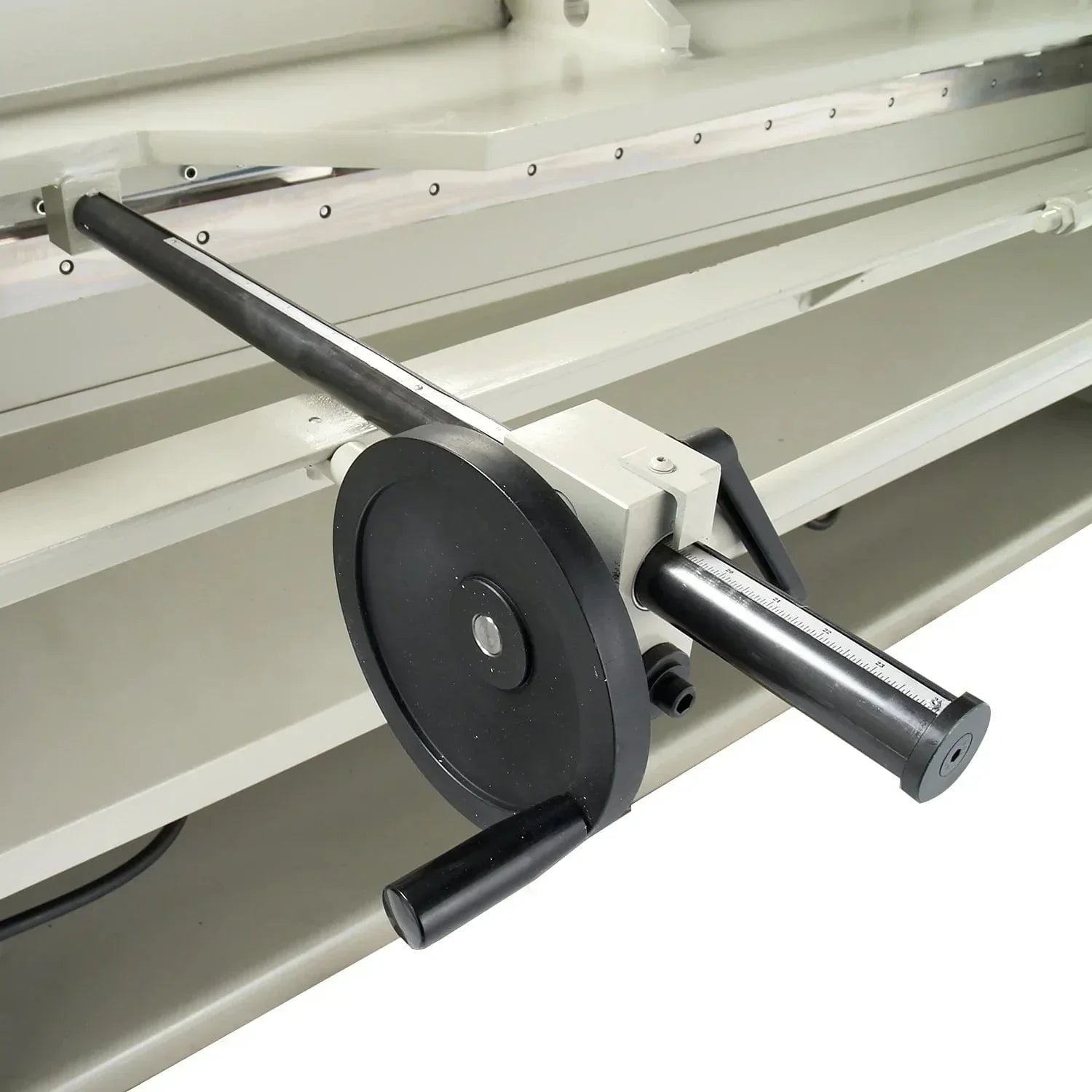

  • Adjustable 24” backgauge ensures precise repeatability.

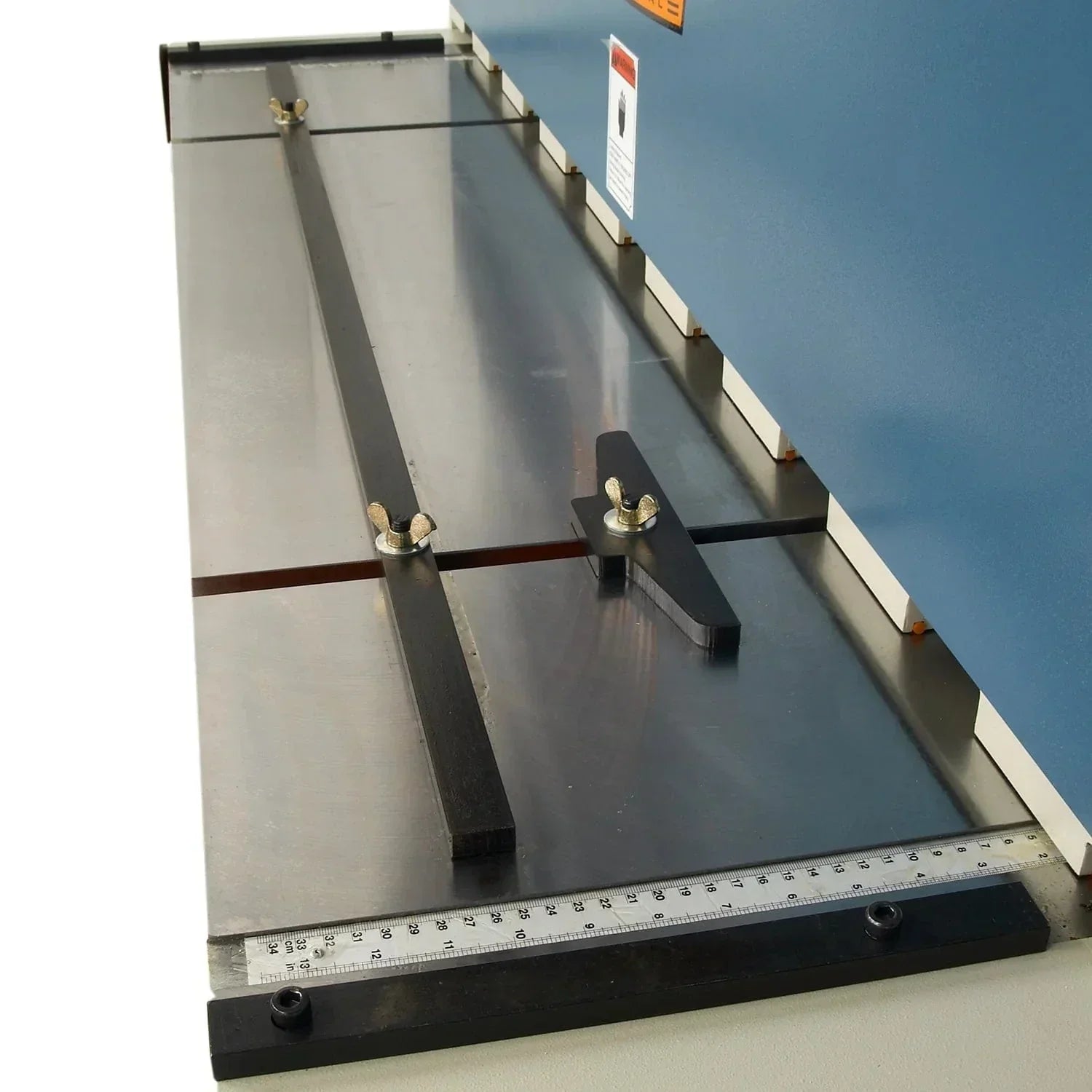

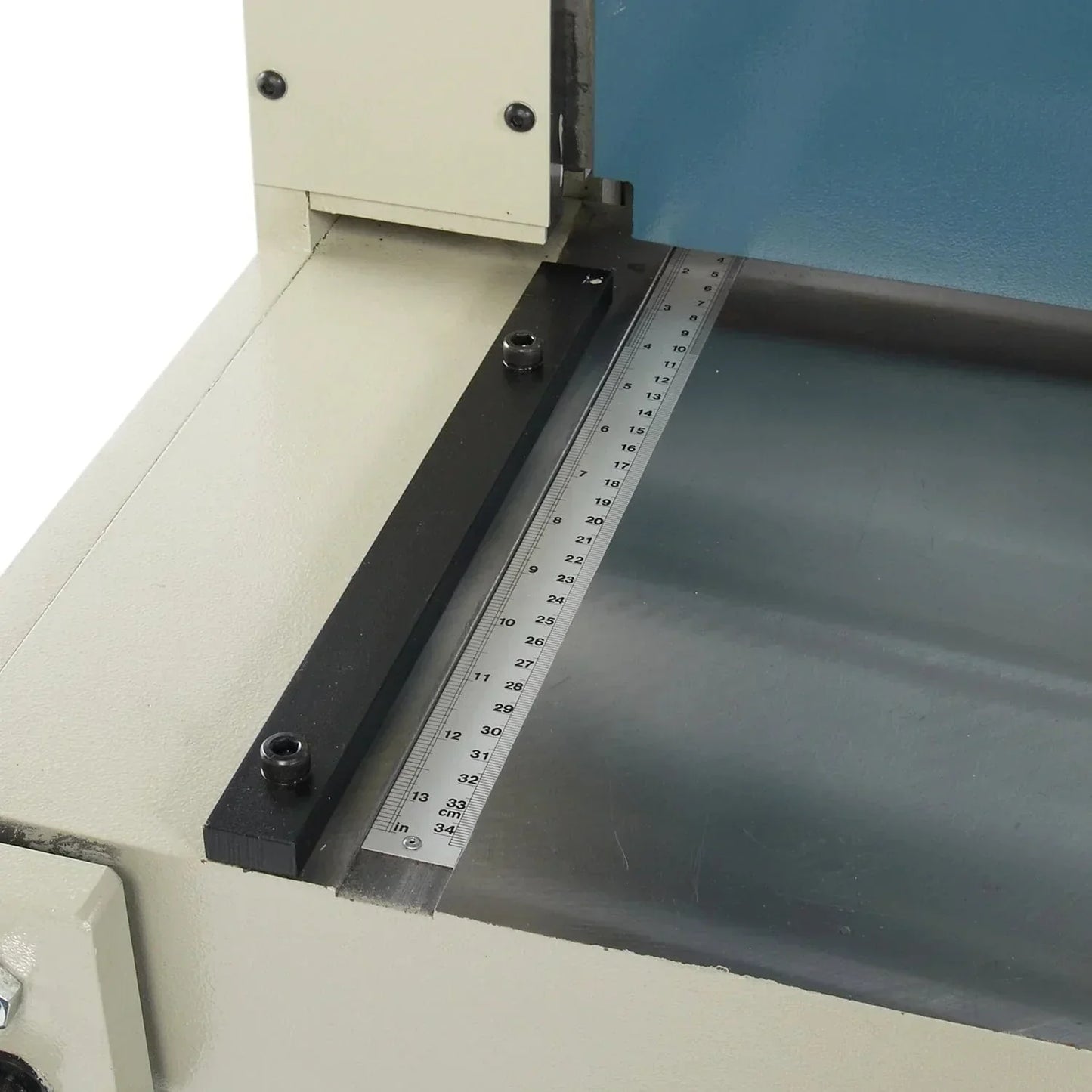

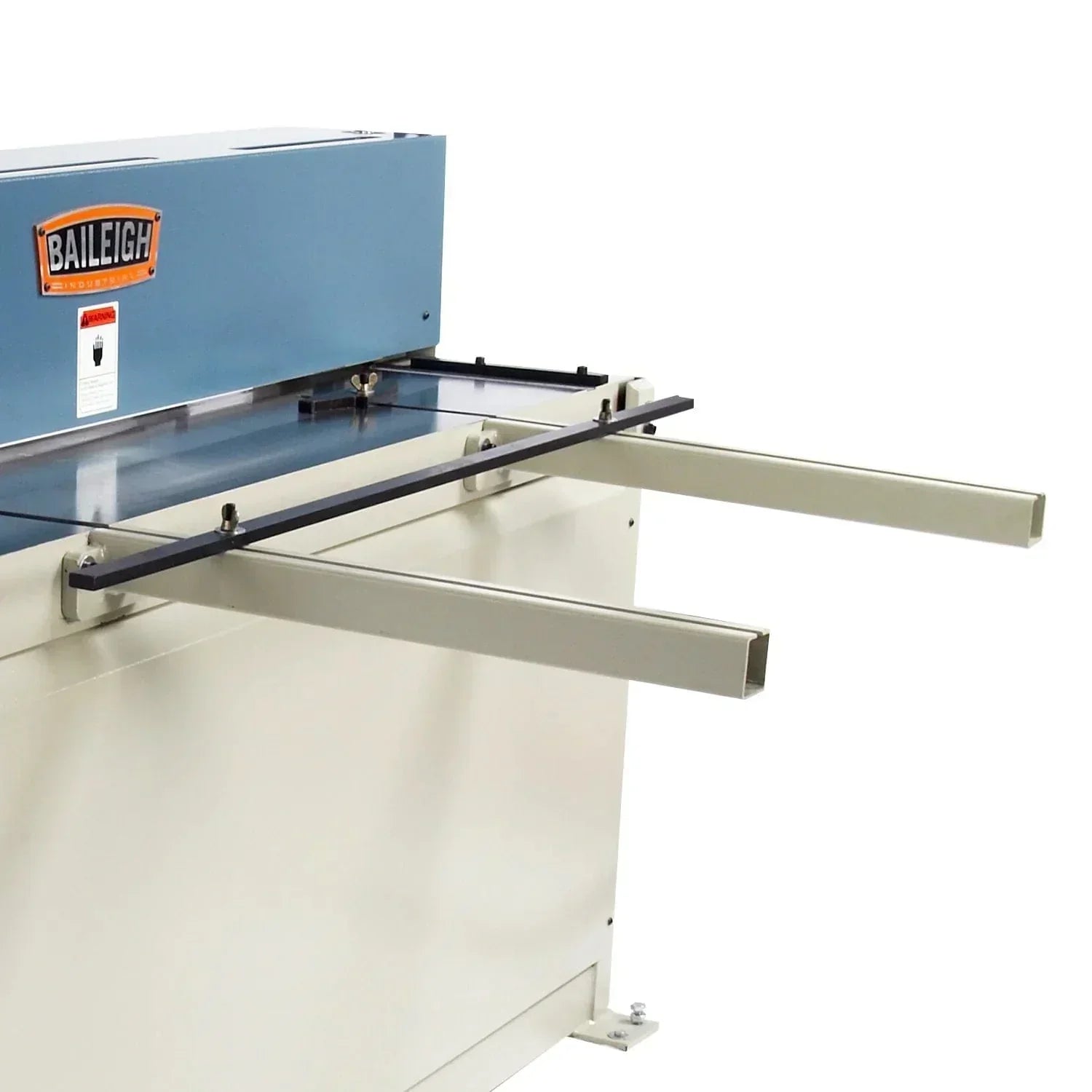

  • Front support arms and table guides keep the material square to the blade.

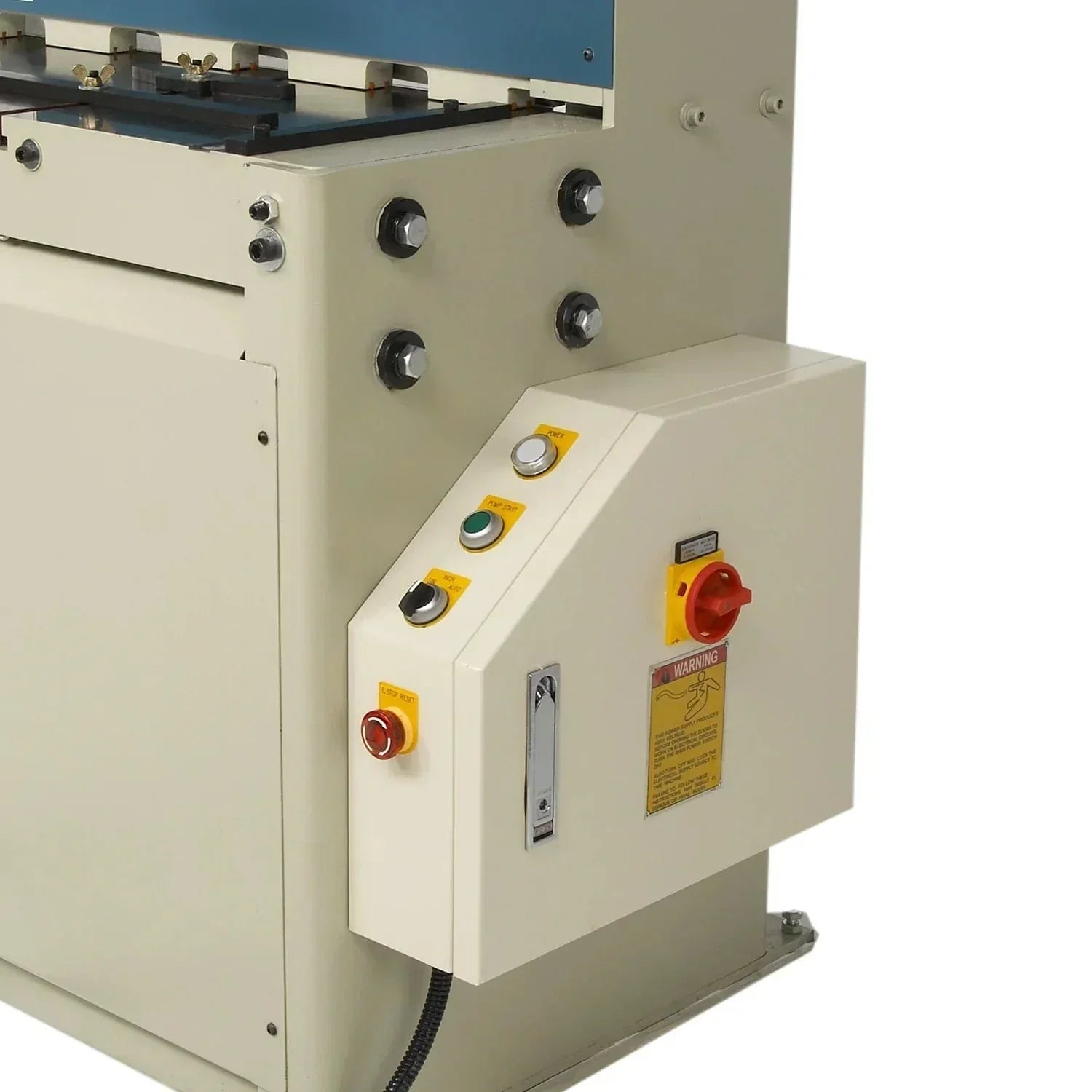

  • 3 modes on the operator console:
    • Inch mode: Jog the control and ease the blade down to the material.

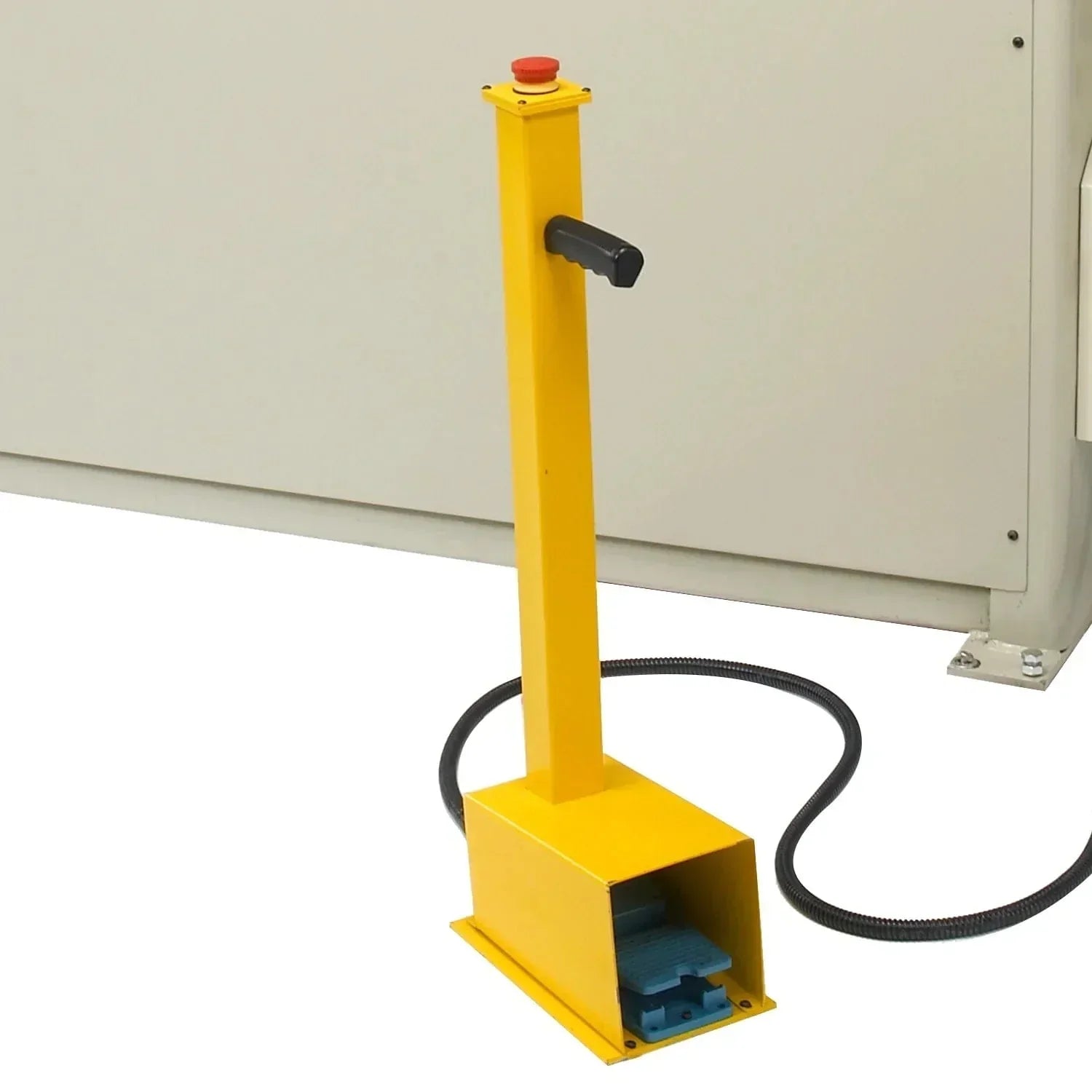

    • Single mode: Make one cut cycle per foot pedal push.
    • Auto mode: Continue cycling as you hold the pedal down.
  • Comes standard with high carbon chromium blades.
  • Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
  • Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.

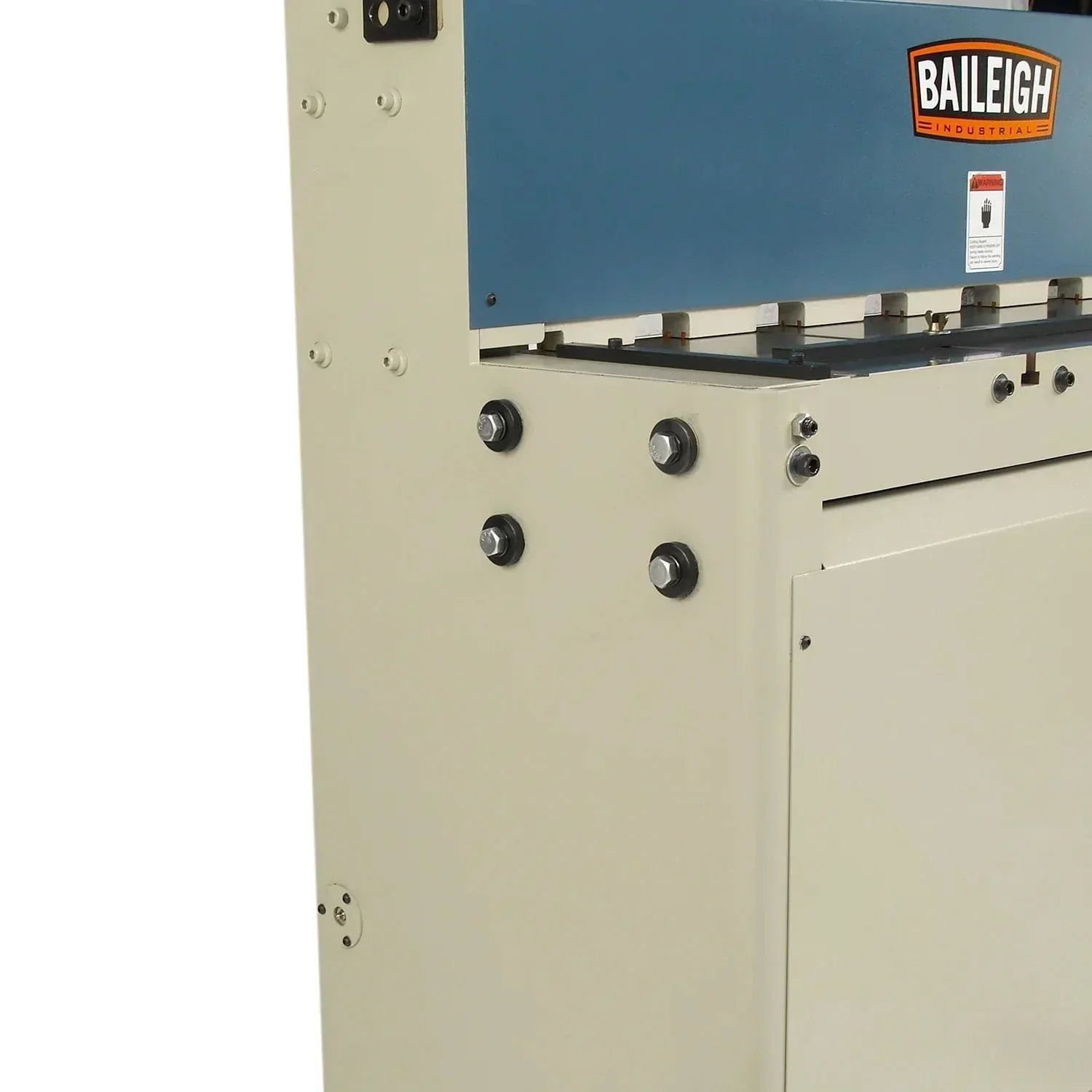

  • Rigid steel frame minimizes deformation and helps deliver clean, high-quality cuts.
  • Covered by a 1-year parts warranty.
  • We stock replacement parts, including blades, in house for fast shipping.
  • Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience.

Also available in 52”-long and a 80”-long versions (both with 10 gauge capacity).

Item Number SH-6010
Back Gauge Length 24'
Shear Length 60'
Motor 5 hp
Thickness (SS) 10 ga. (13 ga.)
Strokes Per Minute 26
Front Gauge Length 24'
Blade Angle 1°
Power 220V / 3-phase
Shipping Weight 3000lbs
Minimum Material Thickness 24ga
Shipping Dimensions (Inches) 85x35x58
