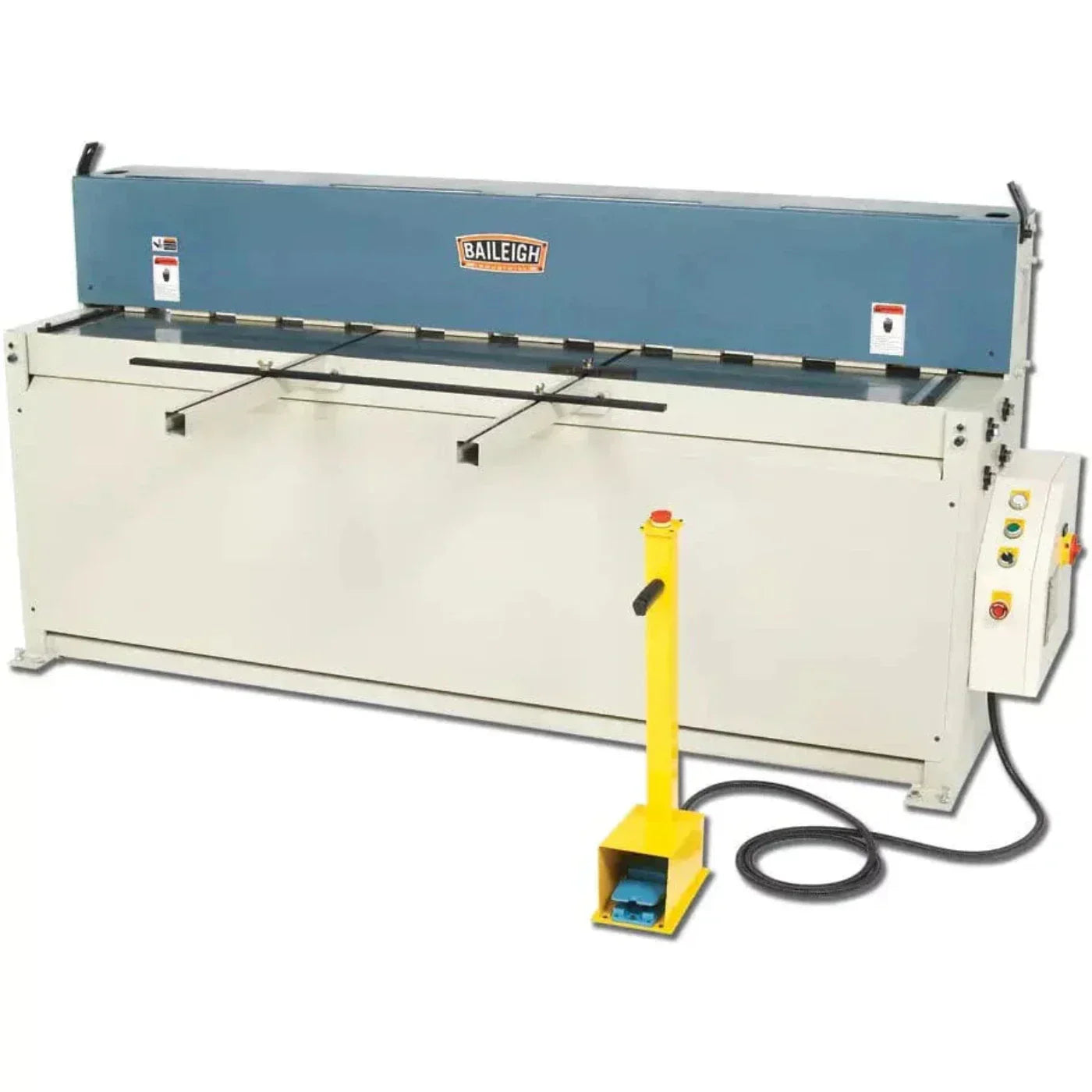

Baileigh SH-8010; 220V 3Phase Hydraulic Powered Shear 80" Length 10 Gauge Mild Steel Capacity

Baileigh SH-8010 220V 3Phase Hydraulic Powered Shear 80" Length 10 Gauge Mild Steel Capacity

Looking to increase production? This hydraulic shear can produce 24 strokes per minute. Built with a fully welded steel frame, the SH-8010 will withstand years of full-capacity use.

• 80” length.
• 10 gauge mild steel maximum capacity.
• Minimum capacity of 24 gauge mild steel.
• Powerful industrial-grade hydraulics produce smooth movements that prolong blade life.
• 5 hp motor runs on 220-volt 3-phase power.

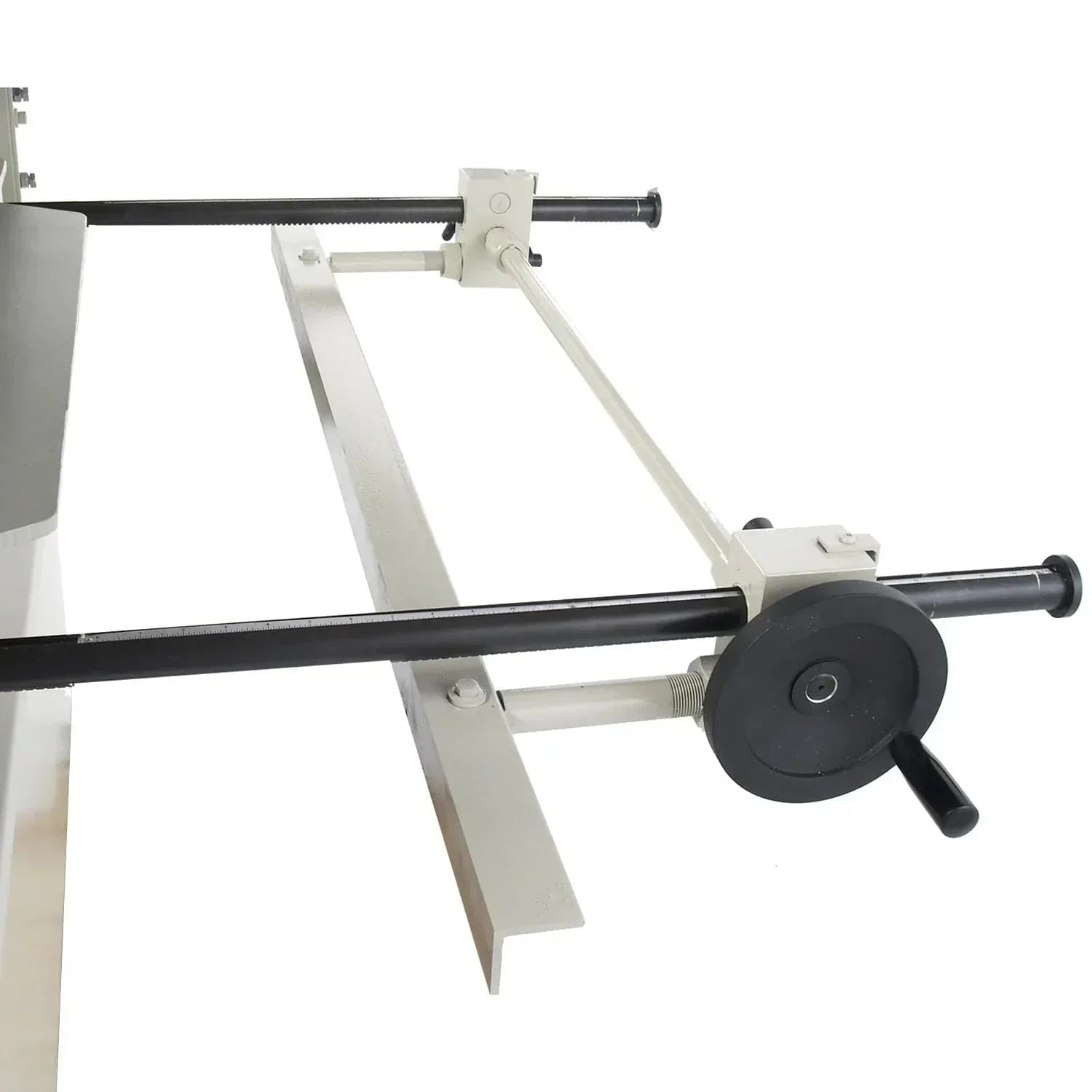

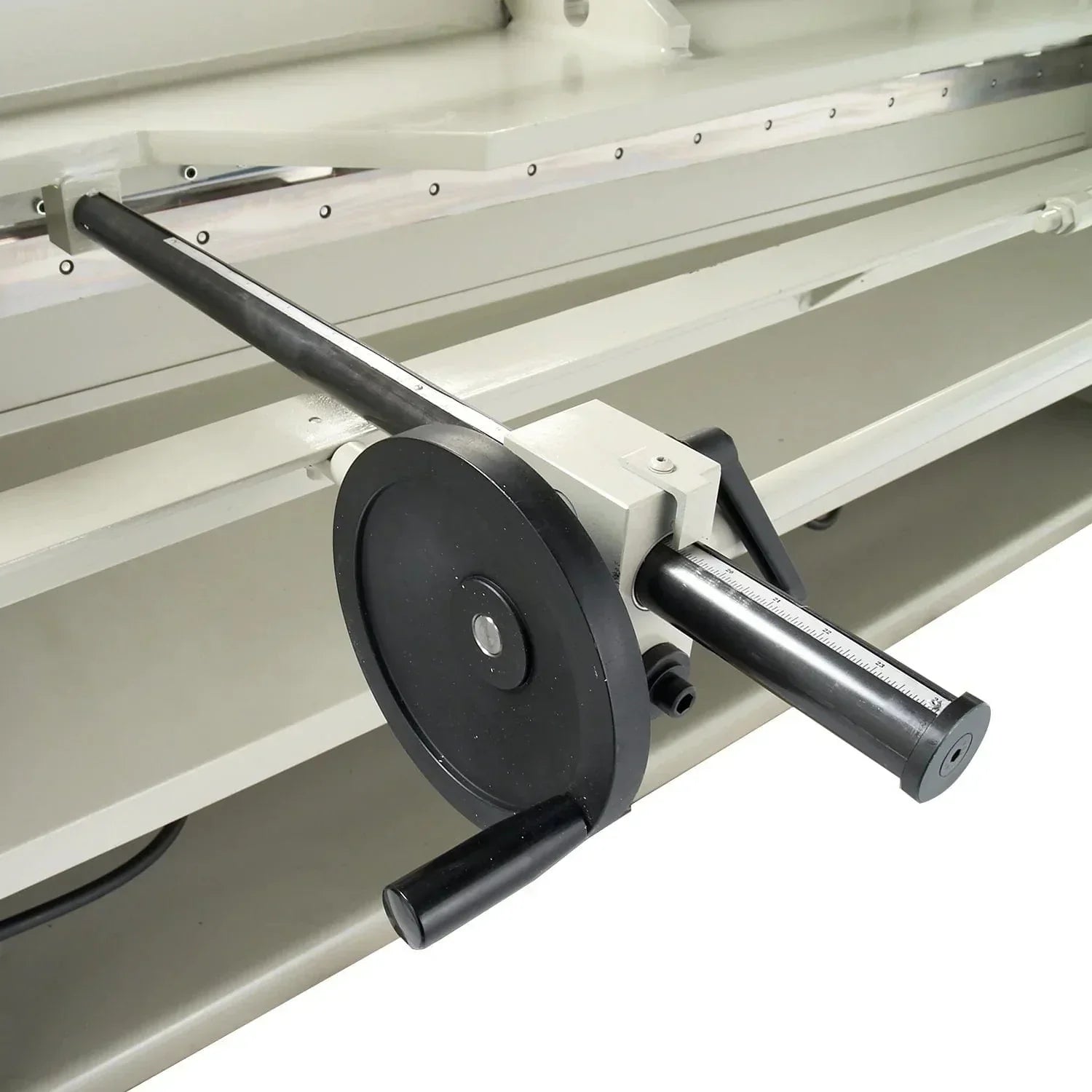

• Adjustable 24” backgauge helps ensure repeatability.

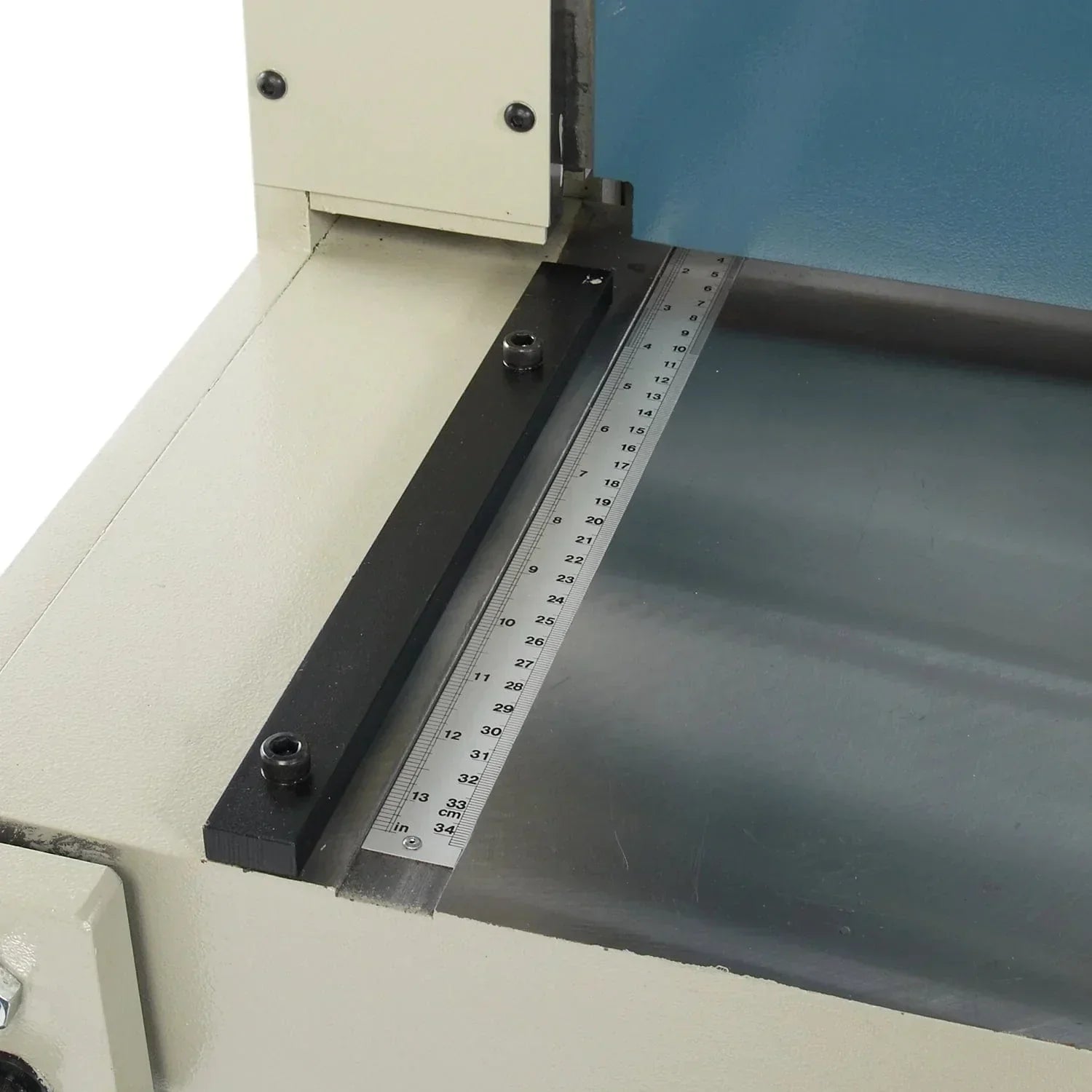

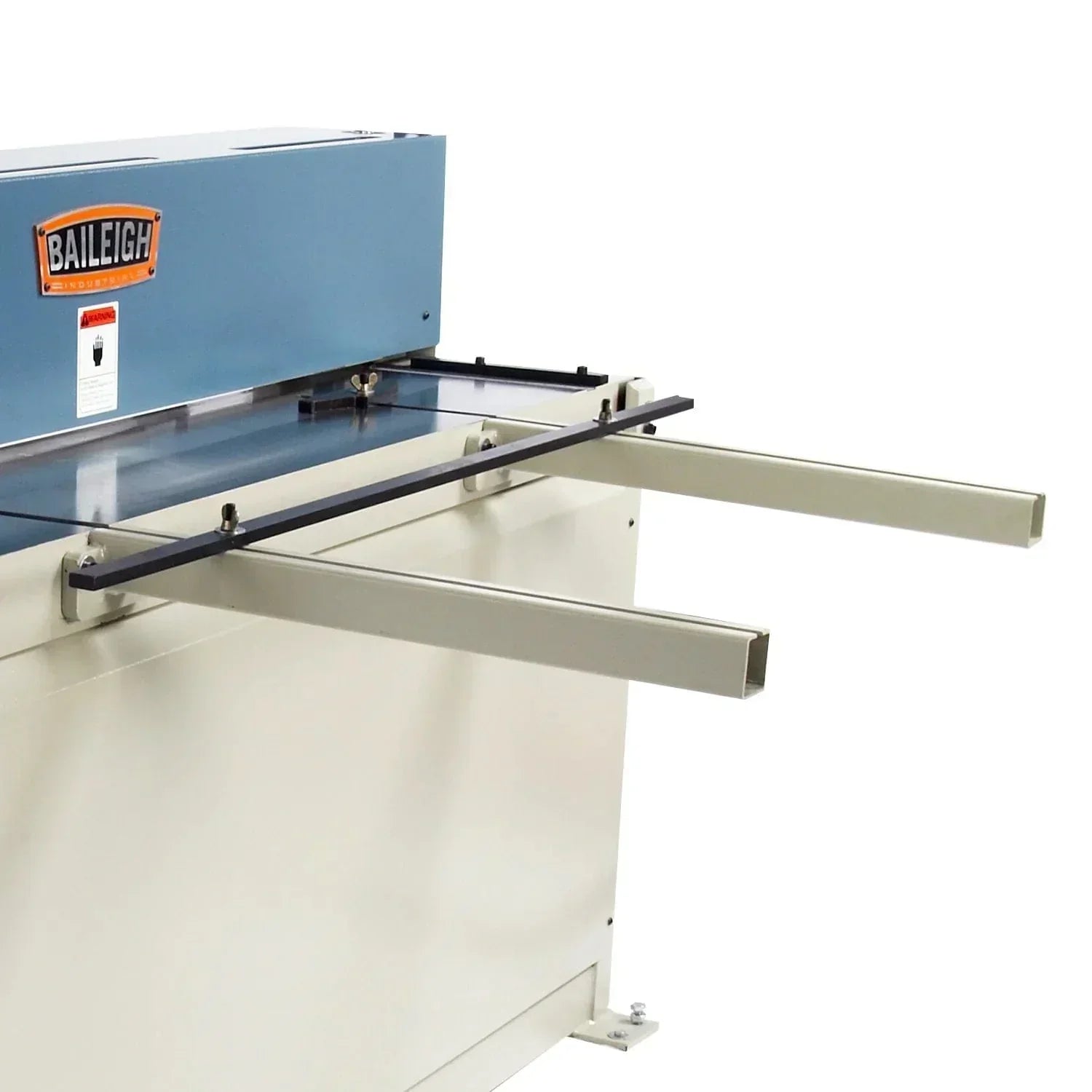

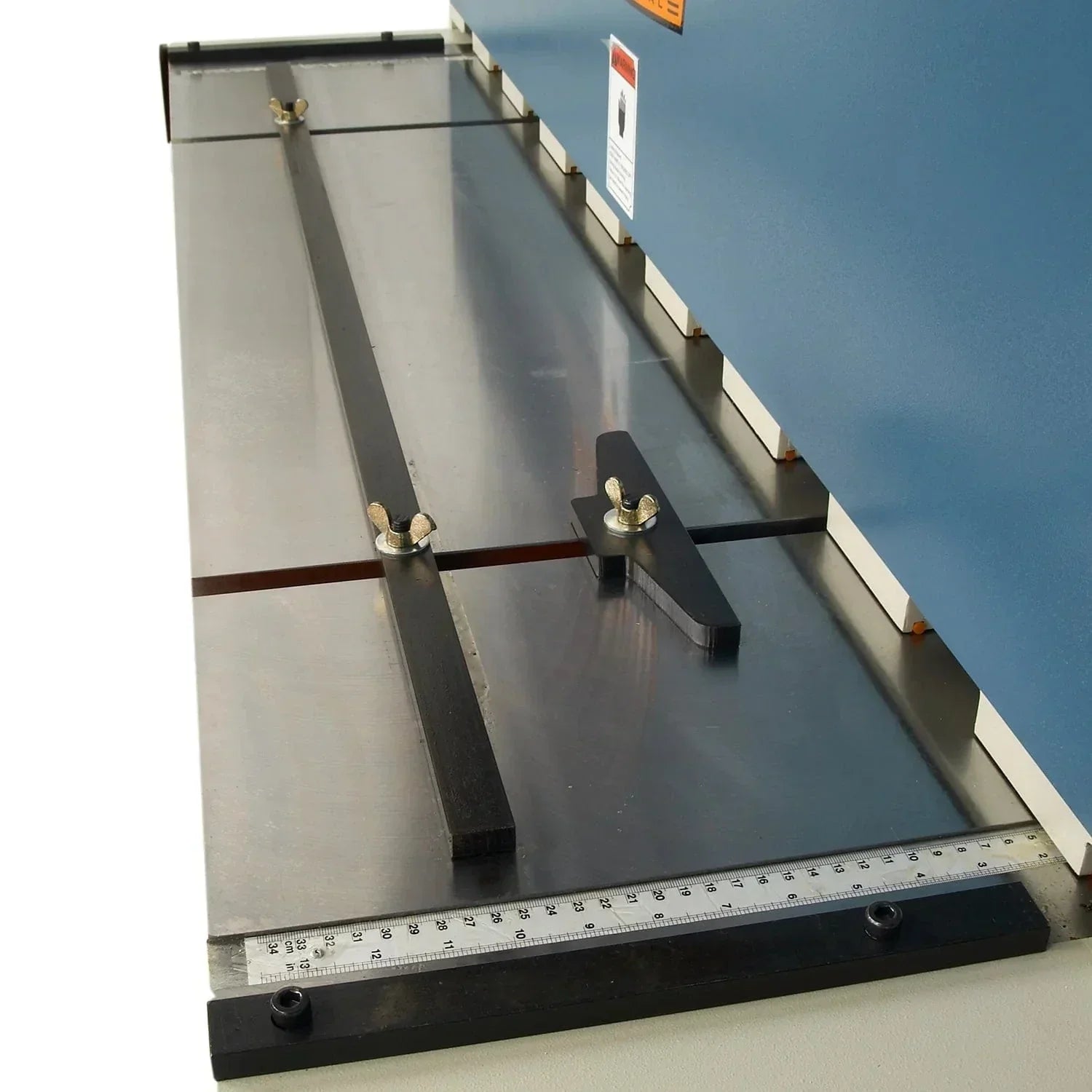

• Front support arms and table guides keep the material square to the blade.

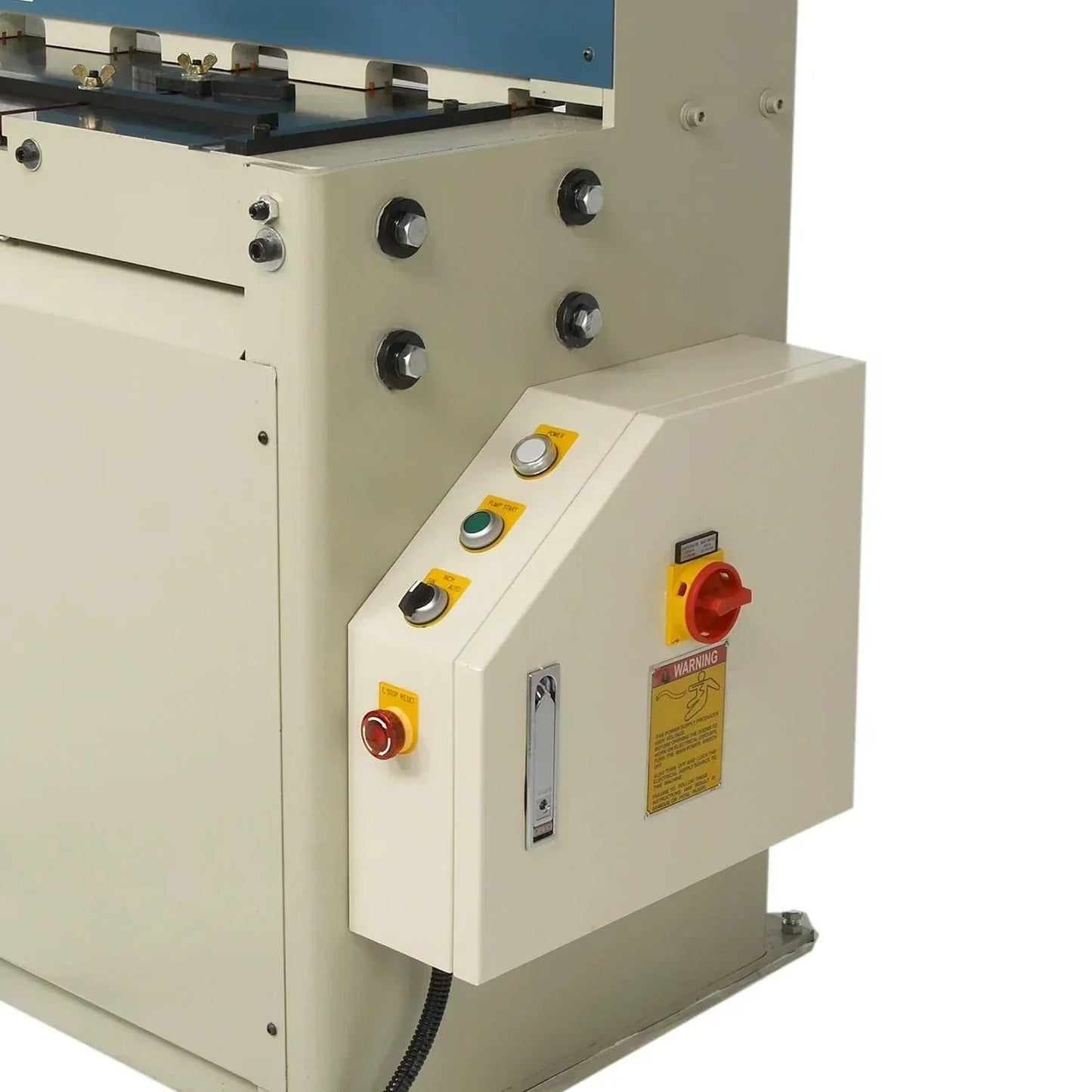

• 3 modes on the operator console:
  • Inch mode: Jog the control and ease the blade down to the material.

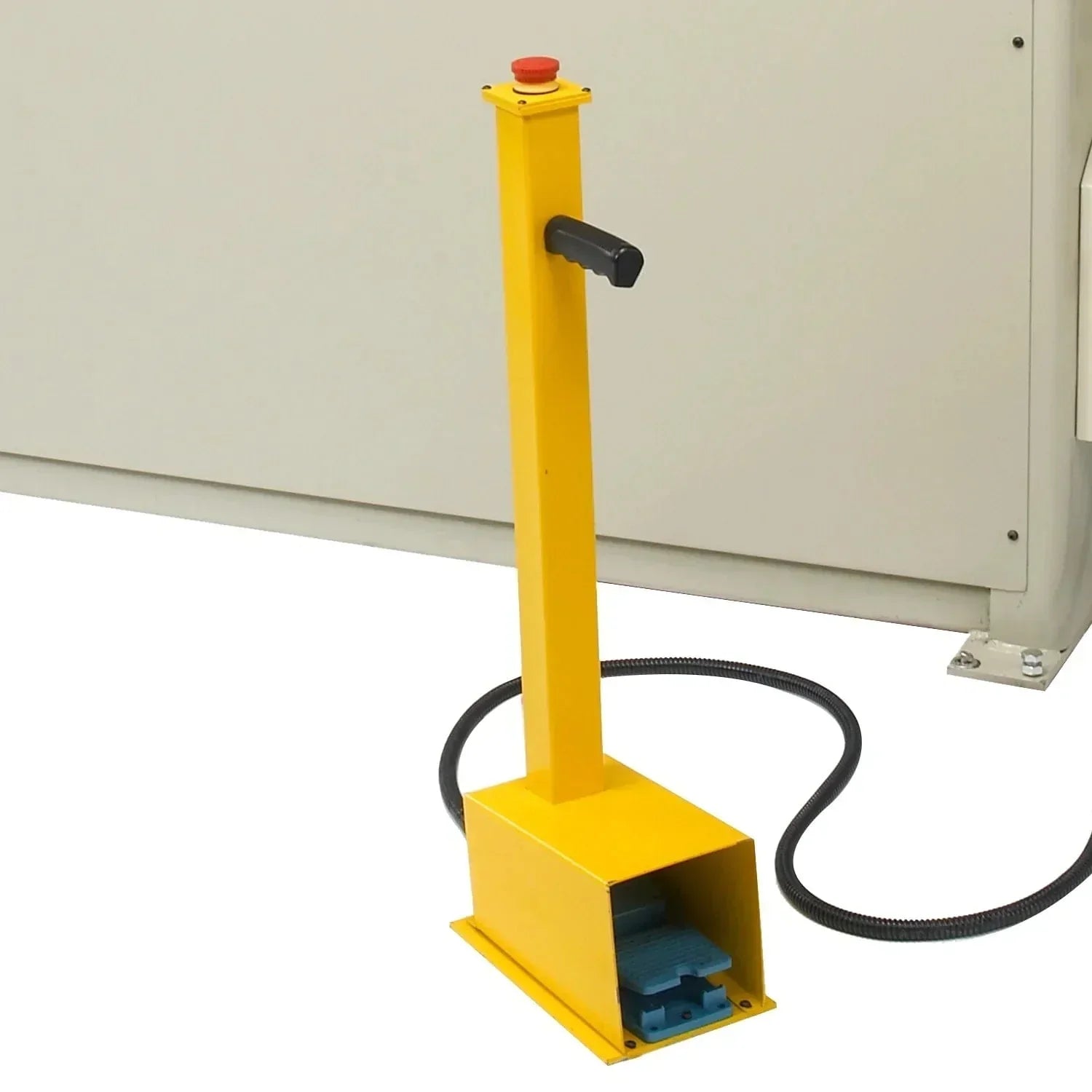

  • Single mode: Make one cut cycle per foot pedal push.
  • Auto mode: Continue cycling as you hold the pedal down.
• Comes standard with high carbon chromium blades.
• Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
• Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.

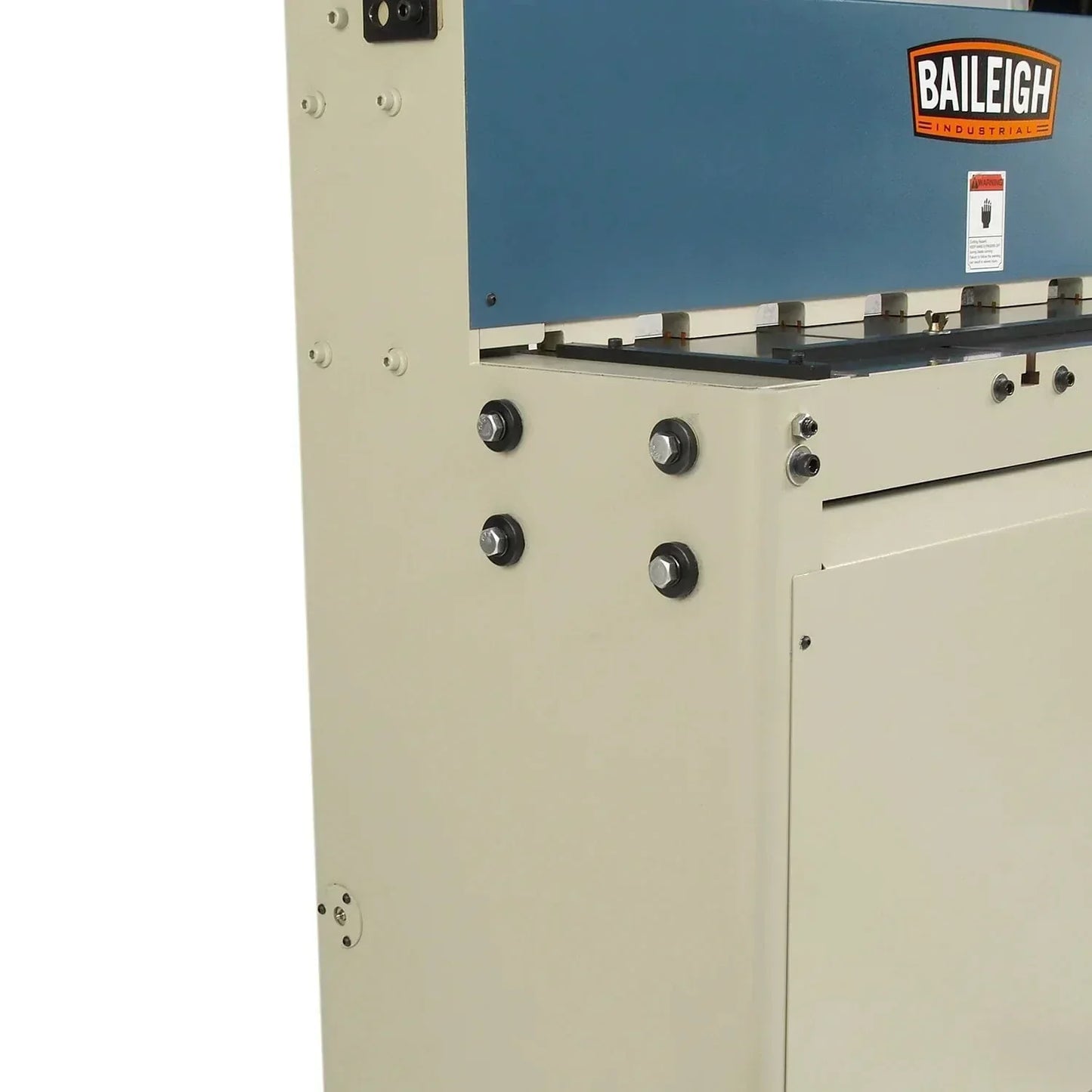

• Rigid steel plate construction minimizes flex and maintains accuracy.
• Covered by a 1-year parts warranty.
• We stock replacement parts, including blades, in house for fast shipping.
• Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience.

Also available in 60”-long and 100”-long versions (both with 10 gauge capacity).

Item Number SH-8010
Back Gauge Length 24'
Shear Length 80'
Motor 5 hp
Strokes Per Minute 24
Capacity (Mild Steel) 10 ga. (.135')
Front Gauge Length 24'
Blade Angle 1°
Power 220V / 3-phase
Shipping Weight 3900lbs
Minimum Material Thickness 24ga
Shipping Dimensions (Inches) 106x37x59
