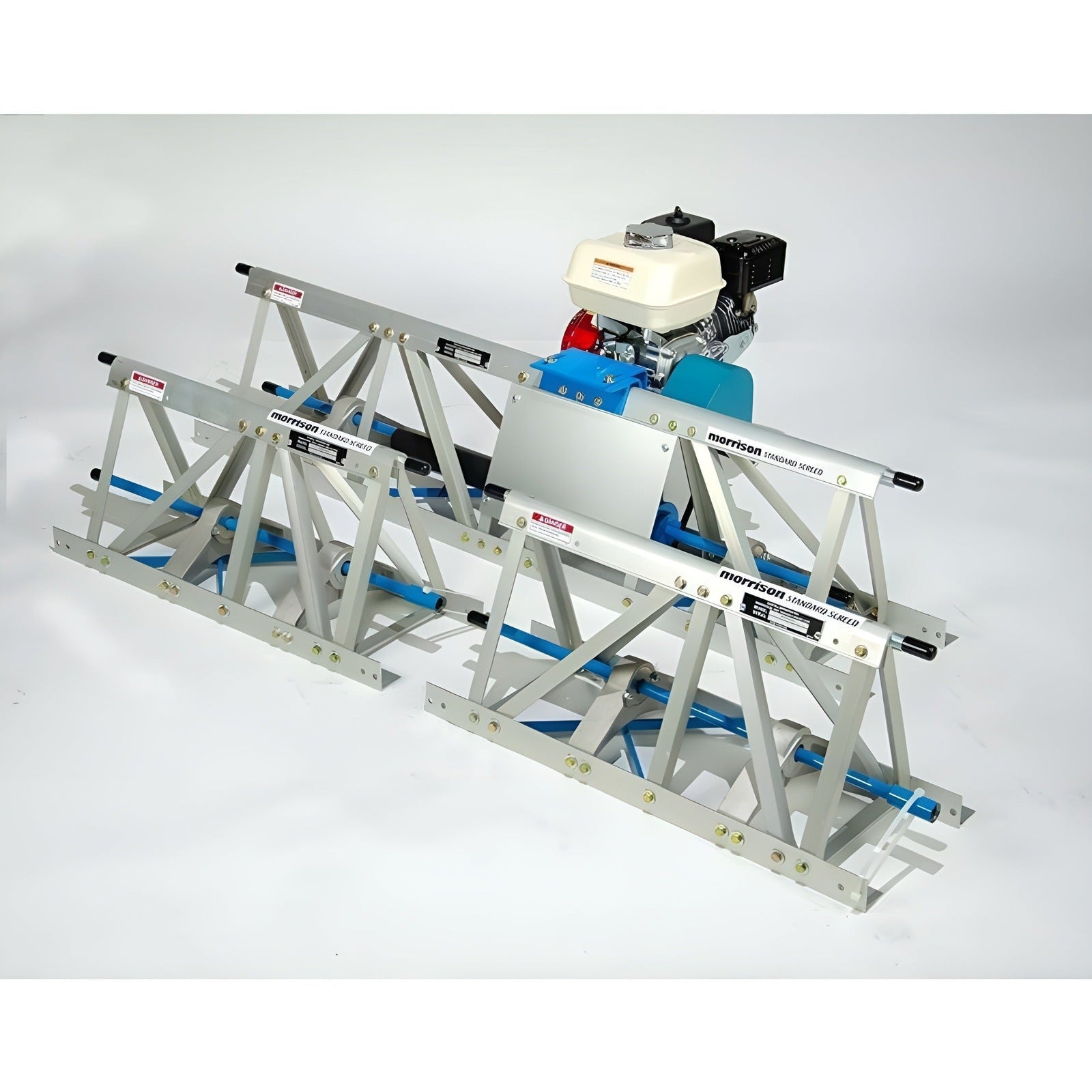

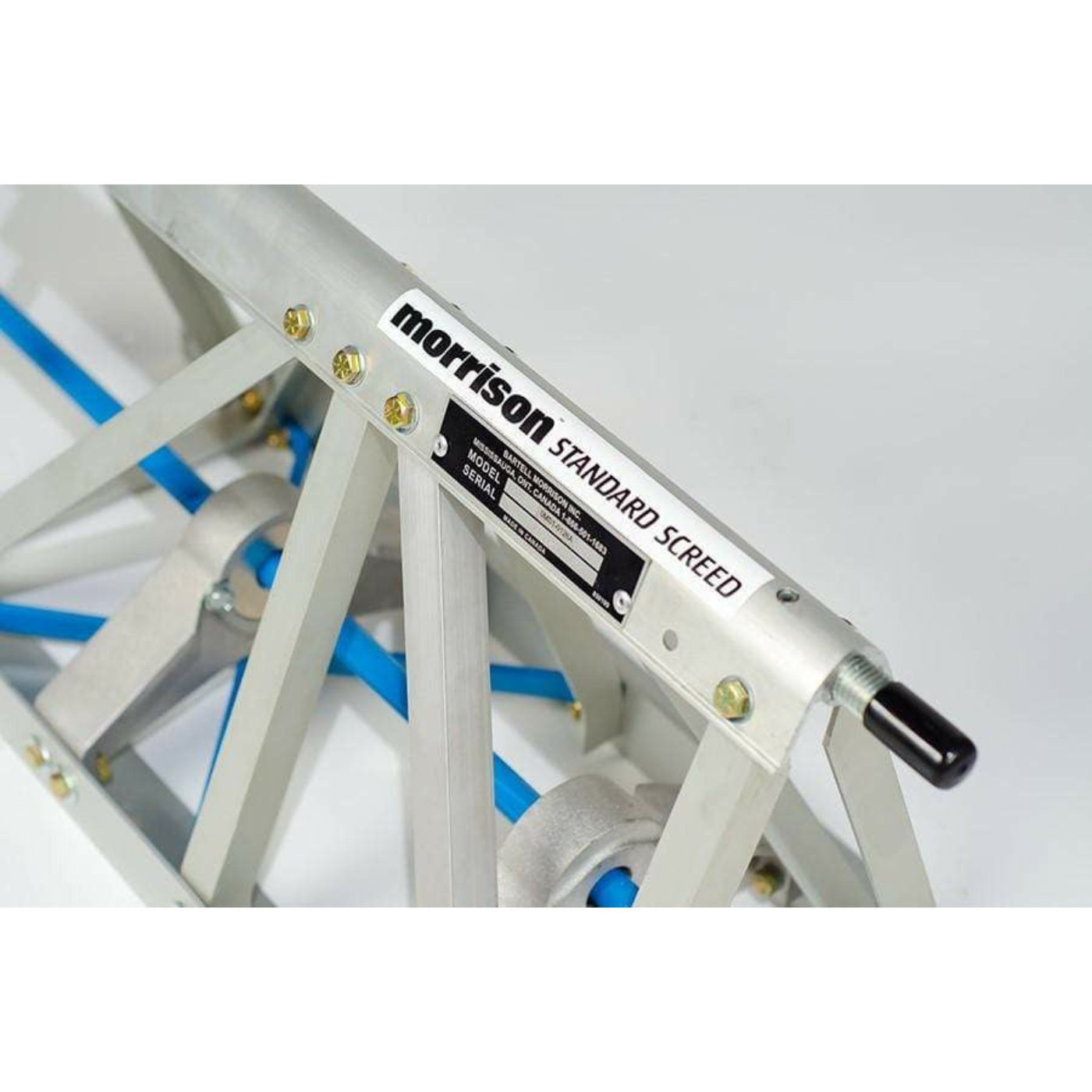

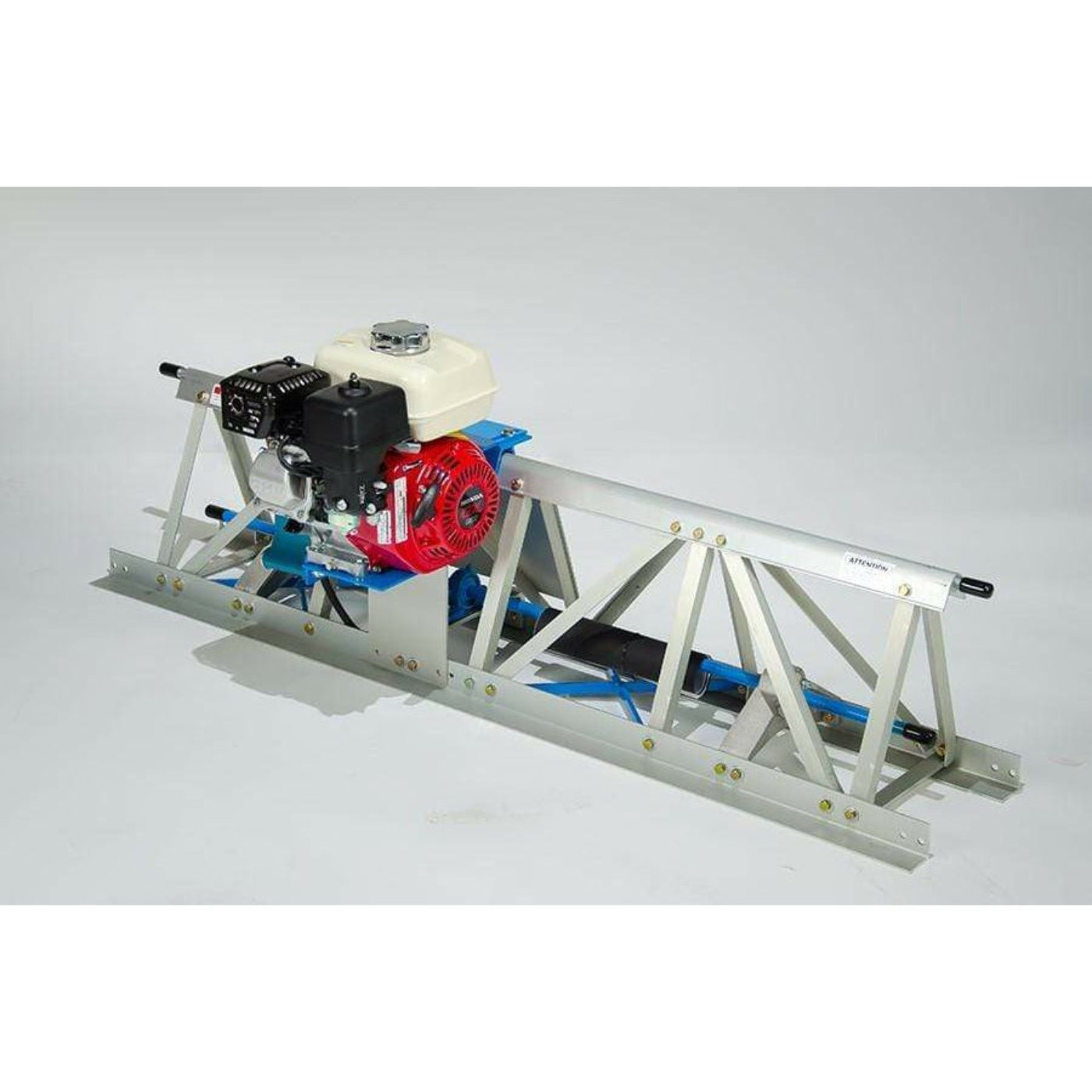

"Bartell Morrison Truss Screed, 5ft–40ft, Vibratory – 0MS05SUPHE9"

Height

13.5″ (34.3 cm)

Width

12.1″ (30.8 cm)

Weight (Depending on section)

27 lbs. (12.2 kg) – 91 lbs. (41.3 kg)

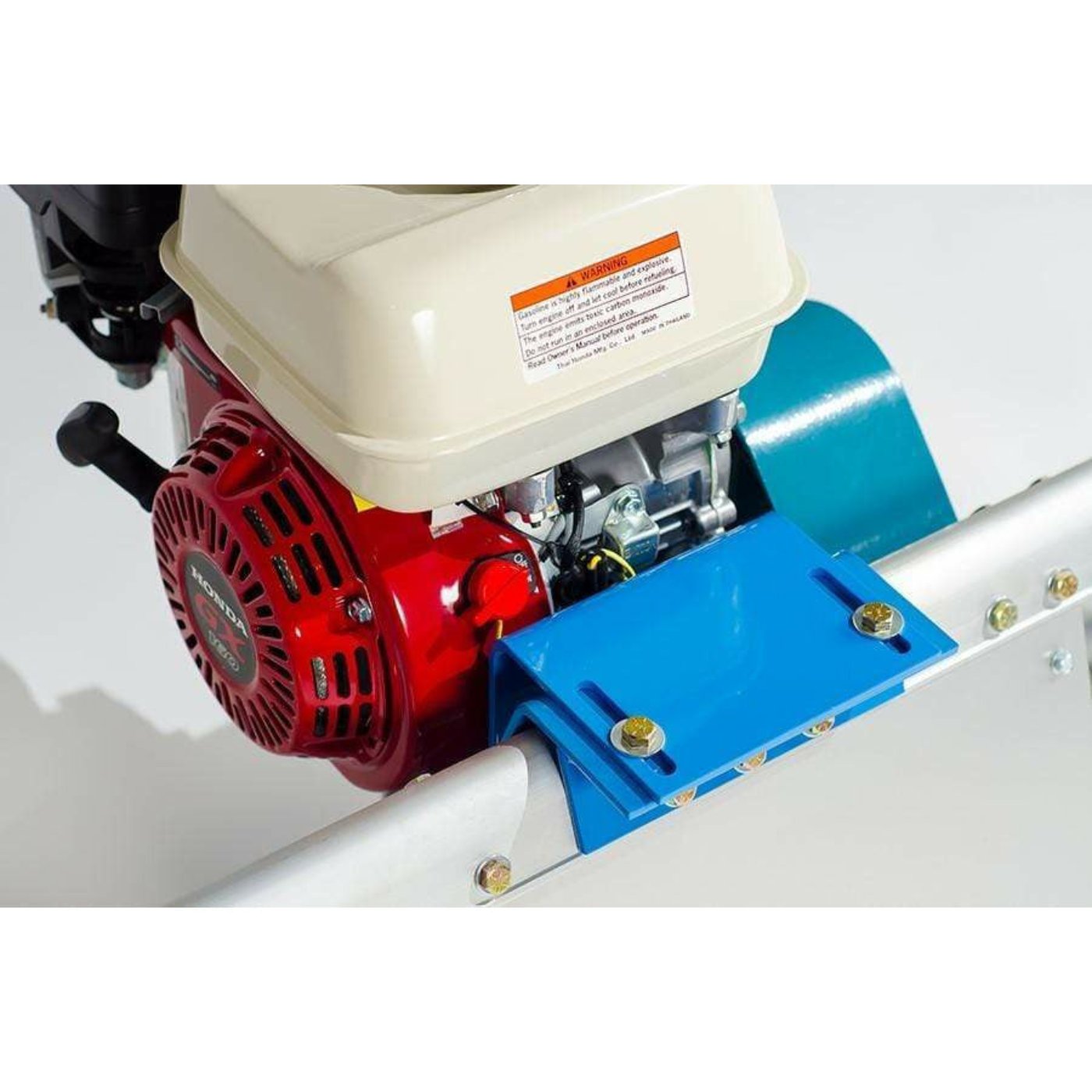

Engine

Honda 6X160

Application

Intended for spans up to 40′ (12.2 m)

Average Peak Vibration

12,830 vpm

Maximum Compaction Depth

12″ (30.5 cm)

Specs Sheet

Specs Manual

What Our Experts Think

• Adjustable Length (5ft-40ft): The screed can be adjusted from 5ft to 40ft in length, making it versatile enough to handle a wide range of concrete projects, from smaller slabs to large-scale surfaces.
• Vibratory Action: The vibratory screed system ensures an even, smooth finish by efficiently vibrating the concrete, removing air pockets, and improving surface density for superior results.
• Hand Winch/Self-Propelled Options: Designed with both hand winch and self-propelled capabilities, it offers flexibility depending on the size of the job site and operator preference, allowing for easy adjustment to varying work conditions.
• Durable Construction: Built with high-quality, rugged materials, the Morrison Truss Screed is designed to withstand tough job site environments, ensuring long-term reliability and minimal maintenance.
• Precision and Efficiency: Provides an excellent finish by precisely leveling and consolidating concrete, improving efficiency and reducing labor costs compared to manual methods.
• Enhanced Mobility: The lightweight and ergonomic design make it easy to move across the job site, reducing operator fatigue and increasing productivity

Q&A

Q: What is the Bartell Global Morrison Truss Concrete Power Standard Screed used for?
A: The Bartell Global Morrison Truss Concrete Power Standard Screed is designed for leveling and finishing freshly poured concrete, ensuring a smooth and even surface across large areas, typically used in commercial and industrial projects.

Q: What are the key features of the Bartell Global Morrison Truss Concrete Power Standard Screed?
A: This screed features a 5ft-40ft adjustable length, vibratory operation, and a hand winch/self-propelled system, making it versatile and efficient for concrete leveling on large slabs.

Q: Is the Bartell Global Morrison Truss Concrete Power Standard Screed easy to operate?
A: Yes, the screed is designed for ease of operation with both hand winch and self-propelled options, allowing the operator to choose the most efficient method for different project needs.

Q: What is the power source for the Bartell Global Morrison Truss Concrete Power Standard Screed?
A: The screed operates with vibratory power for effective concrete leveling, and can be used with either a hand winch or self-propelled mode for optimal performance.

Q: Does the Bartell Global Morrison Truss Concrete Power Standard Screed come with a warranty?
A: Yes, the Bartell Global Morrison Truss Concrete Power Standard Screed is backed by a manufacturer’s warranty, ensuring durability and reliability for large-scale concrete projects

Maintenance Tips

• Clean After Each Use: Clean the screed blade, frame, and motor after each use to remove concrete residue and debris to prevent buildup and ensure smooth operation.

• Inspect Screed Blade: Regularly check the screed blade for wear, cracks, or damage. Replace it as needed to maintain an even, consistent finish on the concrete.

• Lubricate Moving Parts: Lubricate the moving components, including the winch, motor, and drive system, to reduce friction and ensure smooth performance.

• Check Winch and Cables: Inspect the hand winch and cables for any signs of wear or fraying. Ensure they operate smoothly and replace any damaged components.

• Monitor Vibratory System: Ensure the vibratory system is working correctly by inspecting the vibration mechanism for any loose parts or wear. Tighten and replace worn parts as necessary.

• Check and Tighten Fasteners: Periodically check all bolts, nuts, and fasteners for tightness to ensure the unit is securely assembled and free from vibrations.

• Inspect Tires (If Self-Propelled): For self-propelled models, inspect the tires for wear and proper inflation. Replace or inflate tires as needed for smooth operation.

• Check Engine Oil: Regularly check and change the engine oil according to the manufacturer's recommendations to keep the engine running efficiently.

• Air Filter Maintenance: Inspect the air filter and clean or replace it regularly to ensure proper airflow to the engine and prevent overheating.

• Proper Storage: When not in use, store the screed in a dry, clean area to protect it from rust, moisture, and environmental damage.
