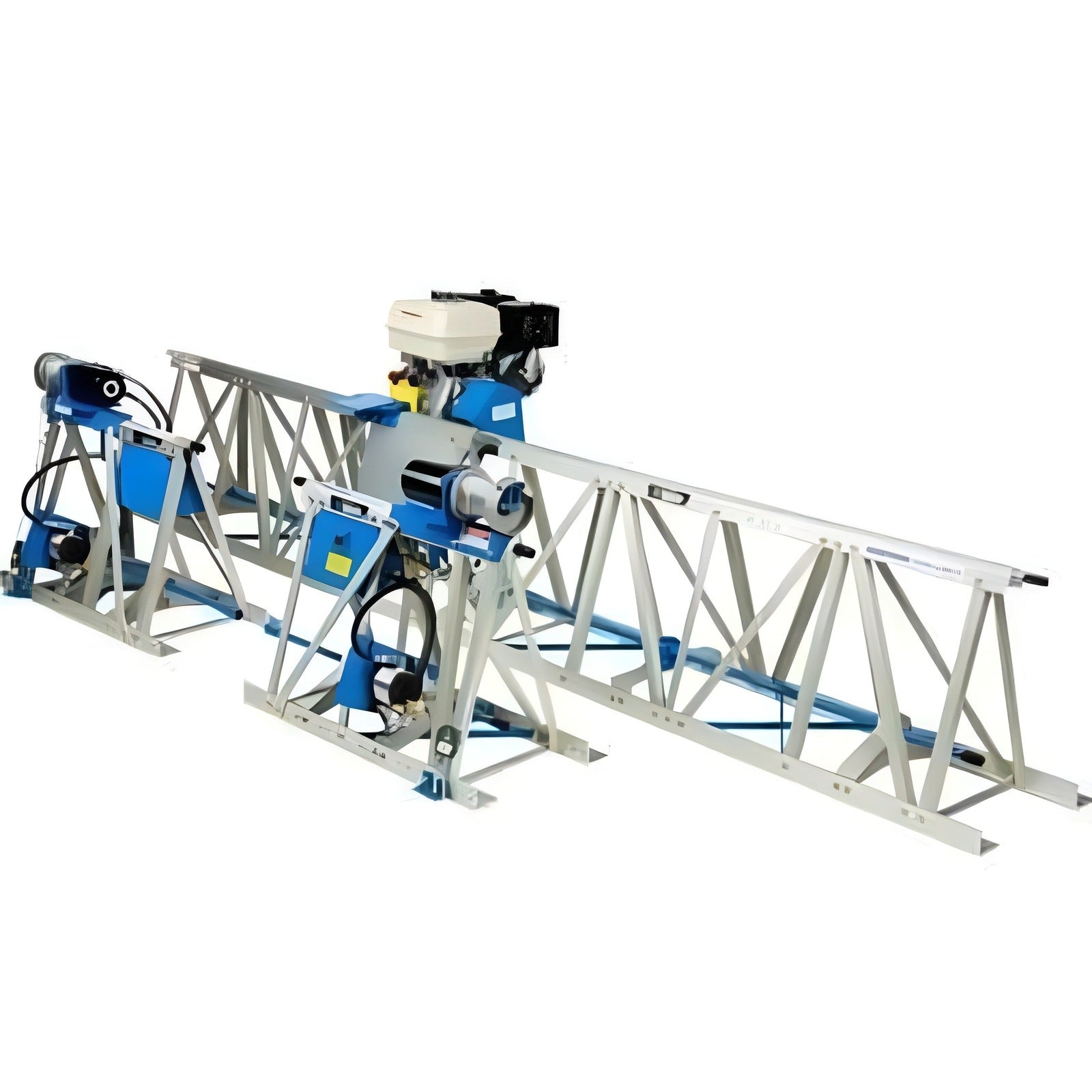

Bartell 5ft–80ft Power Screed, Vibratory - 0MS2-0121A-1

Height

19.5” (495.3mm)

Width

14.625” (371.48mm)

Weight (Depending on section)

23lbs. (10.44kg) – 94lbs. (42.68kg)

Engine

5.5hp Honda (others available)

Maximum Recommended Span

70’ (21.31m)

Average Peak Vibration

14 000 v.p.m

Maximum Compaction Depth

12” (304.8mm)

Specs Sheet

Specs Sheet

What Our Experts Think

• Versatile Screed Length: The Bartell Global Morrison Truss Super Screed offers adjustable lengths from 5ft to 80ft, providing flexibility for a wide range of concrete finishing projects, from smaller slabs to large surfaces.
• Vibratory Technology: Equipped with vibratory capabilities, it ensures smooth and even leveling of concrete, resulting in a superior, professional finish every time.

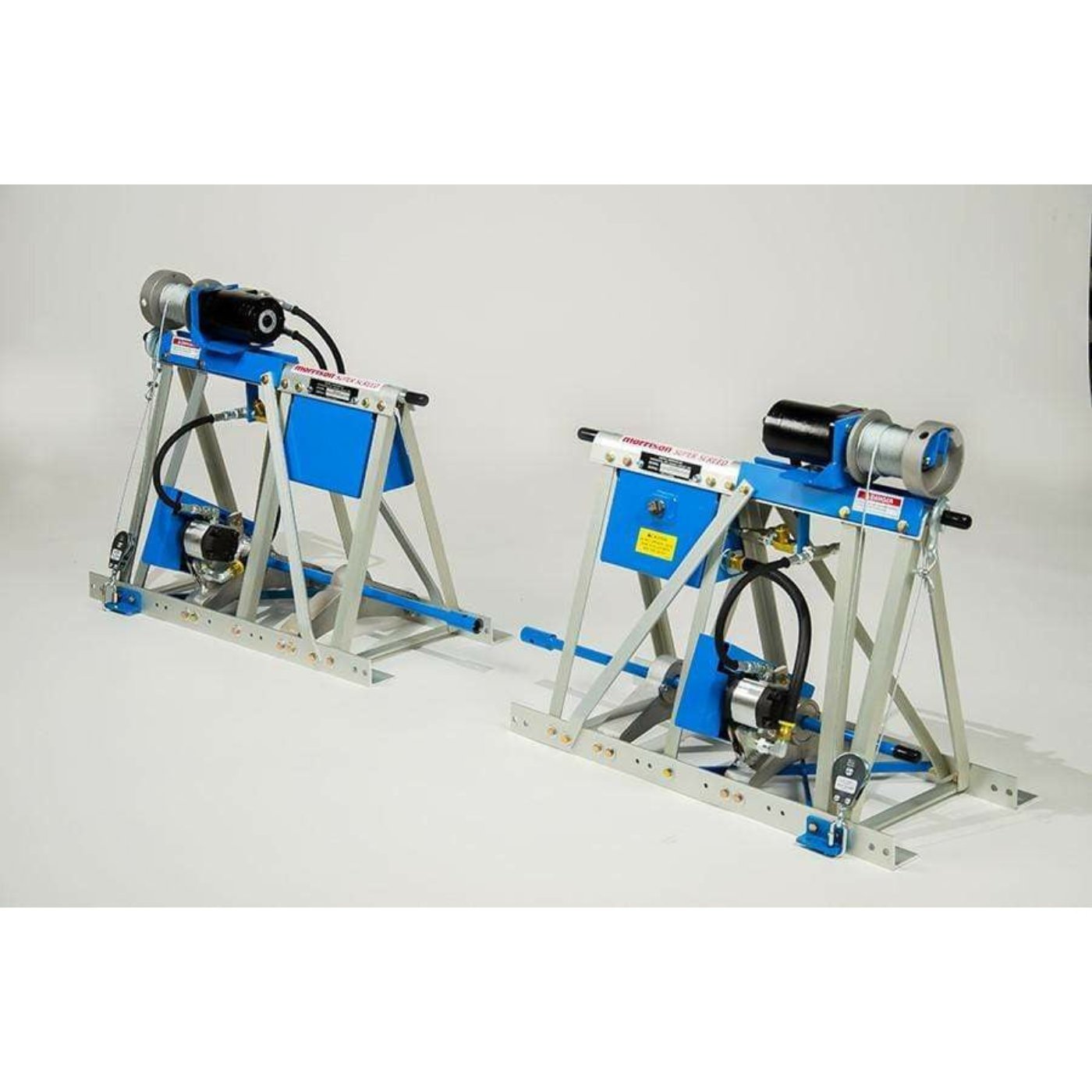

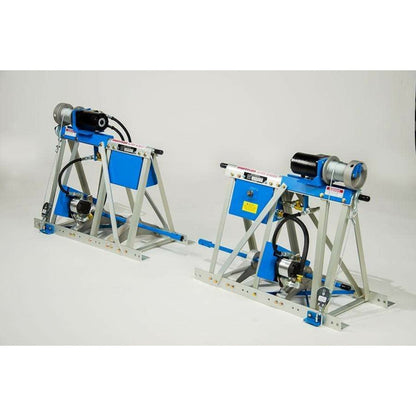

• Self-Propelled and Hand Winch Options: With both self-propelled and hand winch operation modes, the screed offers ease of use, allowing operators to choose the best method for the job at hand.
• Durable and Reliable: Built for tough commercial and industrial job sites, the Morrison Truss Super Screed is constructed with high-quality materials for long-lasting performance and reliability.
• Efficient and Time-Saving: Speeds up the finishing process by providing consistent vibration and leveling across large areas, reducing labor time and increasing productivity.
• Ideal for Large Projects: Perfect for large-scale concrete pours, such as highways, parking lots, and industrial floors, offering excellent coverage and efficient leveling

Q&A

Q: What is the Bartell Global Morrison Truss Concrete Power Super Screed used for?
A: The Bartell Global Morrison Truss Concrete Power Super Screed is used for leveling and finishing freshly poured concrete, providing a smooth, even surface over large areas, typically in commercial and industrial applications.

Q: What are the key features of the Bartell Global Morrison Truss Concrete Power Super Screed?
A: The Super Screed features an adjustable length of 5ft-80ft, vibratory operation for efficient concrete leveling, and both hand winch and self-propelled modes, making it versatile for different project sizes and requirements.

Q: Is the Bartell Global Morrison Truss Concrete Power Super Screed easy to operate?
A: Yes, it is designed for ease of use with intuitive controls and the flexibility of hand winch or self-propelled operation, allowing for optimal maneuverability and reduced operator fatigue.

Q: What type of power does the Bartell Global Morrison Truss Concrete Power Super Screed use?
A: The Super Screed utilizes vibratory power to efficiently level large concrete slabs and can be operated with a hand winch or in a self-propelled mode for improved productivity.

Q: Does the Bartell Global Morrison Truss Concrete Power Super Screed come with a warranty?
A: Yes, the Bartell Global Morrison Truss Concrete Power Super Screed is backed by a manufacturer’s warranty, ensuring long-lasting durability and reliable performance for concrete finishing

Maintenance Tips

• Clean After Use: After each use, thoroughly clean the screed blade, frame, motor, and vibratory system to remove concrete residue and debris. This prevents buildup and maintains smooth operation.

• Inspect Screed Blade: Check the screed blade for any signs of damage, wear, or cracks. Replace it as needed to ensure a consistent and even finish.

• Lubricate Components: Regularly lubricate the moving parts such as the hand winch, self-propelled drive system, and motor to reduce friction and prevent premature wear.

• Check Vibratory System: Inspect the vibratory system regularly to ensure it operates efficiently. Tighten or replace any loose or worn parts in the vibration mechanism.

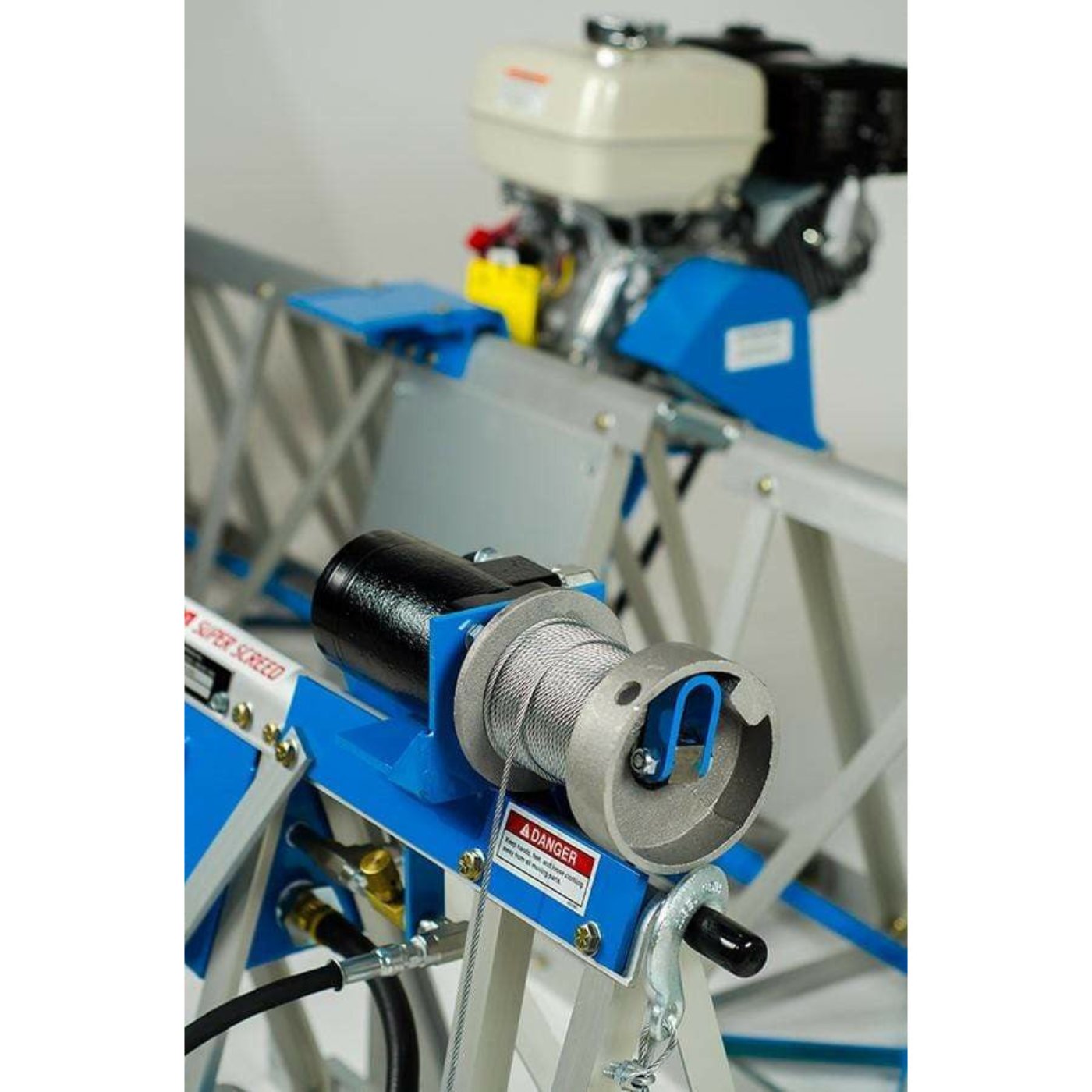

• Examine Winch and Cables: Check the hand winch and cables for any fraying, wear, or damage. Ensure they function smoothly and replace any damaged cables to prevent malfunction.

• Monitor Tires (Self-Propelled Models): For self-propelled versions, check the tires for proper inflation and wear. Ensure the wheels are securely attached and replace or inflate tires as necessary.

• Engine Maintenance: Regularly check the engine oil and replace it according to the manufacturer’s guidelines. Keep the air filter clean and replace it when necessary to ensure proper engine function.

• Tighten Fasteners: Periodically inspect all bolts, nuts, and fasteners to ensure they are properly tightened and secure. Loose components can cause vibrations or operational issues.

• Check Electrical and Wiring (If Applicable): For electric models, inspect the electrical system and wiring for wear, ensuring all connections are intact and functioning properly.

• Proper Storage: Store the screed in a dry, clean area when not in use to protect it from moisture, dust, and potential rust damage
