grab it before it's gone.
As low as possible.
Never used.

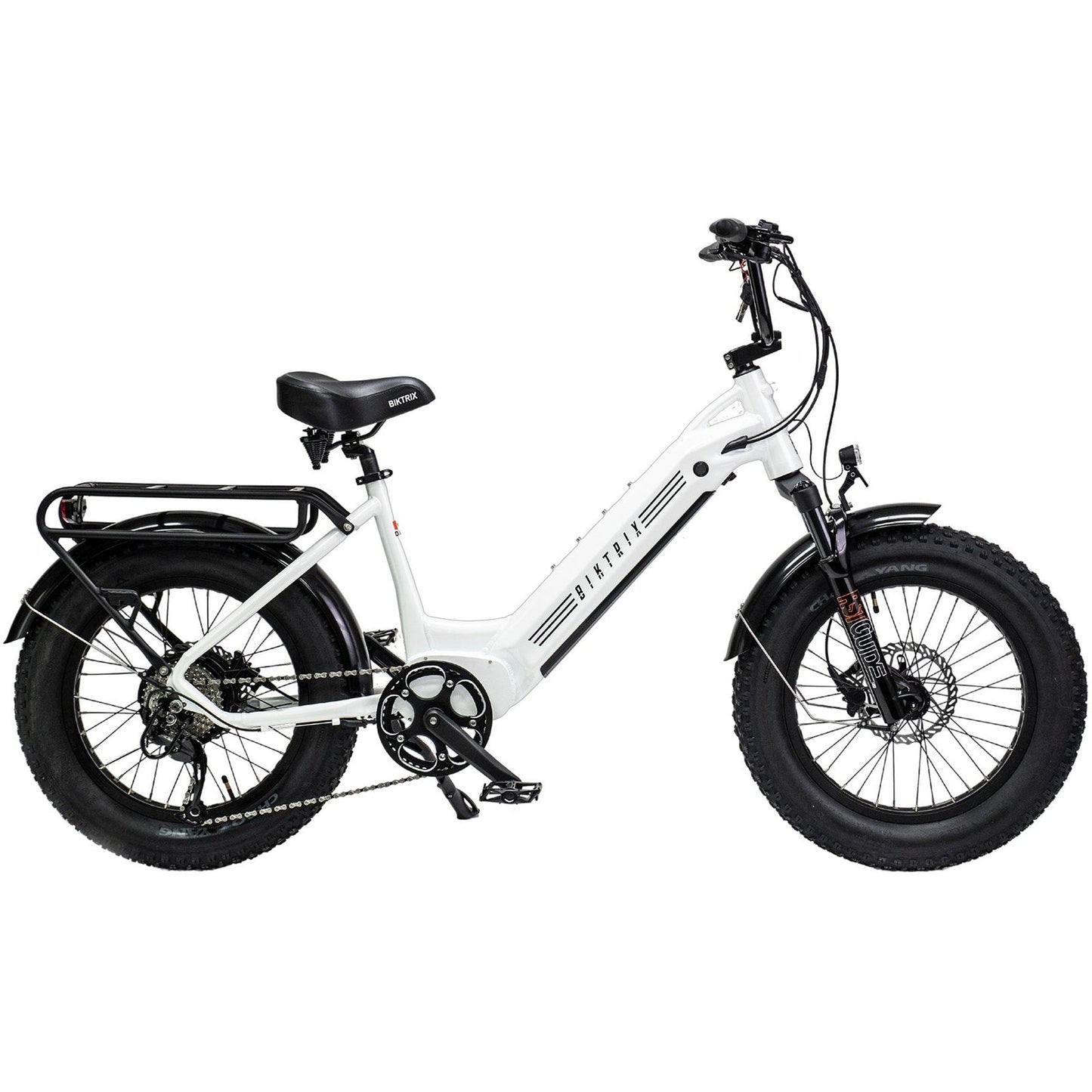

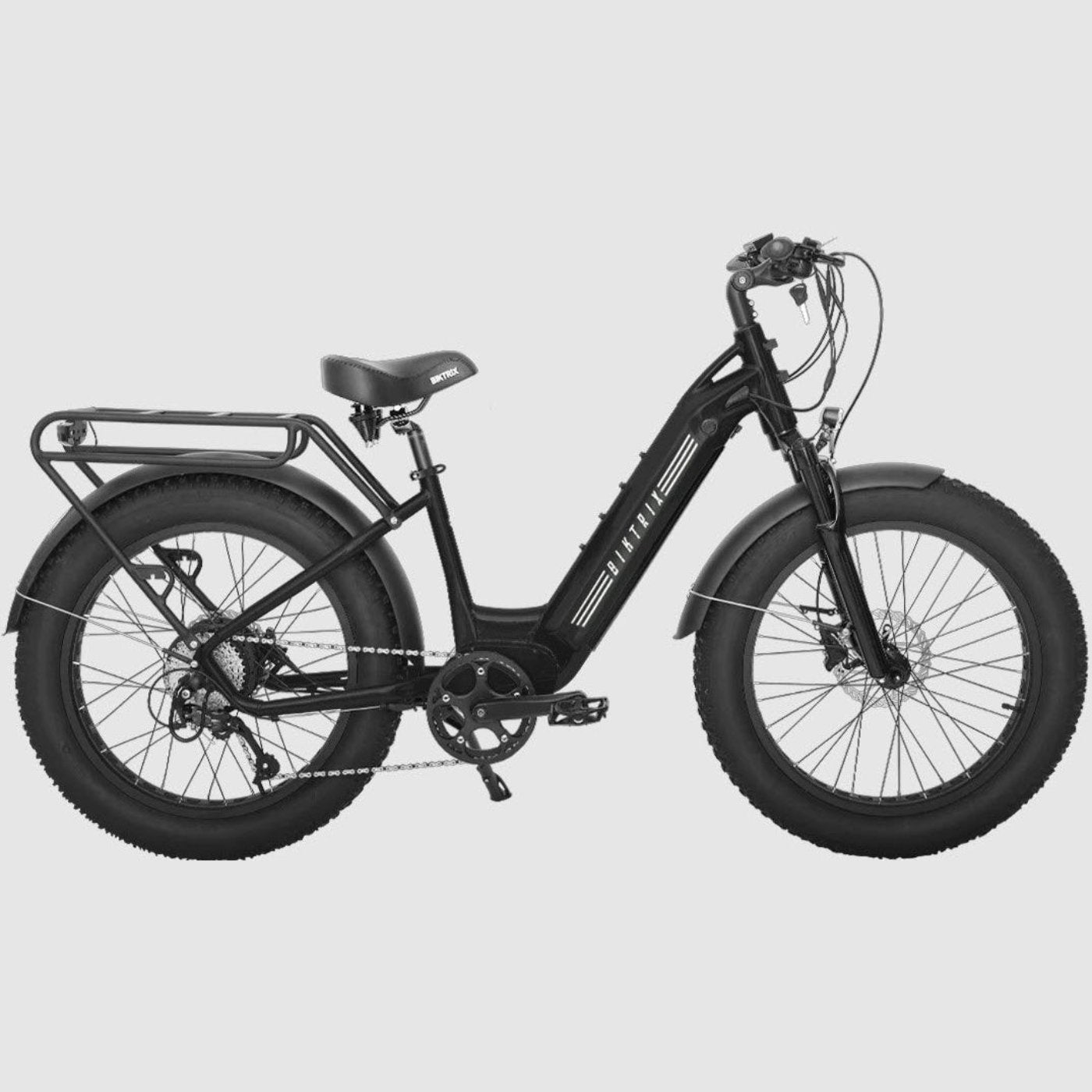

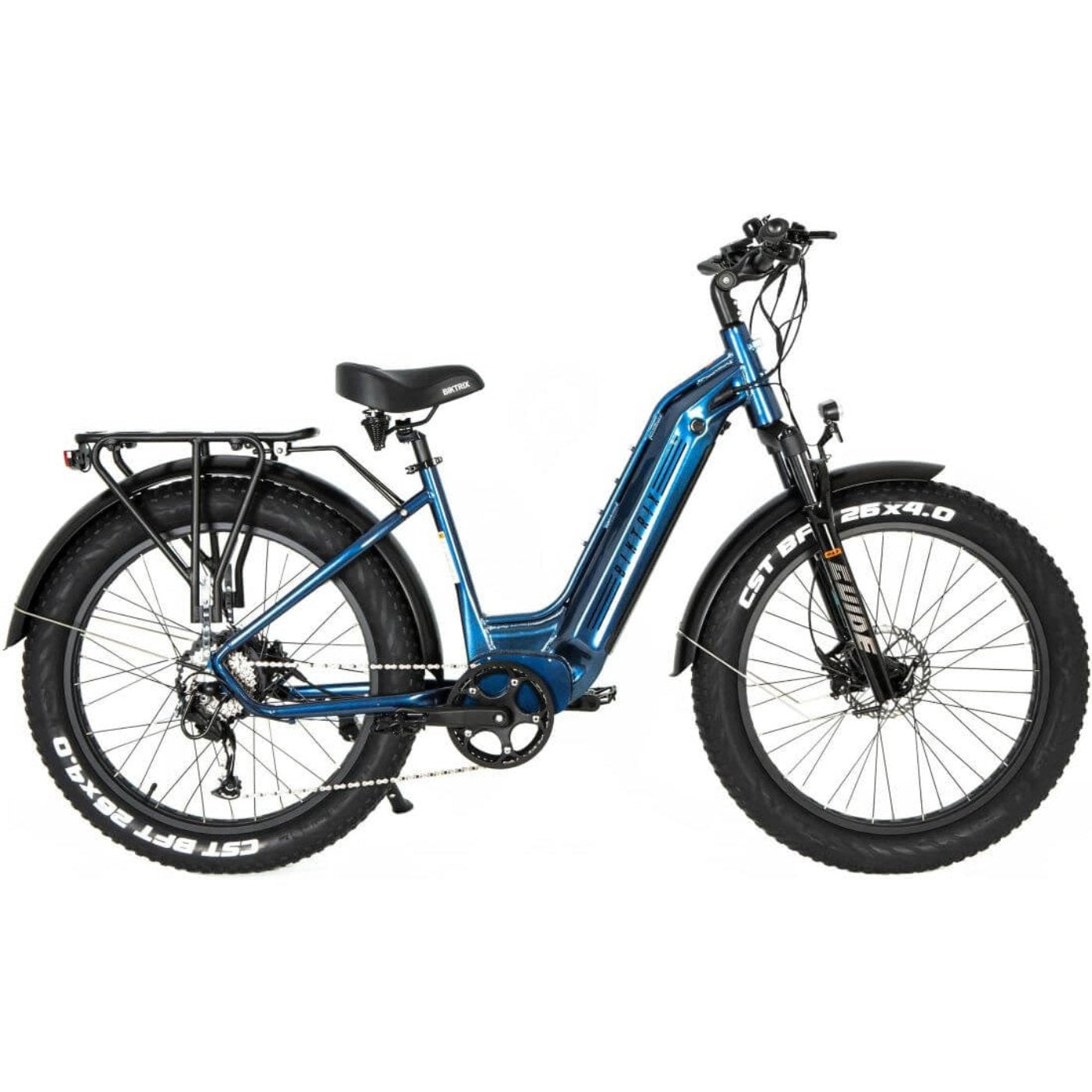

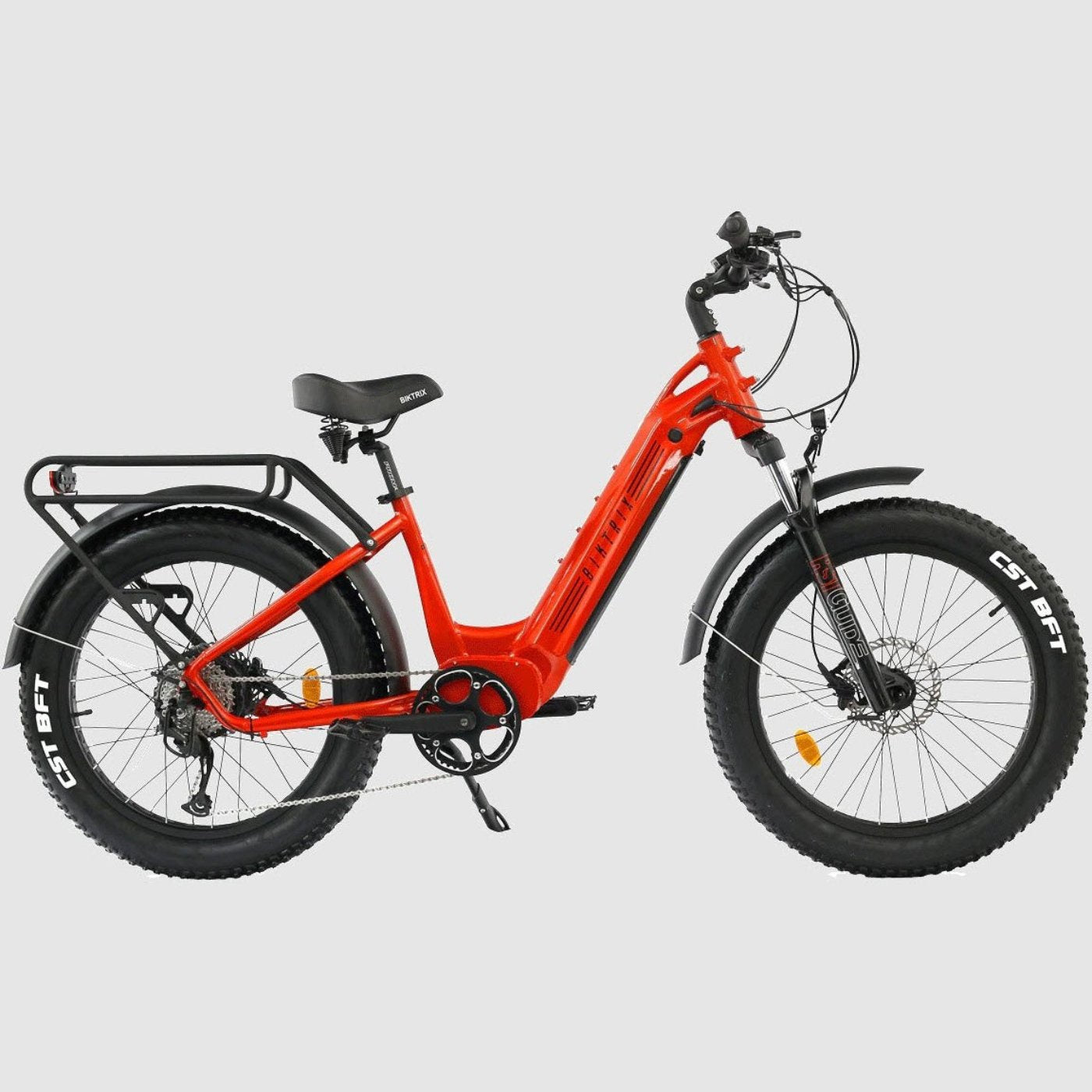

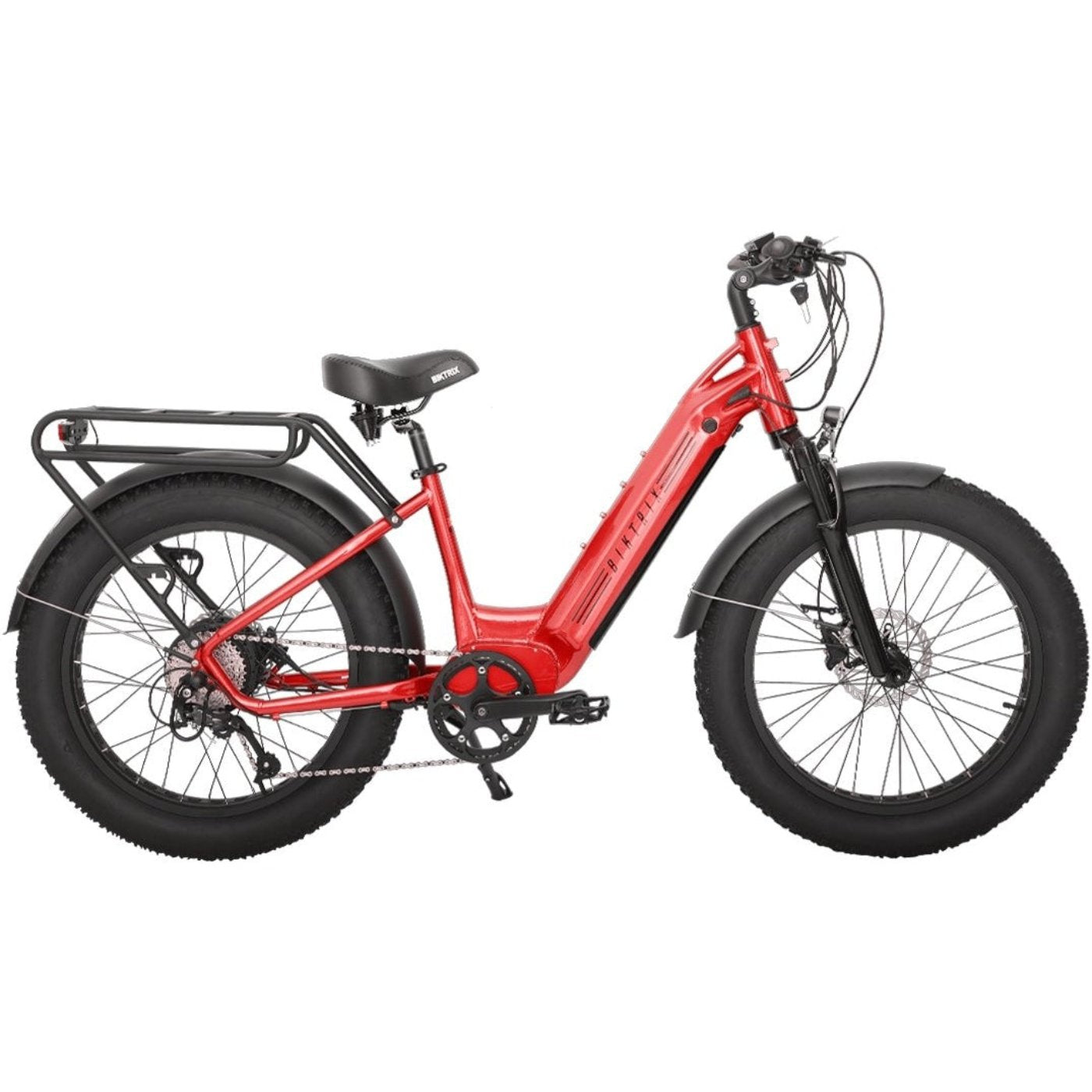

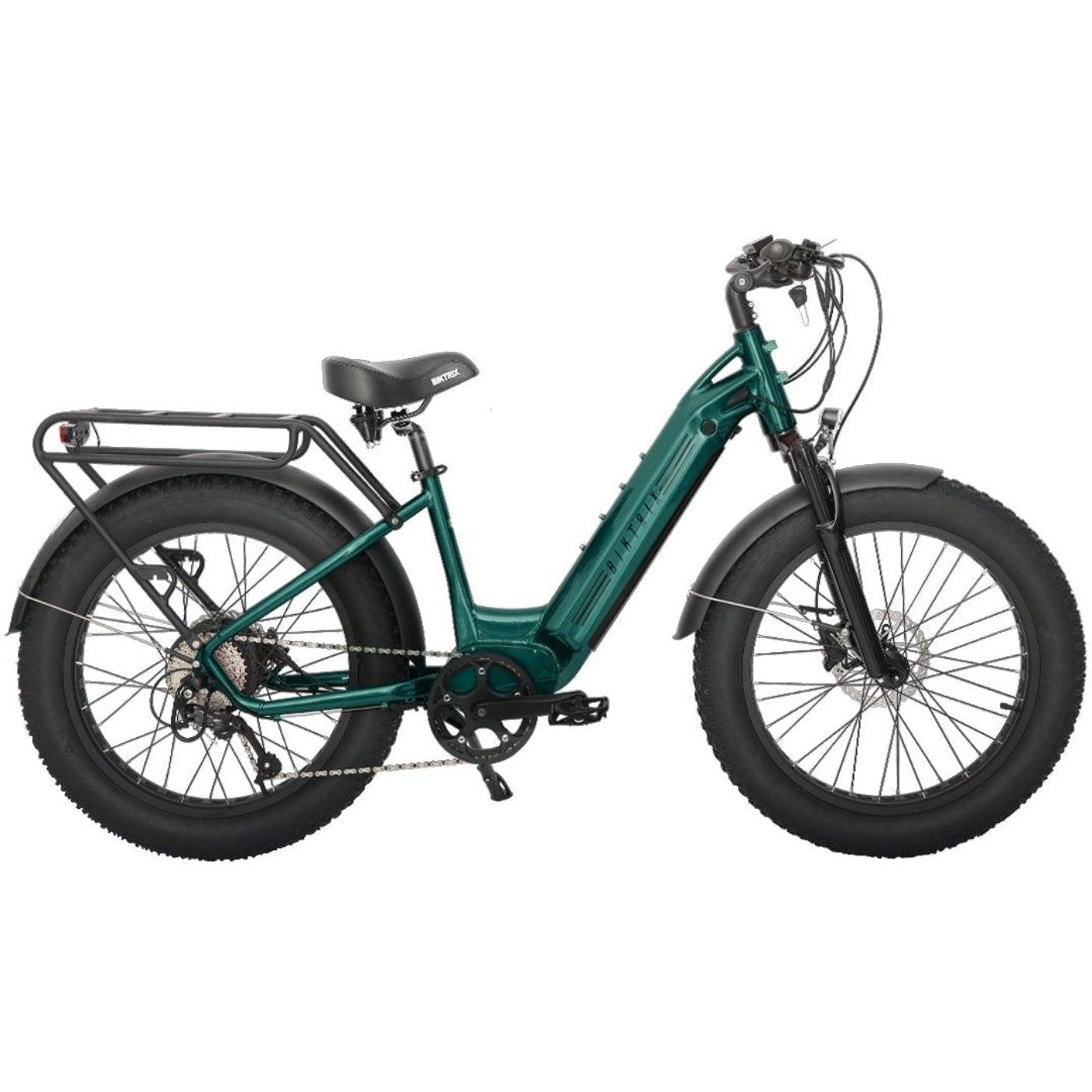

The Biktrix Juggernaut Hub Duo 750W Step-Through Electric Bike is perfect for commuting on the street or adventuring on some trails. Simply put, it's versatile and lots of fun.
With its superior build quality and 80Nm of torque, you'll all the power you need from the Juggernaut Hub Duo Step-Through.
The Cushy RST Guide suspension fork evens out the bumps, making for an even, smooth ride every time.
The Biktrix Dual Piston Hydraulic Brakes provide dependable and strong stopping power.
Fat robust tires provide extra traction. To get less drag ad to achieve a great commute on multiple surfaces, choose the 27.5" plus-size wheels.
The powerful hub-drive motor features 750 watts of power and 80Nm of torque. This allows you to span cities, climb hills, and explore all the places you want to go with ease.
Multiple range-extender battery options can expand your eBike's range all the way to 100 miles.
The LCD display shows all kinds of important information about your ride including speed, battery life, range, odometer, pedal assist level and more.
The RST Guide fork provides 80mm of travelwith pre-load, lockout, and rebound adjustability
From climbing hills to holding maximum speed on the flats, the Shimano 9-speed drivetrain has you covered.
When it's so easy to go fast, you need strong stopping power. These hydraulic disc brakes will quickly and reliably bring you to a halt.
This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.
These fenders will keep you and your bike clean. Need to carry some gear? Strap on the rear rack and make your way!
The bright red rear light helps you ride with more confidence at night.
Frame | 6061 Aluminum |
---|---|
Brakes | Biktrix Dual Piston Hydraulic Brakes W/180mm Rotors (M |
Battery Sizes | Total Capacity of 52V 36.5Ah 1898Wh: |
52V 17.5Ah 910Wh (Internal Battery) + up to 52V 19Ah 988Wh (External Range Extender Battery) | |
Fork | RST GUIDE, 75mm Travel, Pre-load Adjustable and Lockout |
Brake Levers | Adjustable With Integrated Brake Cutoffs |
Headset | Threadless 1-1/8 1-1/2 Tapered |
Handlebar | 700mm Wide, 30mm Rise, 31.8mm Clamp |
Shifter Rear | Shimano Alivio 9 Speed Trigger |
Stem | 90mm Adjustable Stem (M |
Rear Derailleur | Shimano Alivio 9 Speed |
Grips | Slide-On Comfort Grips |
Cassette | 11-36T (M |
Seat Post | 28.6mm Aluminum |
Chain | KMC e9S |
Seat Post Clamp | QR |
Crank Set | 44T Chainring With 170mm Arms |
Saddle | Biktrix Comfy Saddle |
Bottom Bracket | Torque Sensor W/ Square Taper Spindle |
Motor | 750W Rear Hub |
Front Hub | 135mm 36H |
Display | 500C (M |
Front Axle/Skewer | 5mm QR |
Lights | Integrated Headlight, Taillight |
Rear Hub | Motor |
Throttle | Thumb Throttle |
Rear Axle/Skewer | Bolt-On |
Assist Levels | 0-5 (0-3, 0-9) |
Rims | Solid Black 36H |
Assist Type | Torque + Cadence |
Tires | 24x4" (M |
Other | Front and Rear Metal Fenders, Rear Rack, Kickstand |
1 | Effective Top Tube Length | 580mm | 22.8in |
---|---|---|---|
2 | Seat Tube Length (Classic Bike Size) | 420mm | 16.5in |
3 | Reach | 420mm | 16.5in |
4 | Stack | 460mm | 18.1in |
5 | Chainstay Length | 490mm | 19.3in |
6 | Standover Height | 450mm | 17.7in |
7 | Head Angle | 66° | - |
8 | Seat Angle | 72° | - |
9 | Head Tube Length | 180 mm | 7.1 in |
10 | Fork Length | 450mm | 17.7in |
11 | Front Center | 730mm | 28.7in |
12 | BB (Bottom Bracket) Drop | 60mm | 2.4in |
13 | Fork Offset | 30mm | 1.2in |
14 | Wheelbase | 1200mm | 47.2in |
15 | Total Length | 1900mm | 74.8in |
16 | Max Seat Height | 970mm | 38.2in |
17 | Min Seat Height | 800mm | 31.5in |
18 | Handlebar Height | 1120mm | 44.1in |
19 | Weight (Without Battery) |
1 | Effective Top Tube Length | 580mm | 22.8in |
---|---|---|---|
2 | Seat Tube Length (Classic Bike Size) | 470mm | 18.5in |
3 | Reach | 420mm | 16.5in |
4 | Stack | 670mm | 26.4in |
5 | Chainstay Length | 520mm | 20.5in |
6 | Standover Height | 460mm | 18.1in |
7 | Head Angle | 66° | - |
8 | Seat Angle | 72° | - |
9 | Head Tube Length | 180 mm | 7.1 in |
10 | Fork Length | 530mm | 20.9in |
11 | Front Center | 730mm | 28.7in |
12 | BB (Bottom Bracket) Drop | 60mm | 2.4in |
13 | Fork Offset | 30mm | 1.2in |
14 | Wheelbase | 1220mm | 48in |
15 | Total Length | 1960mm | 77.2in |
16 | Max Seat Height | 1030mm | 40.6in |
17 | Min Seat Height | 870mm | 34.3in |
18 | Handlebar Height | 1150mm | 45.3in |
19 | Weight (Without Battery) | 28.1kg | 61.9lb |
Q: What is the Biktrix 2024 Juggernaut Hub Duo Step-Thru 750W Hub-Drive Electric Bike?
A: The Biktrix 2024 Juggernaut Hub Duo Step-Thru is a versatile 750W hub-drive electric bike designed with a step-thru frame for easy mounting. It features dual batteries for extended range and smooth acceleration, making it ideal for commuting and recreational rides.
Q: What are the key features of the Biktrix 2024 Juggernaut Hub Duo Step-Thru?
A: Key features include a 750W hub-drive motor, dual battery system for up to 80 miles of range, a comfortable step-thru frame for easy access, hydraulic disc brakes for reliable stopping, and a smooth, quiet ride on urban streets and light trails.
Q: What is the range of the Biktrix 2024 Juggernaut Hub Duo Step-Thru?
A: The bike offers a range of up to 60-80 miles per charge, depending on factors such as rider weight, terrain, and riding mode, thanks to its dual battery configuration.
Q: How fast can the Biktrix 2024 Juggernaut Hub Duo Step-Thru go?
A: The bike can reach speeds of up to 28 mph (45 km/h), allowing for a fast and enjoyable ride on both urban roads and light off-road paths.
Q: Is the Biktrix 2024 Juggernaut Hub Duo Step-Thru suitable for off-road riding?
A: While primarily designed for urban and light trail riding, the bike’s durable tires and powerful motor allow it to handle smoother gravel paths and off-road conditions.
Q: How long does it take to charge the Biktrix 2024 Juggernaut Hub Duo Step-Thru battery?
A: The battery typically takes 6-8 hours to fully charge. With dual batteries, you can extend your ride time before needing to recharge.
Q: What is the weight of the Biktrix 2024 Juggernaut Hub Duo Step-Thru?
A: The bike weighs approximately 60-65 lbs (27-29 kg), offering a stable and comfortable ride while still being manageable for everyday use.
Q: Does the Biktrix 2024 Juggernaut Hub Duo Step-Thru come with a warranty?
A: Yes, the bike comes with a limited warranty. For full details on warranty coverage, please refer to the retailer.
Q: Can I customize the Biktrix 2024 Juggernaut Hub Duo Step-Thru with accessories?
A: Yes, the bike is compatible with a variety of accessories such as racks, fenders, and lights to enhance your riding experience.
Q: Is the Biktrix 2024 Juggernaut Hub Duo Step-Thru easy to assemble?
A: The bike comes partially assembled with clear instructions for easy final assembly. Professional assembly is recommended for the best performance and safety.
Battery Care: Charge the battery regularly, keeping it between 20-80% to prolong its lifespan. Avoid overcharging or letting it fully discharge. For long-term storage, remove the battery and store it separately at 50% charge in a cool, dry place.
Regular Cleaning: Clean the bike regularly using a soft cloth and mild detergent. Avoid using high-pressure water on the motor, battery, or electrical components to prevent water damage.
Tire Pressure: Check tire pressure regularly and keep it within the recommended range. Properly inflated tires enhance ride quality, improve efficiency, and reduce strain on the motor.
Lubricate the Chain: Lubricate the chain every few hundred miles or after riding in wet or muddy conditions. Clean the chain before applying new lubricant to prevent dirt buildup and ensure smooth operation.
Brake Inspection: Check the brake pads for wear and ensure the brakes are functioning properly. Replace worn pads to maintain reliable braking performance and safety.
Motor and Wiring Inspection: Regularly inspect the hub motor and wiring for any loose connections, damage, or wear. Tighten or replace parts as needed to maintain motor efficiency and reliability.
Crankset and Pedals: Inspect the crankset and pedals for any damage or looseness. Tighten or replace as needed to ensure smooth and efficient pedaling.
Proper Storage: When not in use for extended periods, store the bike in a cool, dry place. If storing for a while, remove the battery, charge it to around 50%, and store it separately to prevent damage.
