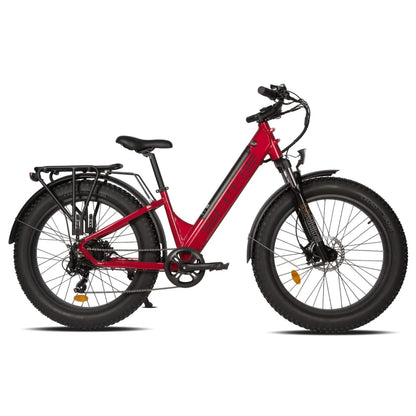

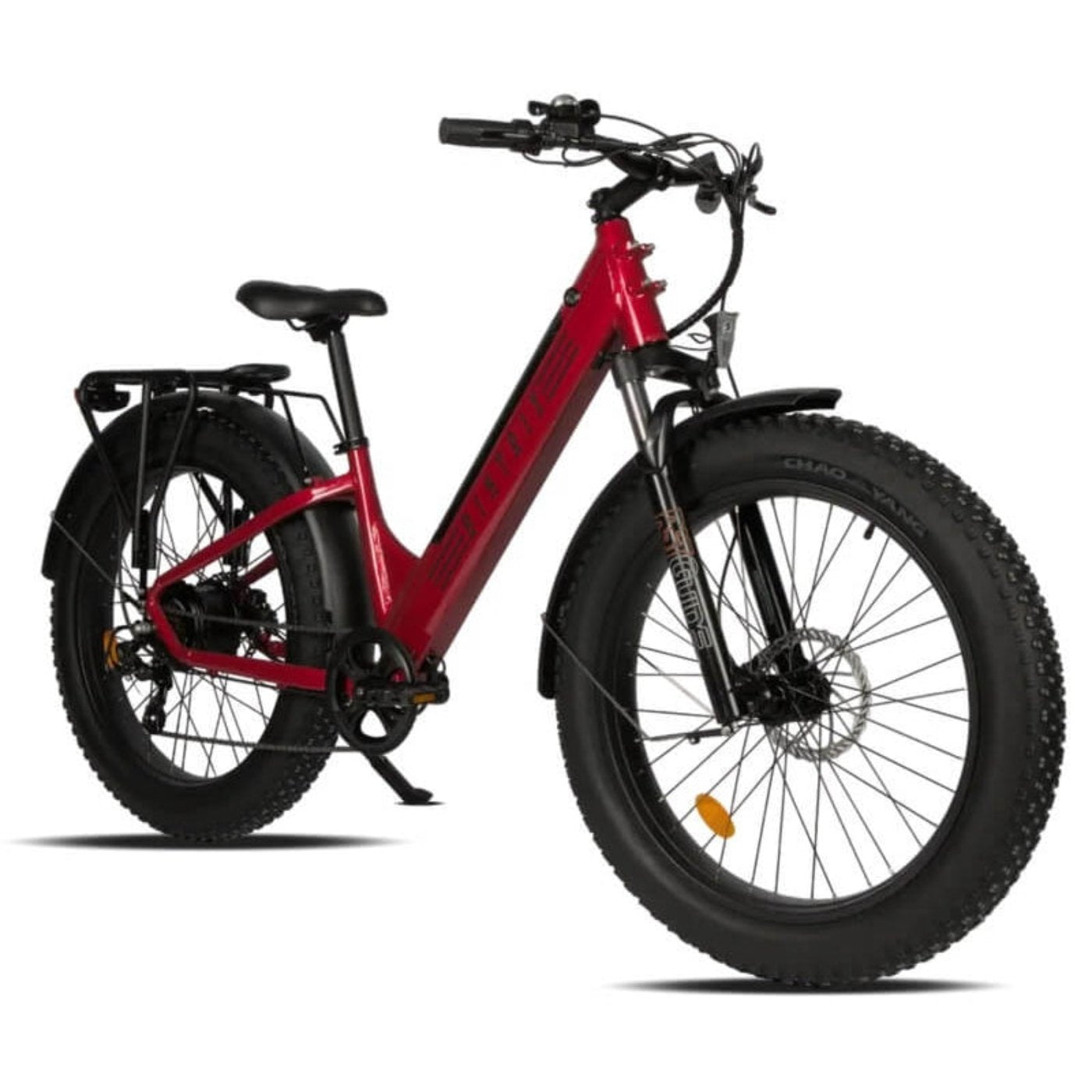

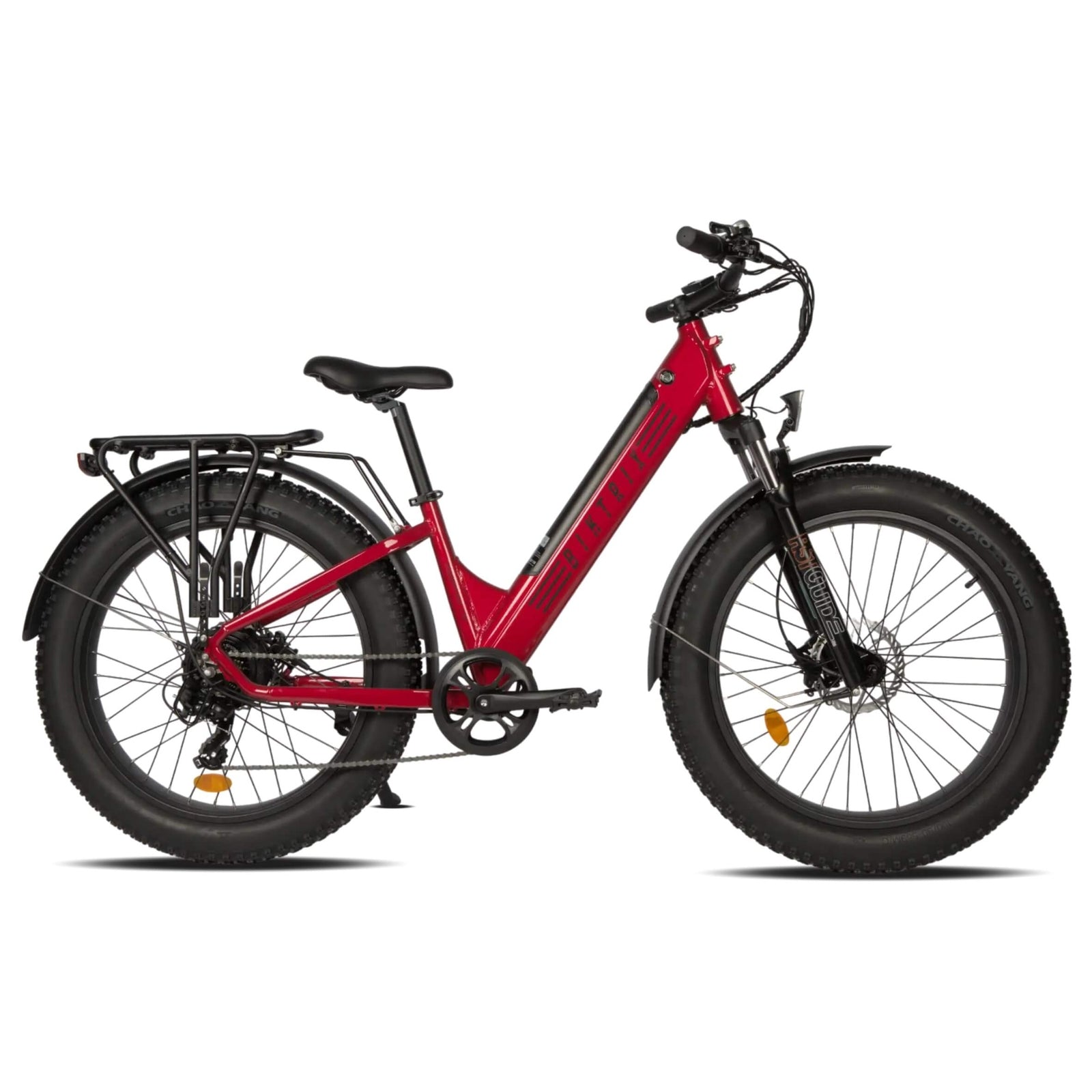

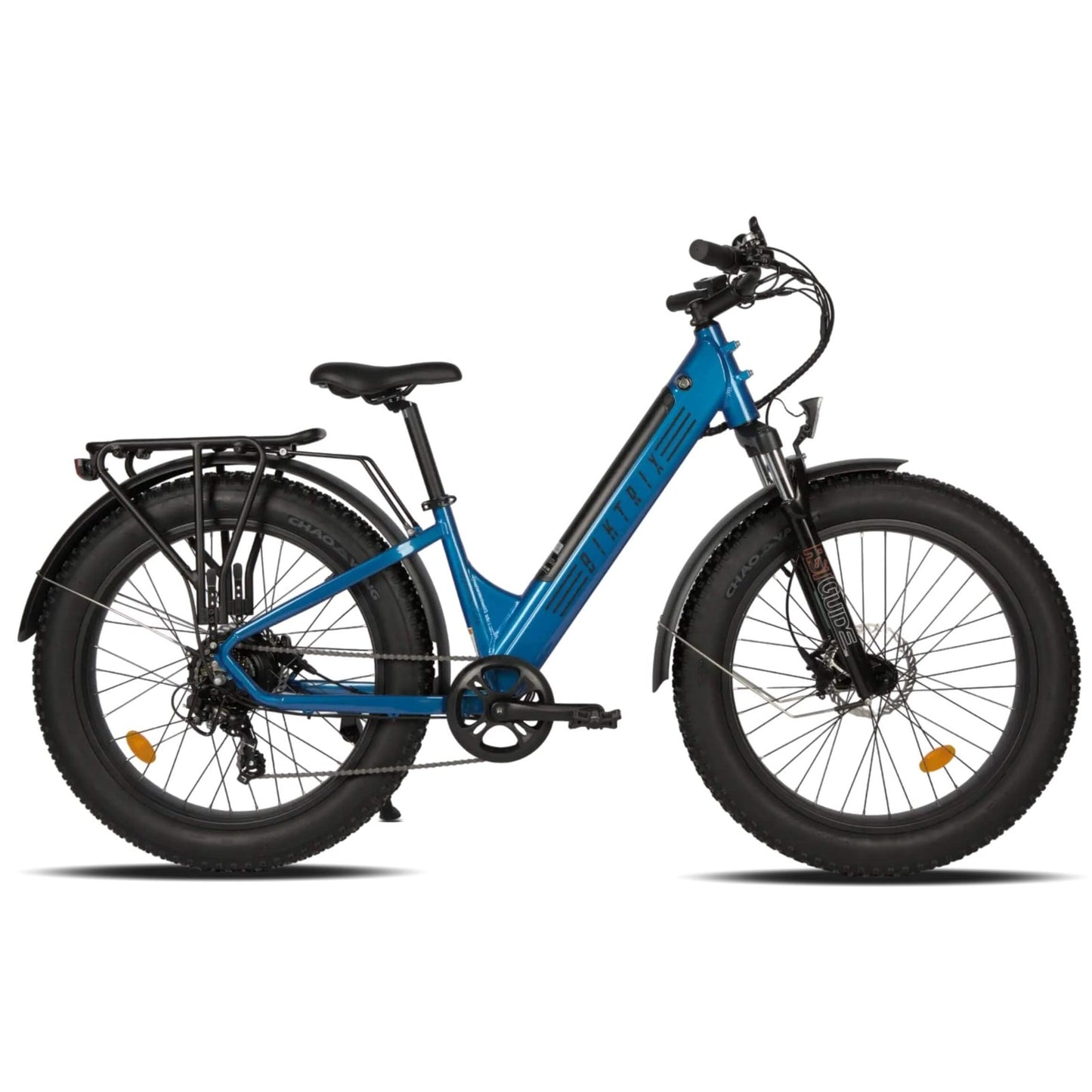

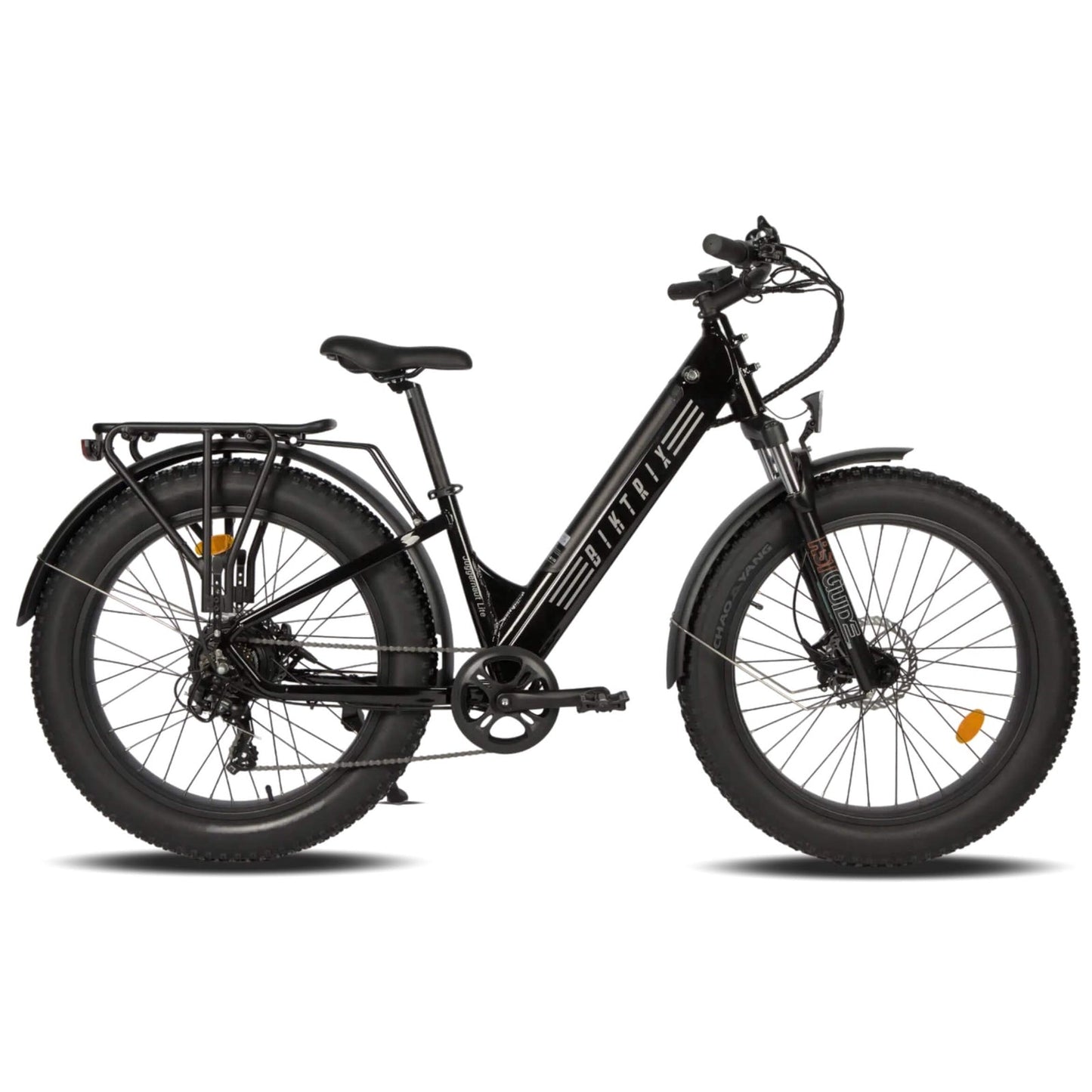

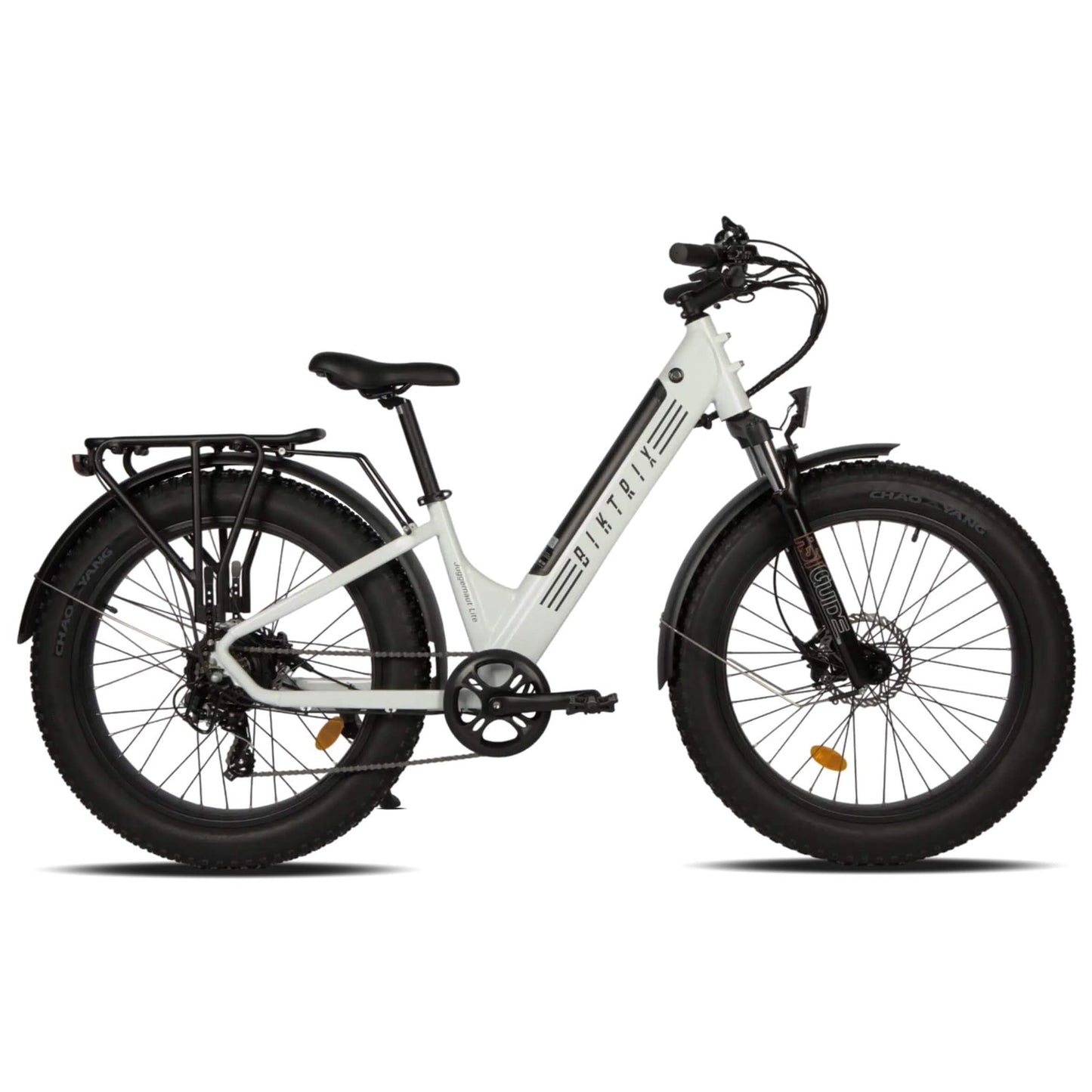

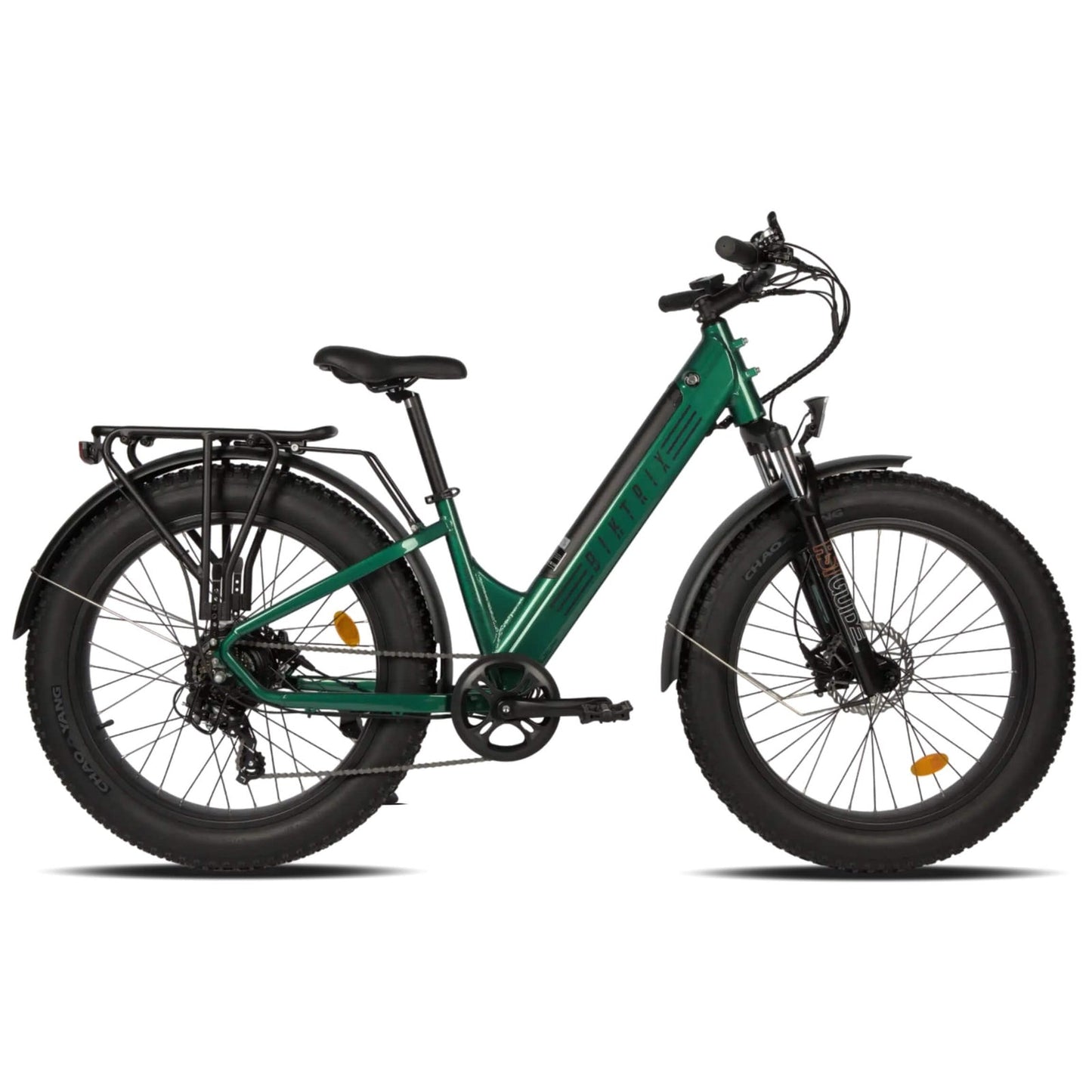

The Biktrix Juggernaut LITE Step-Thru 750W Hub-Drive Electric Bike is your efficient, user-friendly, and affordable solution for seamless adventures wherever you want to go!
Juggernaut LITE Step-Thru is powered by a robust 750W Rear Hub motor that ensures simplicity, power, and reliability with minimal maintenance. Combine that with a 6-Speed Shimano Drivetrain, Dual Piston Hydraulic Brakes, and a sleek step-thru frame, this bike is ready to accompany you on any adventure you envision!

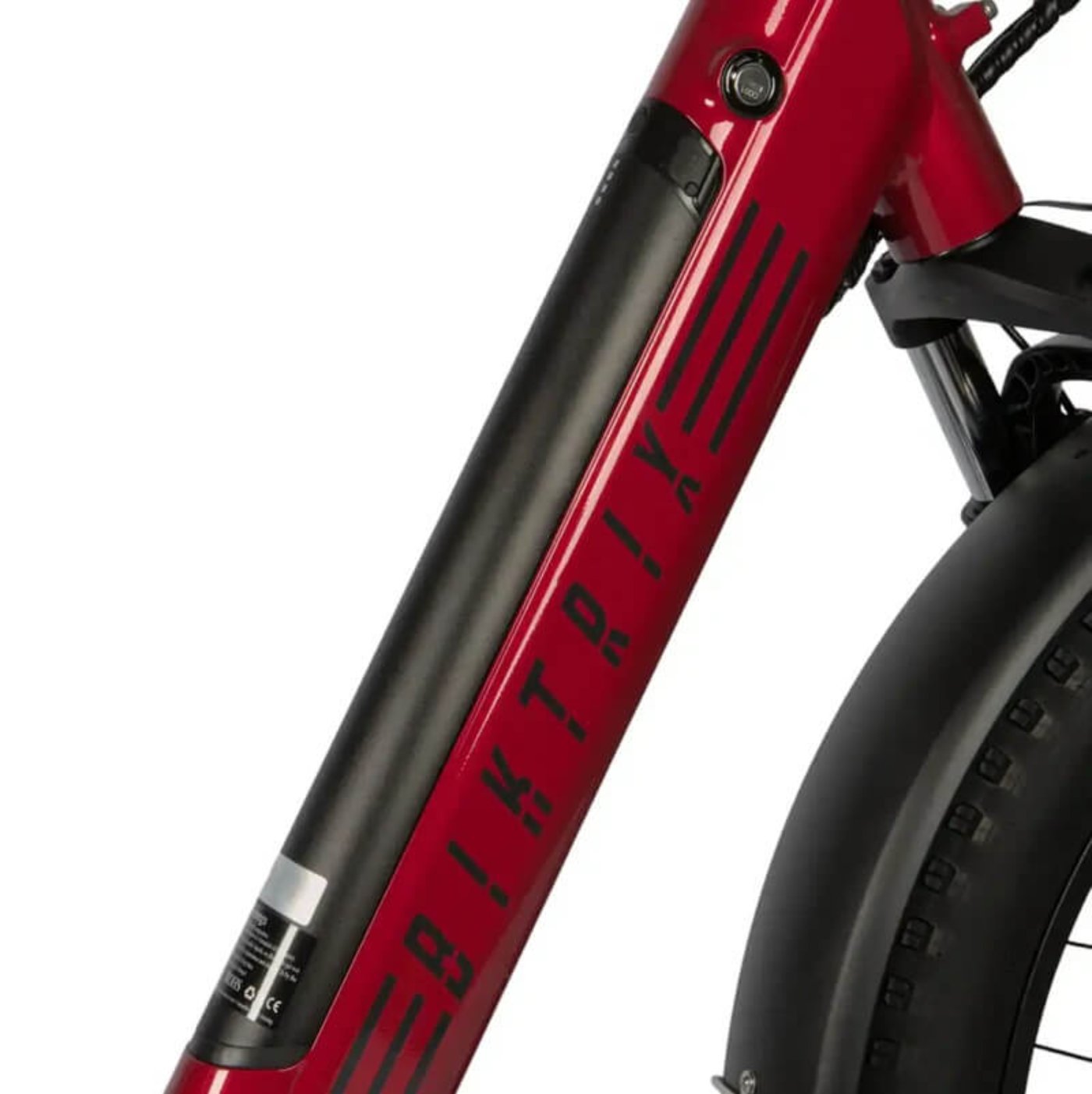

Removable 48V 13Ah Battery
Our removable battery system offers unmatched convenience for re-charging. With the twist of a key, your battery can be brought inside t to charge.

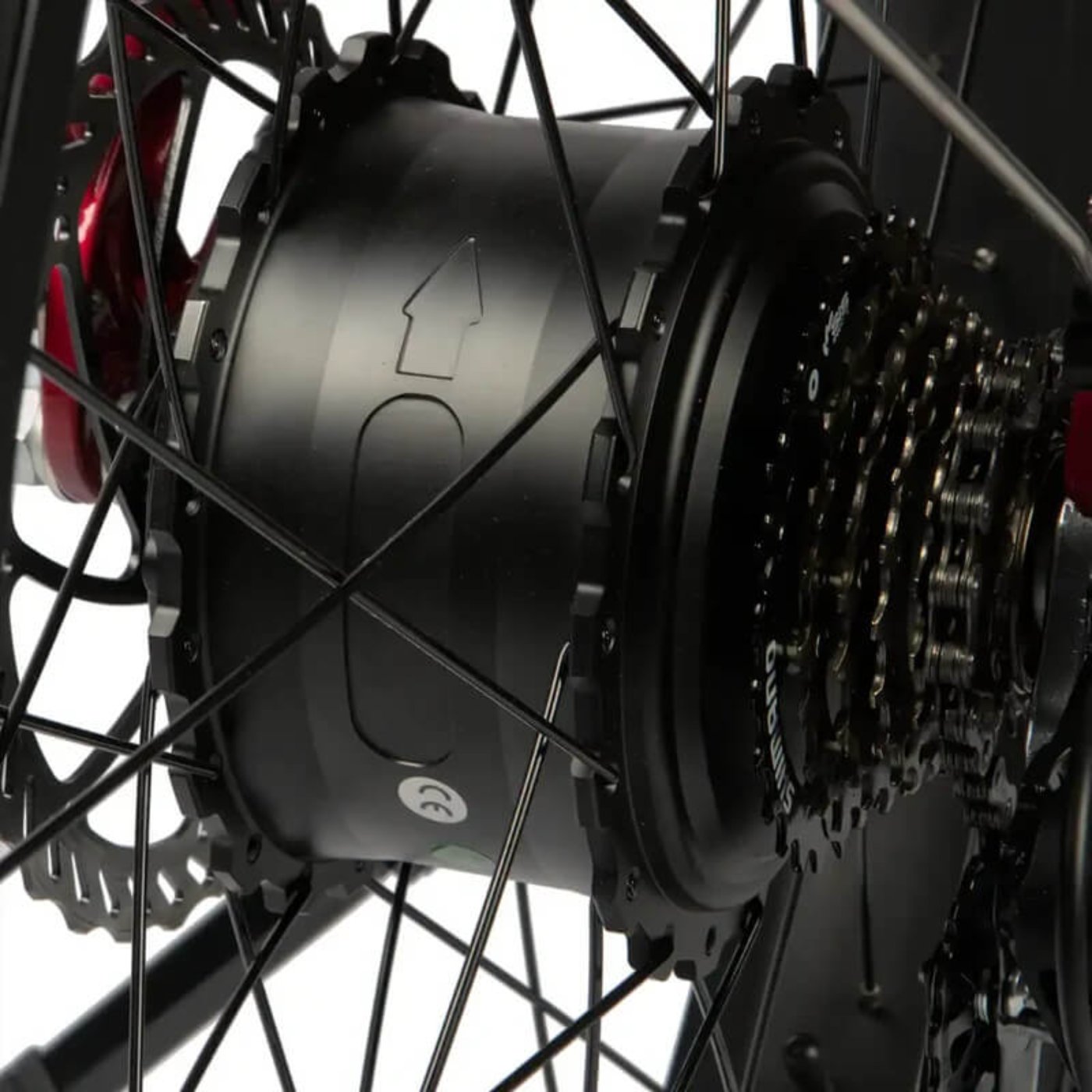

The powerful 750W rear hub motor features 750 watts of power and 70Nm of torque. This allows you to span cities, and explore all the places you want to go with ease.

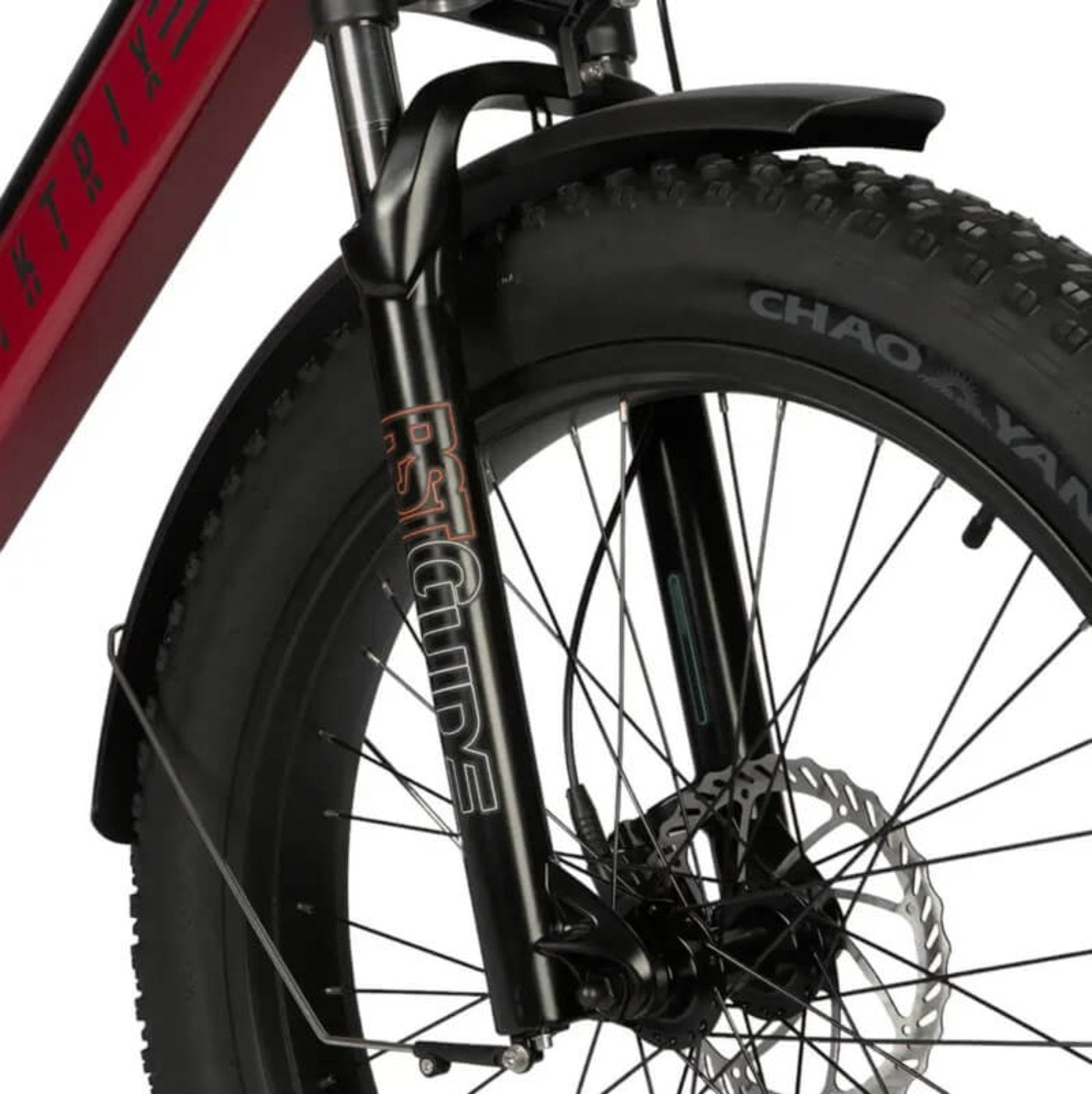

The RST Guide front suspension fork provides 75mm of travel with adjustable preload and a mechanical lockout.

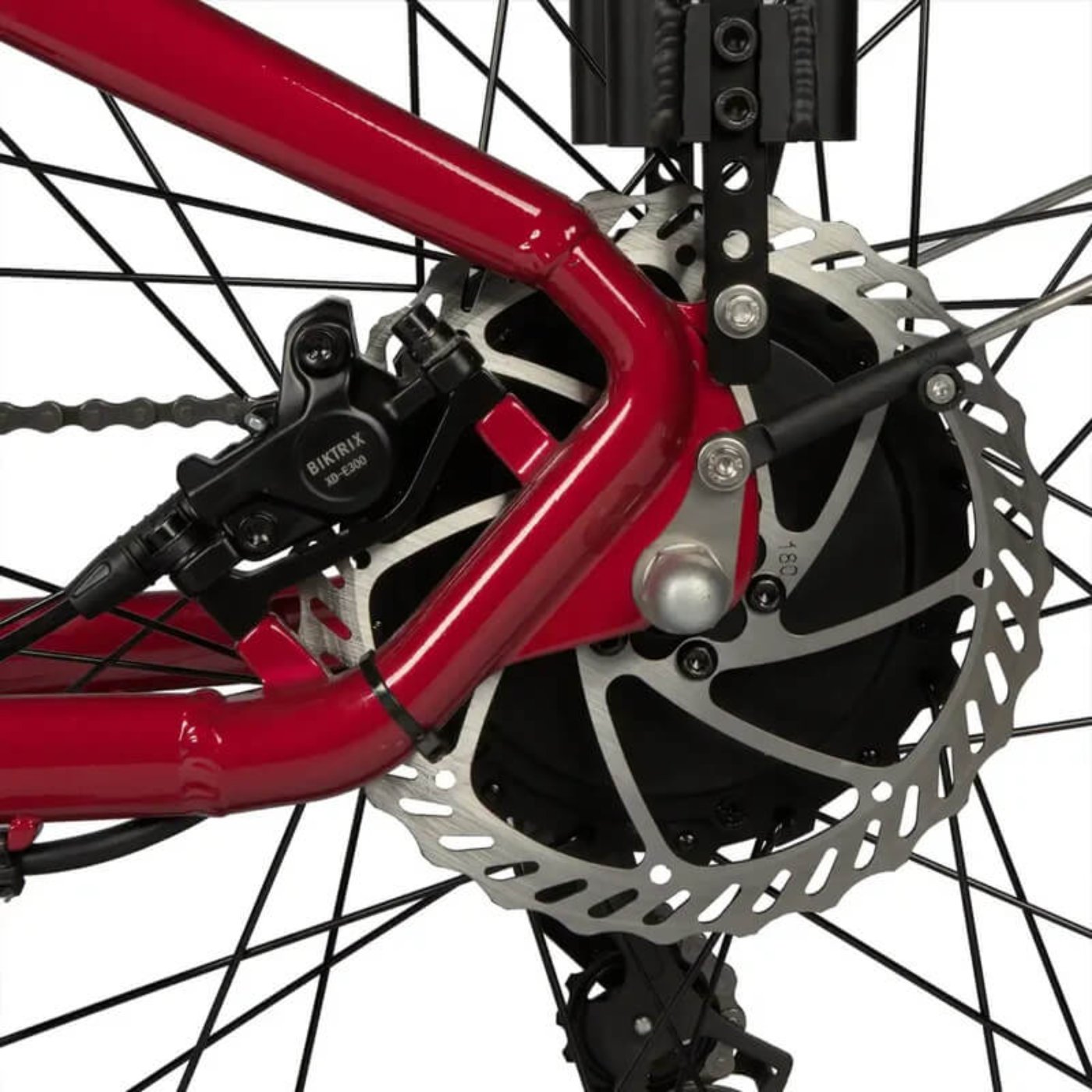

When it’s so easy to go fast, you need strong stopping power. These hydraulic disc brakes combined with 180mm rotors will quickly and reliably bring you to a halt.

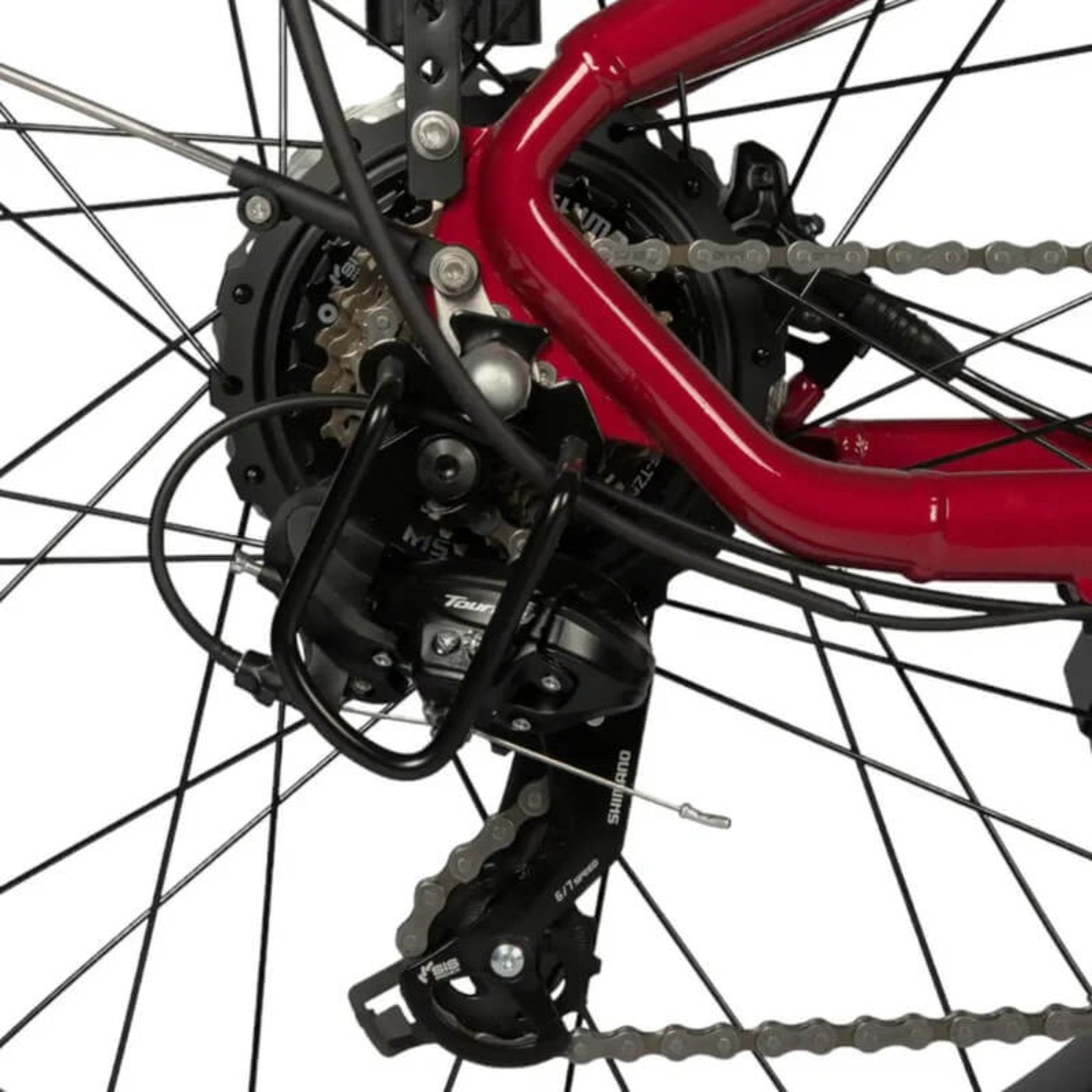

From climbing city sloped to holding maximum speed on flats and everything in between, our Shimano 6-speed drivetrain has you covered.

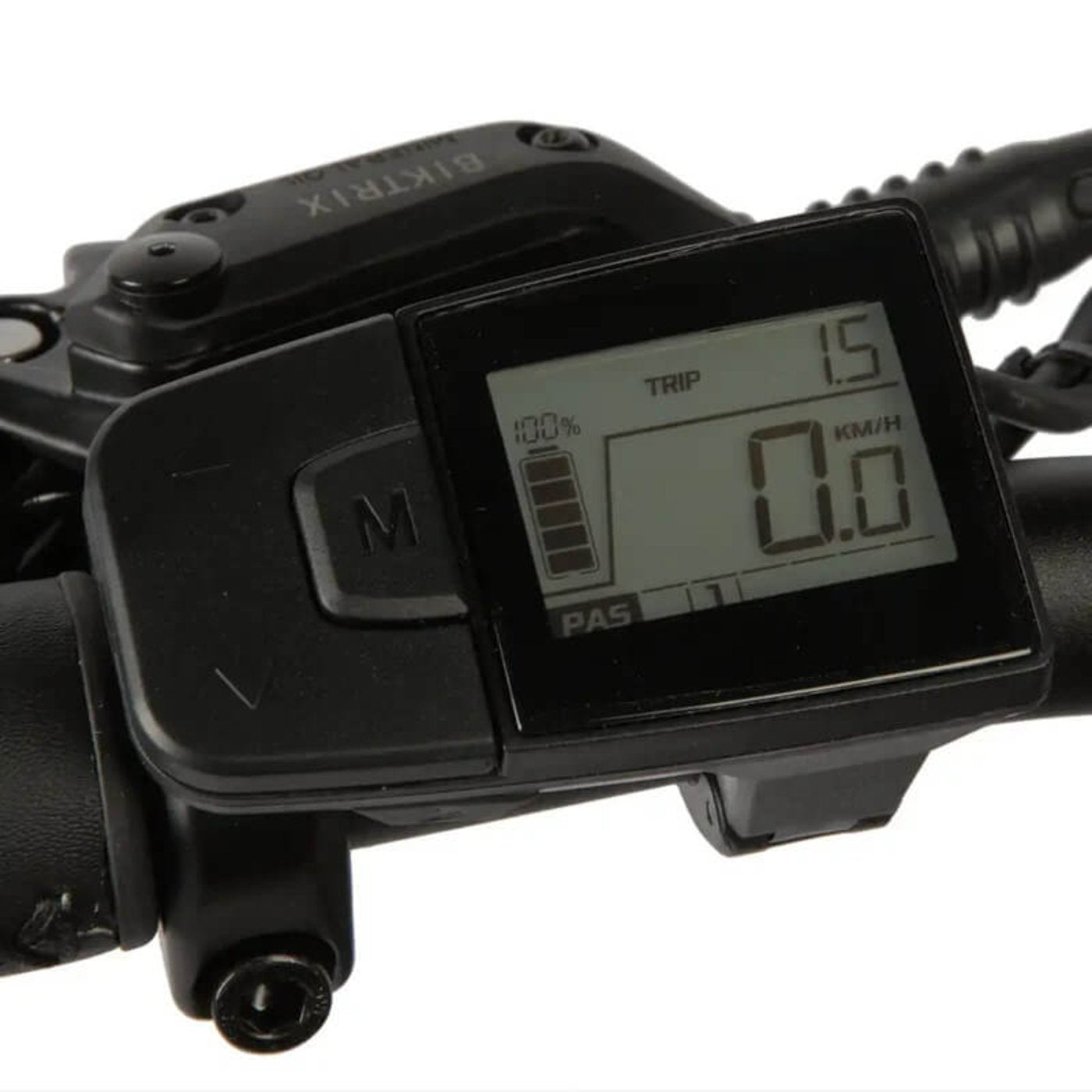

LCD Display
The LCD display shows all kinds of important information about your ride including speed, battery life, odometer, pedal assist level and more.

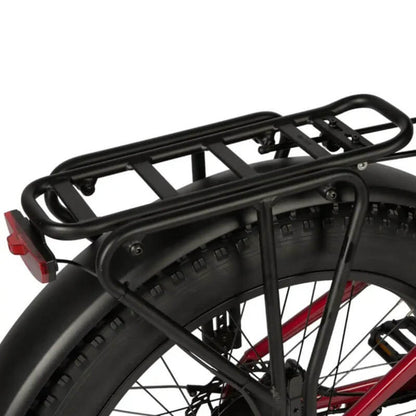

These fenders will keep you and your bike clean. Need to carry some gear? Strap on the rear rack and make your way!

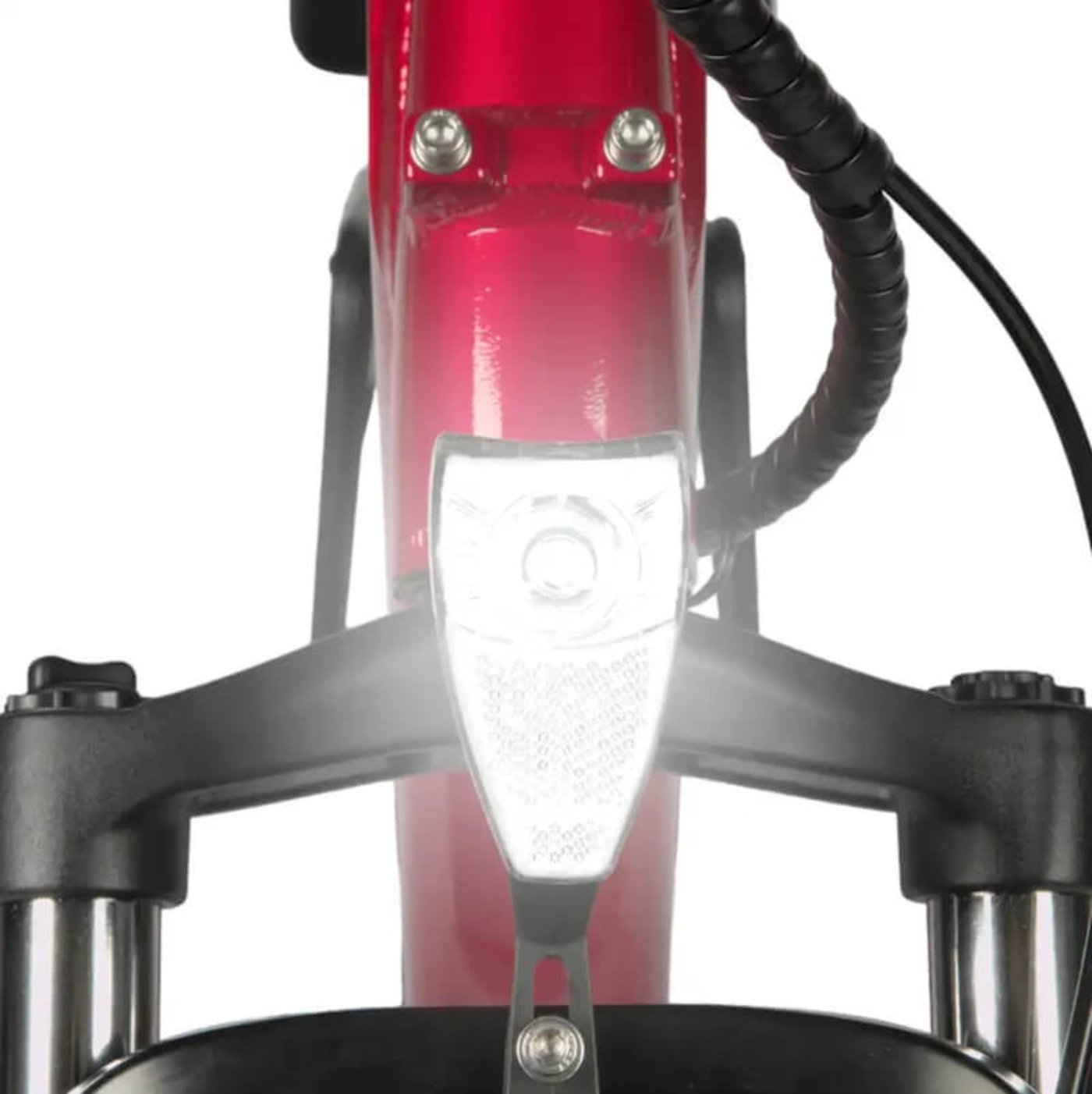

This bright LED light is powered by the bike’s battery and can be turned on and off with a button on the handlebar control pad.

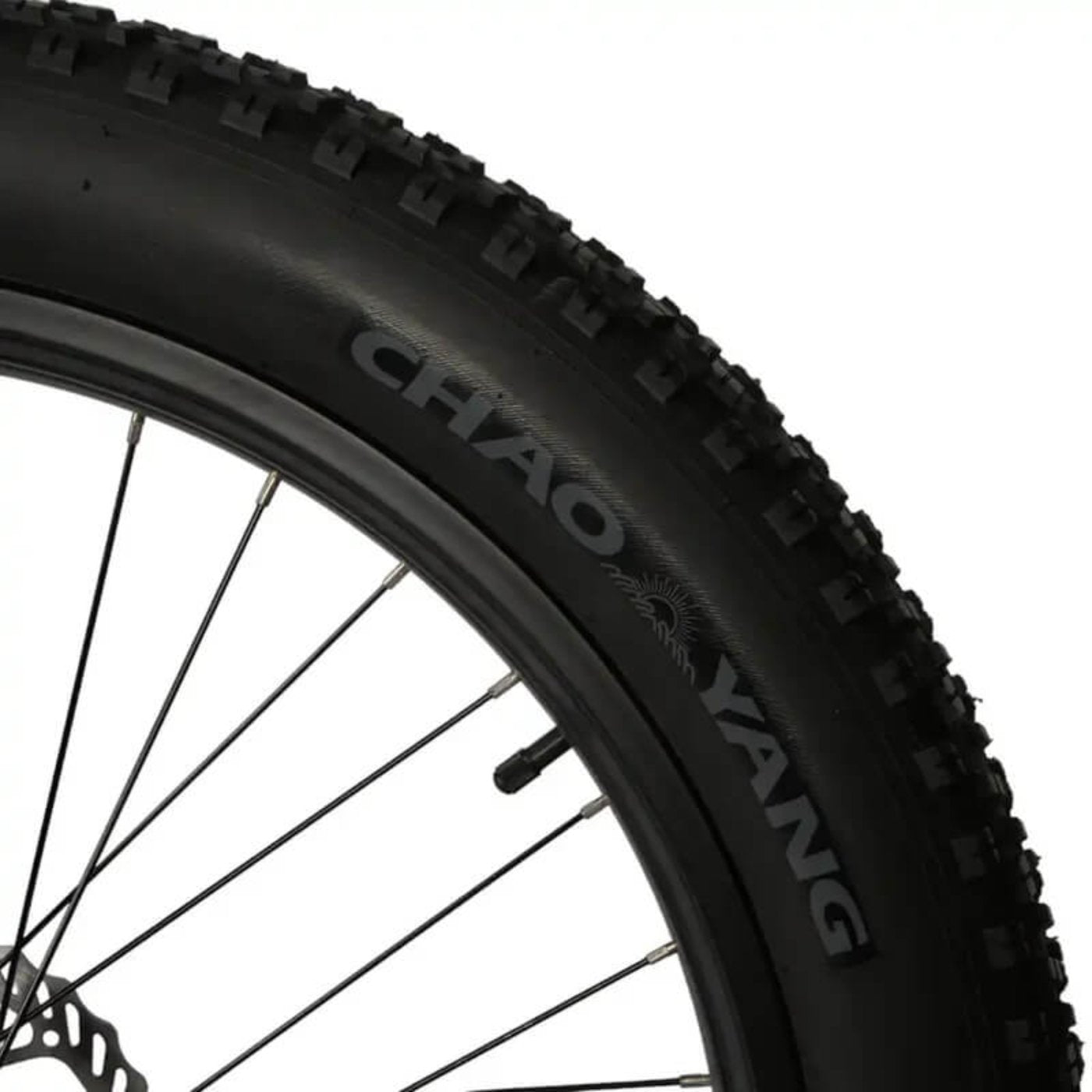

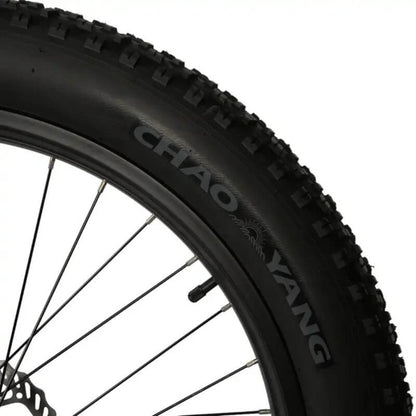

The 26x4” Fat Tires offer unparalleled traction, durability and control - a perfect choce for superor performance on diverse terrain.
Frame | 6061 Aluminum |
---|---|
Front Hub | 135mm 36H Bolt-On |
Seat Post | 30.4mm |
Fork | RST Guide w/ Preload, 75mm Travel |
Front Axle | Bolt-On |
Seat Post Clamp | Quick-Release (QR) |
Headset | Threadless 1-1/2" - 1-1/8" Tapered |
Rear Hub | Motor |
Motor | 750W Rear Hub Motor |
Shifter Rear | Shimano 7-Speed Thumb Shifter |
Rear Axle | Bolt-On |
Battery Sizes | 48V 13.2Ah 634Wh |
Rear Derailleur | Shimano Tourney 7-Speed |
Rims | Solid Black 36H, 80mm Wide |
Display | DM01 LCD Display |
Cassette | 14-28T 7-Speed Freewheel |
Tire Sizes | 26x4 Chaoyang |
Lights | Integrated Headlight, Taillight |
Chain | KMC 7-Speed - 124 Links |
Handlebar | 640mm Wide w/ 31.8mm Clamp |
Assist Type | Cadence |
Crank Set | 44T Chainring w/ 170mm Arms |
Stem | 90mm Solid w/ 31.8mm Clamp |
Assist Levels | 0-5 |
Bottom Bracket | Square Taper |
Grips | Slide-On Comfort Grips |
Throttle | Thumb Throttle |
Brakes | Biktrix E300 w/ 180mm Rotors |
Saddle | Plush MTB Saddle |
Brake Levers | Adjustable w/ Integrated Brake Sensors |
1 | Effective Top Tube Length | 570mm | 22.4in |
---|---|---|---|
2 | Seat Tube Length (Classic Bike Size) | 460mm | 18.1in |
3 | Reach | 340mm | 13.4in |
4 | Stack | 690mm | 27.2in |
5 | Chainstay Length | 500mm | 19.7in |
6 | Standover Height | 550mm | 21.7in |
7 | Head Angle | 68° | - |
8 | Seat Angle | 72.5° | - |
9 | Head Tube Length | 185 mm | 7.3 in |
10 | Fork Length | 530mm | 20.9in |
11 | Front Center | 685mm | 27in |
12 | BB (Bottom Bracket) Drop | 55mm | 2.2in |
13 | Fork Offset | 30mm | 1.2in |
14 | Wheelbase | 1180mm | 46.5in |
15 | Total Length | 1940mm | 76.4in |
16 | Max Seat Height | 1020mm | 40.2in |
17 | Min Seat Height | 850mm | 33.5in |
18 | Handlebar Height | 1100mm | 43.3in |
19 | Weight (Without Battery) | 29kg | 63.9lb |
1 | Effective Top Tube Length | 550mm | 21.7in |
---|---|---|---|
2 | Seat Tube Length (Classic Bike Size) | 400mm | 15.7in |
3 | Reach | 330mm | 13in |
4 | Stack | 690mm | 27.2in |
5 | Chainstay Length | 500mm | 19.7in |
6 | Standover Height | 540mm | 21.3in |
7 | Head Angle | 68° | - |
8 | Seat Angle | 72.5° | - |
9 | Head Tube Length | 190 mm | 7.5 in |
10 | Fork Length | 530mm | 20.9in |
11 | Front Center | 680mm | 26.8in |
12 | BB (Bottom Bracket) Drop | 55mm | 2.2in |
13 | Fork Offset | 30mm | 1.2in |
14 | Wheelbase | 1180mm | 46.5in |
15 | Total Length | 1940mm | 76.4in |
16 | Max Seat Height | 950mm | 37.4in |
17 | Min Seat Height | 800mm | 31.5in |
18 | Handlebar Height | 1080mm | 42.5in |
19 | Weight (Without Battery) | 29kg | 63.9lb |
Q: What is the Biktrix 2024 Juggernaut Lite Step-Thru 750W Hub-Drive Electric Bike?
A: The Biktrix 2024 Juggernaut Lite Step-Thru is a 750W hub-drive electric bike designed for ease of use and comfort. The step-thru frame offers easy mounting and dismounting, while the 750W motor provides strong power for city commuting and recreational rides.
Q: What are the key features of the Biktrix 2024 Juggernaut Lite Step-Thru?
A: Key features include a 750W hub-drive motor for smooth acceleration, a step-thru frame for easy access, comfortable tires for urban and light off-road use, hydraulic disc brakes for reliable stopping, and a range of up to 40-60 miles per charge.
Q: What is the range of the Biktrix 2024 Juggernaut Lite Step-Thru?
A: The bike offers a range of up to 40-60 miles per charge, depending on rider weight, terrain, and riding conditions.
Q: How fast can the Biktrix 2024 Juggernaut Lite Step-Thru go?
A: The bike can reach speeds of up to 28 mph (45 km/h), making it perfect for both daily commuting and leisurely rides.
Q: Is the Biktrix 2024 Juggernaut Lite Step-Thru suitable for off-road riding?
A: The bike is designed primarily for urban commuting, but it can handle light off-road riding on gravel paths and smooth trails.
Q: How long does it take to charge the Biktrix 2024 Juggernaut Lite Step-Thru battery?
A: The battery typically takes 4-6 hours to fully charge, depending on the charger and battery level.
Q: What is the weight of the Biktrix 2024 Juggernaut Lite Step-Thru?
A: The bike weighs approximately 55-60 lbs (25-27 kg), making it a manageable and easy-to-ride electric bike.
Q: Does the Biktrix 2024 Juggernaut Lite Step-Thru come with a warranty?
A: Yes, the bike comes with a limited warranty. Please check with the retailer for full warranty details.
Q: Can I customize the Biktrix 2024 Juggernaut Lite Step-Thru with accessories?
A: Yes, the bike is compatible with a variety of accessories such as racks, fenders, and lights to enhance your riding experience.
Q: Is the Biktrix 2024 Juggernaut Lite Step-Thru easy to assemble?
A: The bike comes partially assembled with clear instructions for easy final assembly. Professional assembly is recommended for optimal performance and safety.
Battery Care: Charge the battery regularly, maintaining it between 20-80% for optimal lifespan. Avoid overcharging or letting it fully discharge. For long-term storage, remove the battery, store it separately at 50% charge in a cool, dry place.
Regular Cleaning: Clean the bike using a soft cloth and mild detergent. Avoid high-pressure water on the motor, battery, or electrical components to prevent damage.
Tire Pressure: Check tire pressure frequently and ensure it is within the recommended range. Properly inflated tires improve performance, extend tire life, and reduce motor strain.
Lubricate the Chain: Lubricate the chain every few hundred miles or after riding in wet or muddy conditions. Clean the chain before reapplying lubricant to prevent dirt buildup.
Brake Maintenance: Inspect brake pads for wear and ensure that the brakes are functioning properly. Replace worn pads to maintain safe stopping power.
Motor and Wiring Inspection: Regularly check the hub motor and wiring for loose connections, damage, or wear. Tighten or replace parts as needed to ensure reliable motor performance.
Crankset and Pedal Check: Periodically inspect the crankset and pedals for damage or looseness. Tighten or replace as necessary for smooth and efficient pedaling.
Proper Storage: Store the bike in a dry, cool place when not in use for extended periods. If storing for a while, remove the battery, charge it to around 50%, and store it separately to prevent damage.
