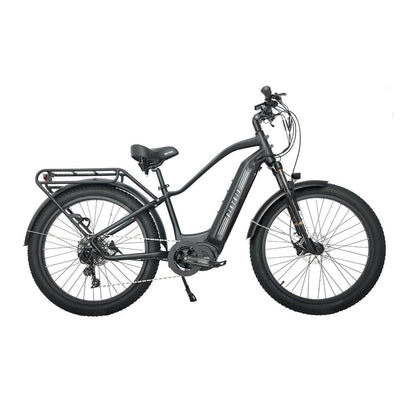

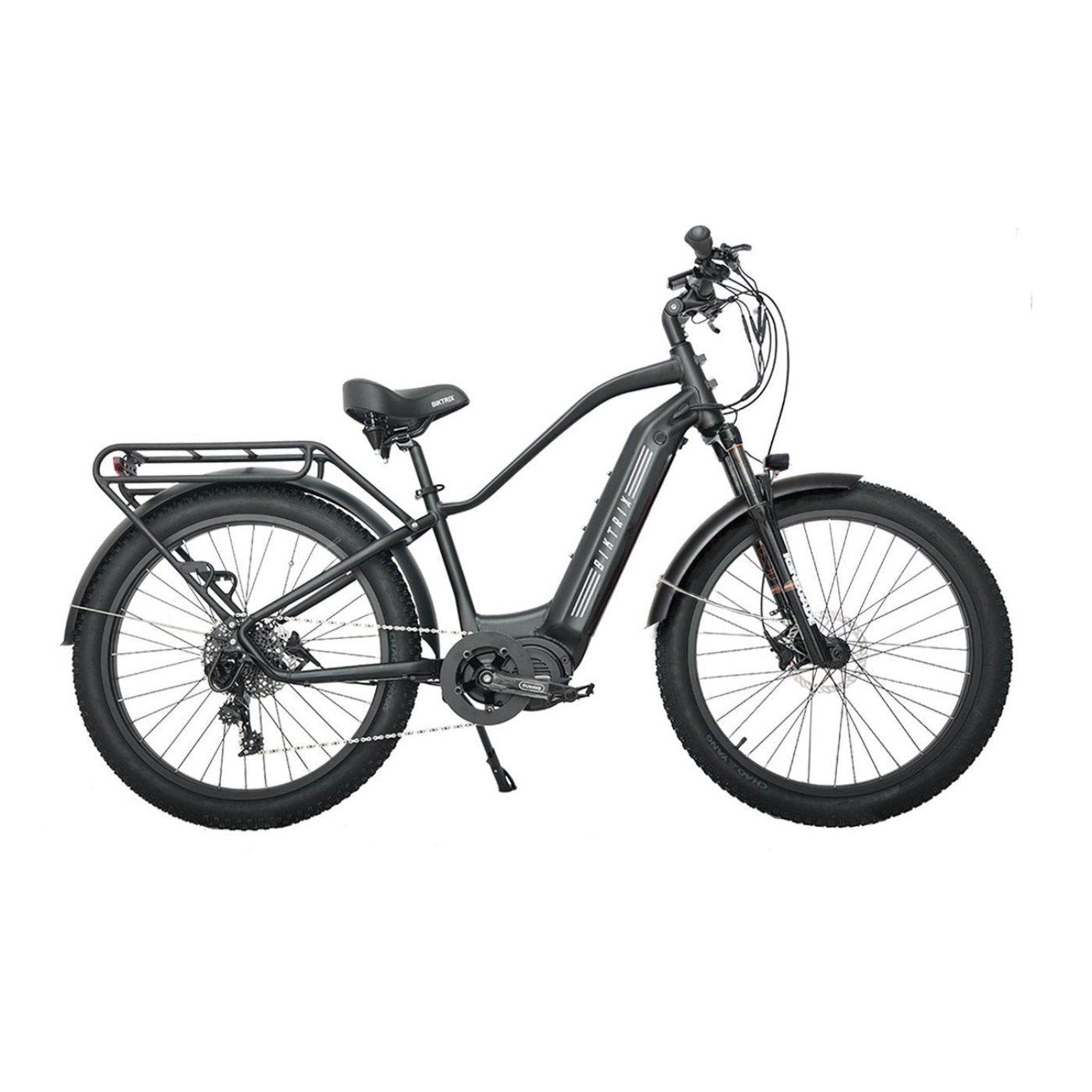

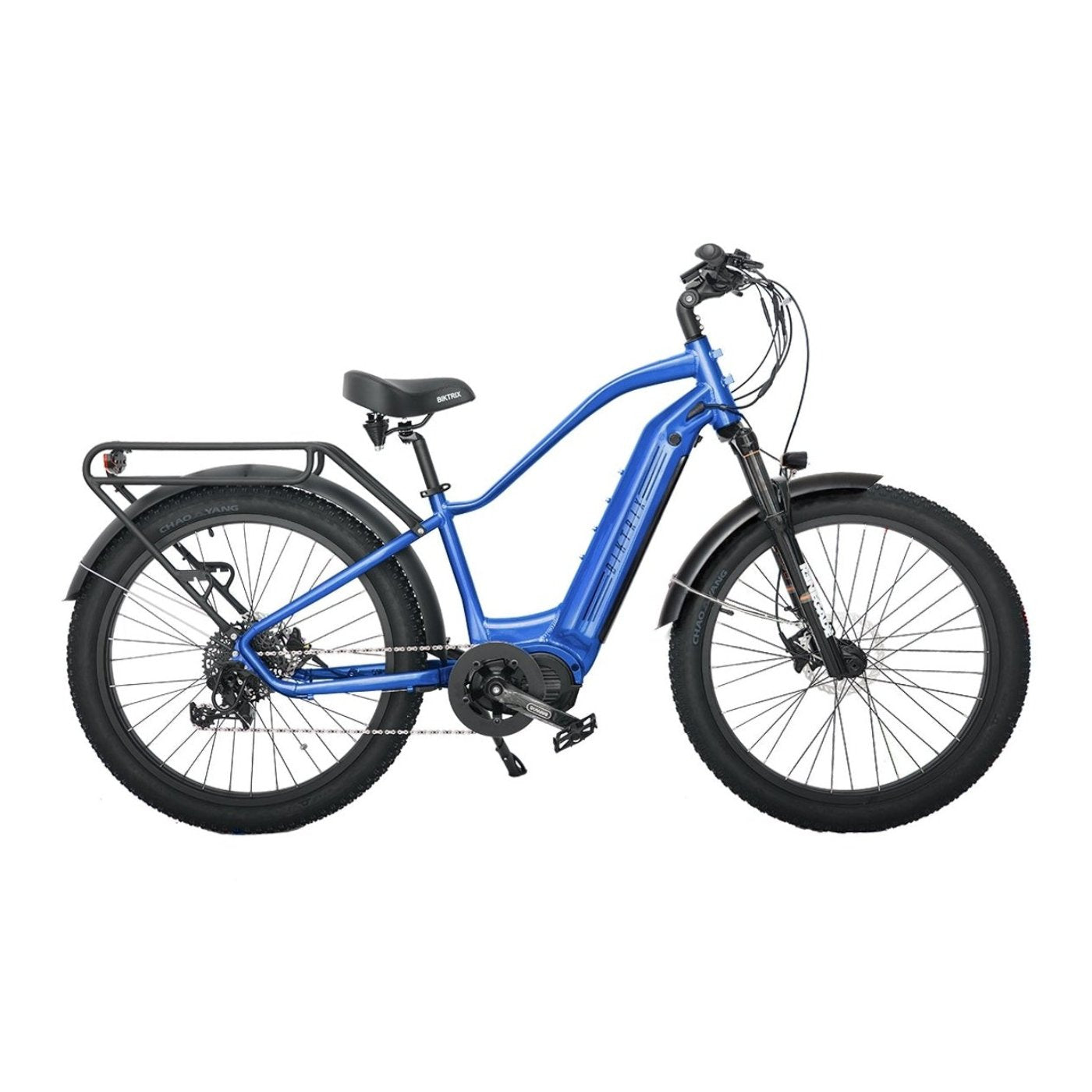

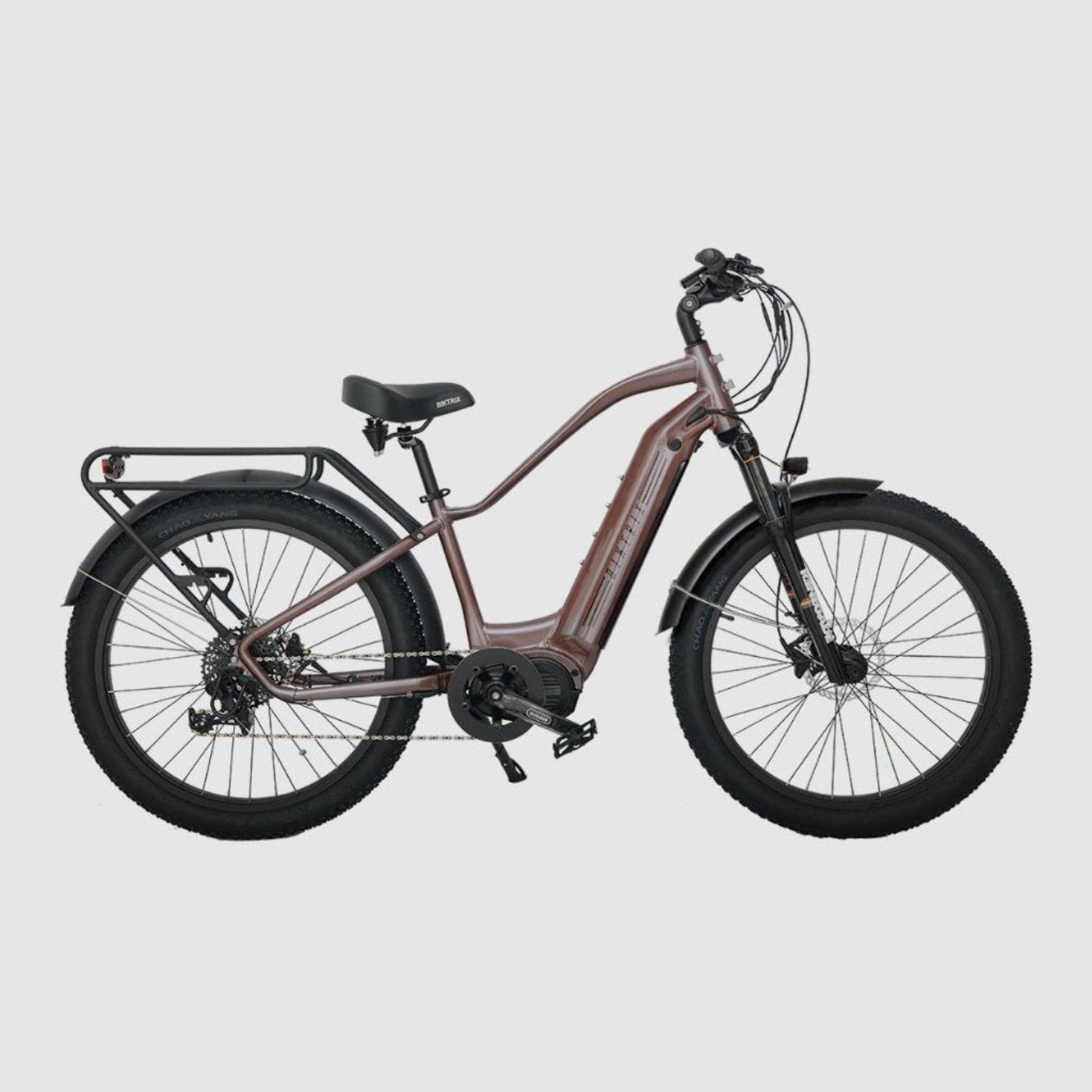

The Biktrix Juggernaut Ultra Duo 3 Step-Over Mid-Drive Electric Bike offers a high-power ebike that can go miles of adventure on a single battery charge.
The Ultra Duo 3 e-bike is ideal for commuting on the street or adventuring.
With its durable build quality and 160Nm of torque, you can get all the power you need.
The Cushy RST Guide suspension fork evens out the bumps, making for an even, smooth ride every time.
The Tektro hydraulic disc brakes provide strong & dependable stopping power. Extra traction from fat tires. Choose the 27.5×3 plus-size wheels for less drag and a great commute on multiple surfaces.
The Bafang Ultra M620 mid-drive motor features 1000 watts of power and 160Nm of torque. Span cities, climb hills, and explore all the places you want to go with ease.
The LCD display shows all kinds of important information about your ride including speed, battery life, range, odometer, pedal assist level and more.
With just a push of the thumb, you can access all of the power the motor has to offer. No need to pedal, just sit back and enjoy the ride.
The RST Renegade coil spring fork provides 100mm of travel with pre-load and lockout adjustability
From climbing hills to holding maximum speed on the flats, the SRAM NX 11-speed drivetrain has you covered.
When it's so easy to go fast, you need strong stopping power. These hydraulic disc brakes will quickly and reliably bring you to a halt.
This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.
Multiple range-extender battery options can expand your eBike's range all the way to 100 miles.
These fenders will keep you and your bike clean. Need to carry some gear? Strap on the rear rack and make your way!
Frame | 6061 Aluminum |
---|---|
Brakes | Biktrix Dual Piston Hydraulic w/ 180mm Rotors |
Battery Sizes | Total Capacity of 52V 36.5Ah 1898Wh: 52V 17.5Ah 910Wh (Internal) + up to 52V 19Ah 988Wh (External) |
Fork | RST Renegade Coil Spring w/ 100mm Travel, Lockout, Preload |
Brake Levers | Biktrix w/ Adjustable Reach and Motor Cutoffs |
Headset | Threadless 1-1/8" - 1-1/2" Tapered |
Handlebar | 650mm Wide MTB w/ 30mm Rise, 31.8mm Clamp |
Shifter Rear | SRAM 11-Speed Trigger Shifter |
Stem | 90mm Adjustable |
Rear Derailleur | SRAM NX 11-Speed |
Grips | Slide-On Comfort Grips |
Cassette | SRAM 11-42T |
Seat Post | Aluminum 28.6mm |
Chain | KMC e11S |
Seat Post Clamp | QR |
Crank Set | 44T, 170mm Arms |
Saddle | Biktrix Spring Supported Comfy Cruiser |
Bottom Bracket | Bafang ISIS |
Motor | Bafang M620 Ultra |
Front Hub | 150mm 36H |
Display | DPC-18 |
Front Axle/Skewer | 15mm QR-Thru Axle |
Lights | Integrated Headlight, Taillight |
Rear Hub | 190mm 36H |
Throttle | Thumb Throttle |
Rear Axle/Skewer | 5mm QR |
Assist Levels | 0-5 |
Rims | Black 24", 26", 27.5" 36H |
Assist Type | Torque + Cadence |
Tires | 24x4", 26x4", 27.5x3" |
Other | Front and Rear Metal Fenders, Rear Rack, Kickstand |
17" STEP-OVER | 17" STEP-THRU | 19" STEP-OVER | 19" STEP-THRU | ||||||
---|---|---|---|---|---|---|---|---|---|
1 | Effective Top Tube Length | 590 mm | 23.2 inches | 580 mm | 22.8 inches | 590 mm | 23.2 inches | 540 mm | 21.3 inches |
2 | Seat Tube Length (Classic Bike Size) | 420 mm | 16.5 inches | 420 mm | 16.5 inches | 470 mm | 18.5 inches | 460 mm | 18.1 inches |
3 | Reach | 440 mm | 17.3 inches | 580 mm | 22.8 inches | 440 mm | 17.3 inches | 500 mm | 19.7 inches |
4 | Stack | 660 mm | 26 inches | 490 mm | 19.3 inches | 660 mm | 26 inches | 540 mm | 21.3 inches |
5 | Chainstay Length | 500 mm | 19.7 inches | 480 mm | 18.9 inches | 510 mm | 20.1 inches | 520 mm | 20.5 inches |
6 | Standover Height | 690 mm | 27.2 inches | 450 mm | 17.7 inches | 730 mm | 28.7 inches | 430 mm | 16.9 inches |
7 | Head Angle | 70 ° | - | 68 ° | - | 70 ° | - | 68 ° | - |
8 | Seat Angle | 73 ° | - | 71 ° | - | 73 ° | - | 71 ° | - |
9 | Head Tube Length | 180 mm | 7.1 inches | 180 mm | 7.1 inches | 180 mm | 7.1 inches | 180 mm | 7.1 inches |
10 | Fork Length | 540 mm | 21.3 inches | 540 mm | 21.3 inches | 540 mm | 21.3 inches | 540 mm | 21.3 inches |
11 | Front Center | 720 mm | 28.3 inches | 710 mm | 28 inches | 730 mm | 28.7 inches | 730 mm | 28.7 inches |
12 | BB (Bottom Bracket) Drop | 60 mm | 2.4 inches | 40 mm | 1.6 inches | 60 mm | 2.4 inches | 50 mm | 2 inches |
13 | Fork Offset | 40 mm | 1.6 inches | 40 mm | 1.6 inches | 40 mm | 1.6 inches | 40 mm | 1.6 inches |
14 | Wheelbase | 1230 mm | 48.4 inches | 1240 mm | 48.8 inches | 1230 mm | 48.4 inches | 1240 mm | 48.8 inches |
15 | Total Length | 2000 mm | 78.7 inches | 1960 mm | 77.2 inches | 2000 mm | 78.7 inches | 2000 mm | 78.7 inches |
16 | Max Seat Height | 1000 mm | 39.4 inches | 1000 mm | 39.4 inches | 1050 mm | 41.3 inches | 1000 mm | 39.4 inches |
17 | Min Seat Height | 830 mm | 32.7 inches | 830 mm | 32.7 inches | 880 mm | 34.6 inches | 880 mm | 34.6 inches |
18 | Handlebar Height | 1120 mm | 44.1 inches | 1160 mm | 45.7 inches | 1140 mm | 44.9 inches | 1100 mm | 43.3 inches |
19 | Weight (Without Battery) | 34 kg | 75 lb | 34 kg | 75 lb | 35 kg | 77.2 lb | 35 kg | 77.2 lb |
Q: What is the Biktrix 2024 Juggernaut Ultra Duo 3 Step-Over Mid-Drive Electric Bike?
A: The Biktrix 2024 Juggernaut Ultra Duo 3 is a high-performance mid-drive electric bike featuring a 750W motor, dual battery system, and a step-over frame. It’s built for both city commuting and off-road adventures, offering powerful assistance and long-range capabilities.
Q: What are the key features of the Biktrix 2024 Juggernaut Ultra Duo 3?
A: Key features include a 750W mid-drive motor for superior power efficiency, dual batteries for an extended range of up to 60-80 miles, step-over frame for stability, full suspension for a smooth ride, and hydraulic disc brakes for reliable stopping power.
Q: What is the range of the Biktrix 2024 Juggernaut Ultra Duo 3?
A: With its dual battery system, the bike offers a range of up to 60-80 miles per charge, depending on factors such as terrain, rider weight, and riding style.
Q: How fast can the Biktrix 2024 Juggernaut Ultra Duo 3 go?
A: The bike can reach speeds of up to 28 mph (45 km/h), making it perfect for fast commuting or recreational riding.
Q: Is the Biktrix 2024 Juggernaut Ultra Duo 3 suitable for off-road riding?
A: Yes, the bike’s full suspension and powerful motor make it ideal for off-road riding, including trails, rough terrain, and uneven surfaces.
Q: How long does it take to charge the Biktrix 2024 Juggernaut Ultra Duo 3 battery?
A: The battery typically takes 6-8 hours to fully charge. With dual batteries, you can keep one in use while the other charges for continuous riding.
Q: What is the weight of the Biktrix 2024 Juggernaut Ultra Duo 3?
A: The bike weighs approximately 75-80 lbs (34-36 kg), offering a stable and durable ride for various riding conditions.
Q: Does the Biktrix 2024 Juggernaut Ultra Duo 3 come with a warranty?
A: Yes, the bike comes with a limited warranty. For detailed warranty information, please check with the retailer.
Q: Can I customize the Biktrix 2024 Juggernaut Ultra Duo 3 with accessories?
A: Yes, the bike is compatible with various accessories such as racks, fenders, and lights to enhance your riding experience.
Q: Is the Biktrix 2024 Juggernaut Ultra Duo 3 easy to assemble?
A: The bike comes partially assembled with clear instructions for easy final assembly. Professional assembly is recommended for optimal performance and safety.
Battery Care: Charge the battery regularly and keep it between 20-80% for optimal lifespan. Avoid deep discharges or overcharging. If not in use for extended periods, store the battery separately at around 50% charge and in a cool, dry place.
Regular Cleaning: Clean the bike with a soft cloth and mild detergent. Avoid using high-pressure water on the motor, battery, or electrical components to prevent damage.
Tire Pressure: Check tire pressure regularly and ensure it’s within the recommended range for optimal ride quality. Proper inflation reduces wear on the motor and improves performance.
Lubricate the Chain: Lubricate the chain every few hundred miles or after riding in wet or muddy conditions. Clean the chain before applying new lubricant to avoid dirt buildup.
Brake Inspection: Inspect brake pads for wear and ensure they’re functioning properly. Replace worn pads to maintain reliable stopping power.
Motor and Wiring Inspection: Regularly inspect the motor, wiring, and electrical connections for any signs of wear or loose components. Tighten or replace as needed to maintain smooth motor performance.
Crankset and Pedals: Check the crankset and pedals for damage or looseness. Tighten or replace parts as needed to ensure smooth and efficient pedaling.
Suspension Maintenance: If the bike has suspension components, check them for proper movement and alignment. Clean and lubricate suspension parts to ensure smooth operation and comfort.
Proper Storage: Store the bike in a cool, dry place when not in use for extended periods. If storing for a while, remove the battery and charge it to 50% before storing it separately.
