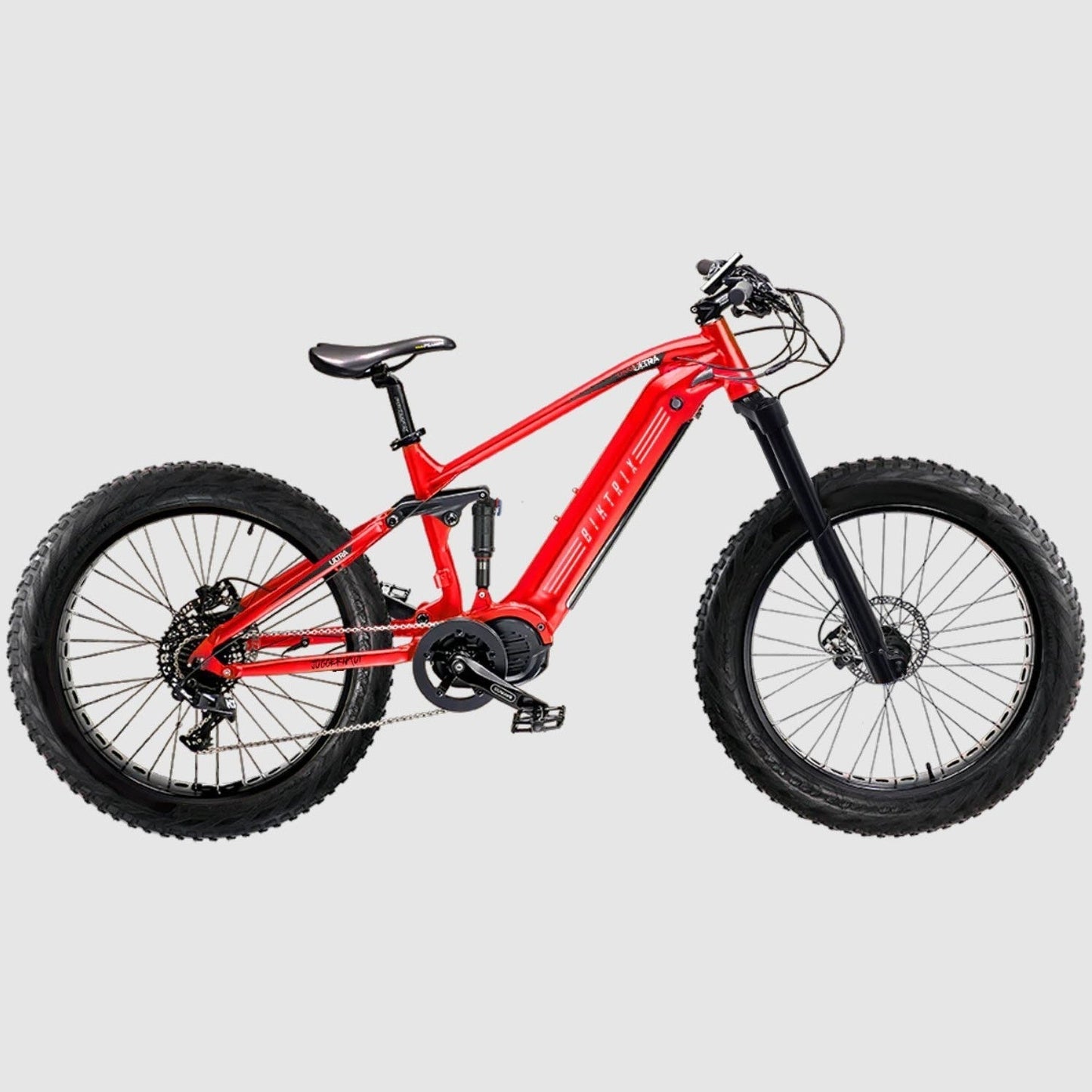

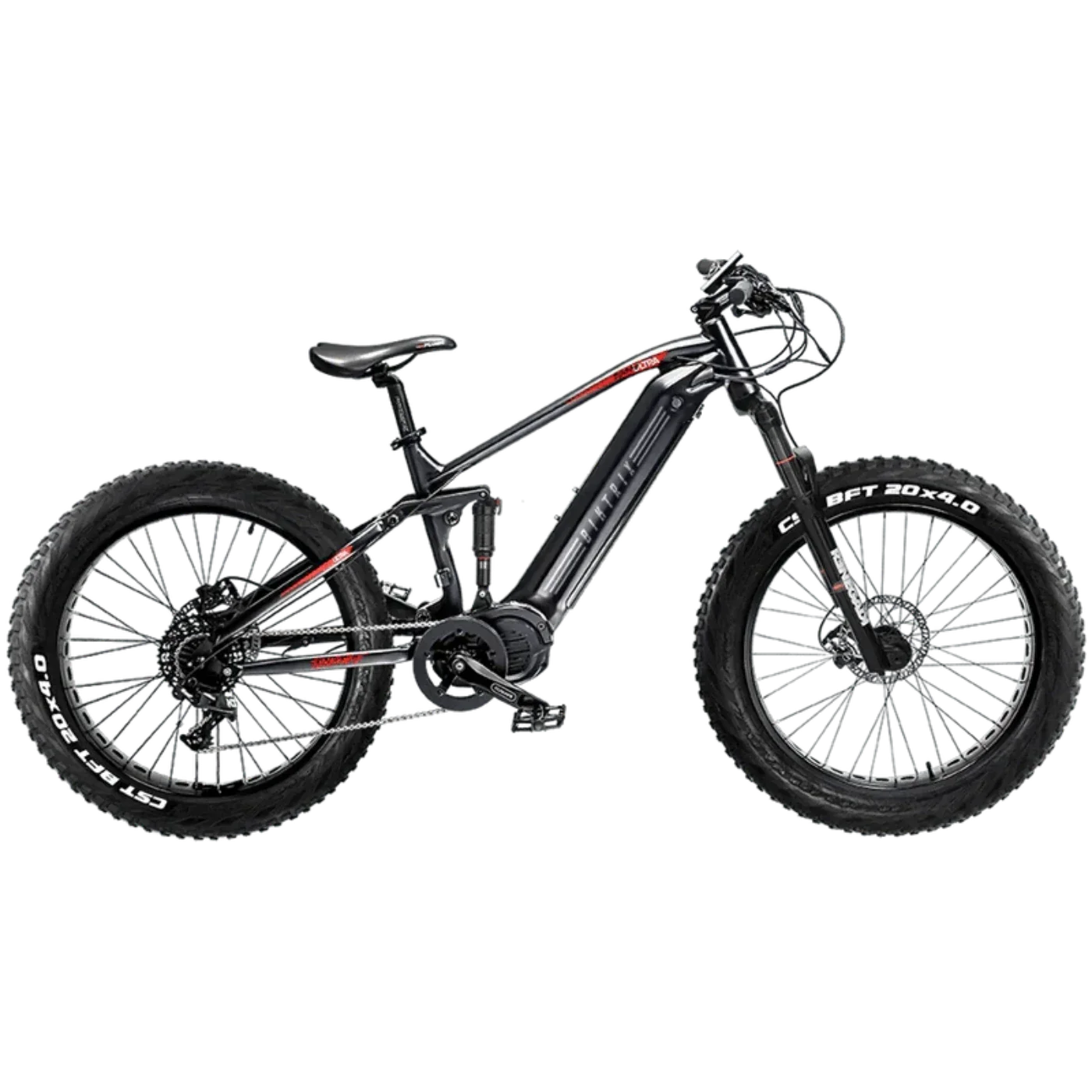

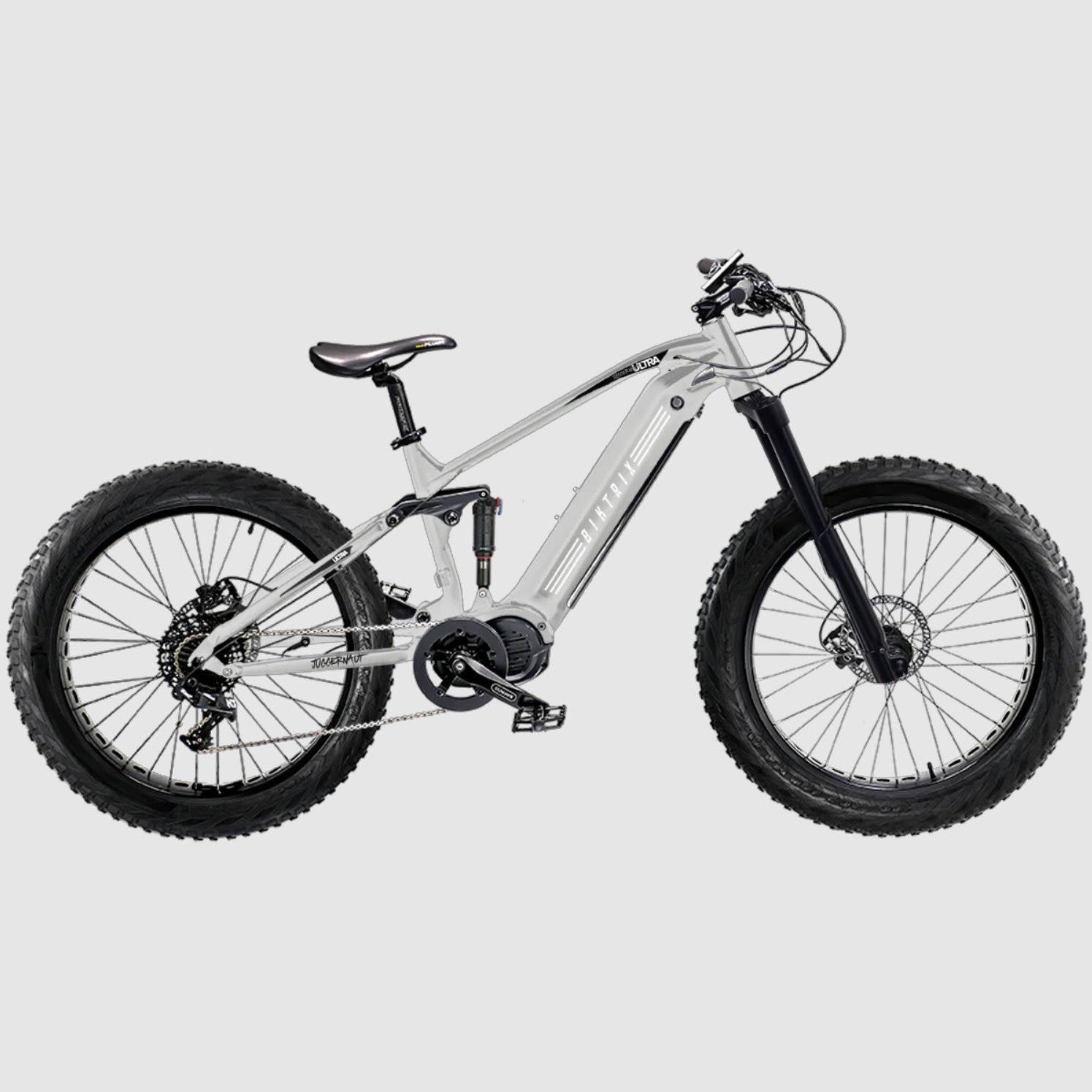

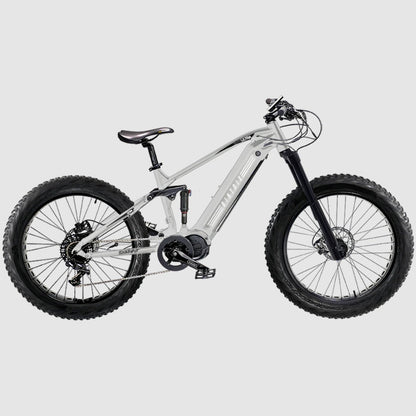

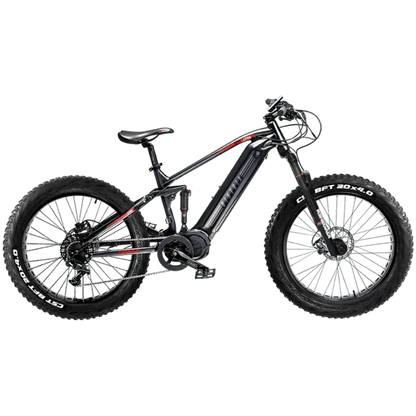

The Biktrix Juggernaut Ultra FS PRO 3 Mid Drive Full Suspension Electric Bike features top-of-the-line components and the most powerful torque-sensing mid-drive motor in the industry.
The Juggernaut Ultra FS Pro 3 the best-built full-suspension electric bike on the market today.
With a quality FS system, both wheels stay connected with the ground. That means better handling and higher speeds on tough terrain. This electric bicycle is built for the off-road trails.

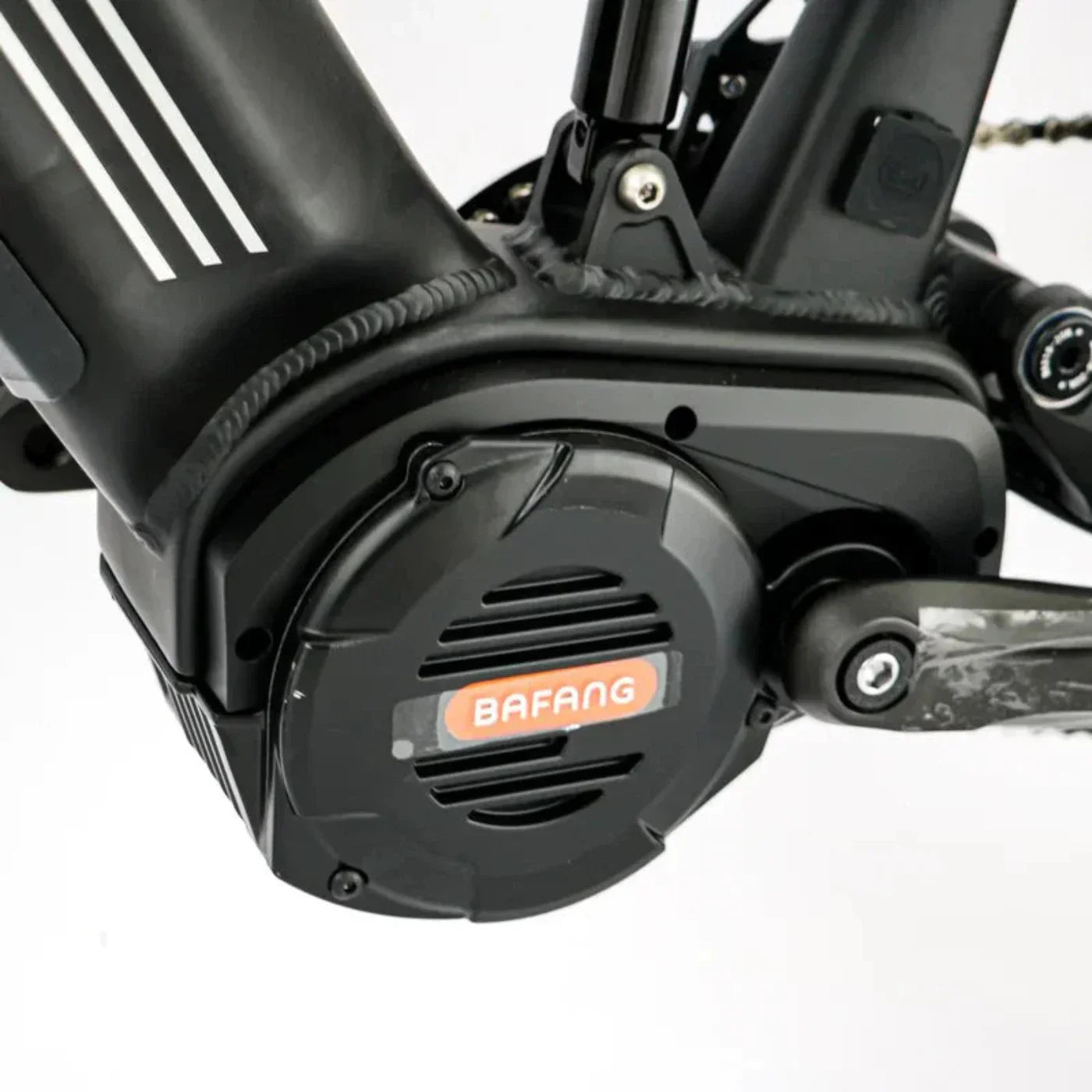

Bafang Ultra M620 Mid-Drive System
The Bafang M620 system features the G510 electric motor with over 1500 watts of peak power, 160Nm of torque and torque-sensing assist. Span cities, climb hills, and explore all the places you want to go with ease.

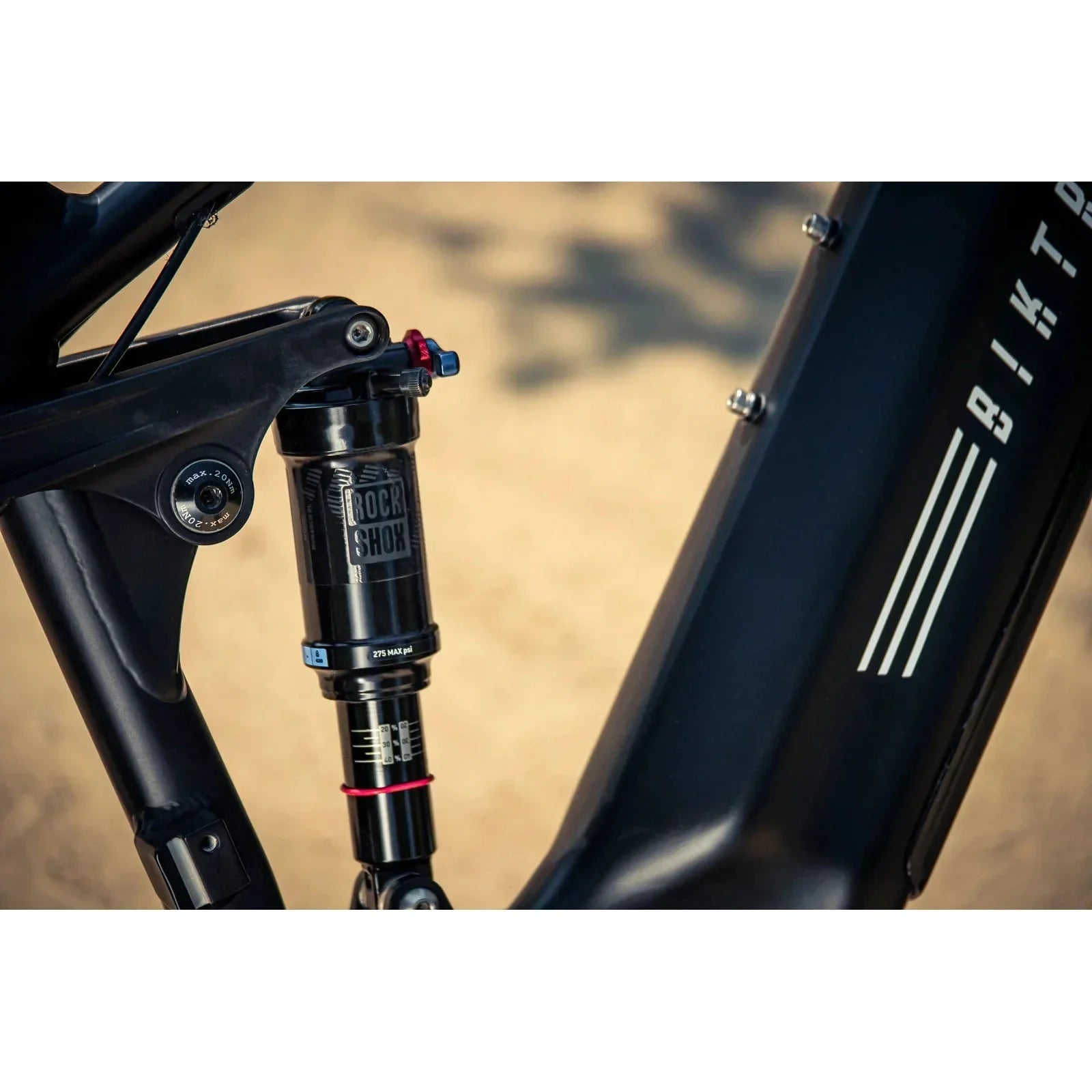

Rockshox Rear Suspension
The rear suspension sets the Ultra FS Pro apart from the rest of our lineup, making it the ultimate eBike. Take on any trail with maximum comfort and control

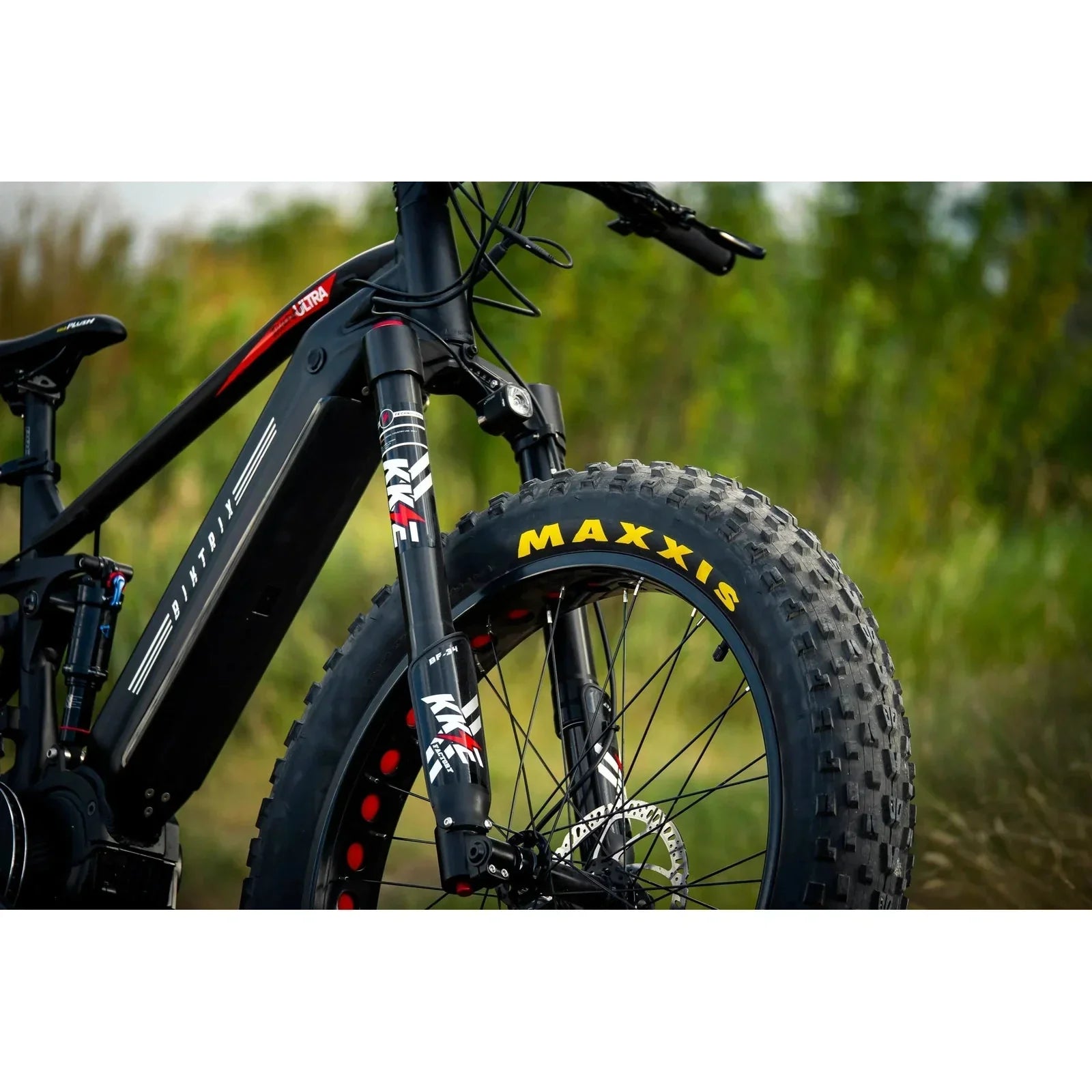

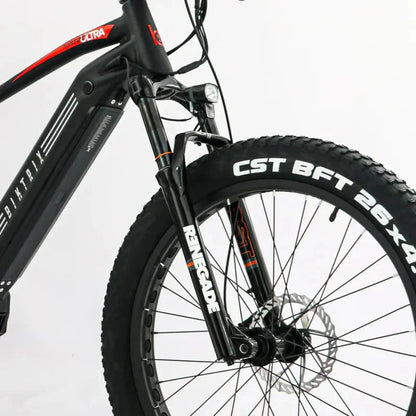

Front Suspension
The Biktrix Inverted Suspension Fork features 140mm of travel, adjustable preload and adjustable lockout

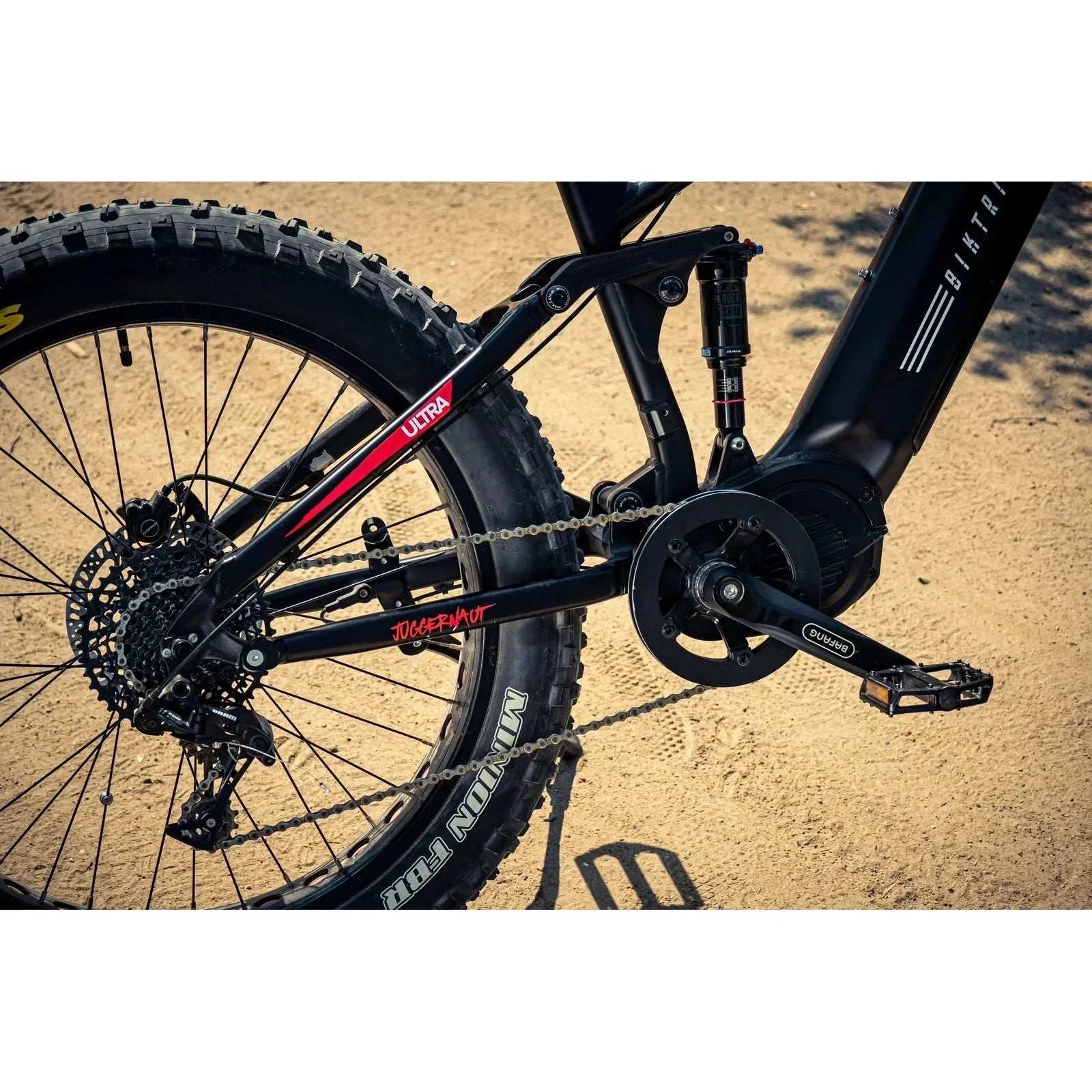

Drivetrain
The SRAM NX 11-speed drivetrain has the versatility to provide max torque while climbing hills and max speed on the flats.
Hydraulic Disc Brakes
When it's so easy to go fast on an electric bike, you need strong stopping power. These hydraulic disc brakes will swiftly and reliably bring you to a halt.
LCD Display
The LCD Display shows you all kinds of important information about your ride including speed, battery life, range, odometer, pedal assist level, and more.
Thumb Throttle & Control Pad
With just a push of the thumb you can access the motor's full power! The control pad allows you to turn the bike on/off and adjust your settings.
This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.
Frame | 6061 Aluminum |
---|---|
Brakes | Biktrix Dual Piston Hydraulic w/180mm Rotors |
Battery Size | Total Capacity: 52V 34.5Ah 1794Wh |
Internal Battery: | 52V 17.5Ah 910Wh |
External Range Extender Battery: | 52V 17Ah 884Wh |
Fork | Biktrix Inverted Air Fork w/100mm Travel, Lockout, and Preload |
Brake Levers | Biktrix Adjustable w/ Integrated Brake Cutoff |
Headset | Threadless 1-1/8 1-1/2 Tapered |
Handlebar | 700mm Wide w/25mm Rise, 31.8mm Clamp |
Shifter Rear | SRAM NX 11 Speed Trigger Shifter |
Stem | 90mm Solid |
Rear Derailleur | SRAM NX 11 Speed |
Grips | Velo Bolt On MTB Grips |
Cassette | SRAM 11-42T |
Seat Post | 31.6mm Aluminum |
Chain | KMC e11S - 130 Links |
Seat Post Clamp | QR |
Crank Set | 44T Chainring w/ 170mm Arms |
Saddle | Velo Plush |
Bottom Bracket | Bafang ISIS |
Motor | Bafang Ultra M620 |
Front Hub | 150mm Thru 36H |
Display | DPC-18 |
Front Axle/Skewer | 15mm Thru Axle |
Lights | Integrated Headlight |
Rear Hub | 197mm THRU 36H |
Throttle | Thumb Throttle |
Rear Axle/Skewer | 12mm THRU Axle |
Assist Levels | 1-5 |
Rims | Black 26" with round cutouts, Solid Black 27.5" |
Assist Type | Torque + Cadence |
Tires | 26x4", 27.5x3", 26x4.8" |
Other | 2-Bolt Kickstand |
17" M FRAME | 19" L FRAME | 21" XL FRAME | |||||
---|---|---|---|---|---|---|---|
1 | Effective Top Tube Length | 580 mm | 22.8 inches | 600 mm | 23.6 inches | 600 mm | 23.6 inches |
2 | Seat Tube Length (Classic Bike Size) | 430 mm | 16.9 inches | 480 mm | 18.9 inches | 520 mm | 20.5 inches |
3 | Reach | 440 mm | 17.3 inches | 460 mm | 18.1 inches | 460 mm | 18.1 inches |
4 | Stack | 540 mm | 21.3 inches | 590 mm | 23.2 inches | 590 mm | 23.2 inches |
5 | Chainstay Length | 510 mm | 20.1 inches | 510 mm | 20.1 inches | 520 mm | 20.5 inches |
6 | Standover Height | 730 mm | 28.7 inches | 740 mm | 29.1 inches | 770 mm | 30.3 inches |
7 | Head Angle | 63 ° | - | 63 ° | - | 63 ° | - |
8 | Seat Angle | 72 ° | - | 72 ° | - | 72 ° | - |
9 | Head Tube Length | 160 mm | 6.3 inches | 160 mm | 6.3 inches | 160 mm | 6.3 inches |
10 | Fork Length | 540 mm | 21.3 inches | 540 mm | 21.3 inches | 540 mm | 21.3 inches |
11 | Front Center | 810 mm | 31.9 inches | 810 mm | 31.9 inches | 810 mm | 31.9 inches |
12 | BB (Bottom Bracket) Drop | 40 mm | 1.6 inches | 40 mm | 1.6 inches | 40 mm | 1.6 inches |
13 | Fork Offset | 40 mm | 1.6 inches | 40 mm | 1.6 inches | 40 mm | 1.6 inches |
14 | Wheelbase | 1320 mm | 52 inches | 1330 mm | 52.4 inches | 1340 mm | 52.8 inches |
15 | Total Length | 2030 mm | 79.9 inches | 2040 mm | 80.3 inches | 2060 mm | 81.1 inches |
16 | Max Seat Height | 1040 mm | 40.9 inches | 1080 mm | 42.5 inches | 1120 mm | 44.1 inches |
17 | Min Seat Height | 840 mm | 33.1 inches | 880 mm | 34.6 inches | 940 mm | 37 inches |
18 | Handlebar Height | 1020 mm | 40.2 inches | 1060 mm | 41.7 inches | 1060 mm | 41.7 inches |
19 | Weight (Without Battery) | 32.6 kg | 71.9 lb | 32.6 kg | 71.9 lb | 33.6 kg | 74.1 lb |
Q: What is the Biktrix 2024 Juggernaut Ultra FS Pro 3 Fat Mid-Drive Full Suspension Electric Bike?
A: The Biktrix 2024 Juggernaut Ultra FS Pro 3 Fat is a high-performance full suspension electric bike featuring a 750W mid-drive motor and fat tires. Designed for tackling tough off-road terrains like snow, sand, and rocky paths, this bike provides a smooth, powerful ride on all types of surfaces.
Q: What are the key features of the Biktrix 2024 Juggernaut Ultra FS Pro 3 Fat?
A: Key features include a 750W mid-drive motor for optimal power delivery, full suspension for a comfortable ride on rough trails, fat tires for excellent traction on soft and uneven surfaces, hydraulic disc brakes for reliable stopping power, and a range of up to 60-80 miles with optional dual batteries.
Q: What is the range of the Biktrix 2024 Juggernaut Ultra FS Pro 3 Fat?
A: The bike offers a range of up to 60-80 miles per charge, depending on factors such as rider weight, terrain, and riding conditions. With dual batteries (optional), you can significantly extend your range.
Q: How fast can the Biktrix 2024 Juggernaut Ultra FS Pro 3 Fat go?
A: The bike can reach speeds of up to 28 mph (45 km/h), making it perfect for both off-road adventures and fast-paced rides on rugged trails.
Q: Is the Biktrix 2024 Juggernaut Ultra FS Pro 3 Fat suitable for off-road riding?
A: Yes, the bike is designed for intense off-road riding. Its fat tires, full suspension, and powerful motor make it ideal for navigating sand, snow, mud, and rocky terrains.
Q: How long does it take to charge the Biktrix 2024 Juggernaut Ultra FS Pro 3 Fat battery?
A: The battery typically takes 6-8 hours to fully charge. With the option of a second battery, you can extend your riding time without interruption.
Q: What is the weight of the Biktrix 2024 Juggernaut Ultra FS Pro 3 Fat?
A: The bike weighs approximately 75-80 lbs (34-36 kg), providing a stable and durable ride while maintaining comfort and control.
Q: Does the Biktrix 2024 Juggernaut Ultra FS Pro 3 Fat come with a warranty?
A: Yes, the bike comes with a limited warranty. For full details on the warranty coverage, please refer to the retailer.
Q: Can I customize the Biktrix 2024 Juggernaut Ultra FS Pro 3 Fat with accessories?
A: Yes, the bike is compatible with a range of accessories such as racks, fenders, and lights to enhance your riding experience and convenience.
Q: Is the Biktrix 2024 Juggernaut Ultra FS Pro 3 Fat easy to assemble?
A: The bike comes partially assembled with clear instructions for easy final assembly. Professional assembly is recommended for optimal performance and safety.
Battery Care: Charge the battery regularly, keeping it between 20-80% for optimal lifespan. Avoid overcharging or deep discharges. For long-term storage, remove the battery, store it separately at 50% charge in a cool, dry place.
Regular Cleaning: Clean the bike using a soft cloth and mild detergent. Avoid using high-pressure water near the motor, battery, and electrical components. Focus on cleaning the suspension, drivetrain, and brake areas, especially after muddy or wet rides.
Tire Pressure: Regularly check the tire pressure, particularly for fat tires, as they require more attention. Ensure that tires are properly inflated for optimal performance, comfort, and to prevent excess strain on the motor.
Lubricate the Chain and Drivetrain: Lubricate the chain every few hundred miles or after riding in wet or muddy conditions. Clean the drivetrain thoroughly before reapplying new lubricant to prevent dirt buildup and ensure smooth shifting.
Brake Maintenance: Inspect the brake pads and hydraulic brake systems (if applicable) for wear. Replace worn pads to maintain reliable braking power. Check fluid levels if using hydraulic brakes and perform any necessary brake adjustments.
Suspension System Care: Regularly check the full suspension system (front fork and rear shock) for smooth travel, proper damping, and any leaks. Clean and lubricate suspension parts according to the manufacturer's guidelines to ensure comfort and performance on rough terrain.
Motor and Wiring Inspection: Inspect the mid-drive motor and wiring for any loose connections, fraying, or damage. Tighten or replace parts as needed to keep the motor running smoothly. Look for signs of wear, especially after off-road riding.
Crankset and Pedal Check: Inspect the crankset and pedals for looseness or wear. Tighten or replace as needed to ensure smooth pedaling and prevent damage to the bike's drivetrain.
Frame and Component Check: Regularly inspect the bike frame for any cracks or damage, particularly after heavy off-road use. Ensure that all components (seat post, handlebars, hubs, etc.) are securely tightened and functioning properly.
Proper Storage: When storing the bike for long periods, store it in a dry, cool location. Remove the battery, store it at 50% charge, and ensure it is not exposed to extreme temperatures. Avoid storing the bike in damp environments to prevent rust and corrosion.
