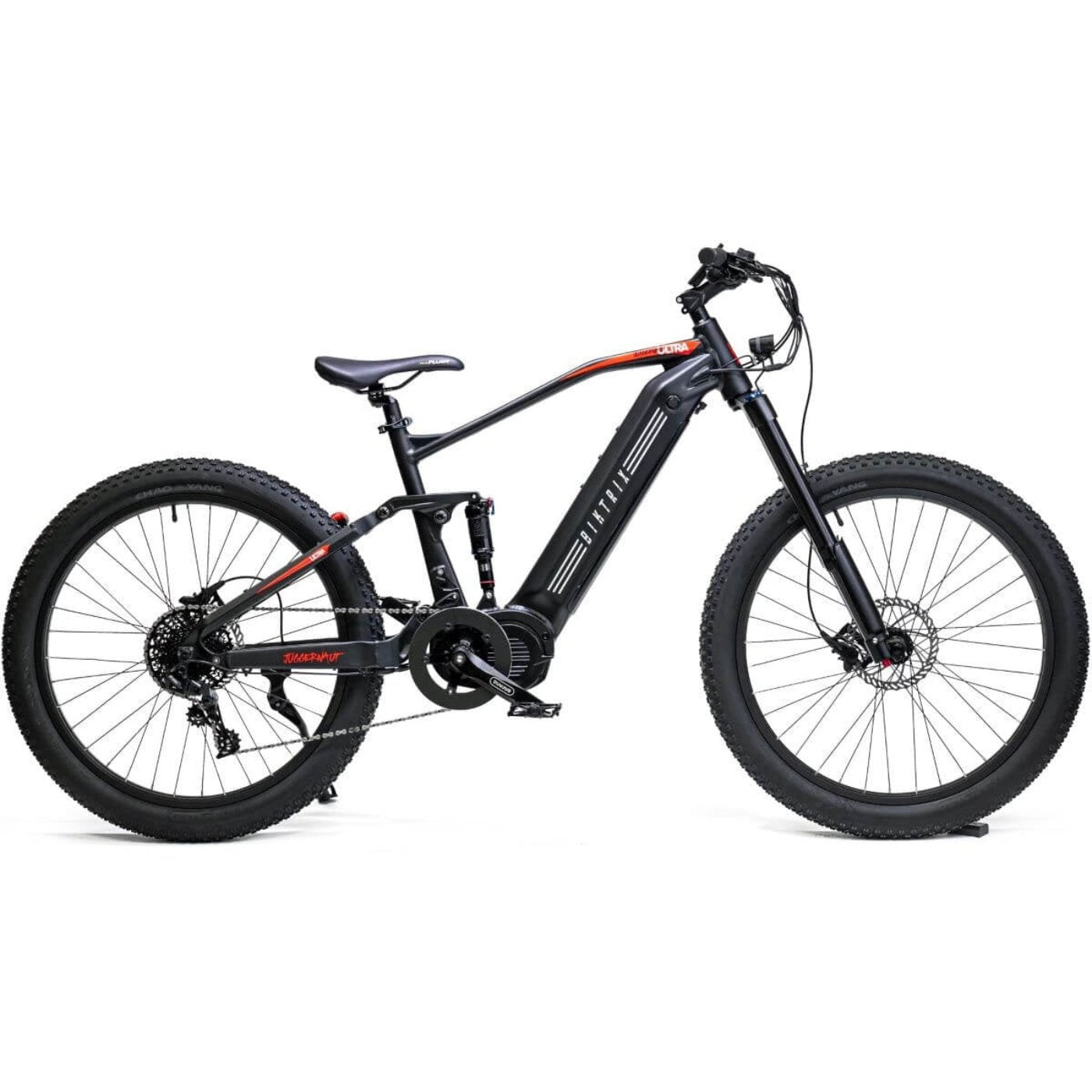

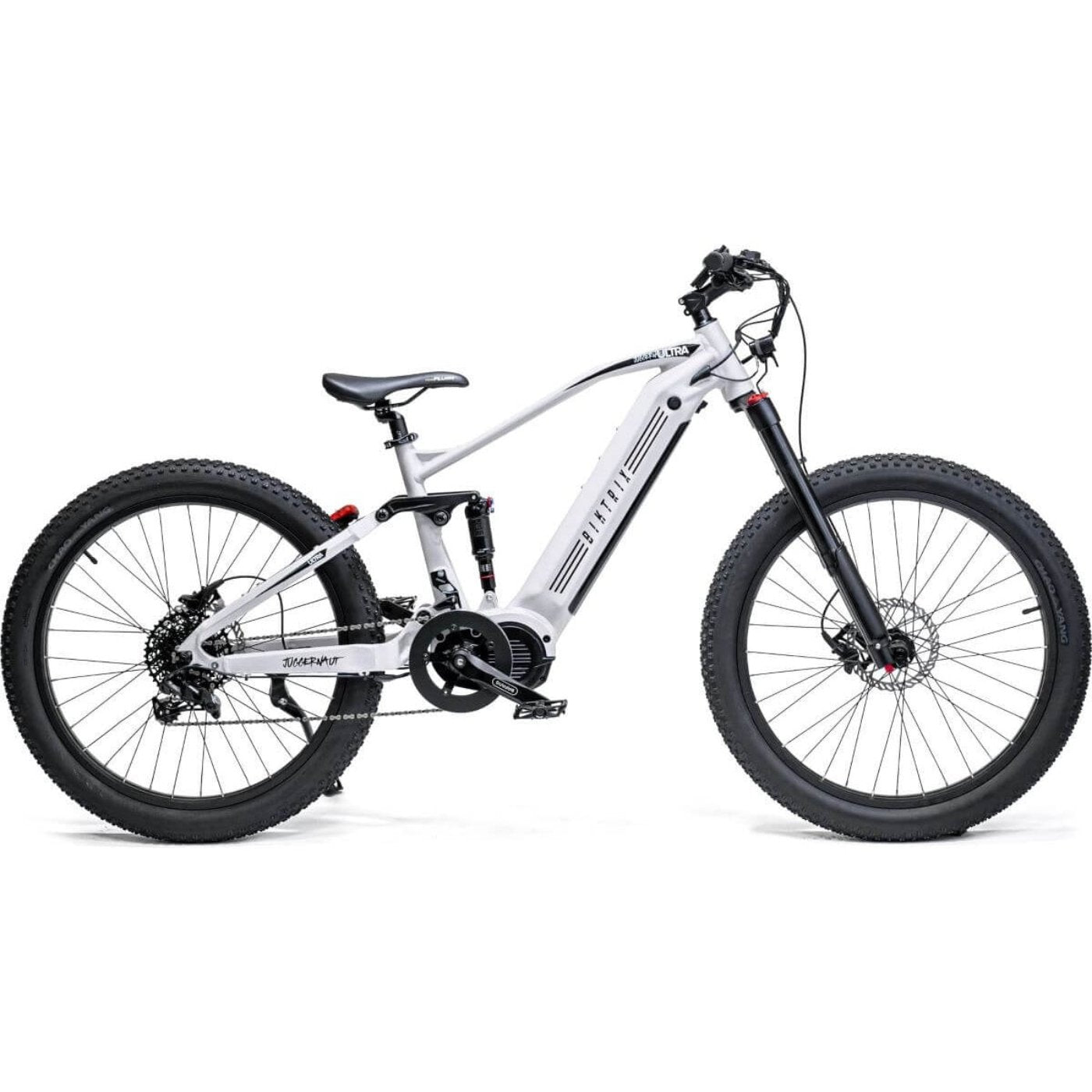

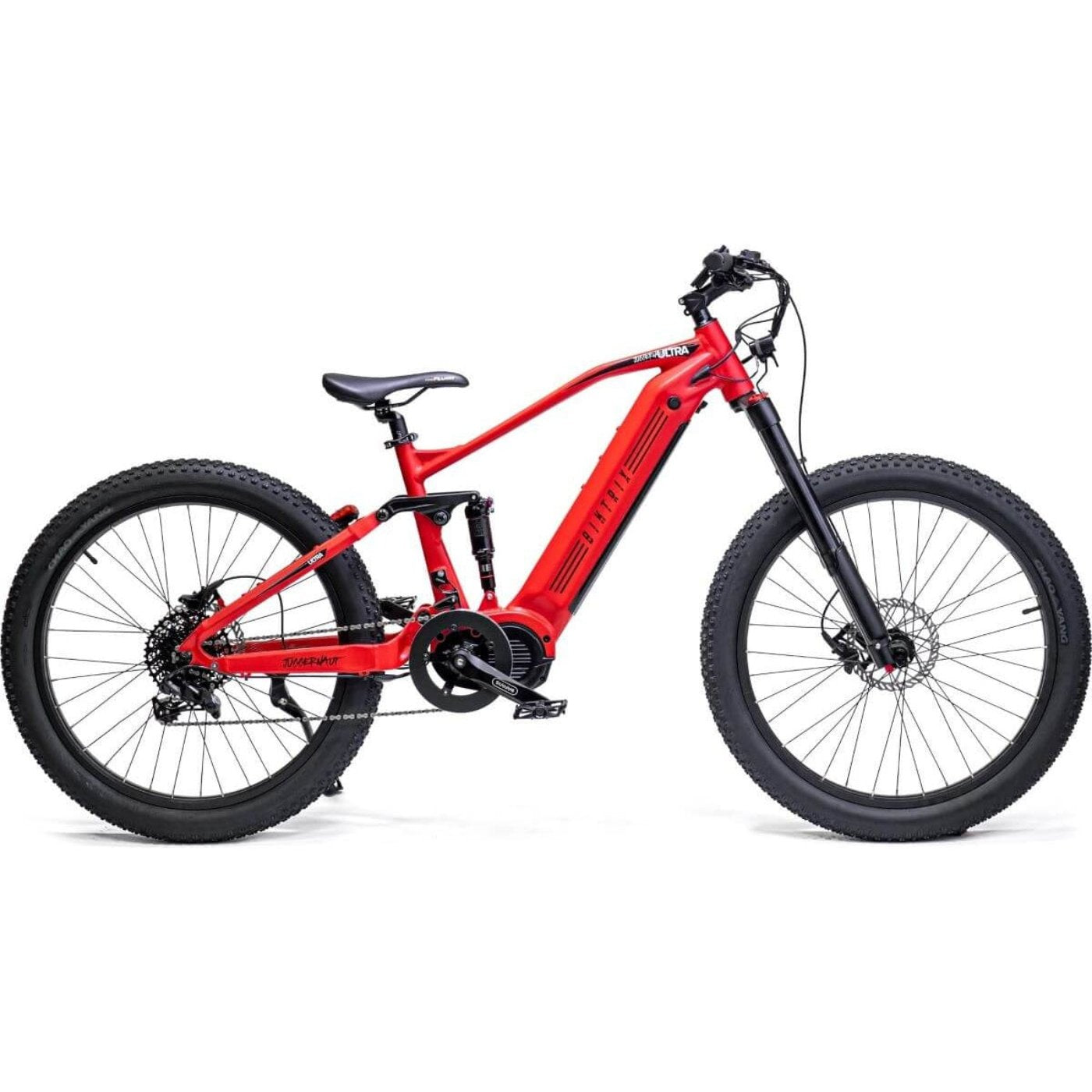

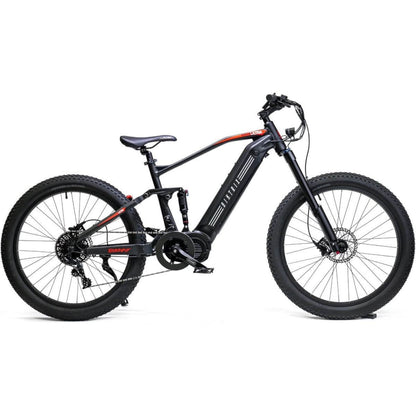

The Biktrix Juggernaut Ultra FS PRO 3 MULLET Mid Drive Full Suspension Electric Bike features top-of-the-line components and the most powerful torque-sensing mid-drive motor in the industry.
The Juggernaut Ultra FS Pro 3 MULLET the best-built full-suspension electric bike on the market today.
With a quality FS system, both wheels stay connected with the ground. That means better handling and higher speeds on tough terrain. This electric bicycle is built for the off-road trails.
Bafang Ultra M620 Mid-Drive System
The Bafang M620 system features the G510 electric motor with over 1500 watts of peak power, 160Nm of torque and torque-sensing assist. Span cities, climb hills, and explore all the places you want to go with ease.
Rockshox Rear Suspension
The rear suspension sets the Ultra FS Pro apart from the rest of our lineup, making it the ultimate eBike. Take on any trail with maximum comfort and control
Front Suspension
The Biktrix Inverted Suspension Fork features 140mm of travel, adjustable preload and adjustable lockout
Drivetrain
The SRAM NX 11-speed drivetrain has the versatility to provide max torque while climbing hills and max speed on the flats.
Hydraulic Disc Brakes
When it's so easy to go fast on an electric bike, you need strong stopping power. These hydraulic disc brakes will swiftly and reliably bring you to a halt.
LCD Display
The LCD Display shows you all kinds of important information about your ride including speed, battery life, range, odometer, pedal assist level, and more.
Thumb Throttle & Control Pad
With just a push of the thumb you can access the motor's full power! The control pad allows you to turn the bike on/off and adjust your settings.
Integrated Front Light
This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.
Frame | 6061 Aluminum |
---|---|
Brakes | Biktrix Dual Piston Hydraulic w/ 180mm Rotors |
Battery Size | Total Capacity of 52V 34.5Ah 1794Wh: 52V 17.5Ah 910Wh (Internal Battery) + Up to 52V 17Ah 884Wh (External Range Extender Battery) |
Fork | Biktrix Inverted Air Fork w/ 100mm Travel, Lockout, and Preload |
Brake Levers | Biktrix Adjustable w/ Integrated Brake Cutoff |
Headset | Threadless 1-1/8" 1-1/2" Tapered |
Handlebar | 700mm Wide w/ 25mm Rise, 31.8mm Clamp |
Shifter Rear | SRAM NX 11-Speed Trigger Shifter |
Stem | 90mm Solid |
Rear Derailleur | SRAM NX 11-Speed |
Grips | Velo Bolt-On MTB Grips |
Cassette | SRAM 11-42T |
Seat Post | 31.6mm Aluminum |
Chain | KMC E11s - 130 Links |
Seat Post Clamp | Quick-Release |
Crank Set | 44T Chainring w/ 170mm Arms |
Saddle | Velo Plush |
Bottom Bracket | Bafang ISIS |
Motor | Bafang Ultra M620 |
Front Hub | 150mm Thru 36H |
Display | DPC-18 |
Front Axle | 15mm Thru Axle |
Lights | Integrated Headlight |
Rear Hub | 197mm Thru 36H |
Throttle | Thumb Throttle |
Rear Axle | 12mm Thru Axle |
Rear Suspension | RockShox Monarch RL w/ 51mm Travel, 190mm Eye-to-Eye |
Assist Levels | 1-5 |
Rims | Black 26" w/ Round Cutouts, Solid Black 27.5" |
Assist Type | Torque + Cadence |
Tire Sizes | 26x4", 27.5x3", 26x4.8" |
Other | 2-Bolt Kickstand |
17" M FRAME | 19" L FRAME | 21" XL FRAME | |||||
---|---|---|---|---|---|---|---|
1 | Effective Top Tube Length | 580 mm | 22.8 inches | 600 mm | 23.6 inches | 600 mm | 23.6 inches |
2 | Seat Tube Length (Classic Bike Size) | 430 mm | 16.9 inches | 480 mm | 18.9 inches | 520 mm | 20.5 inches |
3 | Reach | 440 mm | 17.3 inches | 460 mm | 18.1 inches | 460 mm | 18.1 inches |
4 | Stack | 540 mm | 21.3 inches | 590 mm | 23.2 inches | 590 mm | 23.2 inches |
5 | Chainstay Length | 510 mm | 20.1 inches | 510 mm | 20.1 inches | 520 mm | 20.5 inches |
6 | Standover Height | 730 mm | 28.7 inches | 740 mm | 29.1 inches | 770 mm | 30.3 inches |
7 | Head Angle | 63 ° | - | 63 ° | - | 63 ° | - |
8 | Seat Angle | 72 ° | - | 72 ° | - | 72 ° | - |
9 | Head Tube Length | 160 mm | 6.3 inches | 160 mm | 6.3 inches | 160 mm | 6.3 inches |
10 | Fork Length | 540 mm | 21.3 inches | 540 mm | 21.3 inches | 540 mm | 21.3 inches |
11 | Front Center | 810 mm | 31.9 inches | 810 mm | 31.9 inches | 810 mm | 31.9 inches |
12 | BB (Bottom Bracket) Drop | 40 mm | 1.6 inches | 40 mm | 1.6 inches | 40 mm | 1.6 inches |
13 | Fork Offset | 40 mm | 1.6 inches | 40 mm | 1.6 inches | 40 mm | 1.6 inches |
14 | Wheelbase | 1320 mm | 52 inches | 1330 mm | 52.4 inches | 1340 mm | 52.8 inches |
15 | Total Length | 2030 mm | 79.9 inches | 2040 mm | 80.3 inches | 2060 mm | 81.1 inches |
16 | Max Seat Height | 1040 mm | 40.9 inches | 1080 mm | 42.5 inches | 1120 mm | 44.1 inches |
17 | Min Seat Height | 840 mm | 33.1 inches | 880 mm | 34.6 inches | 940 mm | 37 inches |
18 | Handlebar Height | 1020 mm | 40.2 inches | 1060 mm | 41.7 inches | 1060 mm | 41.7 inches |
19 | Weight (Without Battery) | 32.6 kg | 71.9 lb | 32.6 kg | 71.9 lb | 33.6 kg | 74.1 lb |
Q: What is the Biktrix 2024 Juggernaut Ultra FS Pro 3 Mullet Mid-Drive Full Suspension Electric Bike?
A: The Biktrix 2024 Juggernaut Ultra FS Pro 3 is a high-performance electric bike featuring a 750W mid-drive motor, full suspension, and a mullet setup (29” front wheel and 27.5” rear wheel). It's designed for both intense off-road trails and versatile urban riding, offering superior comfort, power, and control.
Q: What are the key features of the Biktrix 2024 Juggernaut Ultra FS Pro 3?
A: Key features include a powerful 750W mid-drive motor, full suspension for a smooth ride on rough terrain, a mullet wheel setup for better handling, hydraulic disc brakes for excellent stopping power, and a range of up to 60-80 miles with dual batteries (optional).
Q: What is the range of the Biktrix 2024 Juggernaut Ultra FS Pro 3?
A: The bike offers a range of up to 60-80 miles per charge, depending on rider weight, terrain, and riding conditions, with the option to add a second battery for extended range.
Q: How fast can the Biktrix 2024 Juggernaut Ultra FS Pro 3 go?
A: The bike can reach speeds of up to 28 mph (45 km/h), making it ideal for both fast-paced commuting and off-road adventures.
Q: Is the Biktrix 2024 Juggernaut Ultra FS Pro 3 suitable for off-road riding?
A: Yes, the full suspension system and mullet wheel setup make it perfect for aggressive off-road riding on trails, rocks, and uneven terrain.
Q: How long does it take to charge the Biktrix 2024 Juggernaut Ultra FS Pro 3 battery?
A: The battery typically takes 6-8 hours to fully charge. With dual batteries, you can switch them out for continuous riding without interruption.
Q: What is the weight of the Biktrix 2024 Juggernaut Ultra FS Pro 3?
A: The bike weighs approximately 70-75 lbs (32-34 kg), offering a robust and durable design suitable for off-road riding.
Q: Does the Biktrix 2024 Juggernaut Ultra FS Pro 3 come with a warranty?
A: Yes, the bike comes with a limited warranty. For more information, please refer to the retailer for full warranty coverage details.
Q: Can I customize the Biktrix 2024 Juggernaut Ultra FS Pro 3 with accessories?
A: Yes, the bike is compatible with various accessories like racks, fenders, and lights, allowing you to tailor your riding experience.
Q: Is the Biktrix 2024 Juggernaut Ultra FS Pro 3 easy to assemble?
A: The bike comes partially assembled with clear instructions for easy final assembly. Professional assembly is recommended for optimal performance and safety.
Battery Care: Charge the battery regularly, keeping it between 20-80% for optimal lifespan. Avoid overcharging and deep discharges. For long-term storage, remove the battery, charge it to around 50%, and store it in a cool, dry place.
Regular Cleaning: Clean the bike with a soft cloth and mild detergent. Avoid using high-pressure water near the motor, battery, and electrical components to prevent damage.
Tire Pressure: Check tire pressure frequently and ensure it's within the recommended range. Proper inflation improves comfort, reduces motor strain, and enhances tire life. Special attention is needed for the rear and front tires, especially with the mullet configuration.
Lubricate the Chain: Lubricate the chain every few hundred miles or after riding in wet or muddy conditions. Clean the chain before applying fresh lubricant to avoid dirt buildup and maintain smooth shifting.
Brake Maintenance: Regularly inspect the brake pads for wear and check brake function. Replace worn pads promptly to ensure optimal braking power and safety. Make sure hydraulic systems are bled properly if applicable.
Suspension Care: Inspect and maintain the full suspension system, including the front fork and rear shock. Ensure proper travel and damping, and clean suspension components regularly. Lubricate suspension parts as recommended by the manufacturer.
Motor and Wiring Inspection: Check the mid-drive motor and wiring for loose connections, wear, or damage. Tighten or replace components as needed to ensure consistent motor performance and prevent failures.
Crankset and Pedals: Inspect the crankset and pedals for looseness or damage. Tighten or replace them as necessary to ensure smooth pedaling and prevent potential damage to the bike frame.
Proper Storage: When not in use for extended periods, store the bike in a dry, cool place. If storing for an extended time, remove the battery, charge it to 50%, and store it separately to prevent degradation.
