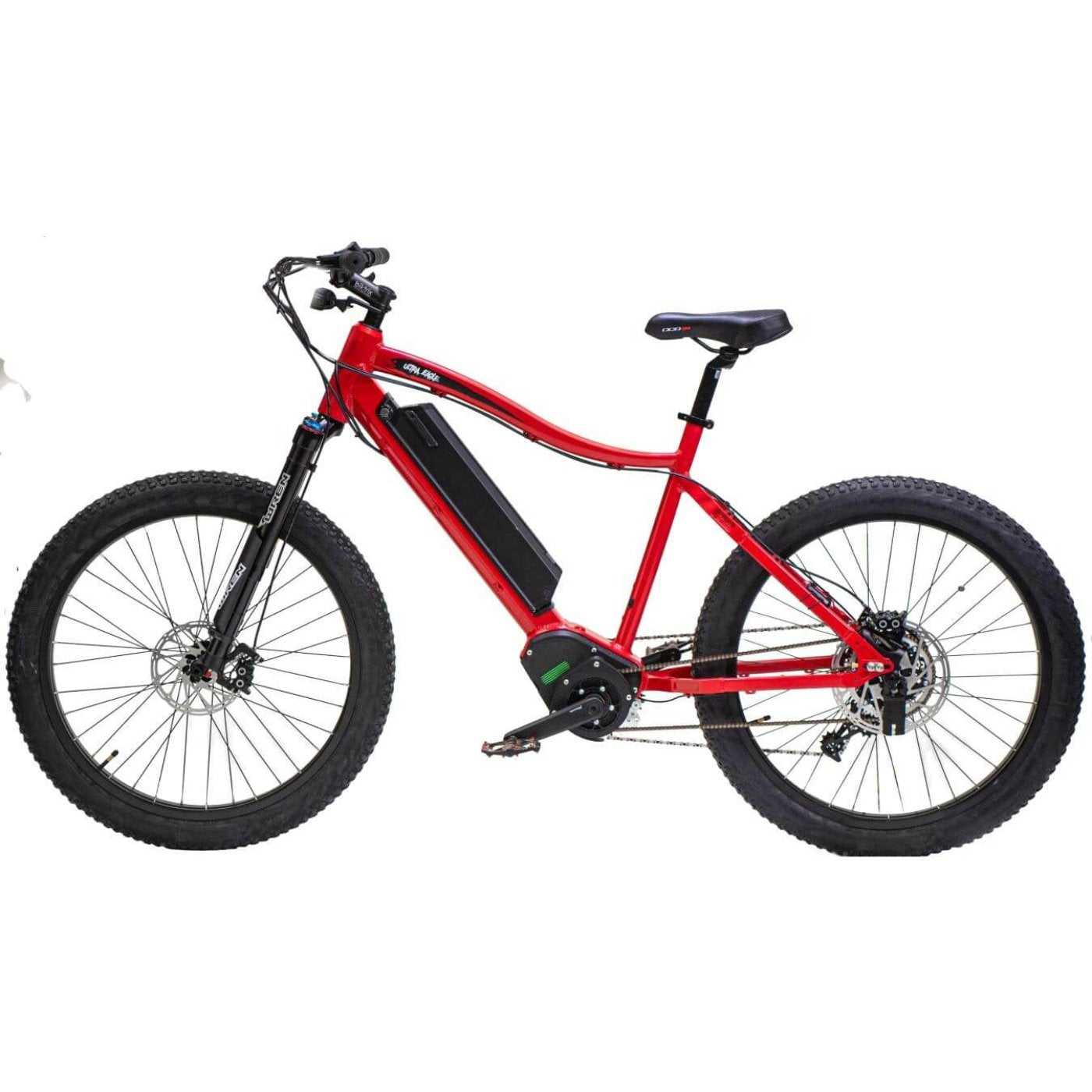

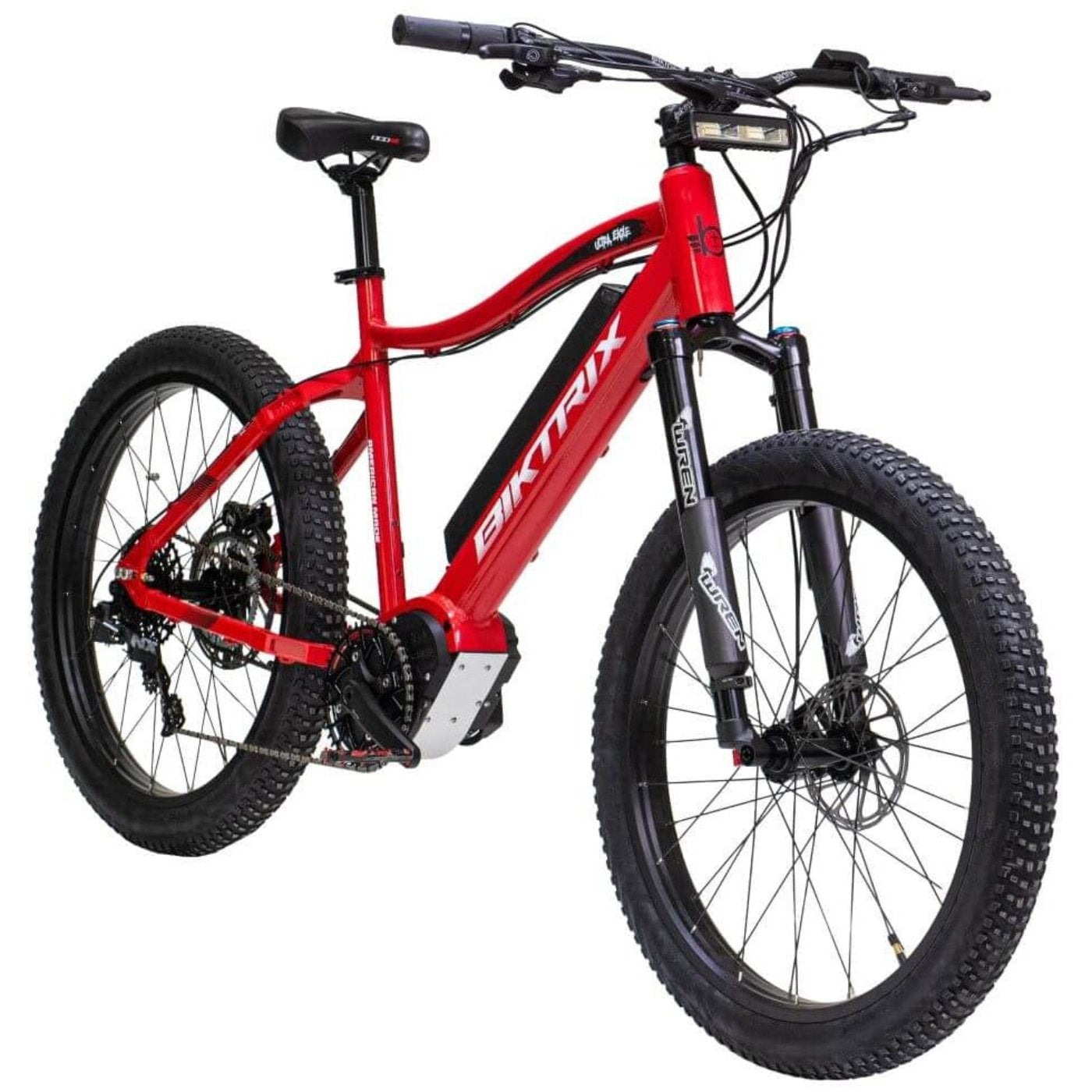

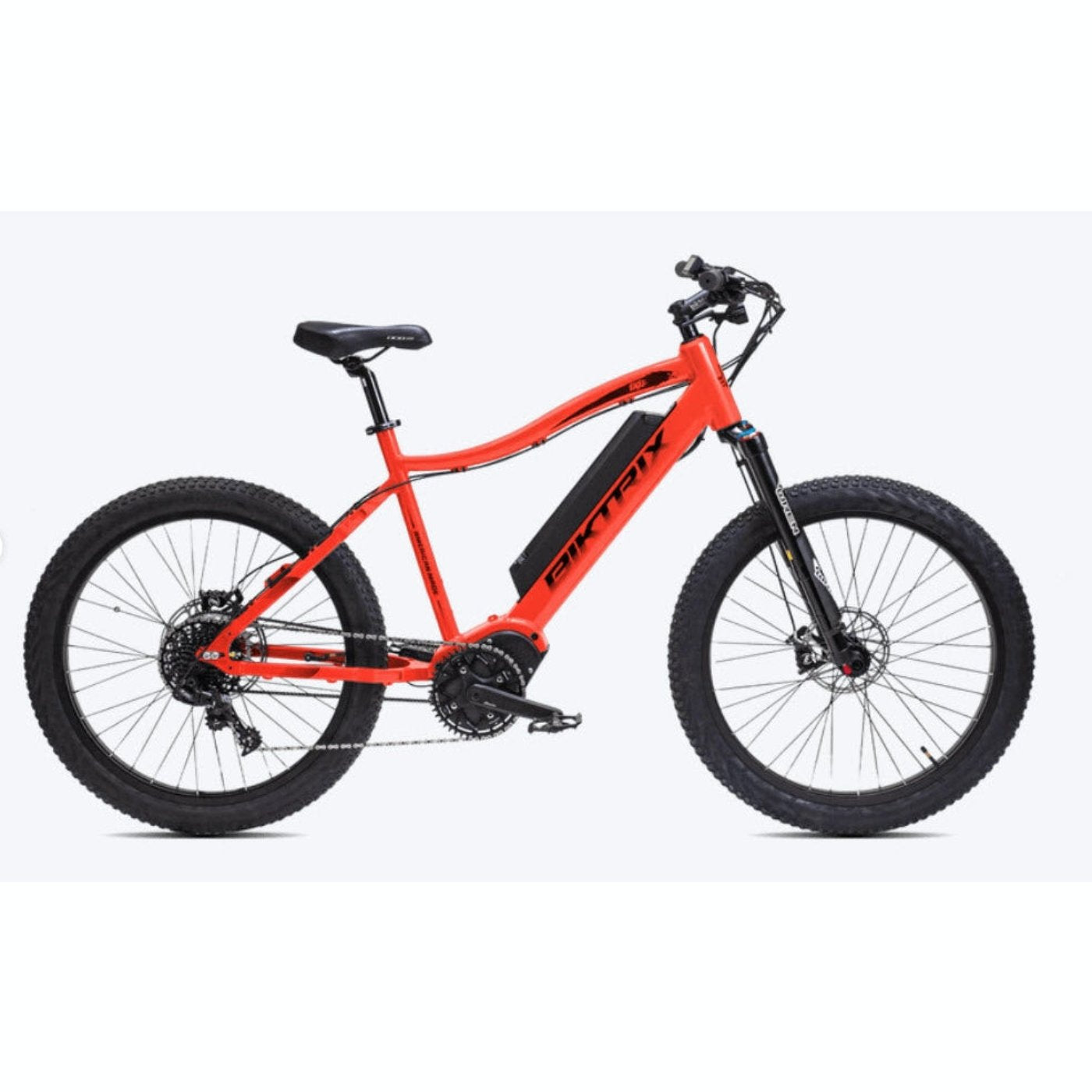

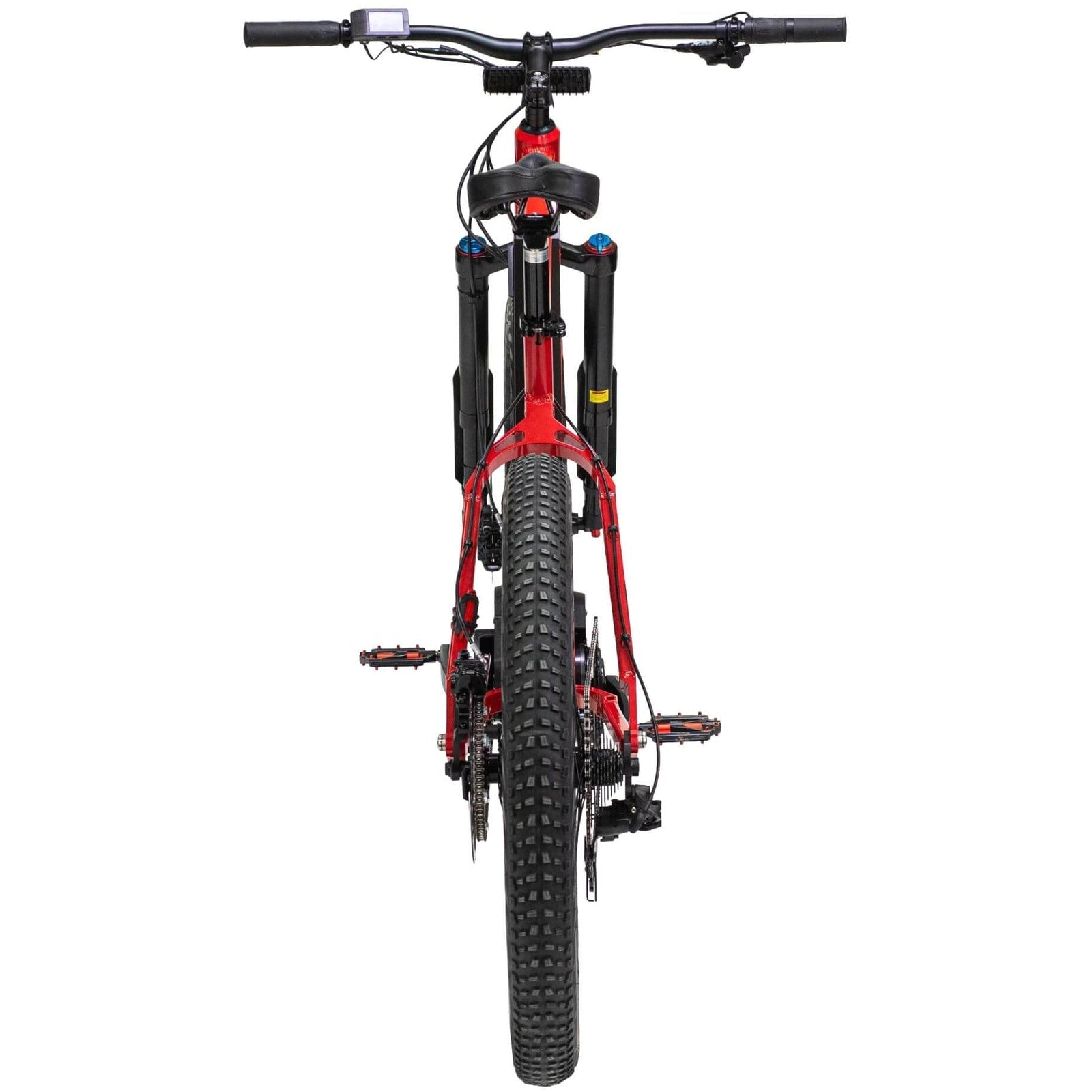

Biktrix 2024 Juggernaut XD EAGLE 2300W Mid Drive Electric Bike

Biktrix 2024 Juggernaut XD EAGLE 2300W Mid Drive Electric Bike

by Biktrix
SKU
Save 16% Save 16%
$6,699.00
$6,699.00 - $6,699.00
$6,699.00
$5,635.99
$5,635.99 - $5,635.99
$5,635.99

  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.

Color: Red Flame

Biktrix 2024 Juggernaut XD EAGLE 2300W Mid Drive Electric Bike

The Biktrix Juggernaut XD EAGLE 2300W Mid Drive Electric Bike is in a class of its own.

Designed In Canada. Manufactured In The USA.

The North American-made Juggernaut XD Eagle is a high-performance electric mountain bike built for serious riders. Endless color options and multiple wheel sizes make it uniquely customizable, and the over 1000 Watts of motor power packs a major punch. To paraphrase a well-known song by a classic American band... "If It Had A Set Of Wings, Man, I Know It Could Fly".

The resulting bike and its manufacturing approaches are primed for navigating such challenges with agility, and competitive in-house solutions.


Made In USA -T6 Aluminum Frame

The Ultra Eagle features a frame designed and manufactured in the USA. It’s  then locally powdercoated to a colour of your choice, leaving you with a bike as unique as yourself!

SRAM NX 11-Speed Drivetrain

Whether climbing steep hills or holding maximum speed on the flats, the SRAM NX 11 Speed drivetrain has you covered!

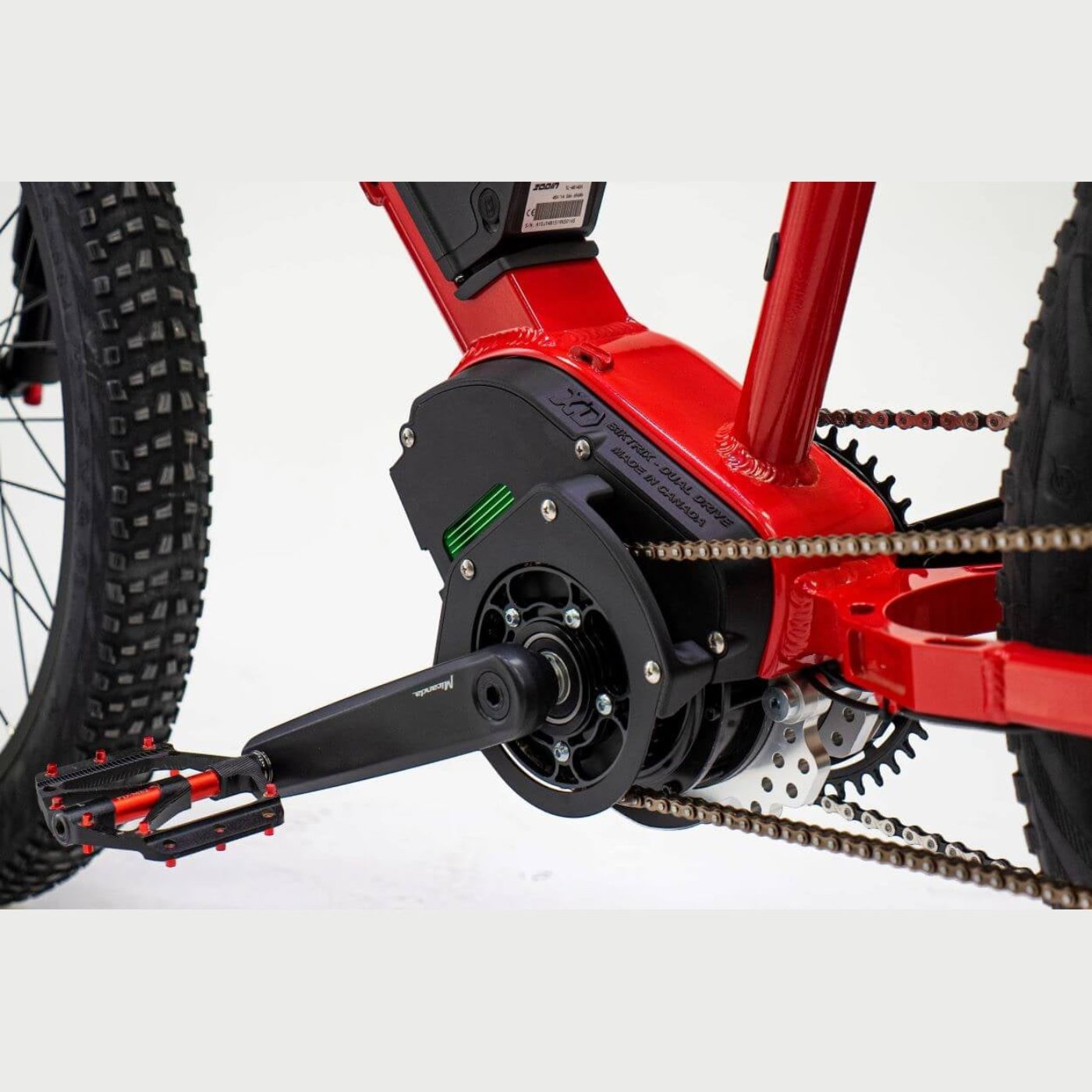

Mid-Drive Motor

The Bafang Ultra Mid-Drive Motor features 1500W of Peak Power along with 160Nm of torque.

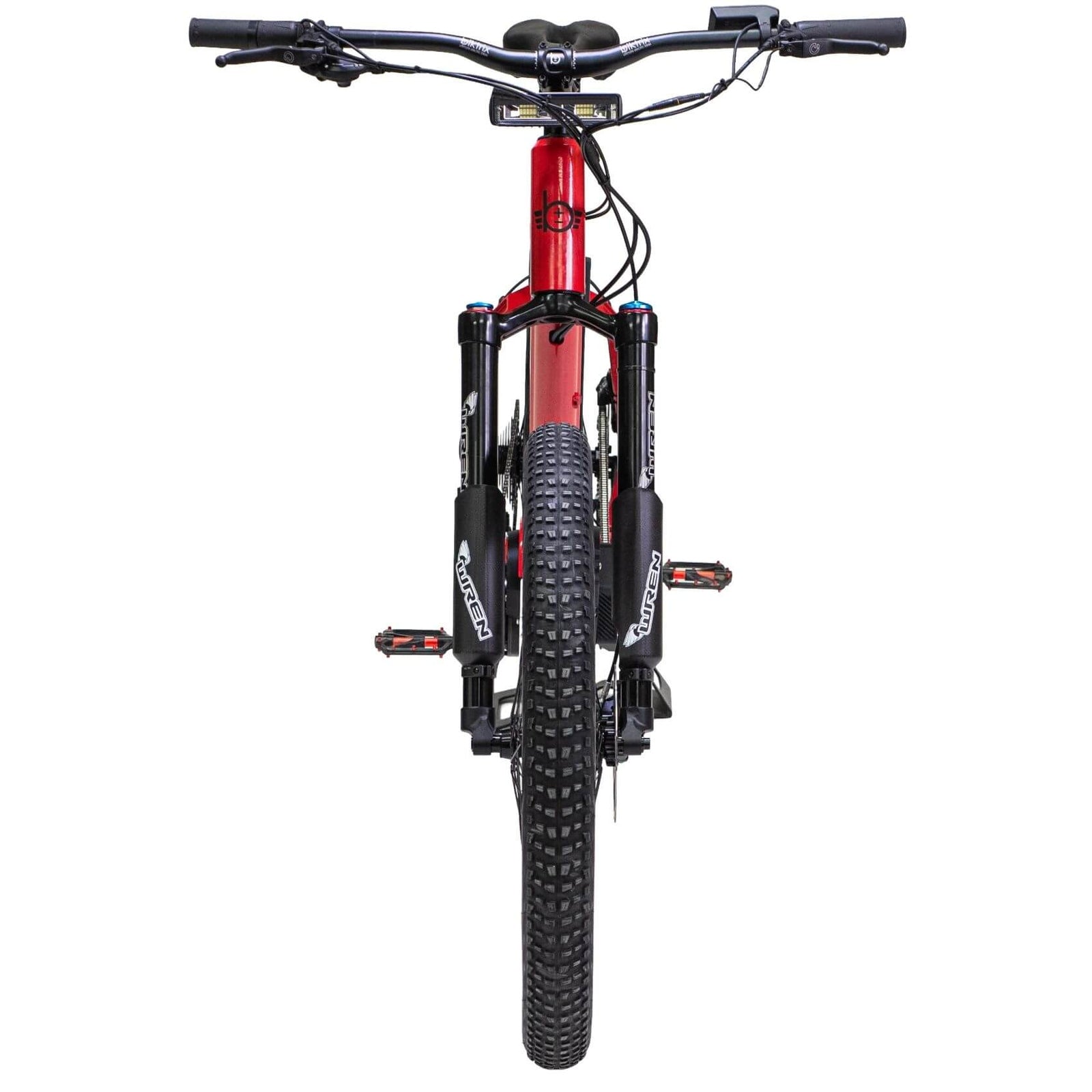

Wren Inverted Front Suspension Fork

The Wren Inverted Front Suspension Air Fork features 110mm of adjustable travel along with lockout and rebound adjustment.

Multiple Tire Size Options

Select from 3 different tire sizes to suit your own style of riding! The Ultra Eagle 2 is compatible and can be ordered with 27.5x3”, 26x4” or 26x4.8” tires!

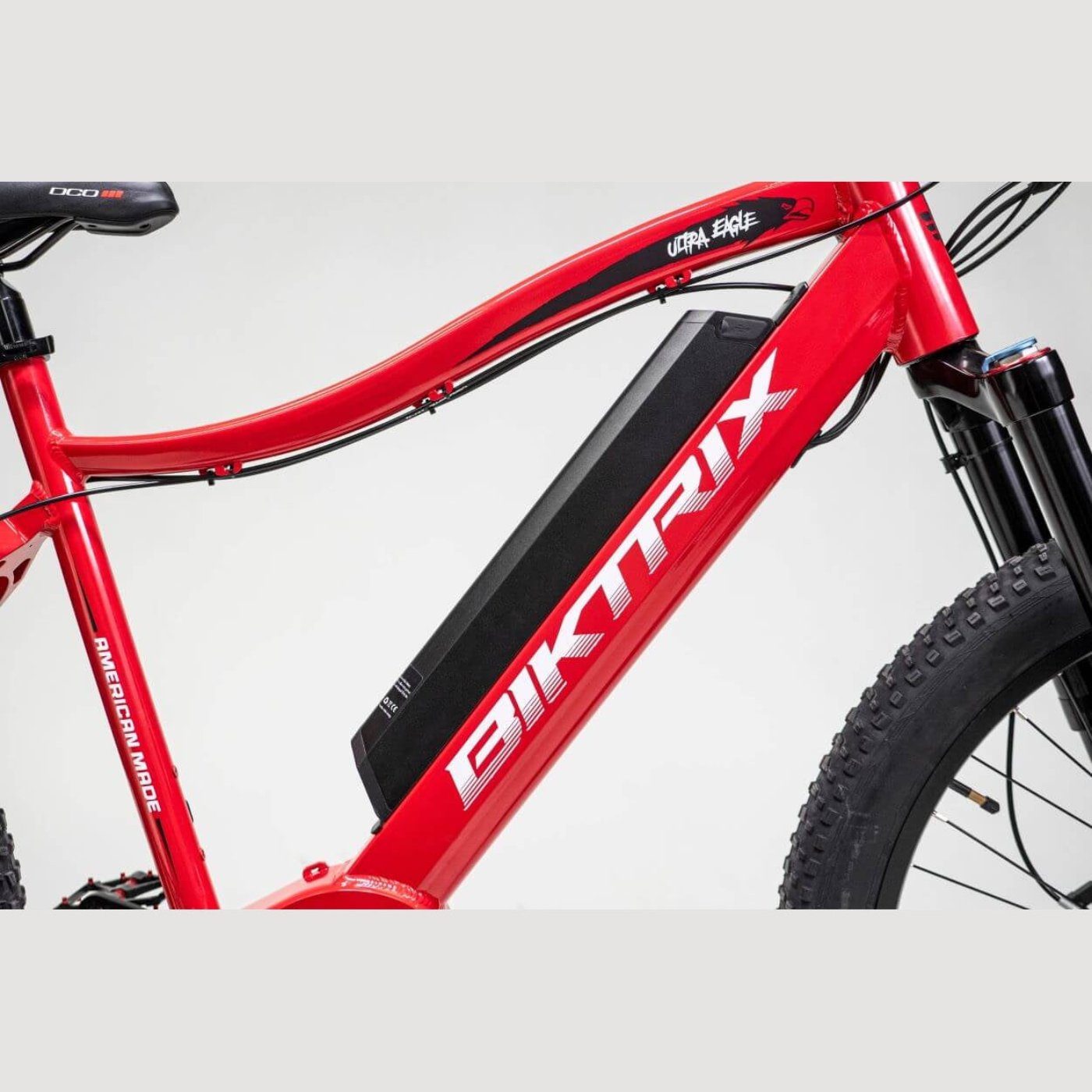

Removable Battery

Our removable battery system offers unmatched convenience for re-charging. With the twist of a key your battery can be removed from the bike to be brought inside for charging.

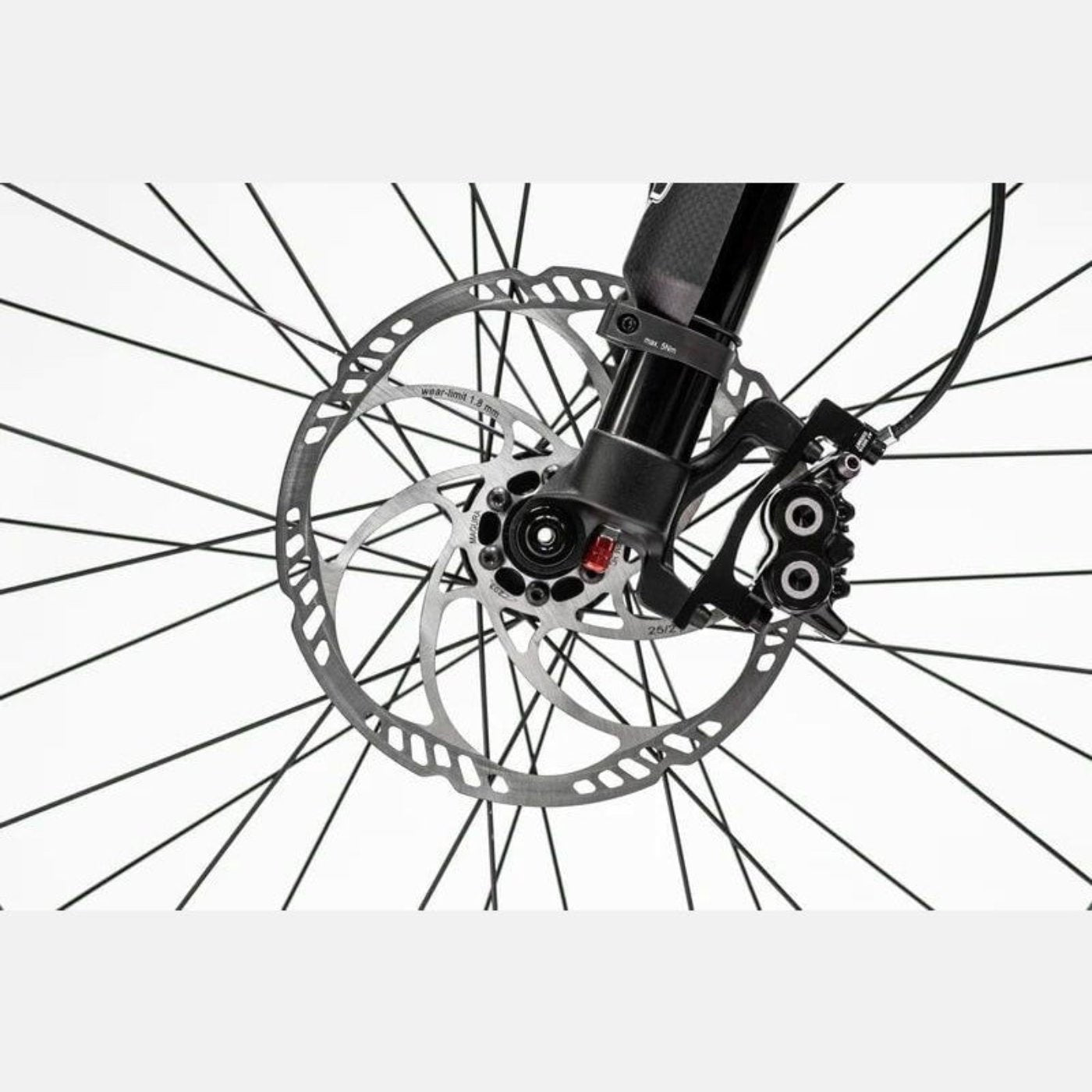

Magura MT5e Brakes

These Quad Piston brakes with 203mm rotors offer the ultimate stopping power for your machine. Integrated motor cutoffs

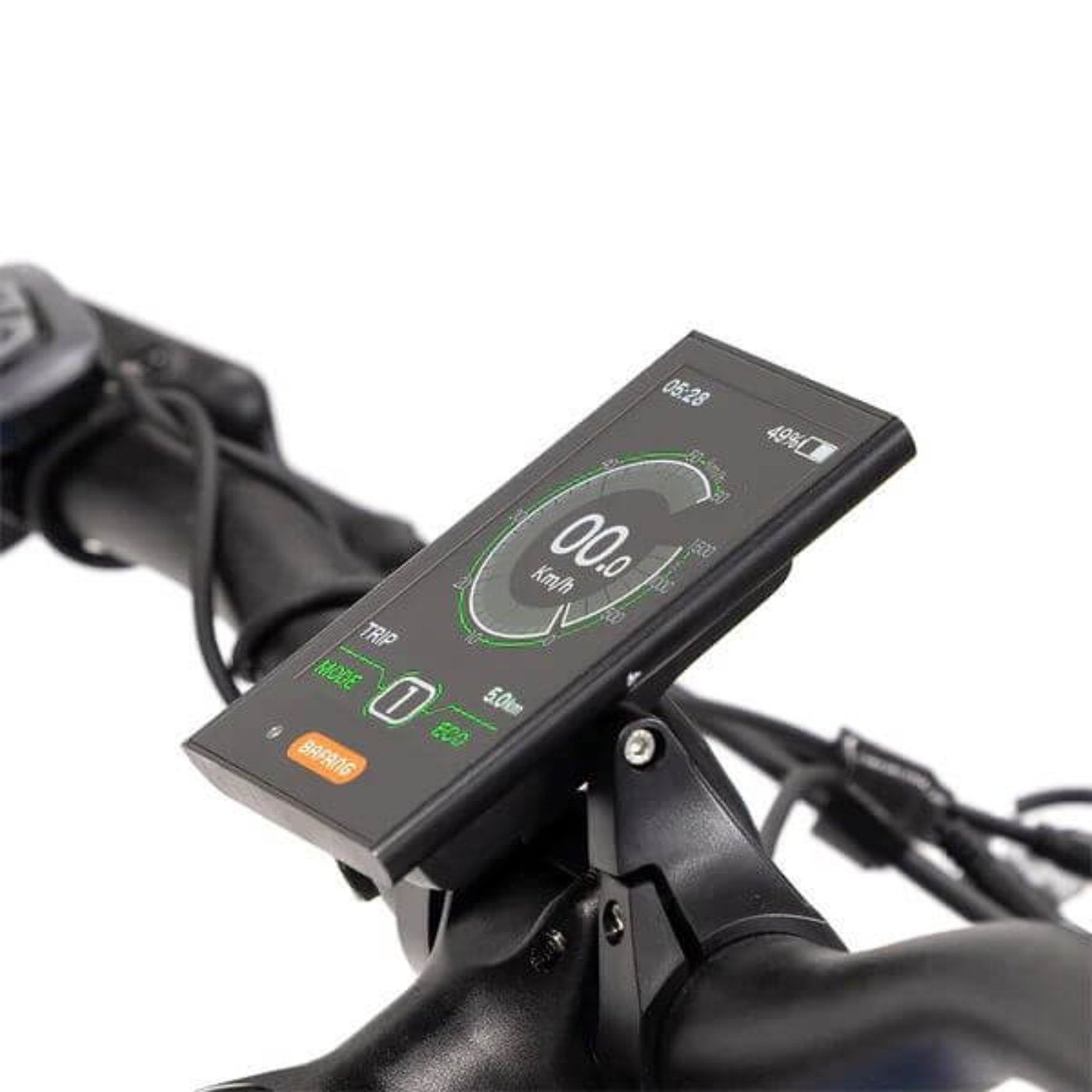

LCD Display

The Large, DPC-18 colour LCD screen clearly displays information such as speed, battery life, odometer, pedal assistance level and more.

The XD Motor option coms with the sleek, 500C Handlebar Mounted Display.

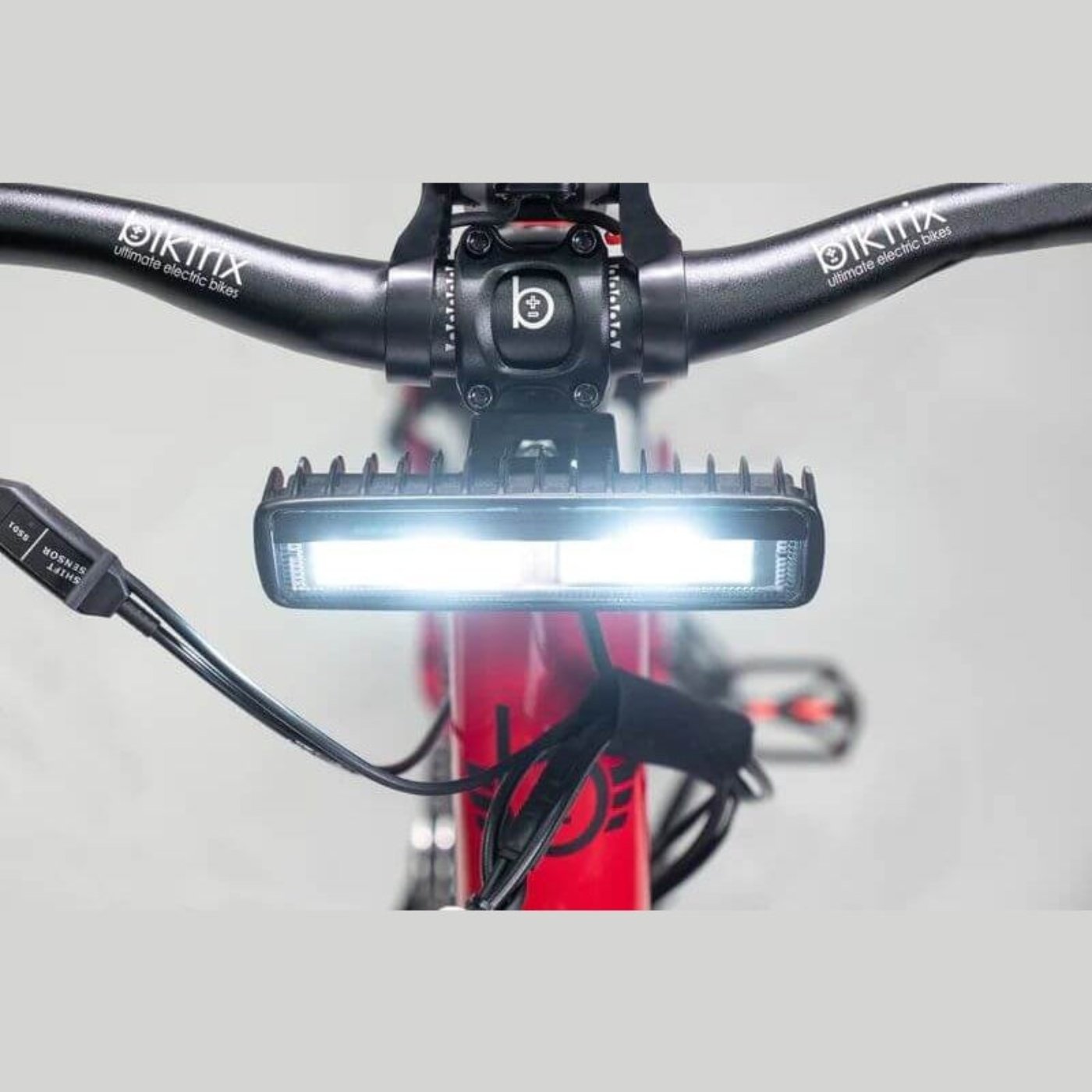

Armageddon Headlight

The Biktrix developed Armageddon Headlight utilizes 2000 Lumens of brightness to ensure your path stays lit up and bright!
Frame Made in USA, 6061 Aluminum
Front Hub 150mm 36h / 150mm 32h
Seat Post 31.6mm
Fork RST Renegade Coil Spring, 100mm Travel, Lockout & Preload
Front Axle 15mm Thru Axle
Seat Post Clamp QR (Quick Release)
Headset Threadless 1-1/2 to 1-1/8 Tapered
Rear Hub 197mm 36h / 197mm 32h
Motor Biktrix XD Dual Drive Motor
Shifter (Rear) SRAM NX 11-Speed Trigger Shifter
Rear Axle 12mm Thru Axle
Battery Sizes 48V 21Ah (1008Wh), 52V 17Ah (910Wh), 48V 25Ah (1200Wh)
Rear Derailleur SRAM NX 11-Speed
Rims 27.5x3" 36h, 26x4" 32h, 26x4.8" 32h
Display DS104
Cassette SRAM 11-42T
Tire Sizes 27.5x3", 26x4", 26x4.8"
Lights Biktrix Armageddon 2000 Lumen Headlight, Battery Taillight
Chain KMC X11e
Handlebar 31.8mm Clamp, 800mm Length, 30mm Rise
Assist Type Cadence
Crank Set 158mm Short Crank Arms, 44T Chainring (XD)
Stem 31.8mm Clamp, 100mm Fixed Stem
Assist Levels 0-5
Bottom Bracket High Strength Stainless Steel, Square Tapered
Grips MTB Grips
Throttle Twist Throttle
Brakes Tektro Dorado E730 Quad Piston, 203mm Front / 220mm Rear
Saddle DCO Classic MTB Saddle
Brake Levers Tektro Dorado 4-Finger, Adjustable Reach, Brake Cutoffs


1 Effective Top Tube Length 600mm 23.6in
2 Seat Tube Length (Classic Bike Size) 480mm 18.9in
3 Reach 480mm 18.9in
4 Stack 620mm 24.4in
5 Chainstay Length 530mm 20.9in
6 Standover Height 720mm 28.3in
7 Head Angle 66° -
8 Seat Angle 71° -
9 Head Tube Length 180 mm 7.1 in
10 Fork Length 510mm 20.1in
11 Front Center 760mm 29.9in
12 BB (Bottom Bracket) Drop 40mm 1.6in
13 Fork Offset 20mm 0.8in
14 Wheelbase 1290mm 50.8in
15 Total Length 2050mm 80.7in
16 Max Seat Height 1130mm 44.5in
17 Min Seat Height 890mm 35in
18 Handlebar Height 1100mm 43.3in
19 Weight (Without Battery) 21.6kg 47.6lb




1 Effective Top Tube Length 600mm 23.6in
2 Seat Tube Length (Classic Bike Size) 535mm 21.1in
3 Reach 480mm 18.9in
4 Stack 620mm 24.4in
5 Chainstay Length 530mm 20.9in
6 Standover Height 770mm 30.3in
7 Head Angle 66° -
8 Seat Angle 71° -
9 Head Tube Length 180 mm 7.1 in
10 Fork Length 510mm 20.1in
11 Front Center 760mm 29.9in
12 BB (Bottom Bracket) Drop 40mm 1.6in
13 Fork Offset 20mm 0.8in
14 Wheelbase 1290mm 50.8in
15 Total Length 2050mm 80.7in
16 Max Seat Height 1190mm 46.9in
17 Min Seat Height 950mm 37.4in
18 Handlebar Height 1120mm 44.1in
19 Weight (Without Battery) 21.8kg 48.1lb



 
