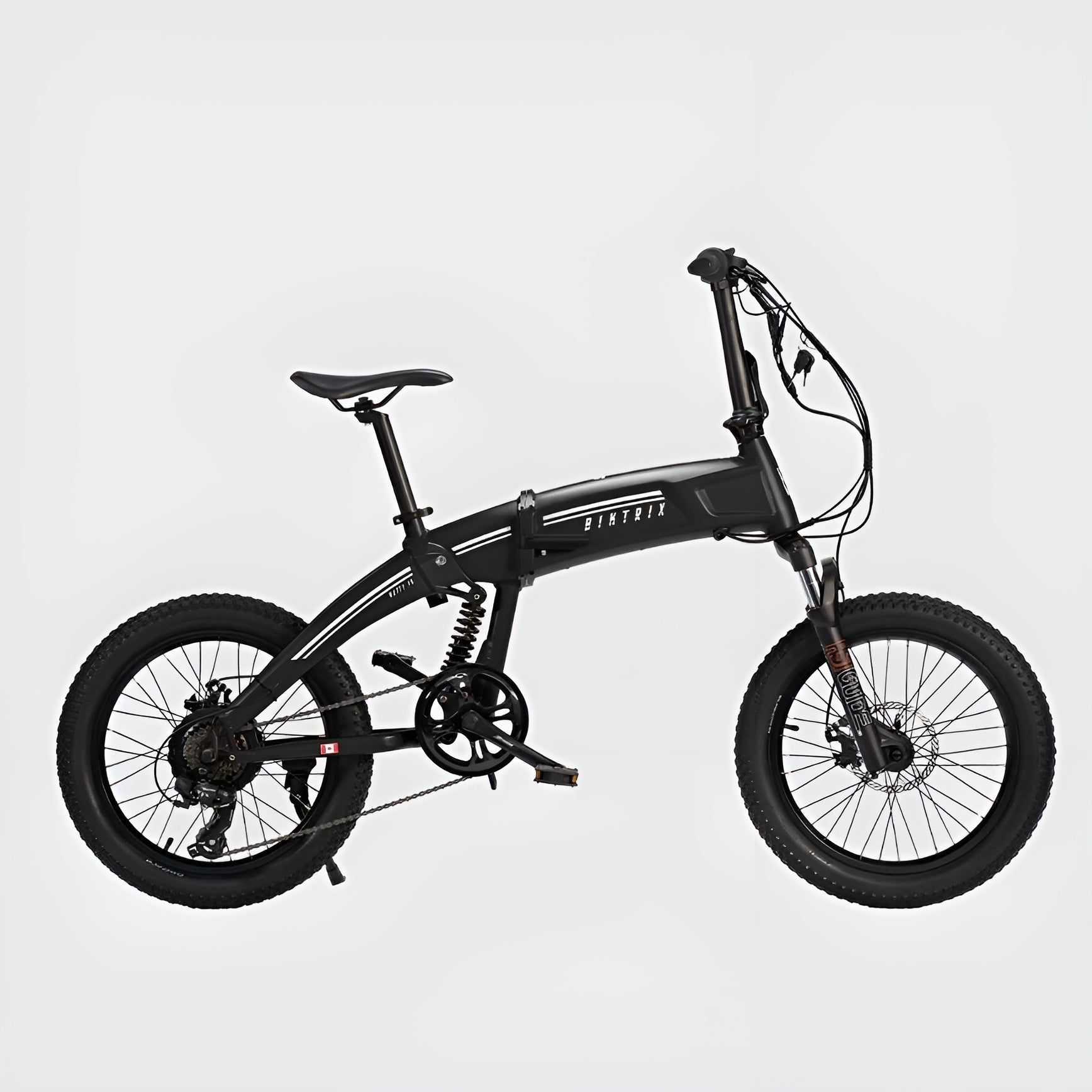

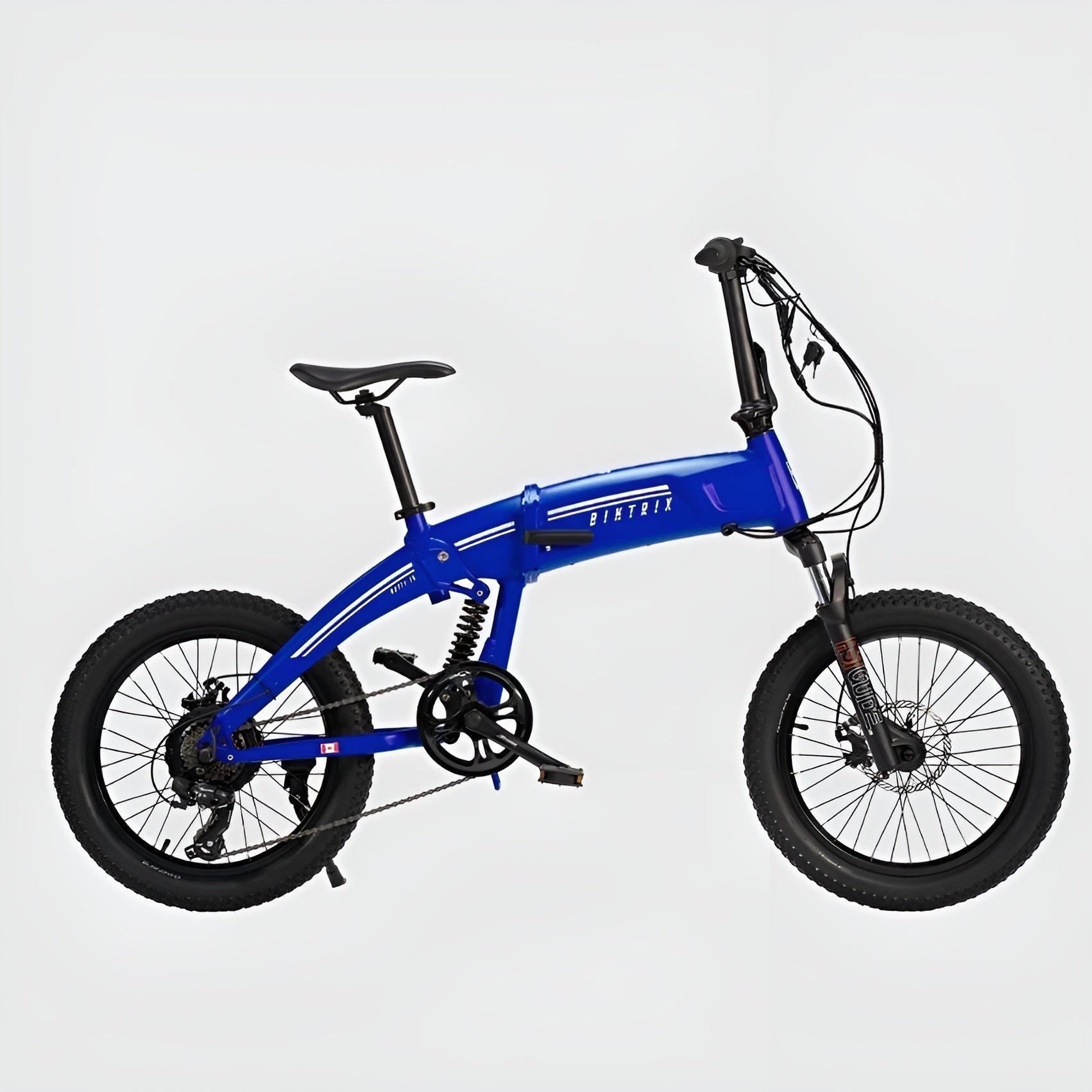

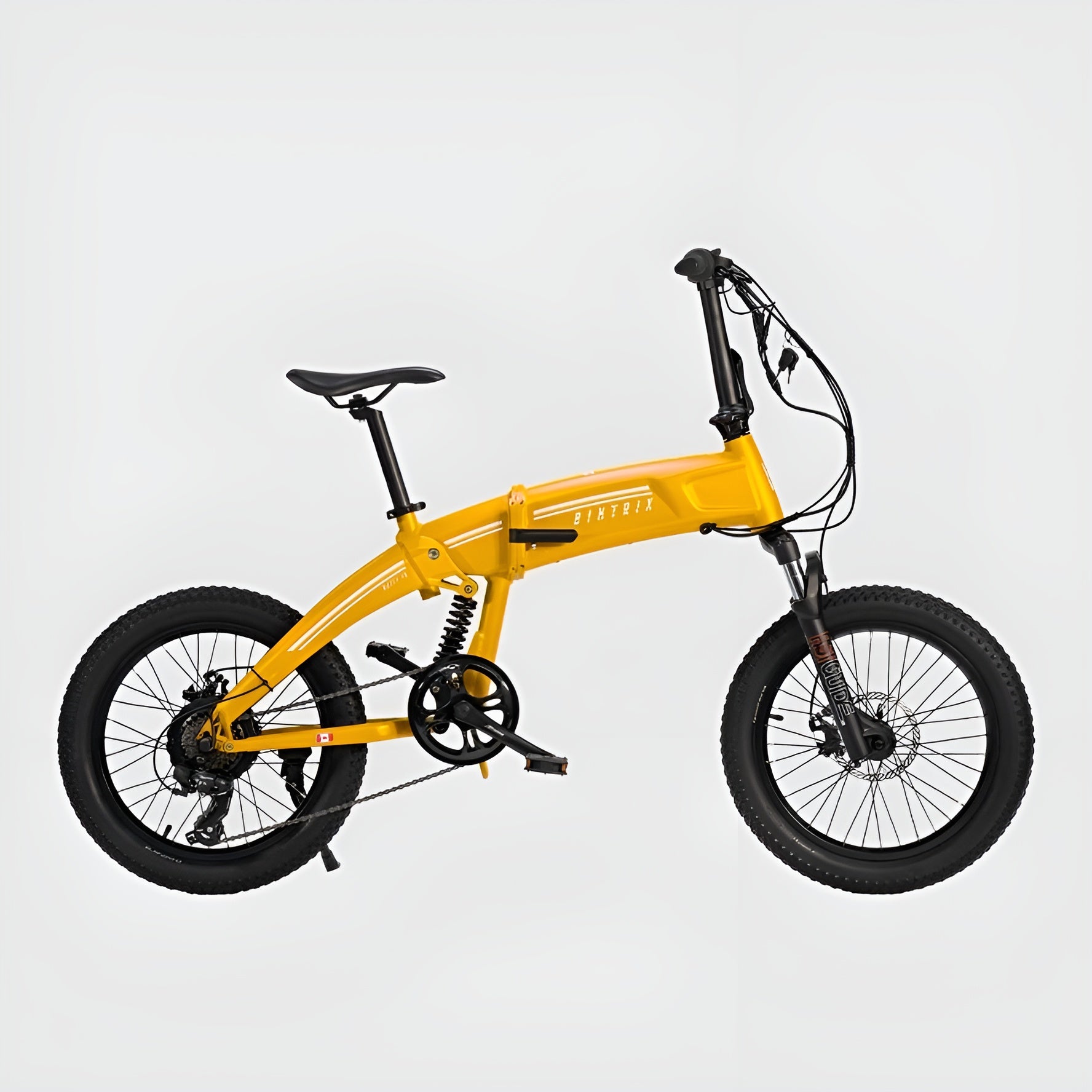

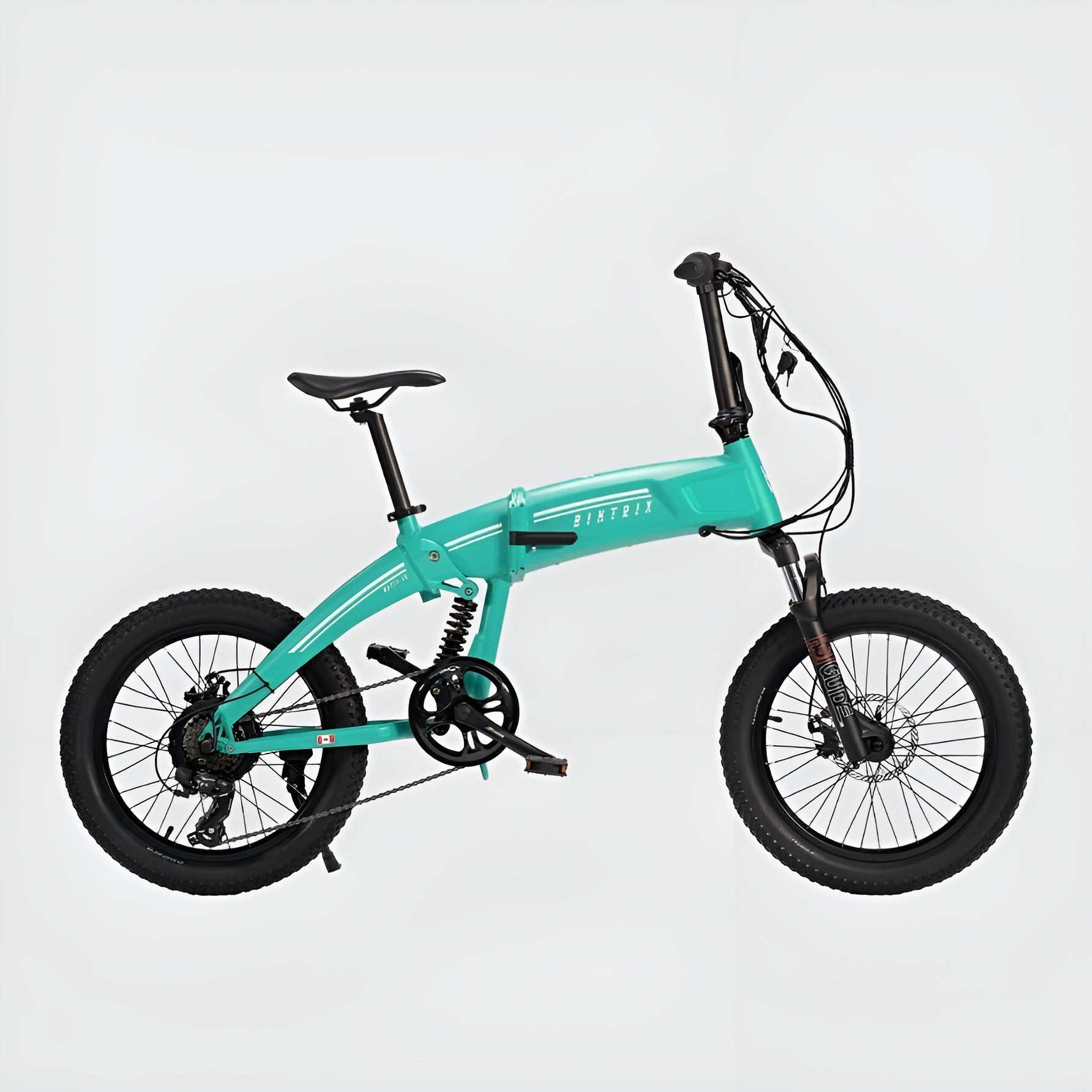

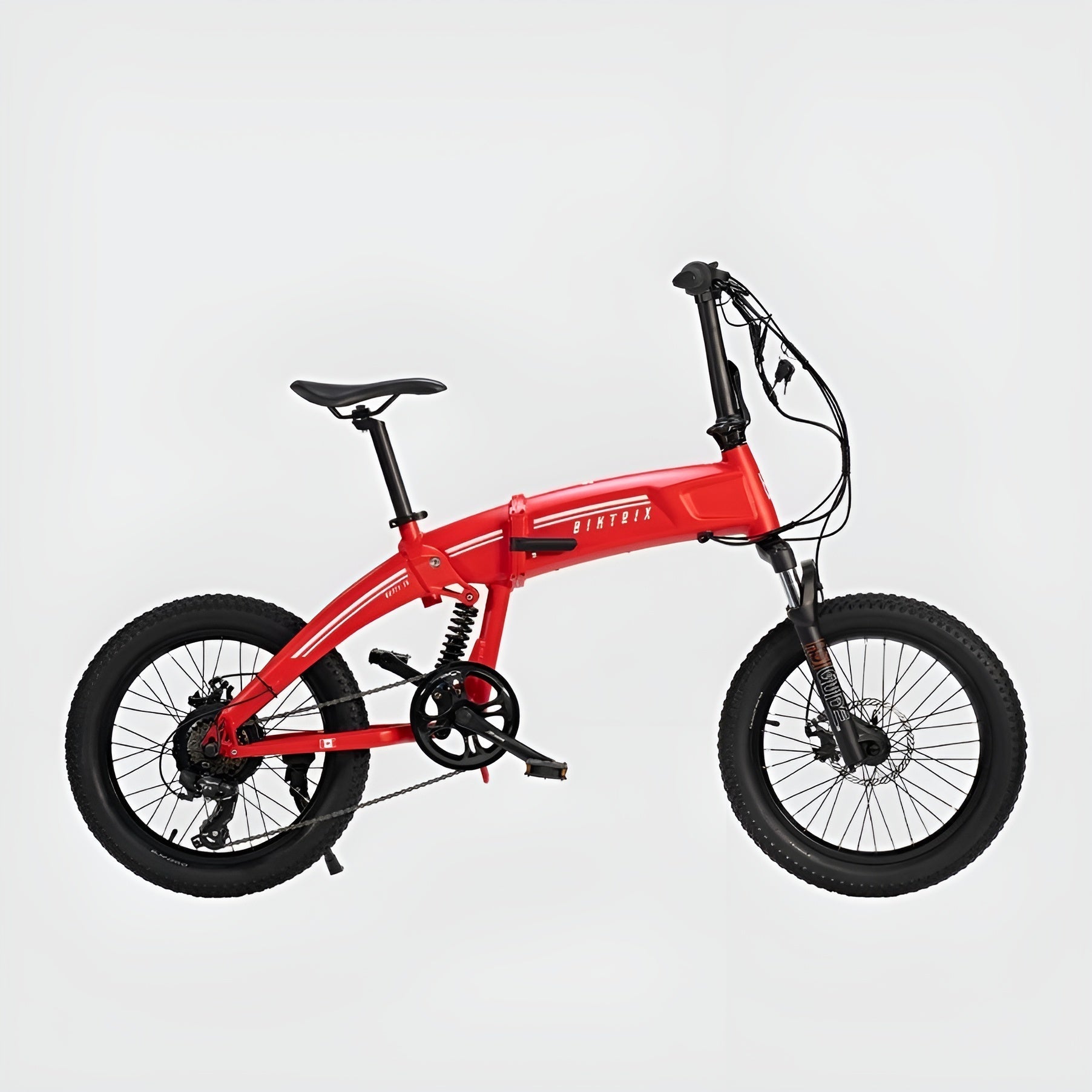

Biktrix 2024 Kutty FS 36V Folding Step-Through Electric Bike
The Biktrix Kutty FS is the ultimate folding electric bike. Back by popular demand and now with front and rear suspension. The 250W hub-motor and 36V 13Ah battery provide the Kutty FS with the perfect amount of assist for commuting to work, cruising to school,
or sight-seeing around the city.
Features
Folding Frame
For ultimate convenience the Kutty FS can fold up into small form factor to store in your car, RV, or corner of the office
Bafang Hub-Drive Motor
Dependable and smooth, the 250W Bafang hub-drive motor will effortlessly get you where you need to go
Rear Suspension
New to the Kutty line is the rear suspension! Soak up bumps in the road and arrive to your destination feeling fresh
Shimano 7-Speed Drivetrain
The Shimano 7-speed drivetrain has you covered from climbing hills to picking up max speed on the flats
Display & Control Pad
See your bike's remaining battery and change the levels of pedal assist with the built-in controls
20" x 3.0" Tires
The 20 inch tires are nimble and grippy to conquer the city paths
Front Suspension Fork
The RST Guide suspension fork provides 60mm of travel with pre-load, lockout, and rebound adjustability
Disc Brakes
When it's so easy to go fast, you need strong stopping power. These disc brakes will quickly and reliably bring you to a halt
Thumb Throttle
With just a push of the thumb, you can access all of the power the motor has to offer. No need to pedal, just sit back and enjoy the ride
Specifications
COMPONENT |
SPECIFICATION |
COMPONENT |
SPECIFICATION |
FRAME |
6061 ALUMINUM FOLDABLE |
BRAKES |
ARTEK MECHANICAL BRAKES W/ 160MM ROTORS |
FORK |
RST GUIDE, 80MM TRAVEL |
BRAKE LEVERS |
ARTEK W/ BRAKE CUTOFF SWITCH |
HEADSET |
THREADLESS 1-1/8 STRAIGHT |
HANDLEBAR |
25.4MM CLAMP, 610MM WIDE |
SHIFTER REAR |
SHIMANO REVOSHIFT 7 SPEED TWIST SHIFTER |
STEM |
FOLDING W/ HEIGHT ADJUSTMENT |
REAR DERAILLEUR |
SHIMANO TOURNEY 7 SPEED |
GRIPS |
SLIDE-ON |
CASSETTE |
SHIMANO 13-28T |
SEAT POST |
30.9MM |
CHAIN |
KMC Z7 |
SEAT POST CLAMP |
QR |
CRANK SET |
180MM ARMS, 44T CHAINRING |
SADDLE |
NARROW |
BOTTOM BRACKET |
115MM SQUARE TAPER |
MOTOR |
250W REAR HUB |
FRONT HUB |
135MM 36H |
DISPLAY |
3 BUTTON STATIC DISPLAY |
FRONT AXLE/SKEWER |
5MM QR |
LIGHTS |
N/A |
REAR HUB |
MOTOR |
THROTTLE |
THUMB THROTTLE |
REAR AXLE/SKEWER |
BOLT ON |
ASSIST LEVELS |
0-3 |
RIMS |
BLACK 36H 30MM WIDE |
ASSIST TYPE |
CADENCE |
TIRES |
20X3" |
OTHER |
FOLDING PEDALS, EXAFORM 290 REAR SPRING SUSPENSION |
Size & Fitting
1 |
Effective Top Tube Length |
560 mm |
22 inches |
2 |
Seat Tube Length (Classic Bike Size) |
170 mm |
6.7 inches |
3 |
Reach |
480 mm |
18.9 inches |
4 |
Stack |
440 mm |
17.3 inches |
5 |
Chainstay Length |
450 mm |
17.7 inches |
6 |
Standover Height |
650 mm |
25.6 inches |
7 |
Head Angle |
70 ° |
- |
8 |
Seat Angle |
72 ° |
- |
9 |
Head Tube Length |
170 mm |
6.7 inches |
10 |
Fork Length |
420 mm |
16.5 inches |
11 |
Front Center |
710 mm |
28 inches |
12 |
BB (Bottom Bracket) Drop |
-70 mm |
-2.8 inches |
13 |
Fork Offset |
30 mm |
1.2 inches |
14 |
Wheelbase |
1170 mm |
46.1 inches |
15 |
Total Length |
1730 mm |
68.1 inches |
16 |
Max Seat Height |
1000 mm |
39.4 inches |
17 |
Min Seat Height |
760 mm |
29.9 inches |
18 |
Handlebar Height |
1170 mm |
46.1 inches |
19 |
Weight (Without Battery) |
18.1 kg |
39.9 lb |
What Our Experts Think
-
Compact & Foldable: The folding design makes it easy to store and transport, perfect for commuters or those with limited storage space.
-
Step-Through Frame: The accessible step-through frame allows for easy mounting and dismounting, ideal for riders of all abilities.
-
36V Motor & Battery: Equipped with a 36V motor, it delivers smooth power for urban commutes and leisure rides, with a reliable battery offering decent range.
-
Versatile Ride: Ideal for both city streets and light off-road paths, with sturdy tires and responsive handling for various terrains.
-
Convenient Features: Includes a user-friendly control panel, comfortable seat, and ergonomic handlebars for an enjoyable ride.
-
Space-Saving Design: Its folding nature ensures it’s easy to store in small spaces, such as apartments, cars, or offices.
-
Durability & Portability: Despite its compact size, it’s built with quality materials,
Q&A
Q: What is the Biktrix 2024 Kutty FS 36V Folding Step-Through Electric Bike?
A: The Biktrix 2024 Kutty FS is a compact, folding electric bike with a 36V battery, designed for easy storage and transport. It features a step-through frame for comfortable mounting and dismounting, making it perfect for urban commuting or short trips.
Q: What are the key features of the Biktrix 2024 Kutty FS Folding Electric Bike?
A: Key features include a folding frame for easy storage, 36V battery for reliable power, step-through design for easy access, a powerful motor for smooth riding, and a lightweight build for portability and convenience.
Q: What is the range of the Biktrix 2024 Kutty FS Electric Bike?
A: The bike offers a range of up to 30-40 miles per charge, depending on factors such as rider weight, terrain, and speed settings.
Q: How fast can the Biktrix 2024 Kutty FS go?
A: The bike can reach speeds of up to 20 mph (32 km/h), making it suitable for commuting and casual rides.
Q: Is the Biktrix 2024 Kutty FS suitable for off-road riding?
A: The Kutty FS is primarily designed for urban and light off-road use. It is best suited for smooth trails and city streets but can handle some light gravel or uneven terrain.
Q: How long does it take to charge the Biktrix 2024 Kutty FS battery?
A: The battery takes approximately 4-6 hours to fully charge, depending on the charger and battery level.
Q: What is the weight of the Biktrix 2024 Kutty FS Folding Electric Bike?
A: The bike weighs around 40-45 lbs (18-20 kg), making it relatively light and easy to carry when folded.
Q: Does the Biktrix 2024 Kutty FS come with a warranty?
A: Yes, the bike includes a limited warranty. Please check with the retailer for detailed warranty information.
Q: Can I customize the Biktrix 2024 Kutty FS with accessories?
A: Yes, the bike is compatible with various accessories such as lights, racks, and fenders to enhance your riding experience.
Q: Is the Biktrix 2024 Kutty FS easy to fold and store?
A: Yes, the folding mechanism is designed to be quick and easy, allowing you to fold and store the bike in tight spaces, such as car trunks or closets.
Maintenance Tips
-
Charge the Battery Regularly: Keep the battery charged, ideally between 20-80%. Avoid letting it fully discharge or overcharge to preserve its lifespan.
-
Clean the Bike: Regularly clean the frame, wheels, and motor using a mild detergent and soft cloth. Avoid spraying water directly on the electrical components.
-
Check Tire Pressure: Maintain proper tire pressure for a smooth and efficient ride. Under-inflated tires can cause strain on the motor and reduce battery life.
-
Lubricate the Chain: Apply lubricant to the chain periodically, especially after riding in wet or muddy conditions, to ensure smooth shifting and prevent rust.
-
Inspect Brakes: Regularly inspect brake pads for wear and ensure the brakes are functioning properly. Adjust or replace as needed.
-
Check Folding Mechanism: Ensure that the folding mechanism is secure and operating smoothly. Periodically lubricate the hinges to prevent wear and ensure easy folding/unfolding.
-
Motor and Wiring: Inspect the motor and wiring connections for any signs of damage or loose connections. Tighten or replace components as necessary.
-
Suspension Maintenance: If the bike has a suspension fork, check it for proper alignment and lubrication. Clean the fork regularly to maintain comfort and performance.
-
Store Properly: When not in use, store the bike in a dry, cool place. If storing for extended periods, charge the battery to around 50% and disconnect it from the bike.
