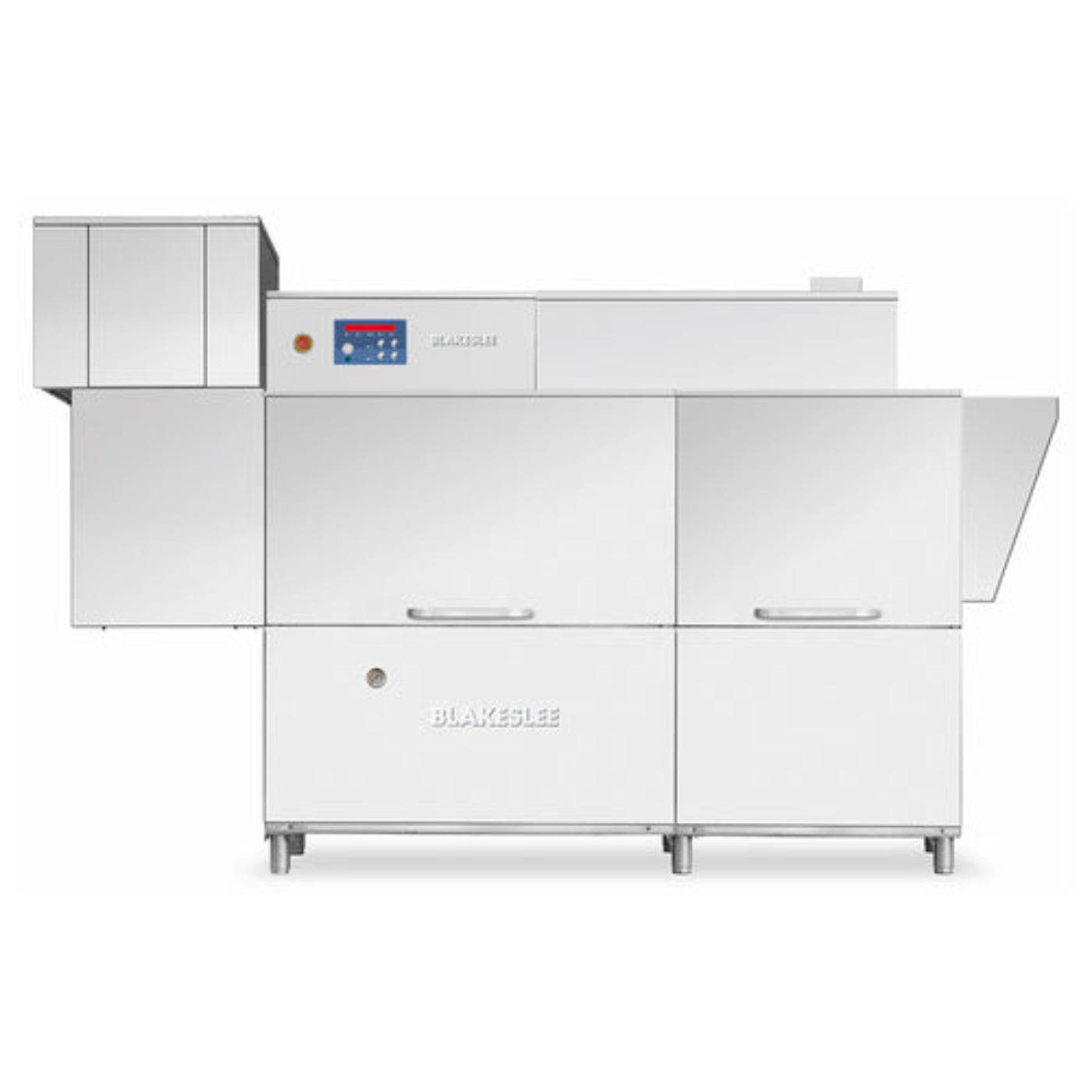

Blakeslee RC-86HDR Conveyor Dishwashers

Blakeslee RC-86HDR Conveyor Dishwashers

Dishwasher, conveyor type, with prewash & double rinse, 114"W, double tank, 340 racks per hour, 22.45 gallons wash tank capacity, electronic soft touch control panel, auto timer, blow dryer & heat recovery systems, self-cleaning wash pump, built-in clutch, vacuum breaker, insulated double skin door, stainless steel washing arms & tank filters, 316 stainless steel tank & boosters, includes baskets, stainless steel construction, 14kW electric tank heat, 42kW booster power, cETLus, ETL-Sanitation, IPX5

Specifications

What our Experts Think

• High Capacity: Cleans up to 340 racks per hour, making it perfect for high-volume operations and large kitchens.

• Dual Tank System: Features a 22.45-gallon wash tank and double-skin insulated rinse tank for efficient cleaning and heat retention.

• Advanced Heating: Equipped with a 14kW electric tank heater and a 42kW booster heater, ensuring consistent high-temperature washing and sanitizing.

• Energy Efficiency: The integrated heat recovery system helps reduce energy consumption by up to 20%, lowering operational costs.

• User-Friendly Controls: Digital soft-touch control panel with an auto timer and water-resistant protection for enhanced durability and ease of use.

• Robust Construction: Built with 316 stainless steel tanks and boosters, offering durability, resistance to corrosion, and long-lasting performance.

• Optional Features: Available with a blower dryer or heat recovery system for better drying and further energy efficiency.

Q&A

Q: What is the rack capacity of the Blakeslee RC-86HDR?
A: The RC-86HDR can process up to 340 racks per hour.

Q: What are the dimensions of this dishwasher?
A: The unit measures 114" (W) x 31.6" (D) x 74" (H).

Q: What is the wash tank capacity?
A: It has a wash tank capacity of 22.45 gallons (85 liters).

Q: What type of rinse booster does it use?
A: The dishwasher includes an 18kW final rinse booster.

Q: Does it have a heat recovery system?
A: Yes, it features a heat recovery system to reduce energy consumption.

Q: What is the electrical specification?
A: The RC-86HDR operates on 208V/60Hz/3-phase power, drawing 223.6 amps and consuming 78.6kW.

Q: What certifications does it have?
A: It is ETL and cETLus certified, meeting safety and sanitation standards.

Maintenance Tips

• Daily Cleaning:

• Turn off the machine and water supply.

• Remove and clean the filter with a brush under running water.

• Detach and rinse the wash and rinse arms thoroughly.

• Clean the interior with an appropriate cleaning product.

• Reassemble all components and leave the door slightly ajar overnight to allow it to dry.

• Weekly Maintenance:

• Inspect and clean the inlet filter of the solenoid valve.

• Check for mineral buildup on heating elements and descale if necessary.

• Examine gaskets for wear and replace if needed.

• Test the detergent and rinse aid dispensers to ensure they are dispensing properly.

• Avoid Harmful Chemicals:

• Do not use bleach or chlorine-based detergents, as these can damage the machine.

• Professional Servicing:

• Schedule an annual inspection by a professional technician to ensure the unit continues to operate efficiently.
