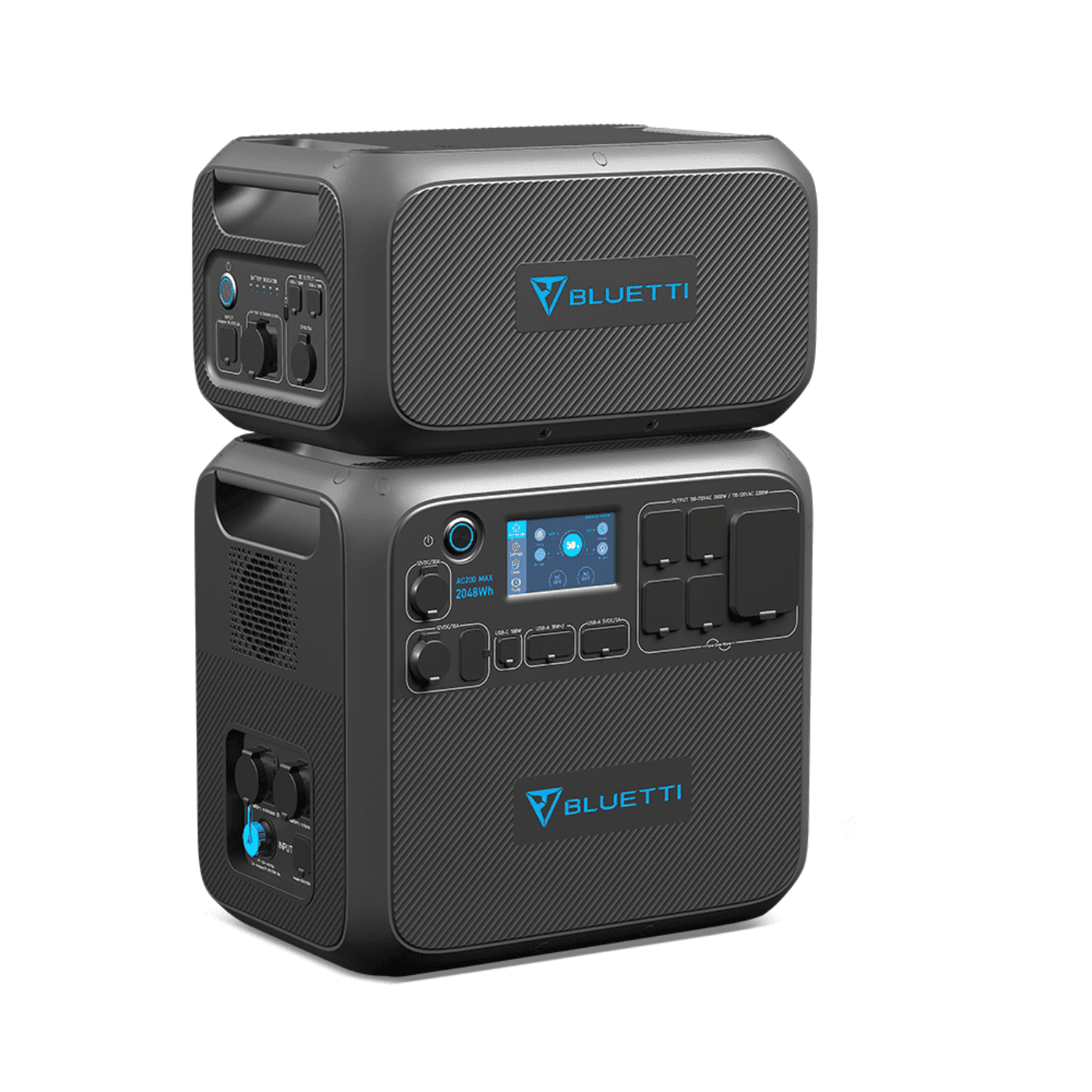

BLUETTI AC200MAX + 1*B230 | Home Battery Backup - AC200MAX+B230

by Bluetti
SKU AC200MAX+B230
Save 6% Save 6%
Original price $3,698.00
Original price $3,698.00 - Original price $3,698.00
Original price $3,698.00
Current price $3,458.00
$3,458.00 - $3,458.00
Current price $3,458.00
  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.


It's Clean, It's Efficient, And It's Intelligent. More Importantly, It Packs An Incredible Amount Of Power Into A Small, Easy-To-Transport Kit!

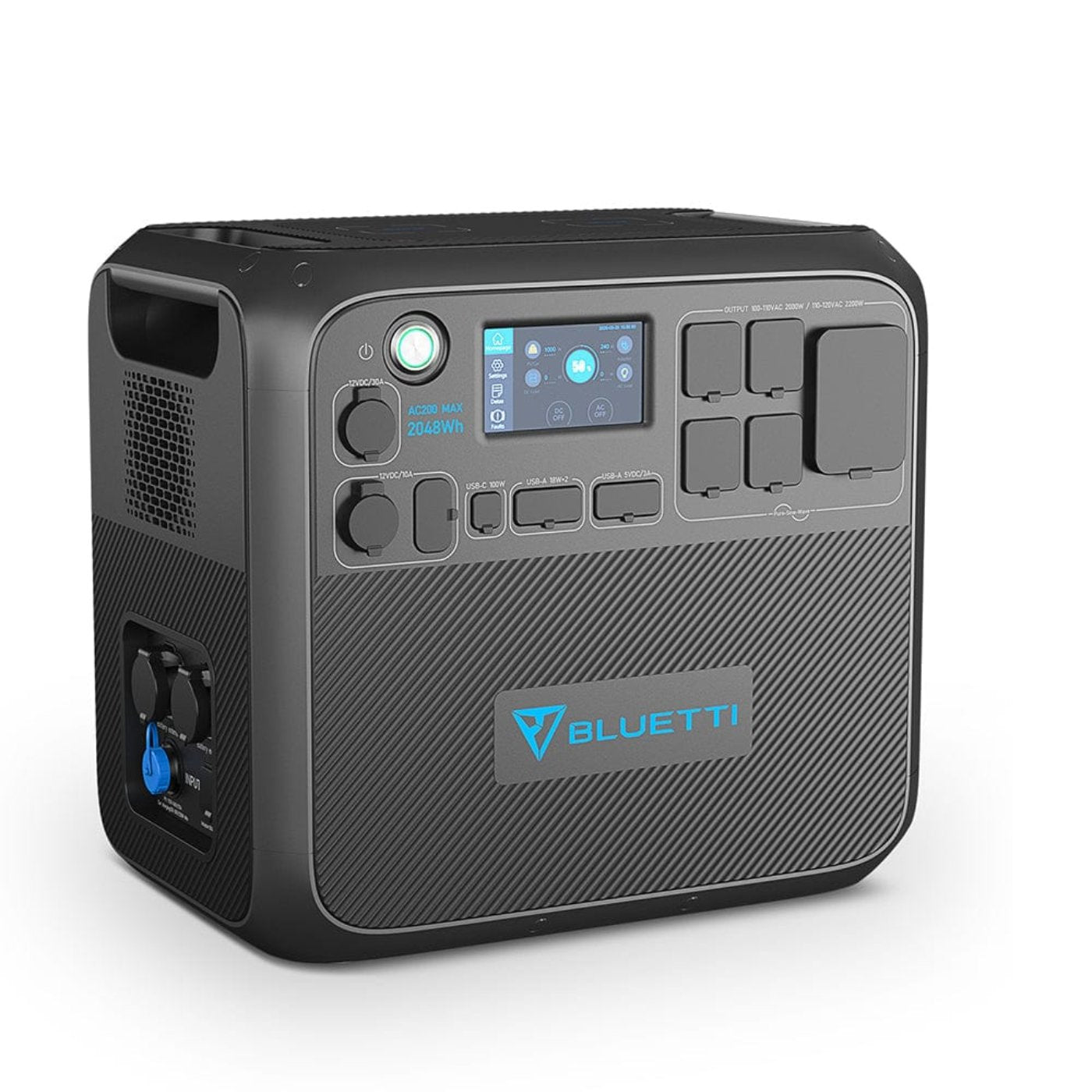

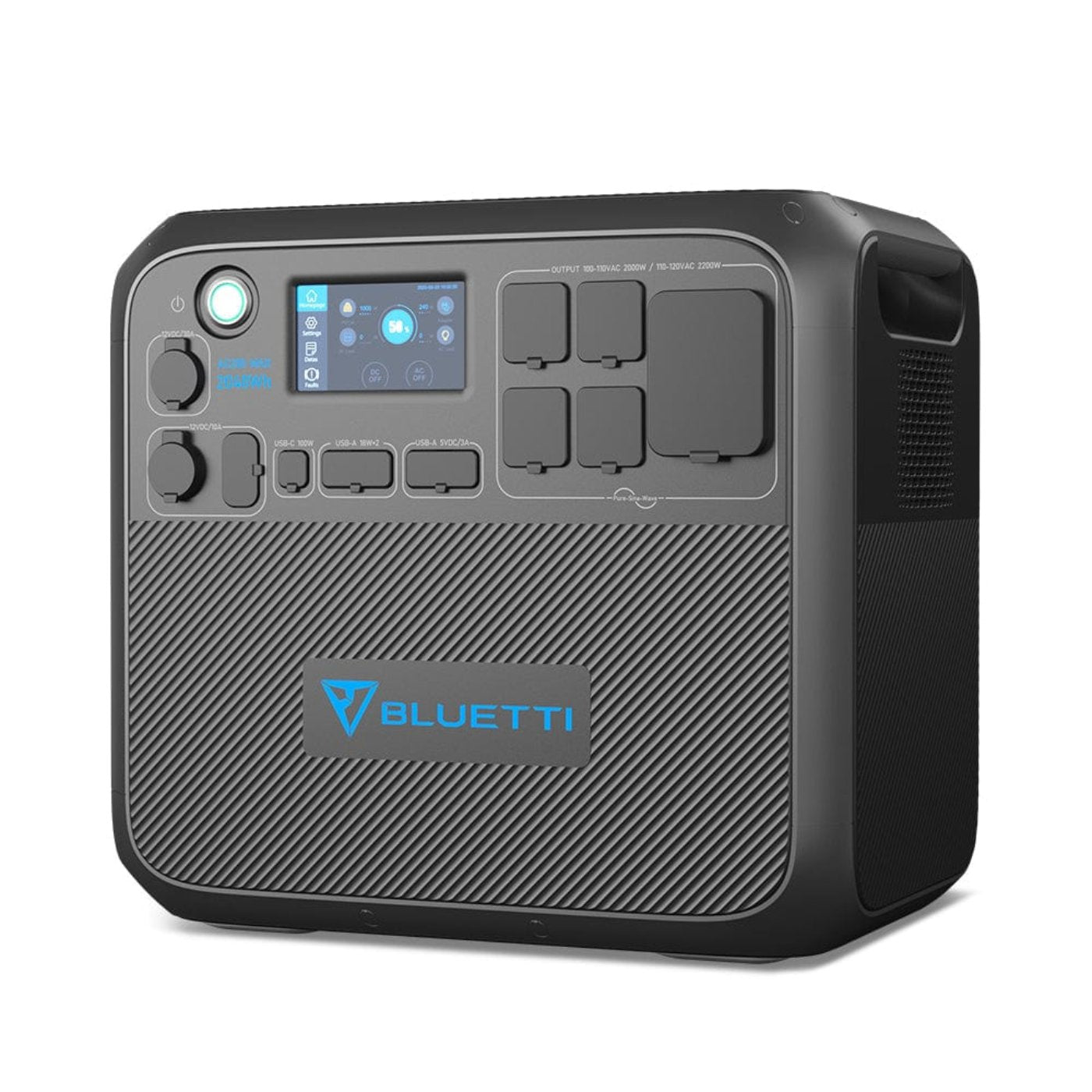

Small Change, Huge Leap - The first modular, expandable Bluetti power station. Packed with an astonishing 2048Wh ultra-durable LFP cells and a 2,200W full power pure sine wave inverter, the AC200MAX can be your mobile recharge center off-the-grid or on the way.

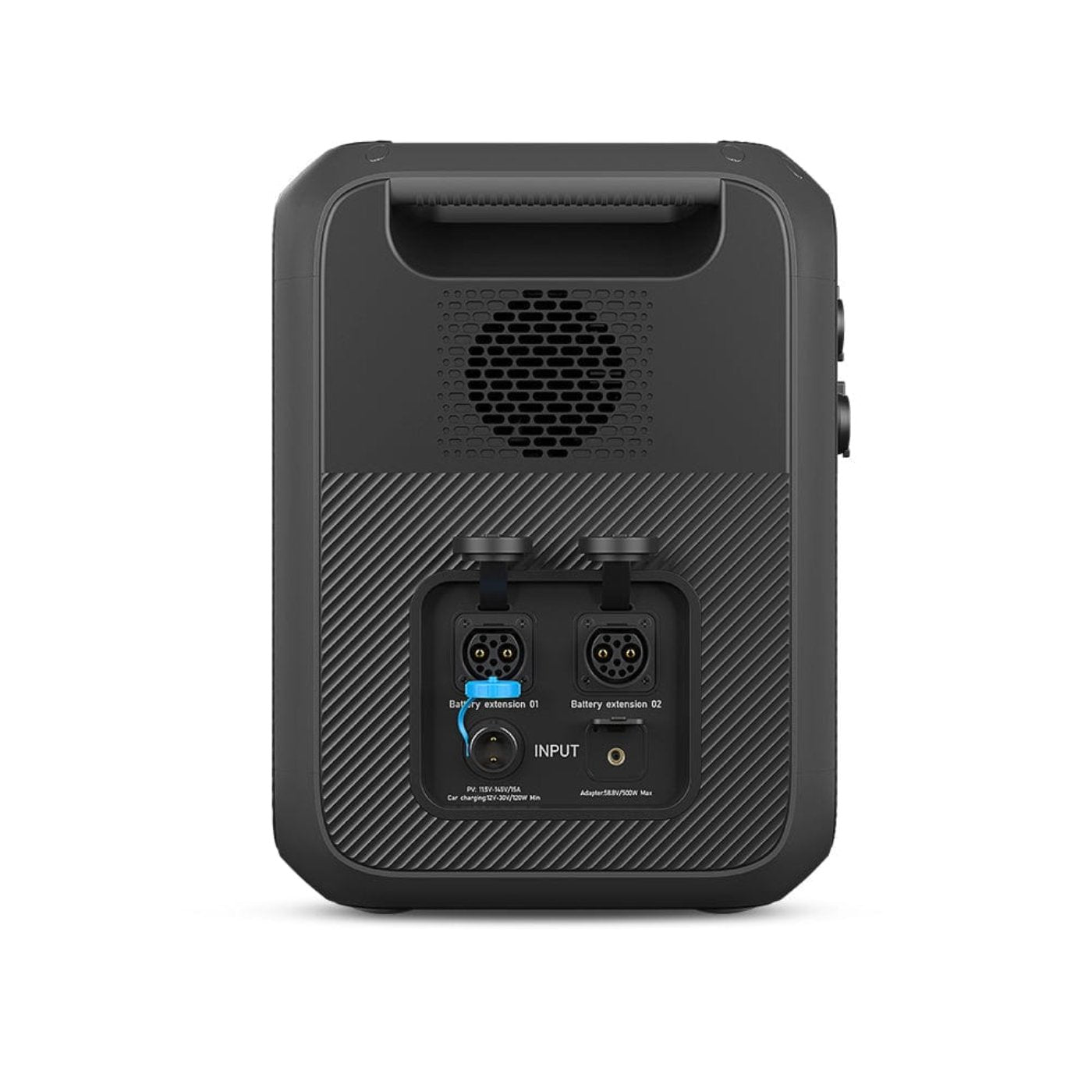

Less To Spend, More To Love - Struggling between power and flexibility? We got you covered! With two expansion ports, The AC200MAX welcomes up to two BLUETTI B230’s(2048Wh each) or B300(3072Wh each) battery modules, connecting of which can boost the total capacity to a staggering 8192Wh!

Get Charged In Anyway You Prefer - The AC200MAX allows up to 900W of solar input and 500W via the adapter, you can even charge it up via your wall outlet and solar panels simultaneously, boost a stunning 1400W total charging rate which can top up your power beast in less than two hours! Further more, every Bluetti battery module has their own input port for AC adapters, you’ll get another 500W of input capability with every module added (Up to two for the AC200MAX).

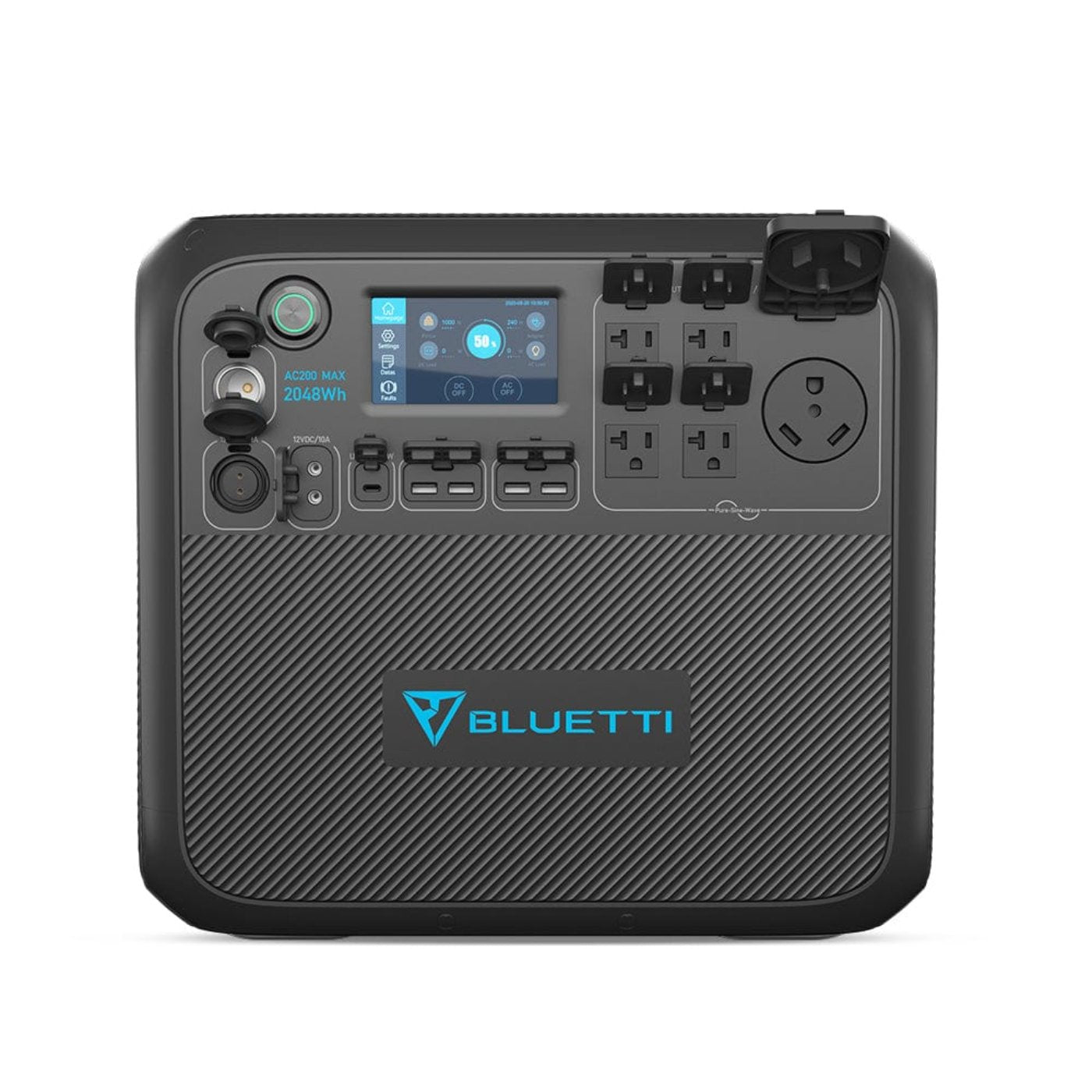

Incomparable Outlet Versatility - With AC200MAX’s 16 outlets, you get to run all your needs simultaneously without breaking a sweat. And especially for the RV enthusiasts the AC200 MAX has a specially designed built-in 30A NEMA TT-30 outlet and a 12V 30A super powerful DC outlet.

View the BLUETTI AC200MAX + 1*B230 | Home Battery Backup - AC200MAX+B230 features below:

  • 2,200W AC Pure Sine Wave Inverter (4,800W Surge)

  • 2,048Wh Capacity

  • LiFePO4 Battery with 3,500+ Life Cycles to 80%

  • Expandable Up To 6,144Wh with 2×B230, or 8,192Wh with 2×B300

  • 7 Ways to Recharge (AC/Solar/Car/Generator/Lead Battery/Dual AC/AC+Solar)

  • 900W Max. Solar Input

  • 1400W Max. Fast Dual Charging (Solar + AC Adapter)

  • Smart Control & Monitor in BLUETTI App
BATTERY INFO
Capacity 2,048Wh (51.2V, 40Ah)
Type LiFePO4 (Lithium Iron Phosphate)
Life Cycles 3,500+ Cycles to 80% Original Capacity
Shelf-life Recharge to 80% Every 3-6 Months
Management System MPPT Controller, BMS, etc
OUTPUT
AC Outlets 4 x 120V/20A Outlets
1 x 120V/30A NEMA TT-30
2200W In Total
Inverter Type Pure Sine Wave
Surge Power 4800W
USB-C Port 2 x 5V/3A USB-A
2 x 18W USB-A
12V DC Outlets
1 x 12V/30A (RV Outlet)
1 x 12V/10A (Car Outlet)
2 x 12V/10A DC 5521 (5.5mm Outlet)
*All Regulated.
Wireless Charging Pad 2 x 15W Max. (For Each)
INPUT
AC Adapter Input 500W.
Solar Input 900W Max., VOC 10-145VDC, 15A
Car Input 12/24V from Cigarette Lighter Port
Max Input 1,400W, with AC+Solar Input
RECHARGE TIME
AC Adapter (400W) ≈5.5~6 Hours
Solar (900W) ≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature)
12V/24V Car Outlet (100W/200W) ≈10 or 20 Hours
AC Adapter + Solar (1300W) ≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature)
Dual AC Adapters (800W) ≈3~3.5 Hours (Extra adapter is REQUIRED)
GENERAL
240V Split Phase Bonding No. Need 240V power source? Explore here.
Scalability Expandable w/ Up to 2 x B230 or 2 x B300
Pass-through Charging Yes
Weight 61.9lbs (28.1kg)
Dimensions (LxWxD) 16.5 x 11 x 15.2in ( 42 x 28 x 38.65cm)
Operating Temperature -4-104℉ (-20-40℃)
Storage Temperature 14-113℉ (-10-45℃)
Certifications UL Standard, CEC, DOE, FCC, CA Prop 65
Warranty 24 Months
BATTERY INFO
Capacity 2,048Wh (51.2V,40Ah)
Type LiFePO4 (Lithium Iron Phosphate)
Life Cycles 3,500+ Cycles to 80% Original Capacity
Shelf-life Recharge to 80% Every 3-6 Months
Management System MPPT Controller, BMS, etc.
OUTPORTS
USB-C Port 1 x 100W Max.
USB-A Port 1 x 18W USB-A
12V DC Outlets
1 x 12V/10A (Car Outlet)
IN PUT
AC Adapter Input 500W Max.
Solar Input 500W Max., VOC 12-60VDC, 10A (Via BLUETTI D050S)
Car Input 12/24V from Cigarette Lighter Port (Via BLUETTI D050S)
Lead-acid battery 12/24V from Cigarette Lighter Port (Via BLUETTI D050S)
Max Input 500W
RECHARGE TIME
AC Adapter (400W) ≈5.5~6 Hours
Solar (500W) ≈4.5~5 Hours (With prime sunshine, ideal orientation and low temperature)
12V/24V Car Outlet (100W/200W) ≈10 or 20 Hours
GENERAL
Compatibility AC200Max(Original Expansion), AC200P/EB150/EB240 (DC-DC Connection via D050S)
Pass-through Charging Yes
Weight 48lbs (21.8kg)
Dimensions (LxWxD) 16.5 x 11 x 8.9in ( 42 x 28 x 22.75cm)
Operating Temperature 32°F-104°F (0-40°C)
Storage Temperature -4-104℉(-20-40℃)
Certifications UL, CEC, DOE, FCC, CA Prop 65
Warranty 24 Months
