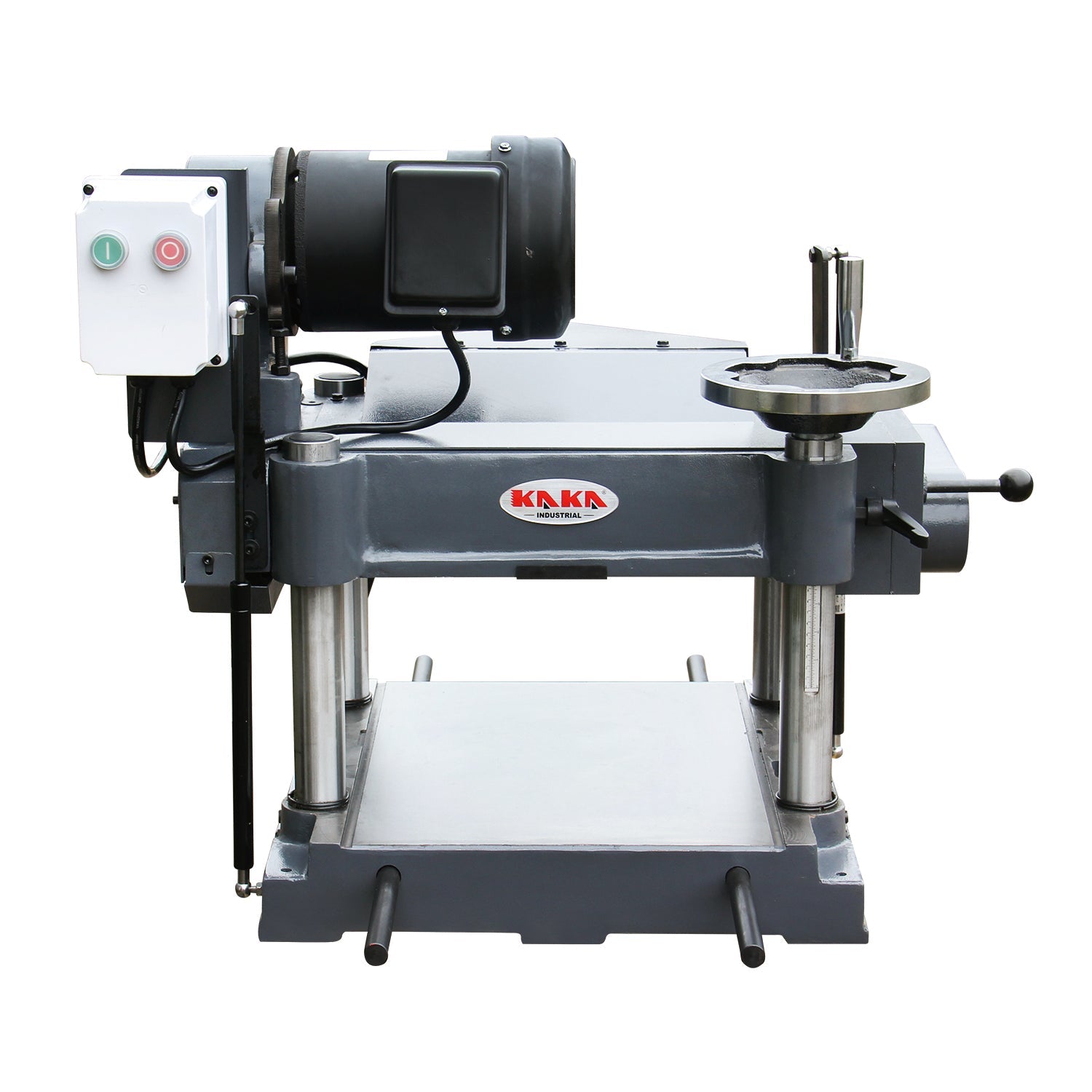

KAKA INDUSTRIAL WDP-4215B,15 inch Width, Woodworking Planer with Built in Mobile Base and Helical Cutterhead 220V-60HZ-1PH - 473055V220
- The 4-row spiral cutterhead with 74 carbide inserts cut some of the finest surface finishes money can buy.
- Each insert can be rotated up to three times to expose a new sharp edge for superior finish.
- Reducing the cut to the size of a single insert makes for a cleaner cut and reduces noise compared to the traditional straight knife cut.
- The 3 HP motor spins the cutterhead at 4800 RPM to plane your stock up to 15" wide by 8" thick, cutting as deep as 1/8" per pass.
- Additionally, features a built-in mobile base, adjustable bed rollers, two-speed automatic board feed, and solid cast-iron extension wings.
SPECIFICATIONS
- Model: WDP-4215B
- Max. cutting width: 15 in
- Min./Max. stock thickness: 1/4"-8-1/4"
- Maximum cutting depth: 1/8 in
- Cutterhead type: Spiral cutterhead
- Insert size & type: 14x14x2 mm, indexable carbide
- Cutterhead speed: 5000 rpm
- Feed rate: 32rpm & 56rpm
- Table size with extensions: 20-1/4x15 in
- Packing size: 37x25x28 in
- N.W./G.W.: 320/ 363 lbs
What Our Experts Think
-
The KAKA Industrial WDP-4215B Woodworking Planer (473055V220) is a 15-inch width planer designed for accurate thicknessing and smooth surface finishing.
-
Features a helical cutterhead for clean cuts, reduced tear-out, and quieter operation.
-
Includes a built-in mobile base, making it easy to move and position in workshops.
-
Powered by 220V-60Hz single-phase electricity, delivering reliable performance for professional woodworking projects.
Q&A
Q: What is the maximum planing width?
A: Supports up to 15 inches.
Q: What type of cutterhead does it have?
A: Equipped with a helical cutterhead for smooth and precise cuts.
Q: Does it have mobility features?
A: Yes, includes a built-in mobile base for easy relocation.
Q: What materials can it handle?
A: Designed for hardwoods and softwoods in professional woodworking applications.
Maintenance Tips
-
Clean cutterhead, feed rollers, and table surfaces after each use to remove shavings.
-
Check cutterhead blades and sharpness regularly for consistent performance.
-
Lubricate moving parts and adjustment mechanisms to ensure smooth operation.
-
Store in a dry area to prevent corrosion and maintain longevity.
