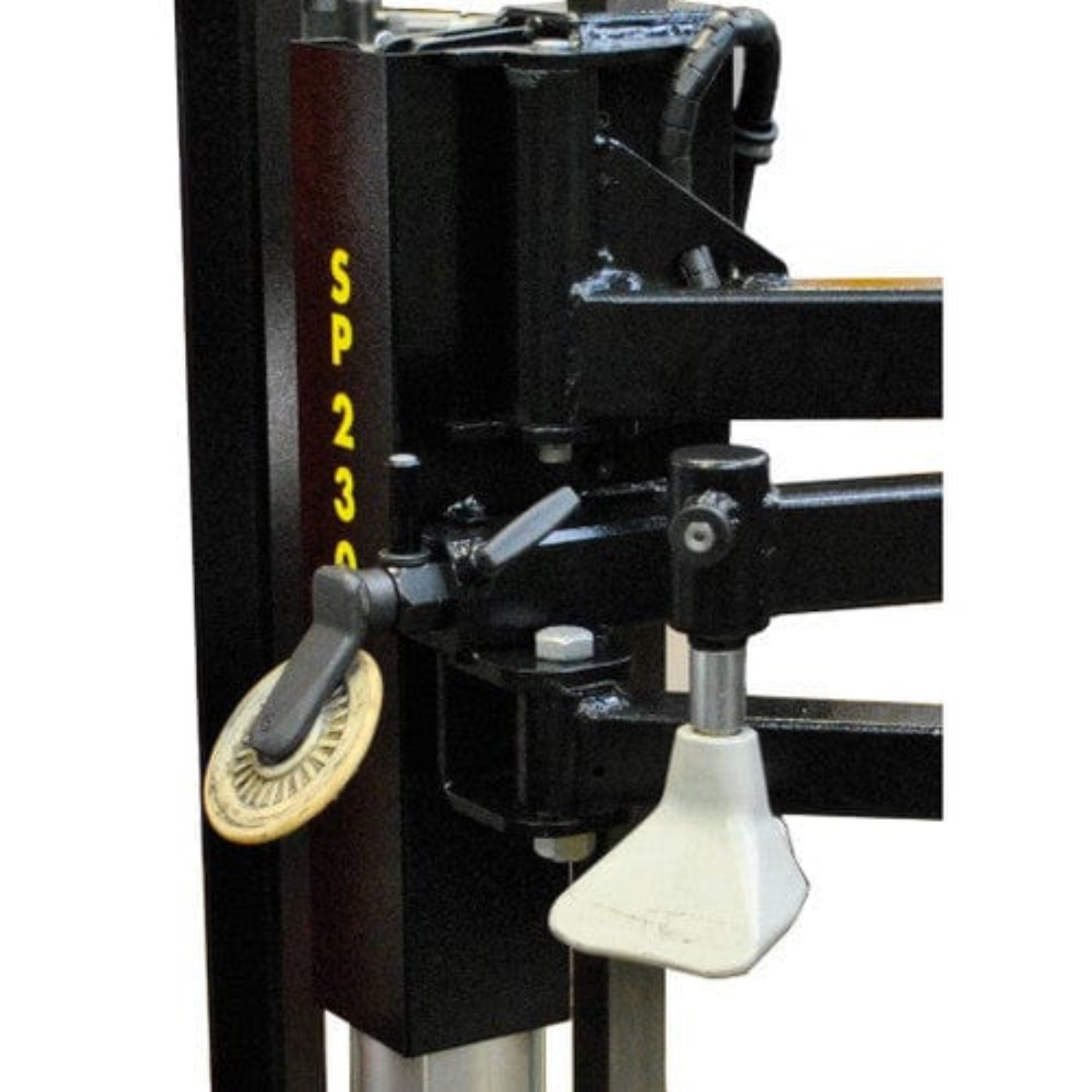

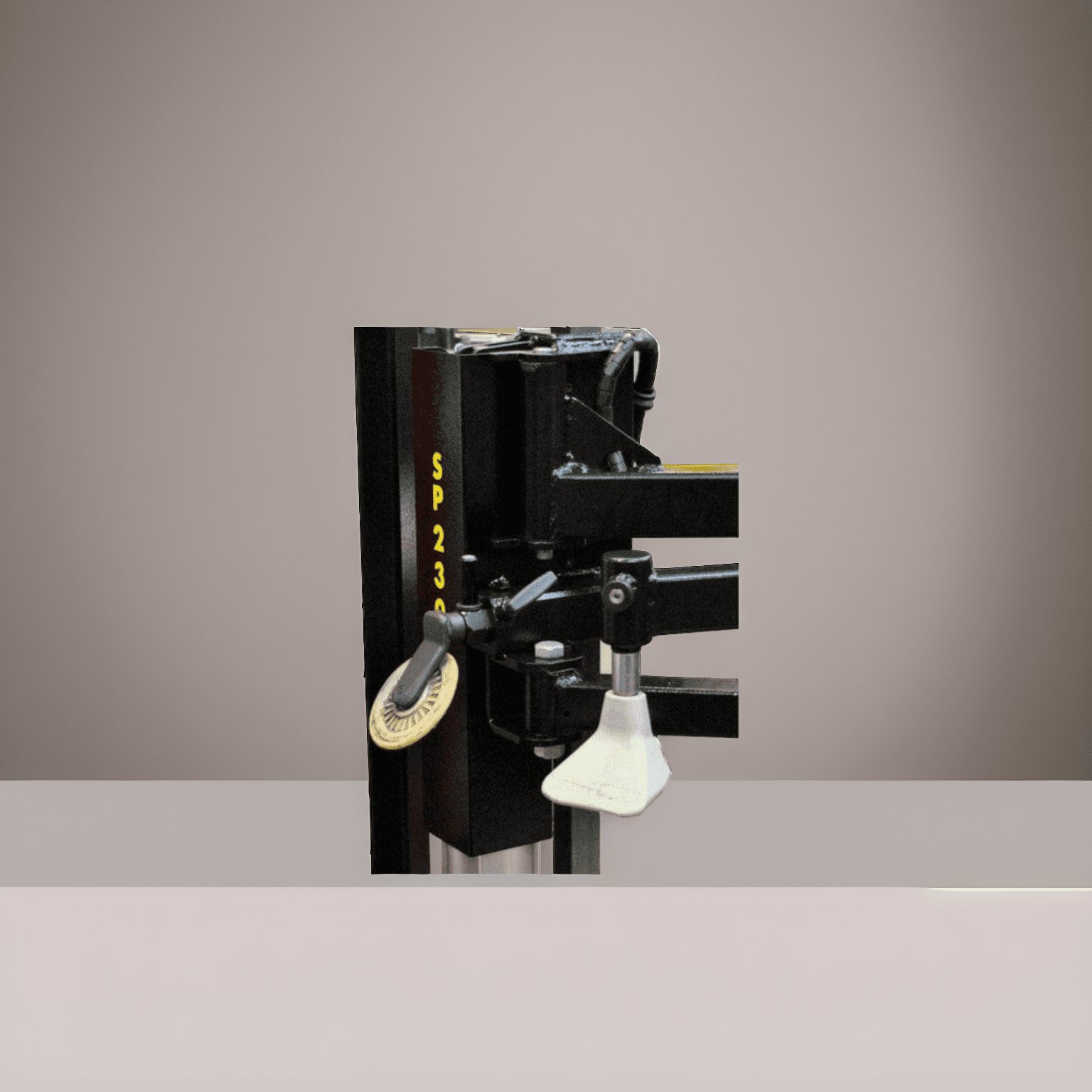

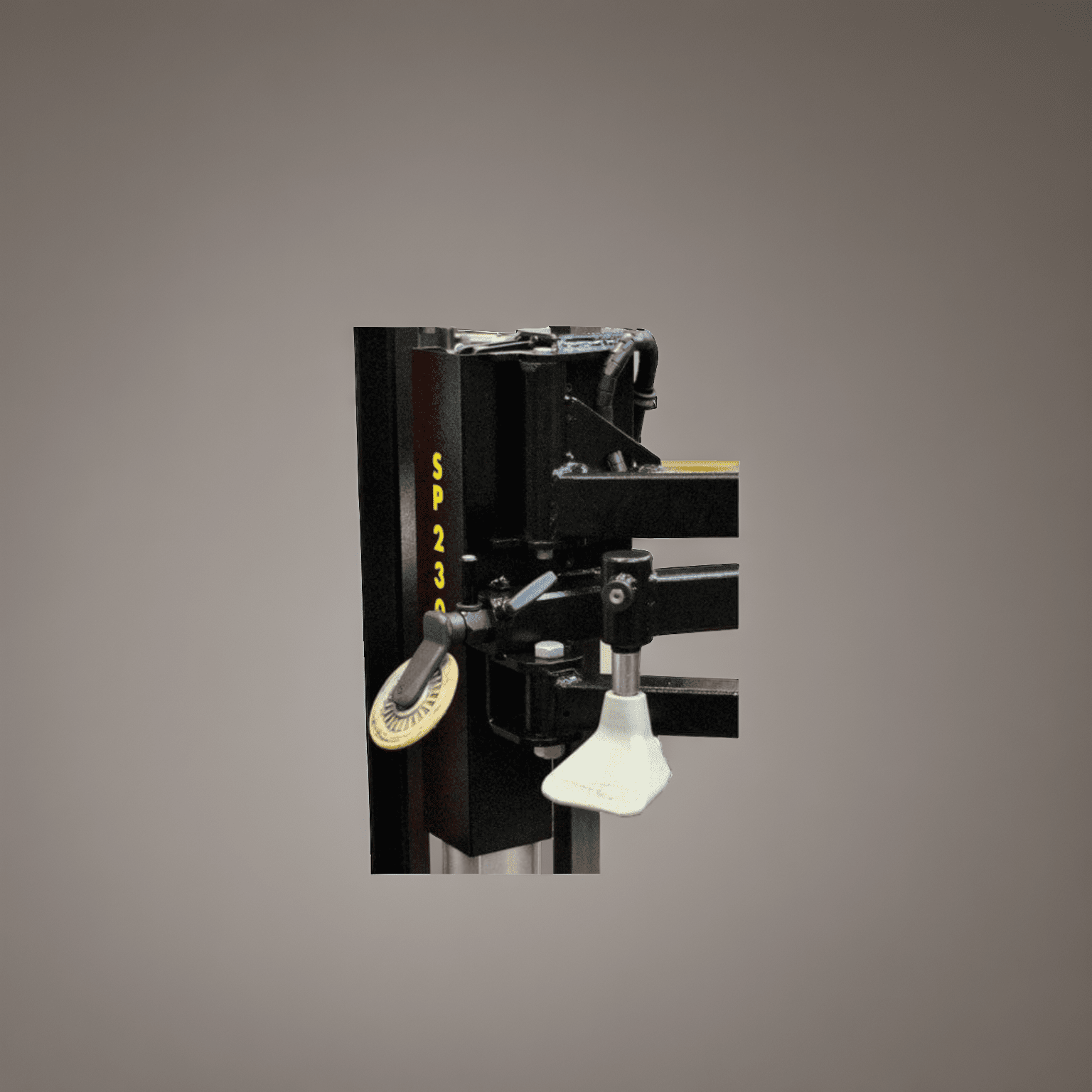

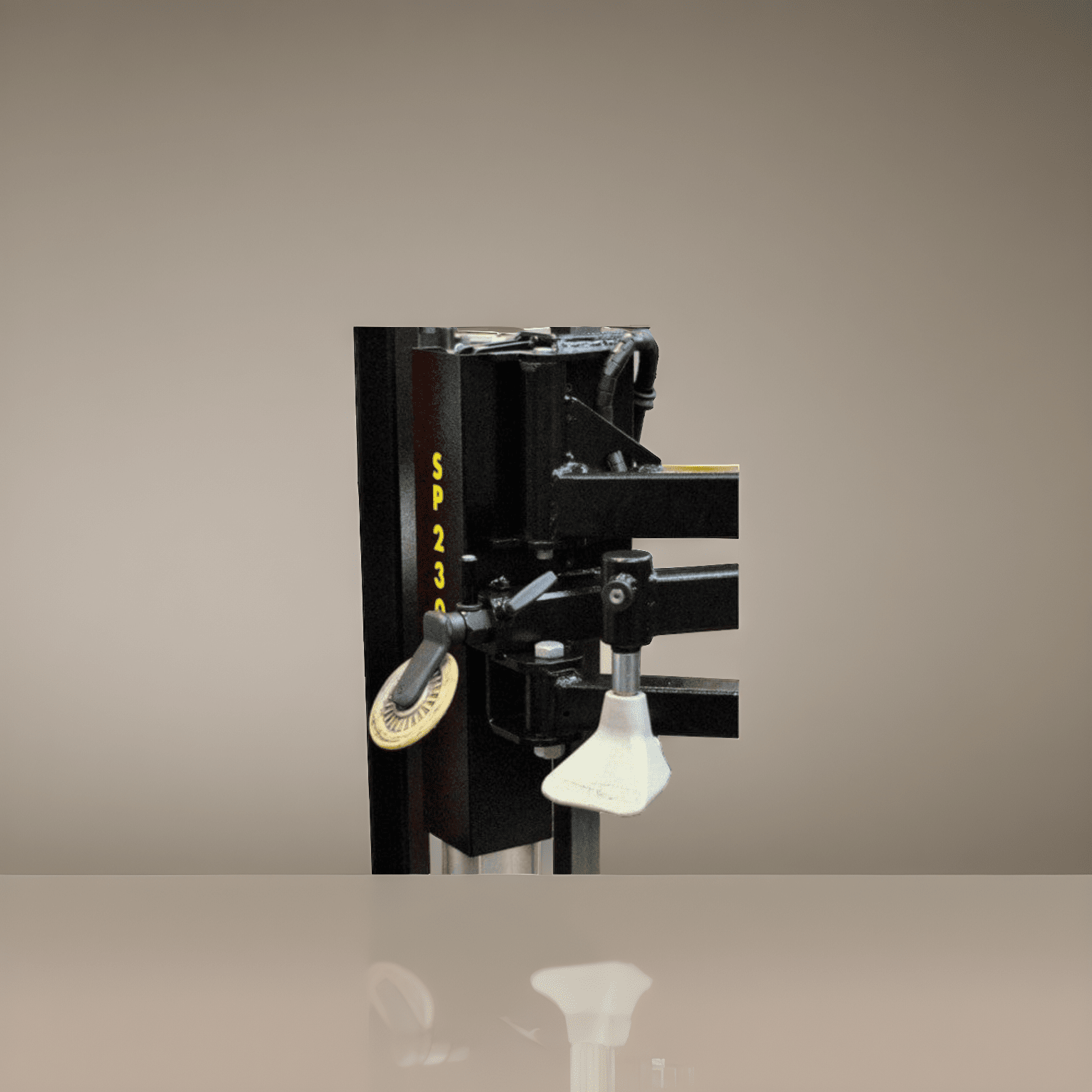

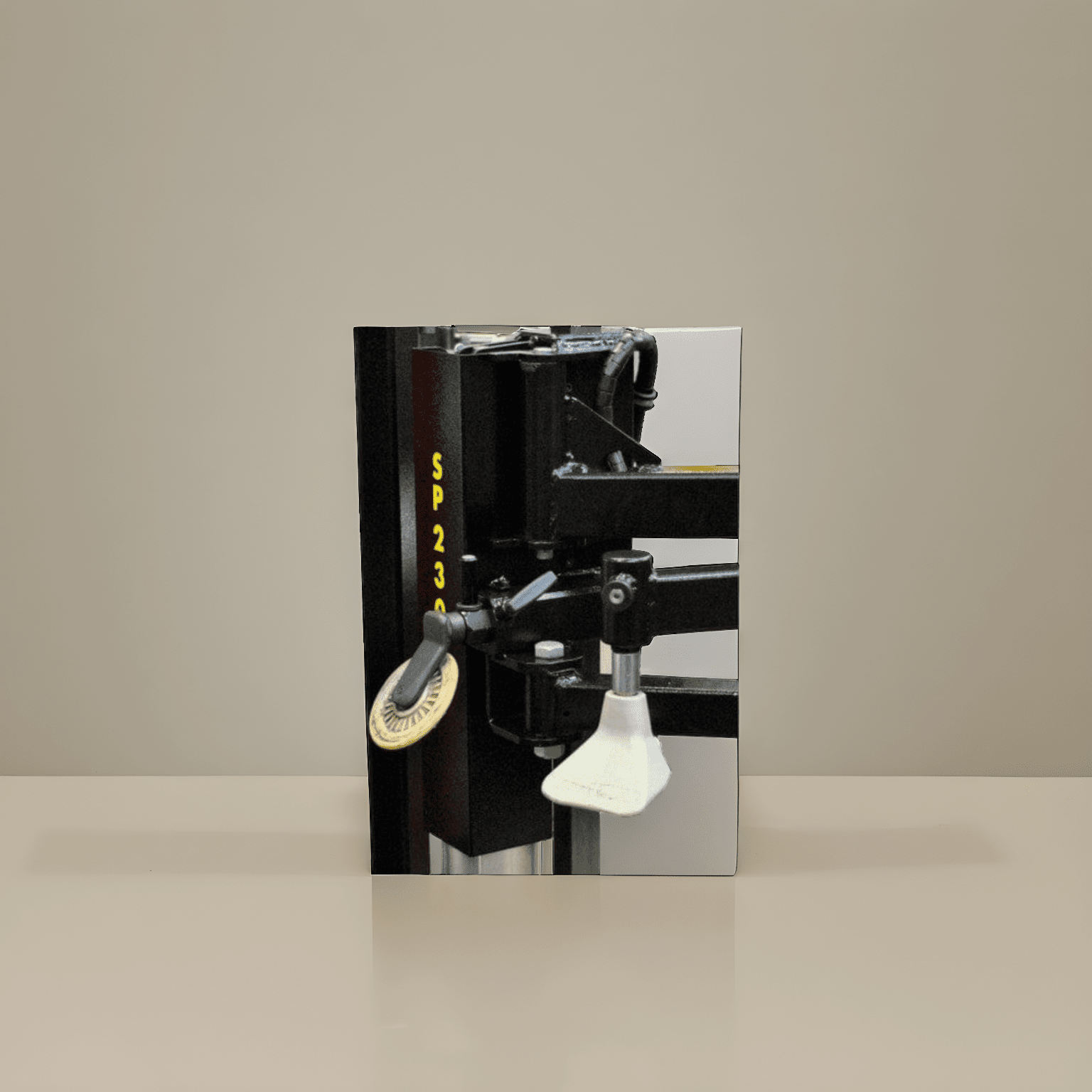

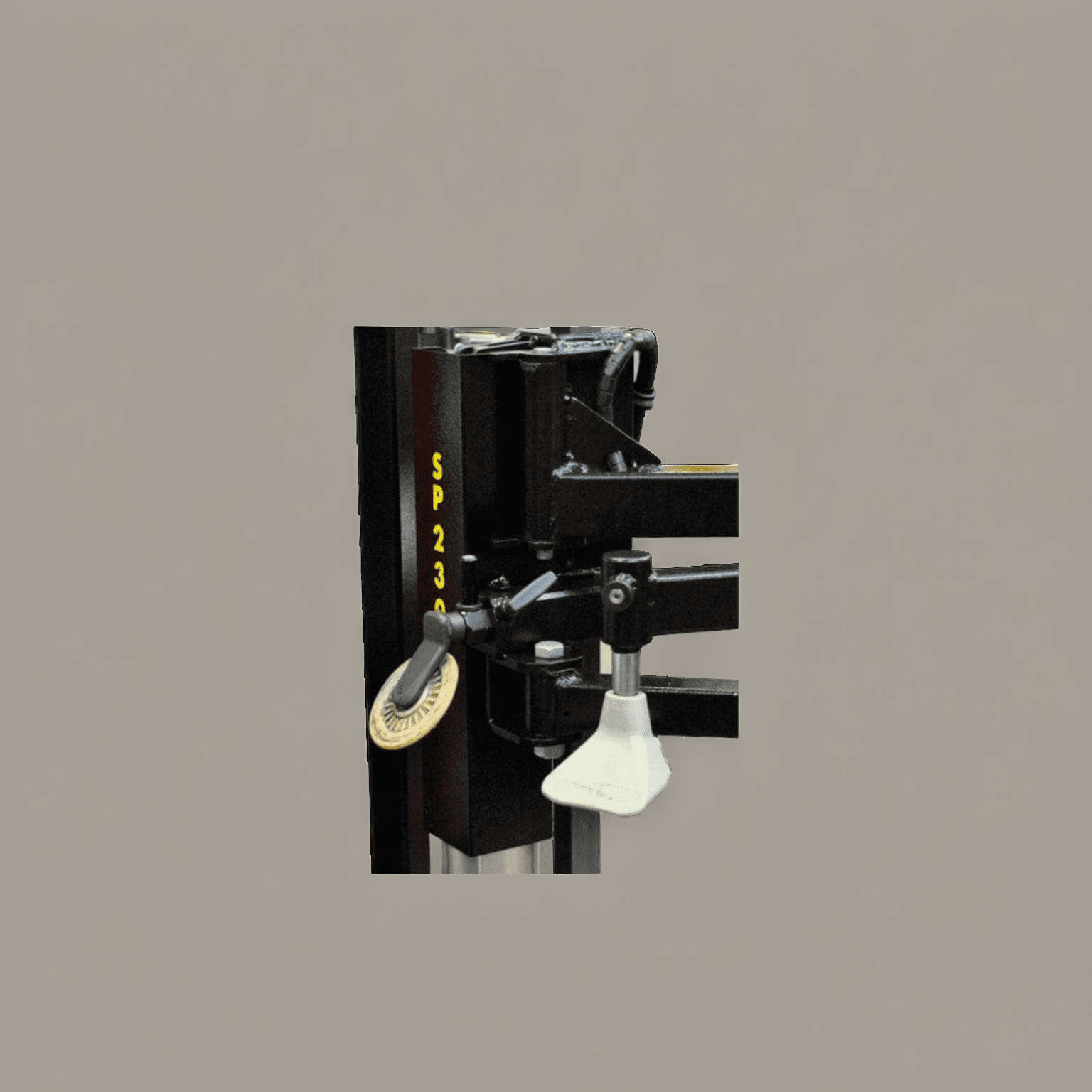

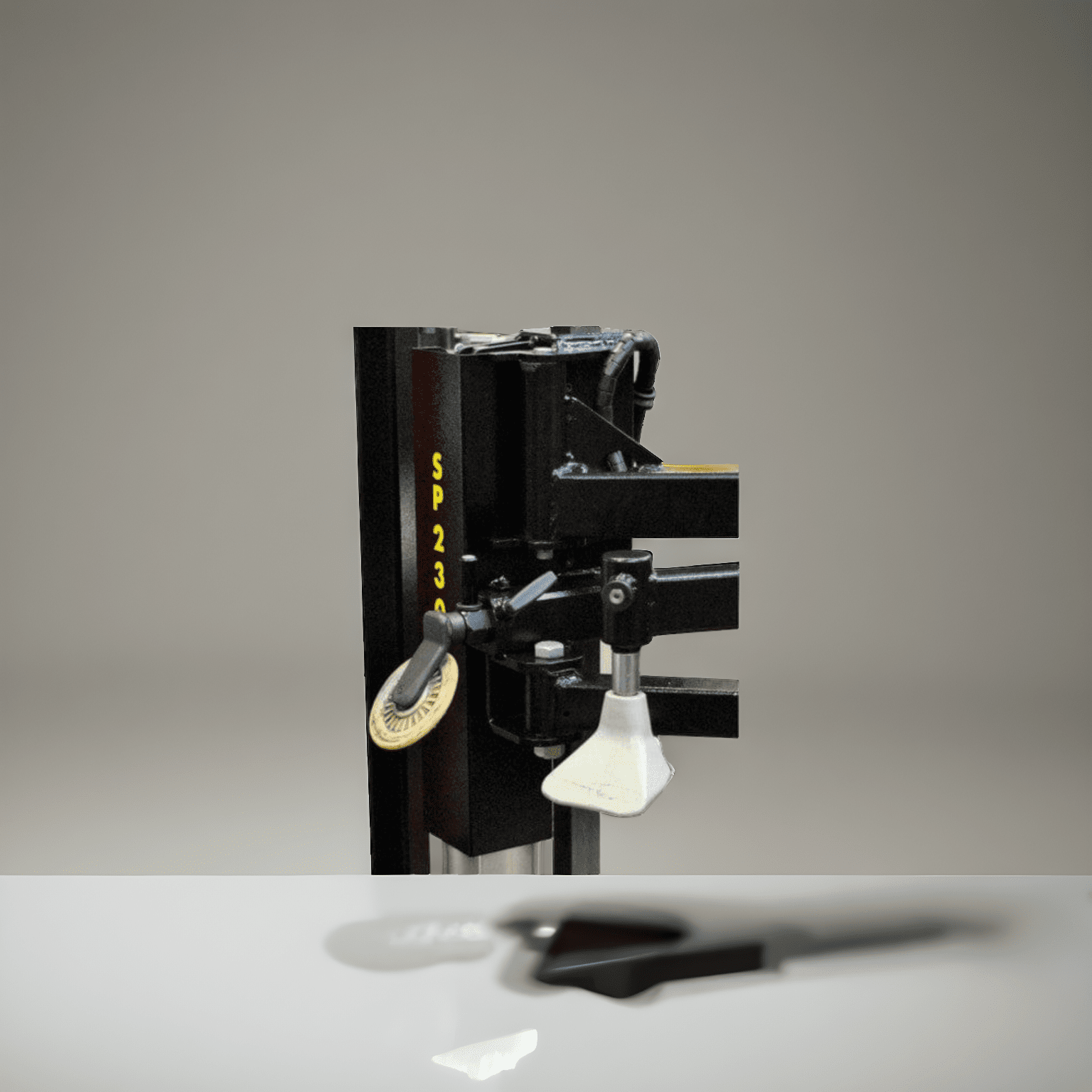

Corghi SP2300 PLUS Power Unit, Mounting Bracket & Mobile Arm
Universal multifunctional device for facilitating tire mounting and demounting. The SP2300 PLUS is a practical and functional helper device specifically designed to make mounting and demounting operations quicker, more precise, and safer.
The SP2300 PLUS differs from the SP2300 standard version in having a bead depressor disc instead of a bead depressor roller.
The SP2300 PLUS consists of three integrated operating units capable of working on all types of tires - including ultra low profile and run flat tires - and light alloy wheel rims.
Application
- For Corghi Models A2024 and A2030
Features

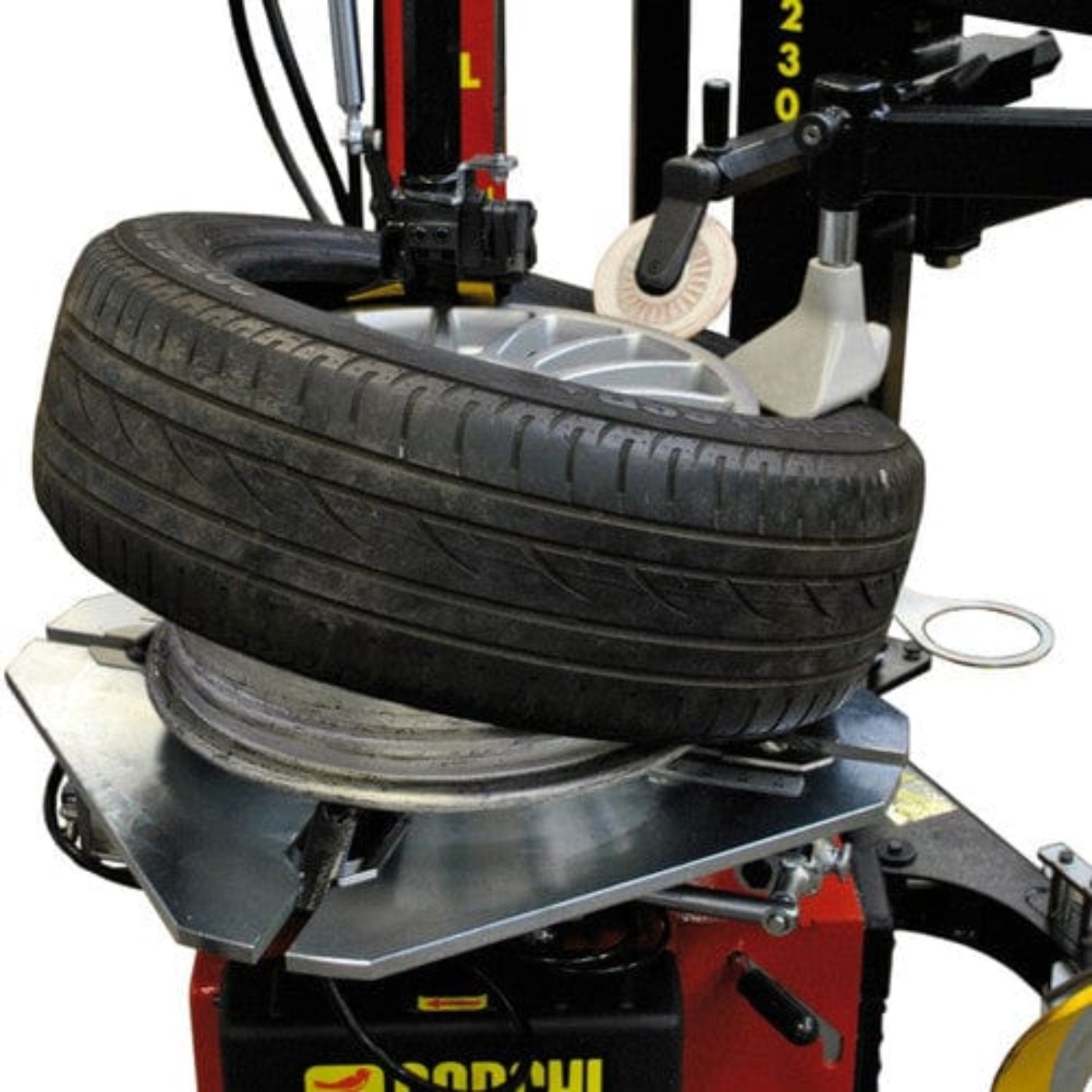

- Bead Depressor Disc: Facilitates demounting and mounting of first bead by keeping the bead within the rim well.
- The large disc lifts the tire and detached the lower bead.

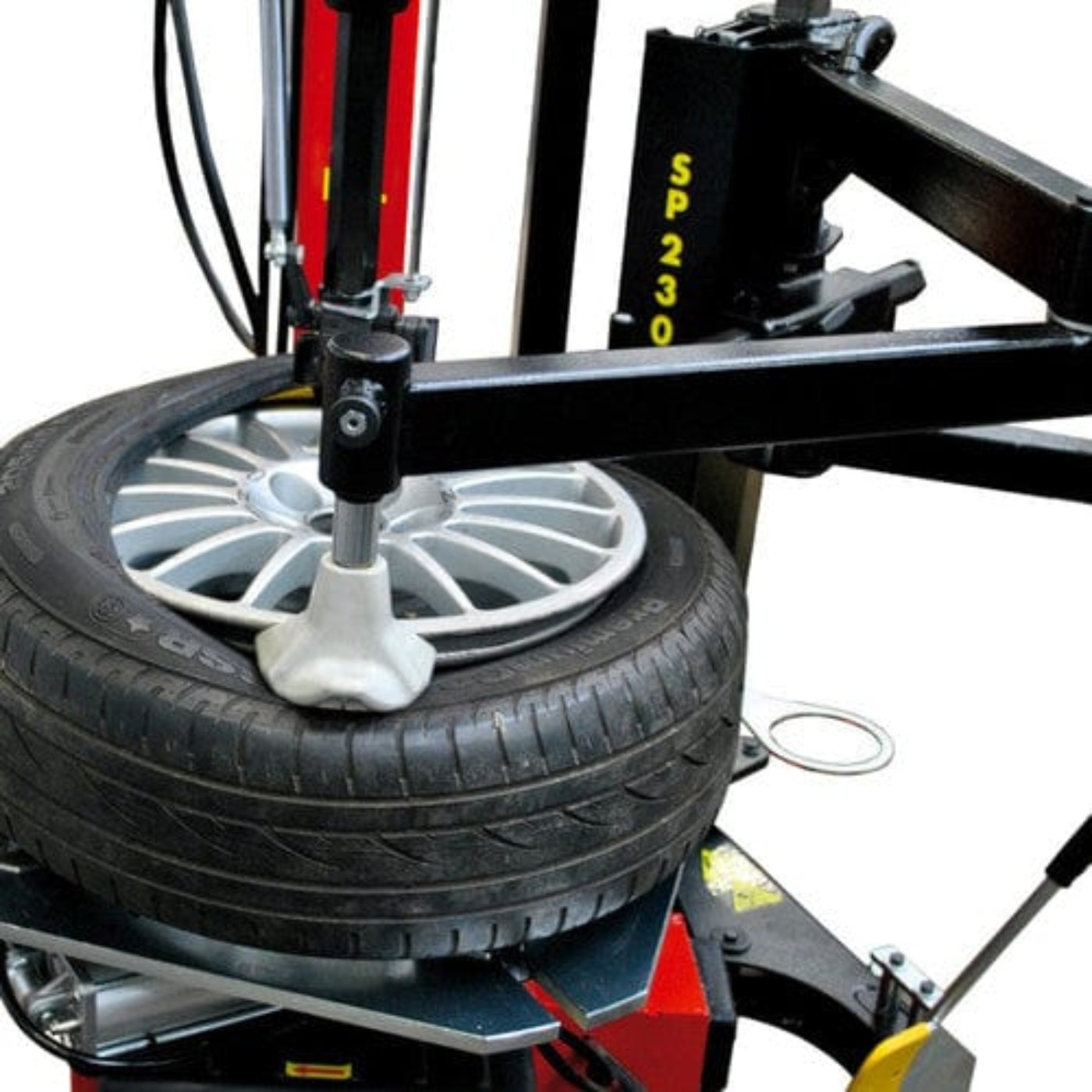

- Rotating bead depressor: Follows the tire radially during mounting and demounting and depresses the bead with a disc.
Specifications
| Corghi part number |
8-11120042 |
| Working range |
Up to 26" |
| Max wheel height: |
14" |
| Press force on tools |
7000 N |
| Compressed air |
Supply |
| Operating pressure |
145 psi (10 bar) |
| Weight |
117 lbs (53 kg) |
