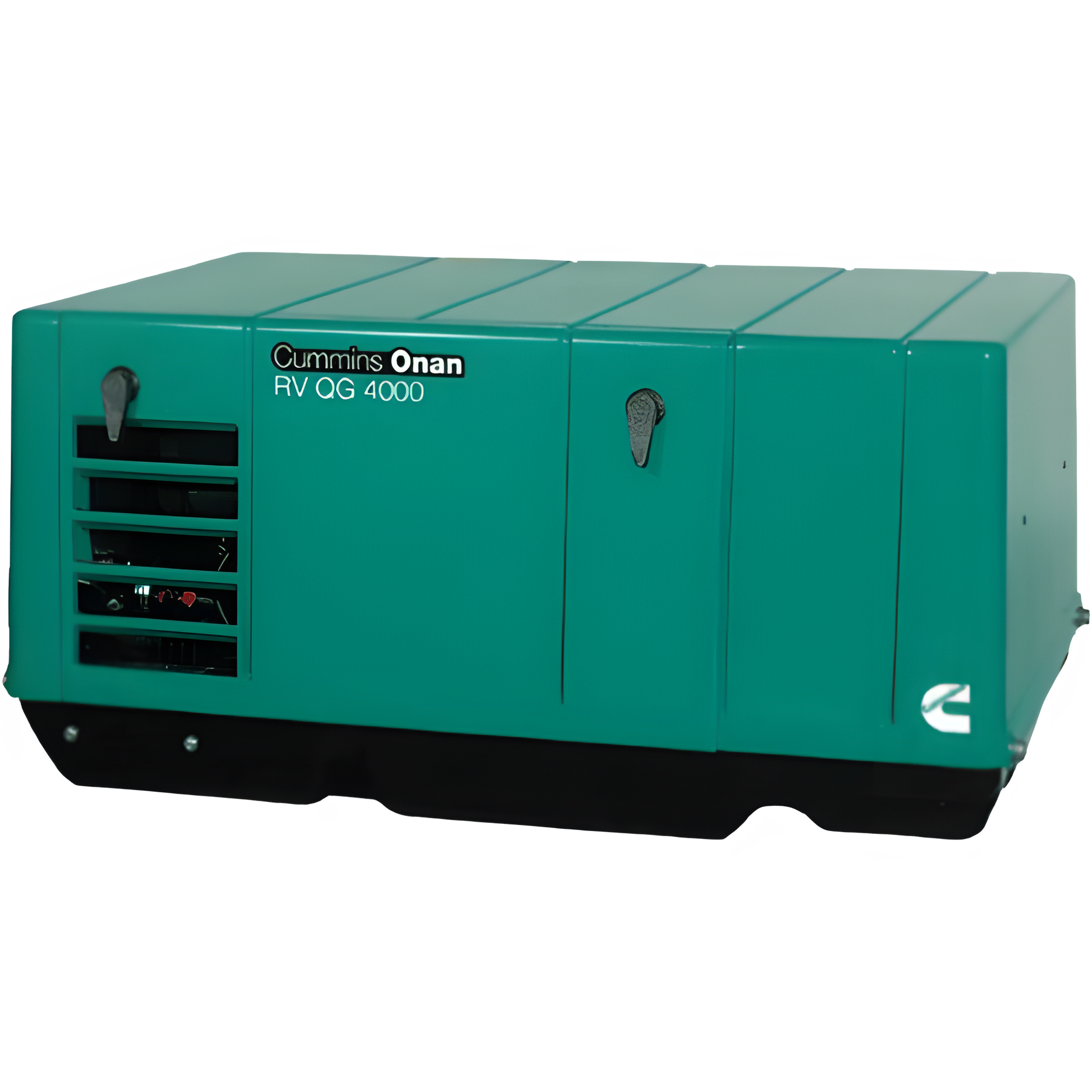

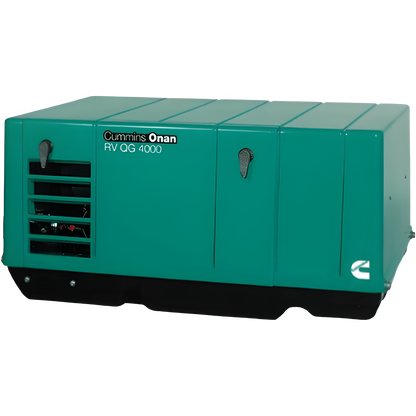

Cummins Onan QG 3600 EVAP 3.6kW RV Generator 3.6KYFA-26120 LP Propane New
Cummins Onan 3600 LP Generator 3.6KYFA-26120 meets CARB and EPA Tier 4 Final and Phase IV standards and specifications for all recreational vehicle generator sets. For sale in all 50 states.
For Motorized and Trailered RV Motorhomes, Pickup Campers, and Popups. The Cummins Onan 3600 LP Generator 3.6KYFA-26120 starts and runs one air conditioner with a 600 watt base load.
Features
- 3.6 kW LP Powered RV Generator
- Enough power to run one 15,000 BTU AC (30A 1-Pole Breaker)
- Designed For Use With Multiple Applications
- Fifth wheels, travel and sport utility trailers
- Cummins Onan 4-Cycle OHV Engine (.6 Gal/H @ 1/2 Load)
- Provides quiet operation w/ excellent fuel efficiency
- Microprocessor Controlled
- Digital voltage regulator prevents damaging voltage spikes
- Provides added protection from overloads and faults
- Sound-Attenuating Enclosure
- Lowers noise levels while providing cross-flow cooling
- Control Panel w/ LED Status Indicator Light
- Start-Stop/Prime rocker switch
- Provides set diagnostics
- USDA Forest Service Approved Spark Arrestor Muffler
- Enclosed design, reduces noise levels
- Magnetic circuit breaker & fused DC circuits (to protect wiring)
- 125" generator set output leads
- Decibel Rating @ 3m: 68 db(A)
- Cummins Spec Model 4KYFA26100
- 3-Year Limited Warranty
Specification
Idle Control |
No |
Circuit Breaker Size |
30 Amps |
Min. Air Inlet - Front |
7.2" x 5.1" |
Min. Air Outlet - Bottom |
9.6" x 3.8" |
Grade Type |
Recreational |
Engine Brand |
Cummins Onan |
Starting System |
12-Volt Button Start |
CC |
304 CC |
Engine RPM |
3600 RPM |
Low Oil Alert/Shutdown |
Yes |
Cast Iron Sleeve |
Yes |
Weight |
172 Pounds |
Product Style |
RV Generator |
Product Length |
30 Inches |
Product Width |
19.7 Inches |
Product Height |
14.4 Inches |
Manual
User's Manual
Brochure
Spec Sheet
