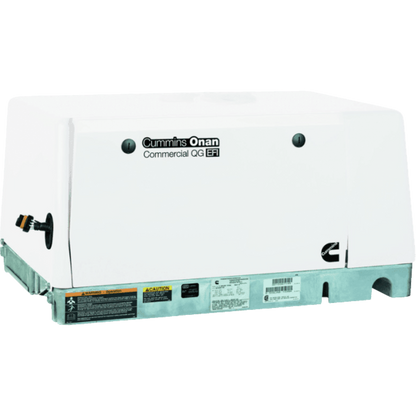

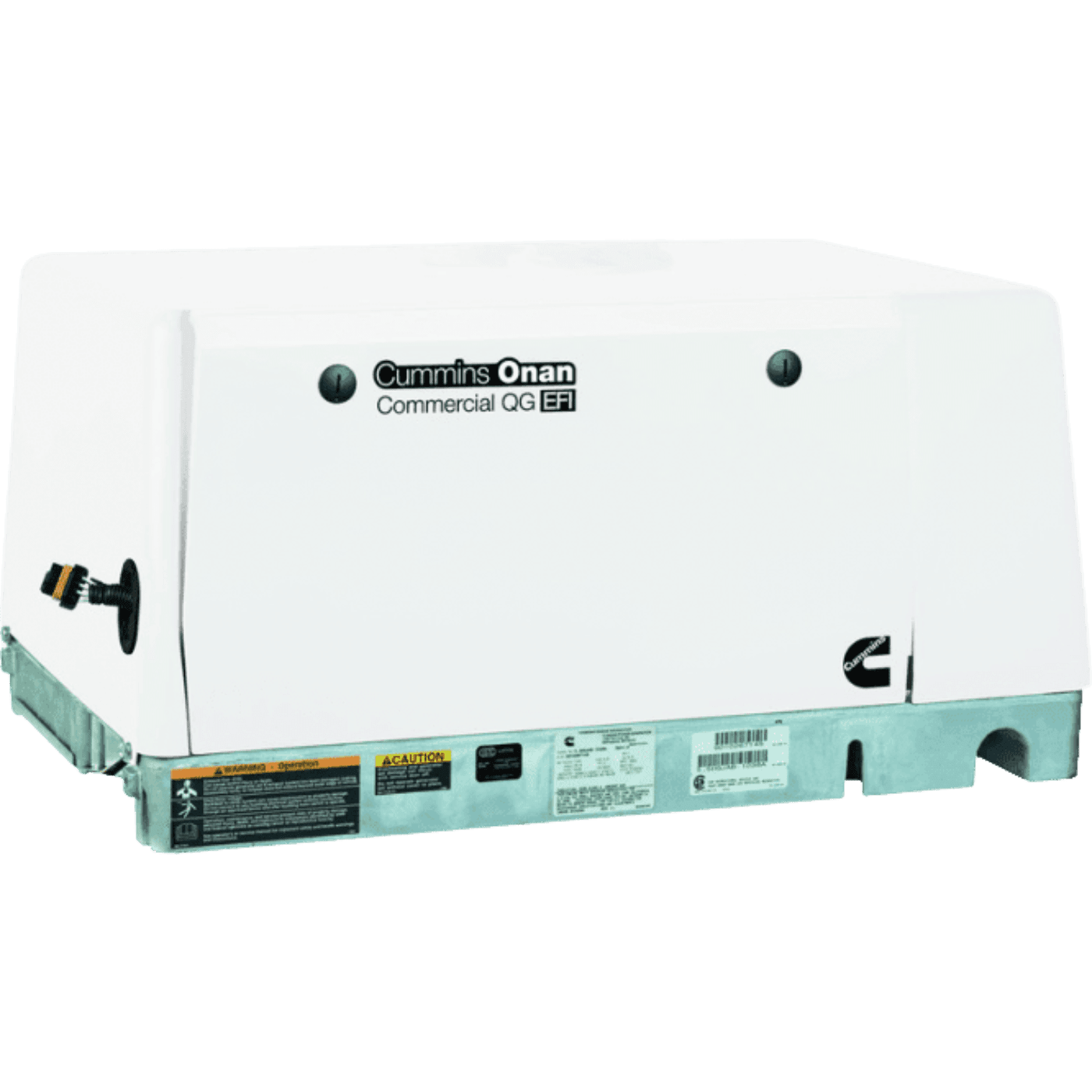

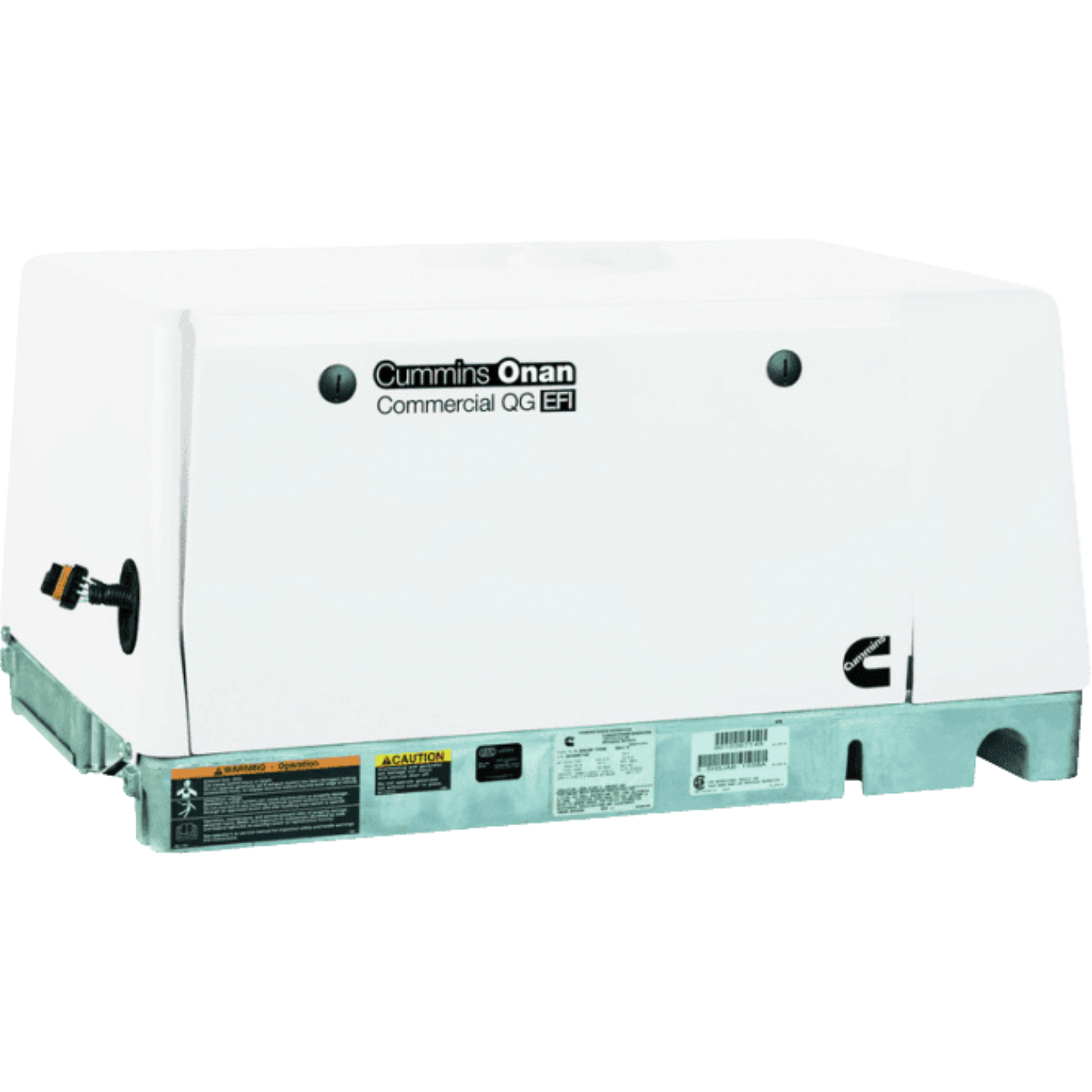

Cummins Onan QG 7000 7kW Generator 7HGJAD-6760+ Commercial Mobile Gas Single Phase 120/240 Volt Air Cooled EVAP New
The Cummins Onan 7.0HGJAD is designed for tough commercial applications. This generator includes exceptionally low noise and vibration, easy installation, diagnostic capability and digital regulation which maintains voltage stability as loads change. Cummins backs this generator with a standard 2 year limited warranty.
Features
- EVAP Control Model: Evaporative emissions controlled models are required for applications using a fuel tank separate from the vehicle propulsion engine's onboard fuel storage system
- 4-cycle Air-cooled, single cylinder engine for reliable consistent power
- EFI provides improved hot and cold start capability.
- Digital regulation for voltage stability as loads change.
- Completely enclosed with muffler, quick and easy to install.
- Electronic governor for voltage stability and frequency control.
- 2-year limited warranty
- Requires Cummins Onan EFI Fuel Pump Kit "541-1002" (Not Included)
Â
Specifications
| Battery For Electric Start |
Not Included |
| Warranty |
2 Year (Limited) |
| Weight (Lbs.) |
288 |
| Ship Weight (Lbs.) |
328 |
| Operating Weight (Lbs.) |
288 |
| Dimension No Wheel Kit |
22.2"W x 33.6"L x 16.7"H |
| Agency Compliance |
CARB (California), EPA, National Park Approved |
| Surge Start Watts |
7,000.0 |
| Continuous Rated Watts |
7,000.0 |
| Prime Rating Watts |
7,000 |
| Phase |
Single-Phase |
| Voltage |
120, 240 |
| Rated Amps @ Min Volt (Commonly 120v) |
58.3 |
| Rated Amps @ Max Volt (Commonly 240v 1-Phase) |
29.1 |
| Frequency |
60 Hz |
| Power Factor |
1.0 |
| Poles |
2 |
| Alternator |
Brush |
| Voltage Regulation |
1.7% |
| Voltage Regulation Type |
Digital |
| Circuit Breakers |
30 Amp |
| Insulation |
Class H |
| Manufacturer |
Cummins |
| SKU |
7.0HGJAD-6760 |
| Model Number |
QG 7000 |
| Alternate Model Number |
A063B838 |
| Generator Grade |
Commercial |
