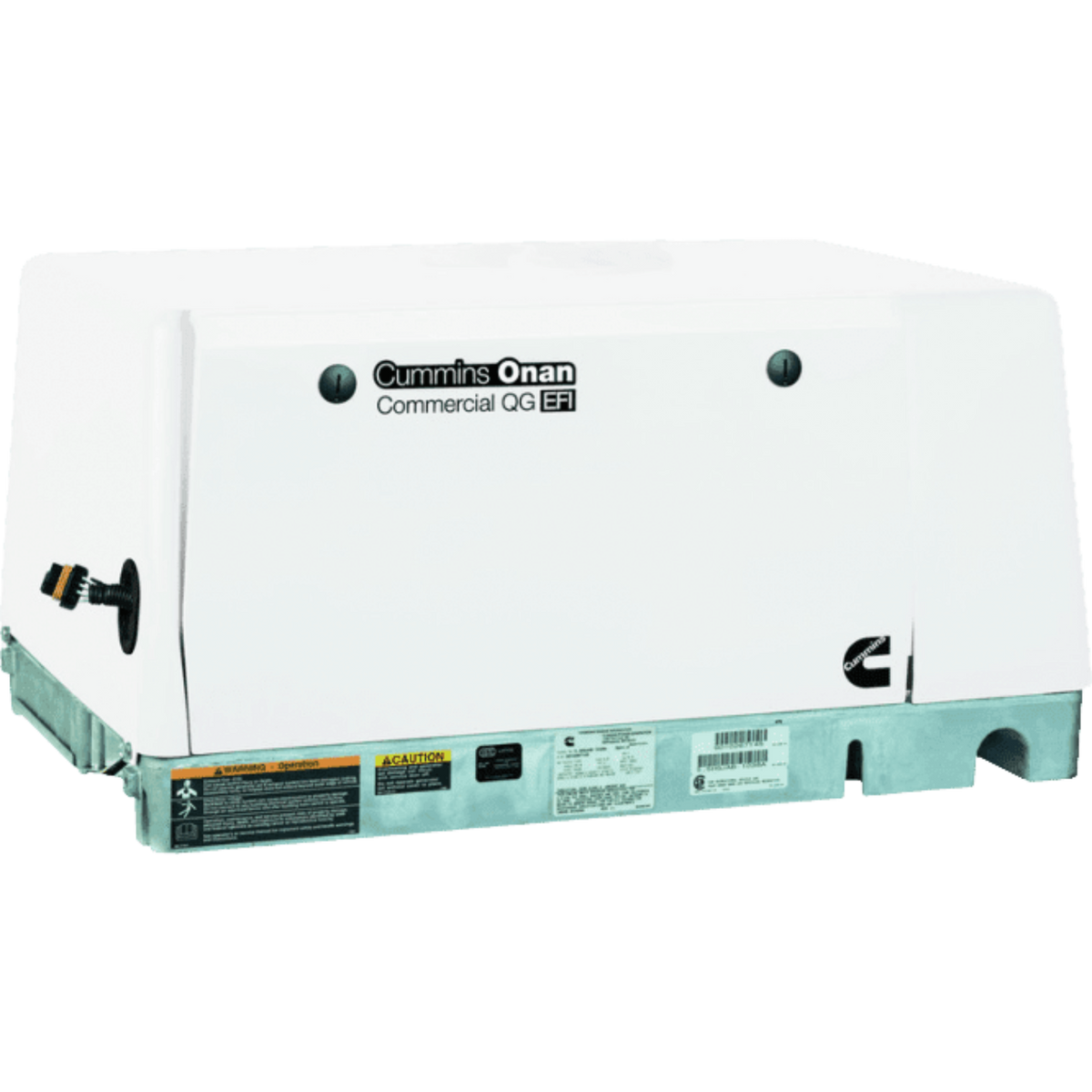

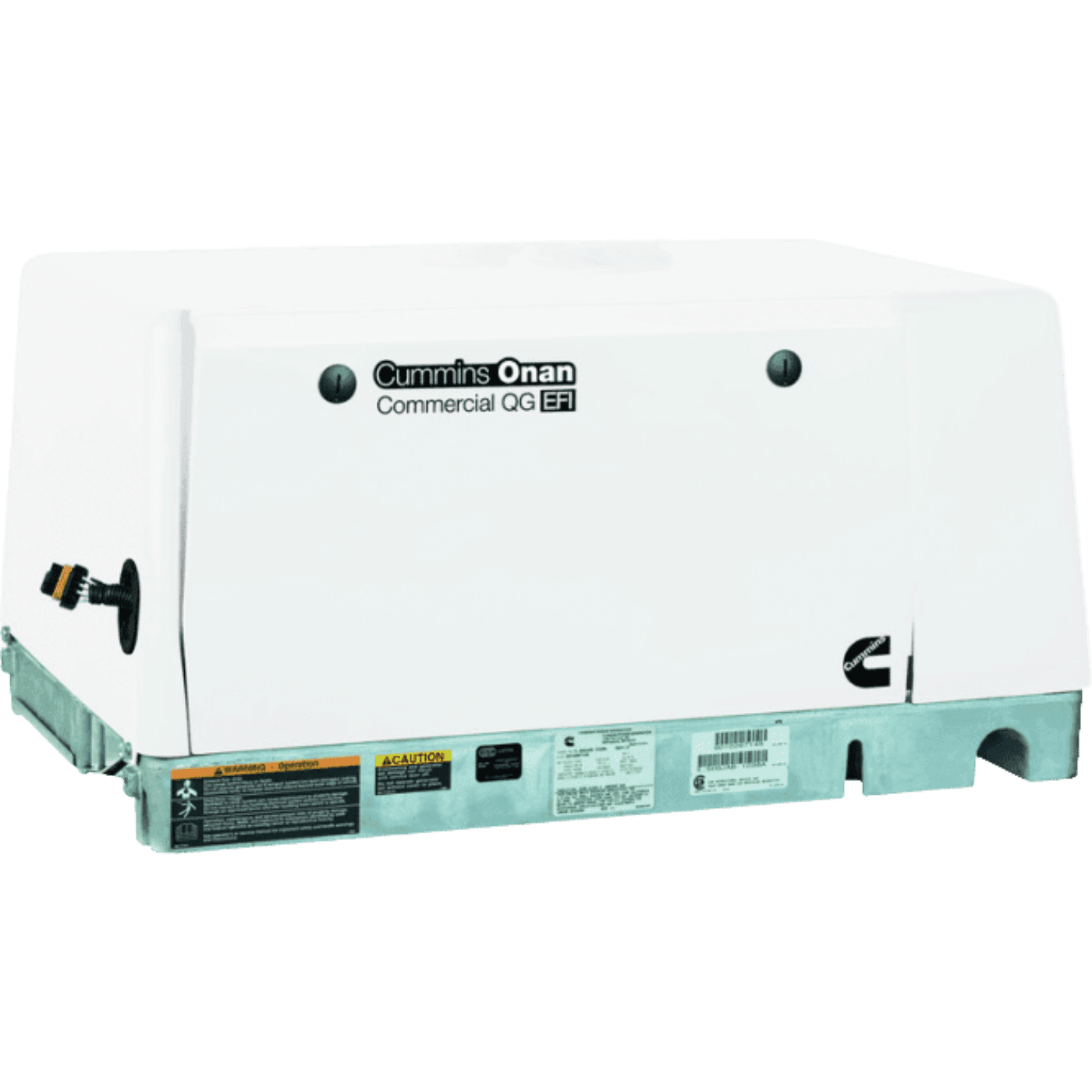

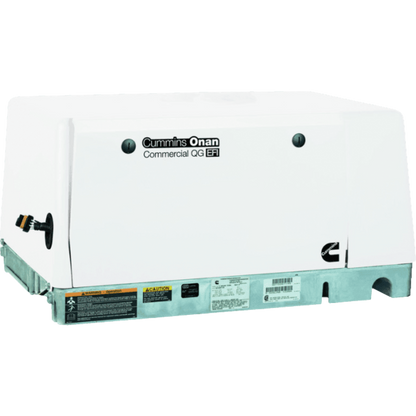

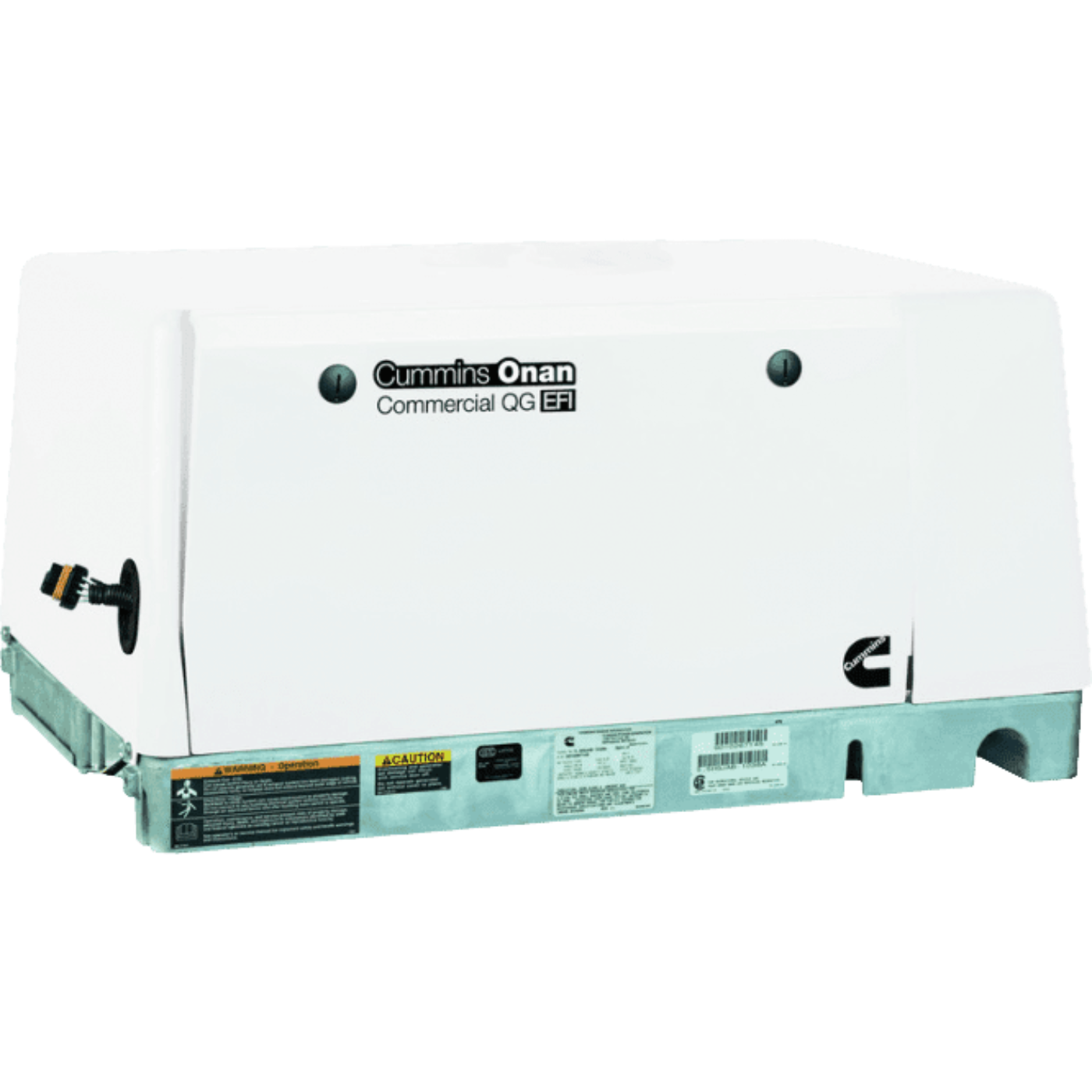

The Cummins 7.0HGJAE is designed for tough commercial applications. This generator includes exceptionally low noise and vibration, easy installation, diagnostic capability and digital regulation which maintains voltage stability as loads change. Cummins backs this generator with a standard 2 year limited warranty.
Features
- 4-cycle Air-cooled, single cylinder engine for reliable consistent power
- Easy maintenance with single-side service.
- Microprocessor control with diagnostics and lightweight, compact design.
- Completely enclosed with muffler, quick and easy to install.
- 2-year limited warranty
- EVAP Control Model: Evaporative emissions controlled models are required for applications using a fuel tank separate from the vehicle propulsion engine's onboard fuel storage system (120/240V Model)
Â
Specifications
| Altitude Affected |
Yes |
| Vibration Isolators |
Coil Spring |
| Battery For Electric Start |
Not Included |
| Warranty |
2 Year (Limited) |
| Weight (Lbs.) |
299 |
| Ship Weight (Lbs.) |
339 |
| Operating Weight (Lbs.) |
299 |
| Dimension No Wheel Kit |
22.2"W x 33.6"L x 16.7"H |
| Agency Compliance |
CARB (California), EPA, National Park Approved |
| Surge Start Watts |
7,000.0 |
| Continuous Rated Watts |
7,000.0 |
| Prime Rating Watts |
7,000 |
| Phase |
Single-Phase |
| Frequency |
60 Hz |
| Power Factor |
1.0 |
| Poles |
2 |
| Alternator |
Brush |
| Voltage Regulation |
1.7% |
| Voltage Regulation Type |
Digital |
| Circuit Breakers |
30 Amp |
| Insulation |
Class H |
| Manufacturer |
Cummins |
| SKU |
7.0HGJAE-6758, 7.0HGJAE-2132 |
| Model Number |
QG 7000 |
| Alternate Model Number |
A063B622, A063B639 |
