Daikin Light Commercial 5 Ton Packaged Air Conditioner and Gas Furnace Unit, 208/230-3-60V with 13.4 SEER2 - DFG0603DL00001S

Daikin Light Commercial 5 Ton Packaged Air Conditioner and Gas Furnace Unit, 208/230-3-60V with 13.4 SEER2 - DFG0603DL00001S

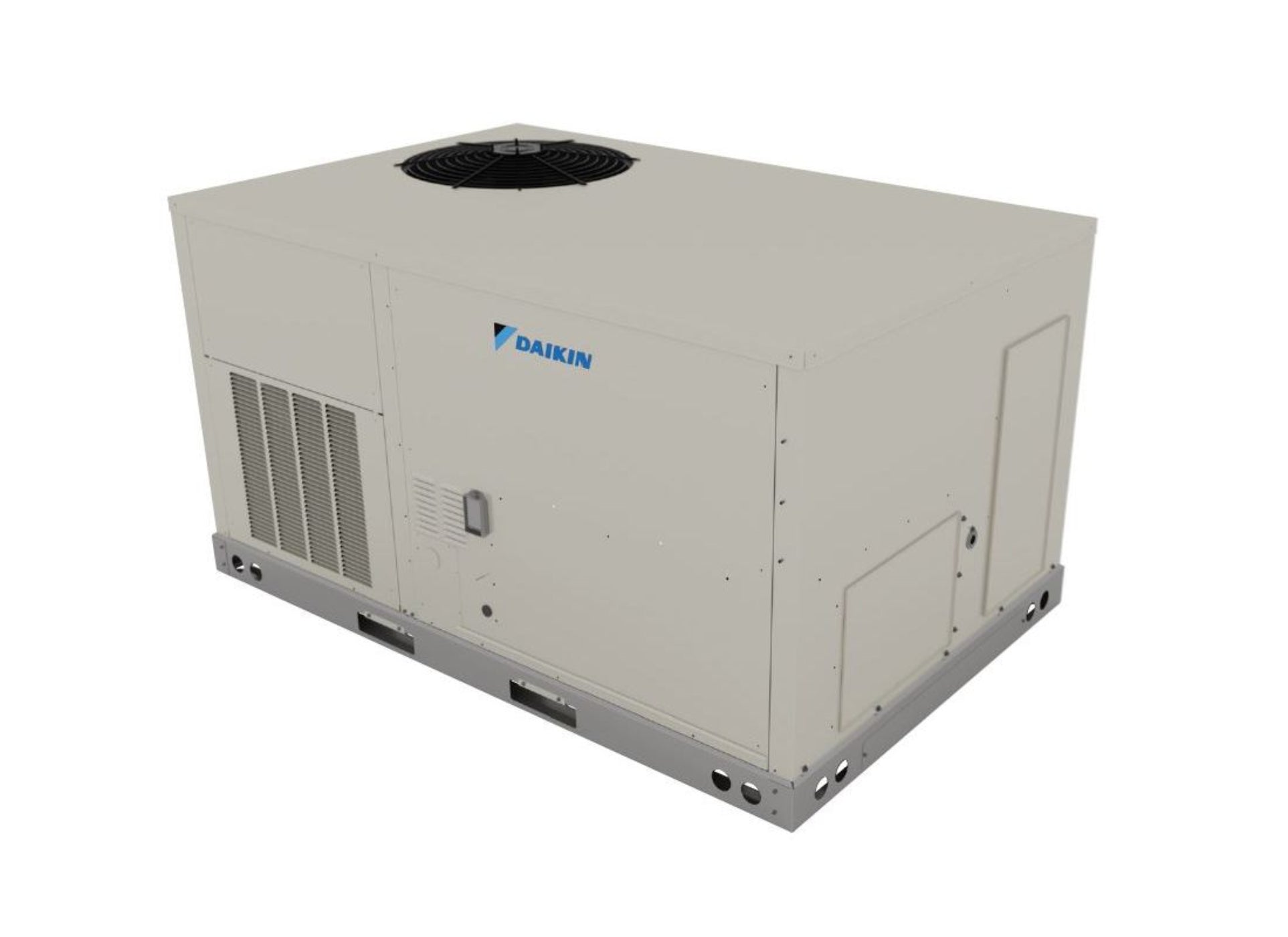

The Daikin DFG0603DL00001S Light Commercial Packaged Air Conditioner and Gas Furnace provides superior heating and cooling that is both energy efficient and self-contained in one unit. The system is suitable for rooftop or ground-level installation, and airflow can be set for horizontal or downflow applications. The galvanized steel cabinet coated with UV-resistant paint ensures that the unit can operate effectively during any weather conditions and at any time. Several drive options accommodate a wide range of design conditions to meet your application needs. Factory-installed pressure switches are standard.

Features

• Energy-efficient scroll compressor
• Copper tube/aluminum fin coils
• High and low pressure switches
• High-capacity and steel-cased filter drier
• Built-in filter rack with standard 2-inch filters
• 24-volt terminal strip
• Convertible airflow: horizontal or downflow application
• AHRI Certified; ETL Listed

Installation and Maintenance

Daikin Packaged units are designed with an easier and faster installation in mind for both new construction and retrofit. Our packaged rooftop units are built to be a direct replacement for most rooftop units on the field without the need of a curb adapter, to be able to replace the unit in a shorter time and at a lower cost.

What Our Experts Think

• Combines efficient heating and cooling in a compact, self-contained unit.

• 13.4 SEER2 rating ensures energy savings and reliable performance.

• Ideal for light commercial spaces needing consistent climate control.

• Simplifies installation and reduces maintenance time.

Q&A

• Q: What spaces is this unit suitable for?
  A: Offices, retail areas, and other light commercial buildings.

• Q: How energy efficient is it?
  A: 13.4 SEER2 rating lowers energy consumption and operational costs.

• Q: Does it provide both heating and cooling?
  A: Yes, it integrates a gas furnace with a packaged air conditioner.

• Q: What voltage is required?
  A: 208/230-3-60V.

Maintenance Tips

• Inspect and replace filters monthly if needed.

• Clean coils and condenser surfaces annually.

• Schedule professional servicing of furnace and compressor yearly.

• Keep surrounding area clear to ensure proper airflow.
