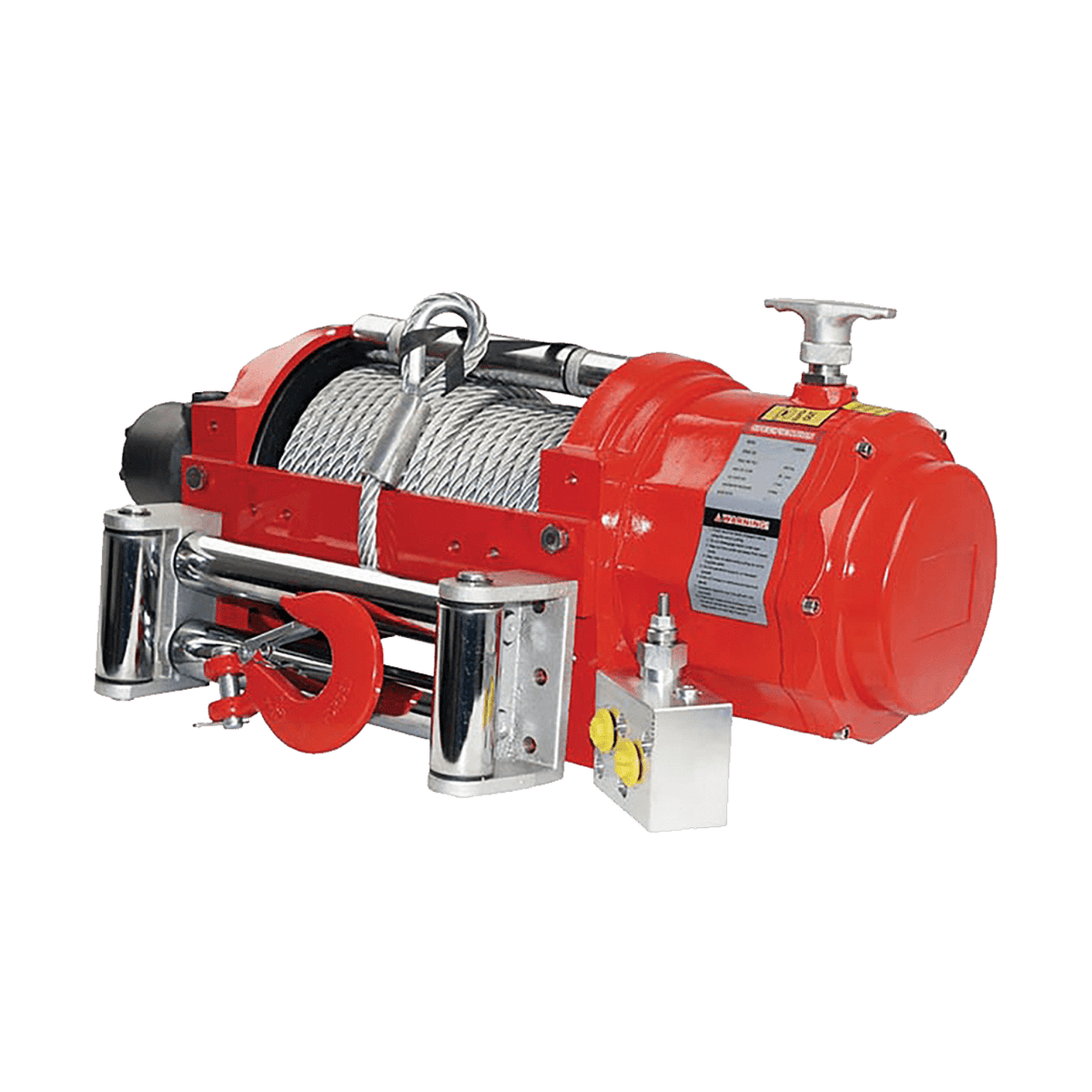

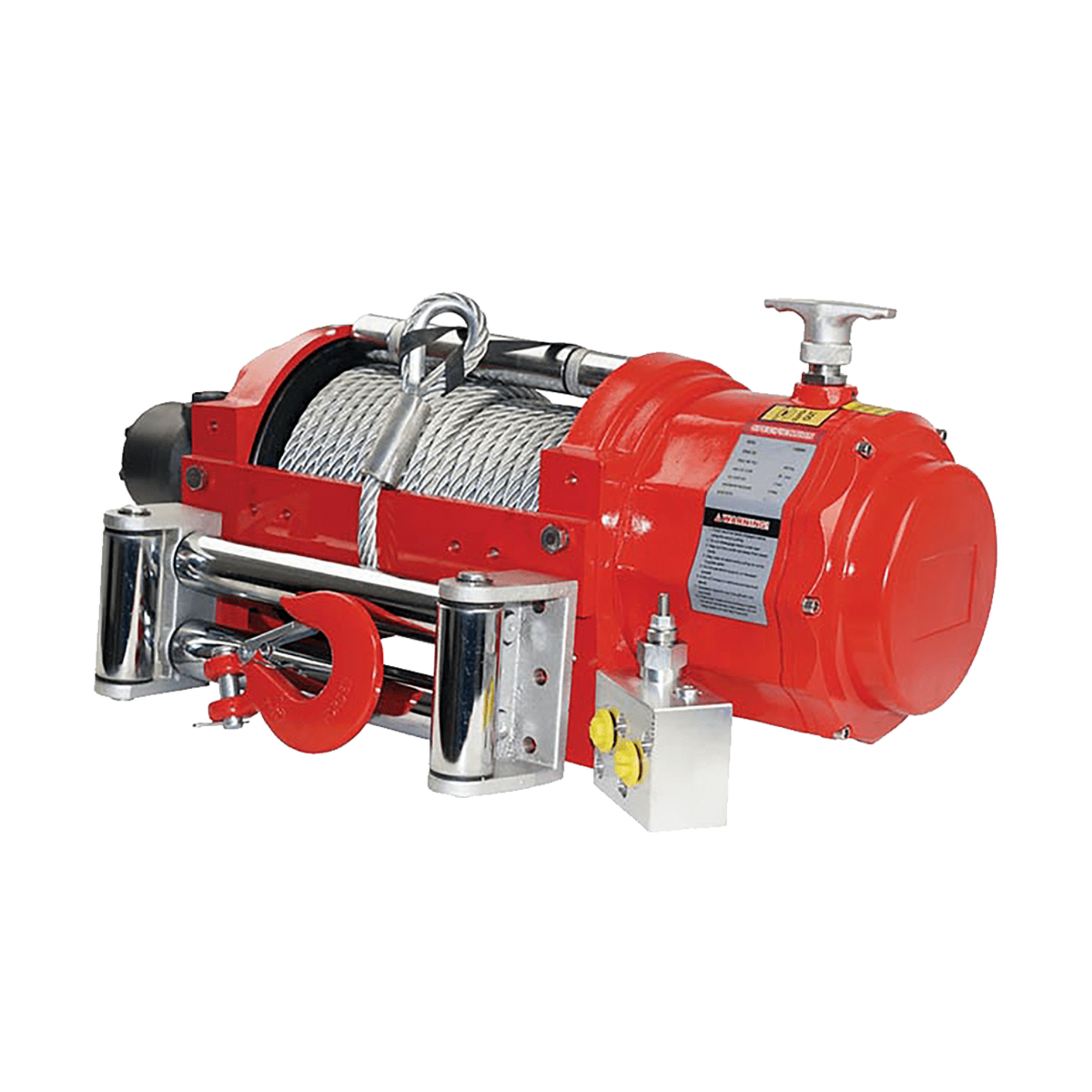

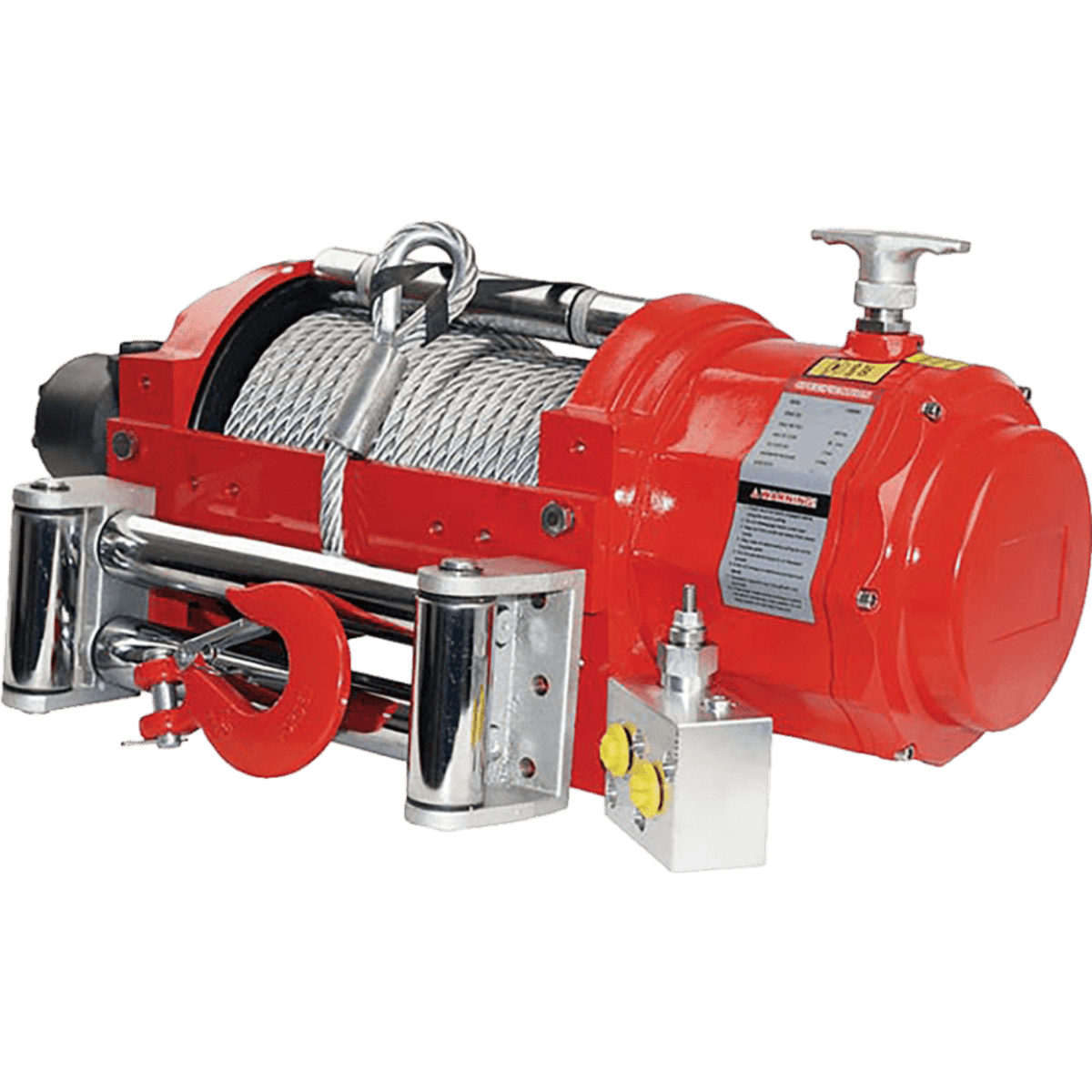

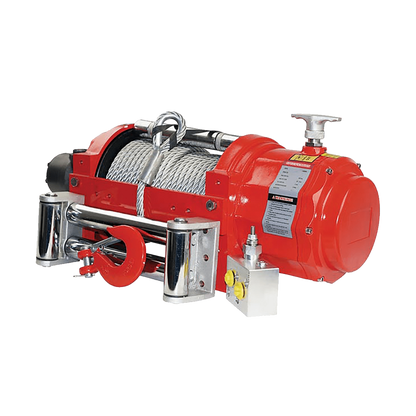

DK2 10,000LB NW Hydraulic Winch

by DK2
SKU 10000NW
Save 7% Save 7%
Original price $1,999.00
Original price $1,999.00 - Original price $1,999.00
Original price $1,999.00
Current price $1,859.99
$1,859.99 - $1,859.99
Current price $1,859.99
  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.


DK2 10,000LB NW HYDRAULIC WINCH


COMPACT & TOUGH. WARRIOR HYDRAULIC WINCHES FOR INDUSTRIAL AND COMMERCIAL APPLICATIONS. VALUE WITHOUT COMPROMISE.

Hydraulic winches for industrial and commercial applications. The special heat treated planetary gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range. Complete with internal brake to ensure maximum control and load holding.

  • Patented heavy duty gearing

  • Integral, automatic failsafe brake

  • Spring engaged manual freespool

  • Stainless steel fairlead and fittings

  • Rugged and compact for long life

  • Meets the requirements of EN 14492:1

ITEM NUMBER 10000NW
RATED LINE PULL 10000 LBS (4536 KG)
MOTOR HYDRAULIC DIS 100.8 ML/R
GEARING 16:1
DRUM SIZE - DIAMETER x LENGTH 102 x 253mm (4.01 x 9.96')
CABLE - DIAMETER x LENGTH 11mm x 26.5m (0.43' x 87')
DIMENSIONS 643 x 265 x 241mm (25.3 x 10.4 x 9.5)
MOUNTING PATTERN 374.2 x 114.3mm (14.73 x 4.5')
WEIGHT 65 KG (143 LBS)
MAX FLOW L/MIN 60
MAX PRESSURE MPA 13.8
CERTIFICATION CE CERTIFIED
LAYER OF ROPE / CABLE LINE PULL: LBS (KGS)
1 10000 (4536)
2 7355 (3339)
3 6780 (3078)
4 5711 (2952)
LINE PULL: LBS (KGS) LINE SPEED FT/MIN (M/MIN) FLOW L/MIN • PRESSURE MPA
0 2.97 (0.9) 5 • 2
3995 (1816) 5.94 (1.8) 10 • 5.6
5992 (2724) 11.88 (3.6) 20 • 8.4
7990 (3632) 23.76 (7.2) 40 • 11.2
10000 (4536) 36.96 (11.2) 60 • 13.8

Order shipment preparation takes 3 days. Once shipped orders usually takes 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
