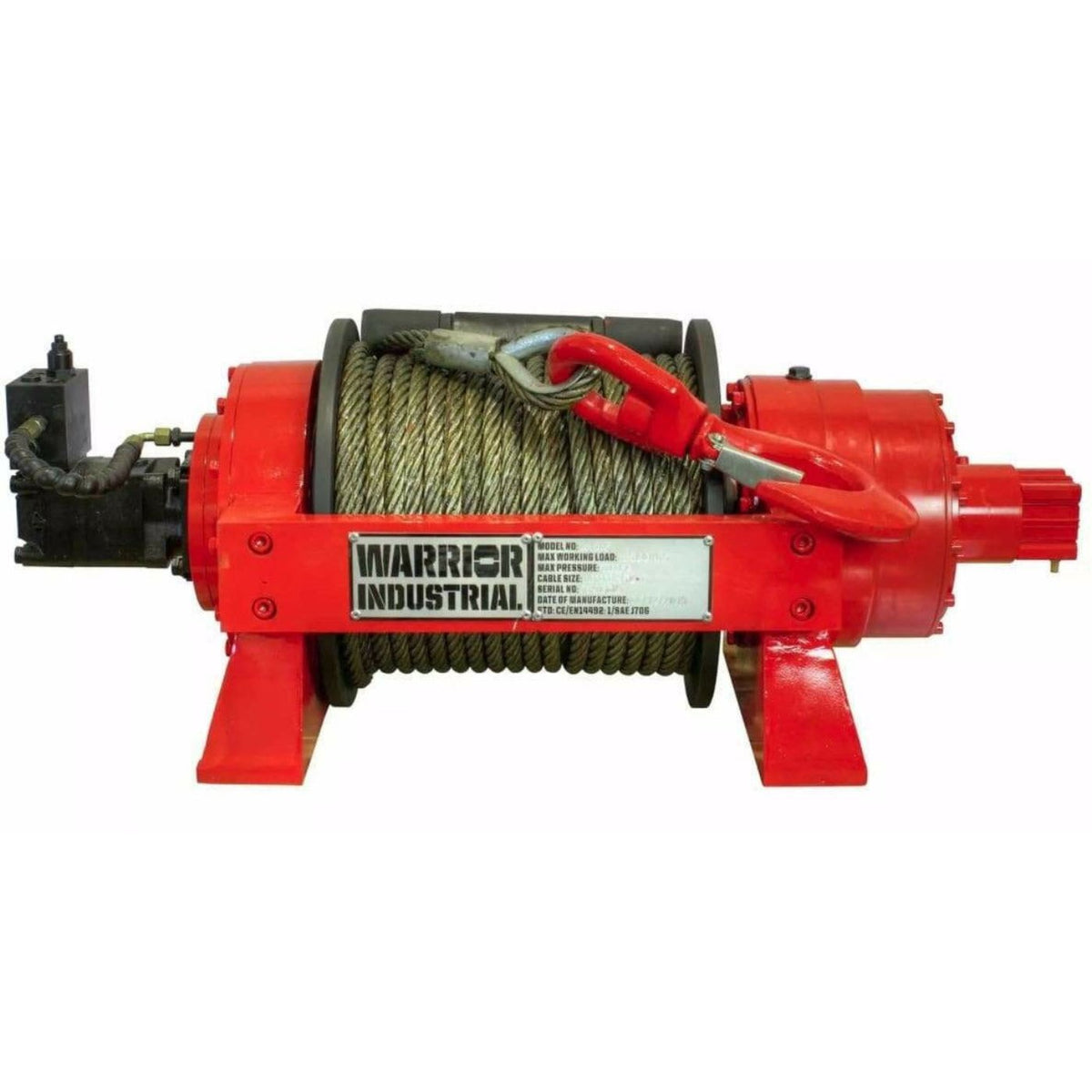

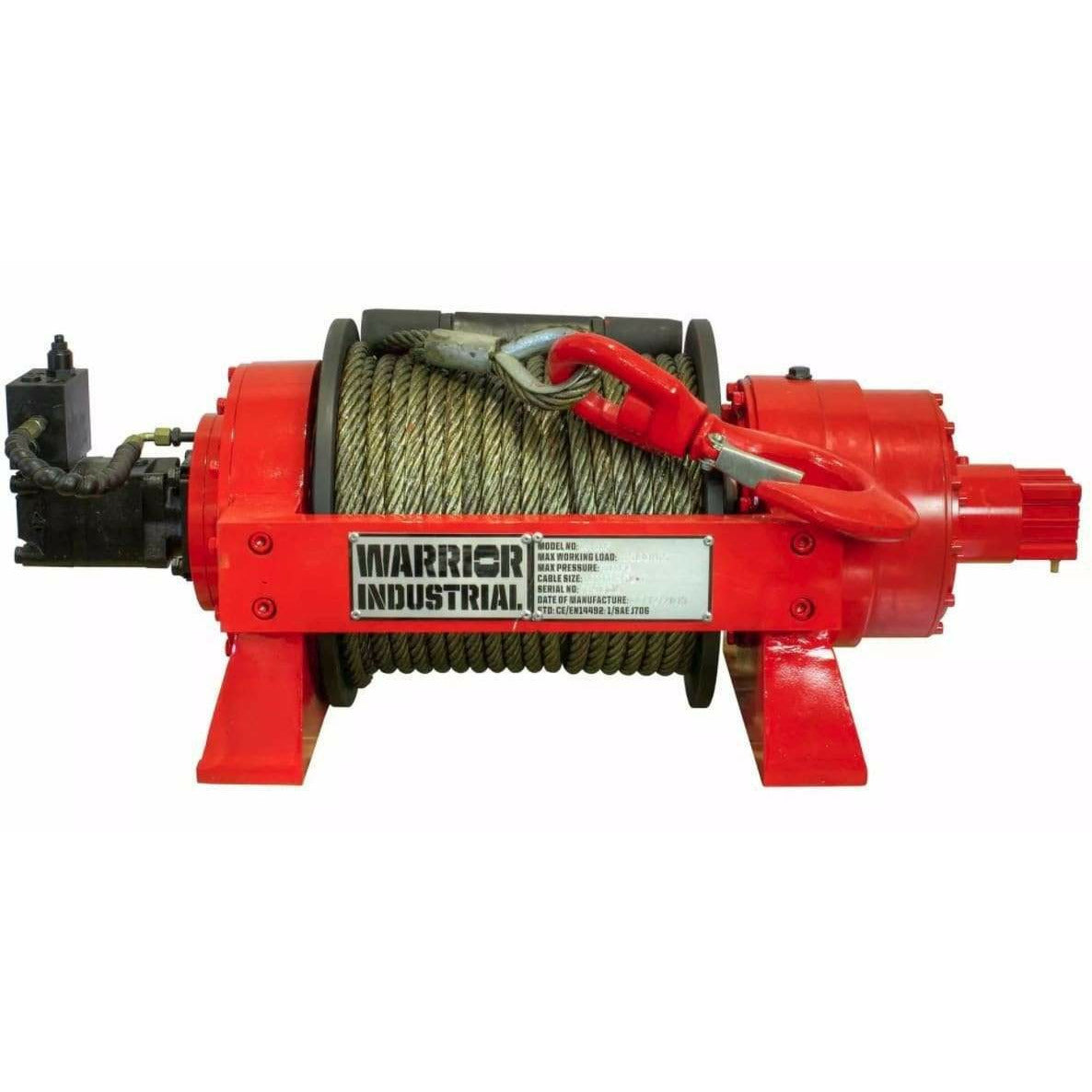

DK2 44,000LB JP HYDRAULIC WINCH


THE JP SERIES WINCHES HAVE BEEN DEVELOPED FOR THE PROFESSIONAL OPERATOR.

BUILT SPECIFICALLY FOR MILITARY USE & ABLE TO WITHSTAND EXTREME CLIMATES AND TEMPERATURES.

These winches have been designed to ensure that as a part of an installation solution they can meet the requirements of EN 14492 : 1. Superb heavy duty winches supplied complete with balance valve, cable and heavy duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications.

Features

  • Full float heavy duty planetary gearing

  • Multi disc friction brake

  • High torque industrial motor

  • Air and manual clutch operation

  • Heavy duty rope tensioner as standard

  • Minimum 10:1 rope/drum ratio

  • Balance valve as standard

ITEM NUMBER 20TJP
RATED LINE PULL 44092 LBS (20000 KG)
GEARING 36:1
BRAKING ACTION AUTO HYDRAULIC
DRUM SIZE - DIAMETER x LENGTH 210 x 340mm (8.26 x 13.39')
CABLE - DIAMETER x LENGTH 26mm x 50m (1.02' x 164')
DIMENSIONS 1224 x 640 x 420mm (48.19 x 25.2 x 16.5')
MOUNTING PATTERN 532 x 160 / 280mm (20.9 x 6.3 / 11.02')
WEIGHT 370 KG (815 LBS)
CERTIFICATION CE CERTIFIED
MAX FLOW L/MIN 120
MAX PRESSURE MPA 170 BAR
CLUTCH AIR CLUTCH
WORKING SPEED 6 M/MIN
RESPONSE PRESSURE OF ARRESTER LESS THAN 2.5MPA
