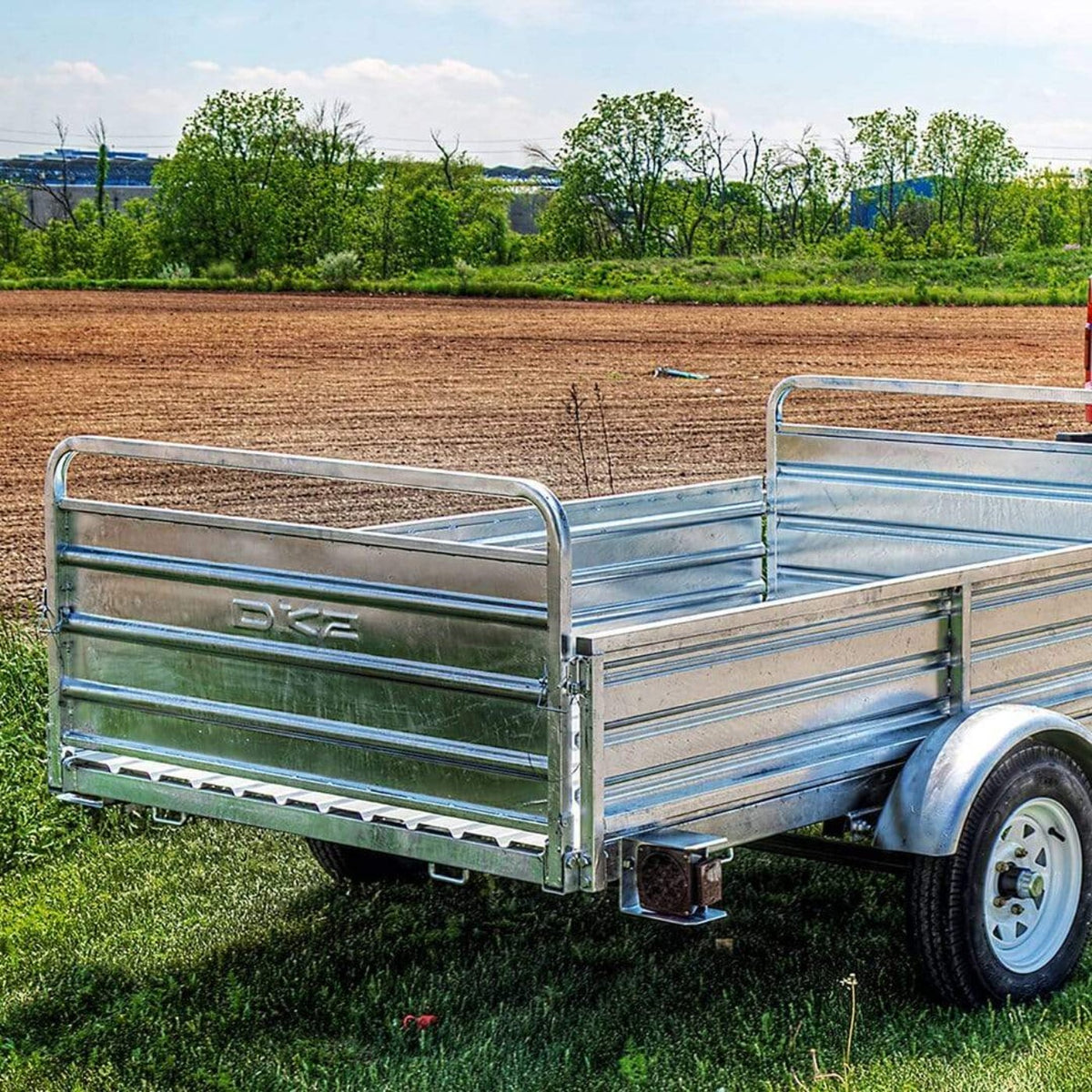

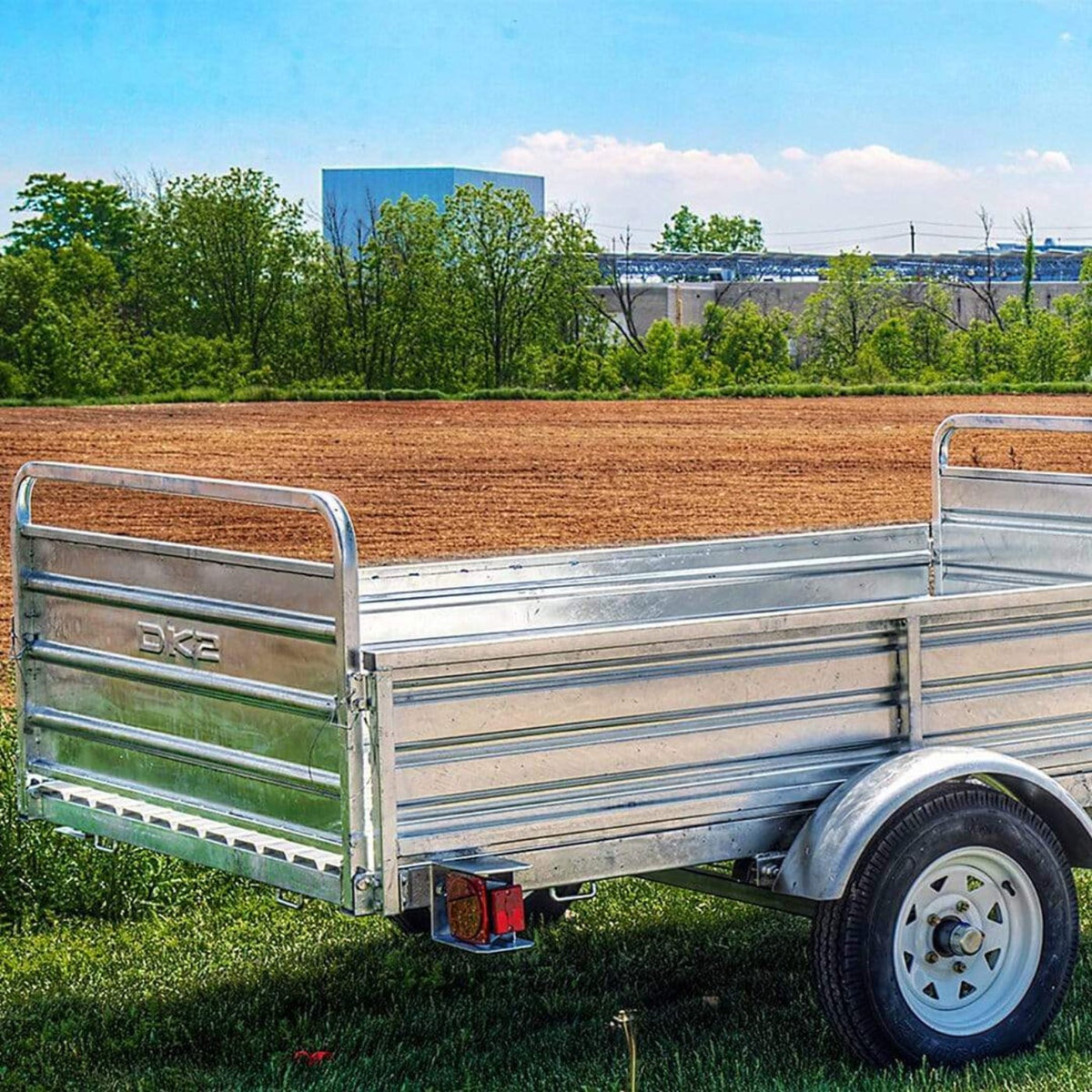

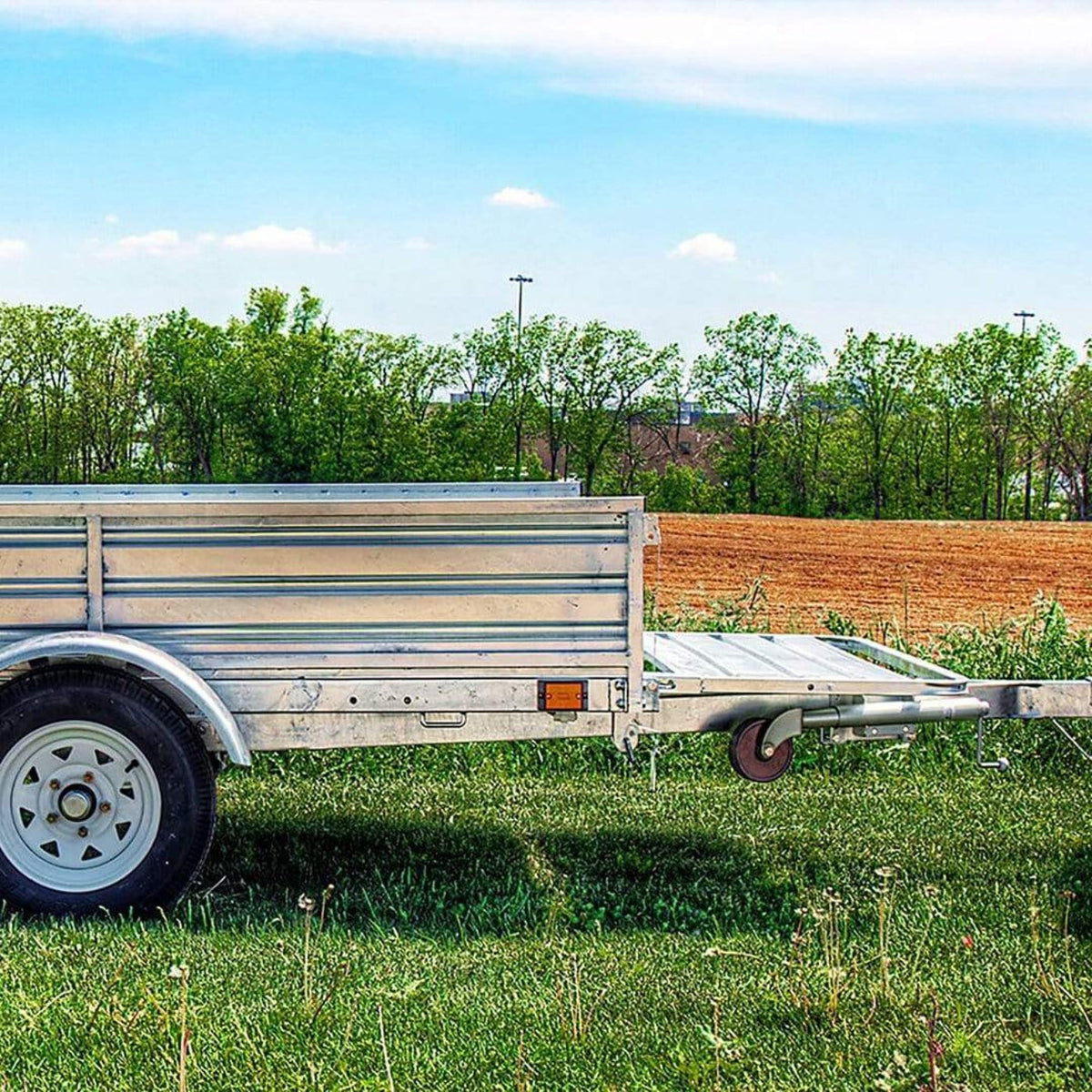

DK2 5FT X 7FT Single Axle Utility Trailer Kit - Galvanized

DK2 5FT X 7FT SINGLE AXLE UTILITY TRAILER KIT - GALVANIZED

THE DK2 MMT5X7 GALVANIZED SINGLE AXLE MULTI-UTILITY TRAILER IS ONE OF THE MOST VERSATILE TRAILERS ON THE MARKET.

Sitting on a solid square tube cambered axle with 12 inch. 6 ply bias tires, and a load capacity of 1,639lb. When the front and back load-bearing gates are down, the trailer bed extends to nearly 11.58 ft. Another great feature is the tilt/dump capability that makes it easy to load or unload heavy items. Fabricated from 100% steel, all of the components are reinforced, adjustable, removable and / or interchangeable.

DK2 MANUFACTURES THE MOST IDEAL, EVERYDAY MULTI-UTILITY TRAILERS.

• Single axle, multi-utility trailer is one of the most versatile trailers on the market

• Sits on a solid square, tube cambered axle with 30.5 cm (12”), 6 ply bias tires

• Load capacity of 1,639 lb (743.4 kg)

• When the front and back load-bearing gates are down, trailer bed extends to nearly 3.5 m (11.58 ft)

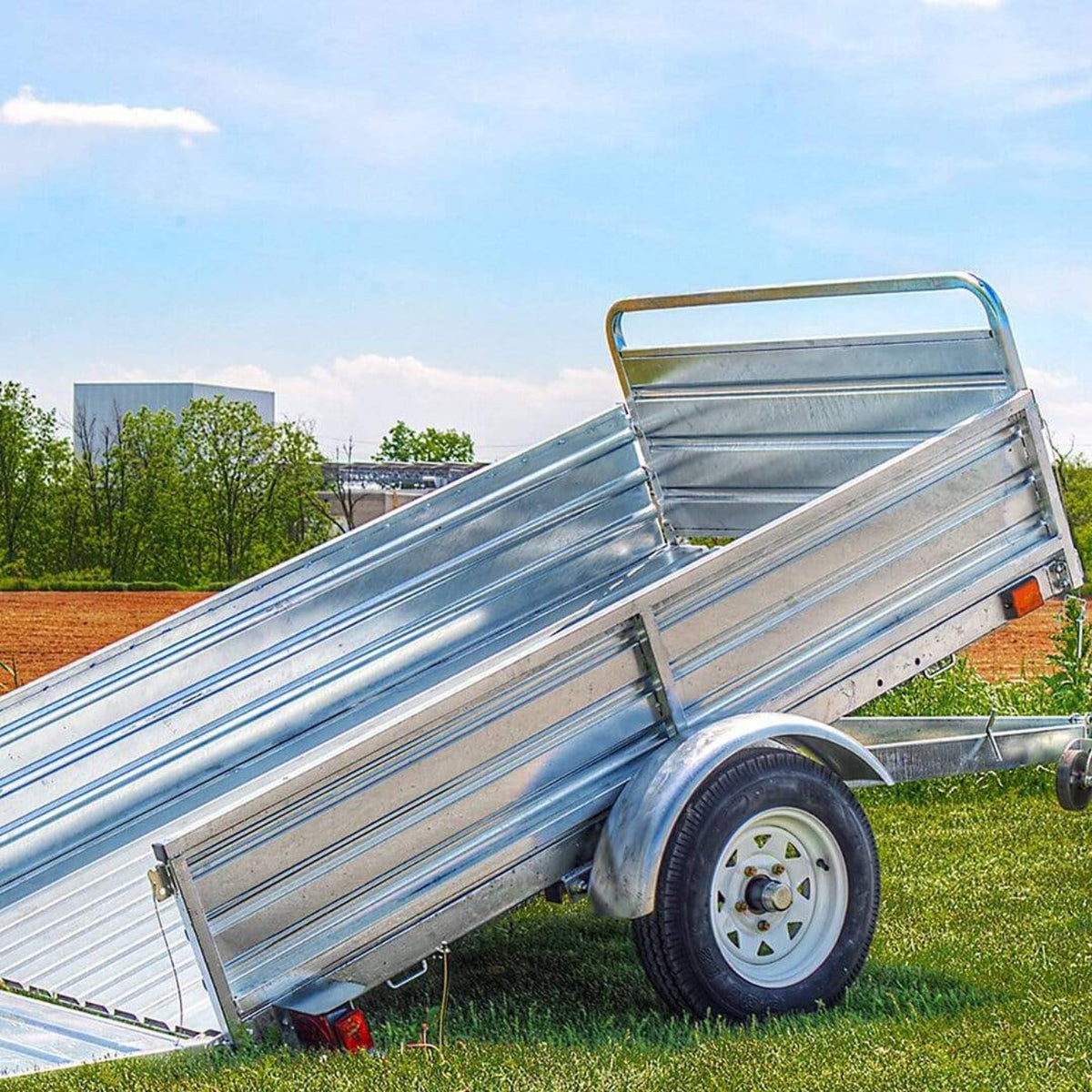

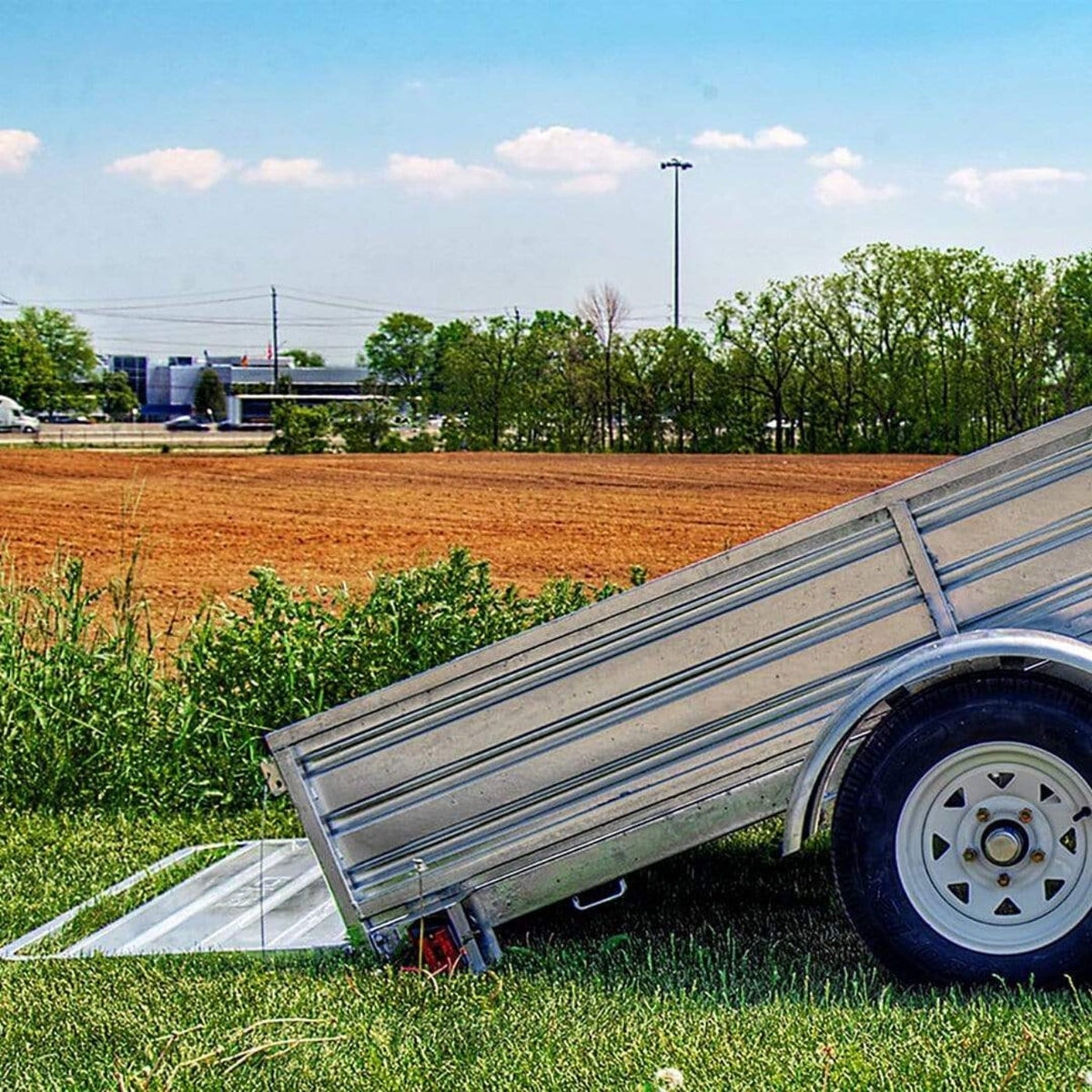

• Tilting bed allows for easy dump capability

• Fabricated from 100% hot-dipped galvanized steel

• All components are reinforced, adjustable, removable and/or interchangeable

• Payload Capacity: 1,639 lbs
• Fully welded heavy-duty 'Hot dipped & Flash coated' GALVANIZED entire trailer
• Tubular steel frame, 100% steel corrugated floor and solid side and front panels/rails
• Removable corrugated steel side panels
• Extended bed length: nearly 12 feet / 3.66 metres.
• Floor height 20'
• Quick release lock pin.
• Solid square tube cambered axle.
• V shape tongue for added strength
• GVWR: 2090 lbs
• Quick release lock-pind

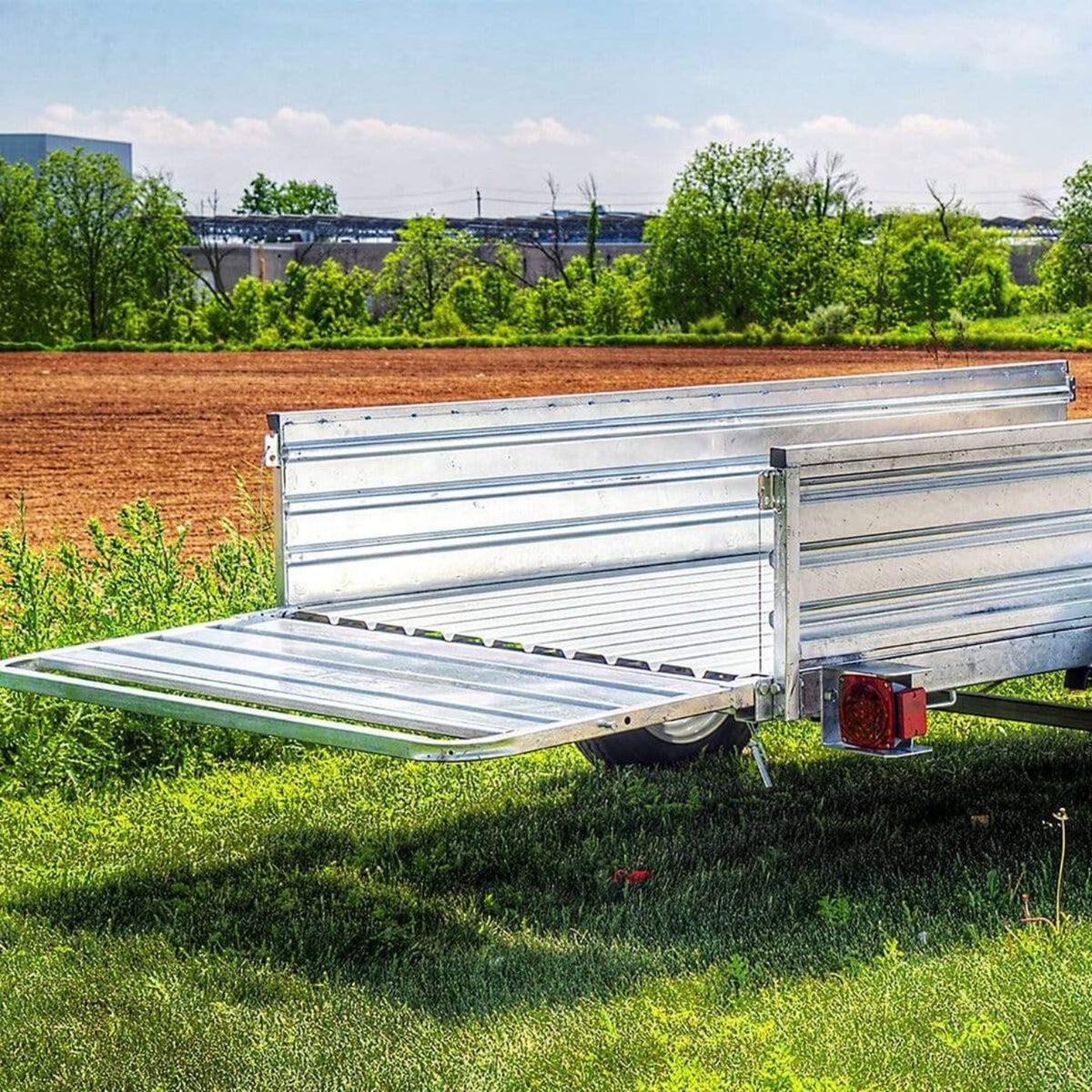

• Load-bearing front and back drop gate
• 2 position dump bed
• Trailer fully pre-wired with Plug and Play 4'
• Heavy-duty tail light protectors.
• Flat connectors to reduce time of assembly
• Easy-lube 5 on 4.5 hub assembly.
• 1 year limited warranty

• 2 inch coupler with safety chains
• LED Lights
• Certificate of origin and all necessary paperwork for registering with local DMV
• 5.3' x 12' DOT tires (2)
• Grease HUB before use

Note: Slight color variations may occur from images shown
