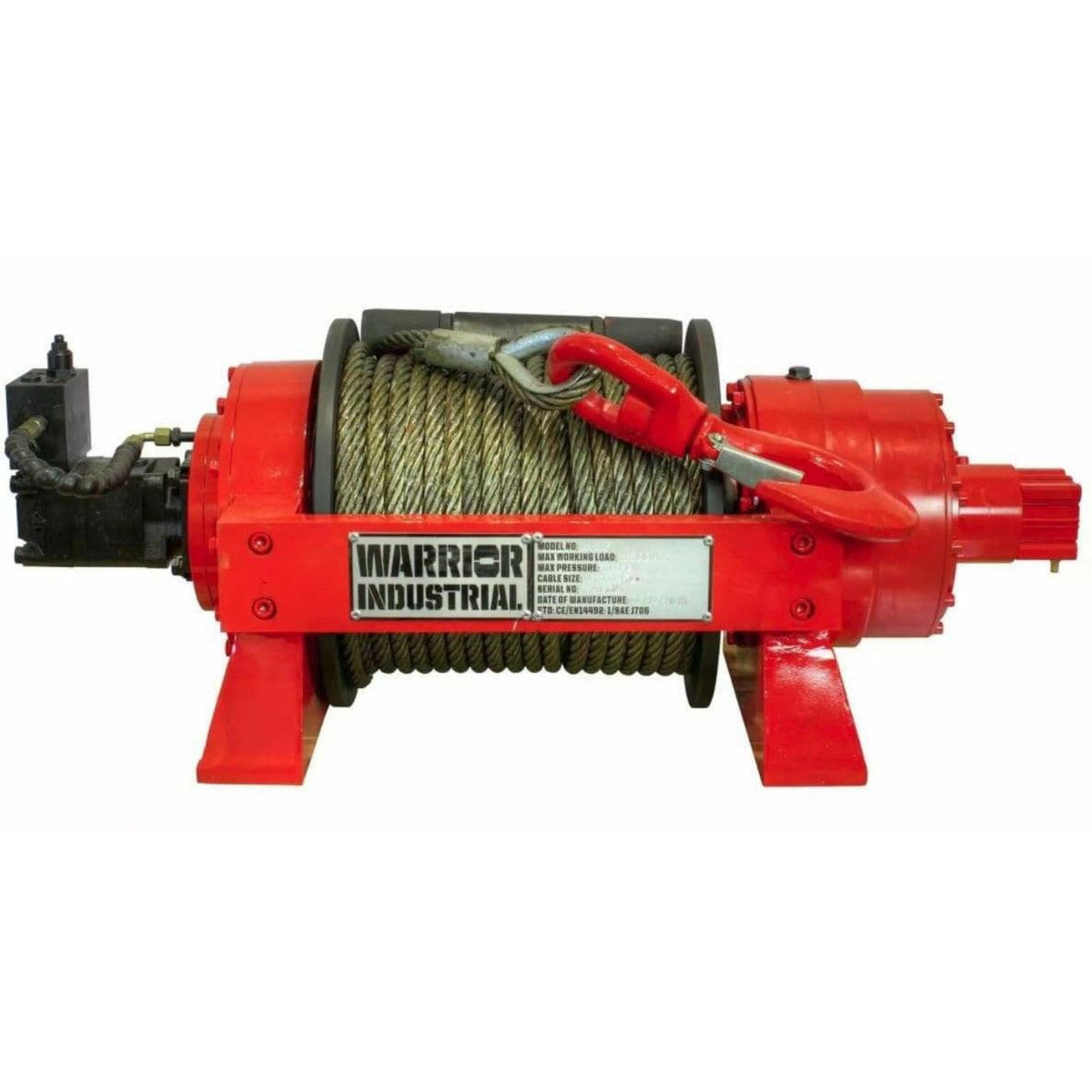

DK2 66,000LB JP HYDRAULIC WINCH


THE JP SERIES WINCHES HAVE BEEN DEVELOPED FOR THE PROFESSIONAL OPERATOR.

BUILT SPECIFICALLY FOR MILITARY USE & ABLE TO WITHSTAND EXTREME CLIMATES AND TEMPERATURES.

These winches have been designed to ensure that as a part of an installation solution they can meet the requirements of EN 14492 : 1. Superb heavy duty winches supplied complete with balance valve, cable and heavy duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications.

Features

  • Full float heavy duty planetary gearing

  • Multi disc friction brake

  • High torque industrial motor

  • Air and manual clutch operation

  • Heavy duty rope tensioner as standard

  • Minimum 10:1 rope/drum ratio

  • Balance valve as standard

ITEM NUMBER 30TJP
RATED LINE PULL 66138 LBS (30000 KG)
BRAKING ACTION AUTO HYDRAULIC
DRUM SIZE - DIAMETER x LENGTH 280 x 360mm (11.02 x 14.17')
CABLE - DIAMETER x LENGTH 32mm x 45m (1.26' x 148')
DIMENSIONS 1301 x 770 x 545mm (51.22 x 30.31 x 21.46')
MOUNTING PATTERN 610 x 170 / 310mm (24 x 6.7 / 12.2')
WEIGHT 570 KG (1256.63 LBS)
CERTIFICATION CE CERTIFIED
MAX FLOW L/MIN 120
WORKING PRESSURE 17 MPA
WORKING ARRESTER PRESSURE LESS THAN 2.5 MPA
