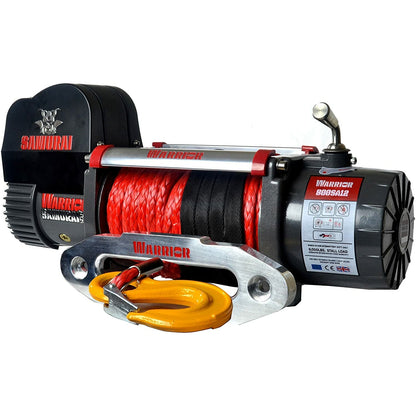

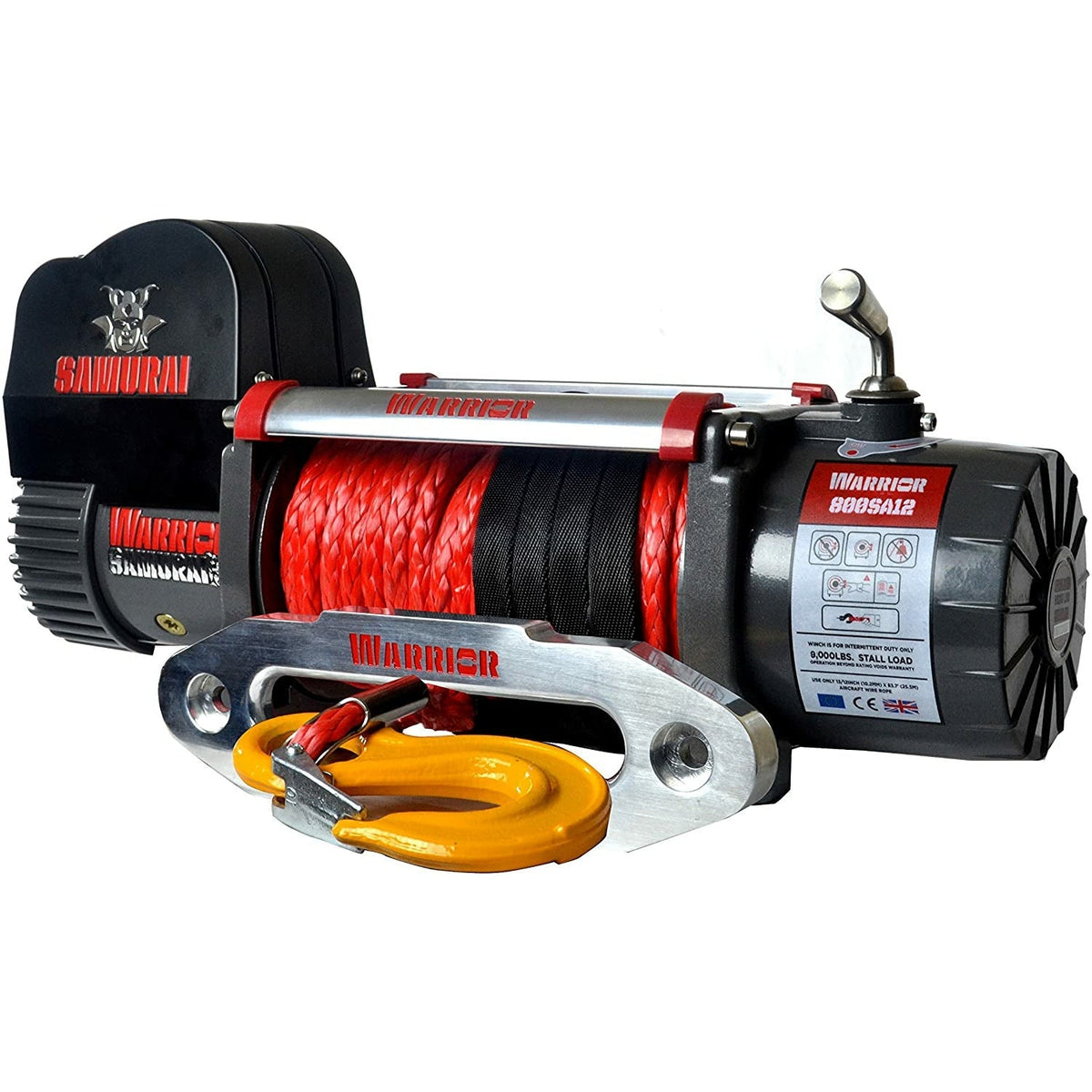

DK2 8,000LB SAMURAI SERIES WINCH (SYNTHETIC ROPE)


SUPERB HIGH SPECIFICATION WINCHES IDEAL FOR RECOVERY AND 4X4 APPLICATIONS

Ideal for recovery and 4x4 applications when you need a Warrior on your side. Outstanding features include high quality series wound double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, efficient full steel planetary gearing.

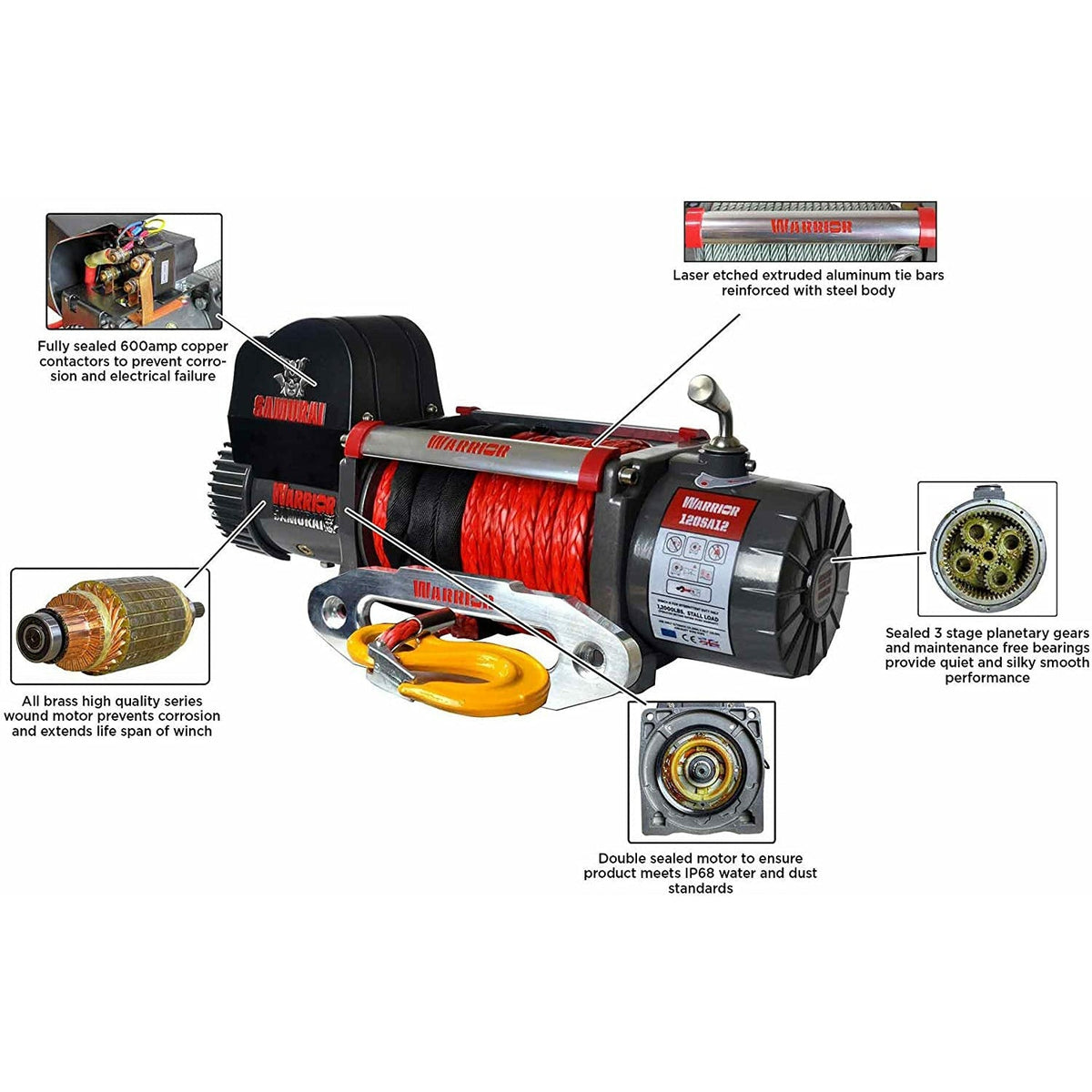

Features

  • All brass (no corrosion) series wound motor

  • Double sealed motor

  • Sealed waterproof contactor

  • Steel contactor cover for added protection

  • Double sealed drum (gearbox/motor)

  • Sealed 3 stage planetary gears

  • Stainless steel 4 way fairleads

  • Integrated wireless remote (12V only)

ITEM NUMBER S8000-SR
RATED LINE PULL 8000 LBS (3636 KG)
MOTOR 12V: 4.6 HP / 3.2 KW
GEARING 210:1
BRAKING ACTION AUTO IN THE DRUM
DRUM SIZE - DIAMETER x LENGTH 62 x 223mm (2.44 x 8.78')
CABLE - DIAMETER x LENGTH 8mm x 25m (0.31' x 82')
DIMENSIONS 540 x 160 x 219mm (21.25 x 6.3 x 8.62')
MOUNTING PATTERN 254 x 114mm (10 x 4.49')
WEIGHT 31.6 KG (69.7 LBS)
CERTIFICATION CE CERTIFIED
LAYER OF ROPE / CABLE LINE PULL: LBS (KGS)
1 8000 (3636)
2 6529 (2962)
3 5515 (2502)
4 4773 (2165)
LINE PULL: LBS (KGS) LINE SPEED 12V FT/MIN (M/MIN) AMP DRAW 12V • 24V
0 32 (9.8) 80 • 60
3000 (1361) 11.5 (3.5) 190 • 150
5000 (2268) 9.1 (2.8) 260 • 220
8000 (3629) 6 (1.8) 360 • 300
