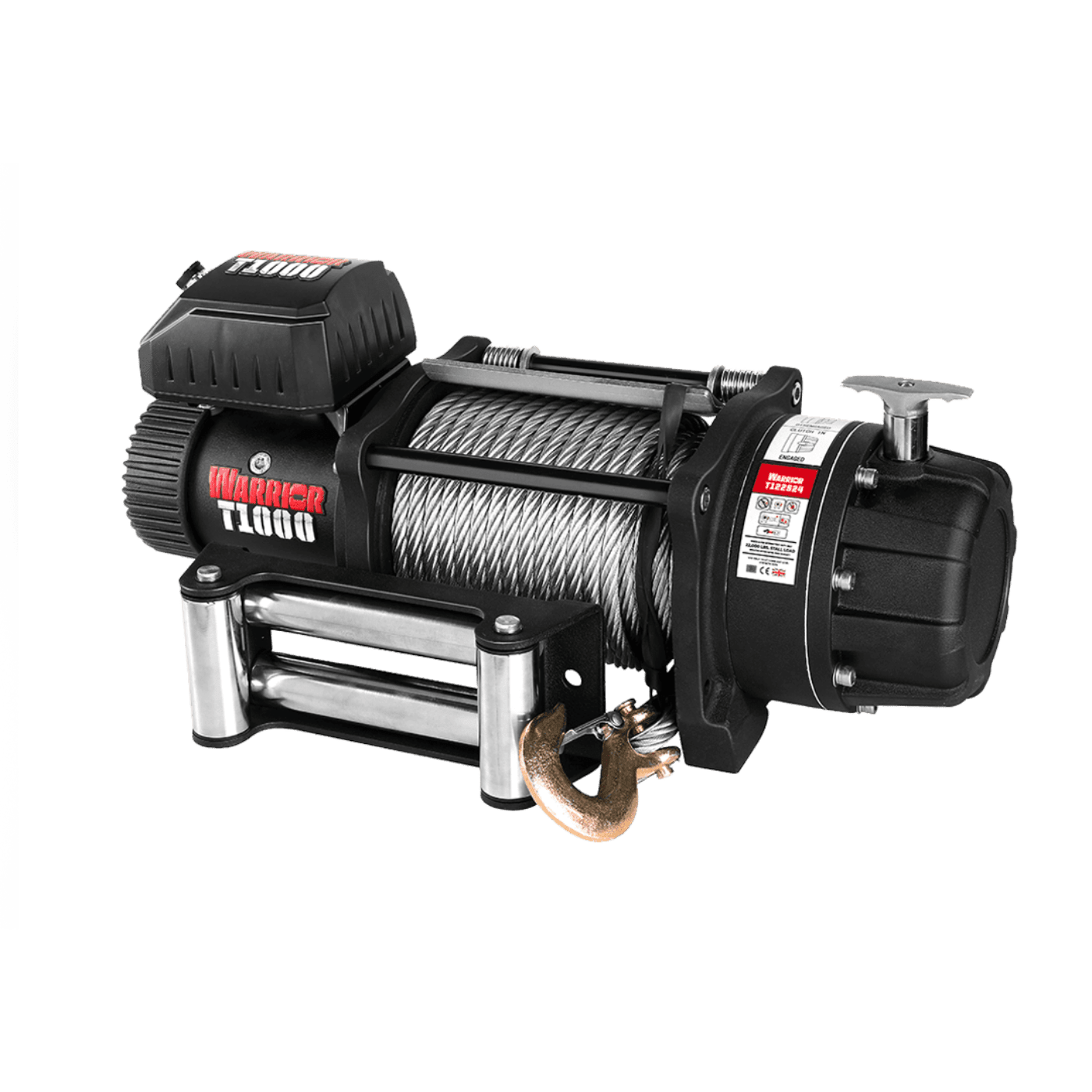

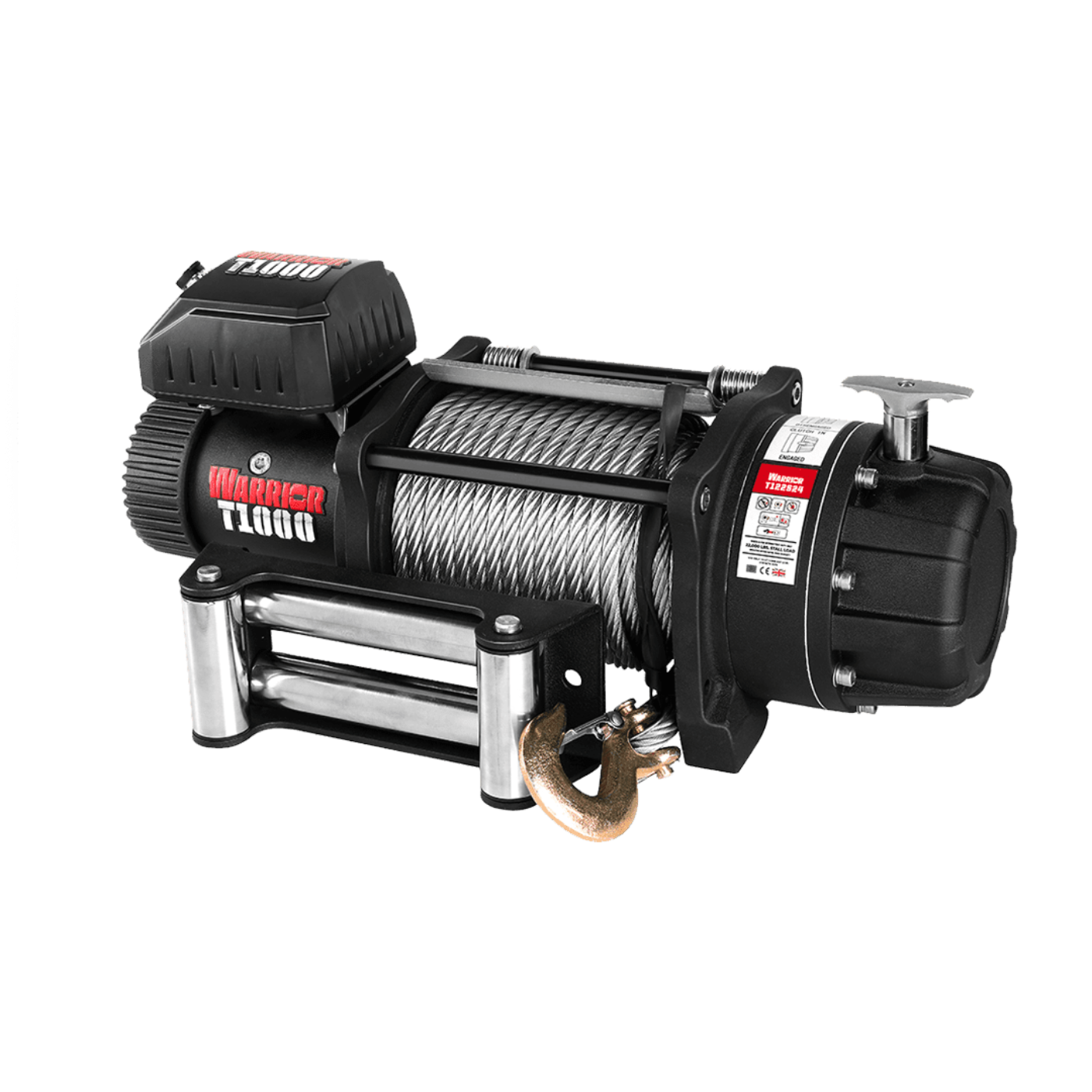

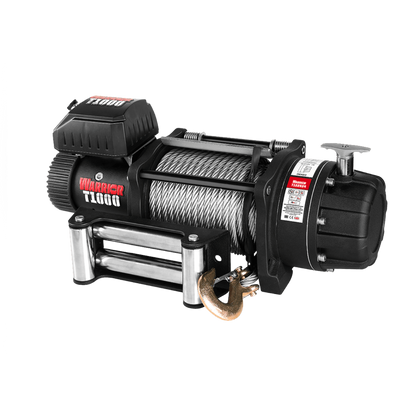

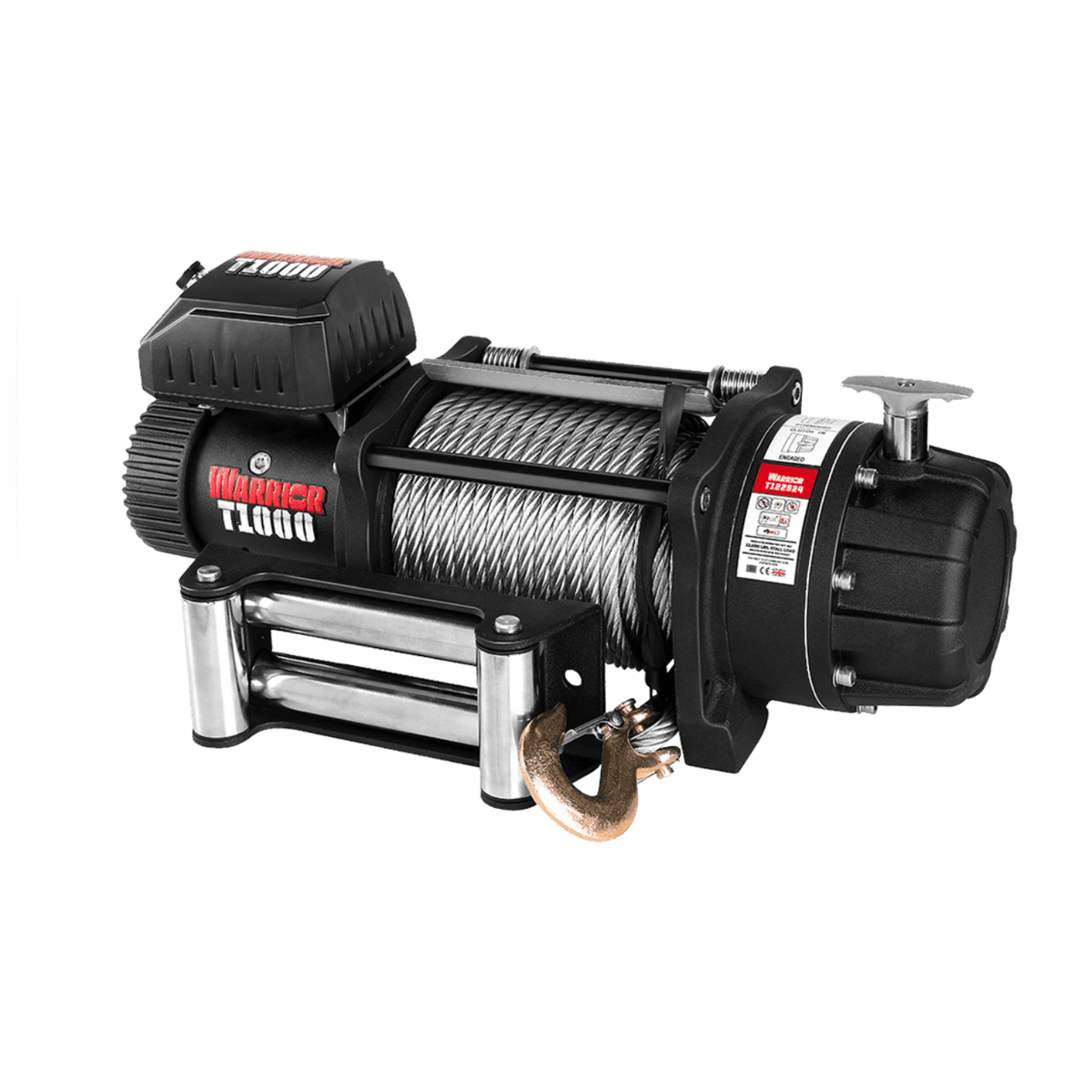

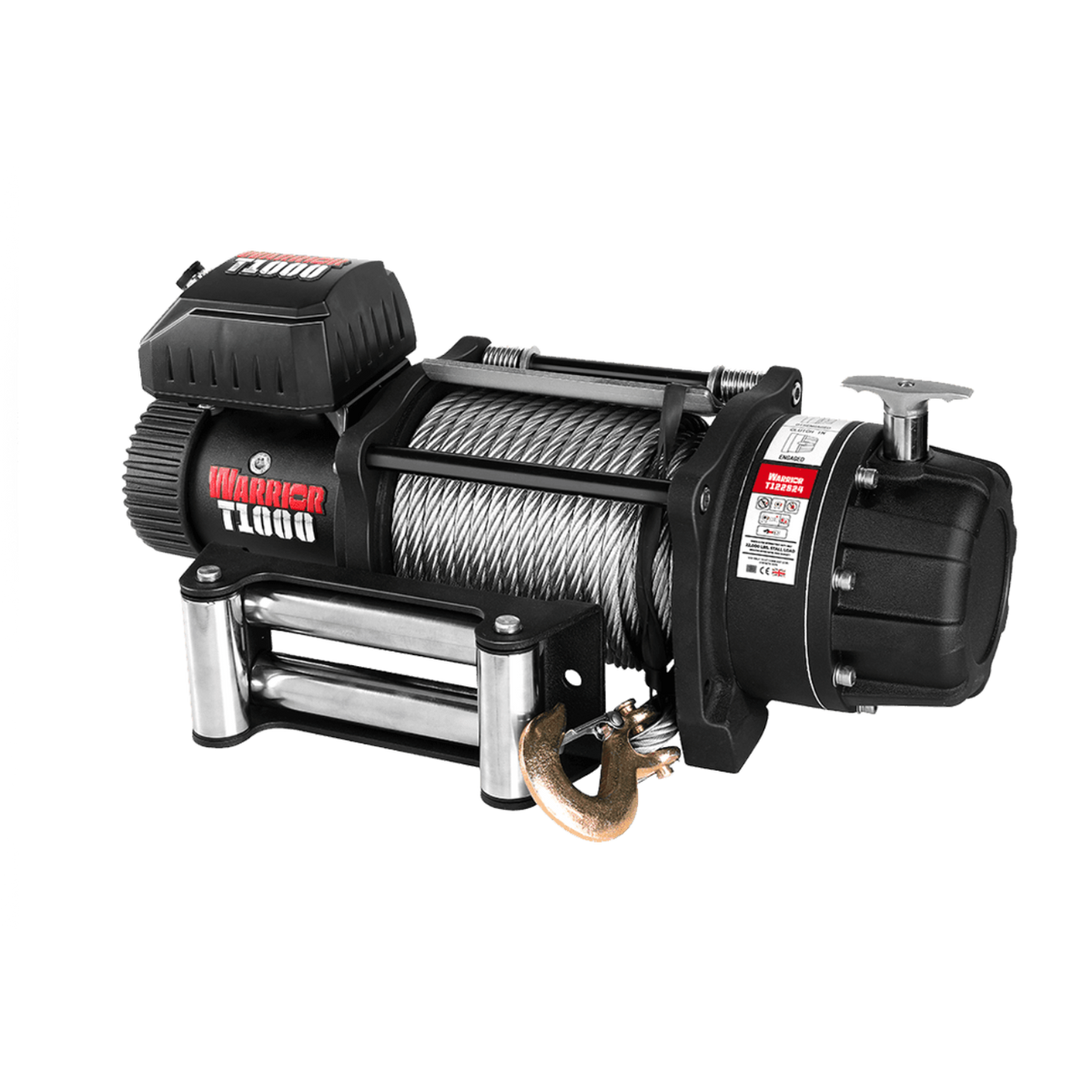

CDK2 T1000 - 10,000 LB 12V - W/ STEEL ROPE


THE T1000 RANGE OF “SEVERE DUTY” WARRIOR WINCHES WERE ORIGINALLY DESIGNED AS HIGHLY ADVANCED PROTOTYPES FOR MILITARY APPLICATION.

This series has been designed to perform in severe climates and the harshest environments imaginable as an essential prerequisite.

After successful operations in the field & following many plaudits at last year’s Defence and Security Equipment International Expo, the decision was made to allow the T1000 range to become widely available for general use. Available in both 12v or 24v options, with either steel or the more widely preferred military grade “Armortek Extreme” ropes, the T1000 Series range from 10,000lbs (4.545 Tonne) right up to the colossal 22,000 pounder (10 Tonne). The T1000 could be a complete game changer as it is a more than capable solution for any Industrial, Commercial or Military applications requiring a truly fully functional battle ready unit, or for those individuals who just demand the ultimate beast of a Warrior on their truck. Like its namesake, T1000 series is undoubtably one of the most the most advanced and durable machines on the market, it really is the best of the best.

Features

  • IP68 rated military grade winch and control box

  • Revolutionary external brake, designed to ensure there is no critical heat build-up in the drum

  • This external brake is also more capable of lowering and holding a vital load than standard brakes

  • Special lithium grease ensures operation in extreme temperatures

  • Hardened 3 stage planetary gears for reliability and efficiency

  • A chemical and corrosion resistant powder coat

  • Stainless steel roller fairlead

  • Stainless steel fittings as standard

PLEASE NOTE: THIS WINCH CAN ONLY BE FRONT MOUNTED USING THE APPROPRIATE IST200 MOUNTING PLATE.

ITEM NUMBER T1000-100
RATED LINE PULL 10000 LBS (4536 KG)
MOTOR 12V: 4.6 KW / 6.2 HP • 24V: 6.5 KW / 8.7 HP
GEARING 228:1
DRUM SIZE - DIAMETER x LENGTH 63 x 217mm (2.48 x 8.5')
CABLE - DIAMETER x LENGTH 9.1mm x 25m (0.35' x 82')
DIMENSIONS 574 x 160 x 259mm (22.6 x 6.3 x 10.2')
MOUNTING PATTERN 254 x 114.3mm (10 x 4.5') 4-M410
WEIGHT 37.5 KG (82.7 LBS)
CERTIFICATION CE CERTIFIED
LAYER OF ROPE / CABLE LINE PULL: LBS (KGS) ROPE ON DRUM FT (M)
1 10000 (4536) 16.1 (4.9)
2 7980 (3620) 36.4 (11.1)
3 6640 (3012) 61.0 (18.6)
4 5680 (2576) 82.0 (25.0)
LINE PULL: LBS (KGS) LINE SPEED 12V • 24V FT/MIN (M/MIN) AMP DRAW 12V • 24V
0 32.2 (9.8) • 34.4 (10.5) 65 • 45
3000 (1361) 14.8 (4.5) • 16.4 (5.0) 140 • 85
6000 (2722) 10.5 (3.2) • 12.5 (3.8) 260 • 140
8000 (3629) 7.5 (2.3) • 9.8 (3.0) 320 • 175
10000 (4536) 5.2 (1.6) • 7.5 (2.3) 380 • 210
