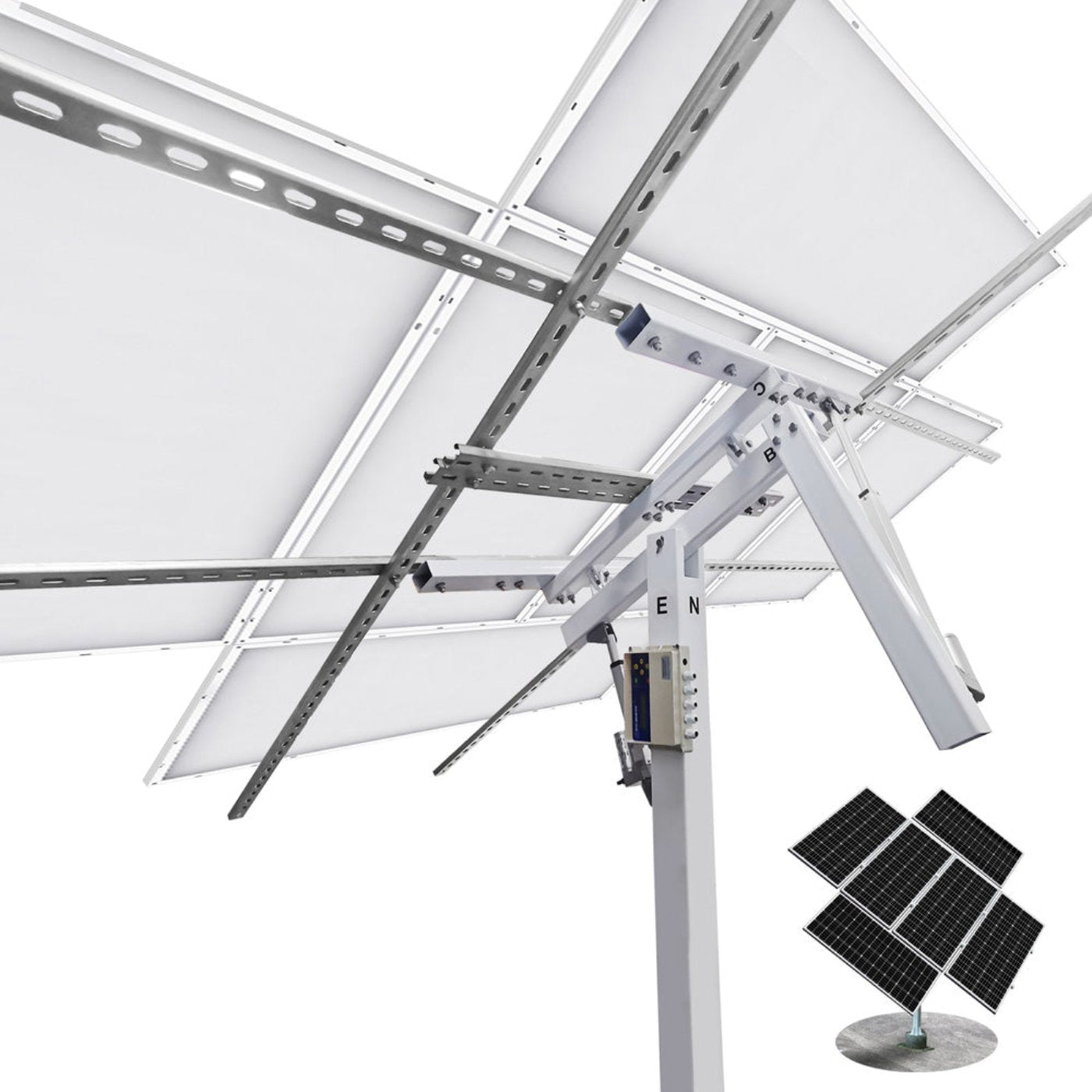

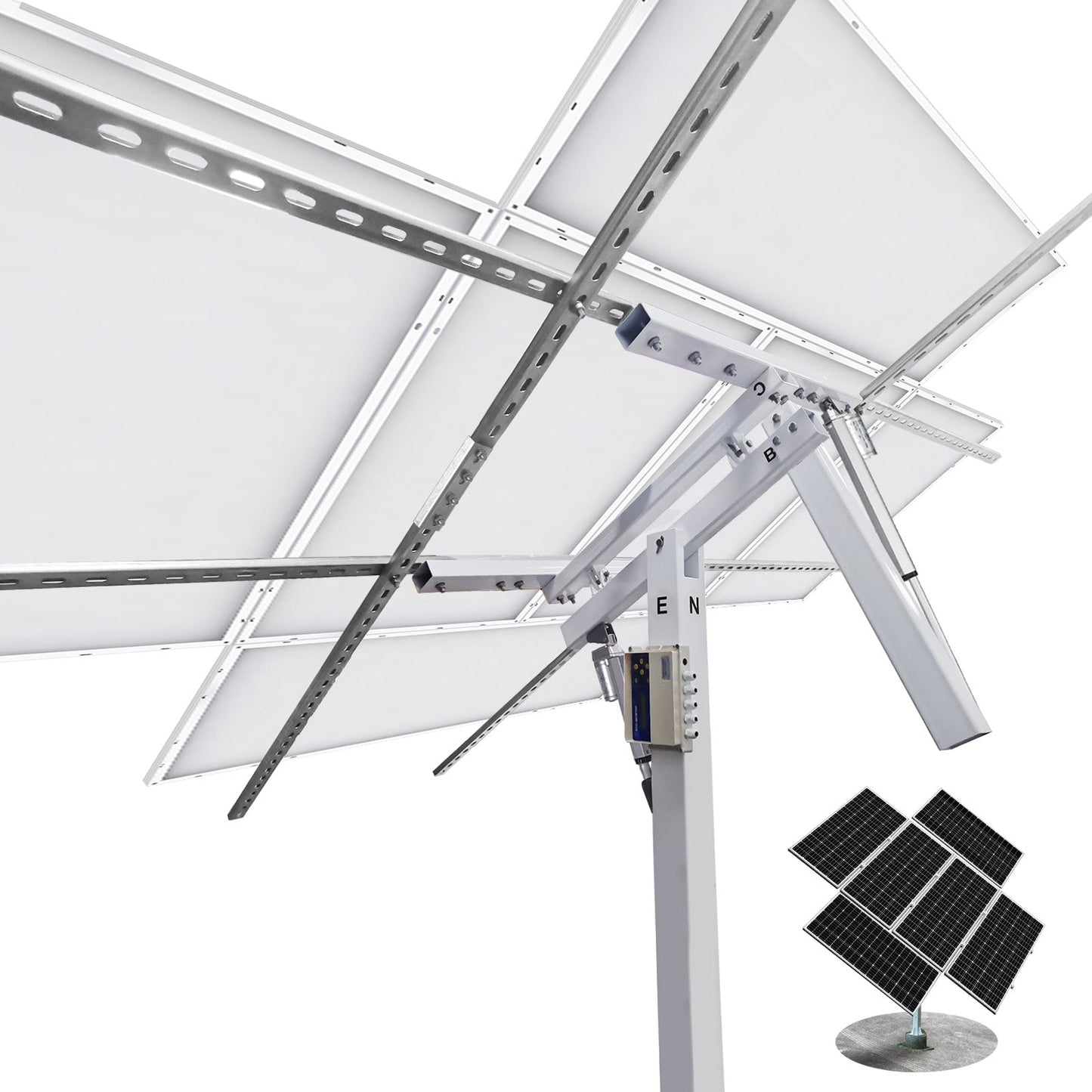

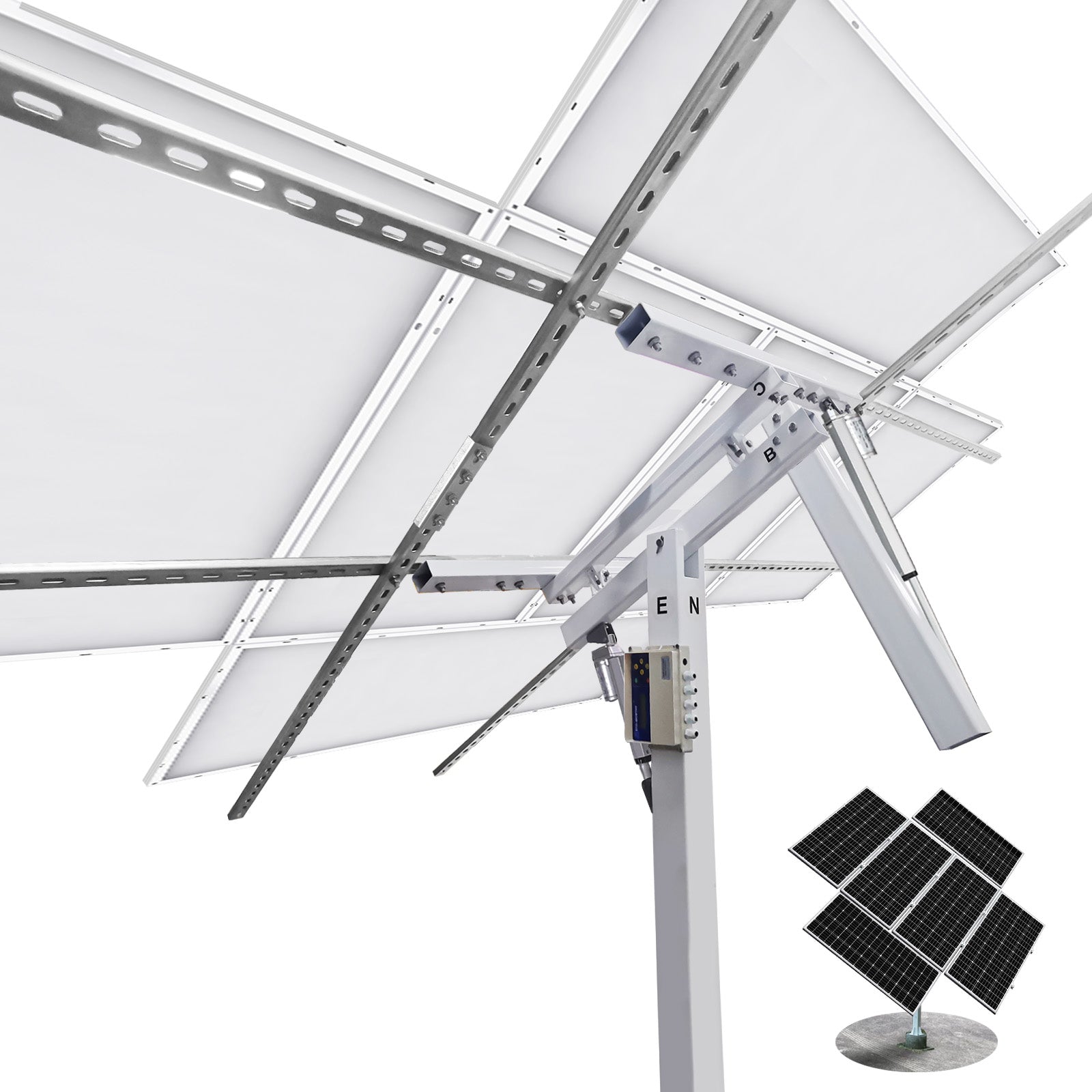

Eco-Worthy Dual Axis Solar Tracker System
Specification
| Package 1 Weight: 19.7kg/43.4lbs |
Package 1 Dimension: 72.5*28.5*19.0cm/28.5*11.2*7.5inch |
| Package 2 Weight: 23.6kg/52.0lbs |
Package 2 Dimension: 155.0*25.8*26.2cm/61.0*10.1*10.3inch |
6' 150mm Linear Actuator
| Input Voltage: 12V DC |
Max. Load: 1500N/330lbs/150kg |
| Stroke Length: 6 inches (150mm) |
Duty Cycle: 25% |
| Protection Class: IP65 |
Material: Aluminum alloy |
| Low Noise: db<45 (A) |
|
12' 300mm Linear Actuator
| Input Voltage: 12V DC |
Max. Load: 1500N/330lbs/150kg |
| Stroke Length: 12 inches (300mm) |
Duty Cycle: 25% |
| Protection Class: IP65 |
Material: Aluminum alloy |
| Low Noise: db<45 (A) |
|

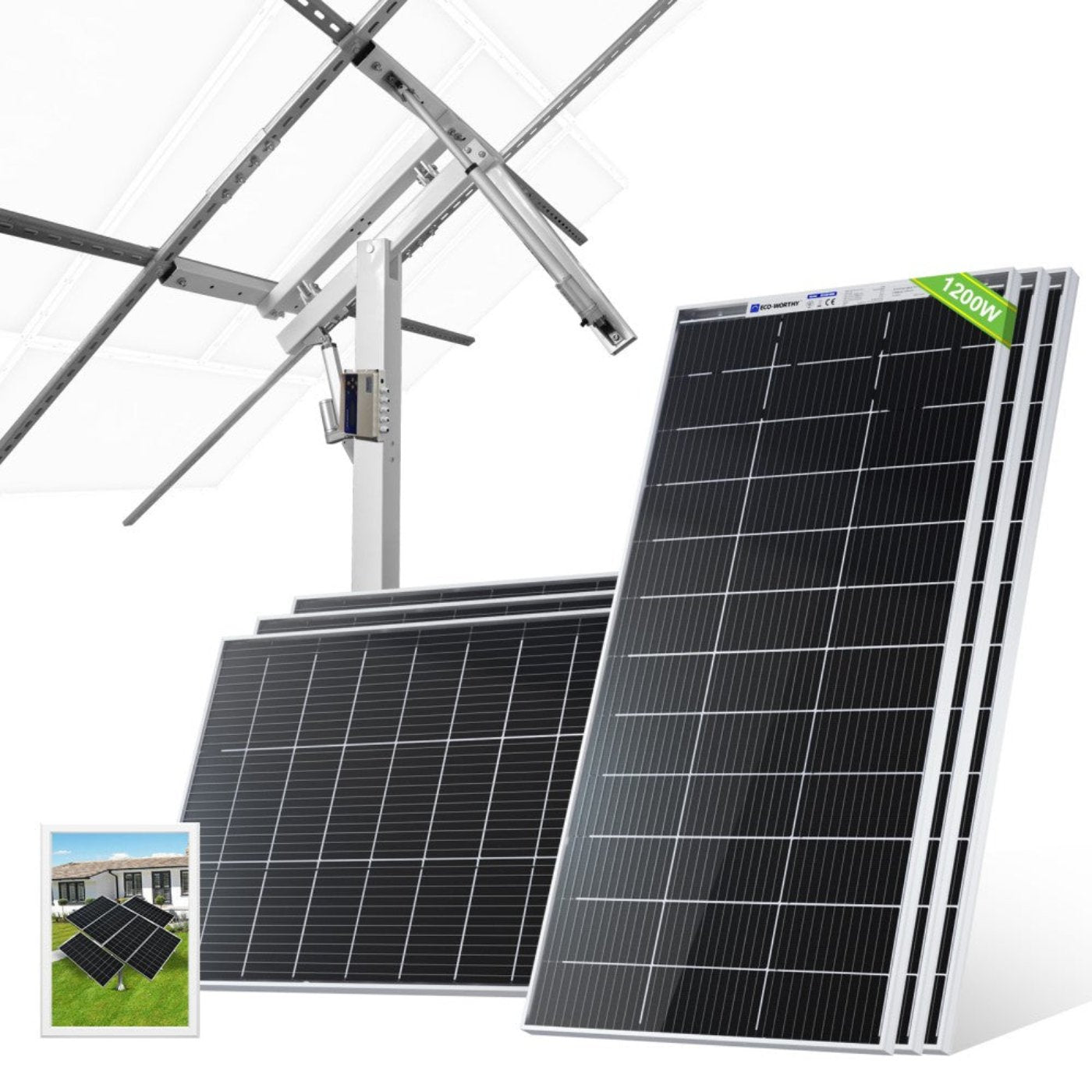

Bifacial 195W Monocrystalline Solar Panel
| Rated Power: 195W |
Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 19.8V |
Open Circuit Voltage(Voc): 23.7V |
| Short circuit current: 10.5A |
Maximum current: 9.85A |
| Output Tolerance: ±3% |
Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ |
Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame |
Weight: 20.48 lbs(9.29 kg) |
| Size: 52.6x26.38x1.38in (1335*670*35mm) |
|

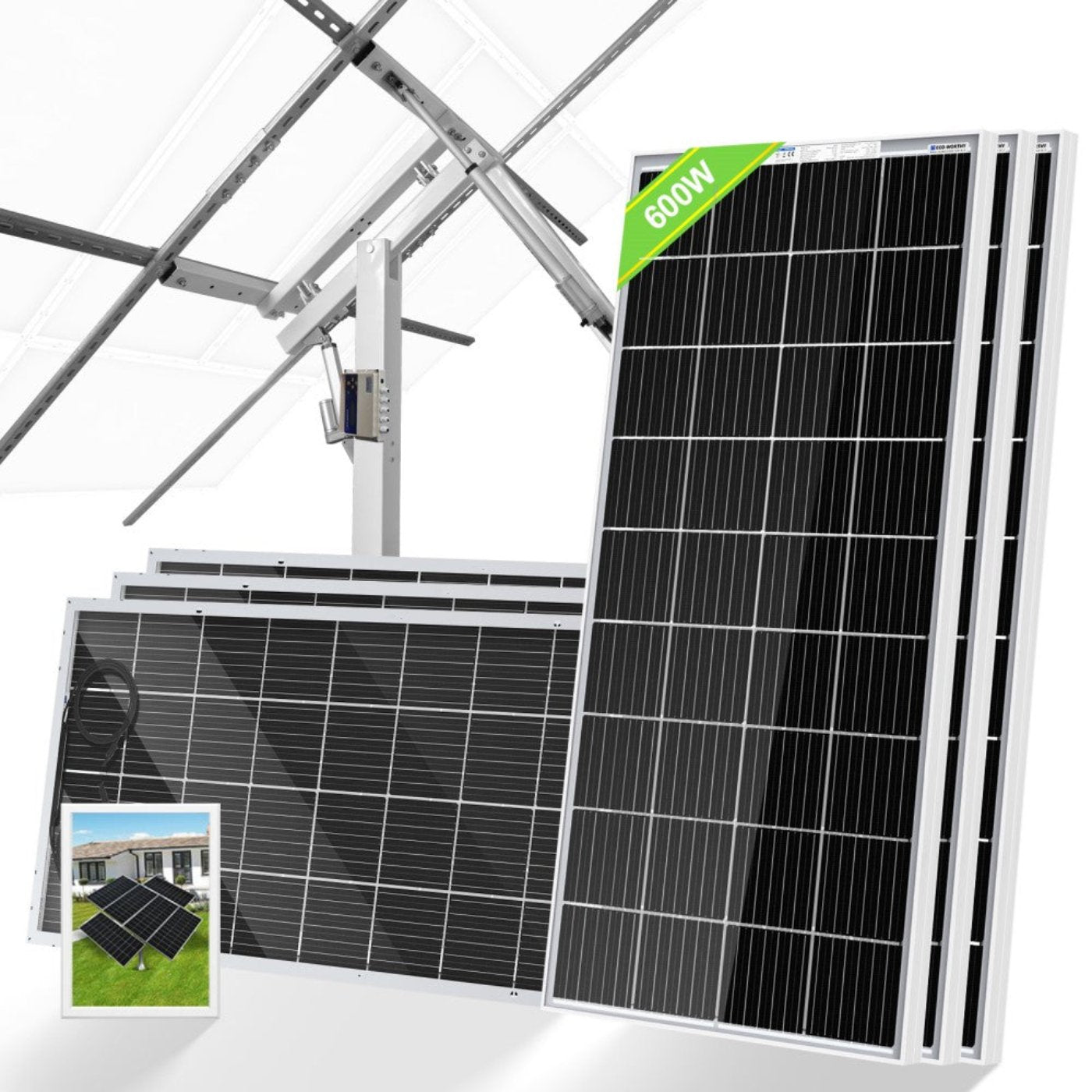

Bifacial 100W Monocrystalline Solar Panel
| Rated Power: 100W |
Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 20.2V |
Open Circuit Voltage(Voc): 24.5V |
| Short circuit current: 4.95A |
Maximum current: 5.20A |
| Output Tolerance: ±3% |
Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ |
Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame |
Weight: 11.46 lbs(5.20 kg) |
| Size: 39.8x18.1x1.4in (1010*460*35mm) |
|
What Our Experts Think
-

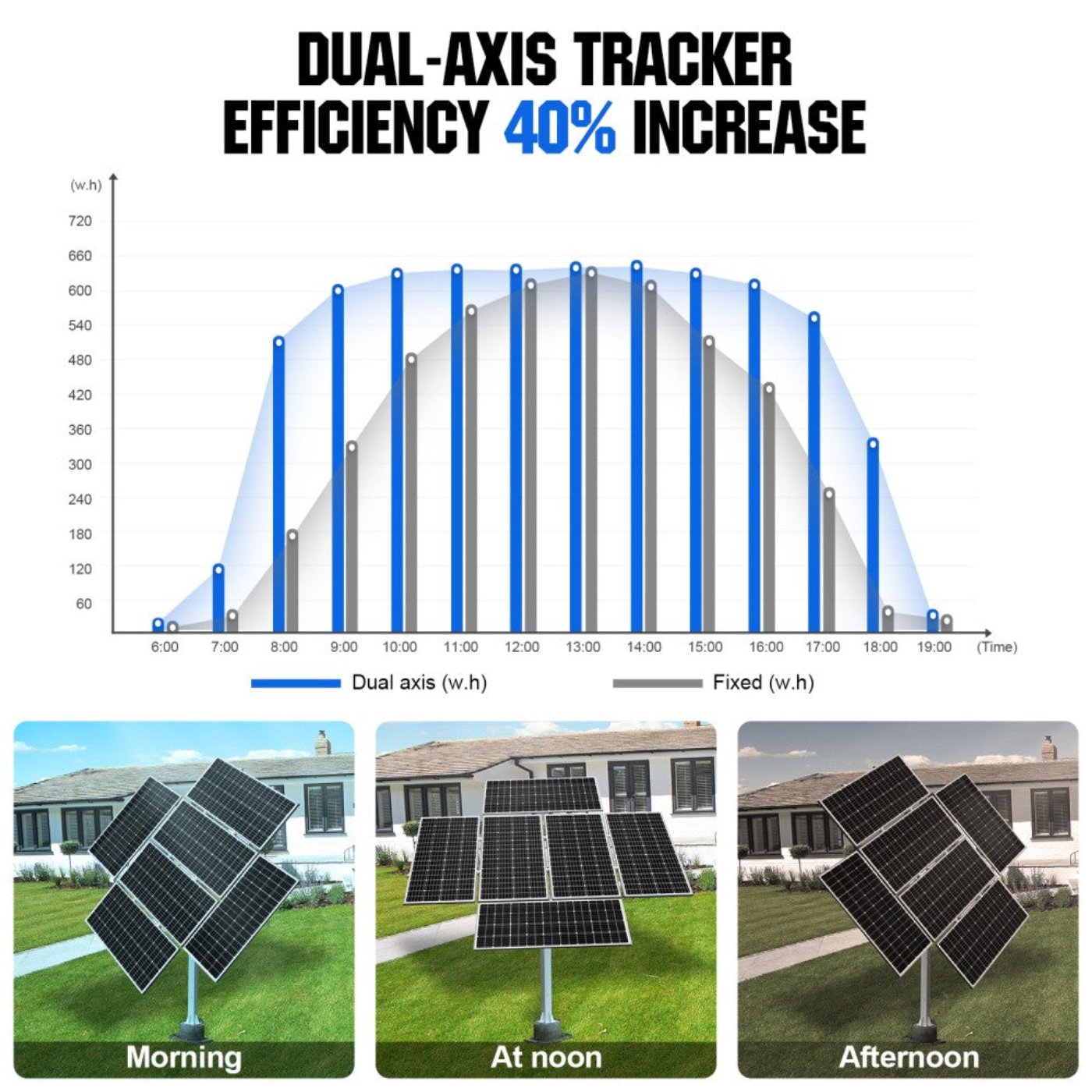

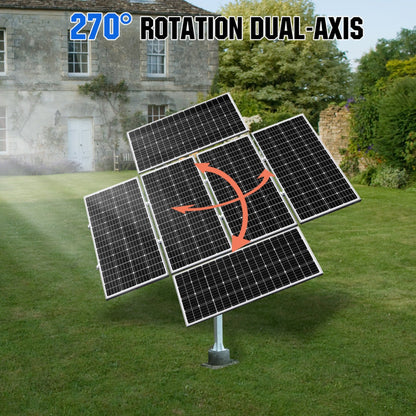

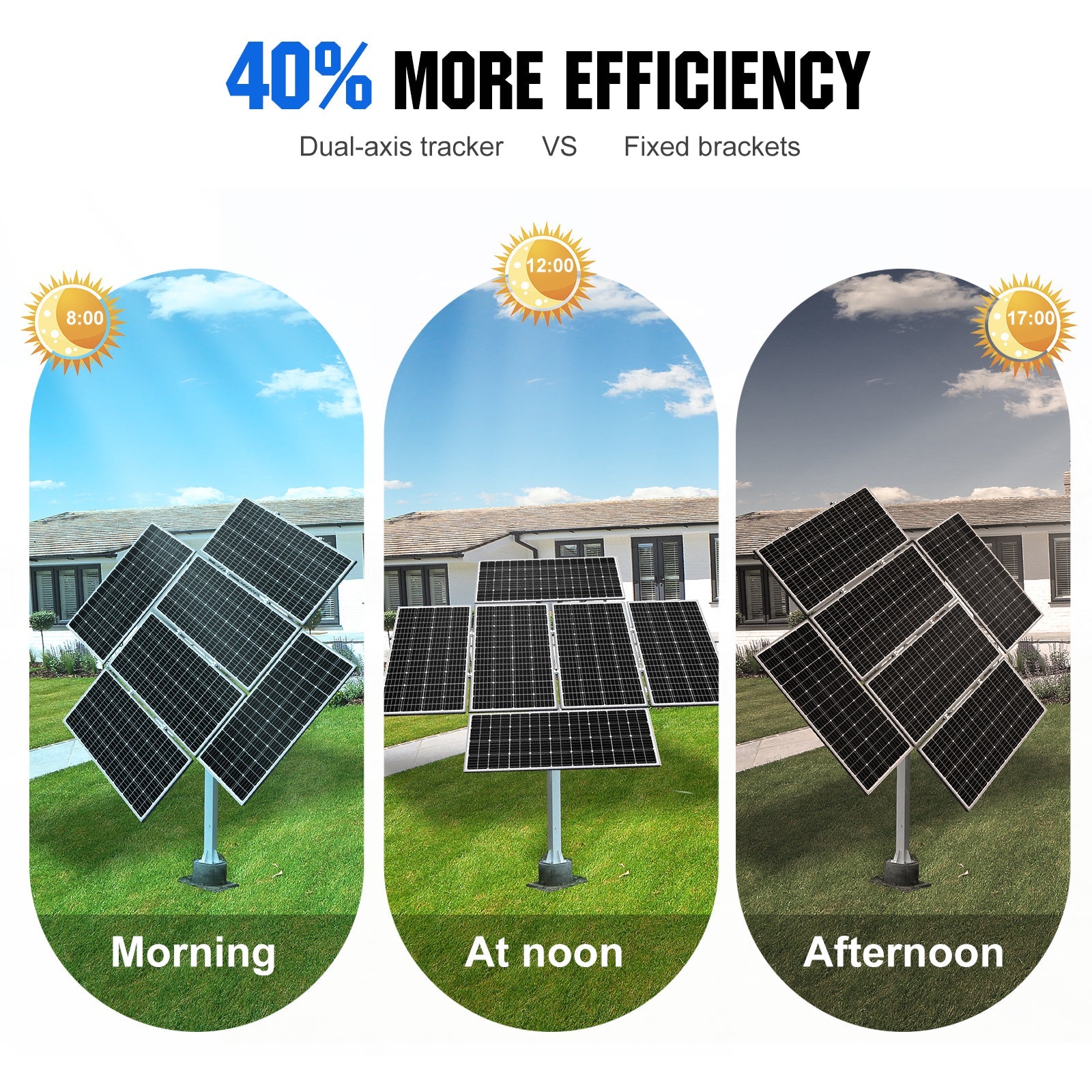

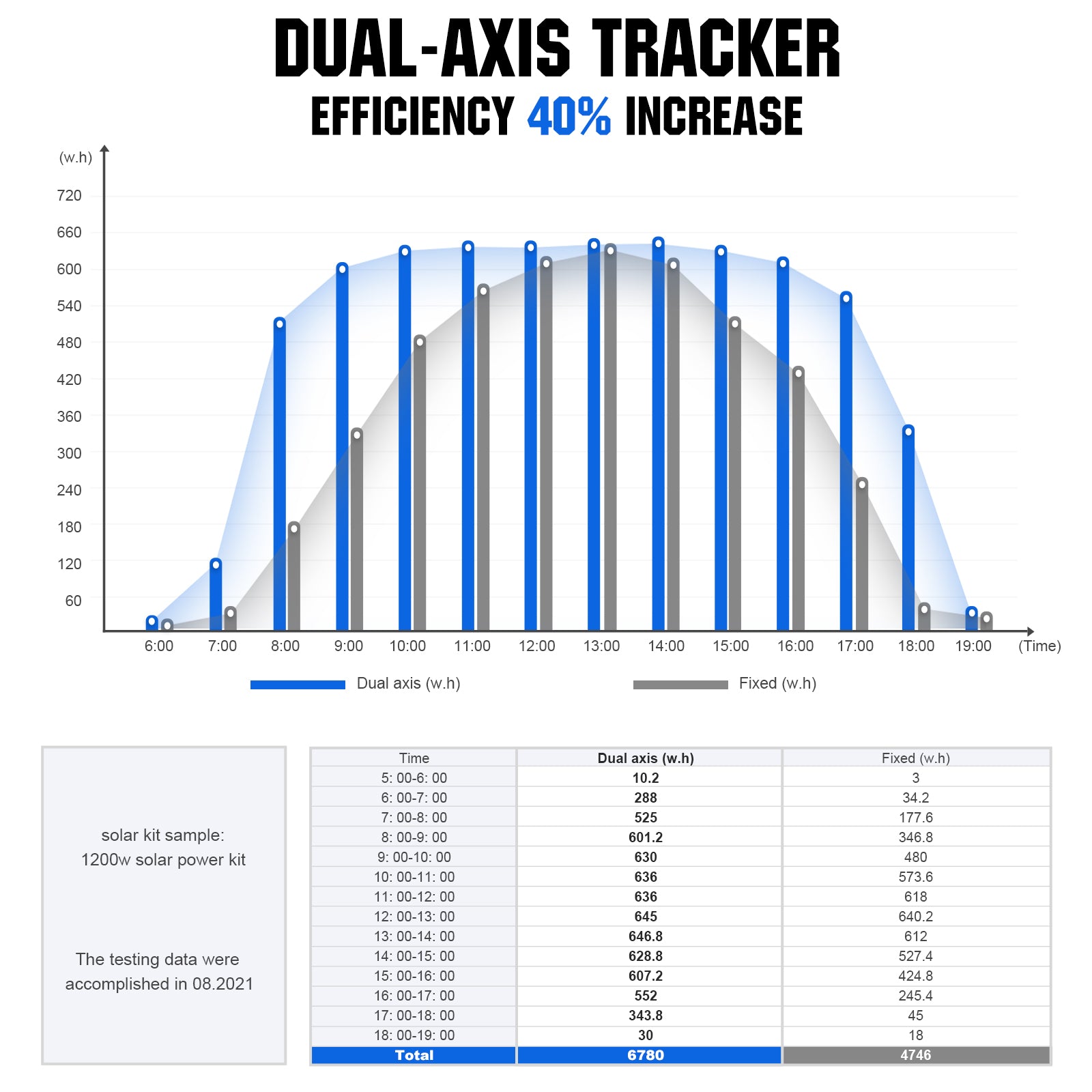

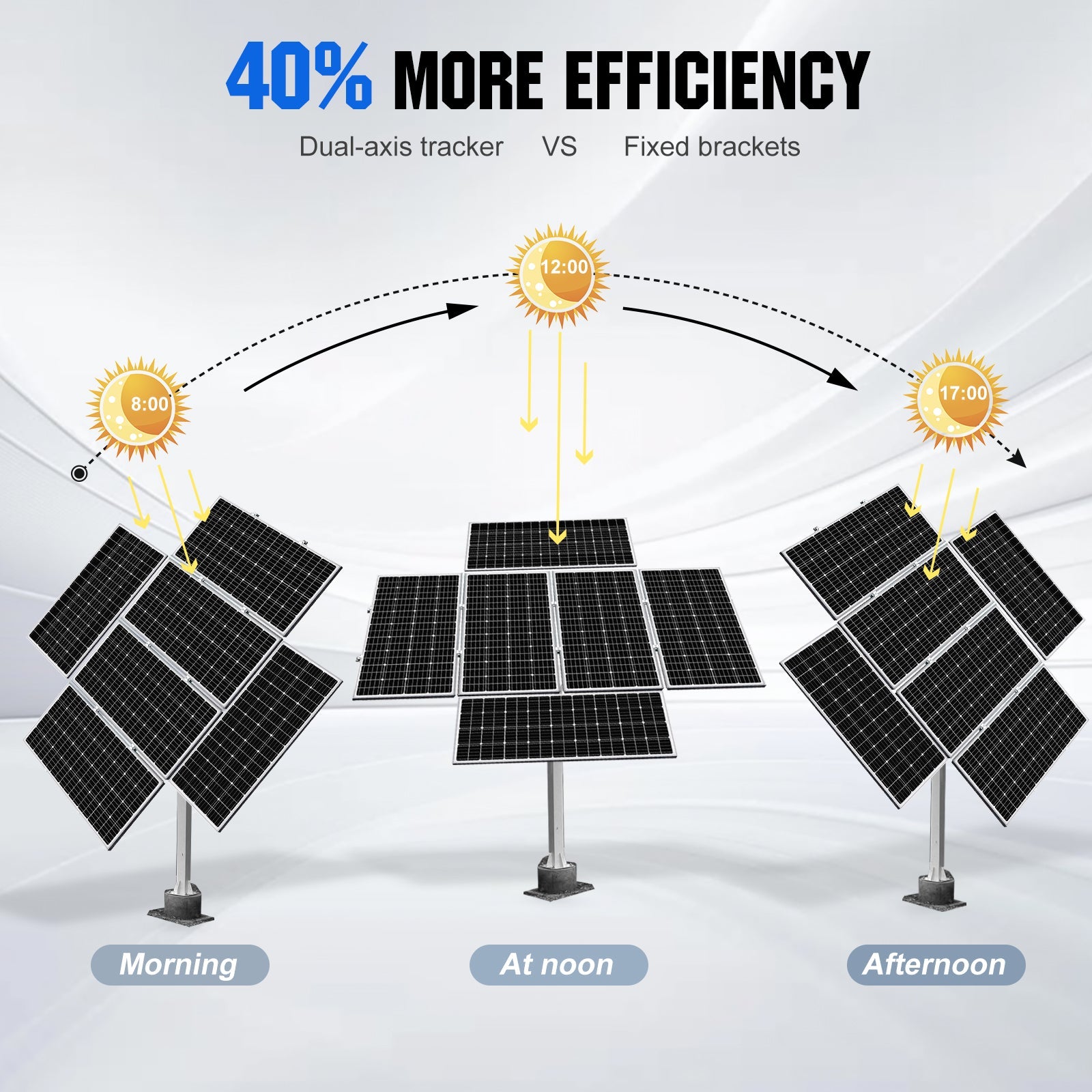

Maximized Efficiency: The dual-axis solar tracker adjusts to both horizontal and vertical angles, capturing optimal sunlight throughout the day for up to 40% more energy than fixed systems.
-

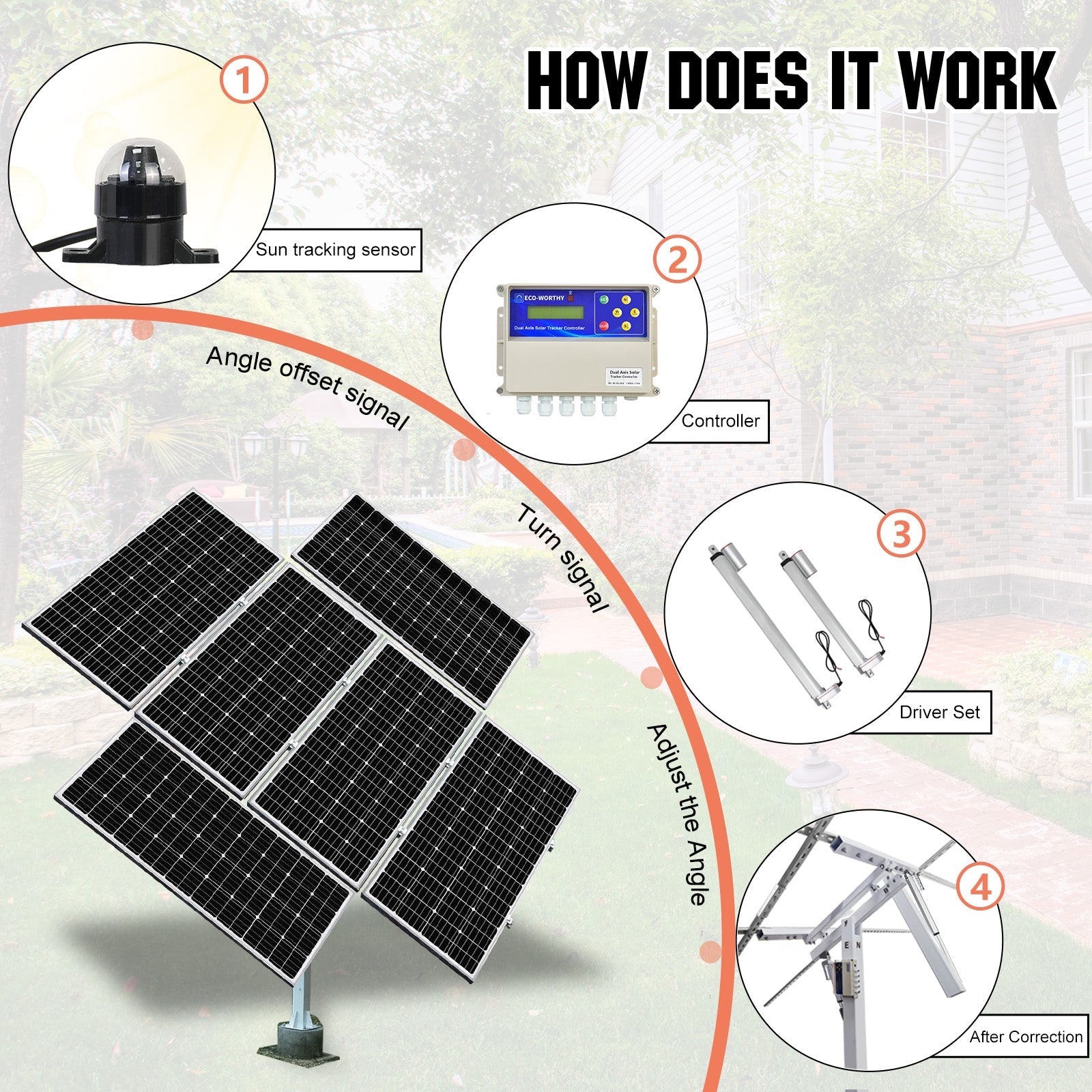

Automated Movement: Automatically tracks the sun’s path, ensuring maximum exposure to solar energy without manual adjustments.
-
Ideal for Larger Systems: Perfect for off-grid or commercial solar setups that require higher energy output.
-

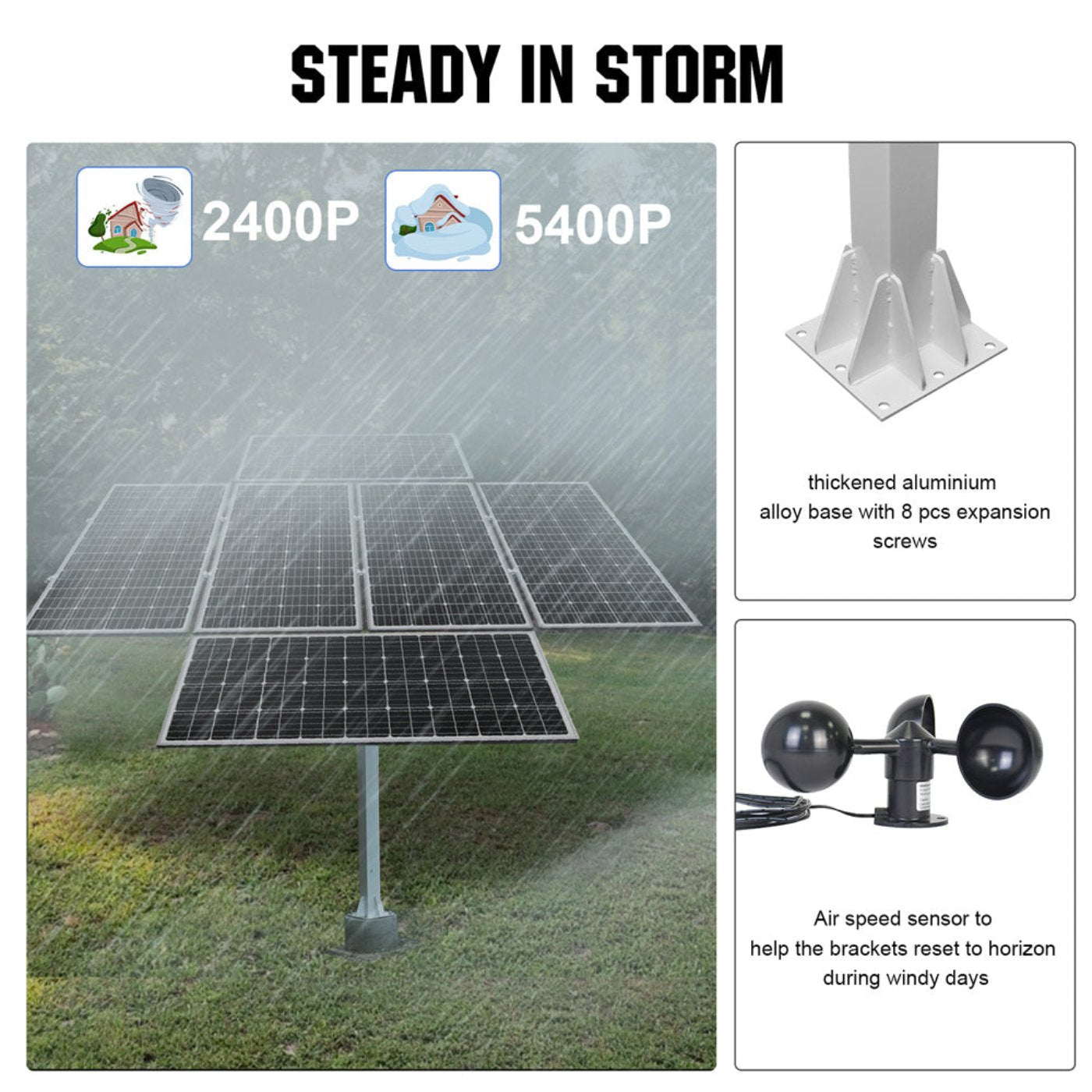

Durable Construction: Built with strong, weather-resistant materials for long-lasting performance in diverse environments.
-
Energy Boost: Increases the overall efficiency and energy yield of your solar panels, making it an excellent investment for high-demand applications.
Q&A
Q: What is the Eco-Worthy Dual Axis Solar Tracker System?
A: The Eco-Worthy Dual Axis Solar Tracker System automatically adjusts solar panels' position to track the sun’s movement, maximizing energy capture and improving system efficiency.
Q: What are its key features?
-

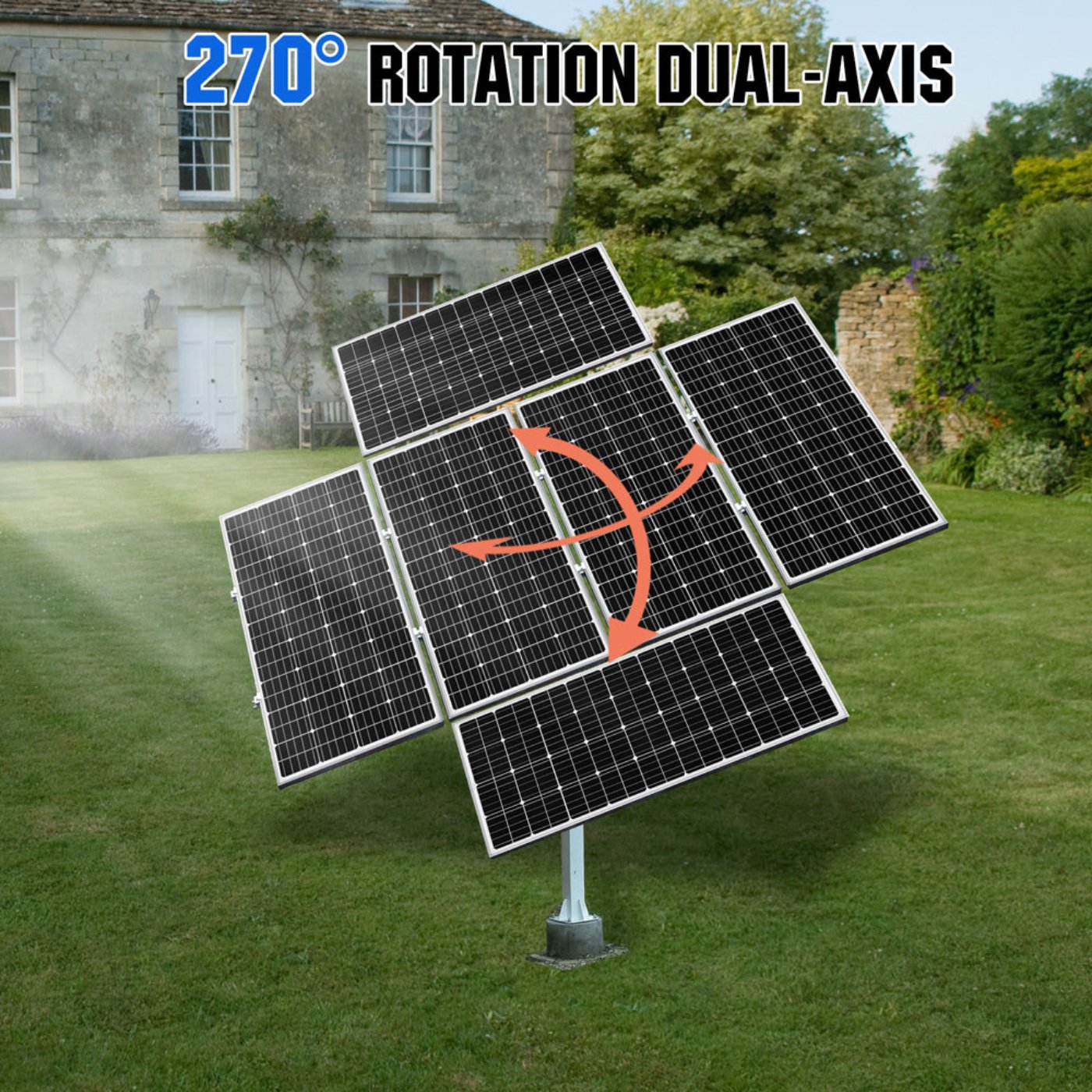

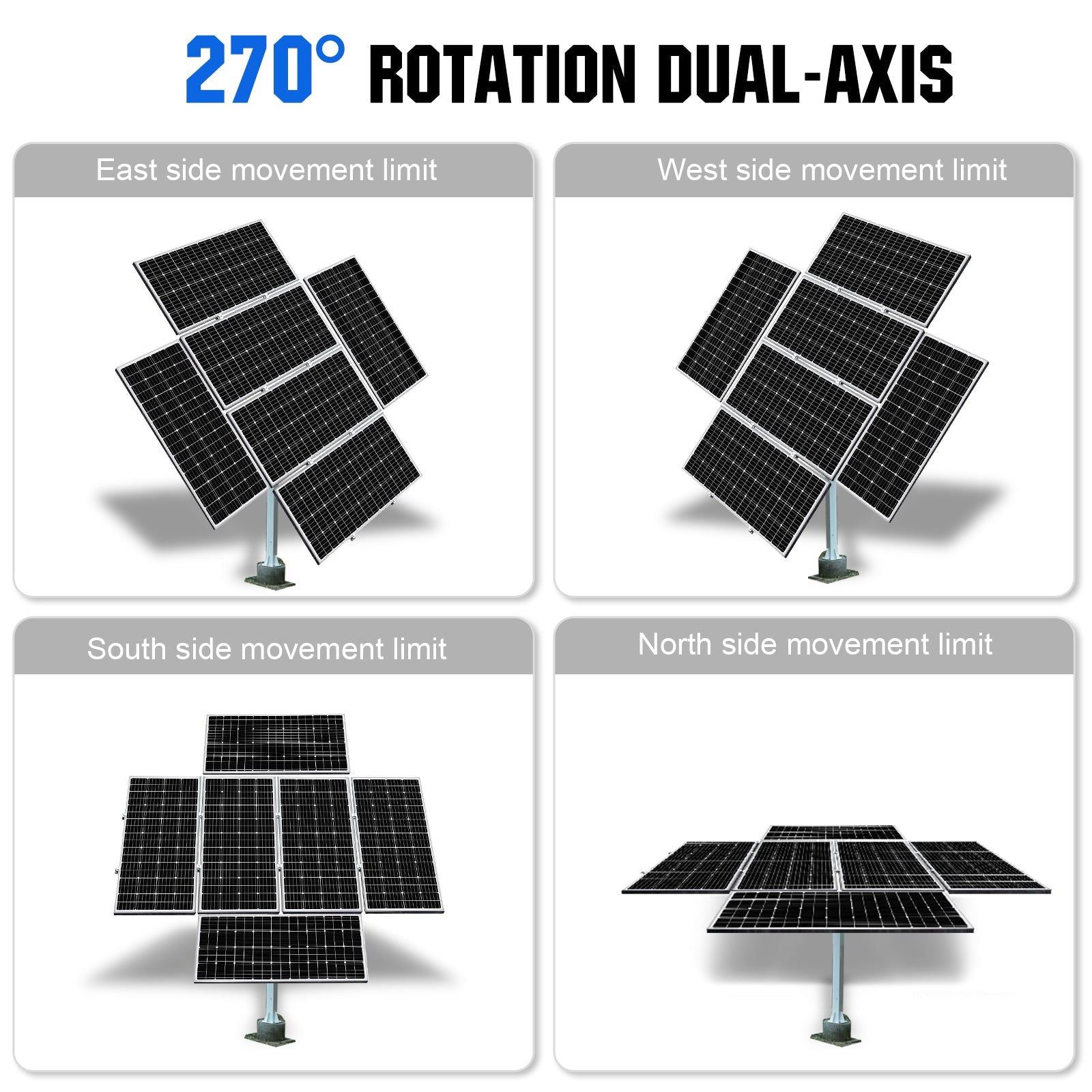

Dual Axis Tracking: Allows the solar panels to adjust both horizontally and vertically, following the sun for optimal energy absorption.
-
Increased Efficiency: Maximizes energy generation by keeping panels aligned with the sun throughout the day.
-
Durability: Built with high-quality materials for long-term, reliable outdoor use.
-
Compatibility: Works with most off-grid solar systems to increase power output.
-
Energy Savings: Boosts solar energy production by up to 40% compared to fixed-panel setups.
Q: Who is this solar tracker ideal for?
A: Ideal for users looking to maximize the efficiency of their solar systems, especially in areas with variable sun angles and for those seeking the highest energy yield.
Q: Why choose the Eco-Worthy Dual Axis Solar Tracker System?
A: The dual-axis tracking system optimizes solar panel output, ensuring the most efficient energy production by continually aligning with the sun, making it perfect for maximizing your off-grid power system
Maintenance Tips
-
Clean Solar Panels: Regularly clean the panels to remove dirt, dust, and debris, maximizing energy capture.
-
Check Tracker Motors and Sensors: Inspect the motors, actuators, and sensors for any signs of wear or malfunction, ensuring smooth tracking movement.
-
Lubricate Moving Parts: Apply grease or lubricant to the moving components of the tracker to reduce friction and maintain efficient operation.
-
Monitor System Performance: Use the monitoring system to track the tracker’s alignment and efficiency, making adjustments if necessary.
-
Inspect Wiring and Connections: Check electrical connections for corrosion, loose wires, or damage to ensure proper functionality.
-
Ensure Proper Grounding: Verify that the system is correctly grounded to prevent electrical hazards.
-
Adjust for Seasonal Changes: Periodically adjust the tracker to optimize the angle for different seasons, ensuring maximum sunlight exposure
