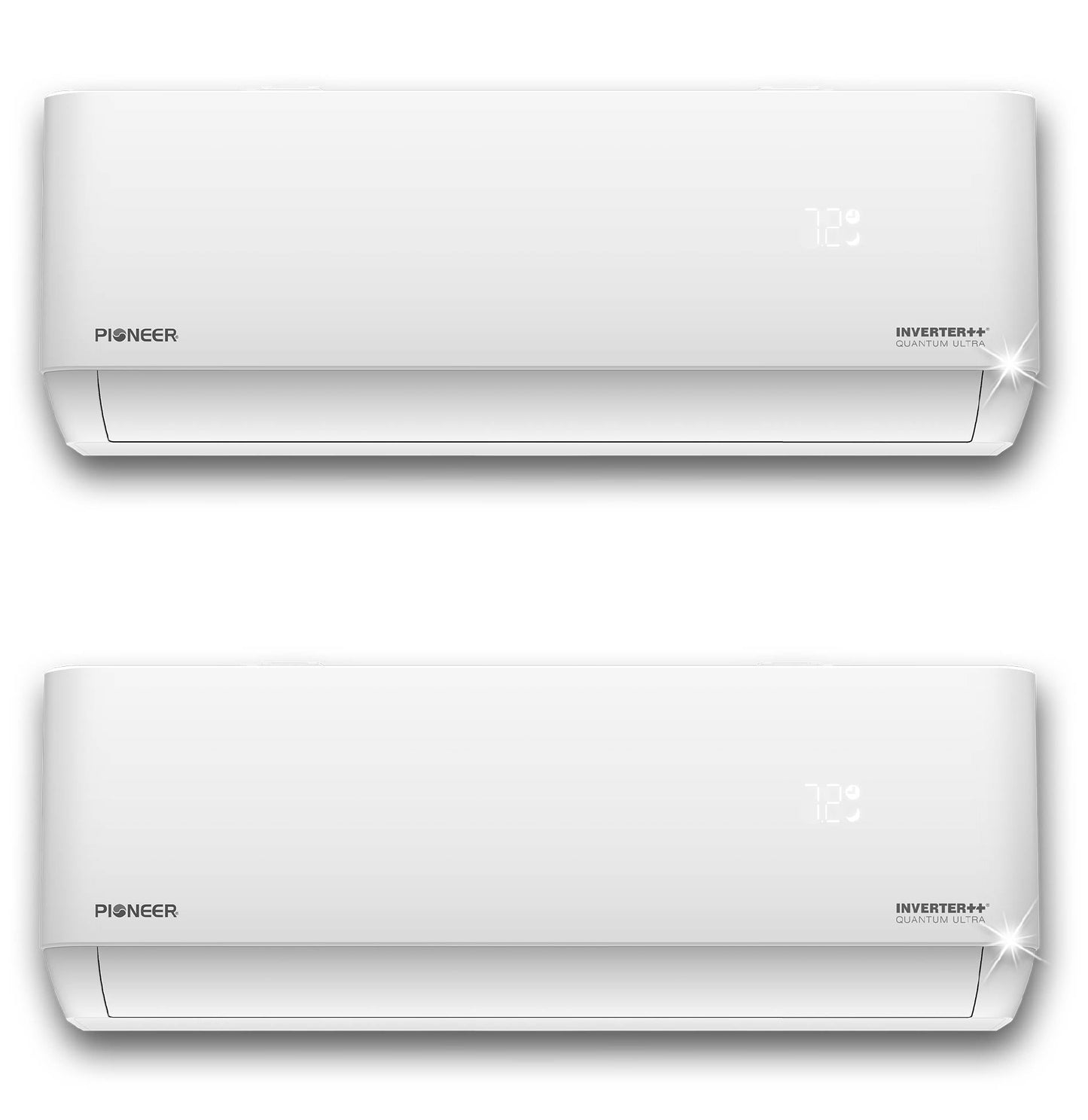

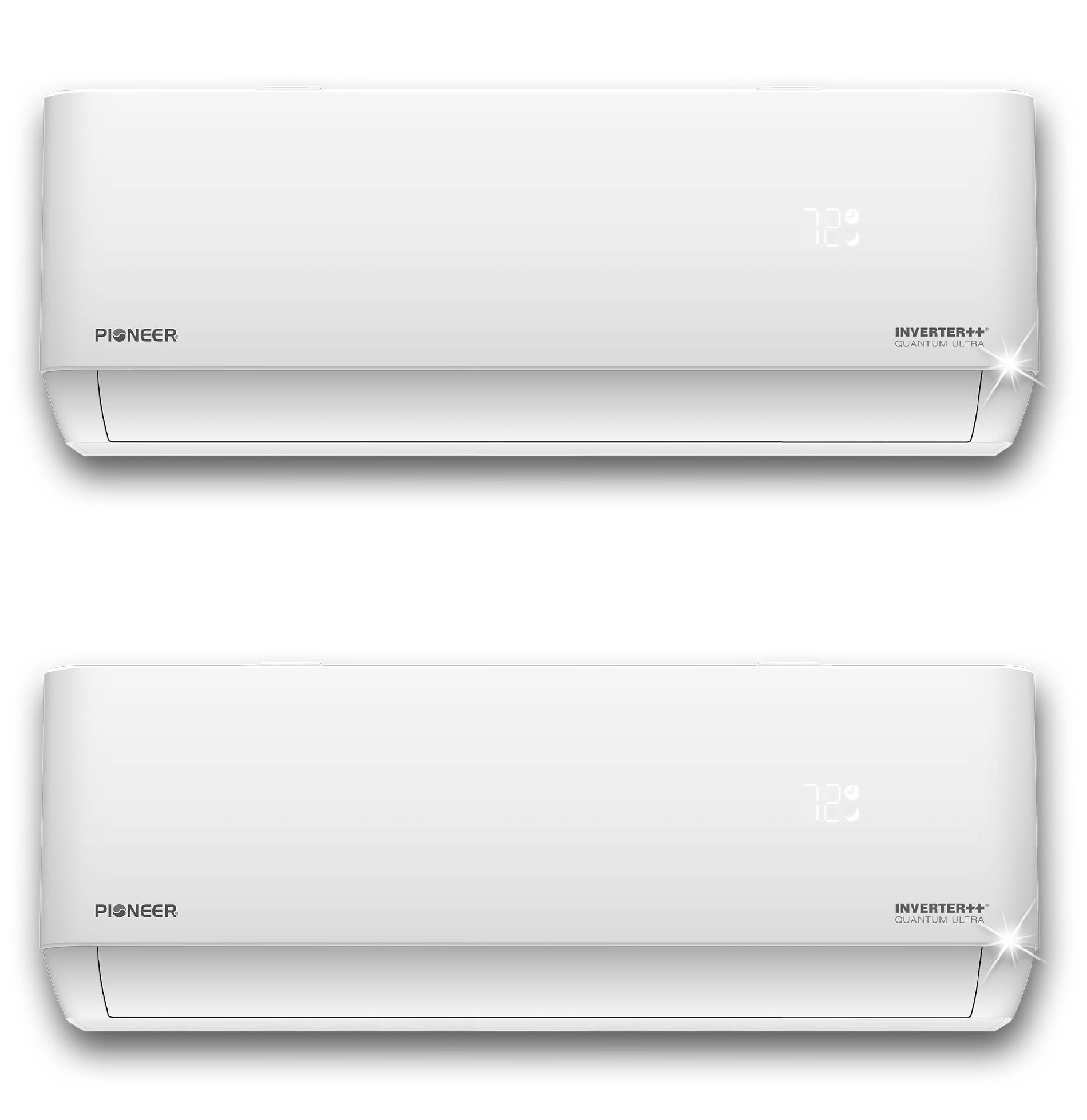

Pioneer Dual Split 36000 BTU 3-Ton Quantum Ultra Wi-Fi 22.5 SEER2 Energy-Star Multi (2) Zone Wall Mount Air Conditioner Heat Pump 230-Volt - WYT040GLSI24M4-18W-18W

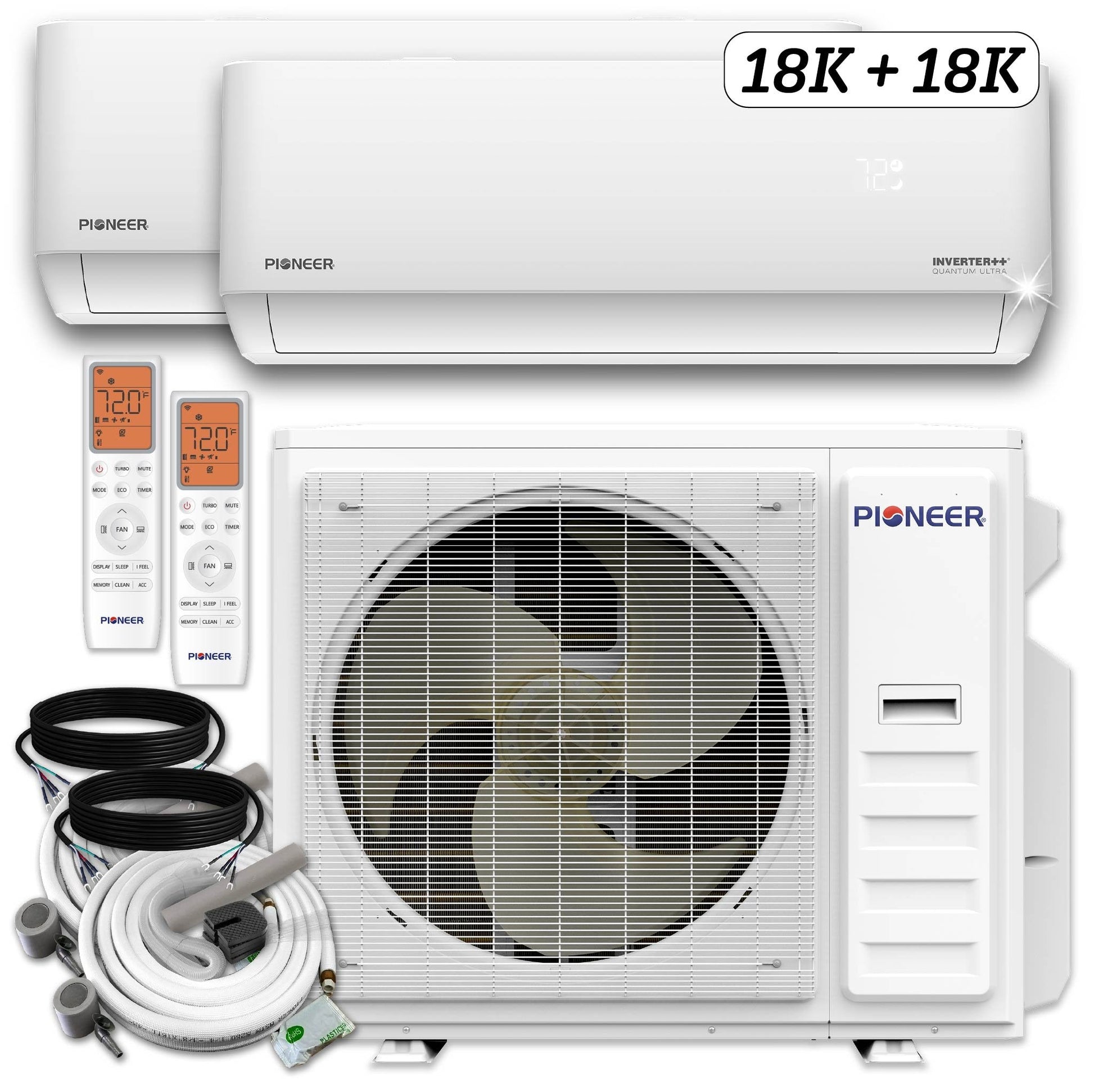

Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Quantum Ultra multi split systems are available in 5 versions; for 2, 3, 4, and 5 zones.
Features
- Ultra-high efficiency inverter++ ductless multi split quad (4) circuit heat pump system (paired with 2x indoor units to function effectively as a stronger 2-zone system)
- (x2) inside unit cooling capacity: 18,000 BTU/H nominal capacity, condensing system 35,000 BTU/H (Range: 5,500 minimum - 41,000 maximum) with 22.5 SEER2/12.0 EER2 efficiency
- Heating capacity: 36,000 BTU/H nominal (range 5,500 minimum - 41,000 maximum) with 9.5 HSPF2/3.5 COP2 efficiency
- Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
- Energy-Star Certified and Wi-Fi Enabled

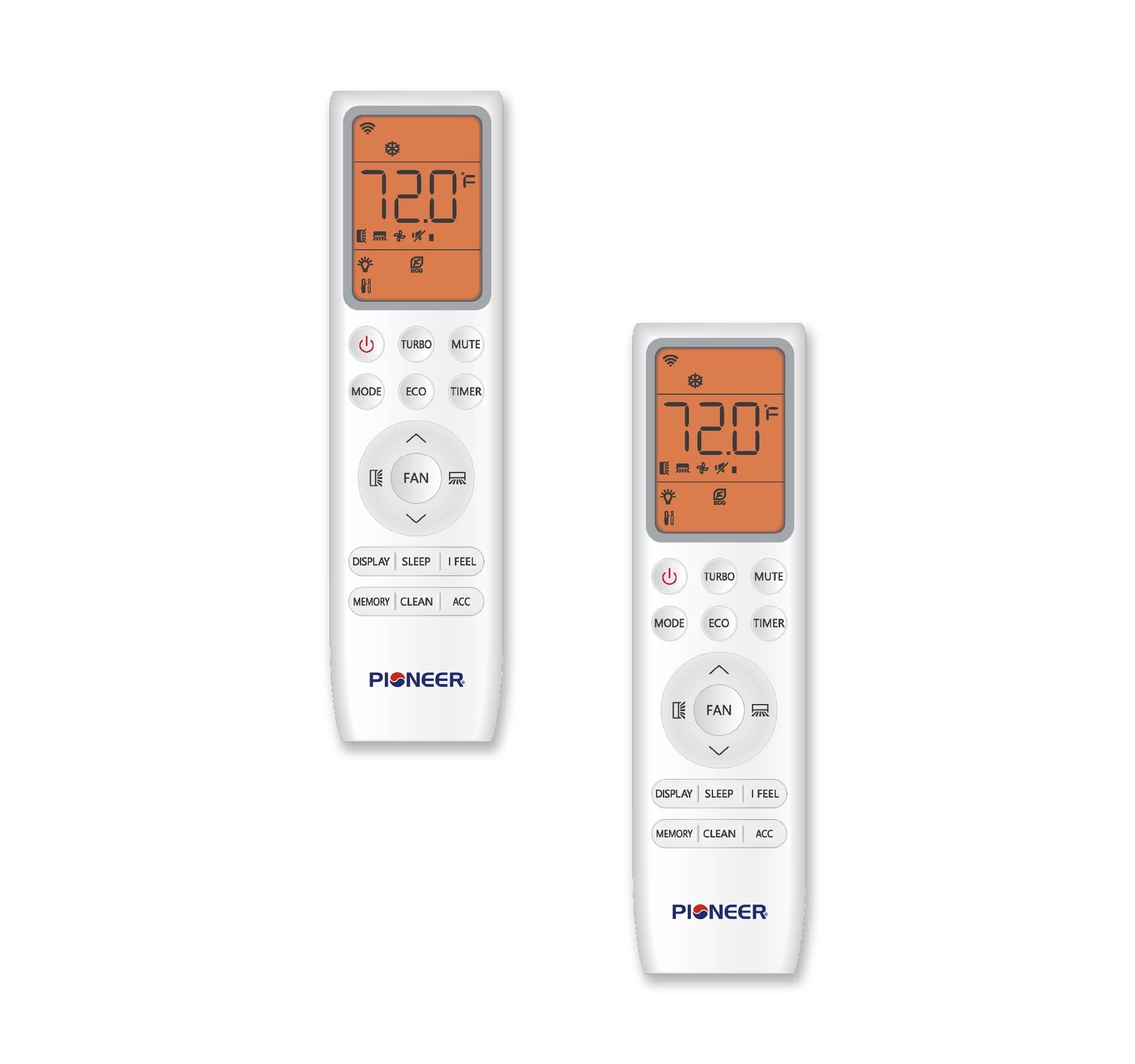

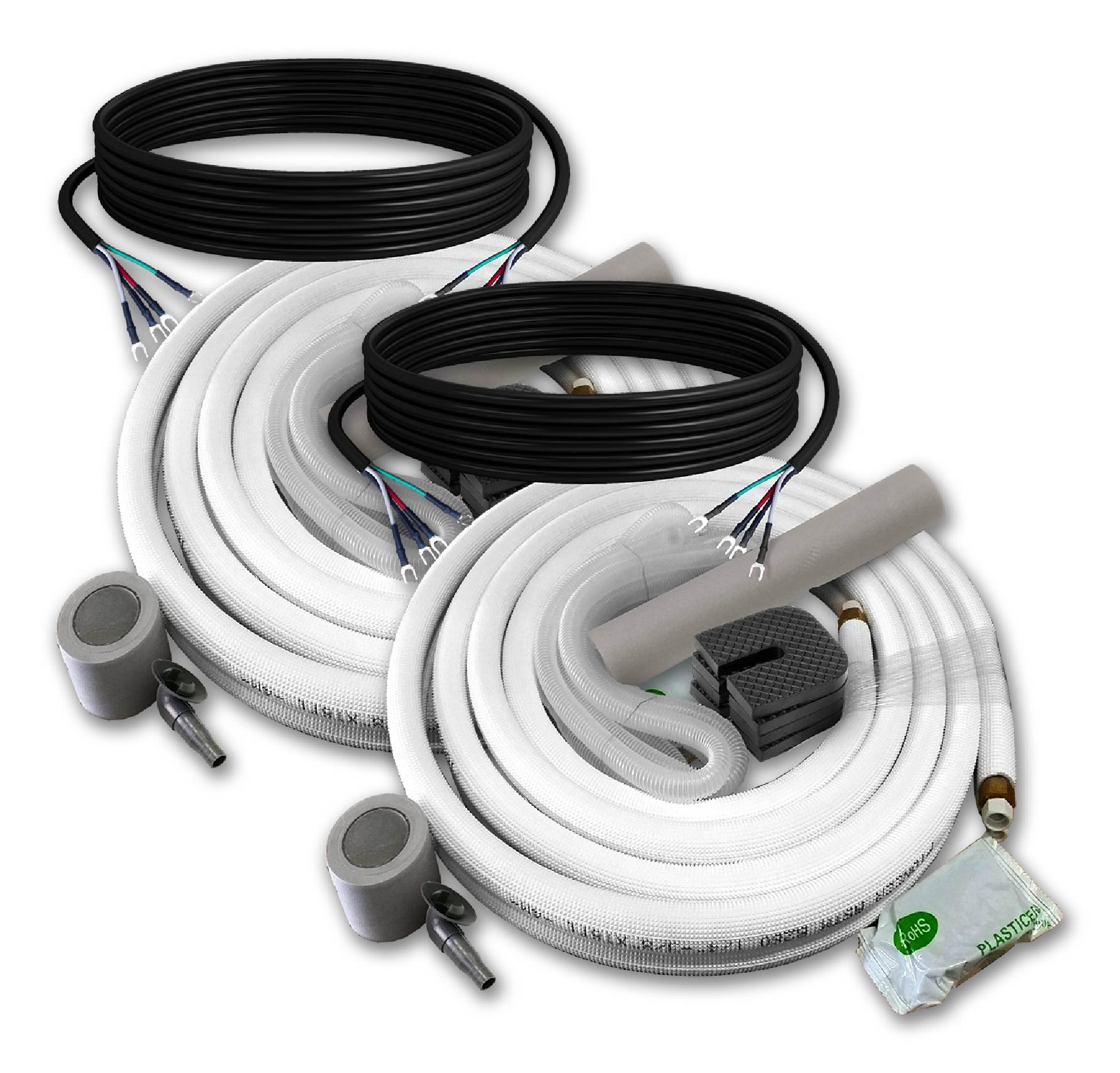

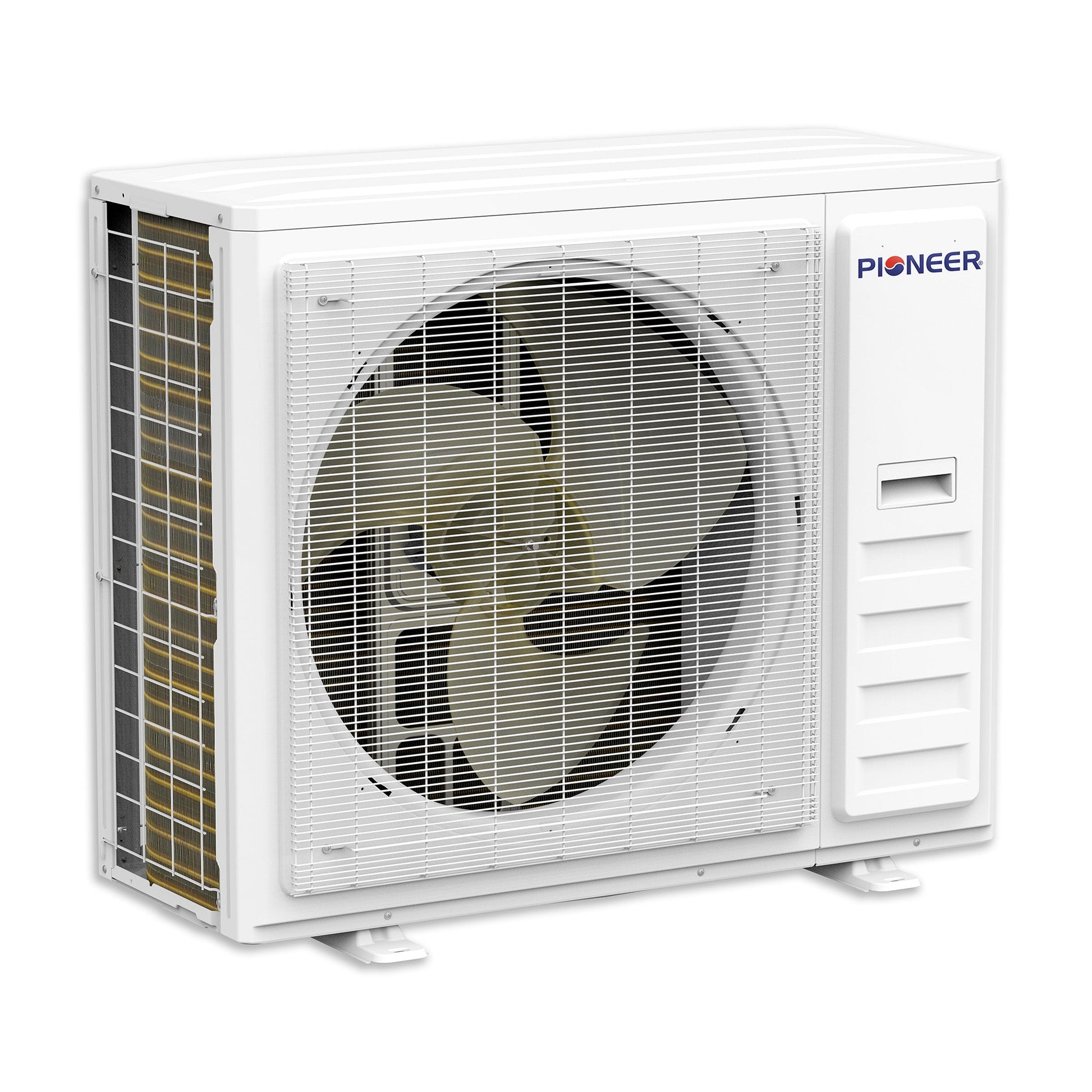

- Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
- Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
- Ultra low ambient system can heat with high capacity at -13°F ambient outdoor temperatures
- Pre-charged with eco-friendly R454-B refrigerant to support total combined attached lineset lengths up to 100 ft long
- Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
- Certified by: ETL, AHRI, DOE for safety, performance and efficiency
- Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
Manuals
What Our Experts Think
-

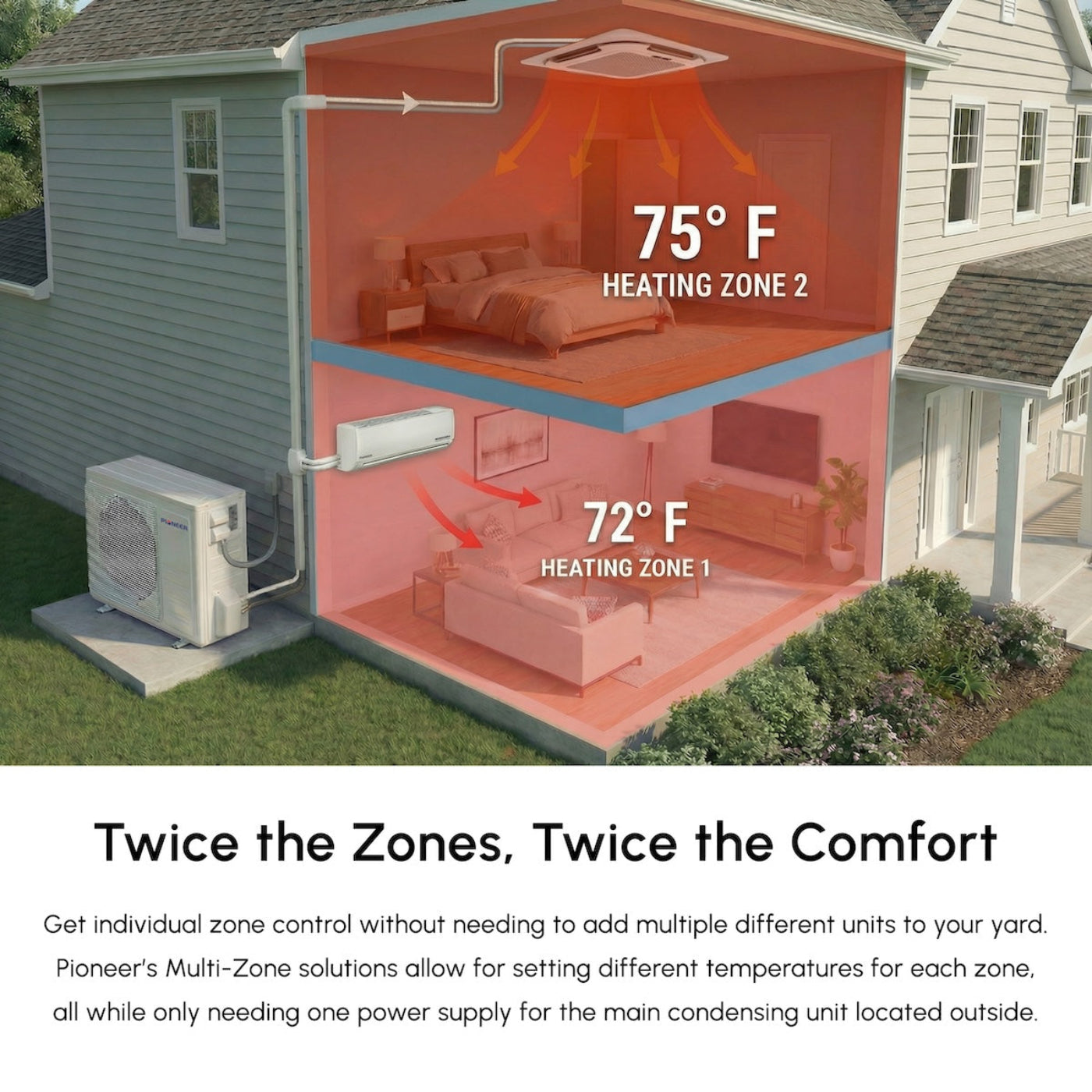

Dual-zone design provides precise cooling and heating for multiple rooms.
-
36,000 BTU (3-ton) capacity ideal for medium to large spaces.
-
Energy-Star certified with 22.5 SEER2 for high energy efficiency.
-
Wi-Fi enabled for remote control and smart home integration.
-
Quiet operation and reliable performance for year-round comfort.
Q&A
Q: Is this unit suitable for multi-room applications?
A: Yes, it’s designed for two-zone cooling and heating simultaneously.
Q: Can I control it remotely?
A: Yes, Wi-Fi connectivity allows full remote control via smartphone or smart devices.
Q: What type of installation is required?
A: Wall-mount installation with 230-volt electrical supply; professional setup recommended.
Maintenance Tips
-
Clean or replace air filters every 1–3 months to maintain efficiency.
-
Inspect outdoor units for debris and clear obstructions regularly.
-
Schedule annual professional servicing for refrigerant and system check.
-
Keep Wi-Fi connection secure and firmware updated for optimal performance.
