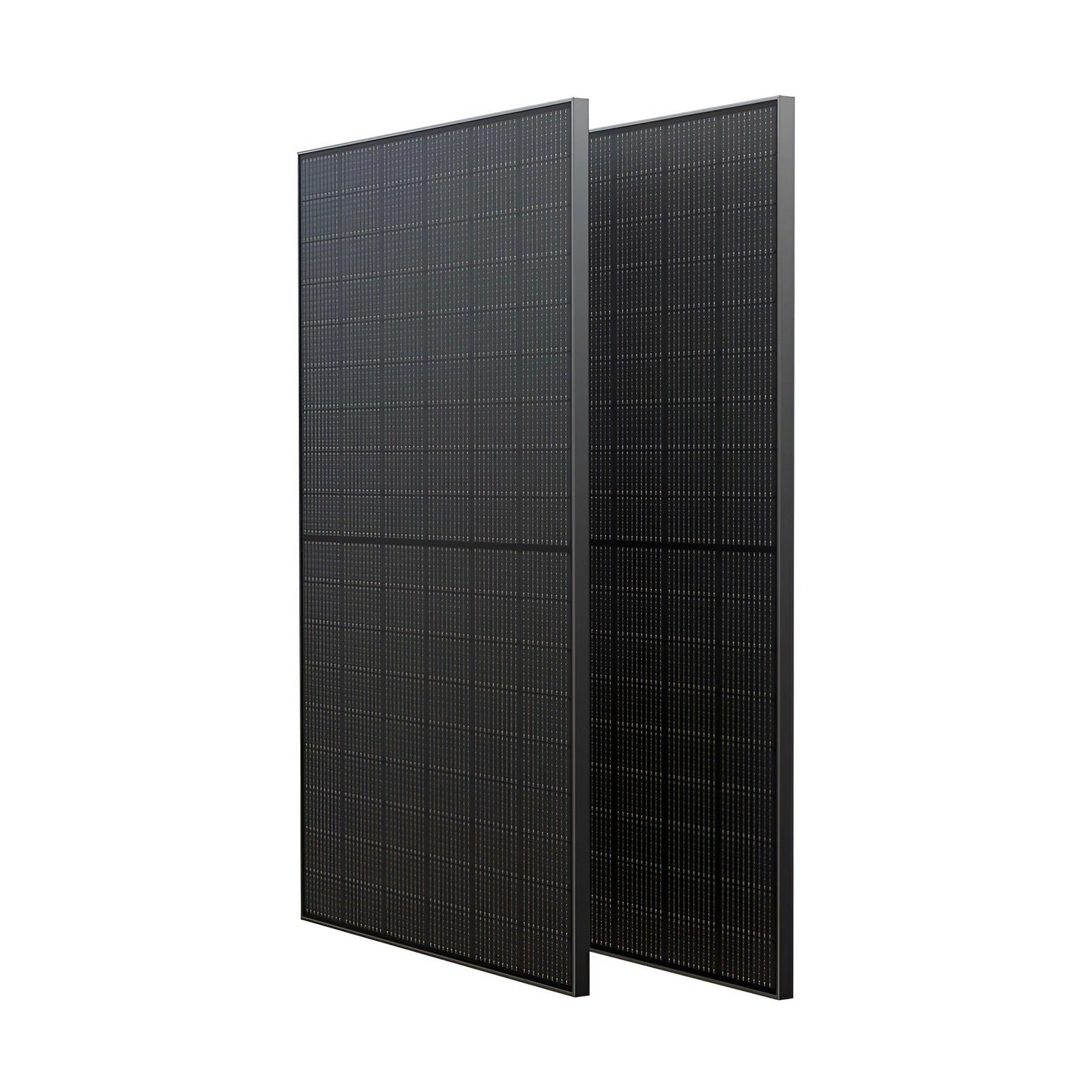

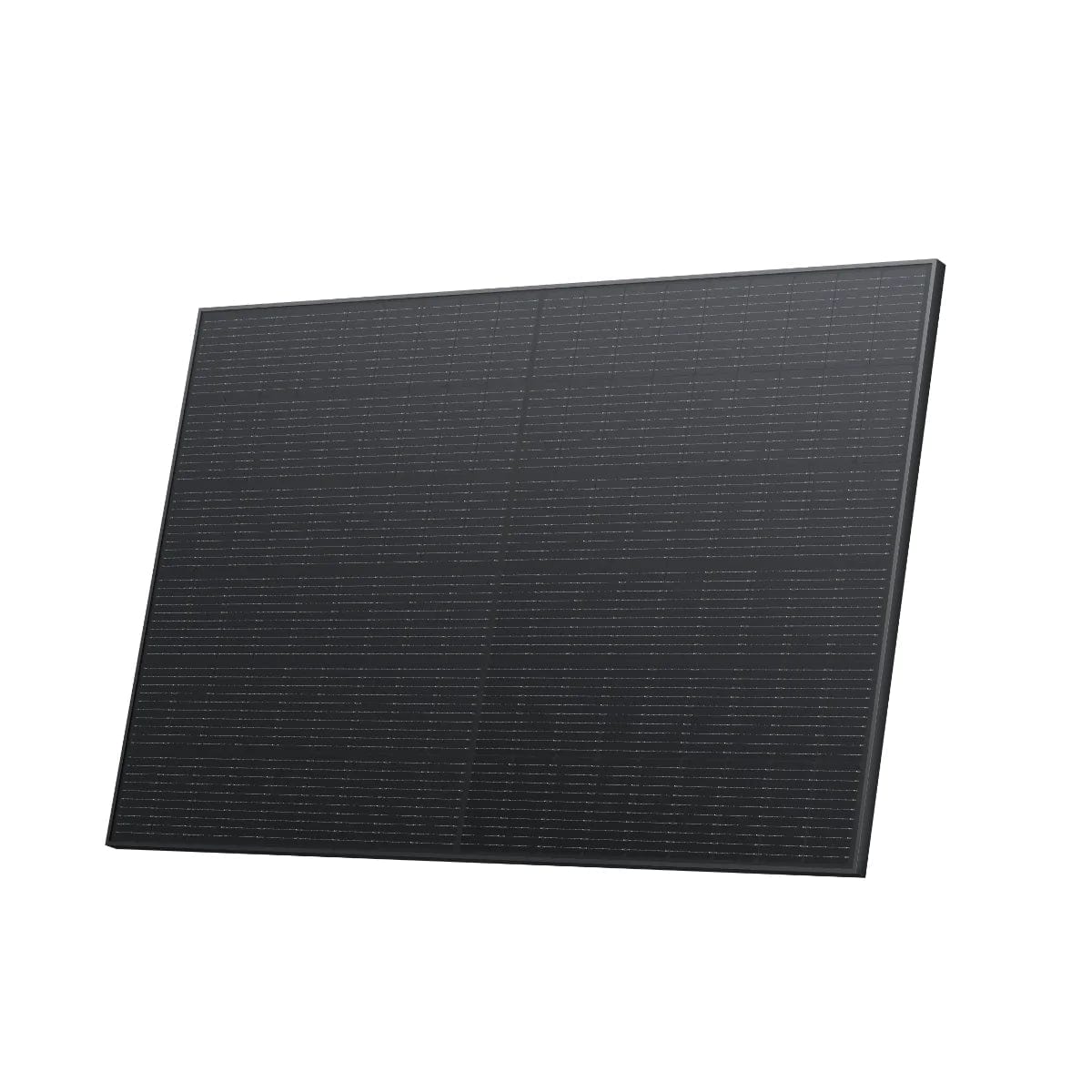

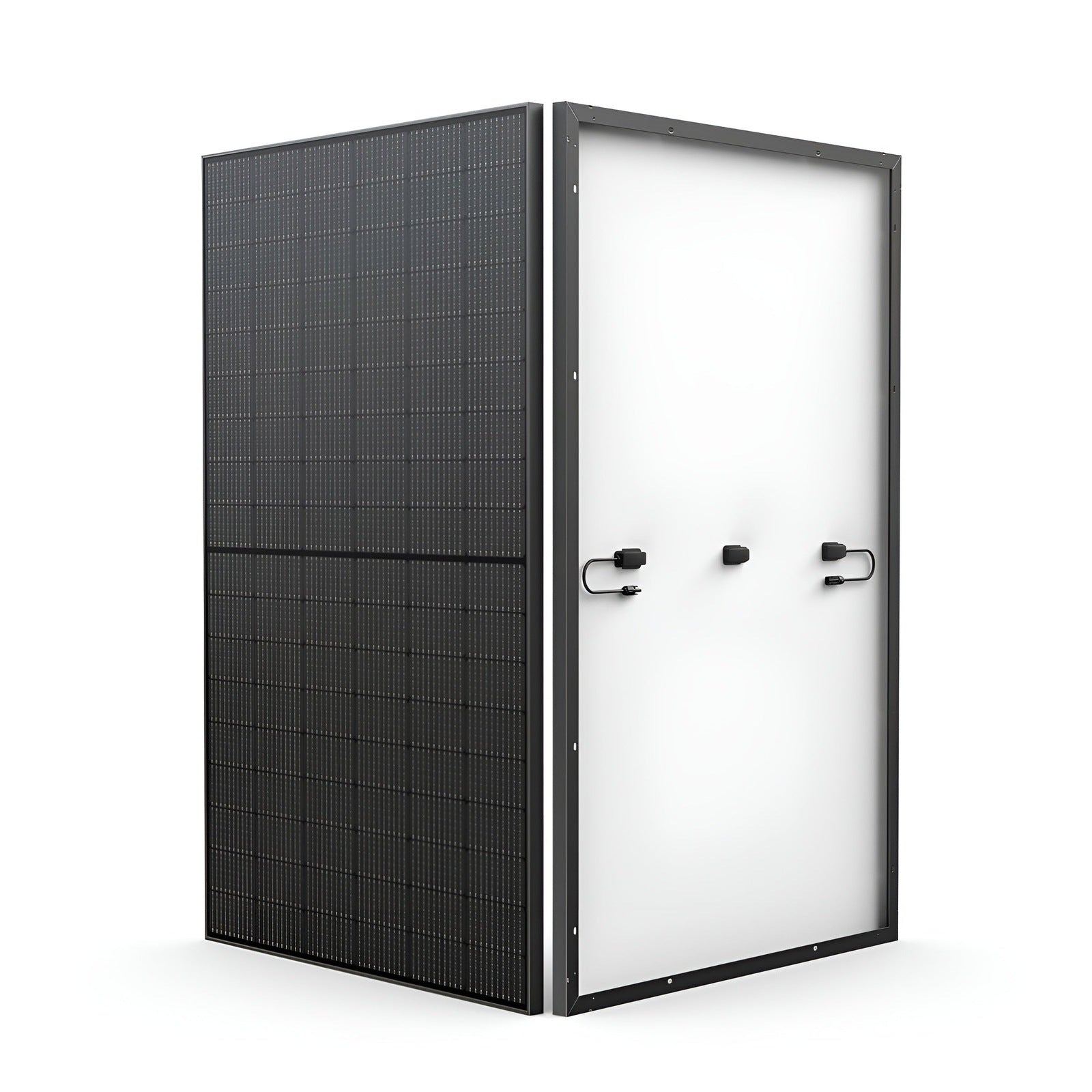

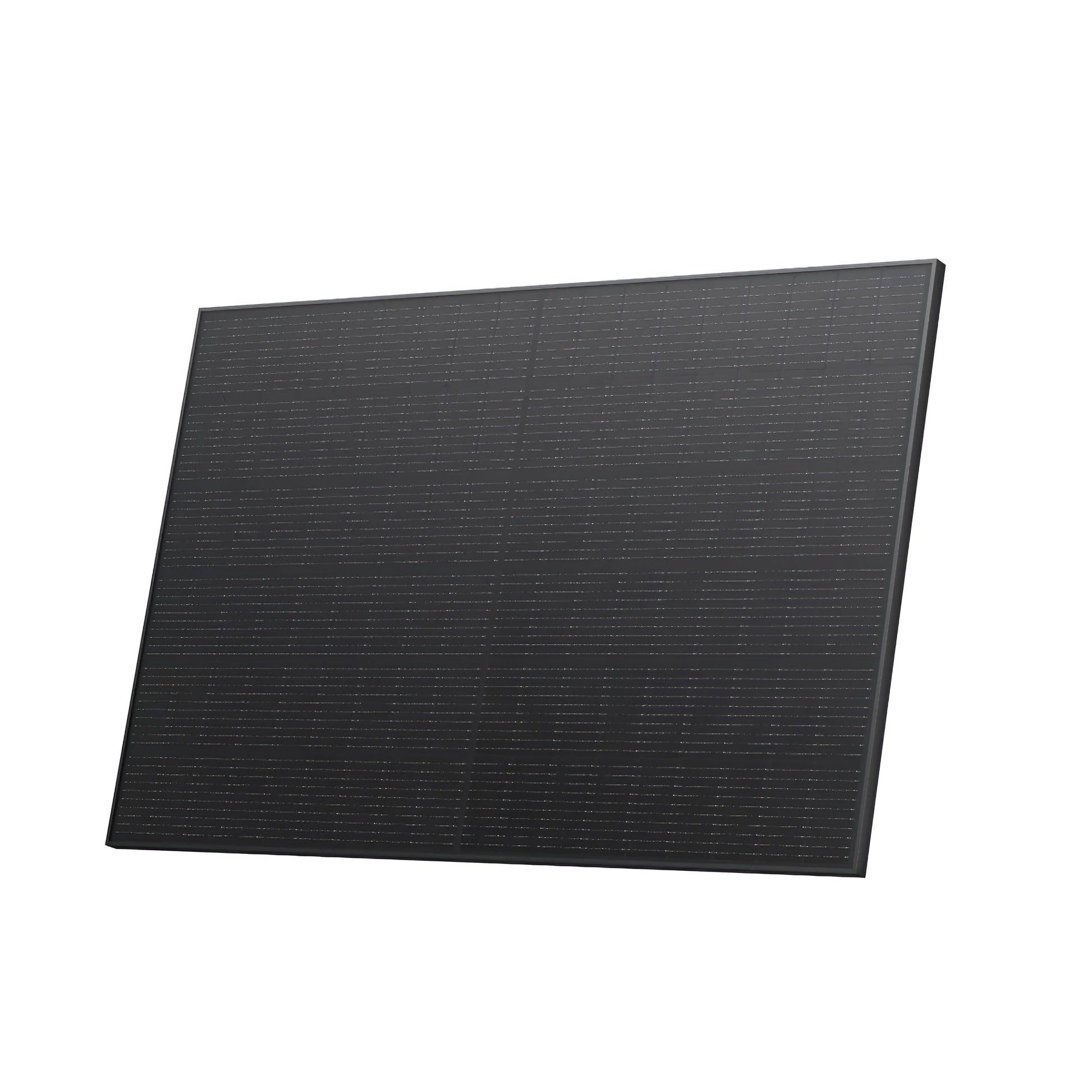

Ecoflow 400W Rigid Solar Panel with 4x Mounting Feet - ZPTSP300
Fast Charging
With a high conversion efficiency rate of up to 23%, the 400W panel charges your LFP batteries faster than similar-sized solar panels.
Weatherproof & Durable
The rigid panel balances design with robust materials allowing the panel to weather any storm while offering the same excellent performance and aesthetics for years.
Off & On-grid Solution
This high-wattage panel works for both on-grid and off-grid solar-powered setups, storing energy for outages, reducing power bills, or powering an off-grid home.
Universally Compatible
The 400W solar panel includes a 300mm charging cable that gives you plenty of space, maximizing solar input. With an all-inclusive solar connector, the 400W rigid panel works with other 3rd party solar system, power stations and comes with 10 Years Warranty.
High Solar Energy Conversion
Made from highly efficient monocrystalline cells, the 400W rigid solar panel has an excellent efficiency rating of 23%, allowing you to charge faster than using similar-sized panels. Combine this panel as part of your existing PV system or Power Kits setup, and allow the integrated MPPT algorithm to optimize your solar input.
Waterproof & Durable
The 400W rigid solar panel is designed for the outdoors. With an IP68* waterproof rating and a robust anti-corrosive aluminum frame, the panel can withstand a wind speed of up to 130mph* and a significant snow load of up to 113lb* and continue to capture solar energy for years to come.
*Water and dust resistance were tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum water depth of 1 meter for up to 72 hours.)
*Well-mounted solar panels can withstand a dynamic 2400pa wind pressure load (130mph wind speed) and a static 5400pa snow load (113lb per sq foot of snow).
Off-grid & On-grid Solution
This high-wattage panel works for both on-grid and off-grid solar-powered setups, storing energy for outages, reducing power bills, or powering an off-grid home
Universally Compatible
EcoFlow solar panels use an all-inclusive solar connector, so you can even use them with your existing 48V power system. The 400W solar panel includes a 300mm charging cable that gives you plenty of space to mount multiple panels, maximizing solar input.
Specifications
| 400W Rigid Solar Panel Specs (10 Years Warranty) |
|
| Short Circuit Current |
13.79A |
| Open Circuit Voltage |
37.10V |
| Connector Type |
Solar Connector |
| Efficiency |
23% |
| Cell Type |
Monocrystalline |
| Rated Power |
400W |
| Maximum Operating Voltage |
31.00V |
| Maximum Operating Current |
12.90A |
| Temperature Coefficient of Rated Power |
-0.38%/°C |
| Temperature Coefficient of Open Circuit Voltage |
-0.35%/°C |
| Temperature Coefficient of Short Circuit Current |
0.06%/°C |
| Maximum Fuse Current |
25A |
| Maximum System Voltage |
1500V DC (UL) |
| Dimension (inch) |
67.8×44.6×1.38 |
| Net Weight (kg) |
21.8kg |
| Dimension (cm) |
172.2×113.4×3.5 |
| Net weight (lbs) |
48.1lbs |
What's in the Box
- 2×400W Rigid Solar Panel
- User Manual and Warranty Card
*The solar to XT60 charging cable is included in EcoFlow portable solar panels.
Package Includes
Product Manual
✓ 50'' Tilt Mount Bracket
✓ 400 W Rigid Solar Panel User Manual
✓ Rigid Solar Panel Mounting Feet
What our Experts Think
-
High-Power Output: 400W panel delivers efficient solar energy for charging EcoFlow power stations and other devices.
-
Durable & Weather-Resistant: Built to withstand outdoor conditions with sturdy construction.
-
Easy Installation: Comes with 4 mounting feet for quick, secure setup on RVs, roofs, or flat surfaces.
-
Optimized Energy Efficiency: Converts sunlight effectively for fast, reliable recharging.
-
Portable & Versatile: Suitable for camping, off-grid living, and emergency power solutions.
Q&A
Q: What is included with the EcoFlow 400W Rigid Solar Panel?
A: The panel comes with 4 mounting feet and a 300 mm cable for easy installation.
Q: What are the key specifications?
A: 400 W rated power, ~23% efficiency, Voc ~37.1 V, Isc ~13.8 A, dimensions 172.2 × 113.4 × 3.5 cm, weight ~21.8 kg.
Q: Is the panel durable and weather-resistant?
A: Yes, it has an IP68 rating, anti-corrosive aluminum frame, supports wind loads up to 130 mph, and snow loads up to 113 lb/ft².
Q: What systems is it compatible with?
A: Works with EcoFlow power stations, 48 V systems, and most solar setups using standard connectors.
Q: What installation scenarios is it suitable for?
A: Ideal for residential rooftops, RVs, boats, cabins, and off-grid setups.
Q: Why choose this model?
A: High efficiency, rugged build, weather resistance, and versatile compatibility make it perfect for reliable, off-grid solar energy.
Maintenance Tips
-
Regular Cleaning: Wipe the panel surface with a soft, damp cloth to remove dust, dirt, and debris; avoid abrasive materials.
-
Inspect Mounting Feet: Check all 4 mounting feet and fasteners periodically to ensure stability and secure installation.
-
Check Connections: Inspect cables and connectors for wear or corrosion before each use.
-
Optimal Positioning: Keep the panel angled toward sunlight and avoid shading to maximize efficiency.
-
Storage: When not in use, store in a dry, cool area away from heavy objects or moisture.
-
Safe Handling: Avoid dropping or applying excessive force to the panel to prevent cracks or damage.
