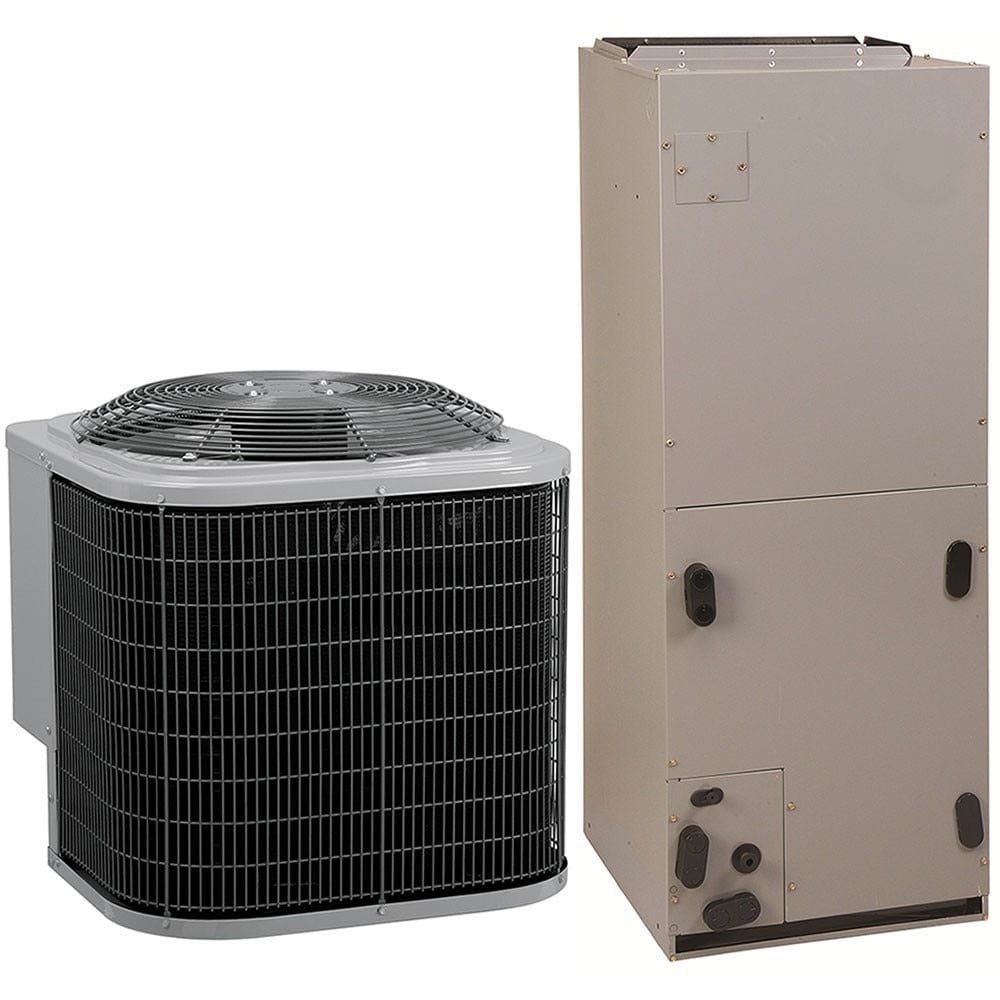

EcoTemp WCA4484GKA 4 Ton 15 SEER Variable Speed Central Air Conditioner Split System - Multiposition - HA19774

Stay Cool Our Efficient And Durable Air Conditioning Units. Trust EcoTemp To Keep You Comfortable And Save You Money On Your Energy Bill.

The EcoTemp WCA4 Air Conditioner is a high-quality residential HVAC product designed to provide efficient cooling for your home. It features a reliable refrigeration circuit, which includes scroll compressors on all models and a durable copper tube / aluminum fin coil, providing long-lasting and efficient performance.

Installing and servicing the WCA4 Air Conditioner is simple, thanks to its easy access service valves and external high and low refrigerant service ports. Additionally, the control panel can be accessed with only two screws, making maintenance and repairs hassle-free.

The WCA4 Air Conditioner is factory charged with R-410A refrigerant, ensuring optimal performance and reducing the need for frequent maintenance. The unit is built to last, with a pre-painted cabinet finish over galvanized steel and a coated inlet grille with 3/8” (10mm) grille spacing for extra protection against wear and tear.

WCA4484GKA Air Conditioner Features:

• Air Conditioner

• 14 Seer

• R-410A Refrigerant

• 1-5 Tons

• Split System

• 208/230 Volt

• 1-Phase

• 60 Hz

WAXL484A Fan Coil Features:

• Fan Coils

• 1.5-5 TON

• 600-2000 CFM

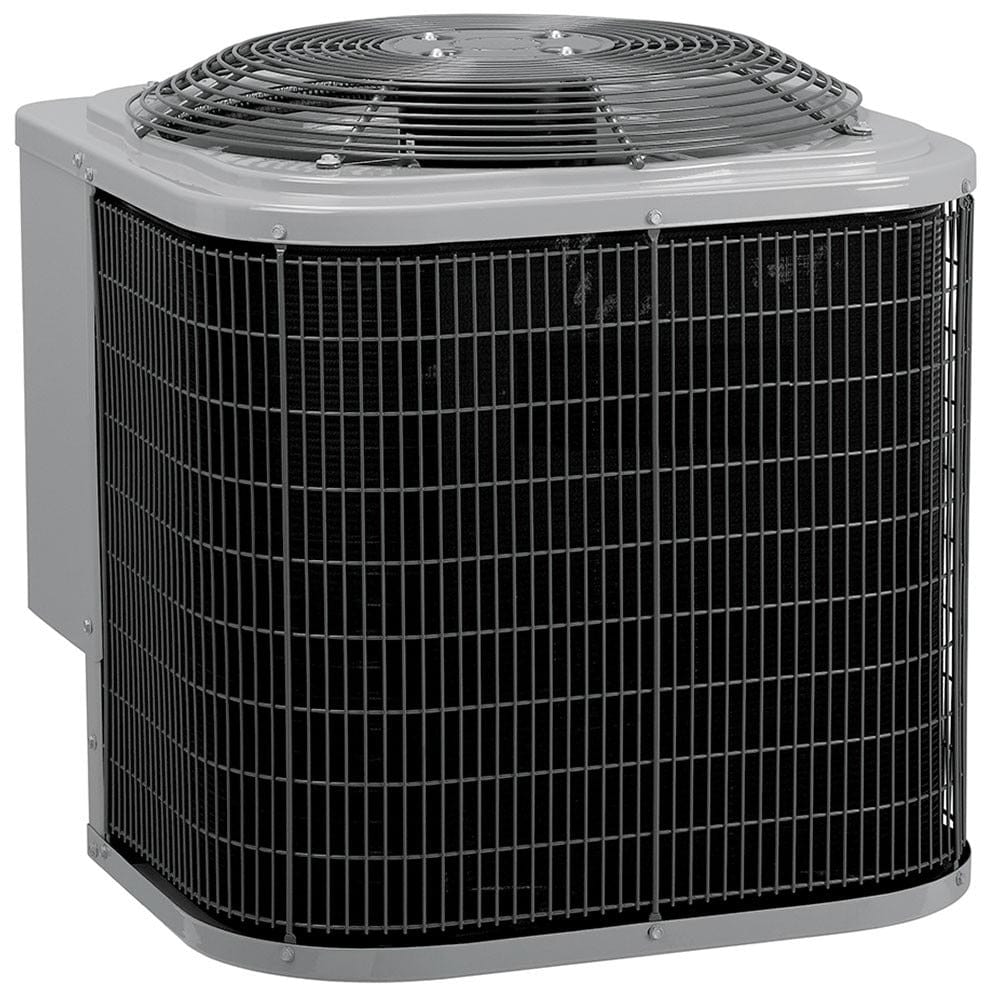

WCA4484GKA Air Conditioner

Refrigeration Circuit

• Scroll compressors on all models

• Copper tube / aluminum fin coil

Easy to Install and Service

• Easy Access service valves on all models

• External high and low refrigerant service ports

• Only two screws to access control panel

• Factory charged with R−410A refrigerant

Built to Last

• Pre−painted cabinet finish over galvanized steel

• Coated inlet grille with 3/8” (10mm) grille spacing for extra protection

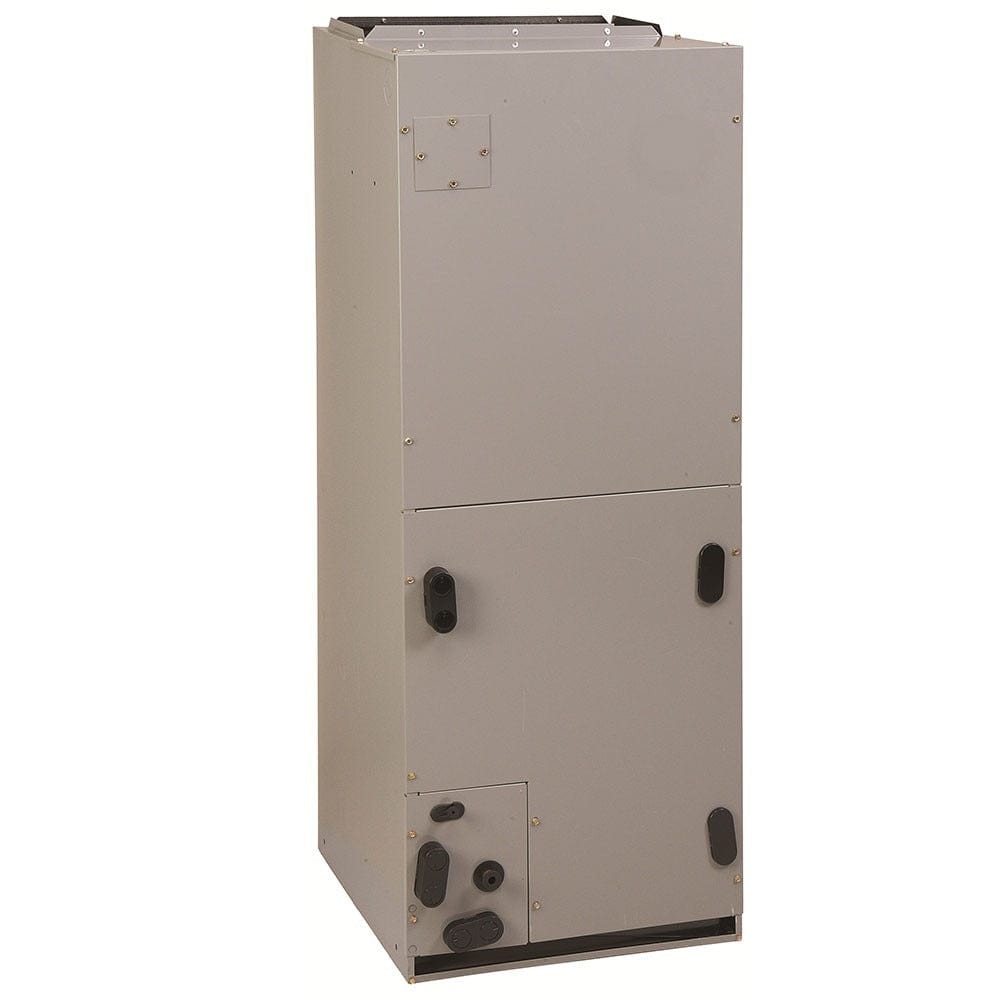

WAXL484A Fan Coil

• 1−1/2 Thru 5 Tons

• Environmentally Sound R−410a Systems

• Multiposition Installation − Upflow Or Horizontal Left Standard.

• Horizontal Right With Minor Modification.

• Field Convertible To Downflow With Available Accessory Kit.

• Txv Metering Device Factory Installed

• Sweat Connections

• Primary And Secondary Drain Fittings With Brass Inserts

• 3 Amp Automotive Type Fuse In Wire Harness

• Multiple Electrical Entry Locations

• Time Delay Relay (TDR) Programmed In Motor

• Field Installed Heater Packages From 5 Kw − 30 Kw Available Separately

• Hud Approved For Manufactured Housing

• 208/230−1−60 Supply Voltage

• Units Tested And Certified By Manufacturer To Achieve A 2% Or Less Leakage Rate At 1.0 Inch Water Column

• 1 Inch (25mm) Thick Insulation With R Value Of 4.2

• Ecm Motor

• No Heat (Plug) Kit Factory Installed

• Filter (Washable) Factory Supplied

✓EcoTemp WCA4 Installation Manual

✓EcoTemp WCA4 Specification Manual

✓WCA4 Warranty Sheet

✓WAXL Installation Manual

✓WAXL Specification Manual

✓WAXL Warranty Sheet

• High Energy Efficiency: With a 15 SEER rating, the EcoTemp WCA4484GKA provides superior energy savings while delivering efficient cooling to your home.
• Variable Speed Technology: Features a variable speed motor that adjusts airflow to meet specific cooling demands, ensuring smoother, quieter operation and consistent comfort.
• 4-Ton Capacity: Ideal for larger homes, offering robust cooling power to manage multiple rooms and high-temperature areas effectively.
• Multiposition Installation: Offers flexible installation options, making it adaptable to a variety of home layouts for easier setup.
• Durability and Reliability: Designed with high-quality materials, this system ensures reliable long-term performance, keeping your home cool for years to come.

Q: What is the EcoTemp WCA4484GKA 4 Ton Central Air Conditioner used for?
A: The EcoTemp WCA4484GKA is a 4-ton, 15 SEER variable-speed central air conditioner split system, designed to efficiently cool larger residential or light commercial spaces with enhanced comfort and energy efficiency.

Q: What does SEER mean, and how does the 15 SEER rating benefit me?
A: SEER stands for Seasonal Energy Efficiency Ratio. The 15 SEER rating ensures this system delivers high energy efficiency, reducing cooling costs while maintaining consistent comfort throughout your space.

Q: How does the variable-speed feature improve cooling performance?
A: The variable-speed blower motor adjusts the airflow based on cooling needs, providing quieter operation, better humidity control, and improved overall energy efficiency.

Q: Can the EcoTemp WCA4484GKA be installed in different positions?
A: Yes, this system is multiposition, offering flexible installation options in horizontal, vertical, or upflow configurations to accommodate different space layouts.

Q: Why should I choose the EcoTemp WCA4484GKA air conditioner?
A: With its 15 SEER energy efficiency, variable-speed technology for optimal comfort, and versatile multiposition installation, the EcoTemp WCA4484GKA is ideal for larger spaces requiring reliable, quiet, and cost-effective cooling.

• Replace or Clean Air Filters Regularly: Inspect air filters every month and replace or clean them every 1-3 months, depending on usage. Clogged filters hinder airflow, reduce efficiency, and put unnecessary strain on the system, leading to potential failure.

• Clean Coils Annually: At least once a year, clean both the evaporator and condenser coils. Dirt and debris can accumulate on the coils, reducing heat exchange and system efficiency. Use a soft brush and coil cleaner to avoid damaging the coils.

• Check Refrigerant Levels: Have a professional technician check the refrigerant levels annually. Low refrigerant can reduce cooling efficiency and cause the compressor to overheat. The technician will also check for leaks if the refrigerant is low.

• Clear Debris Around the Outdoor Unit: Maintain a 2-foot clearance around the outdoor condenser unit. Remove any leaves, dirt, or other debris that could block airflow, which is essential for the system to function efficiently and avoid overheating.

• Inspect the Condensate Drain: Regularly check the condensate drain for blockages. A clogged drain can lead to water damage and mold growth. Clear any obstructions with a wet/dry vacuum or a pipe cleaner to maintain proper drainage.

• Check Ductwork for Leaks: Inspect the ducts for any visible leaks or damage. Leaky ducts can reduce airflow, increase energy consumption, and decrease system performance. Seal any gaps and consider cleaning ducts periodically to keep them free of debris.

• Verify Thermostat Accuracy: Ensure the thermostat is accurately maintaining the set temperature. Consider upgrading to a smart thermostat for better temperature control, scheduling, and improved energy efficiency. Regularly calibrate the thermostat to ensure its accuracy.

• Check Insulation: Examine the insulation around the refrigerant lines and ducts. Damaged or worn insulation can cause energy loss and force the system to work harder. Replace any damaged insulation to prevent efficiency losses.

• Ensure Proper Airflow: Ensure that all vents and registers are open and unobstructed by furniture, rugs, or other items. Blocked airflow can reduce system performance and lead to higher energy costs as the system compensates for the reduced circulation.

• Schedule Annual Professional Maintenance: Arrange for a professional technician to conduct a full system inspection and maintenance check at least once a year. The technician will clean the coils, check the refrigerant levels, inspect the variable-speed blower, and ensure the system is operating optimally.
