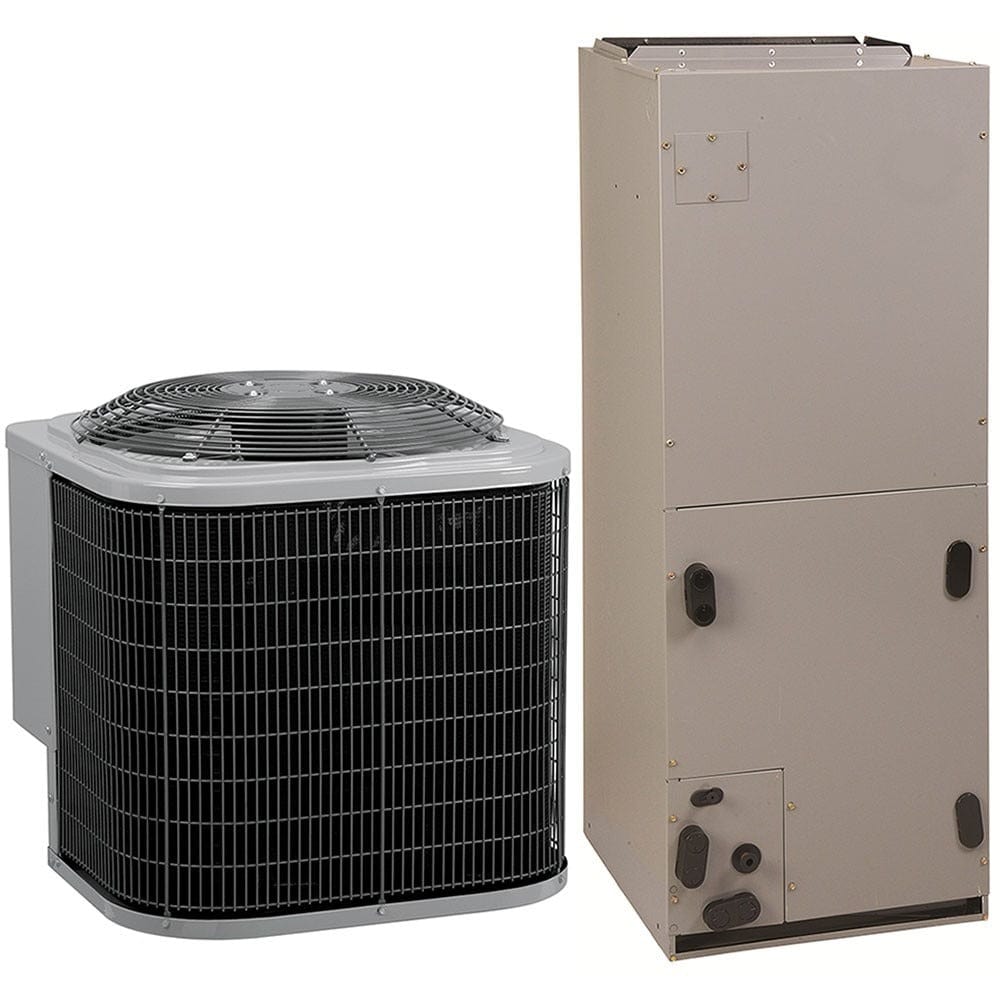

EcoTemp WCA4604GKA 5 Ton 14 SEER Multi Speed Central Air Conditioner Split System - Multiposition - HA19777

Stay Cool Our Efficient And Durable Air Conditioning Units. Trust EcoTemp To Keep You Comfortable And Save You Money On Your Energy Bill.

The EcoTemp WCA4 Air Conditioner is a high-quality residential HVAC product designed to provide efficient cooling for your home. It features a reliable refrigeration circuit, which includes scroll compressors on all models and a durable copper tube / aluminum fin coil, providing long-lasting and efficient performance.

Installing and servicing the WCA4 Air Conditioner is simple, thanks to its easy access service valves and external high and low refrigerant service ports. Additionally, the control panel can be accessed with only two screws, making maintenance and repairs hassle-free.

The WCA4 Air Conditioner is factory charged with R-410A refrigerant, ensuring optimal performance and reducing the need for frequent maintenance. The unit is built to last, with a pre-painted cabinet finish over galvanized steel and a coated inlet grille with 3/8” (10mm) grille spacing for extra protection against wear and tear.

WCA4604GKA Air Conditioner Features

• Air Conditioner

• 14 Seer

• R-410A Refrigerant

• 1-5 Tons

• Split System

• 208/230 Volt

• 1-Phase

• 60 Hz

WAHL604B Fan Coil Features:

• Fan Coils

• 1.5-5 TON

• 600-1750 CFM

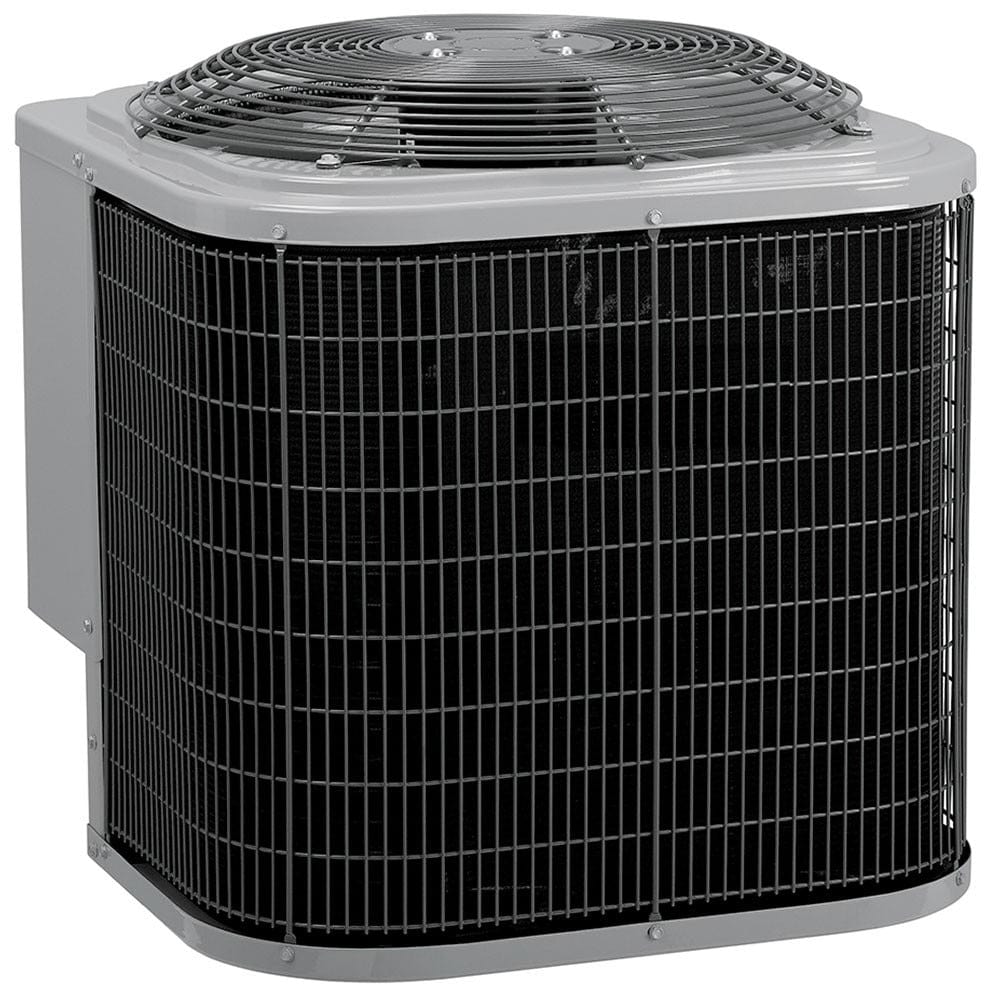

WCA4604GKA Air Conditioner

Refrigeration Circuit

• Scroll compressors on all models

• Copper tube / aluminum fin coil

Easy to Install and Service

• Easy Access service valves on all models

• External high and low refrigerant service ports

• Only two screws to access control panel

• Factory charged with R−410A refrigerant

Built to Last

• Pre−painted cabinet finish over galvanized steel

• Coated inlet grille with 3/8” (10mm) grille spacing for extra protection

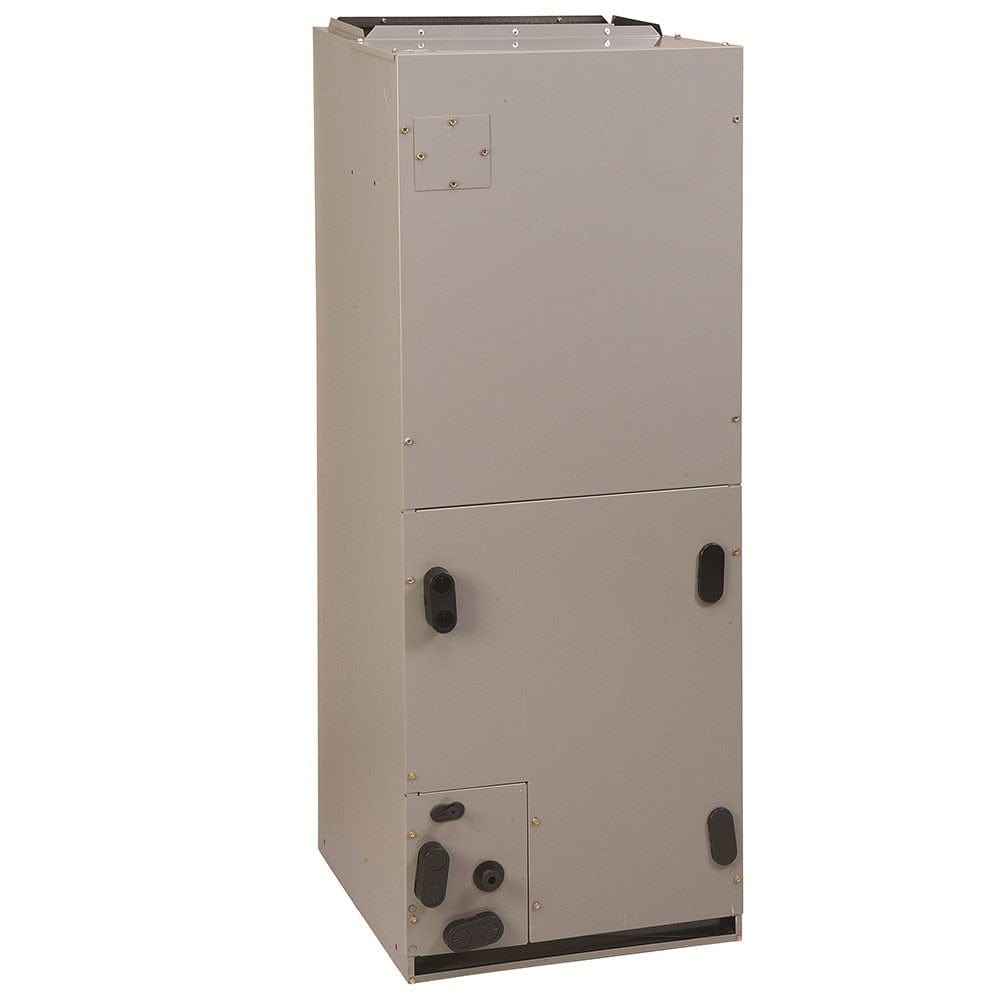

WAHL604B Fan Coil

• 1−1/2 Thru 5 Tons

• Available For Environmentally Sound R−410a Systems

• Factory Installed Txv Metering Device

• Sweat Connections

• Aluminum Tube, Aluminum Fin Evaporator

• Primary And Secondary Drain Fittings

• Multiple Electrical Entry Locations

• Time Delay Relay (TDR)

• Field Installed Heater Packages From 5 Kw − 30 Kw Available Separately

• Hud Approved For Manufactured Housing

• 208/230−1−60 Supply Voltage

• Units Tested And Certified By Manufacturer To Achieve A 2% Or Less Leakage Rate At 1.0 Inch Water Column

• 1 Inch Thick Insulation With R Value Of 4.2

• Filter (Washable) Available As Accessory

• Ecm 5−speed Motor

• Multiposition Installation − Upflow Or Horizontal Left Standard, Horizontal Right With Minor Modification (Field

• Convertible To Downflow With Available Accessory Kit)

• Low Voltage Circuit Protective Fuse (3amp) Inline On Wire Harness

• No Heat (Plug) Kit Factory Installed

✓EcoTemp WCA4 Installation Manual

✓EcoTemp WCA4 Specification Manual

✓WCA4 Warranty Sheet

✓WAHL Installation Manual

✓WAHL Specification Manual

✓WAHL Warranty Sheet

• Reliable Efficiency: With a 14 SEER rating, the EcoTemp WCA4604GKA ensures dependable cooling performance while maintaining energy efficiency to help lower cooling costs.
• 5-Ton Capacity: Designed for large homes or commercial spaces, providing powerful cooling across expansive areas and multiple rooms.
• Multi-Speed Functionality: Offers multiple speed options, allowing you to adjust airflow to meet specific cooling needs, optimizing both comfort and energy savings.
• Flexible Installation: The multiposition design accommodates a variety of installation options, ensuring the system fits perfectly with different home layouts.
• Built to Last: Constructed with durable materials for long-term performance, providing reliable cooling during hot months for years to come.

Q: What is the EcoTemp WCA4604GKA 5 Ton Central Air Conditioner used for?
A: The EcoTemp WCA4604GKA is a 5-ton, 14 SEER multi-speed central air conditioner split system, designed to efficiently cool larger residential or commercial spaces with high cooling demands.

Q: What does SEER mean, and how does the 14 SEER rating benefit me?
A: SEER stands for Seasonal Energy Efficiency Ratio. The 14 SEER rating ensures that the system provides efficient cooling while helping to reduce energy consumption and cooling costs over time.

Q: How does the multi-speed functionality improve performance?
A: The multi-speed blower motor adjusts airflow based on cooling requirements, offering quieter operation, enhanced comfort, and better overall energy efficiency.

Q: Can the EcoTemp WCA4604GKA be installed in multiple positions?
A: Yes, this air conditioner is a multiposition system, allowing flexible installation in horizontal, vertical, or upflow configurations to suit different space layouts and installation needs.

Q: Why should I choose the EcoTemp WCA4604GKA air conditioner?
A: With its 14 SEER energy efficiency, multi-speed functionality for optimal comfort, and versatile multiposition installation, the EcoTemp WCA4604GKA is perfect for larger spaces that require reliable, efficient cooling.Maintenance Tips

• Replace or Clean Air Filters: Check air filters monthly and clean or replace them every 1-3 months. Dirty filters can reduce airflow, decrease efficiency, and lead to system strain. Replacing filters regularly ensures smooth operation and better indoor air quality.

• Clean Evaporator and Condenser Coils: At least once a year, clean the evaporator and condenser coils to prevent dirt buildup. Clogged coils hinder heat transfer, reduce efficiency, and cause the system to overwork. Use a gentle brush and coil cleaner for best results.

• Check Refrigerant Levels: Have a licensed technician check refrigerant levels annually. Low refrigerant can result in poor cooling performance and potentially damage the compressor. The technician will also inspect for any refrigerant leaks and re-charge as needed.

• Clear Outdoor Unit of Debris: Keep the outdoor unit free of leaves, dirt, and debris. Ensure there’s a 2-foot clearance around the condenser unit to allow proper airflow. Blocked airflow can lead to system overheating and reduced cooling capacity.

• Inspect the Condensate Drain: Periodically inspect the condensate drain for any clogs or blockages. A blocked drain can cause water damage and affect the system’s performance. Use a wet/dry vacuum or pipe cleaner to clear any obstructions.

• Check Ductwork for Leaks: Inspect ducts for leaks or disconnected sections. Leaky ducts reduce airflow and efficiency, causing the system to work harder and use more energy. Seal any visible gaps or leaks and consider having ducts professionally cleaned periodically.

• Verify Thermostat Functionality: Ensure your thermostat is correctly calibrated and maintains the desired temperature. If using a programmable thermostat, set it to adjust temperatures based on your schedule for improved energy savings. A smart thermostat provides even greater control and efficiency.

• Inspect Insulation: Check insulation around refrigerant lines and ducts. Proper insulation helps maintain efficiency by preventing energy loss. If insulation is damaged, replace it to avoid excess energy consumption and system strain.

• Ensure Proper Airflow: Make sure all vents and registers are open and unobstructed by furniture or drapes. Blocked vents can reduce airflow, causing inefficient cooling and increased energy usage. Clear any obstructions to ensure even airflow throughout the home.

• Schedule Professional Annual Maintenance: Schedule a professional inspection and tune-up annually. A technician will clean the coils, inspect refrigerant levels, check for system wear and tear, and ensure the multi-speed system is operating at peak efficiency.
