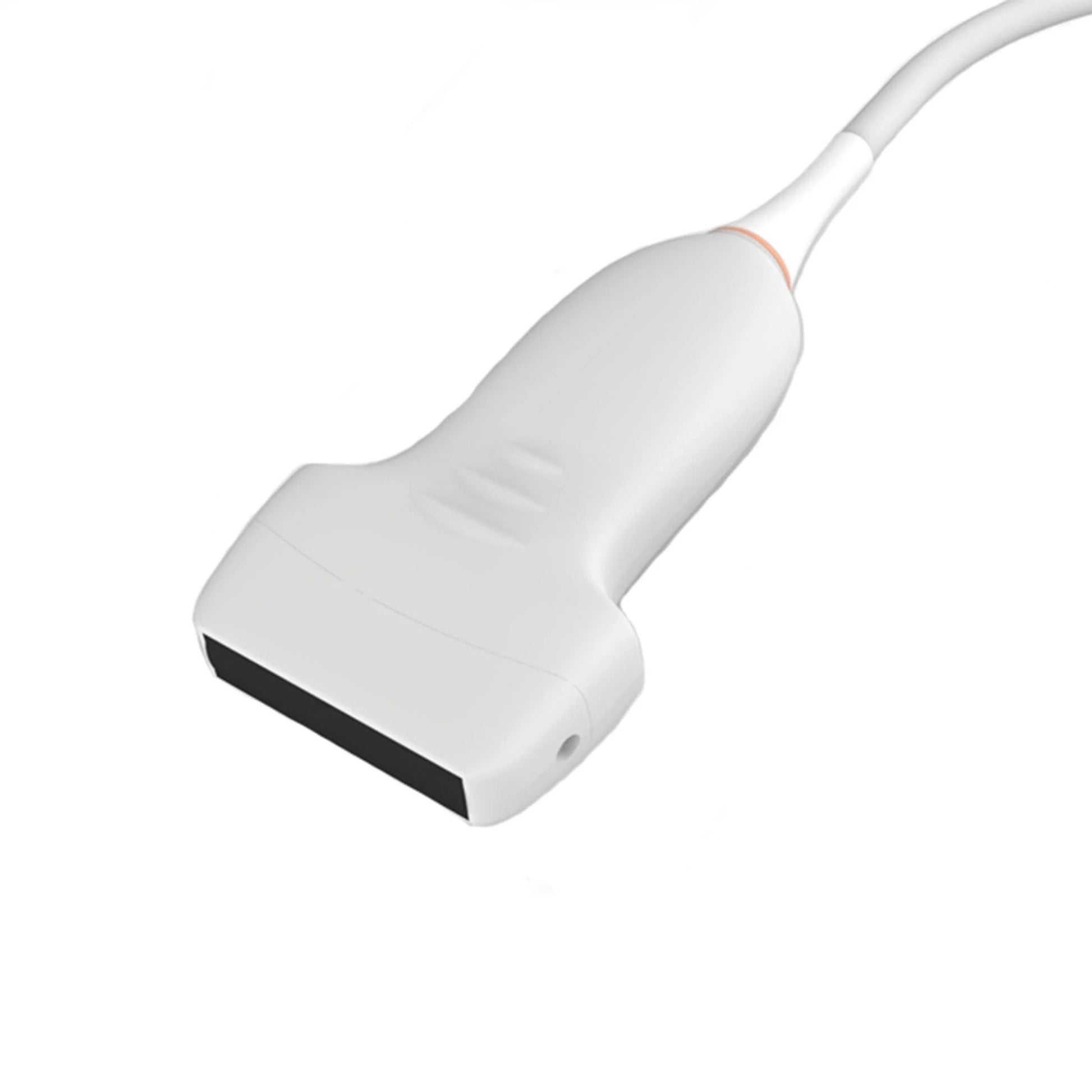

Edan AX7 High Density Linear Array Transducer Accessories
The Edan AX7 High Density Linear Array Transducer is commonly purchased with:
- Edan Acclarix AX7 Ultrasound System (#AX7).
What our Experts Think
-
High-Resolution Imaging: The L17-7HQ delivers exceptional detail with a 7–17 MHz frequency range, ideal for superficial and small-part imaging.
-
Versatile Clinical Use: Perfect for vascular, musculoskeletal, small-parts, and nerve assessments, offering sharp clarity and diagnostic confidence.
-
Optimized for Edan AX7: Designed specifically for seamless integration with the Acclarix AX7 ultrasound system, ensuring consistent performance and reliability.
-
Superior Penetration & Definition: Maintains excellent penetration even at high frequencies—ideal for precise visualization of superficial structures.
-
Durable & Ergonomic Design: Built for frequent clinical use with a comfortable grip and long-lasting probe housing.
Q&A
Q1: What is the Edan L17-7HQ transducer used for?
A: It’s a high-frequency linear array probe for the Edan Acclarix AX7 ultrasound system, ideal for vascular, musculoskeletal, small parts, breast, and superficial imaging.
Q2: What are its frequency specifications?
A: The transducer operates within a 7–14 MHz fundamental frequency range and supports harmonic imaging up to 17 MHz for enhanced resolution.
Q3: What makes this probe high density?
A: It features a 192-element linear array design that delivers exceptional image clarity, improved contrast, and fine tissue detail.
Q4: Is it compatible with the Edan AX7 system?
A: Yes, it’s specifically engineered for the Edan Acclarix AX7 and compatible Edan ultrasound platforms.
Q5: What advantages does it offer?
A: Superior resolution for superficial imaging, accurate vascular visualization, and enhanced detail for small structures.
Q6: Any handling or care tips?
A: Use approved ultrasound gel, avoid dropping or striking the probe, clean and disinfect per Edan’s medical standards, and store in a protective holder when not in use.
Maintenance Tips
-
Handle the probe carefully—avoid dropping or striking it.
-
Clean immediately after each use with approved ultrasound probe cleaner; never use harsh chemicals.
-
Disinfect according to Edan’s guidelines; avoid submerging the connector.
-
Inspect cable and housing regularly for cracks, cuts, or discoloration.
-
Store in a clean, dry, padded holder—keep away from direct sunlight and heat.
-
Do not coil the cable tightly; use loose loops to prevent internal wire stress.
-
Allow the probe to reach room temperature before use to prevent condensation.
-
Always disconnect by holding the connector, not the cable.
