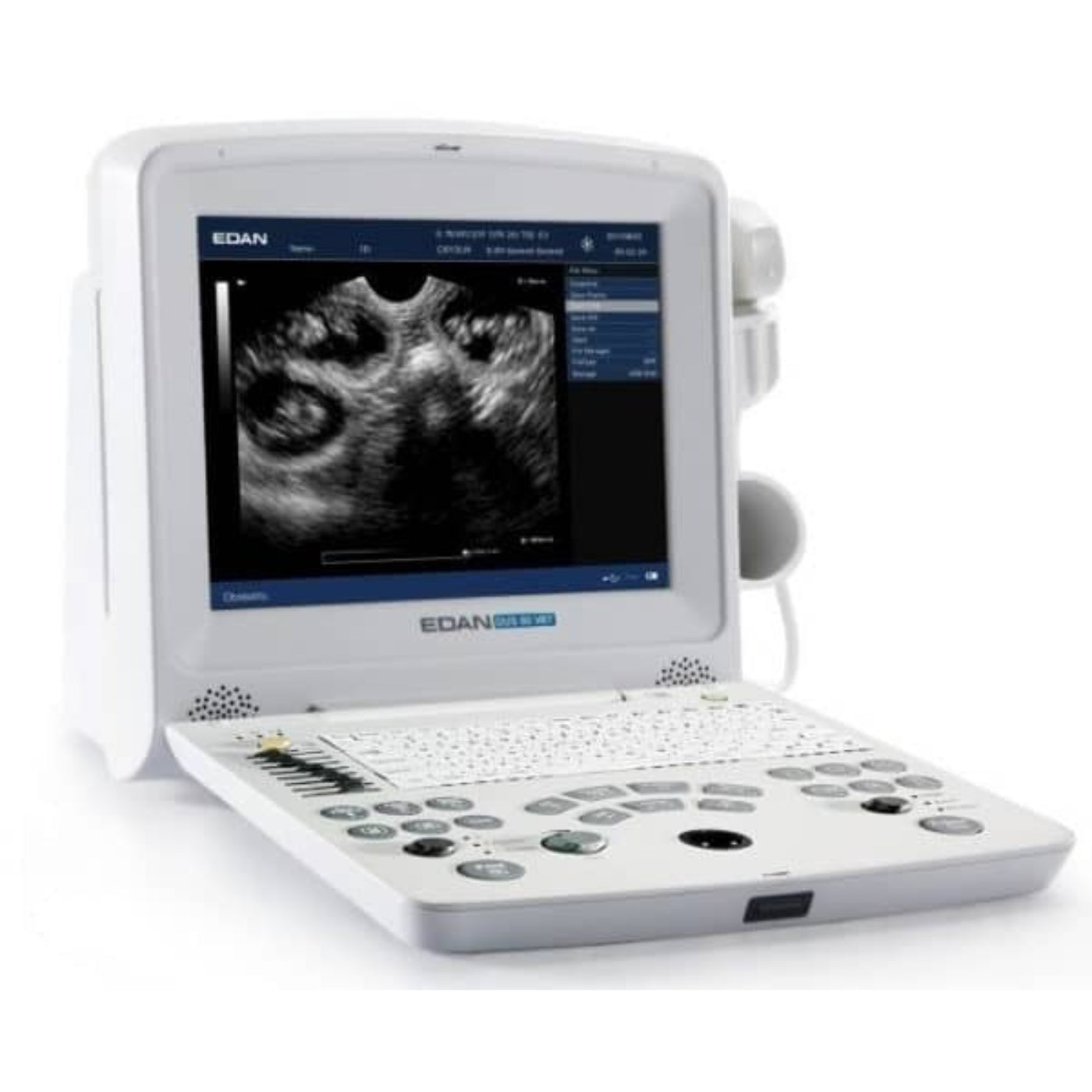

Edan DUS 60 VET Diagnostic Ultrasound System - EDN-DUS60Vet-Main

Edan DUS 60 VET Diagnostic Ultrasound System Features

• Black and White Ultrasound.
• 12.1 inch LCD monitor.
• Two standard transducer connectors.
• 8-segment TGC control.
• IP (Image Processing) function.
• 256-frame cine loop memory.
• 504MB image storage capacity.
• Two USB ports.
• Pseudo Color: 7 types.
• Measurement & Calculation software package.

Edan DUS 60 VET Diagnostic Ultrasound System Specifications

General

• Imaging Mode: B, 2B, 4B, B+M, M, and PW.
• Gray Scale Levels: 256.
• Display: 12.1 TFT-LCD.
• Transducer Frequency: 2.0-10.0 MHZ.
• Transducer Connector: 2 standard Beam.
• Scanning Angle: Up to 155 degrees (transducer dependent).
• Scanning Depth (mm): From 19 to 324 (transducer dependent).

Functions

• Cine Loop: 256-frame bidirectional cine-loop.
• Zoom: x1.0, x1.2, x1.4, x1.6, x2.0,x2.4, x3.0, x4.0 in distance. Panoramic zoom in real-time and freeze.
• Storage Media: Built-in Flash, internal large capacity data storage.
• Built-in Image Archive: 504MB built-in image storage.
• Body Marks: : 40 types Transducer auto-detection.

Display

• Date, Time, Probe Frequency, Frame Rate, Host, ID, Hospital Name, Depth, Frame Rate, Exam Type, Measurement Values, Gain, IP, Body Marks, Annotations, Probe Position.

Others

• Peripheral Ports:
• S-video Output: 1.
• Video Output: 1.
• VGA Output: 1.
• USB Port: 2.
• Ethernet Port: 1.
• Remote Control: 1.
• Footswitch Port: 1.
• Power Supply: 100V-240V ~ 50Hz/60Hz.
• Lithium Battery: Continuous operation for up to 2 hours.
• Dimensions: 330 mm (13.0”) L x 220 mm (8.7”) W x 320 mm (12.6”) H.
• Net Weight: 7.1kg (15.7 lb).

Imaging Processing

• Pre-Processing:
• Dynamic Range.
• Frame Persist.
• Gain.
• 8-segment TGC adjustment.
• IP (Imaging Process).
• Post-Processing:
• Gray map.
• Speckle Reduction Technology.
• Pseudo-color.
• Gray Auto Control.
• Black/white invert.
• Left/right invert.
• Up/down invert.
• Image rotation at 90° interval.

Measurement & Calculation

• B-Mode: Distance, circumference, area, volume, ratio % stenosis, histogram, and angle.
• M-Mode: Distance, time, slope, and heart rate.
• Doppler: Time, heart rate, velocity, acceleration, trace, and RI.
• Software Packages: Canine, feline, equine, bovine, ovine.

Edan DUS 60 VET Diagnostic Ultrasound System Accessories

The Edan DUS 60 VET Diagnostic Ultrasound System is commonly purchased with the following transducers:

• #12.01.210693: Edan Micro-Convex Array Transducer C611-2.
• #12.01.210683: Edan Convex Array Transducer C361-2.
• #12.01.210695: Edan Linear Array Transducer L743-2.
• #E741: Edan Endorectal Transducer E741-2.
