Edan iM8 VET Veterinary Monitor Literature
Edan iM8 VET Veterinary Monitor Brochure
What our Experts Think
-
Versatile Animal Compatibility: Designed for use with felines, canines, and other animals, making it suitable for a wide range of veterinary practices.
-

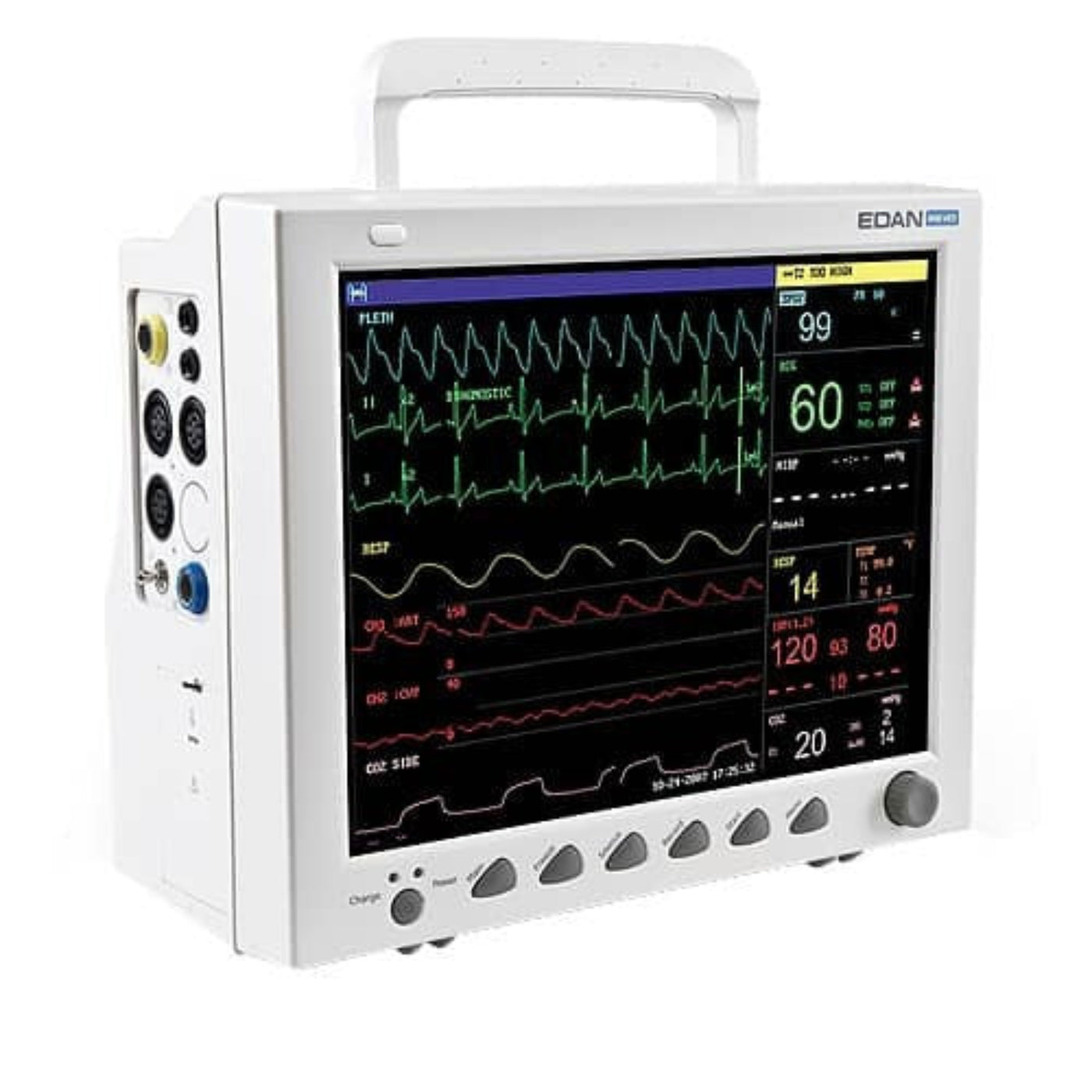

High-Resolution Display: Features a 12.1" color TFT-LCD screen with a resolution of 800 × 600, displaying up to 11 waveforms simultaneously.
-
Comprehensive Monitoring Parameters: Standard parameters include 3/5-lead ECG, RESP, EDAN SpO₂, NIBP, PR, 2-TEMP, and optional 2-IBP, Respironics EtCO₂, EDAN G2 EtCO₂, Thermal Recorder, Suntech NIBP.
-
Advanced Signal Processing: Equipped with the iSEAP™ algorithm, optimized for arrhythmia detection, and dual-mode anti-interference pulse oximetry for accurate readings.
-
Enhanced Safety Features: Provides defibrillation and electrosurgical interference protection, along with pacemaker detection capabilities.
-
User-Friendly Interface: Offers customizable alarm settings, pitch tone (pulse-tone modulation), and VGA output for external display options.
-
Portable and Durable: Weighs approximately 5 kg, featuring a built-in rechargeable Li-ion battery, suitable for both stationary and mobile veterinary settings.
-
Data Management Capabilities: Supports 120 seconds of full-disclosure waveform review, 120 hours of graphic and tabular trends, and bi-directional communication with central monitoring systems.
Q&A
Q: What is the Edan iM8 VET Veterinary Monitor?
A: A compact, multiparameter monitor designed for veterinary use, featuring a 12.1-inch high-resolution color TFT-LCD touchscreen for intuitive operation.
Q: Which species is it suitable for?
A: Designed for use with felines, canines, and other animals, making it versatile for various veterinary practices.
Q: What monitoring parameters does it support?
A: 3/5-lead ECG, respiration (RESP), non-invasive blood pressure (NIBP), EDAN SpO₂, pulse rate (PR), dual temperature channels (2-TEMP), and dual invasive blood pressure (2-IBP).
Q: Are there optional configurations available?
A: Yes, optional configurations include capnography (Respironics EtCO₂ or EDAN G2 EtCO₂), thermal recorder, and Suntech NIBP.
Q: Does it support central monitoring?
A: Yes, it offers bi-directional communication with central monitoring systems (CMS) and supports HL7 for integration.
Q: What are the power specifications?
A: Operates on a 100V–240V, 50Hz/60Hz power supply with a current range of 0.7 A – 1.4 A.
Q: Is it portable?
A: Yes, it features a fanless design to reduce dust accumulation and minimize noise, enhancing portability.
Maintenance Tips
-
Regular Software Updates: Periodically check for and install software updates to benefit from the latest features and improvements.
-
Data Backup: Regularly back up patient data to secure storage to prevent data loss.
-
System Compatibility: Ensure that your PC meets the system requirements for the software to function correctly.
-
Proper Storage: Store the monitor in a clean, dry environment, free from dust and moisture.
-
User Training: Ensure that all users are adequately trained in using the monitor to prevent operational errors.
