Edan VE-100 Veterinary EKG Literature
Edan VE-100 and 300 Veterinary EKG Brochure
What our Experts Think
-
Compact & Portable Design: Lightweight at just 5.0 lbs (2.3 kg), with a built-in handle for easy transport.
-
High-Resolution Thermal Printing: Produces clear, high-quality ECG strips at selectable speeds (25 or 50 mm/sec).
-
User-Friendly Interface: Features an intuitive touch panel and LCD display for waveform visualization.
-
Advanced Digital Filters: Equipped with filters to minimize baseline drift, AC, and EMG interference.
-
Flexible Operation Modes: Supports both auto and manual modes for versatile usage.
-
Lead-Off Detection: Alerts users to disconnected electrodes, ensuring accurate readings.
-
Long Battery Life: Built-in rechargeable lithium-ion battery provides over 3 hours of continuous operation.
-
Connectivity Options: Includes RS-232 port for data transfer and integration with other systems.
-
Durable Build: Designed to withstand the rigors of veterinary environments.
Q&A

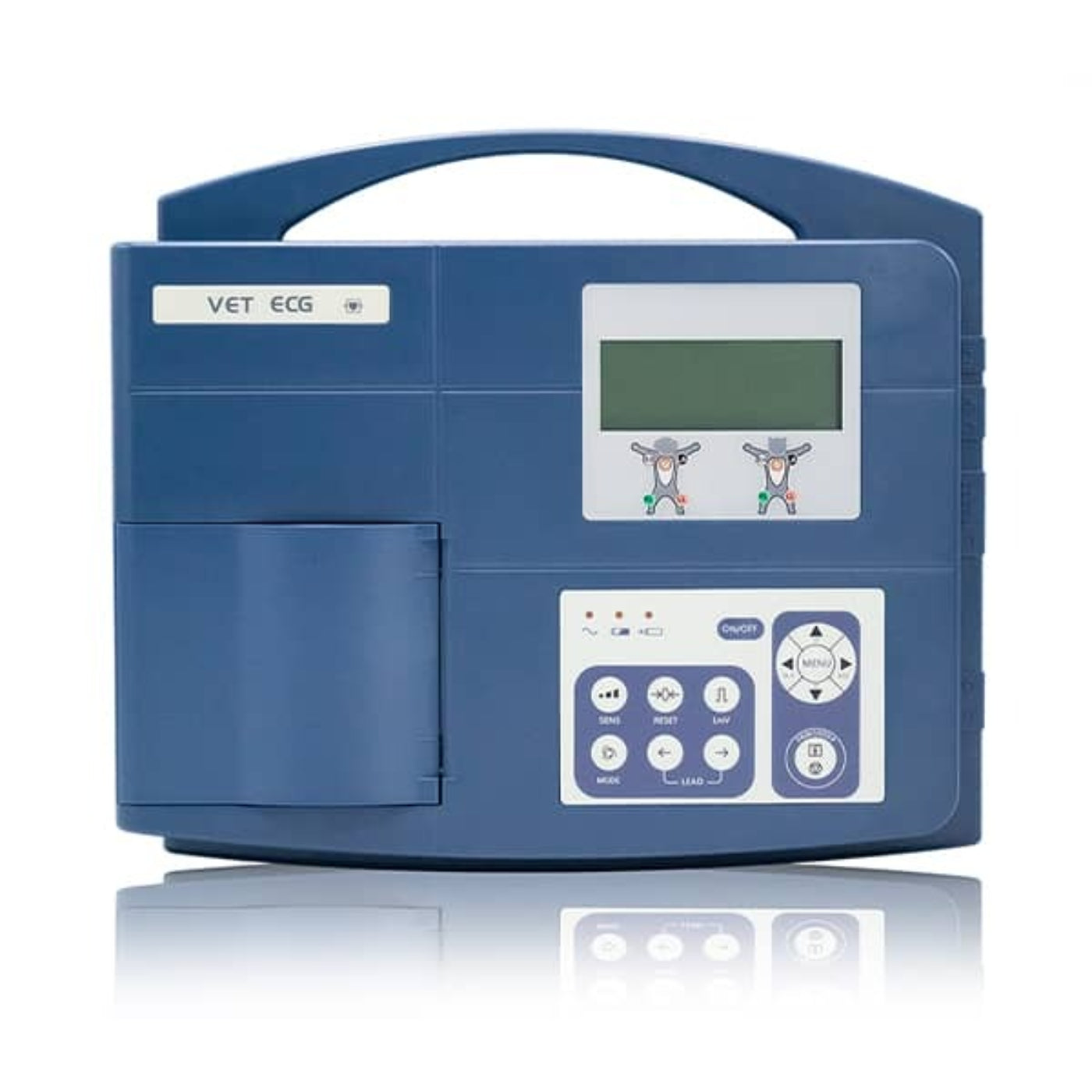

Q: What is the Edan VE-100 Veterinary EKG?
A: A portable, single-channel ECG designed for veterinary use, suitable for both small and large animals.
Q: What are its key features?
A: High-resolution thermal printer, adjustable print speeds (25/50 mm/sec), digital filters to reduce interference, auto/manual modes, lead-off detection, built-in rechargeable battery (3+ hours), RS-232 data output, LCD display, and compact design with a handle.
Q: Is it suitable for different animal sizes?
A: Yes, it works for both adult and neonatal animals, making it versatile for veterinary practices.
Q: Where can it be purchased?
A: Available through authorized veterinary equipment distributors.
Maintenance Tips
-
Regular Inspection: Periodically check the device for any signs of wear, loose connections, or damage.
-
Proper Storage: Store the device in a clean, dry environment, free from dust and moisture.
-
Cleaning: Wipe the device with a soft, dry cloth. If necessary, use a mild detergent solution. Ensure the device is completely dry before storage or use.
-
Battery Care: Replace the battery when its useful life is over or if foul smell and leakage are detected. Only qualified service engineers authorized by EDAN can open the battery compartment and replace the battery.
-
Cable Management: Align the patient cable to avoid twisting, knotting, or bending at closed angles while using. Store the lead wires in a larger wheel. Replace the patient cable immediately if damage or aging is found.
-
Disinfection: Before disinfection, clean the equipment first. Then wipe the surface of the unit and patient cable with 70% isopropyl alcohol.
-
Lead-Off Detection: Ensure proper electrode placement and connection to avoid lead-off detection errors.
