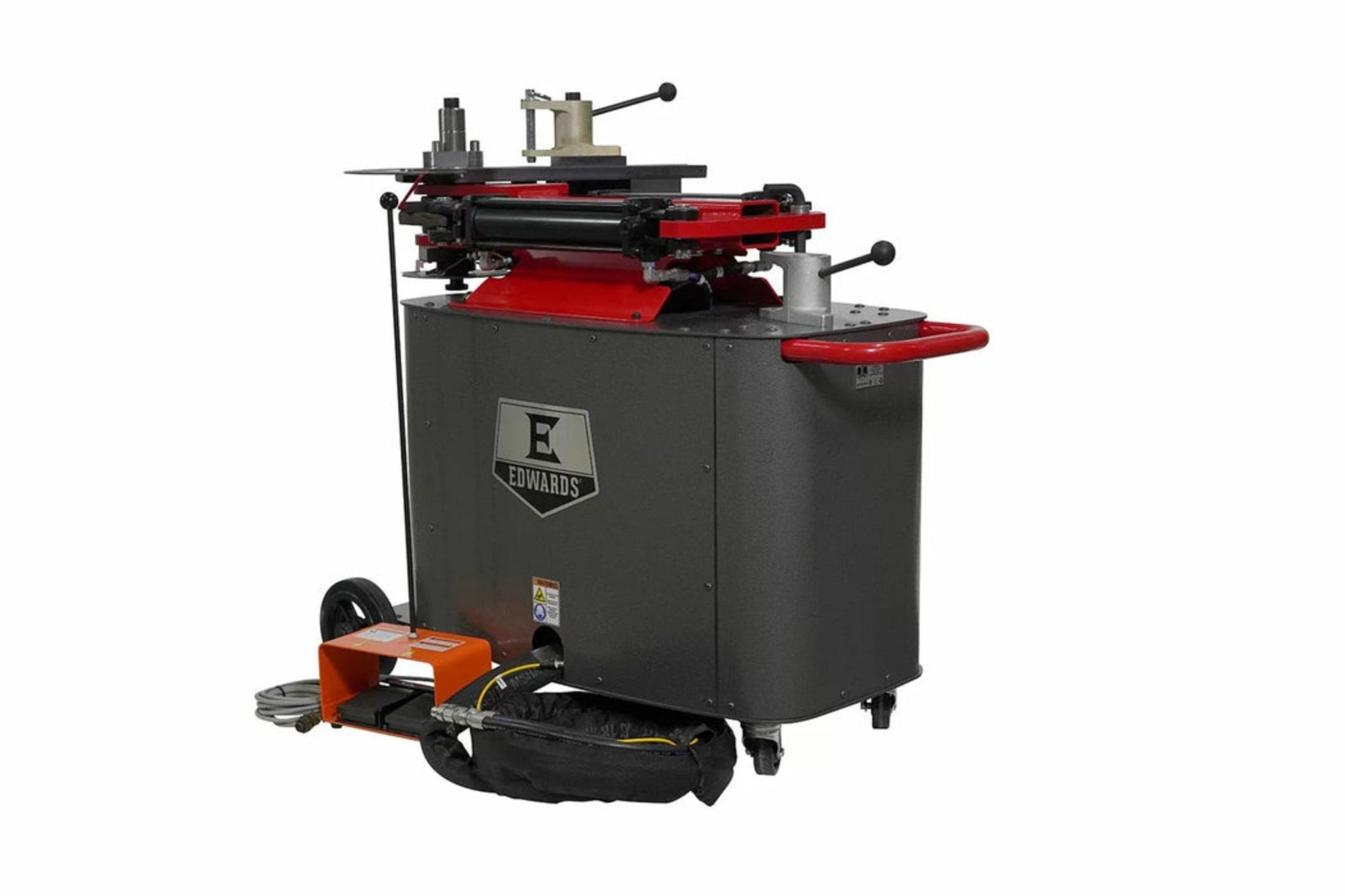

EDWARDS HAT2375 Rotary Draw Bender - ED1-61
Edwards is proud to introduce our NEWEST Powerlink Hydraulic Tool, a Rotary Draw Bender. The HAT2375, is an innovative dual cylinder, rotary draw style bender, producing up to a 180° bend in one stroke. The open style drop on tooling makes changing dies simple and bending even easier eliminating the need to reset and re-pin the die mid-bend. An adjustable auto stop controls when your bend is complete improving precision, saving time, and maximizing your production capabilities. The heavy-duty mobile cart allows for easy movement around your shop. The HAT2375 hydraulic rotary draw bender is the perfect addition to your Ironworker with PowerLink System expanding your tube and pipe fabrication. Things to know before purchase: All capacities are based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce rotary draw bending machine capacity. Consult Edwards Manufacturing to review material specifications.
Features
- Dual Cylinder Rotary Draw Pipe and Tube Bender Produces Consistent 180° Bends in One Stroke.
-
Must be run off an Edwards tool with PowerLink ™ System or Portable Power Unit.
- Open Style Drop on Tooling for Quick and Easy Die Changes.
- Heavy Duty Mobile Cart for Mobility Around Your Shop and Ease of Storage.
- Auto Stop Feature can be set to Desired Bend for accuracy and Repeatability.
- Large Easy to Read Degree Wheel.
- Easy-to-use hand/jog controls with integrated E-Stop.
- 20' quick-connect hoses for simple "plug & play" operation.
- Hydraulic rotary draw pipe and tube bender is made in the U.S.A.
Specifications
| Stock Number |
ED1-61 |
| Model Number |
HAT2375 |
| Aluminum Pipe Schedule 40 |
2-1/2" (.156") |
| Center Line Radius (In.) |
8 |
| Chromoly Round Tube Wall |
2" (.1/8") |
| Minimum Center line Radius |
1/2" |
| Minimum OD |
0.25 |
| Round Capacity (Mild Steel) (In.) |
1 |
| Round Pipe Sch. 40 Capacity (In.) |
2 |
| Round Tube Capacity (In.) |
2-1/2 |
| Square Tube Capacity (In.) |
2" (.125) |
| Gross Weight |
590.0 |
| Degree Of Bend |
180 |
What Our Experts Think
The EDWARDS HAT2375 Rotary Draw Bender (ED1-61) is a precision tool built for high-quality metal bending. Here’s why it’s a top choice:
-
Rotary Draw Bending – Provides accurate, repeatable bends without material distortion.
-
Heavy-Duty Construction – Designed for durability in industrial environments.
-
Versatile Compatibility – Works with a variety of pipe and tubing sizes.
-
User-Friendly Design – Simplifies complex bending tasks for increased efficiency.
-
Powerful Performance – Ideal for fabrication, manufacturing, and custom metalwork.
Q&A
Q: What is the Edwards HAT2375 Rotary Draw Bender used for?
A: It is designed for precision bending of tubes, pipes, and solid materials in metal fabrication, automotive, and industrial applications.
Q: What materials can it bend?
A: It can bend up to 2" tubing, 2" pipe, and 2.5" square tubing, depending on material thickness.
Q: Is it manually operated or hydraulic?
A: This is a hydraulic-powered rotary draw bender, ensuring smooth and consistent bends.
Q: Does it support different die sets?
A: Yes, it accommodates a variety of dies for different bending angles and radii.
Q: What industries is this bender ideal for?
A: It is commonly used in metal fabrication, automotive, industrial manufacturing, and construction.
Q: Is it easy to use?
Maintenance Tips
-
Check Hydraulic Fluid – Regularly inspect fluid levels and refill as needed for smooth operation.
-
Lubricate Moving Parts – Apply grease to pivot points and guide surfaces to minimize wear.
-
Inspect Hoses & Fittings – Check for leaks, cracks, or damage in hydraulic hoses and connections.
-
Monitor Electrical Components – Ensure all power and control connections are secure and functioning properly.
-
Keep Clean & Store Properly – Wipe down the machine and store it in a dry area to prevent corrosion.
