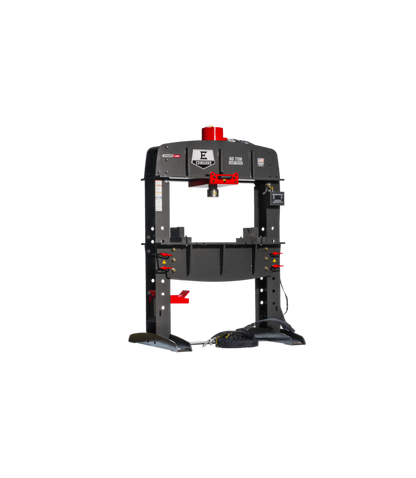

EDWARDS 60 Ton Shop Press w/ PLC - ED9-HAT8050
This 60 Ton Shop Press includes a Programmable Logic Control (PLC) to maximize your efficiency with shorter cycle times - over a 50% time savings. With a large work table area, this Shop Press accepts both standard and custom tooling to press bearings, bend metal or straighten a part. The rolling cylinder, open-sided design, and electric foot pedal make this 60 ton hydraulic press machine simple to use. Must be run off an Edwards Ironworker with PowerLink System or Portable Power Unit.
Features
- 20' quick-connect hoses for simple "plug & play" operation.
- 60 ton shop press accepts a variety of standard and custom tooling.
- Electric foot pedal with integrated jog control.
- Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket.
- Magnetic PLC control box mounts anywhere on the shop press for user performance and comfort.
- 60 ton hydraulic press' open-sided design allows longer material to pass through the frame.
- Programmable Logic Control (PLC) allows operators to create repeatable actions, improving efficiency.
- Rolling cylinder provides maximum adaptability.
- The PLC delivers adjustable PSI allows the user to set the desired pressure accurately.
- The PLC offers adjustable up/down stroke control providing up to 50% time savings.
Specifications
| Stock Number |
ED9-HAT8050 |
| Gross Weight (Lbs) |
1900 |
| Minimum Ram Speed (In./Sec) |
.330 |
| Minimum Return Speed (In./Sec) |
.456 |
| Model Number |
HAT8050 |
| Net Weight (Lbs.) |
1900 |
| Product Dimensions (In.) |
48 x 54 x 86 |
| Rating (Tons) |
60 |
| Stroke (In.) |
12-1/4 |
| Warranty |
1 Year |
| Weight (Lbs.) |
1900 |
| Work Table (In.) |
39-1/4 x 42 |
| Gross Weight |
1900.0 |
What our Experts Think
-
Heavy‑Duty 60 Ton Capacity — ideal for pressing, bending, straightening, and assembly tasks in fabrication, automotive, and industrial shops
-
PLC Control Adds Precision & Repeatability — lets operators save and execute press cycles with consistent results
-
Robust Construction for Long‑Term Use — thick‑gauge steel frame minimizes deflection under load
-
Smooth, Controlled Operation — hydraulic system with fine adjustment improves accuracy and reduces trial‑and‑error
-
Versatile Worktable & Accessories — accommodates a range of dies, fixtures, and tooling for expanded shop applications
-
Easy‑to‑Use Interface — PLC control panel simplifies cycle setup, monitoring, and safety features
-
Enhances Safety & Productivity — built‑in guards and control logic reduce risk during heavy pressing jobs
-
Best For: Fabrication shops, maintenance departments, and professionals needing repeatable, high‑force hydraulic pressing
Q&A
Q4: What power or hydraulic source is needed?
A: It must be powered by an Edwards Ironworker with PowerLink System or a compatible Portable Power Unit (sold separately).
Q5: How is it controlled?
A: An electric foot pedal with jog control operates the press, and the PLC panel (magnetic mount) lets you set pressure and cycle parameters.
Q6: What features improve usability?
A: 20 ft quick‑connect hoses, an open‑sided design for long parts, hydraulic‑assist adjustable work table height, and an easy‑to‑use foot pedal all enhance operation.
Q7: Does it accept custom tooling?
A: Yes — it works with a range of standard and custom press tooling for versatile applications.
Q8: What advantages does this model offer?
A: High productivity with PLC automation, repeatable precision, strong 60‑ton capacity, and adaptability via quick‑connect hoses.
Q9: Is it suitable for industrial environments?
A: Yes — built with heavy‑duty steel and designed for rigorous metalworking and fabrication use.
Q10: What machining tasks benefit most?
A: Bending, pressing, forming, straightening, and assembly operations where automated repeatability and press power are needed.
Maintenance Tips
-
Hydraulic System Care: Regularly check hydraulic fluid levels, replace oil per manufacturer guidelines, and inspect hoses for leaks to maintain full 60-ton pressure.
-
Lubricate Moving Components: Grease ram, guides, and pivot points to reduce wear and ensure smooth pressing operations.
-
Inspect Electrical & PLC Controls: Keep PLC panel and wiring clean, dry, and securely connected; verify sensor and safety interlock function.
-
Check Press Frame & Bolts: Periodically inspect frame for cracks and tighten all bolts to prevent misalignment under heavy loads.
-
Monitor Ram Alignment: Ensure ram moves straight and evenly to avoid uneven pressure and tooling damage.
-
Clean Work Area: Remove metal debris and dust to protect the hydraulic system and maintain operator safety.
-
Test Safety Features: Verify emergency stop, overload protection, and limit switches regularly for safe operation.
-
Prevent Corrosion: Store in a dry environment and wipe exposed steel surfaces with protective coating.
