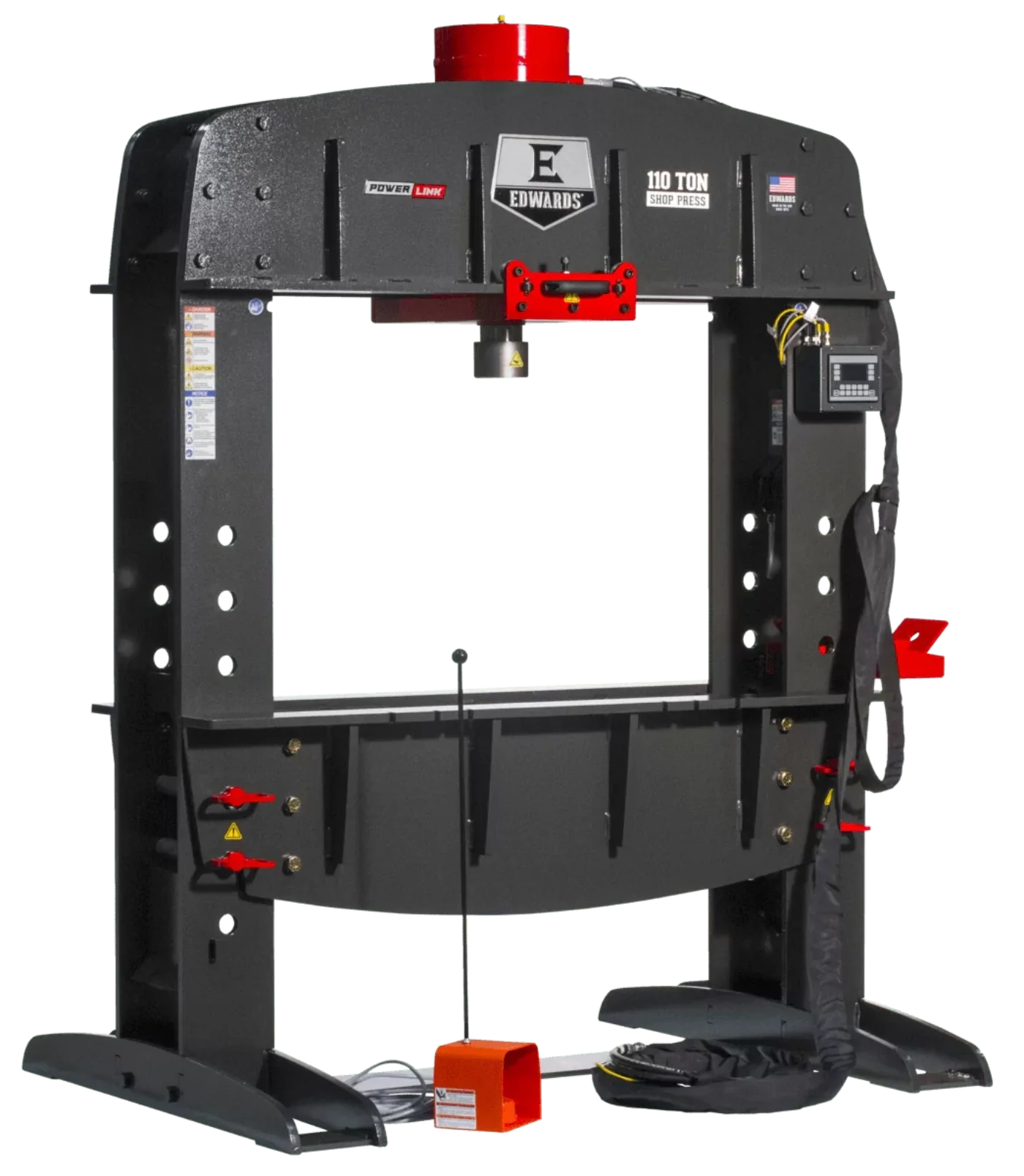

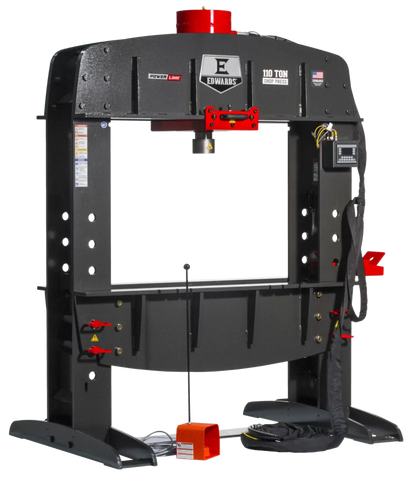

EDWARDS 110 Ton Shop Press w/ PLC & Portable Power Unit 3 Phase, 460V - ED9-HAT9080
Our most powerful Shop Press, this 110 Ton Shop Press includes a Programmable Logic Control (PLC) to maximize your efficiency with shorter cycle times - over a 50% time savings. With the greatest capacity this Shop Press is able to accept all of our standard tooling along with custom tooling in its large work table area, the 110 Ton can press bearings, bend metal or straighten your parts. The rolling cylinder, open-sided design, and electric foot pedal make this machine simple to use. This Shop Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP.
Features
- 20' quick-connect hoses for simple "plug & play" operation.
- Accepts a variety of standard and custom tooling.
- Electric foot pedal with integrated jog control.
- Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket.
- Magnetic PLC control box mounts anywhere on the shop press for user performance and comfort.
- Open-sided design allows longer material to pass through the frame.
- Programmable Logic Control (PLC) allows operators to create repeatable actions, improving efficiency.
- Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included).
- Rolling cylinder provides maximum adaptability.
Specifications
| Stock Number |
ED9-HAT9080 |
| Gross Weight (Lbs) |
2600 |
| Minimum Ram Speed (In./Sec) |
.186 |
| Minimum Return Speed (In./Sec) |
.220 |
| Model Number |
HAT9080 |
| Net Weight (Lbs.) |
2600 |
| Product Dimensions (In.) |
48 x 64 x 88 |
| Rating (Tons) |
110 |
| Steel Frame Thickness (In.) |
3/4 |
| Stroke (In.) |
12-1/4 |
| Warranty |
1 Year |
| Weight (Lbs.) |
3120 |
| Work Table (In.) |
37-7/16 x 48 |
| Gross Weight |
2600.0 |
What our Experts Think
-
High‑Capacity 110 Ton Press with PLC Control — delivers precise, repeatable pressing cycles with programmable control for complex or batch work
-
Integrated Portable 3‑Phase 460 V Power Unit — standalone hydraulic power boosts flexibility and lets you run the press and other tools without separate infrastructure
-
Industrial‑Grade Strength & Rigidity — heavy‑duty steel frame and robust hydraulics stand up to frequent, high‑force workloads
-
PLC Precision Enhances Productivity — cycle programming reduces setup time and operator variance, improving throughput
-
Smooth, Controlled Pressing Action — fine hydraulic control minimizes part distortion and improves end‑part quality
-
Versatile Worktable & Accessory Support — adapts easily to different dies, fixtures, and tooling for expanded applications
-
Operator‑Friendly & Safe — intuitive controls plus safety logic help reduce errors and risk in heavy pressing tasks
-
Best For: Commercial fabrication shops, maintenance facilities, and professionals needing high‑force, precision hydraulic pressing with flexible power delivery
Q&A
Q5: What features improve usability?
A: Comes with 20′ quick‑connect hoses, electric foot/jog controls, adjustable table height with hydraulic assist, and an open‑sided frame for handling longer workpieces.
Q6: Is it easy to operate?
A: Yes — foot/jog control and the magnetic PLC panel make operation intuitive while enabling precision and repeatability.
Q7: Where is it best used?
A: Ideal for metal fabrication, automotive shops, industrial manufacturing, and any workshop needing heavy‑duty pressing and forming capacity.
Q8: Can it handle tooling?
A: Yes — it accepts a variety of standard and custom press tooling for expanded functionality depending on the application.
Q9: What materials is it suitable for?
A: Heavy steel, structural components, bearings, plate, tubing, and other tough workpieces commonly found in fabrication and repair jobs.
Q10: What’s the main advantage of this package?
A: Combines high pressing force, PLC automation, and a portable power unit, delivering a versatile, high‑productivity press ready to run with minimal setup.
Maintenance Tips
-
Hydraulic Fluid & Hoses: Check hydraulic oil levels regularly and replace per manufacturer schedule; inspect hoses, fittings and seals for leaks or wear to maintain full 110‑ton force.
-
Lubrication: Apply grease or light oil to moving parts—ram guides, pivot points and pressing surfaces—to reduce friction and prolong service life.
-
PLC & Controls: Verify the PLC and foot/jog controls are clean, secure, and functioning; keep connections dry and update control software/settings if needed for repeatable operations.
-
Frame & Fasteners: Periodically inspect the 3/4″ steel frame, bolts and work table for tightness or cracks to ensure structural stability.
-
Clean Work Area: Remove dust, metal shavings and debris from around the press and power unit to prevent contamination and wear.
-
Electrical Safety: Ensure 460 V 3‑phase power connections and grounding are correct; check emergency stop and safety interlocks regularly.
-
Proper Storage: When idle, keep the machine in a dry, temperature‑stable environment to prevent corrosion and protect electrical components.
