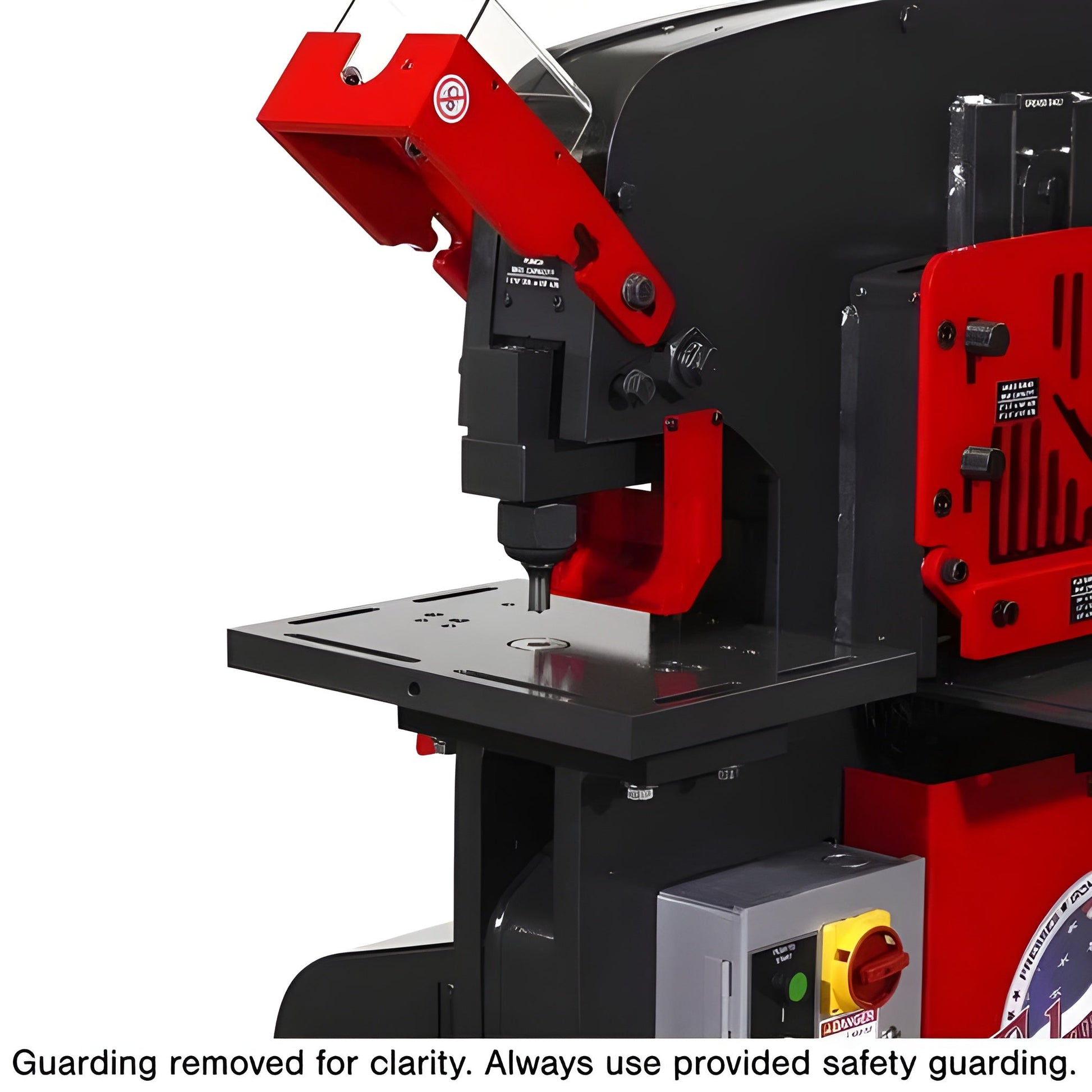

EDWARDS Heavy-Duty Gauging Table Kit For Oversize Punch Assembly - AC0905
The 1" x 12" x 16" replaces the Standard Pedestal Die table to add speed and precision to your Punch Workstation. Compatible with the Edwards 40, 50, 55, 60, 65, 75, 100 Ton and Elite Ironworkers. Includes adjustable fences and handles to quickly and easily guide your material for perfect repeatable actions.
Features
- 1" x 12" x 16" Table adds speed and precision to your punch workstation.
- Adjustable fences and handles quickly and easily guide your material for perfect repeatable actions.
- Replaces Standard Pedestal Die Table on 40, 50, 55, 60, 65 75 and 100 Ton Edwards Ironworkers.
- Induction hardened for increased strength.
- Tooth matched at the weld to eliminate blade ticking.
- Greenwood blade does a great job when cutting moist wood.
What Our Experts Think
The EDWARDS Heavy-Duty Gauging Table Kit for Oversize Punch Assembly (AC0905) is engineered for precision and efficiency in industrial punching applications. Here’s why it’s a valuable upgrade:
-
Optimized for Oversized Punching – Provides stable and accurate support for larger materials.
-
Heavy-Duty Build – Designed to withstand rigorous shop environments.
-
Enhanced Precision – Ensures consistent, repeatable results for high-quality output.
-
Large Work Surface – Improves material handling and workflow efficiency.
-
Compatible with Edwards Ironworkers – Seamlessly integrates for a streamlined setup
Q&A
Q: What is the purpose of the EDWARDS Heavy-Duty Gauging Table Kit?
A: It provides a sturdy, precision-aligned surface for supporting and positioning oversized punch assemblies, improving accuracy and stability in metal fabrication.
Q: Which machines is this kit compatible with?
A: It is designed for use with EDWARDS ironworkers, specifically for oversized punch applications.
Q: How does this kit enhance metalworking operations?
A: It improves precision, reduces material movement, and increases efficiency when working with large or heavy workpieces.
Q: Is installation straightforward?
A: Yes, it is designed for easy integration with EDWARDS ironworkers, ensuring quick setup and reliable performance.
Q: Does it contribute to workplace safety?
A: Yes, the heavy-duty design enhances stability, reducing the risk of misalignment and material shifting during punching operations.
Maintenance Tips
-
Clean Regularly – Remove metal shavings, dust, and debris to maintain accuracy and prevent surface wear.
-
Inspect for Damage – Check for cracks, warping, or other signs of stress, especially around the punch assembly.
-
Lubricate Moving Parts – Apply lubricant to any adjustable components to ensure smooth operation.
-
Tighten Fasteners – Periodically check and secure all bolts and screws to maintain stability during use.
-
Prevent Corrosion – Store in a dry environment and apply rust-resistant coatings if necessary.
