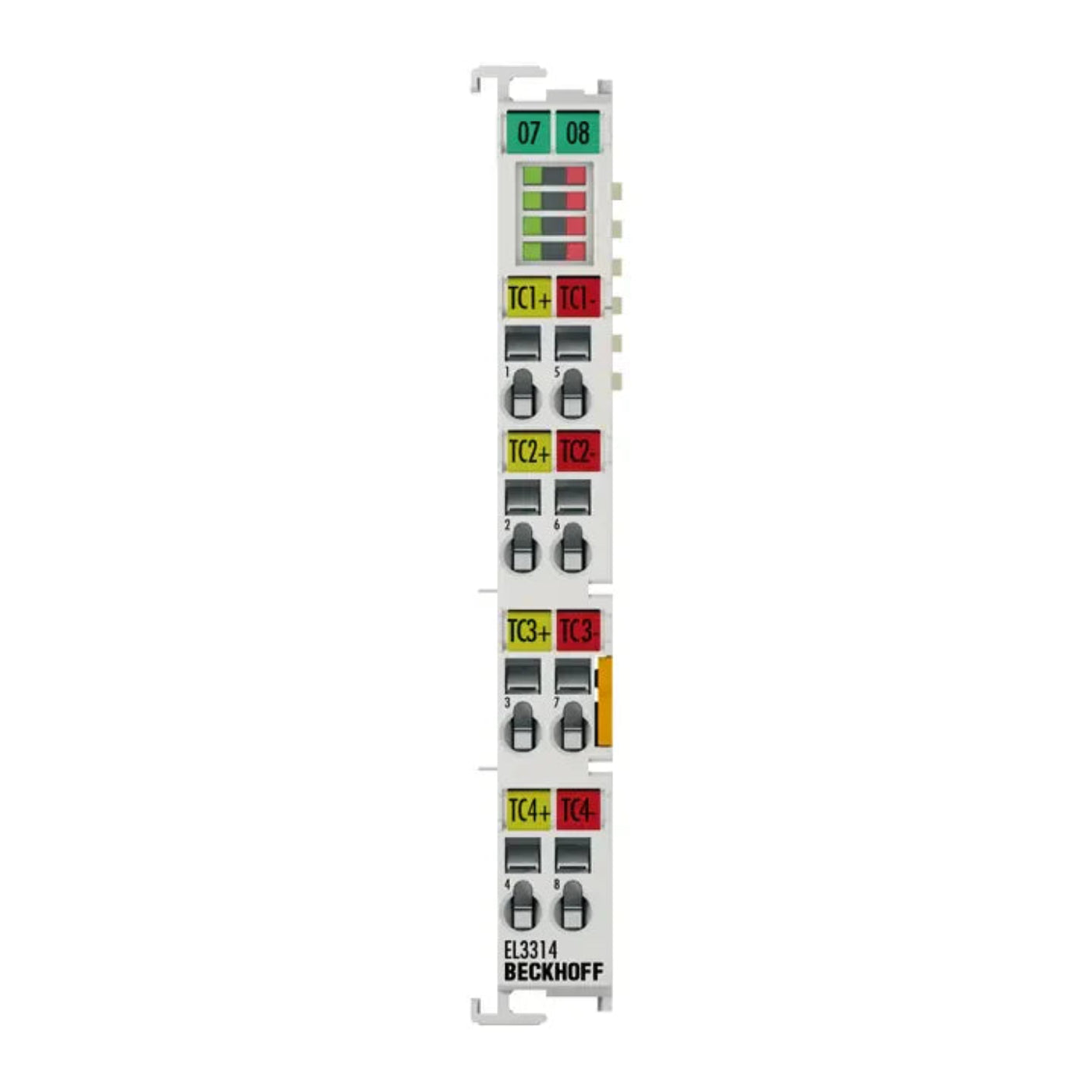

Beckhoff EtherCAT Terminal, 4-channel Analog Input, Temperature - EL3314

Beckhoff EtherCAT Terminal, 4-channel Analog Input, Temperature - EL3314

The EL3314 analog input terminal facilitates direct connection of up to four thermocouples. It utilizes EtherCAT Terminal technology to operate thermocouple sensors via a 2-wire technique. Linearization across the entire temperature range is managed by an onboard microprocessor, offering flexible temperature range selection. Error LEDs signal any wire breakages, ensuring reliable operation. Cold junction compensation is achieved through internal temperature sensing at the terminal. Additionally, the EL3314 supports mV measurements, enhancing its versatility in industrial applications requiring precise temperature sensing and analog signal acquisition.

Specifications

Information About EL3314

The EL3314 EtherCAT Terminal from Beckhoff is a versatile 4-channel analog input module designed for precise temperature measurement applications. It supports various thermocouple types including B, C, E, J, K, L, N, R, S, T, and U (default setting: type K), ensuring compatibility across different industrial environments. Each channel features channel-specific wire break detection, enhancing operational reliability. Internal and external cold junction compensation mechanisms ensure accurate temperature readings.

The module offers voltage measurement capabilities with ranges of ±30/±60/±75 mV and a high resolution of 16 bits, adjustable to 0.1/0.01°C or 1/2/4 µV per digit, facilitating precise data acquisition. It operates with electrical isolation of 500 V between the E-bus and signal voltage, ensuring safety in electrical environments.

The EL3314 provides flexible configuration options with conversion times ranging from approximately 2.5 s up to 20 ms, depending on settings and filters, with a default conversion time of around 250 ms. It features firmware-adjustable filters for optimized signal processing.

Designed for robust performance, the module operates within a temperature range of -25 to +60°C for normal operation and can withstand storage temperatures from -40 to +85°C. With an IP20 protection rating and adaptable installation positions, the EL3314 ensures reliable operation in various industrial settings with up to 95% relative humidity, non-condensing.

Manufacturer information

Beckhoff Automation is a German manufacturer of open automation systems, including industrial PCs, I/O and fieldbus components, drive technology, automation software, and hardware for machine vision. Beckhoff is known for its innovative and reliable automation technology, which is used in a wide range of industries. The company is committed to providing customers with the best possible automation solutions to help them succeed in their businesses.
